  1. WCL308 Manage Group Policy with Microsoft Advanced Group Policy Management (AGPM) 4.0 Jeremy Moskowitz, Group Policy MVP Chief Propeller-Head GPanswers.com @jeremymoskowitz

  2. (While you’re sitting there, sign up for the GPanswers.com Tip of the Week … (Scan a tag .. Fill out the little form…) and enter to win a copy my (Jeremy’s) book !)

  3. 3 AGPM: A Play in Three (plus 1) Acts • Act 0: The built-in delegation model • And definition of the problem • Act I: Why you care, architecture and installation • Act II: You’re an island • ie: Get to know the features • Act III: You are not alone. • Work with “other” admins

  4. 4 Life Without AGPM • No “Are you sure” • Not when creating GPO • Not when editing GPO • Not when linking GPO • Not “awesome” granular management • No way to “roll back” if problems detected • No history of changes to GPOs

  5. Built-in Delegation Model demo

  6. 6 Life with AGPM (…or “Why you should care”) • Check-out/ Check-in Workflow management • Version control (ie: Rollback) • Difference reporting and history • Role based delegation • Offline Editing • Extra bonus: “Templates”

  7. 7 The General Philosophy • Create new GPOs – offline • Possible to create them online too • Newly created GPOs are “controlled” • Can also control “existing” GPOS • Check out GPO • Can’t be edited by anyone else • Edit the GPO • It’s offline still, remember? • Check in GPO • Others could now edit, but it’s still not live • Review the changes • Approve changes • Deploy GPO

  8. 8 What about existing GPOs? • No problem. Like “wild horses” they need to be “Controlled.” • Find original GPOs in “Uncontrolled” tab then right-click over all of them and select “Control.”

  9. Quick AGPM Control and Creation Demo demo

  10. 10 Architecture • AGPM Service • DC, Member Server • Acts as “proxy” to live GPOs • AGPM “client” run on your (ie: Mr. and Ms. Admin’s) management stations • Not your client systems (ie: The Boss, or the worker-bee. • Big Need: AGPM 4.0 requires • Windows Server 2008 R2 (Server) • Windows 7 (clients) • Neat Fact: • AGPM built upon GPMC APIs

  11. Server Installation – Not hard. Some tips: • Service account • “Broker” for all actions • LocalSystem for DCs • Domain Admin account if not on Domain Controller • Archive owner • NT or single group • suggest: AGPM-OWNERS group

  12. Client Installation – Not hard. Some tips: • Open up firewall port 4600 • Use Group Policy to do it globally for your admins • Common mistake #1: • Not installing the client on all your management stations • Common mistake #2: • Installing it anywhere except your management station (and maybe your DCs if you use them for admin.)

  13. AGPM Installation Demo demo

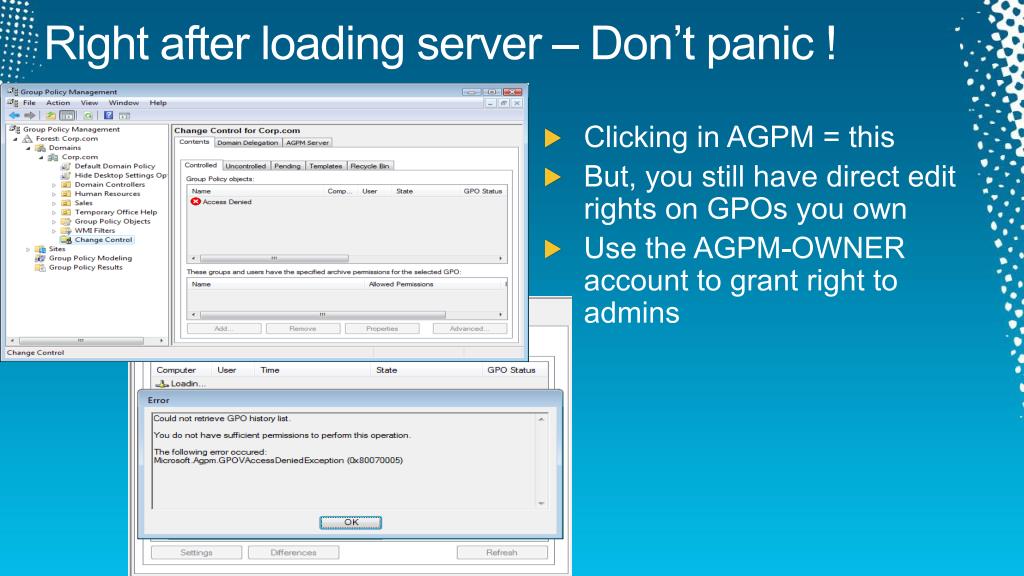

  14. Right after loading server – Don’t panic ! • Clicking in AGPM = this • But, you still have direct edit rights on GPOs you own • Use the AGPM-OWNER account to grant right to admins

  15. Act II: General Features • “Go with the flow”… • Controlling of uncontrolled GPOs • Creating new controlled GPOs (live and in offline) • Check-out of a GPO • Offline edit a Checked-out GPO • See reports of Checked-out GPO • Check-in a GPO • Deploy a checked-in GPO

  16. History, Differences and Rollback • History report on any (controlled) GPO over time • Differences between ANY GPO and anything else: • Live GPO, controlled GPO, old history • Can choose a history item and deploy (to recover)

  17. AGPM Features Demo demo

  18. Act III: Working with others

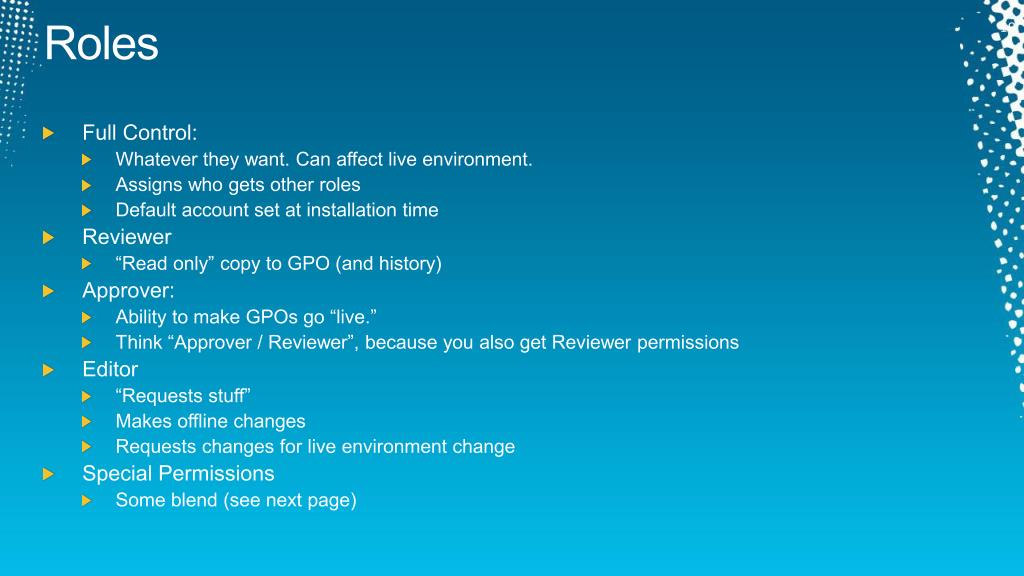

  19. 19 Roles • Full Control: • Whatever they want. Can affect live environment. • Assigns who gets other roles • Default account set at installation time • Reviewer • “Read only” copy to GPO (and history) • Approver: • Ability to make GPOs go “live.” • Think “Approver / Reviewer”, because you also get Reviewer permissions • Editor • “Requests stuff” • Makes offline changes • Requests changes for live environment change • Special Permissions • Some blend (see next page)

  20. 20 Roles vs. Permissions • Roles are really wrapped up “permissions” • Basics listed here • More in downloadable eChapter

  21. The story at Company.com • Three admins, with different levels of ability • Eddie: • Branch Office Admin. New-ish to GPOs. • Regis: • The IT Manager. Knows about GPOs enough to be dangerous. If there’s a problem, it’s his butt on the line. • April: • IT Goddess. Knows the company inside and out. Really knows Group Policy too.

  22. 22 Reviewing Roles • Full Control (AGPM-OWNER): • Whatever they want. Can affect live environment. • Assigns who gets other roles • Default account set at installation time • Editor (Eddie) • Requests new GPOS • Makes offline changes • Request for live deploy • Approver (April): • Ability to make GPOs go “live.” • Reviewer (Regis) • “Read only” copy to GPO (and history)

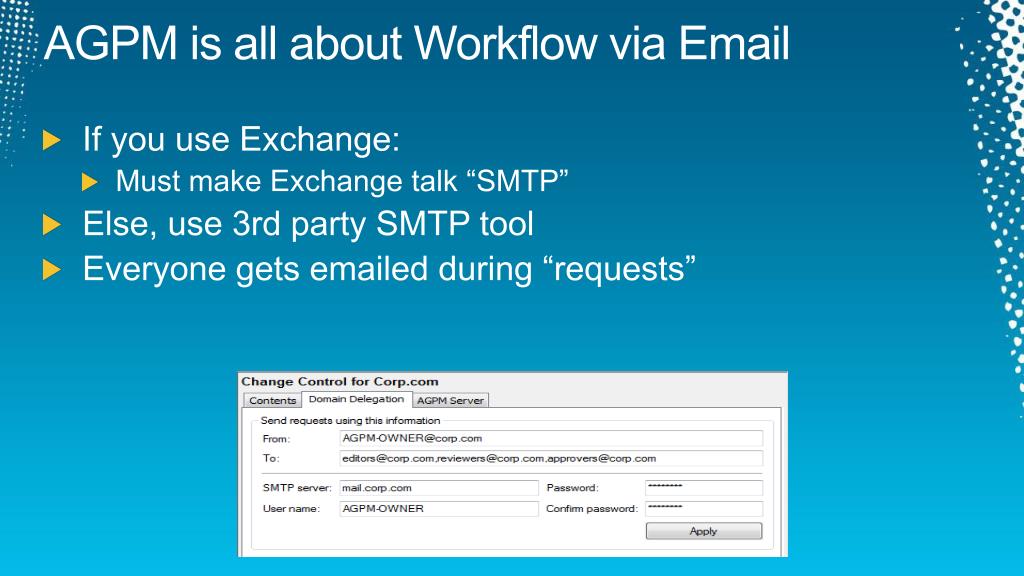

  23. AGPM is all about Workflow via Email • If you use Exchange: • Must make Exchange talk “SMTP” • Else, use 3rd party SMTP tool • Everyone gets emailed during “requests”

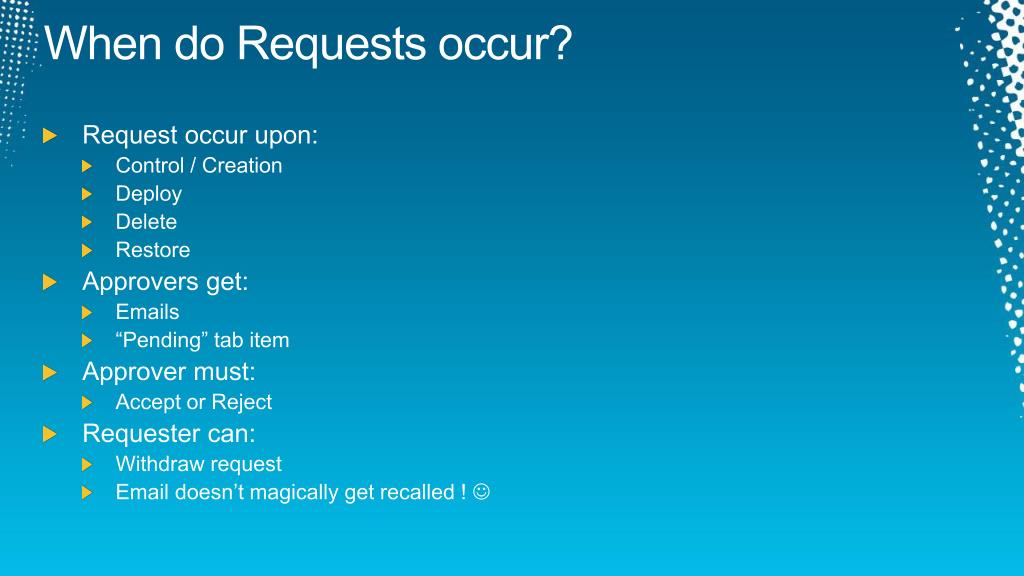

  24. When do Requests occur? • Request occur upon: • Control / Creation • Deploy • Delete • Restore • Approvers get: • Emails • “Pending” tab item • Approver must: • Accept or Reject • Requester can: • Withdraw request • Email doesn’t magically get recalled ! 

  25. A decent story • Eddie: • Requests a live GPO • Doesn’t get it • April: • Approves his offline GPO request • Eddie: • Edits the GPO. • Checks it in. Requests deployment by selecting “Deploy.” (He can’t deploy.) • Regis: • Reviews the GPO. Comments. • April: • Approves or rejects the deployment

  26. AGPM Workflow Demo demo

  27. Any controlled GPO can be a template Bonus: AGPM Templates • Then create new live / offline GPO from template

  28. Misc Stuff: Recycling + Deleting GPOs

  29. Misc Stuff: Searching on GPOs

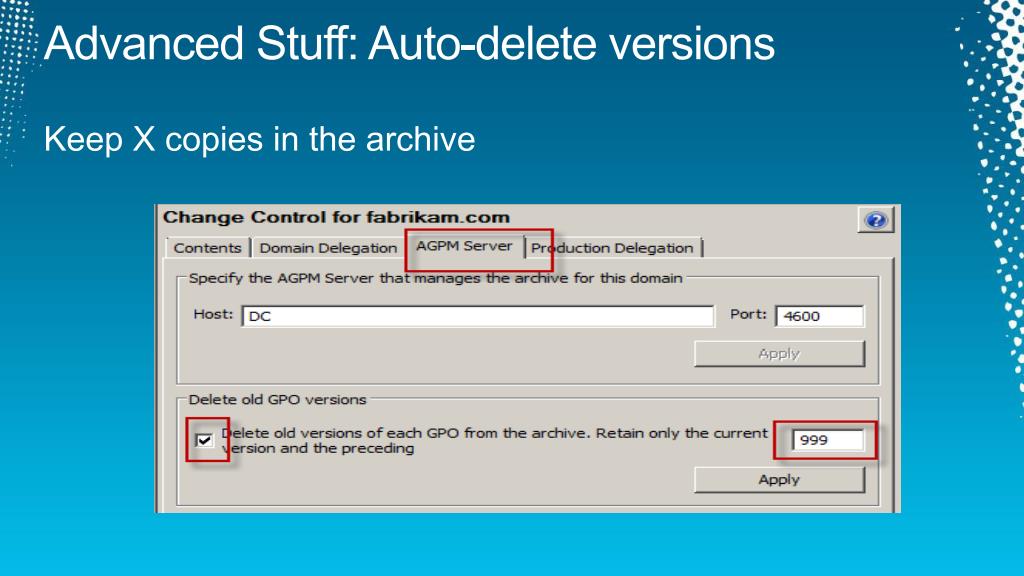

  30. Advanced Stuff: Auto-delete versions Keep X copies in the archive

  31. Advanced Stuff: Permissions on a GPO itself

  32. Advanced Stuff: Production Delegation

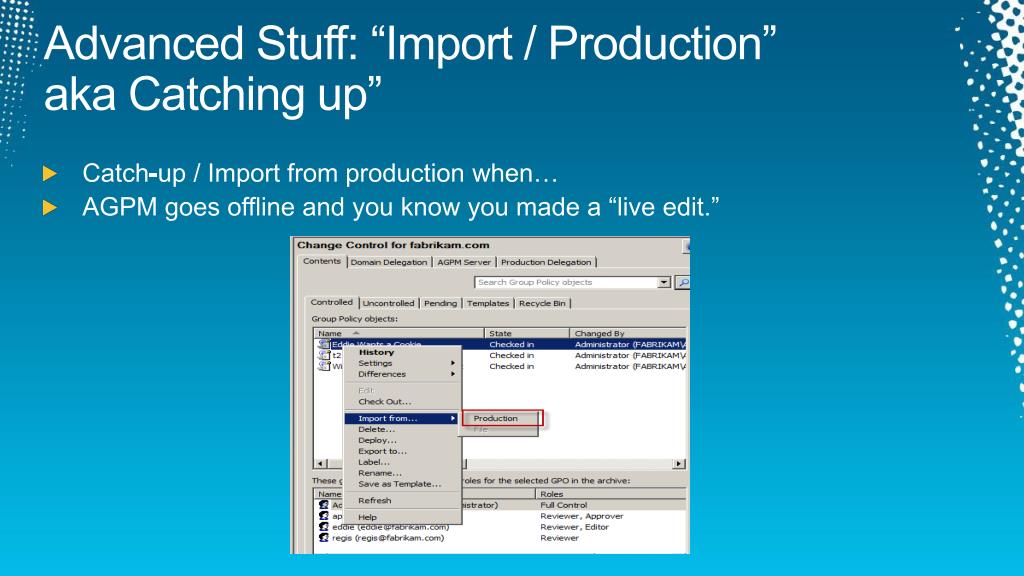

  33. Advanced Stuff: “Import / Production” aka Catching up” • Catch-up / Import from production when… • AGPM goes offline and you know you made a “live edit.”

  34. Advanced Stuff: “Importing / File” • Backup and Import between domains scenario • Overwrites archive GPO

  35. Advanced Stuff: “Importing File” • Alternate way to do same thing • But with new GPOs

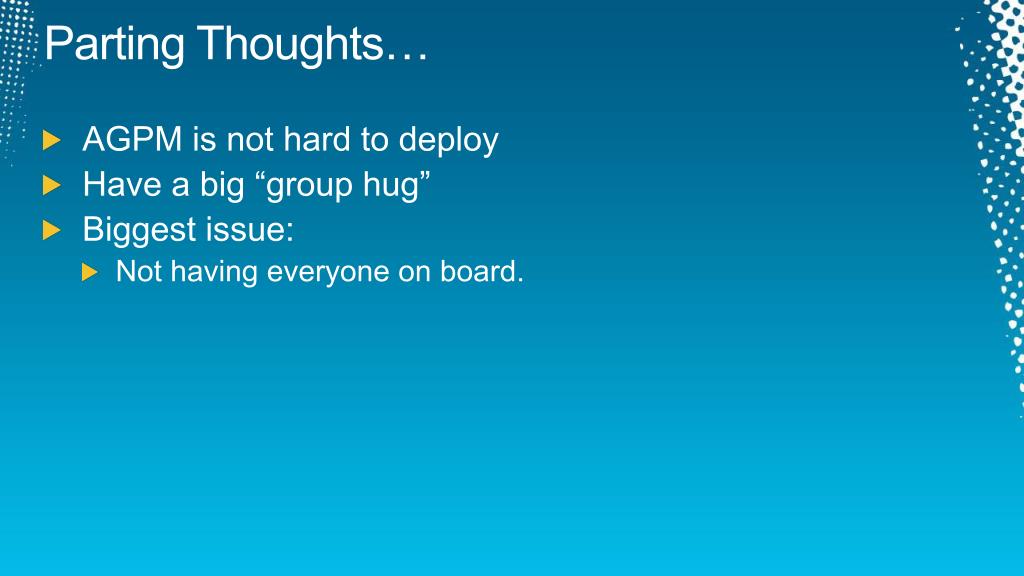

  36. Parting Thoughts… • AGPM is not hard to deploy • Have a big “group hug” • Biggest issue: • Not having everyone on board.

  37. Everyone who scans will get emailed the PDF chapter from my book ! Instantly lock down your OS and applications’ settings using Group Policy Fully AGPM compatible ! …and AppV compatible! Group Policy Tips! Live Training Online Training
