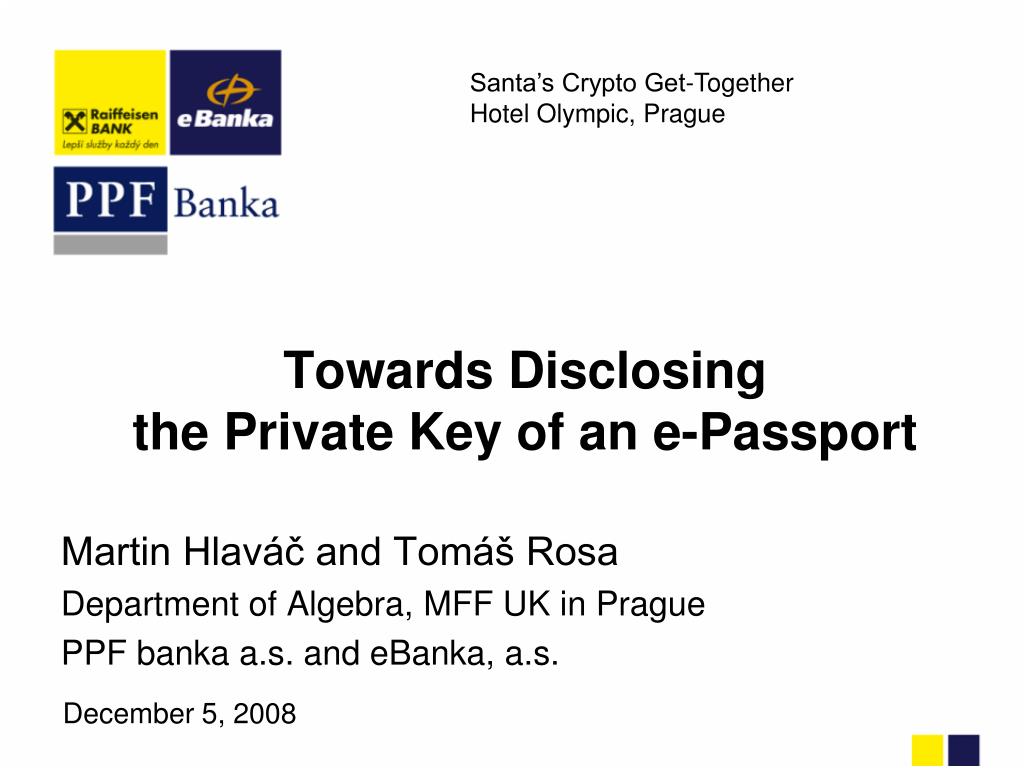

  1. Towards Disclosingthe Private Key of an e-Passport Martin Hlaváč and Tomáš Rosa Department of Algebra, MFF UK in Prague PPF banka a.s. and eBanka, a.s.

  2. Agenda • Technology and platform overview • LF and HF bands interface • Unique ID transponders • Electronic passport • Relay attack • SCH attack on Active Authentication

  3. Passive RF Chips Overview • Contact-less chips radio-classification • LF range chips (100 to 150 kHz) • HF range vicinity cards (13.56 MHz) • HF range proximity cards (13.56 MHz) • UHF range chips (800 MHz and higher) • Huge variety of designs • Cards, keychains, stickers, implants, … • RFID – Radio Frequency Identification • Viewed as a specific application of RF chips

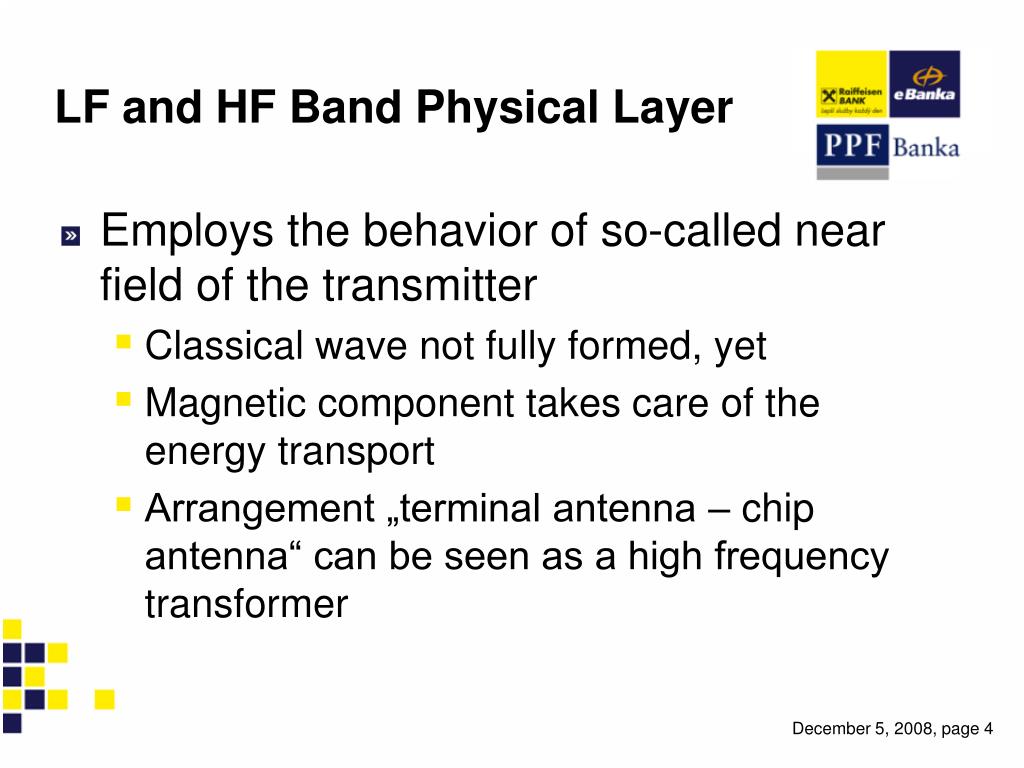

  4. LF and HF Band Physical Layer • Employs the behavior of so-called near field of the transmitter • Classical wave not fully formed, yet • Magnetic component takes care of the energy transport • Arrangement „terminal antenna – chip antenna“ can be seen as a high frequency transformer

  5. Talking with the Transponder transponder RFID terminal RFID internal network transponder field terminal field

  6. Ordinary Operational Distance

  7. When the Distance Matters • Attacking techniques and ranges for HF band according to ISO 14443

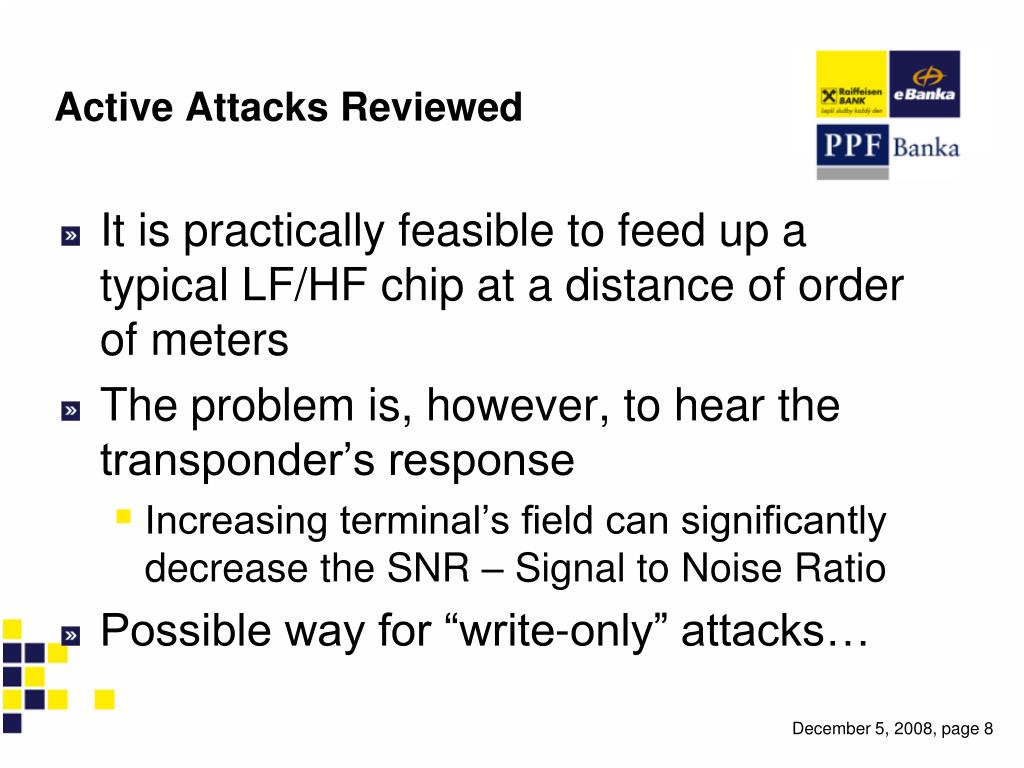

  8. Active Attacks Reviewed • It is practically feasible to feed up a typical LF/HF chip at a distance of order of meters • The problem is, however, to hear the transponder’s response • Increasing terminal’s field can significantly decrease the SNR – Signal to Noise Ratio • Possible way for “write-only” attacks…

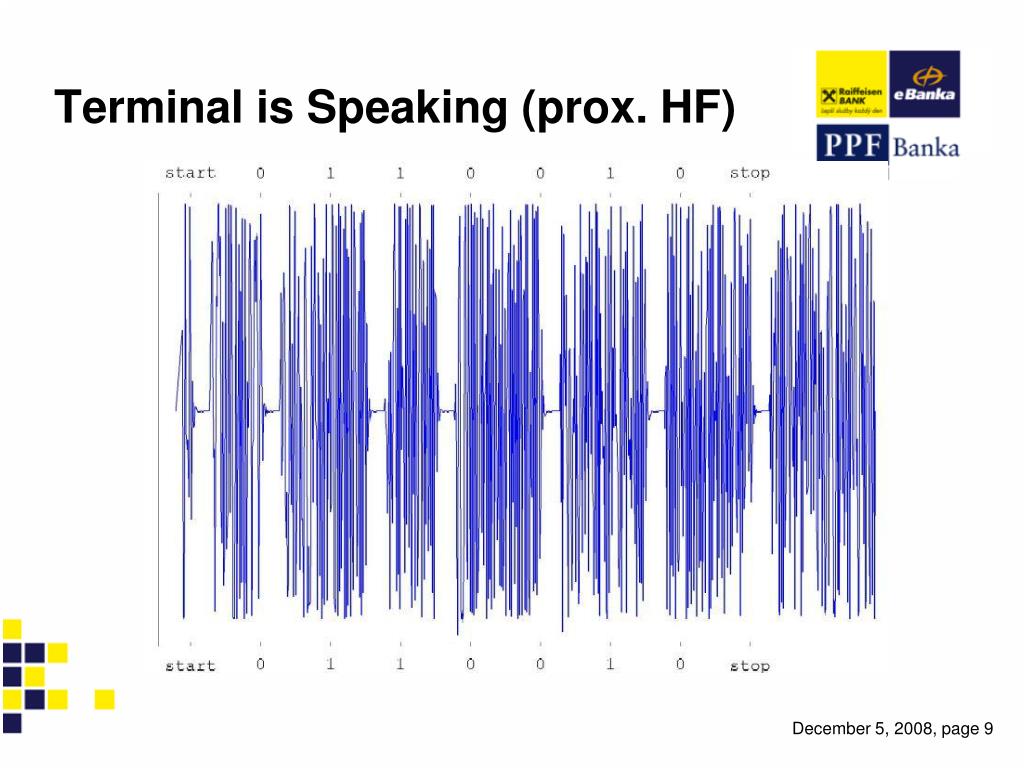

  9. Terminal is Speaking (prox. HF)

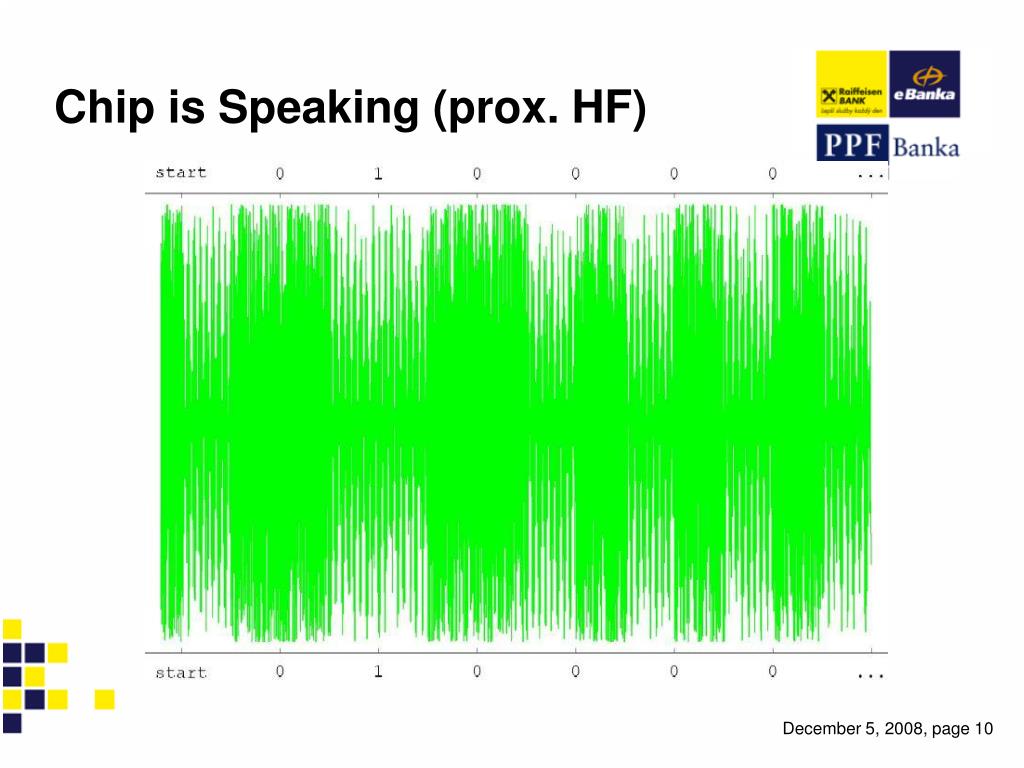

  10. Chip is Speaking (prox. HF)

  11. Unique ID Transponders • Popular in access protection to buildings, offices, garages, etc. • Examples: EM4x02, HID Isoprox II, Indala, etc. • LF Band • Serial memory with several dozens bits • Sends repeatedly its identifier when in terminal’s field • No cryptographic protection • Security almost non-existing in many cases

  12. LF Band Skimmer – Terminal Mode Transmitter Receiver Digital part

  13. LF Band Skimmer – Emulator Mode Load modulator Carrier sensing Digital part

  14. Contactless Smartcard • Important sub-class of RFID transponders • Function-wise and security-wise in par with classical (contact) smartcards • Platform – proximity card (13.56 MHz)

  15. ISO 14443 • Standardizes proximity cards • Usual operational distance 10 cm • Sub-groups A, B • Differ in communication protocol details (modulation, coding, frames, semantics) • Transport platform for contactless smartcards

  16. ISO 7816 • Describes • contact card communication interface • contact(-less) card application protocol • Effort to unify the view of a smartcard regardless the communication interface • Combination of ISO 14443 (communication) and ISO 7816 (application commands) • From the point of view of ISO 7816 there is a new communication protocol identified with T = CL (Contact-Less) • Application platform of contact(-less) smartcards

  17. Contact or Contactless • Hierarchy of standards for contact and contact-less smartcards

  18. Electronic Passport • Equipped with a contact-less smartcard chip • Compatible with ISO 14443 and ISO 7816 • Application code: A0 00 00 02 47 10 01 • Data files • DG1 to DG15: related to the travel document (DG1 – copy of machine readable zone (MRZ), DG2 – photo of the face, DG15 public key for active authentication) • EF.COM, EF.SOD, EF.DIR: service data

  19. P5CD072

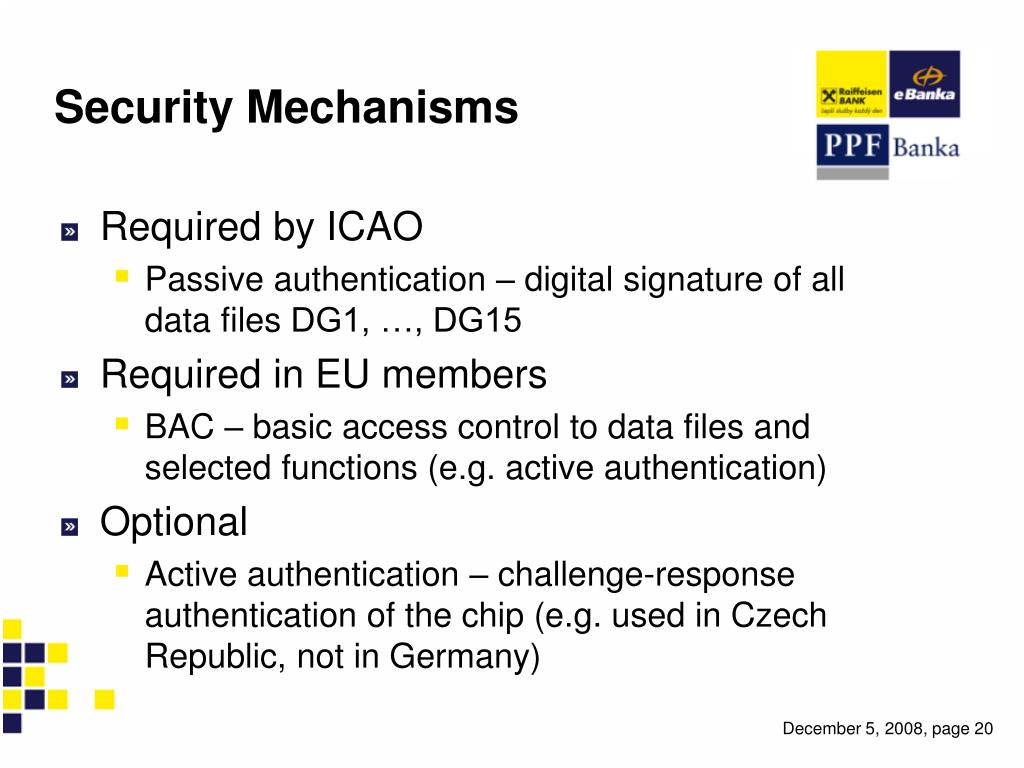

  20. Security Mechanisms • Required by ICAO • Passiveauthentication – digital signature of all data files DG1, …, DG15 • Required in EU members • BAC – basic access control to data files and selected functions (e.g. active authentication) • Optional • Active authentication – challenge-response authentication of the chip (e.g. used in Czech Republic, not in Germany)

  21. Apparent Weaknesses of ICAO e-Passport • Detectability of passport presence • Markers: presence of application A0 00 00 02 47 10 01, BAC protocol support, etc. • Brute force attack on BAC • Apparently low main password entropy • Listening to terminal is sufficient • Partial weaknesses of BAC and SM • Detectability of passport with known password (MRZ) • SM does not protect the command headers and status error answers

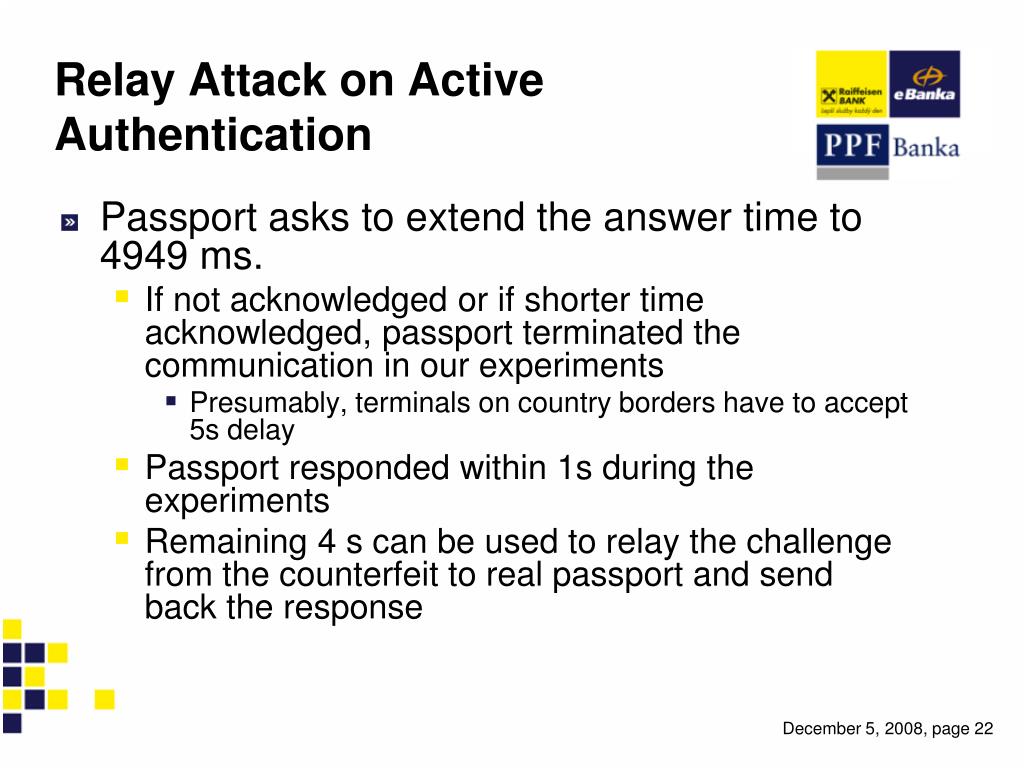

  22. Relay Attack on Active Authentication • Passport asks to extend the answer time to 4949 ms. • If not acknowledged or if shorter time acknowledged, passport terminated the communication in our experiments • Presumably, terminals on country borders have to accept 5s delay • Passport responded within 1s during the experiments • Remaining 4 s can be used to relay the challenge from the counterfeit to real passport and send back the response

  23. Attack Illustration terminal fakepassport faketerminal passport RF channel 1 channel 2 RF channel 3 initialization initialization file reading AA challenge challenge relay AA challenge S(WTX) S(WTX) AA response response relay AA response

  24. Side Channels • SCH is any unwanted information exchange between the cryptographic module and its surroundings • Physical principles of passive RF chips greatly facilitate existence of many SCH • Electromagnetic field is a primary concern

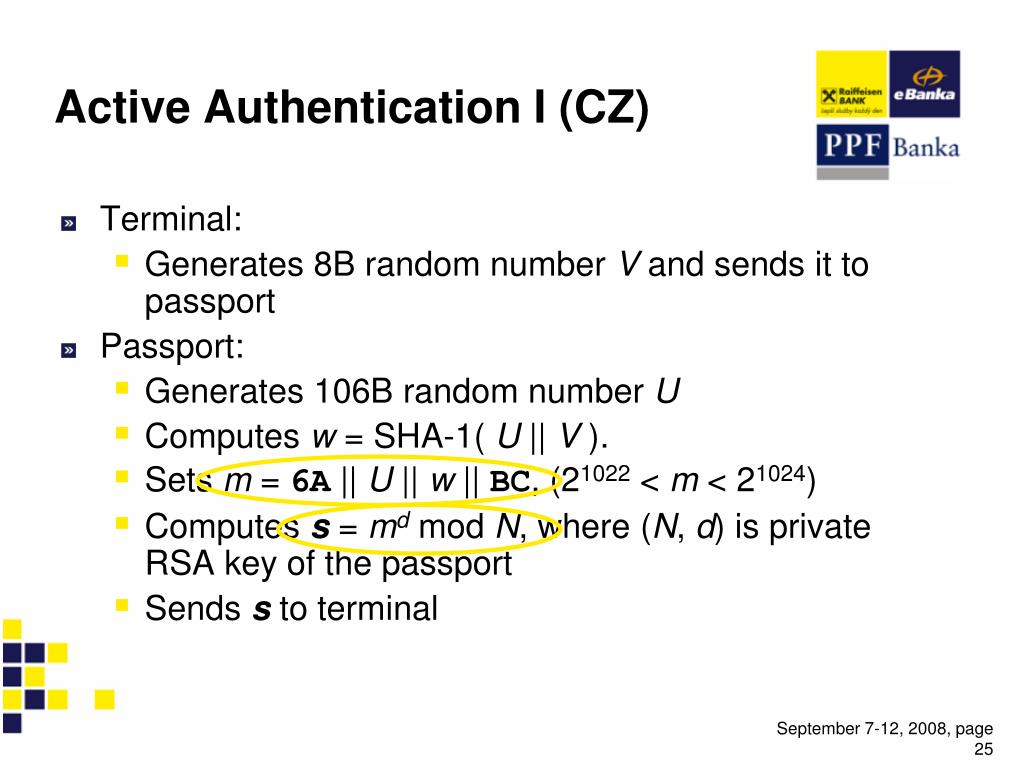

  25. Active Authentication I (CZ) • Terminal: • Generates 8B random number V and sends it to passport • Passport: • Generates 106B random numberU • Computesw = SHA-1( U || V ). • Setsm = 6A || U || w || BC, (21022 < m < 21024) • Computess = md mod N, where (N, d) is private RSA key of the passport • Sends s to terminal

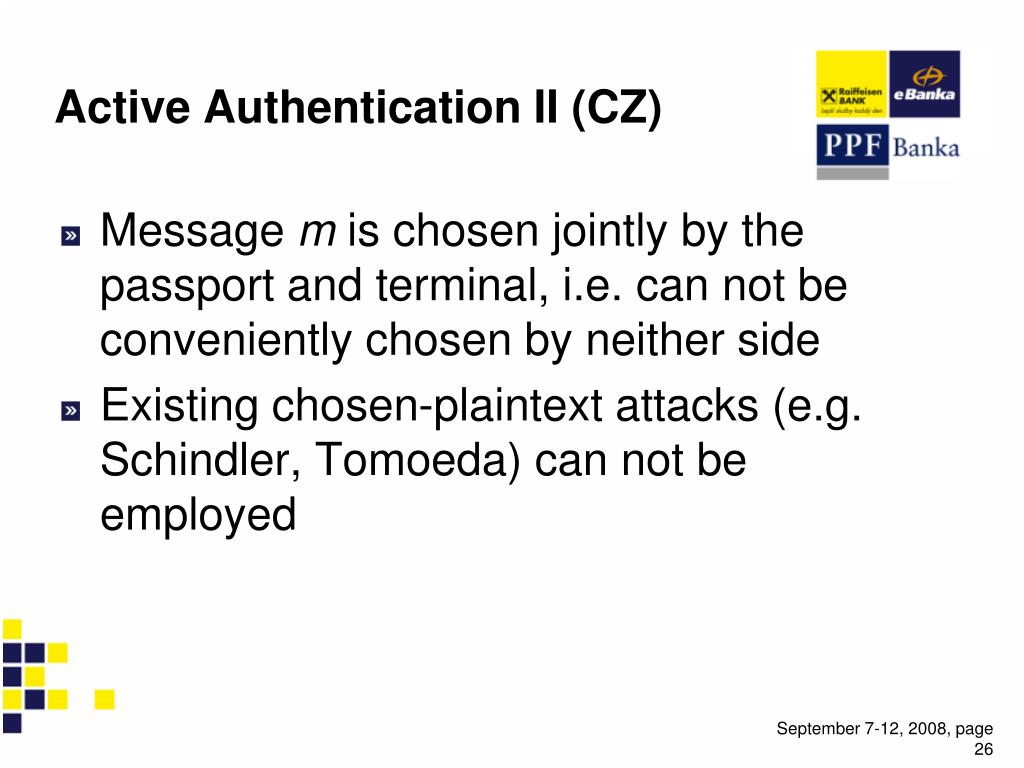

  26. Active Authentication II (CZ) • Message m is chosen jointly by the passport and terminal, i.e. can not be conveniently chosen by neither side • Existing chosen-plaintext attacks (e.g. Schindler, Tomoeda) can not be employed

  27. FAME-XE Exposure in the Field s = md mod N S M S M S M S M S M S Measurements by doc. Lórencz’s team, KP FEL ČVUT in Prague, april 2007

  28. Chinese Remainder Theorem (CRT) • private RSA operation mdmodN is computed using CRT as follows • 4x faster than simple exponentiation • use of secret p,q makes CRT more vulnerable

  29. Montgomery exponentiation • exponentiation Input: c, p, d (=dn-1dn-2…d1d0)2) Output: x = cdmodp • ucRmodp • zu • for i = n-2 to 0 • z mont(z,z,p) • if di == 1 then • z mont(z,u,p) • else • z’ mont(z,u,p) • endfor • z mont(z,1,p) • return z • multiplication (mont) • Input: x,yZp • Output: w = xyR-1modp • wxy • t s(-p-1) modR • gs + tp • wg/R • if w>p then • ww – p (final substitution) • return w • operations mod/div R=2512, i.e. it’s fast • leaks information about secret p in final substitution

  30. Amount of Final Substitutions • we suspect the amount of FS leaks from the passport in EM channel • More higher-quality measurements are needed to support this hypothesis If this hypothesis is correct the Active Authentication can be broken

  31. lin. algebra Outline of the attack approximations of secret q # FS (known) Experiments indicate some approximations are good enough. function of p (unknown) The relationship between the number of FS during the computation mcmodN and the value miRmodp. (Tomoeda, 2006) precision in bits # FS app. 2%

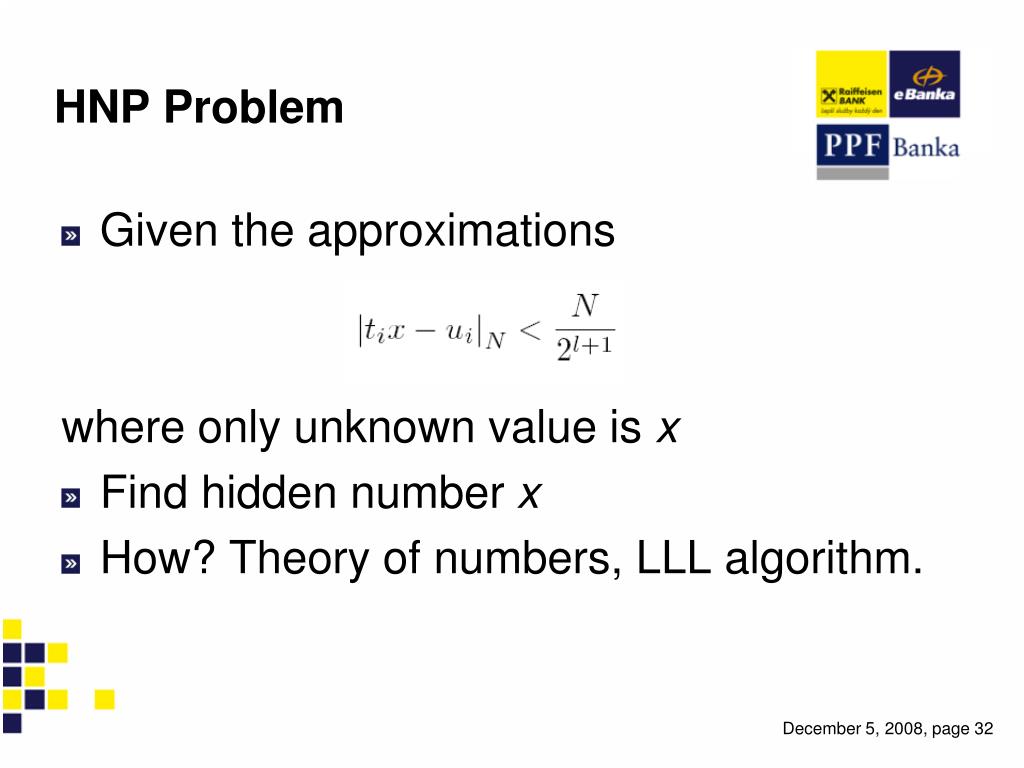

  32. HNP Problem • Given the approximations where only unknown value is x • Find hidden number x • How? Theory of numbers, LLL algorithm.

  33. Key Recovery • Construct lattice L(B) and approximation vector • Reduce its basis with LLL algorithm • Hope to find hidden vector and hidden number x

  34. Experiments • Hardware setup: 16x Opteron 246 • Measurements: 150 filtered from 7000 • Time: app. 40 minutes • Result: private RSA key found

  35. Conclusion • EM side channel on e-passport exists • New cryptanalytic technique using this side information is elaborated • Higher quality measurements needed • If our hypothesis is correct, AA can be broken, i.e. e-passport can be duplicated, in order of hours

  36. Thank you for your attention … Martin Hlaváč Department of Algebra MFF UK, PPF banka, a.s. hlavm1am@artax.karlin.mff.cuni.cz Tomáš Rosa eBanka, a.s. Department of Algebra MFF UK, trosa@ebanka.cz

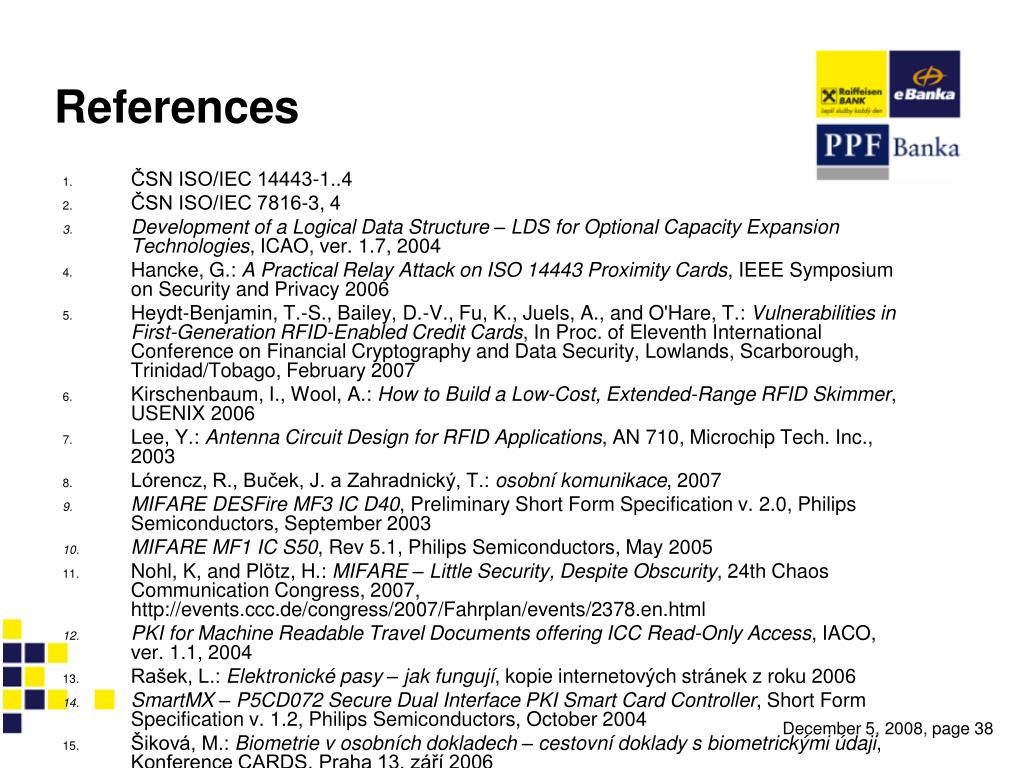

  37. References • ČSN ISO/IEC 14443-1..4 • ČSN ISO/IEC 7816-3, 4 • Development of a Logical Data Structure – LDS for Optional Capacity Expansion Technologies, ICAO, ver. 1.7, 2004 • Hancke, G.: A Practical Relay Attack on ISO 14443 Proximity Cards, IEEE Symposium on Security and Privacy 2006 • Heydt-Benjamin, T.-S., Bailey, D.-V., Fu, K., Juels, A., and O'Hare, T.: Vulnerabilities in First-Generation RFID-Enabled Credit Cards, In Proc. of Eleventh International Conference on Financial Cryptography and Data Security, Lowlands, Scarborough, Trinidad/Tobago, February 2007 • Kirschenbaum, I., Wool, A.: How to Build a Low-Cost, Extended-Range RFID Skimmer, USENIX 2006 • Lee, Y.: Antenna Circuit Design for RFID Applications, AN 710, Microchip Tech. Inc., 2003 • Lórencz, R., Buček, J. a Zahradnický, T.: osobní komunikace, 2007 • MIFARE DESFire MF3 IC D40, Preliminary Short Form Specification v. 2.0, Philips Semiconductors, September 2003 • MIFARE MF1 IC S50, Rev 5.1, Philips Semiconductors, May 2005 • Nohl, K, and Plötz, H.: MIFARE – Little Security, Despite Obscurity, 24th Chaos Communication Congress, 2007, http://events.ccc.de/congress/2007/Fahrplan/events/2378.en.html • PKI for Machine Readable Travel Documents offering ICC Read-Only Access, IACO, ver. 1.1, 2004 • Rašek, L.: Elektronické pasy – jak fungují, kopie internetových stránek z roku 2006 • SmartMX – P5CD072 Secure Dual Interface PKI Smart Card Controller, Short Form Specification v. 1.2, Philips Semiconductors, October 2004 • Šiková, M.: Biometrie v osobních dokladech – cestovní doklady s biometrickými údaji, Konference CARDS, Praha 13. září 2006
