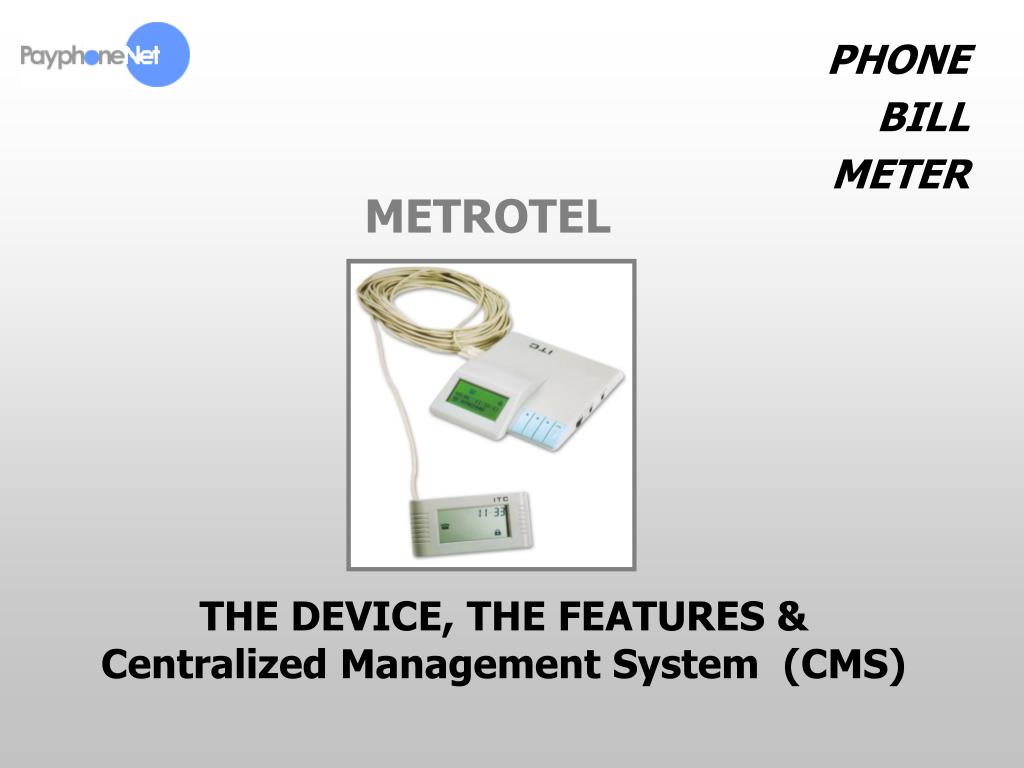

  1. METROTEL PHONE BILL METER THE DEVICE, THE FEATURES & Centralized Management System (CMS)

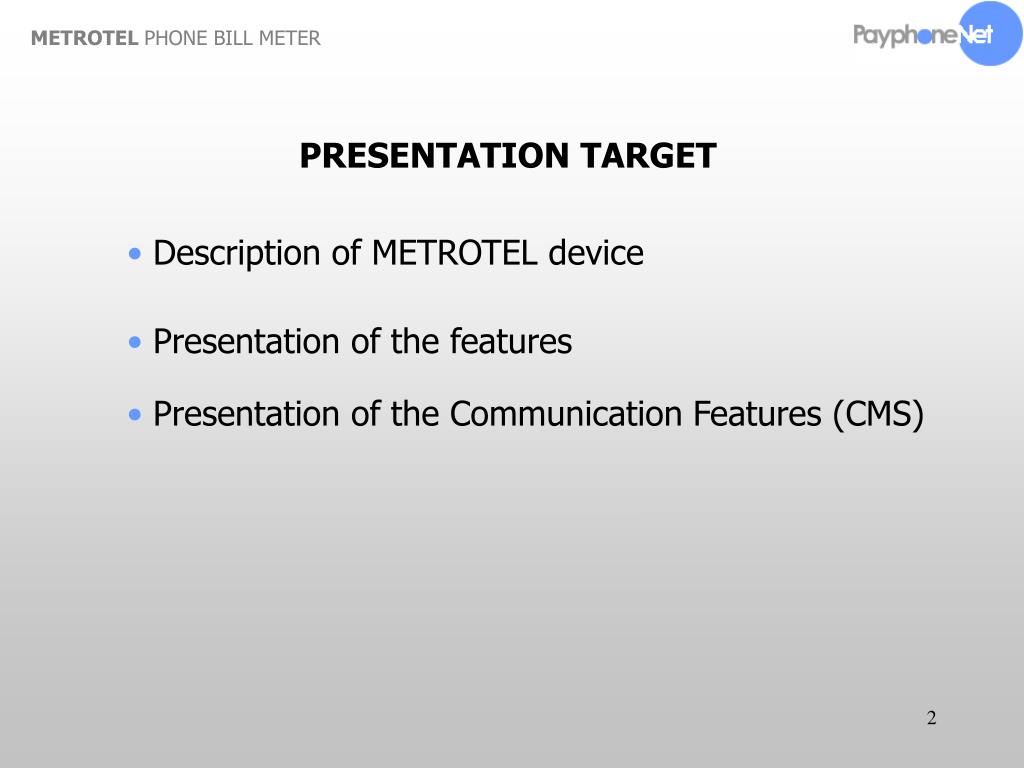

  2. METROTEL PHONE BILL METER PRESENTATION TARGET • Description of METROTEL device • Presentation of the features • Presentation of the Communication Features (CMS)

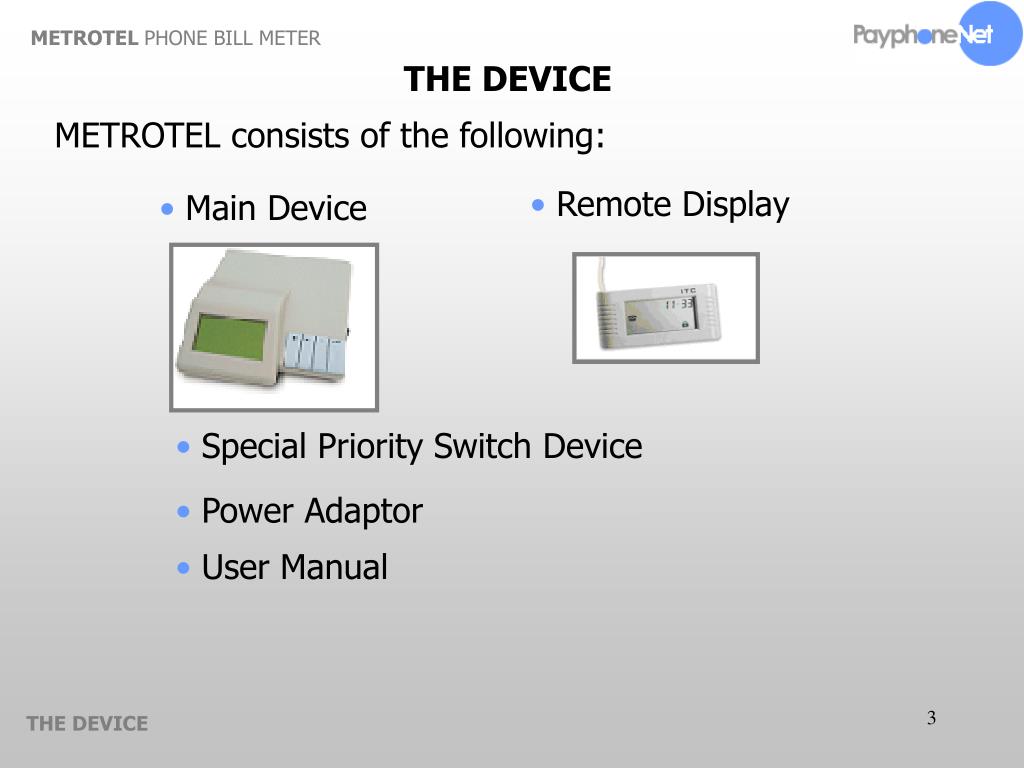

  3. THE DEVICE METROTEL PHONE BILL METER METROTEL consists of the following: • Remote Display • Main Device • Special Priority Switch Device • Power Adaptor • User Manual THE DEVICE

  4. METROTEL PHONE BILL METER MAIN DEVICE • Dot Matrix LCD (128x64) with background light • 4 command & navigation buttons • RS 232 Serial Port for PC communication • LPT Parallel Port for micro printer communication • Rechargeable back up battery (16 hours nominal autonomy) • Modem 1200 bps, V.12, for dual communication with CMS THE DEVICE

  5. METROTEL PHONE BILL METER REMOTE DISPLAY • Dot Matrix LCD (128x64) • 18 m length cable • Shore points for wall mounting THE DEVICE

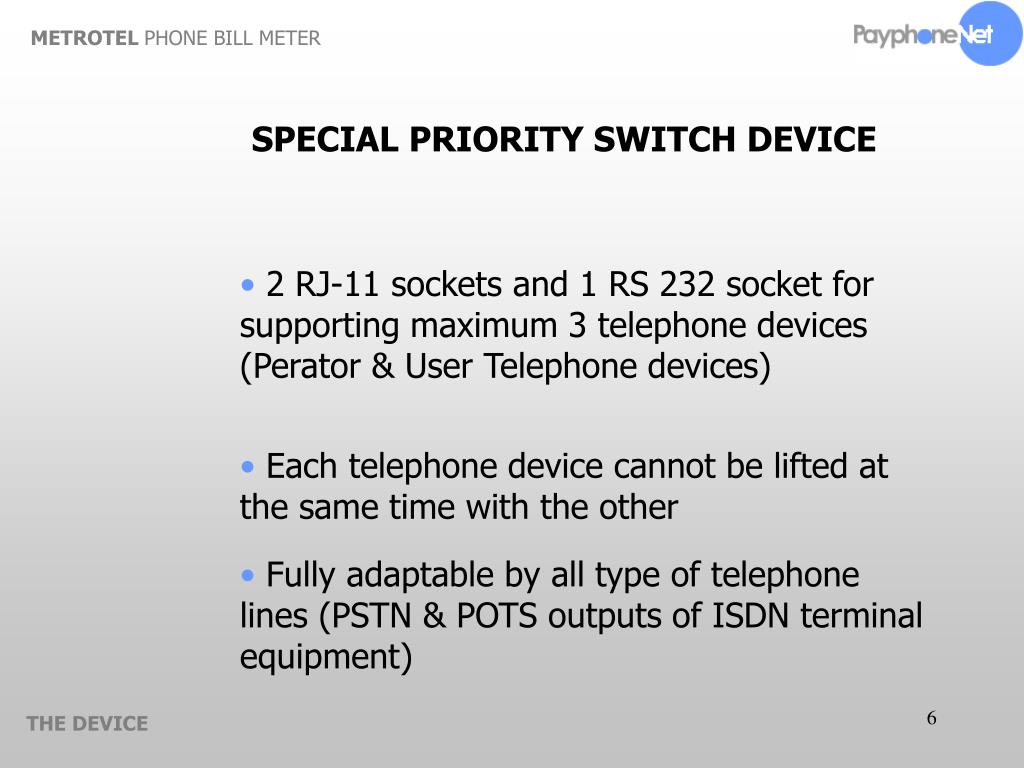

  6. METROTEL PHONE BILL METER SPECIAL PRIORITY SWITCH DEVICE • 2 RJ-11 sockets and 1 RS 232 socket for supporting maximum 3 telephone devices (Perator & User Telephone devices) • Each telephone device cannot be lifted at the same time with the other • Fully adaptable by all type of telephone lines (PSTN & POTS outputs of ISDN terminal equipment) THE DEVICE

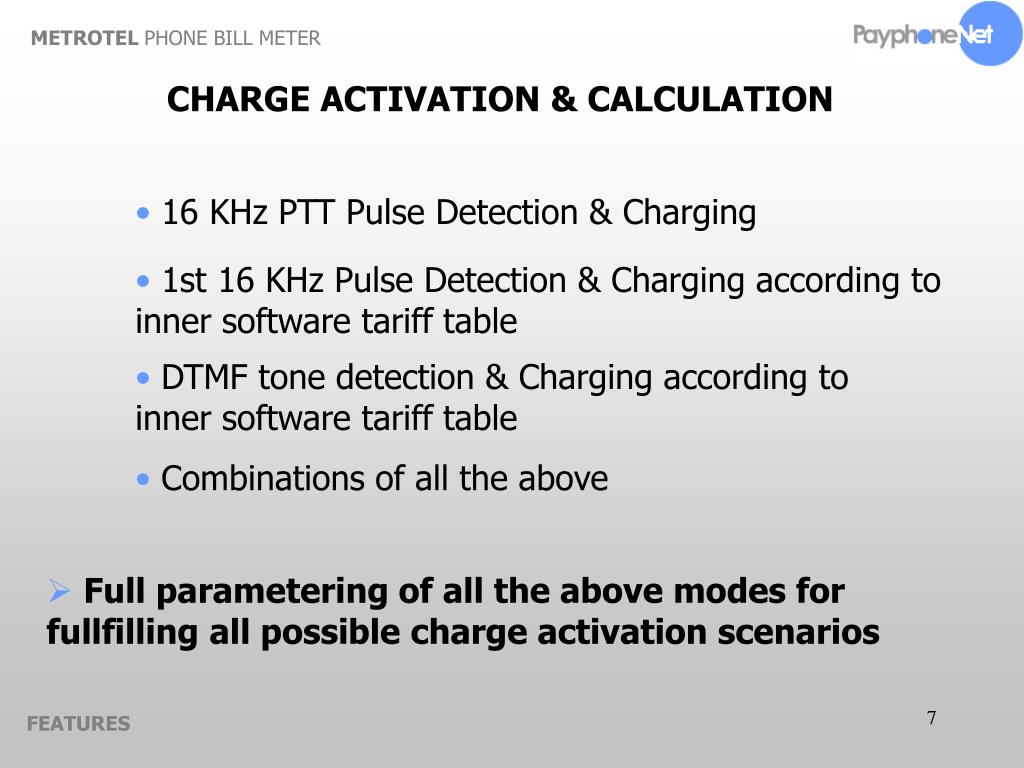

  7. METROTEL PHONE BILL METER CHARGE ACTIVATION & CALCULATION • 16 ΚΗzPTT Pulse Detection & Charging • 1st16 KHz Pulse Detection & Charging according to inner software tariff table • DTMF tone detection & Charging according to inner software tariff table • Combinations of all the above • Full parametering of all the above modes for fullfilling all possible charge activation scenarios FEATURES

  8. INSTALLING PROCEDURE METROTEL PHONE BILL METER METROTEL is a plug & play device. The installing procedure consists of the following steps: 1.The customer purchases the device without opening the package 2.The customer connects the device to the telephone network according to the user manual 3.The customer registers the Telephone Number in the inner software 4.The customer Up Calls the Centralized Management System METROTEL is programmed and ready for use within some seconds FEATURES

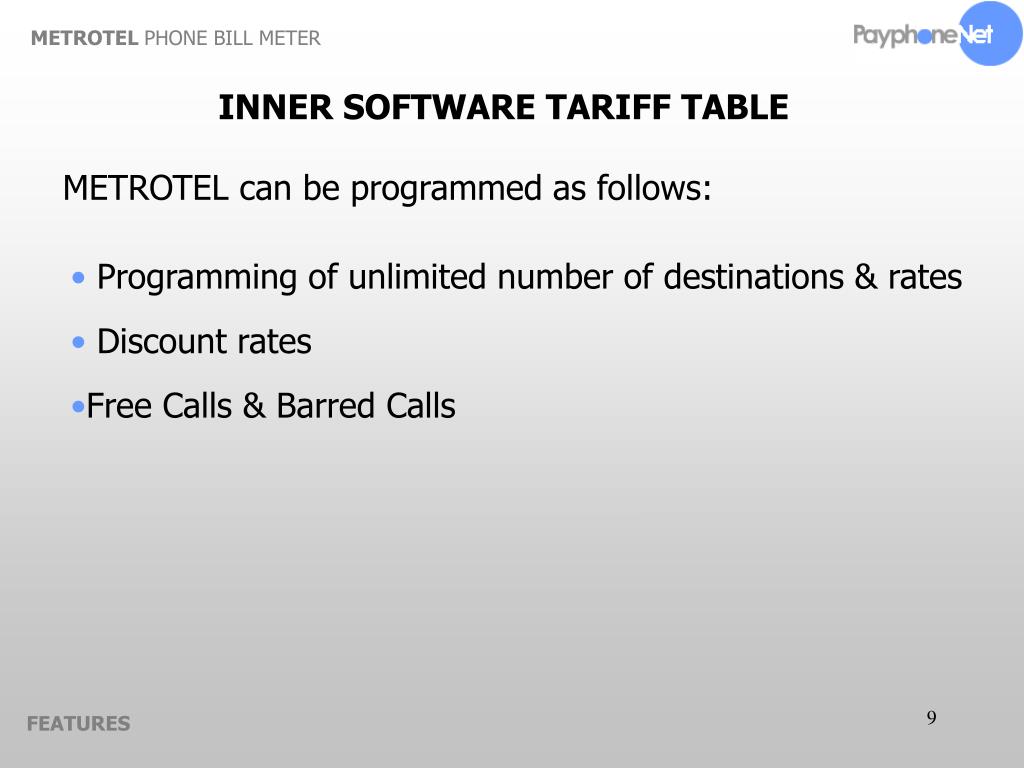

  9. METROTEL PHONE BILL METER INNER SOFTWARE TARIFF TABLE METROTEL can be programmed as follows: • Programming of unlimited number of destinations & rates • Discount rates • Free Calls & Barred Calls FEATURES

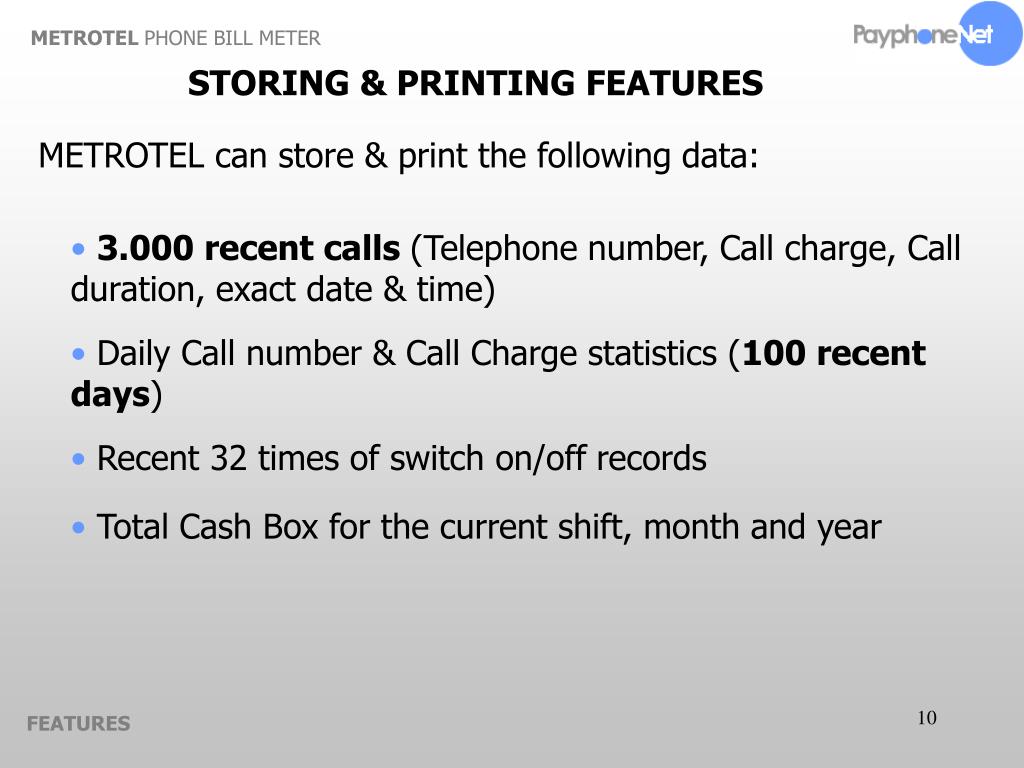

  10. STORING & PRINTING FEATURES METROTEL PHONE BILL METER METROTEL can store & print the following data: • 3.000 recent calls (Telephone number, Call charge, Call duration, exact date & time) • Daily Call number & Call Charge statistics (100 recent days) • Recent 32 times of switch on/off records • Total Cash Box for the current shift, month and year FEATURES

  11. OTHER FEATURES: METROTEL PHONE BILL METER METROTEL provides the following additional features: • Pre-pay value setting • Auto Locking feature after every call • Locking feature while call duration by the operator • Low Battery indication • 2 Language Supporting feature (English, Greek, Chinese or any other language) • 16 character welcome message every time the device is switched on • Lightning Protection • Billing info storing for 10 years in spite of power failure FEATURES

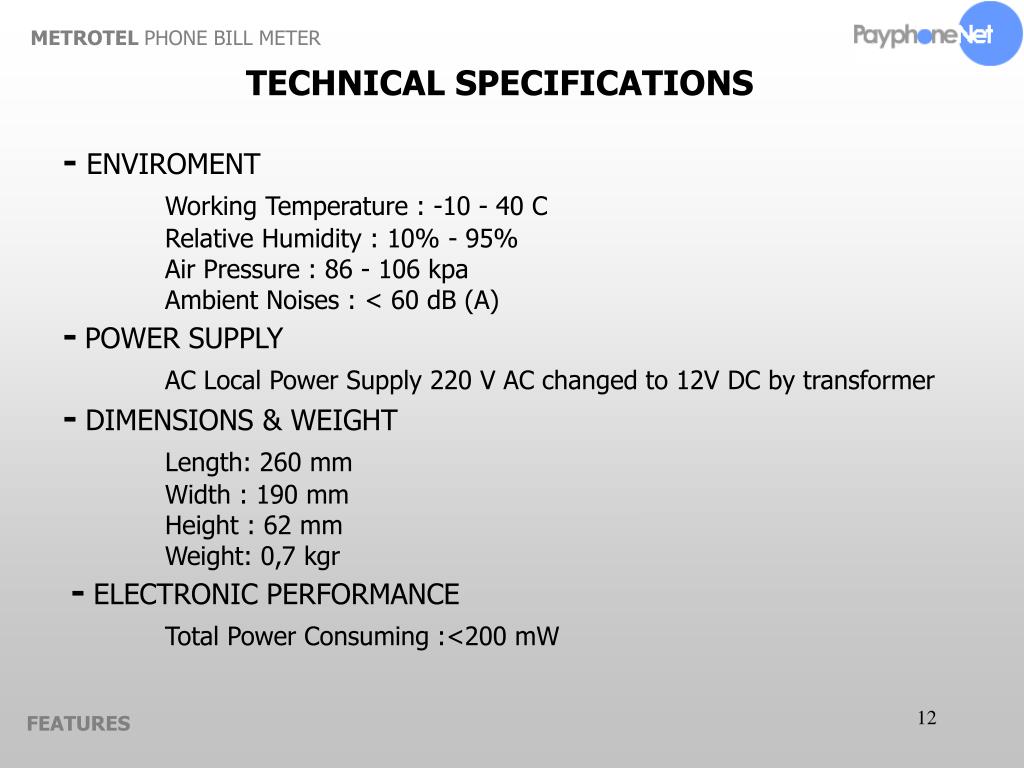

  12. TECHNICAL SPECIFICATIONS METROTEL PHONE BILL METER - ENVIROMENTWorking Temperature : -10 - 40C Relative Humidity : 10% - 95%Air Pressure : 86 - 106 kpa Ambient Noises : < 60 dB (A)-POWER SUPPLYAC Local Power Supply 220 V AC changed to 12V DC by transformer-DIMENSIONS & WEIGHTLength: 260 mm Width : 190 mm Height : 62 mmWeight: 0,7 kgr-ELECTRONIC PERFORMANCETotal Power Consuming :<200 mW FEATURES

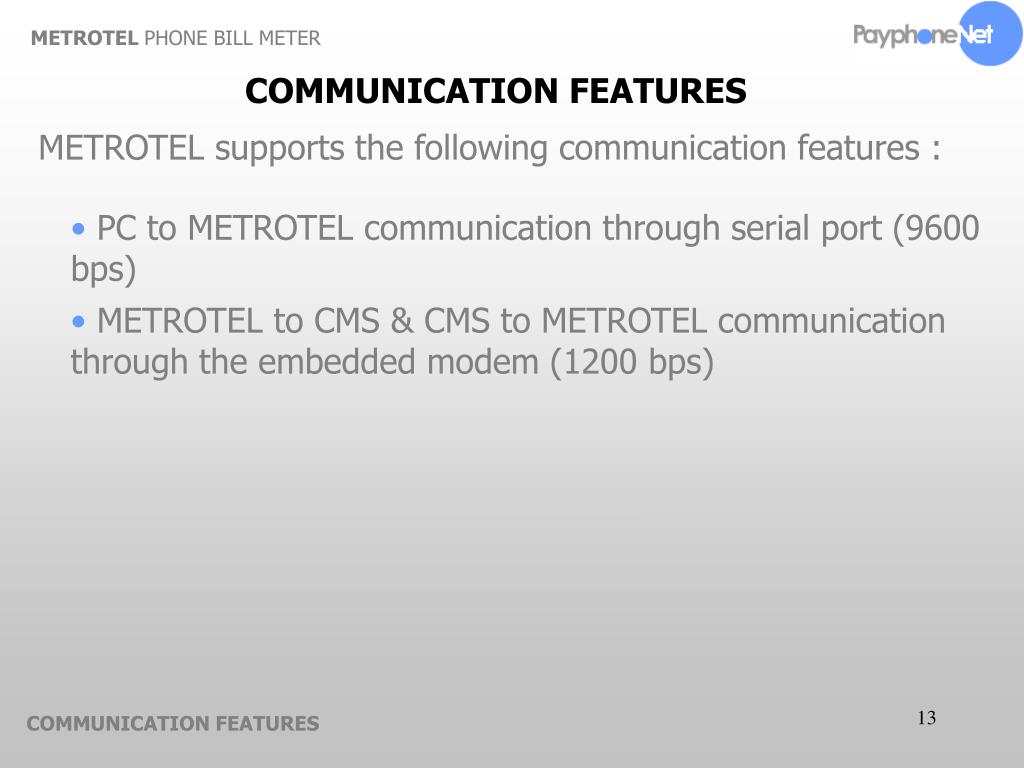

  13. METROTEL PHONE BILL METER COMMUNICATION FEATURES METROTEL supports the following communication features : • PC to METROTEL communication through serial port (9600 bps) • METROTEL to CMS & CMS to METROTEL communication through the embedded modem (1200 bps) COMMUNICATION FEATURES

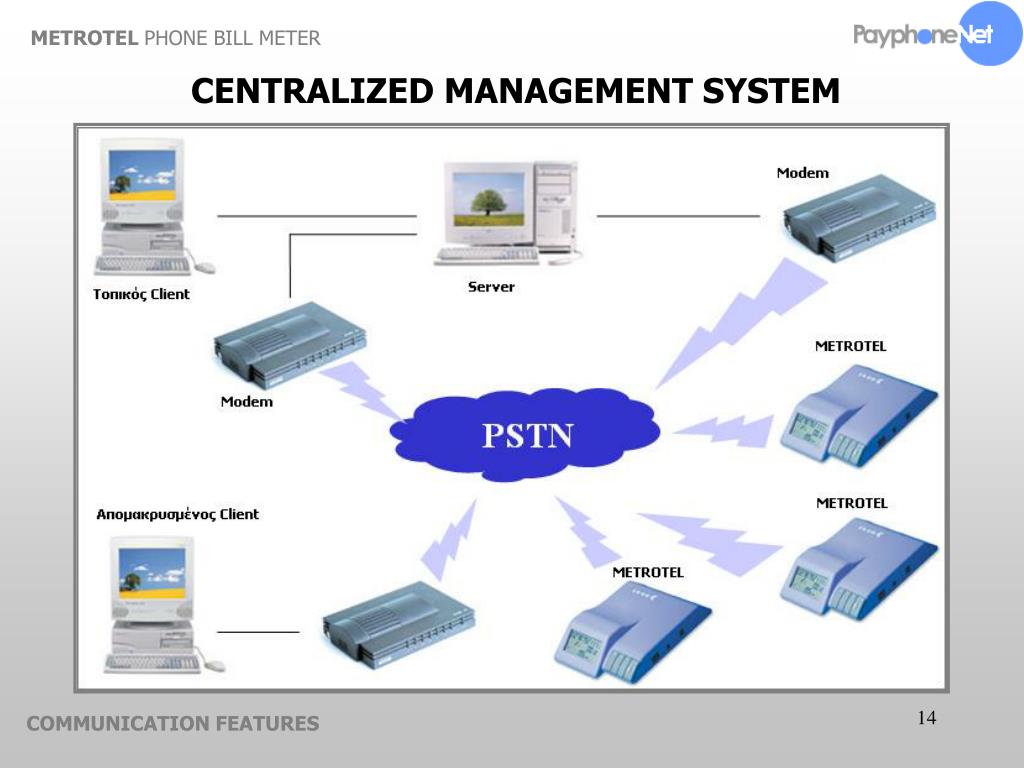

  14. METROTEL PHONE BILL METER CENTRALIZED MANAGEMENT SYSTEM COMMUNICATION FEATURES

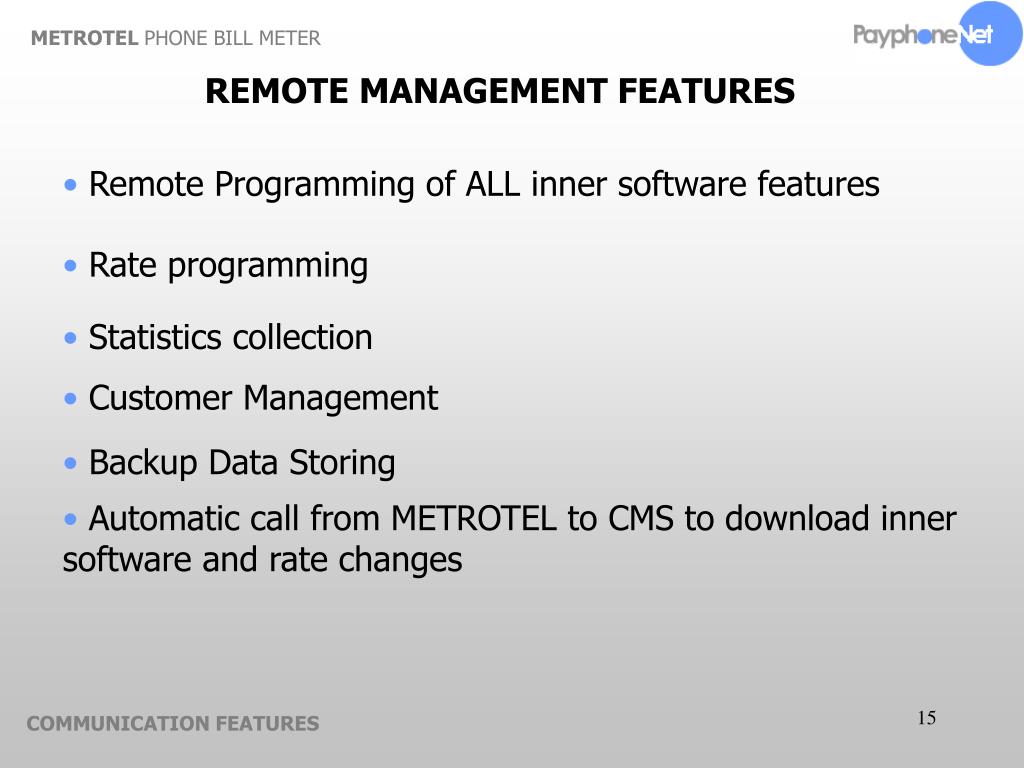

  15. METROTEL PHONE BILL METER REMOTE MANAGEMENT FEATURES • Remote Programming of ALL inner software features • Rate programming • Statistics collection • Customer Management • Backup Data Storing • Automatic call from METROTEL to CMS to download inner software and rate changes COMMUNICATION FEATURES

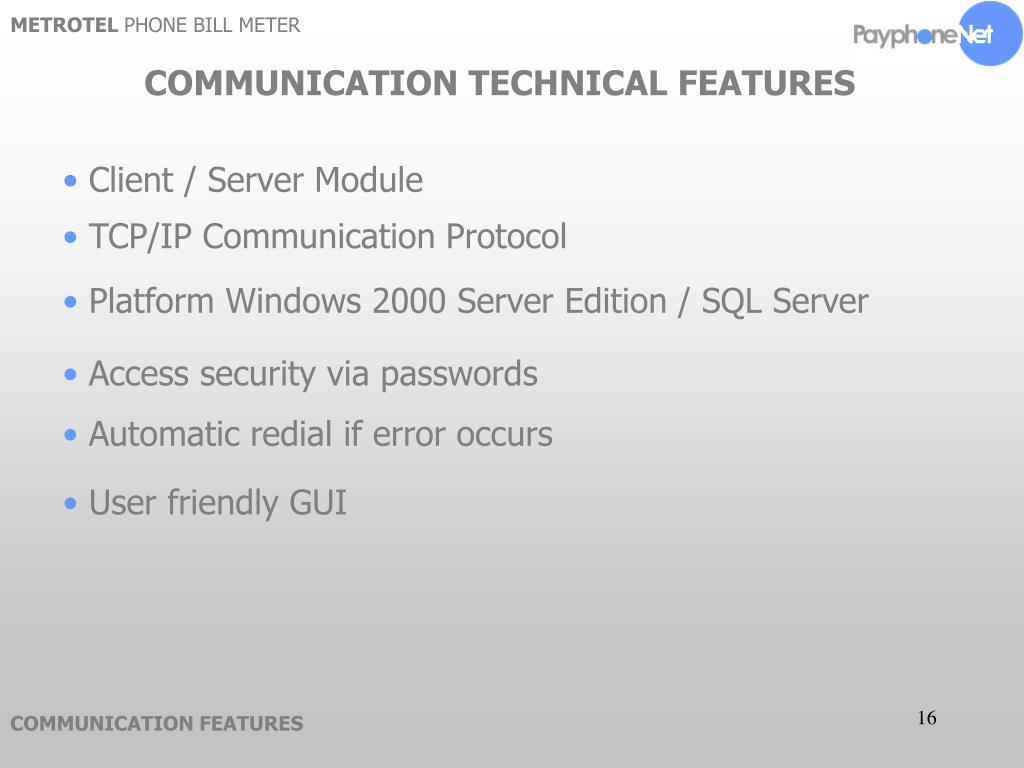

  16. COMMUNICATION TECHNICAL FEATURES METROTEL PHONE BILL METER • Client / Server Module • TCP/IP Communication Protocol • PlatformWindows 2000 Server Edition / SQL Server • Access security via passwords • Automatic redial if error occurs • User friendly GUI COMMUNICATION FEATURES

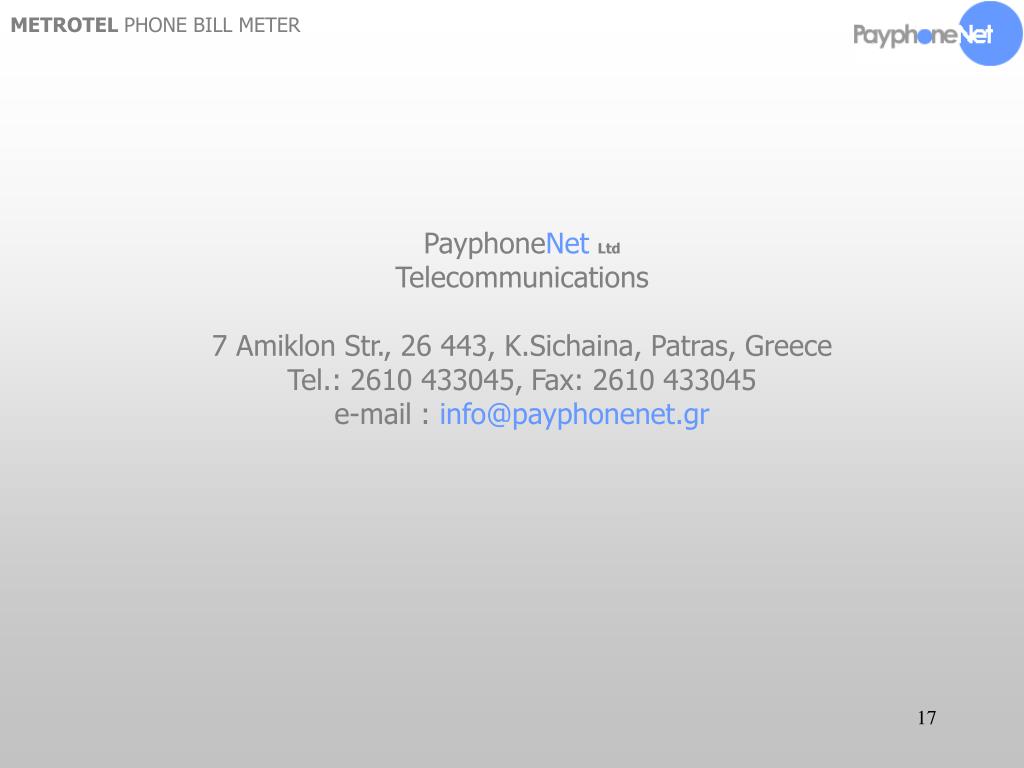

  17. METROTEL PHONE BILL METER PayphoneNetLtd Telecommunications7 Amiklon Str., 26 443, K.Sichaina, Patras, GreeceTel.: 2610 433045, Fax: 2610 433045e-mail : info@payphonenet.gr
