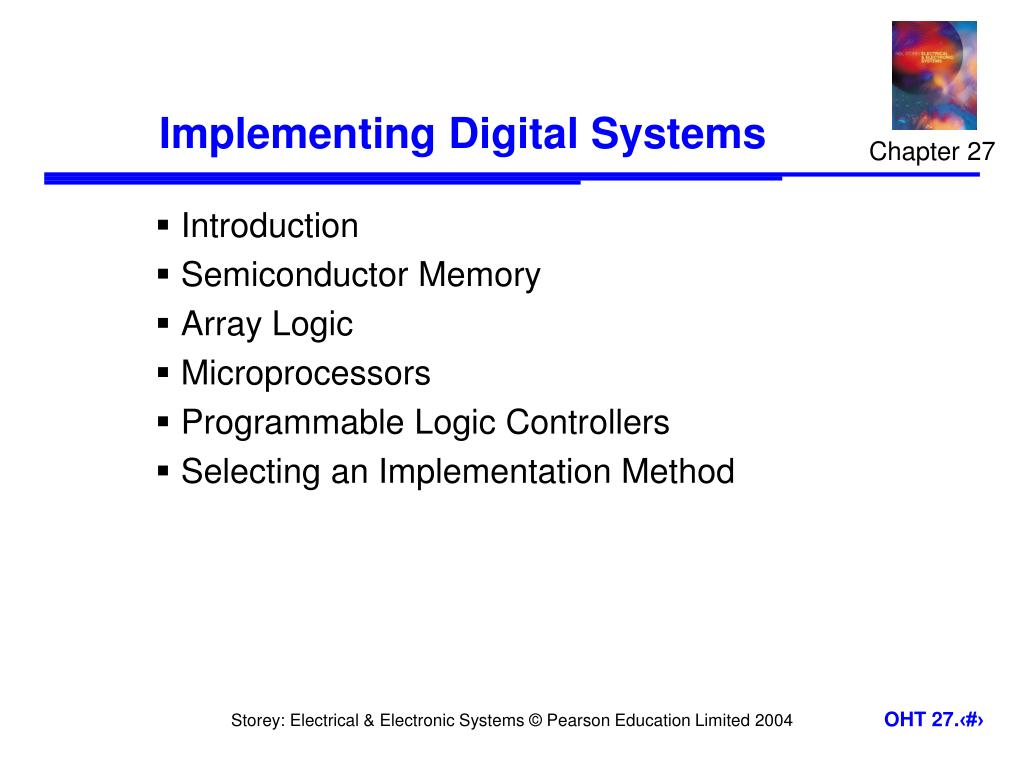

  1. Chapter 27 Implementing Digital Systems • Introduction • Semiconductor Memory • Array Logic • Microprocessors • Programmable Logic Controllers • Selecting an Implementation Method

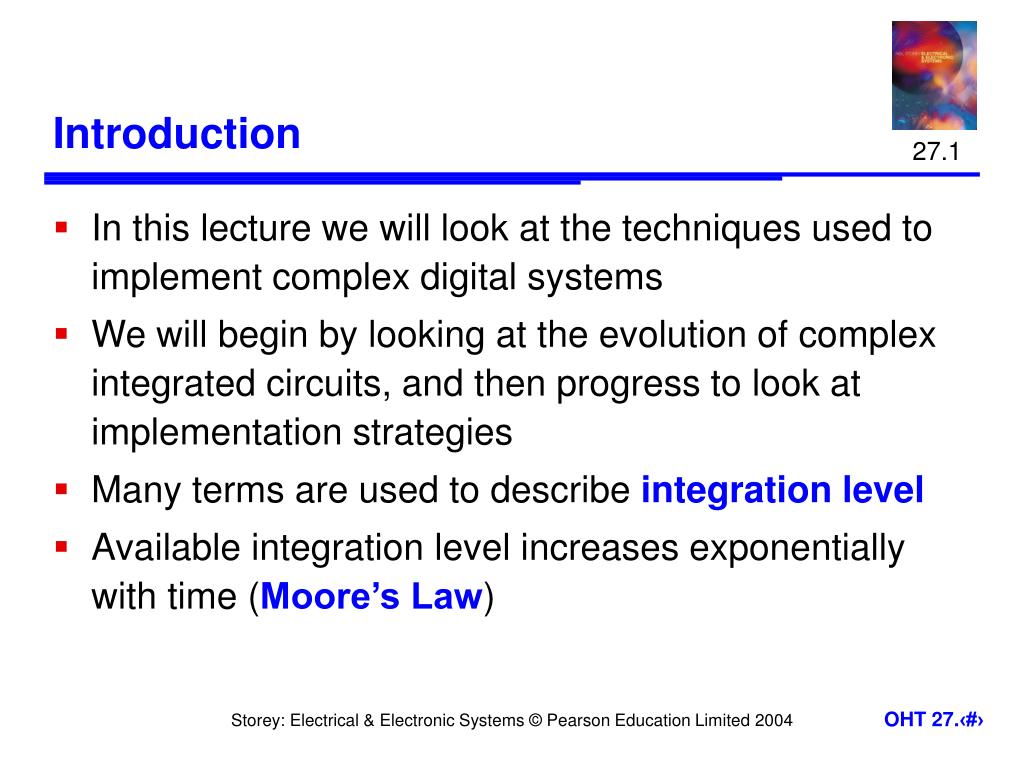

  2. 27.1 Introduction • In this lecture we will look at the techniques used to implement complex digital systems • We will begin by looking at the evolution of complex integrated circuits, and then progress to look at implementation strategies • Many terms are used to describe integration level • Available integration level increases exponentially with time (Moore’s Law)

  3. Integration densities of Intel microprocessors

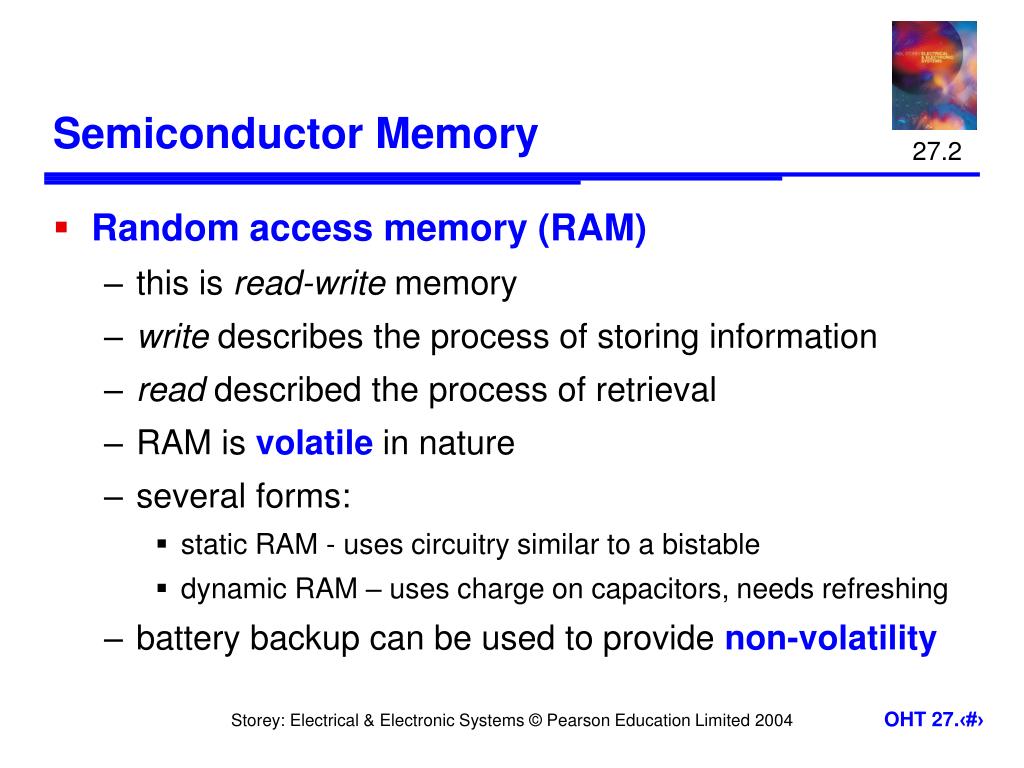

  4. 27.2 Semiconductor Memory • Random access memory (RAM) • this is read-write memory • write describes the process of storing information • read described the process of retrieval • RAM is volatile in nature • several forms: • static RAM - uses circuitry similar to a bistable • dynamic RAM – uses charge on capacitors, needs refreshing • battery backup can be used to provide non-volatility

  5. Read-only memory (ROM) • this can be read from, but not written to • is inherently non-volatile (useful for programs, etc) • many forms available • some are programmed by the manufacturer (such asmasked programmed devices) • others are user programmable (such as EPROM, and EEPROM) • memory such as EEPROM can be written to (programmed) as well as read, but it is not RAM • it can only be programmed relatively slowly

  6. Memory organisation

  7. 27.3 Array Logic • Array logic has two major forms: • programmable logic devices (PLDs) • field programmable gate arrays (FPGAs) • Programmable logic devices (PLDs) • these are examples of uncommitted logic • forms include: • PLA – programmable logic array • PAL – programmable array logic • GAL – generic array logic • EPLD – erasable programmable logic device • CPLD – complex programmable logic device

  8. Programmable logic array (PLA) • has an array of inverters, AND gates and OR gates • can implement any logic function (given limits on numbers of inputs and outputs) Example: consider a system with four inputsA, B, C and D and three output X, Y and Z, where

  9. The structureof a simple PLA

  10. The PLA programmedto give the requiredoutput functions • the device isprogrammed byblowing fusiblelinks at the variousinterconnectionpoints

  11. Field programmable gate arrays • a programmable device using more complex cells

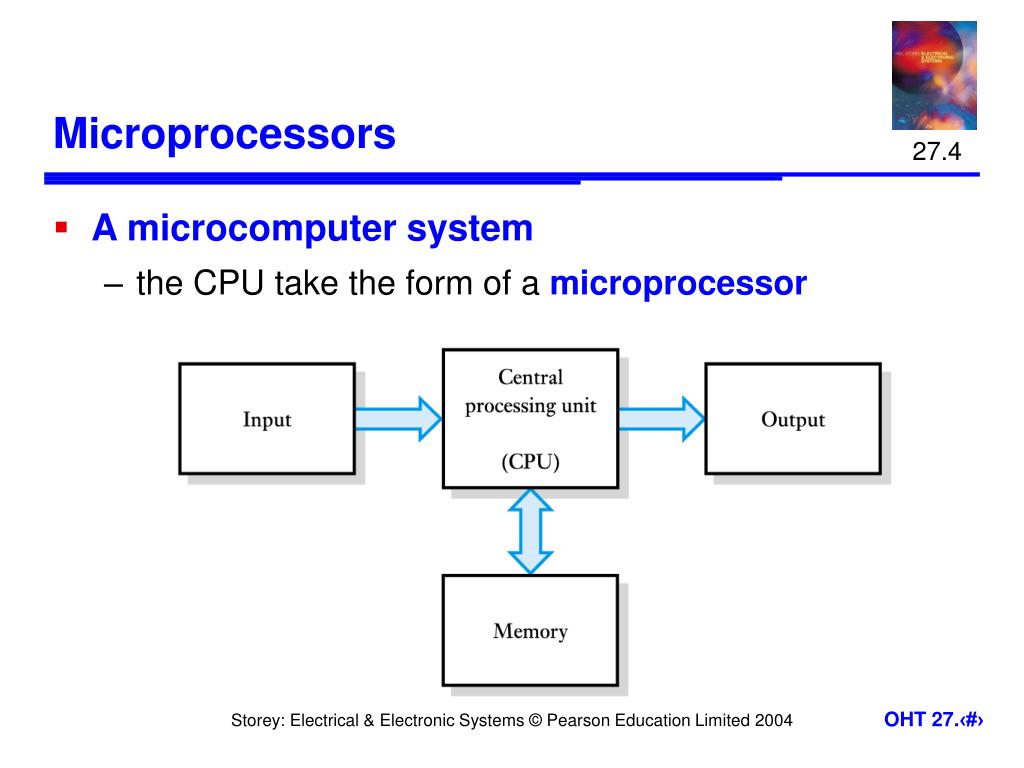

  12. 27.4 Microprocessors • A microcomputer system • the CPU take the form of a microprocessor

  13. Communication within the microcomputer

  14. Registers • fundamental building blocks within computers • can be constructed using D flip-flops • some are used for storage, others for input/output

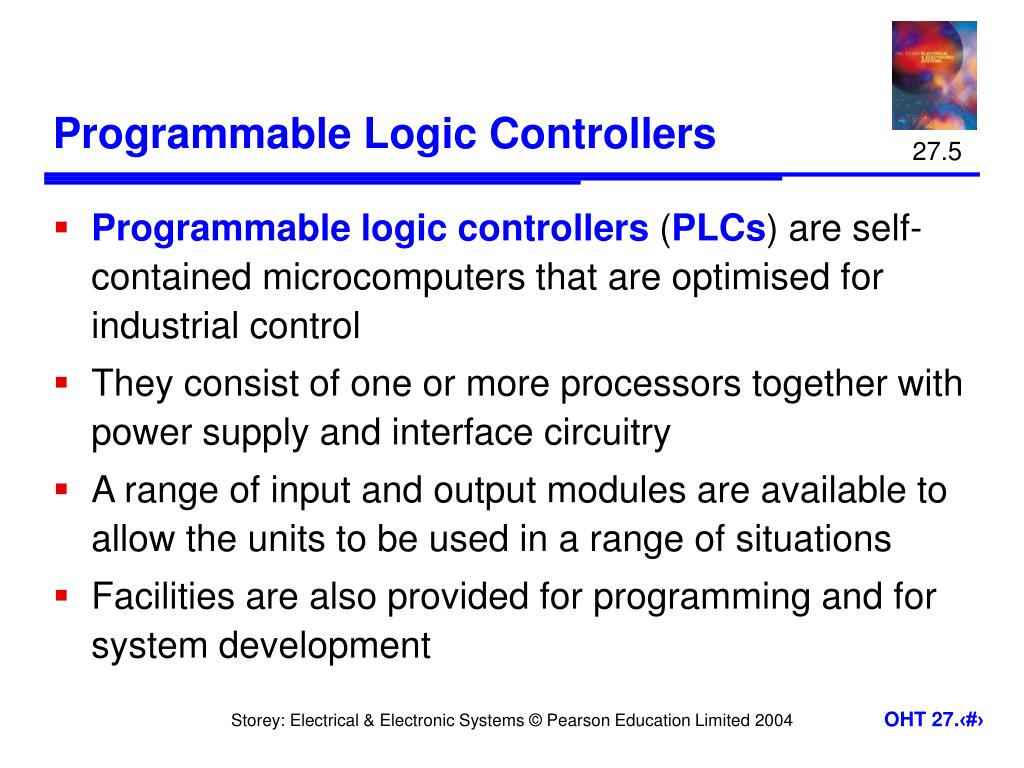

  15. 27.5 Programmable Logic Controllers • Programmable logic controllers (PLCs) are self-contained microcomputers that are optimised for industrial control • They consist of one or more processors together with power supply and interface circuitry • A range of input and output modules are available to allow the units to be used in a range of situations • Facilities are also provided for programming and for system development

  16. 27.6 Selecting an Implementation Method • The implementation method will depend on the complexity of the required functionality • applications requiring just a handful of gates might use CMOS or TTL devices • slightly more complex applications will often make use of array logic • complex digital applications will probably use either complex programmable devices (such as CPLDs or FPGAs) or a microprocessor

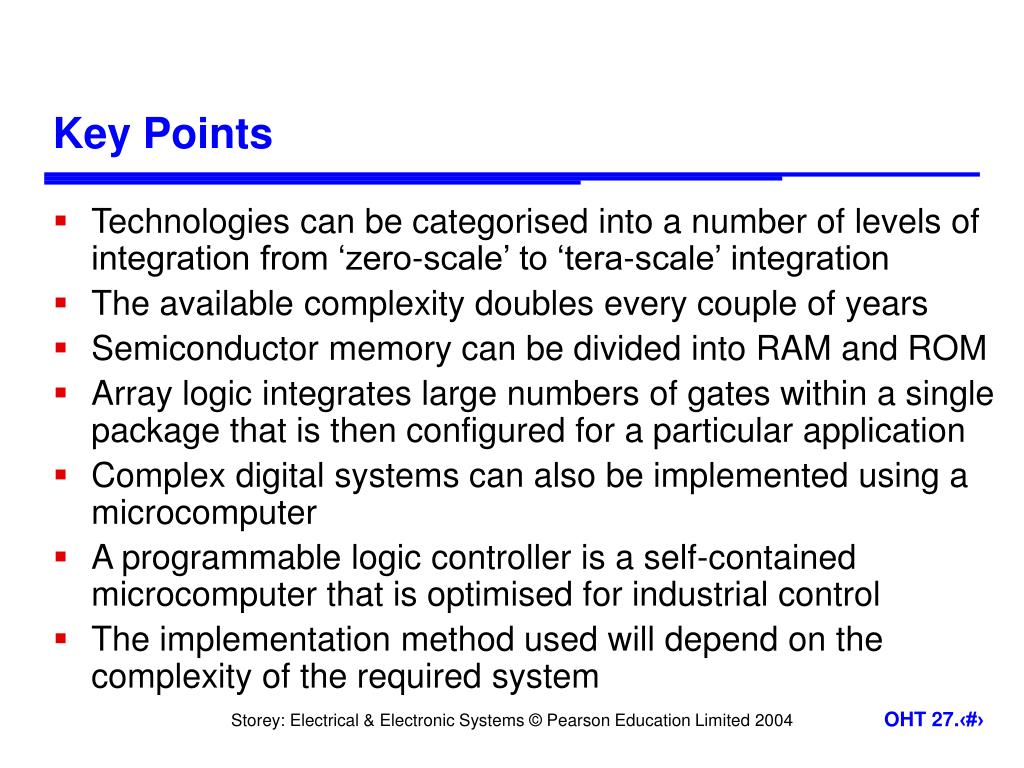

  17. Key Points • Technologies can be categorised into a number of levels of integration from ‘zero-scale’ to ‘tera-scale’ integration • The available complexity doubles every couple of years • Semiconductor memory can be divided into RAM and ROM • Array logic integrates large numbers of gates within a single package that is then configured for a particular application • Complex digital systems can also be implemented using a microcomputer • A programmable logic controller is a self-contained microcomputer that is optimised for industrial control • The implementation method used will depend on the complexity of the required system
