  1. PM9, PM9P and PM9C Power Meter

  2. Power Meter PM9 1 PowerLogic Family Applications Benefits Power Meter overview Application tips 2 3 4 5

  3. A new Power Meter in thePowerLogic range... CM 3000 / CM 4000 PM800 PM9 PM700 PM 500

  4. PM9 key features comparison PM9 PM9P PM9C Modbus RS485 port  Pulse output 1 Accuracy IEC62053-21(IEC 61036) 1 1 1   Timer    Power demand and Max demand    U, V, I, F, PF, Power, Energy     

  5. 6 references • AC version 220 to 240 VAC • PM9 with display only 15 199 • PM9P with pulse output 15 197 • PM9C with communication 15 198

  6. Power Meter PM9 1 PowerLogic Family Applications Benefits Power Meter overview Application tips 2 3 4 5

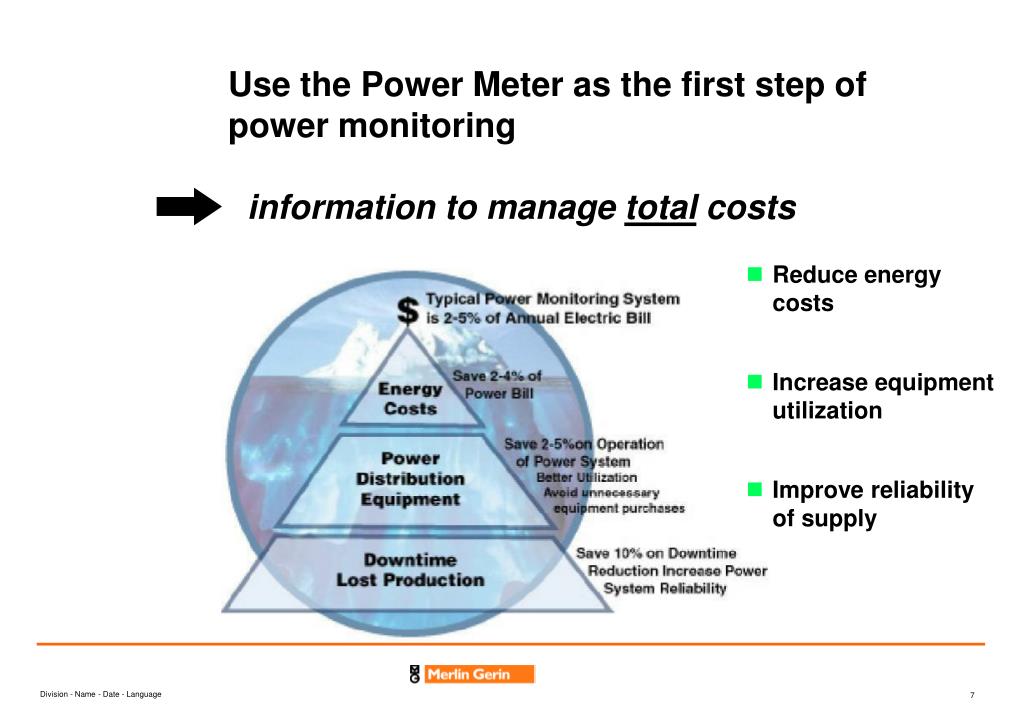

  7. Use the Power Meter as the first step of power monitoring information to manage total costs • Reduce energy costs • Increase equipment utilization • Improve reliability of supply

  8. If you can not measure it you can not manage it

  9. PM9 applications Higher accuracy & functionality, more I/Os... Panel power metering basic power metering Sub-billing / cost allocation allocate cost by workshop not by m2 Energy usage consumption patterns, capacity planning Real time monitoring Contract optimisation includes synchronised demand... Power quality monitoring THD, Harmonic analysis Advanced quality monitoring waveform capture, sag & swell PM9/PM7 PM8 Circuit Monitor

  10. PM9 applications Higher accuracy & functionality, more I/Os... Panel power metering basic power metering Sub-billing / cost allocation allocate cost by workshop not by m2 Energy usage consumption patterns, capacity planning Real time monitoring Contract optimisation includes synchronised demand... Power quality monitoring THD, Harmonic analysis Advanced quality monitoring waveform capture, sag & swell • Local display of basic values • I, U and more • Quick check that everything is OK • show three information at the same time PM9/PM7

  11. PM9 applications Panel power metering basic power metering Sub-billing / cost allocation allocate cost by workshop not by m2 Energy usage consumption patterns, capacity planning Real time monitoring Contract optimisation includes synchronised demand... Power quality monitoring THD, Harmonic analysis Advanced quality monitoring waveform capture, sag & swell • Allocate exact cost by tenant • Allocate cost by workshop or production line, not by m2: • include electricity cost in variable cost not in fixed cost PM9/PM7

  12. PM9 applications • Save energy by knowing your consumption patterns • implement awareness programs, best practises, peak shaving • Save investment by improving capacity planning • identify spare capacity • Improve reliability • balance busbar loading • Improve system power factor • avoid penalties Panel power metering basic power metering Sub-billing / cost allocation allocate cost by workshop not by m2 Energy usage consumption patterns, capacity planning Real time monitoring Contract optimisation includes synchronised demand... Power quality monitoring THD, Harmonic analysis Advanced quality monitoring waveform capture, sag & swell PM9/PM7

  13. PM9 applications • Improveefficiency with remote monitoring • useful information available at your desk (electrical parameters, status…) • early detection of problems • aids trouble-shooting and diagnostics • make decision based on real information • Minimise down time • understand rapidly what happened during crisis and find causes of problem Panel power metering basic power metering Sub-billing / cost allocation allocate cost by workshop not by m2 Energy usage consumption patterns, capacity planning Real time monitoring Contract optimisation includes synchronised demand... Power quality monitoring THD, Harmonic analysis Advanced quality monitoring waveform capture, sag & swell PM9/PM7

  14. Power Meter PM9 1 PowerLogic Family Applications Benefits Power Meter overview Application tips 2 3 4 5

  15. Compact Design • 4 modules of 18 mm only, width of 72 mm • Basic • with Modbus communication • or with 1 pulse output • saves space for other meters or for miniature circuit breakers 72 mm

  16. Large backlit display • Large back lit LCD display • Easy to read in extreme light conditions • View multiple values on one screen • View three phases at the same time • 2 level backlight • first level: permanent backlight to ease viewing at any time • second level: enhanced when a key is pressed

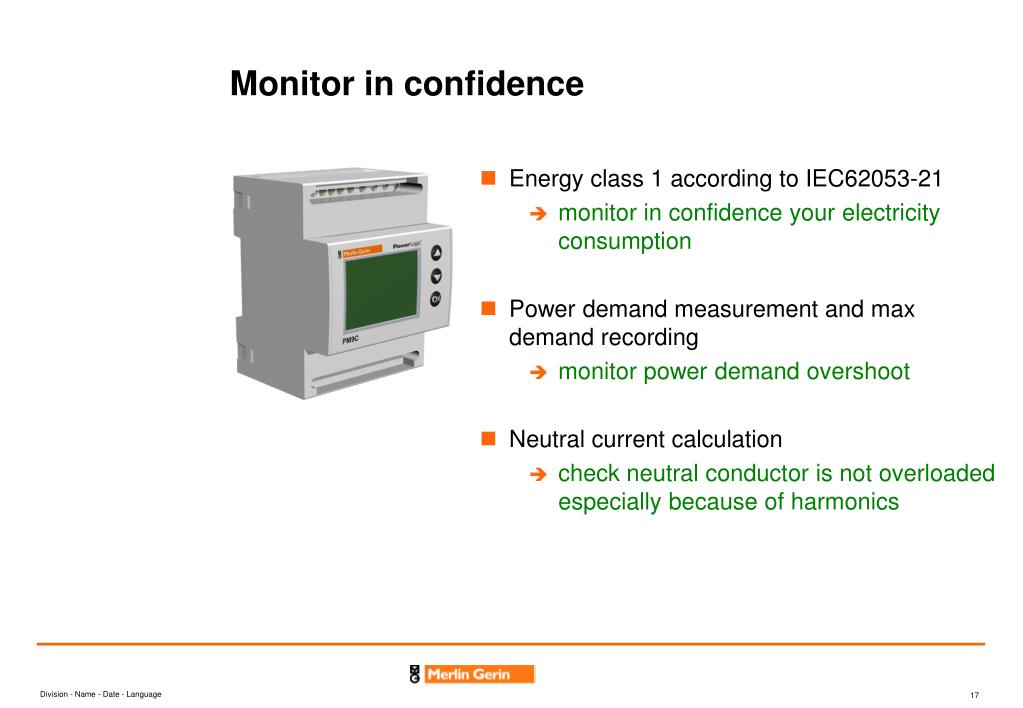

  17. Monitor in confidence • Energy class 1 according to IEC62053-21 • monitor in confidence your electricity consumption • Power demand measurement and max demand recording • monitor power demand overshoot • Neutral current calculation • check neutral conductor is not overloaded especially because of harmonics

  18. Power Meter PM9 1 PowerLogic Family Applications Benefits Power Meter overview Application tips 2 3 4 5

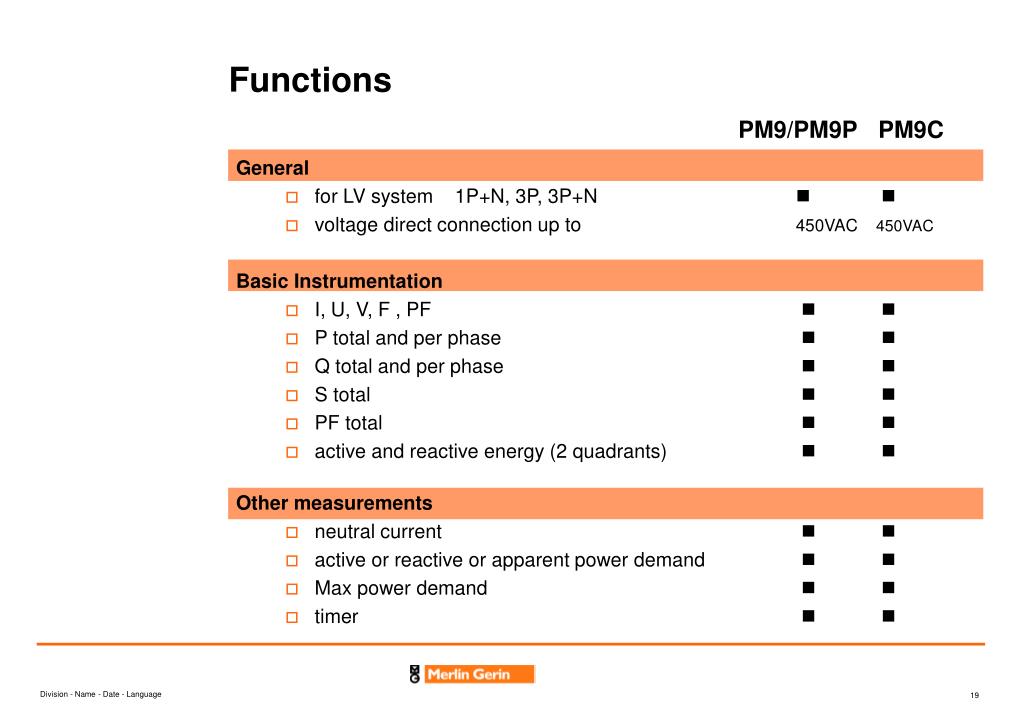

  19. General for LV system 1P+N, 3P, 3P+N   voltage direct connection up to450VAC450VAC Basic Instrumentation I, U, V, F , PF   P total and per phase   Q total and per phase   S total  PF total   active and reactive energy (2 quadrants)   Other measurements neutral current   active or reactive or apparent power demand   Max power demand   timer   Functions PM9/PM9P PM9C

  20. Display and I/O Backlit LCD display with 3 lines   1 pulse output for active or reactive energy PM9P Communication 2 wire RS485 Modbus port  Baud rate 19 200 SELV circuit, double insulation  Power supply AC version 220 to 240VAC ± 10%  DC version 24 to 48 VDC ± 20%  Accuracy I, U, V % of reading±0.5% ±0.5% Energies as per IEC62053-21 or IEC61036Cl1 Cl1 Functions PM9/PM9P PM9C

  21. Operating temperature -5°C to +55°C   Operating environment installation category up to 450 VAC III III pollution degree 2 2 Functions PM9/PM9P PM9C

  22. Power Meter PM9 1 PowerLogic Family Applications Benefits Power Meter overview Application tips 2 3 4 5

  23. Local Panel instrumentation Local display of all information

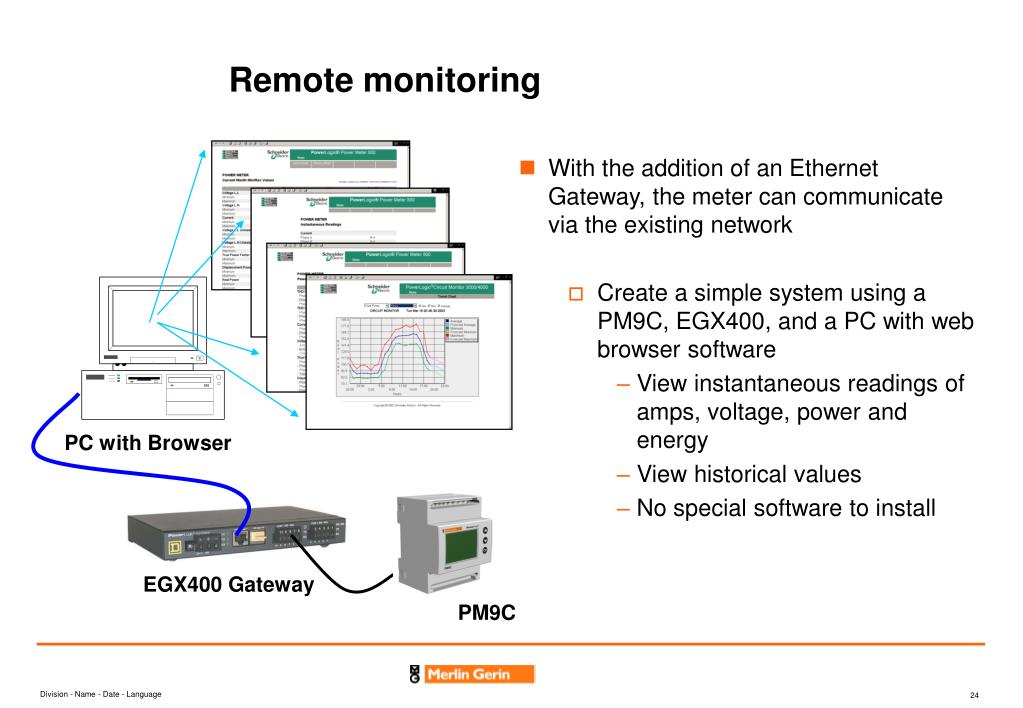

  24. Remote monitoring • With the addition of an Ethernet Gateway, the meter can communicate via the existing network • Create a simple system using a PM9C, EGX400, and a PC with web browser software • View instantaneous readings of amps, voltage, power and energy • View historical values • No special software to install PC with Browser EGX400 Gateway PM9C

  25. Sub-billing / Cost allocation 2 options PM9C PM9P Pulse output PLC Building Mgt System Modbus comms Power Mgt System

  26. Submetering/cost allocation in buildings EGX 400 or Twido PLC used to push data on LAN or Twido PLC used as pulse concentrators pulse PM9P

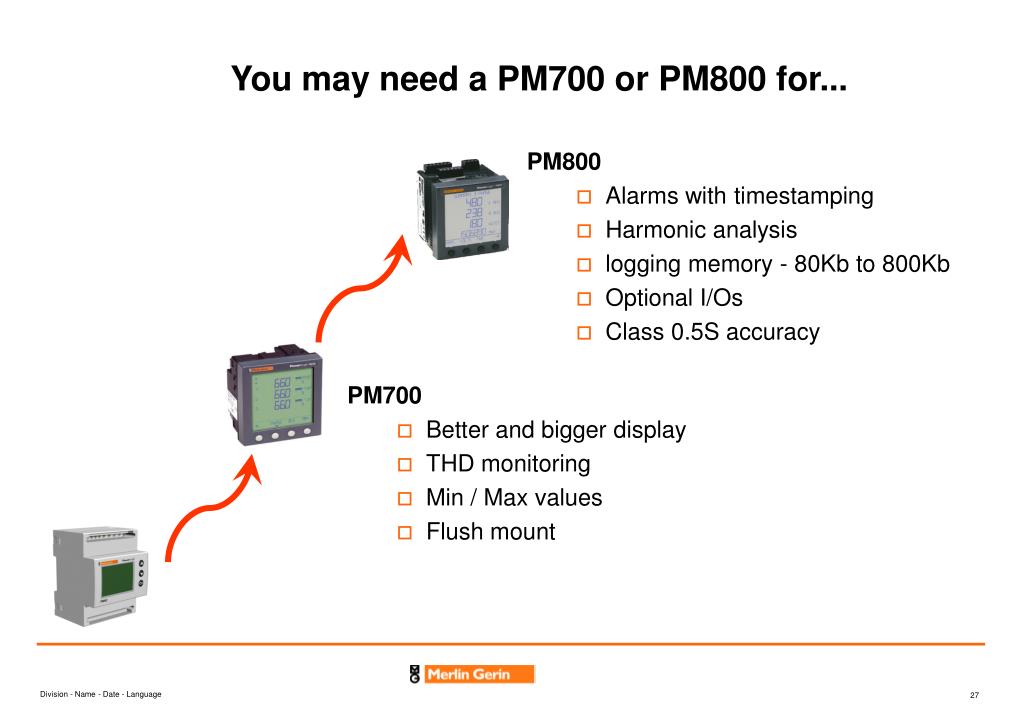

  27. You may need a PM700 or PM800 for... PM800 • Alarms with timestamping • Harmonic analysis • logging memory - 80Kb to 800Kb • Optional I/Os • Class 0.5S accuracy PM700 • Better and bigger display • THD monitoring • Min / Max values • Flush mount

  28. CM 4000 PowerLogic range summary CM4000 CM3000 CM 3000 PM800 PM 500 • Apply to Critical Power: Utility switch, Mains, sensitive Feeders • Extensive Power Quality monitoring • EN50160 compliance checking • Transient Detection and flicker • Wave shape fault recording • Class 0.2S • Memory up to 32MB • Up to 25 I/O points - Variety of I/O • GPS time synchronization • HTML pages standard & custom with Ethernet option • Programmable functions PM700 PM9 PM 500 • Apply to Mains and Feeders • Comprehensive Power Monitoring • Alarms with timestamping • Harmonic analysis • Class 0.5S • Onboard data logging up to 800 ko • up to 18 I/O points • Apply to Feeders • Panel instrumentation • sub-metering / cost allocation • Power Monitoring
