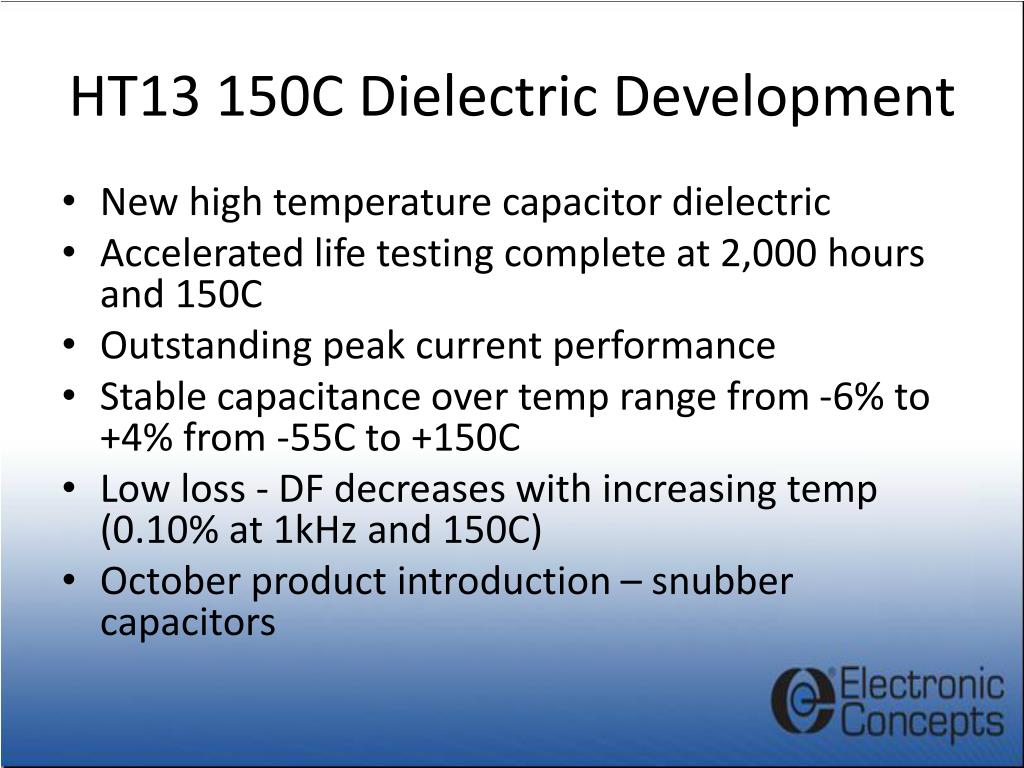

  1. HT13 150C Dielectric Development • New high temperature capacitor dielectric • Accelerated life testing complete at 2,000 hours and 150C • Outstanding peak current performance • Stable capacitance over temp range from -6% to +4% from -55C to +150C • Low loss - DF decreases with increasing temp (0.10% at 1kHz and 150C) • October product introduction – snubber capacitors

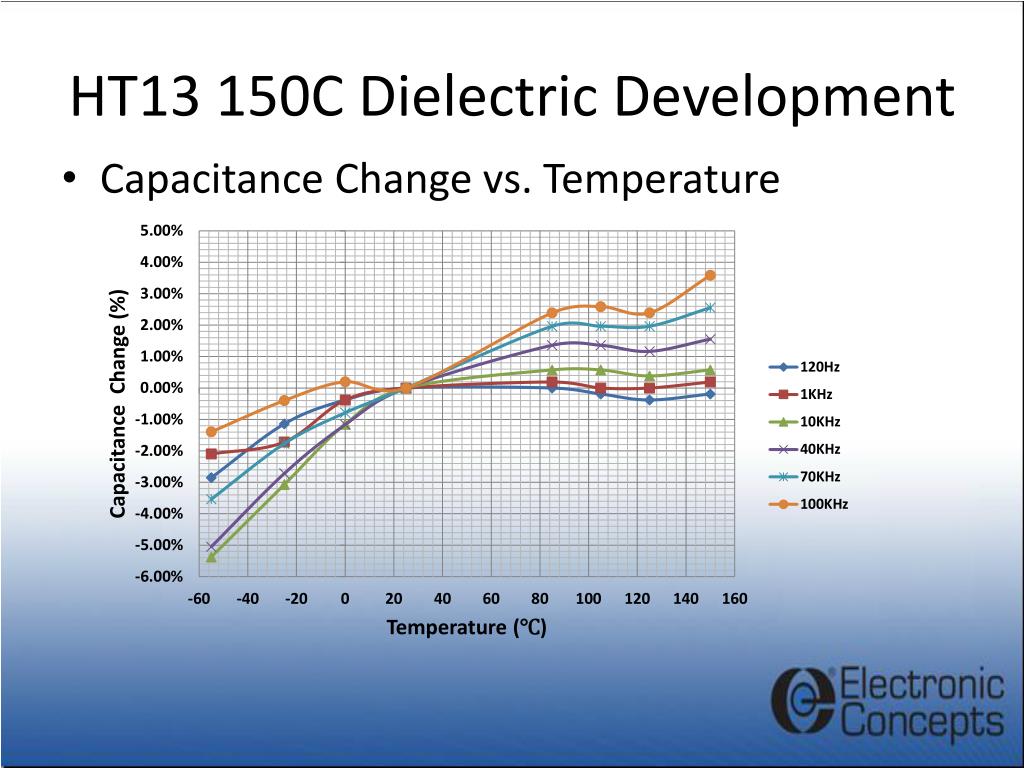

  2. HT13 150C Dielectric Development • Capacitance Change vs. Temperature

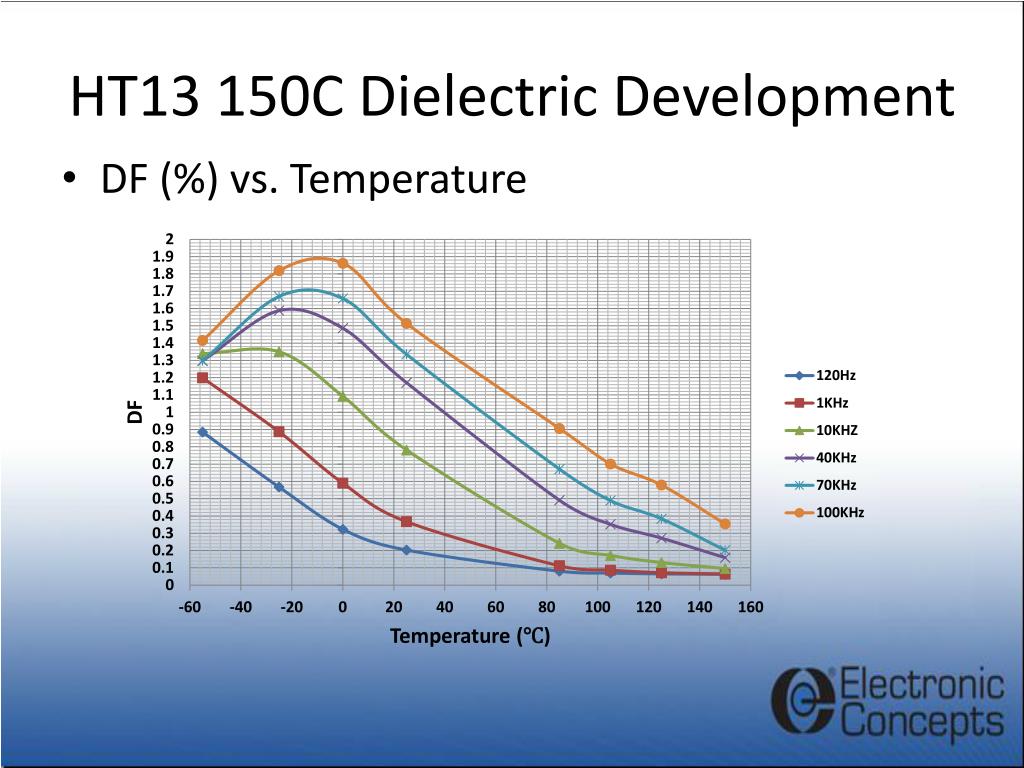

  3. HT13 150C Dielectric Development • DF (%) vs. Temperature

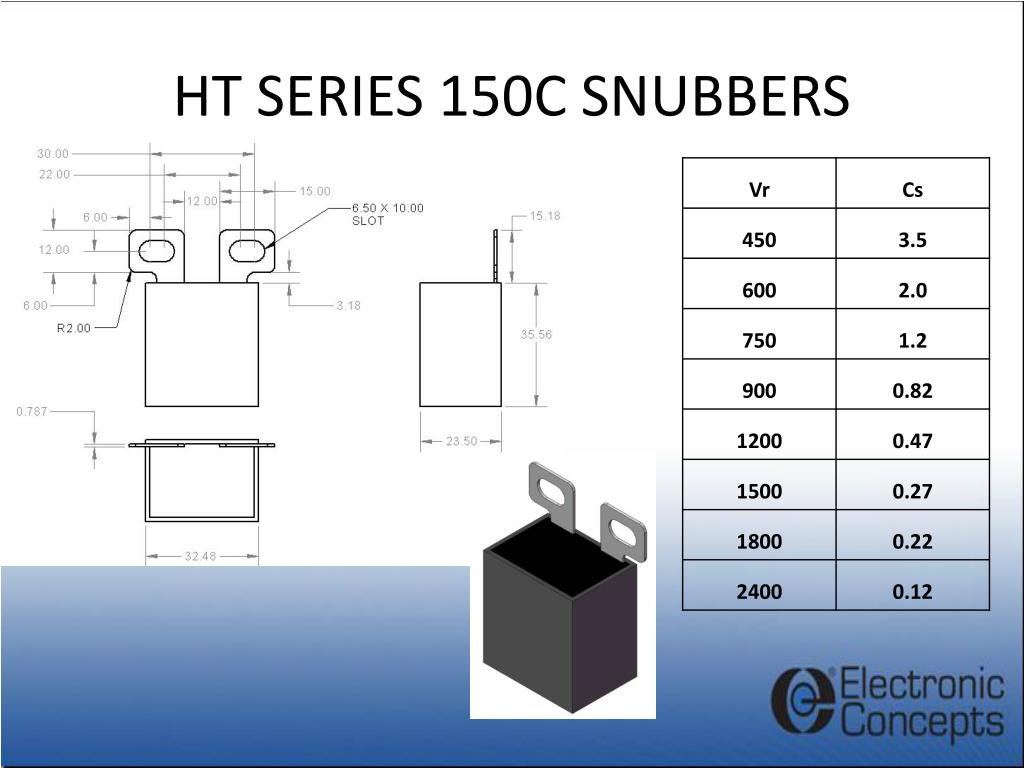

  4. HT SERIES 150C SNUBBERS

  5. HT SERIES 150C SNUBBERSOPTIONAL ULTRA-LOW ESL CONSTRUCTION • 4.8nH • INTERNAL PCB LAMINANT • BUSHINGS FOR IGBT DIRECT MOUNTING
