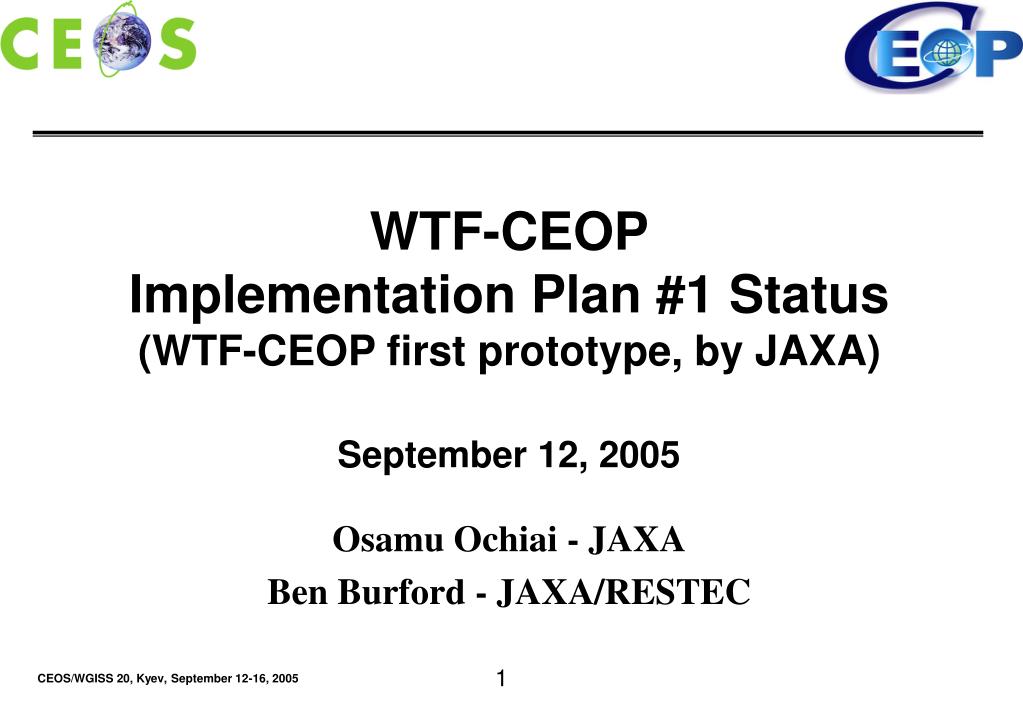

  1. WTF-CEOP Implementation Plan #1 Status (WTF-CEOP first prototype, by JAXA) September 12, 2005 Osamu Ochiai - JAXA Ben Burford - JAXA/RESTEC

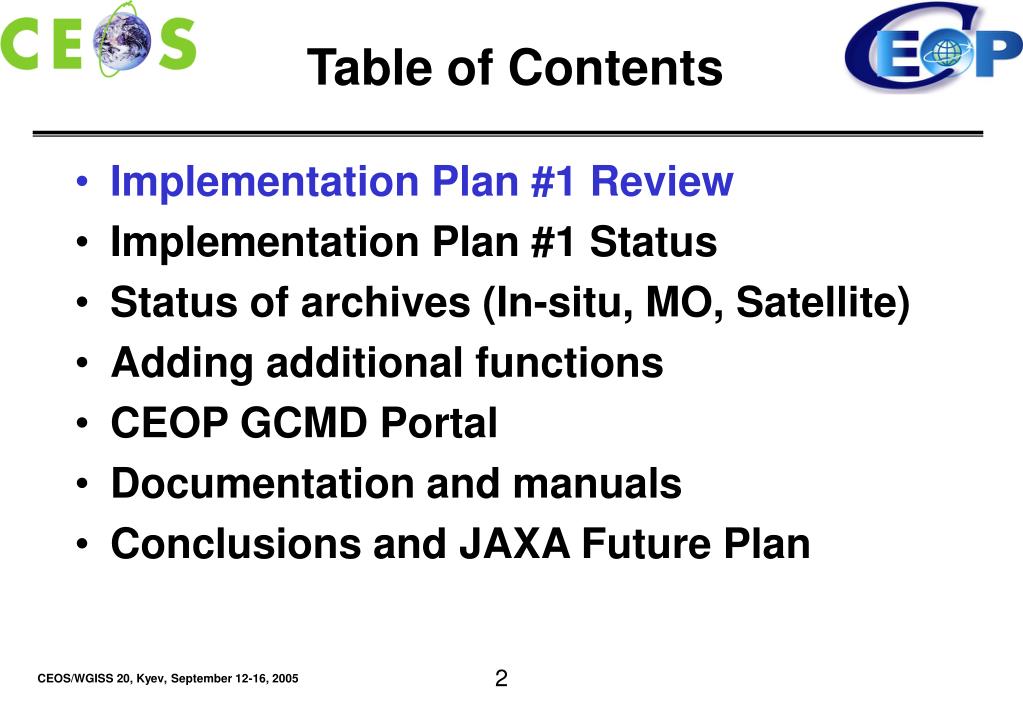

  2. Implementation Plan #1 Review Implementation Plan #1 Status Status of archives (In-situ, MO, Satellite) Adding additional functions CEOP GCMD Portal Documentation and manuals Conclusions and JAXA Future Plan Table of Contents

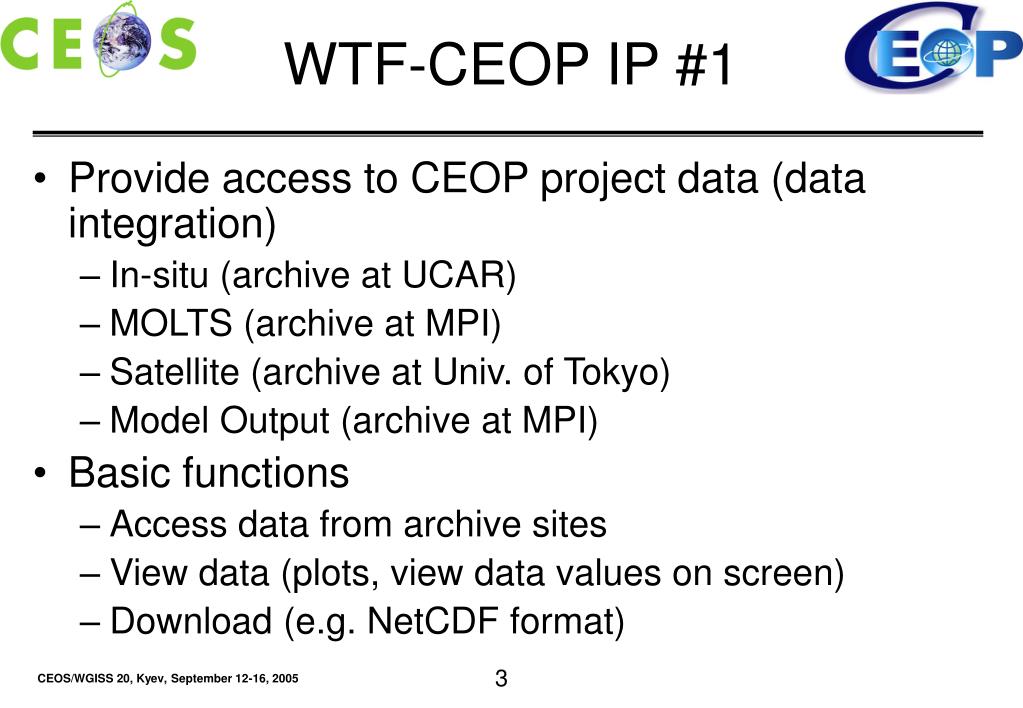

  3. Provide access to CEOP project data (data integration) In-situ (archive at UCAR) MOLTS (archive at MPI) Satellite (archive at Univ. of Tokyo) Model Output (archive at MPI) Basic functions Access data from archive sites View data (plots, view data values on screen) Download (e.g. NetCDF format) WTF-CEOP IP #1

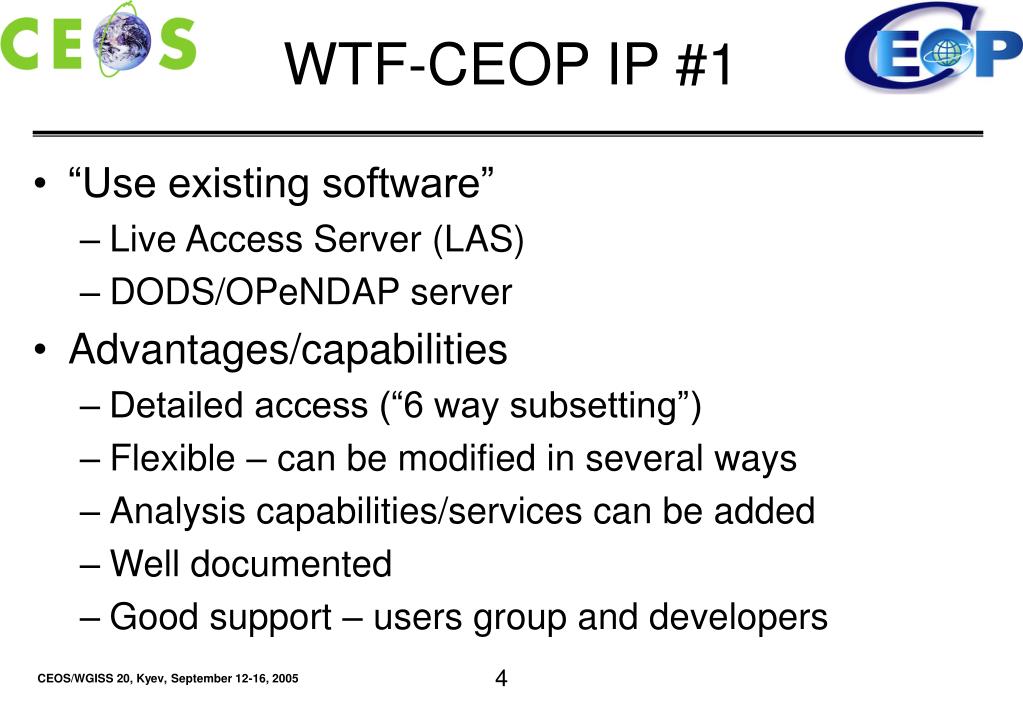

  4. “Use existing software” Live Access Server (LAS) DODS/OPeNDAP server Advantages/capabilities Detailed access (“6 way subsetting”) Flexible – can be modified in several ways Analysis capabilities/services can be added Well documented Good support – users group and developers WTF-CEOP IP #1

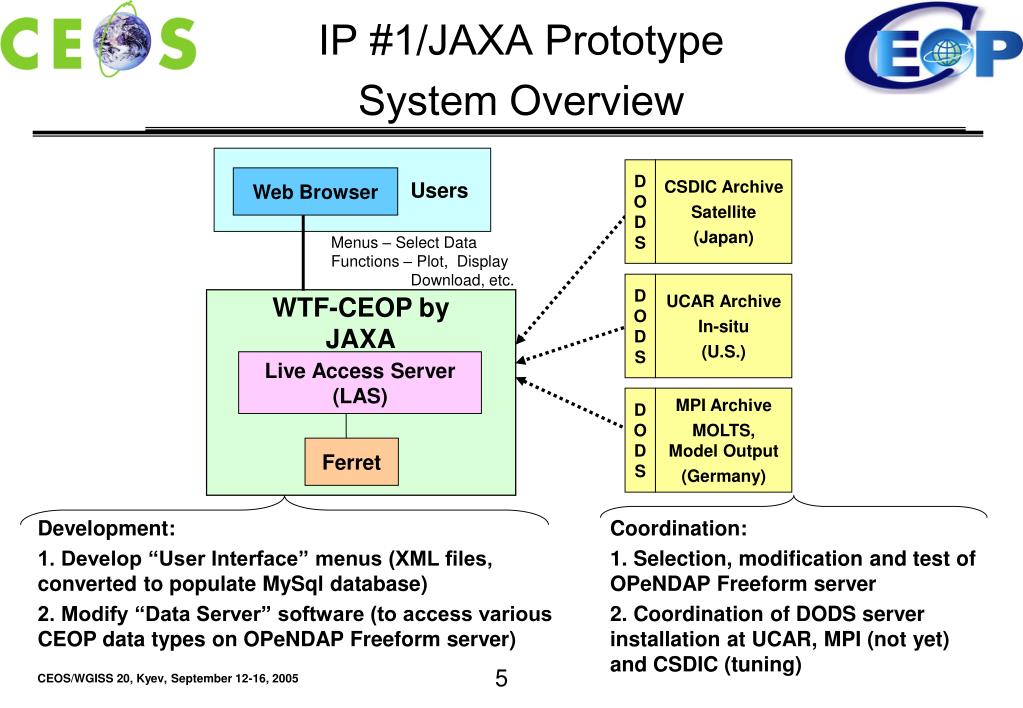

  5. D O D S D O D S D O D S CSDIC Archive Satellite (Japan) UCAR Archive In-situ (U.S.) MPI Archive MOLTS, Model Output (Germany) IP #1/JAXA Prototype System Overview Users Web Browser Menus – Select Data Functions – Plot, Display Download, etc. WTF-CEOP by JAXA Live Access Server (LAS) Ferret Development: 1. Develop “User Interface” menus (XML files, converted to populate MySql database) 2. Modify “Data Server” software (to access various CEOP data types on OPeNDAP Freeform server) Coordination: 1. Selection, modification and test of OPeNDAP Freeform server 2. Coordination of DODS server installation at UCAR, MPI (not yet) and CSDIC (tuning)

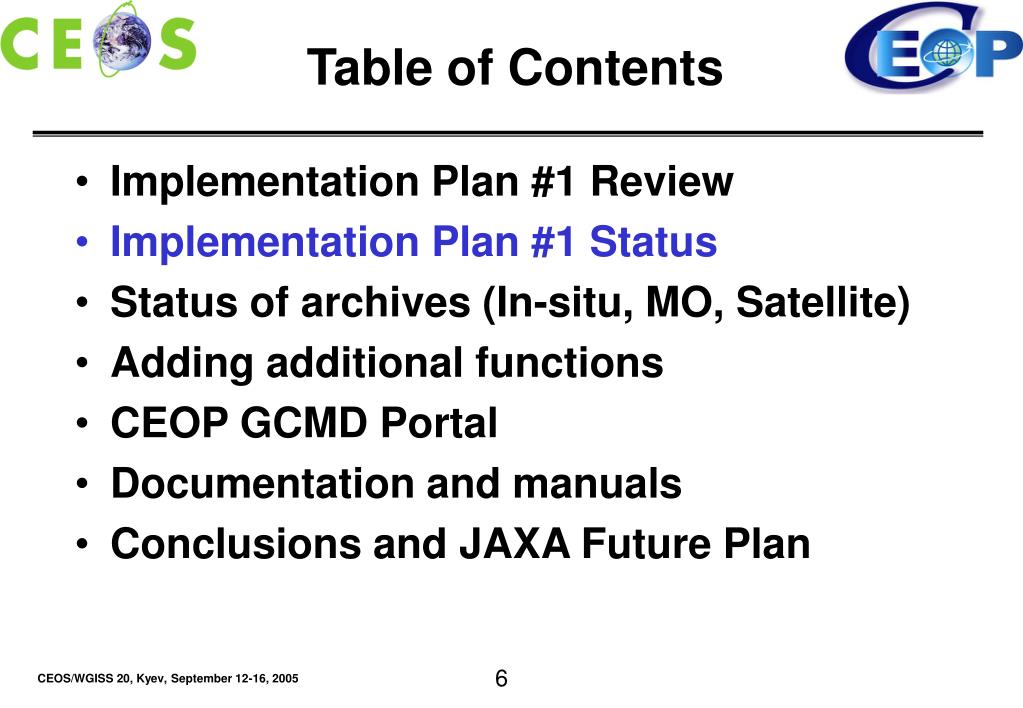

  6. Implementation Plan #1 Review Implementation Plan #1 Status Status of archives (In-situ, MO, Satellite) Adding additional functions CEOP GCMD Portal Documentation and manuals Conclusions and JAXA Future Plan Table of Contents

  7. Implementation Plan #1 Status • Last Fiscal Year Activities (ended March 31, 2005) • Select data type • Select location (Reference Site, Station name) • Select variable name • Select by height or depth • Select by time range (start time / stop time) • “See the data” (plot and view values on the screen) • Download data (NetCDF, ascii or spreadsheet format) • Registration (user log on and access logs, to satisfy CEOP • data policy)

  8. Implementation Plan #1 Current Work • This Fiscal Year Activities (final - ends March 31, 2006) • Upgrade LAS software (from version 6.3 to 6.5) • In-situ data (update menus, add download of QC flags) • MOLTS (access by HTTP string from new MPI interface) • Satellite (band selection, period selection, download multiple scenes) • Model Output (access by HTTP string, convert from GRIB to NetCDF) • Choose to be notified by email when data is ready • Automate update of menus as new data is added • Expand User’s Manual • Write Maintenance Manual • Update and increase DIFs in WTF-CEOP portal in GCMD • Additional R&D, beginning this Fiscal Year • Presented by Osamu

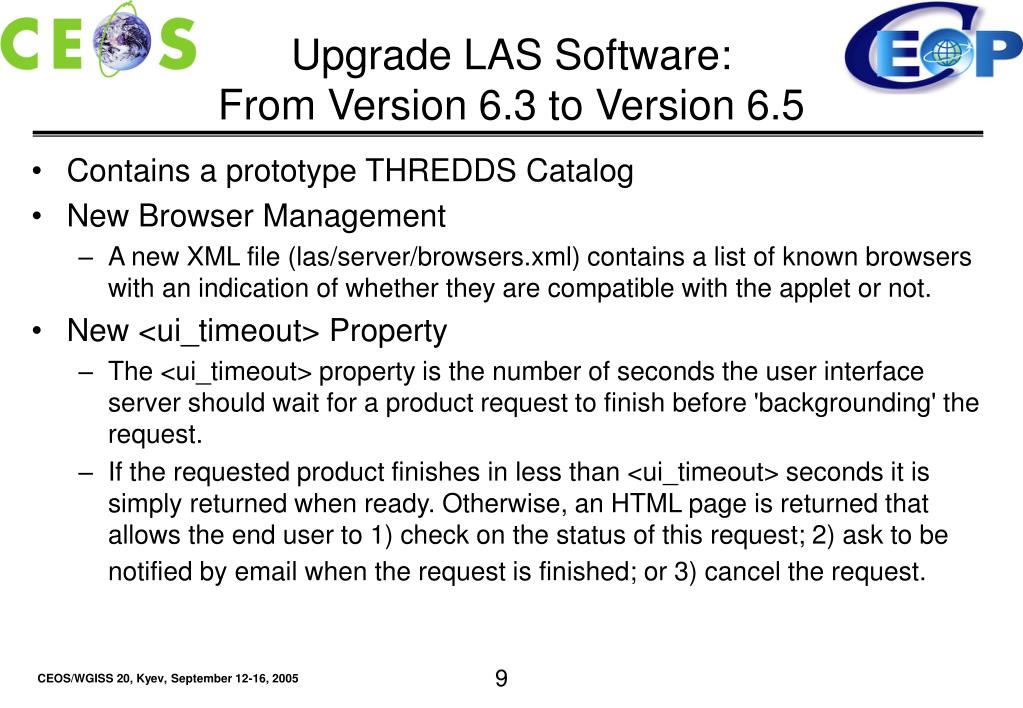

  9. Upgrade LAS Software:From Version 6.3 to Version 6.5 • Contains a prototype THREDDS Catalog • New Browser Management • A new XML file (las/server/browsers.xml) contains a list of known browsers with an indication of whether they are compatible with the applet or not. • New <ui_timeout> Property • The <ui_timeout> property is the number of seconds the user interface server should wait for a product request to finish before 'backgrounding' the request. • If the requested product finishes in less than <ui_timeout> seconds it is simply returned when ready. Otherwise, an HTML page is returned that allows the end user to 1) check on the status of this request; 2) ask to be notified by email when the request is finished; or 3) cancel the request.

  10. Implementation Plan #1 Review Implementation Plan #1 Status Status of archives (In-situ, MO, Satellite) Adding additional functions CEOP GCMD Portal Documentation and manuals Conclusions and JAXA Future Plan Table of Contents

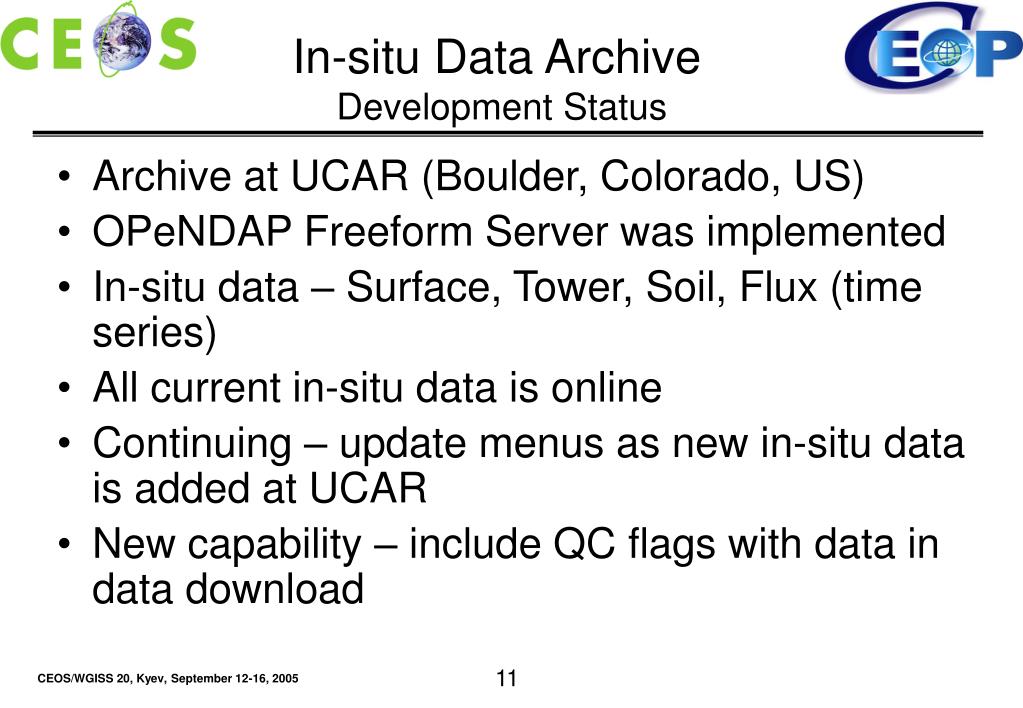

  11. Archive at UCAR (Boulder, Colorado, US) OPeNDAP Freeform Server was implemented In-situ data – Surface, Tower, Soil, Flux (time series) All current in-situ data is online Continuing – update menus as new in-situ data is added at UCAR New capability – include QC flags with data in data download In-situ Data ArchiveDevelopment Status

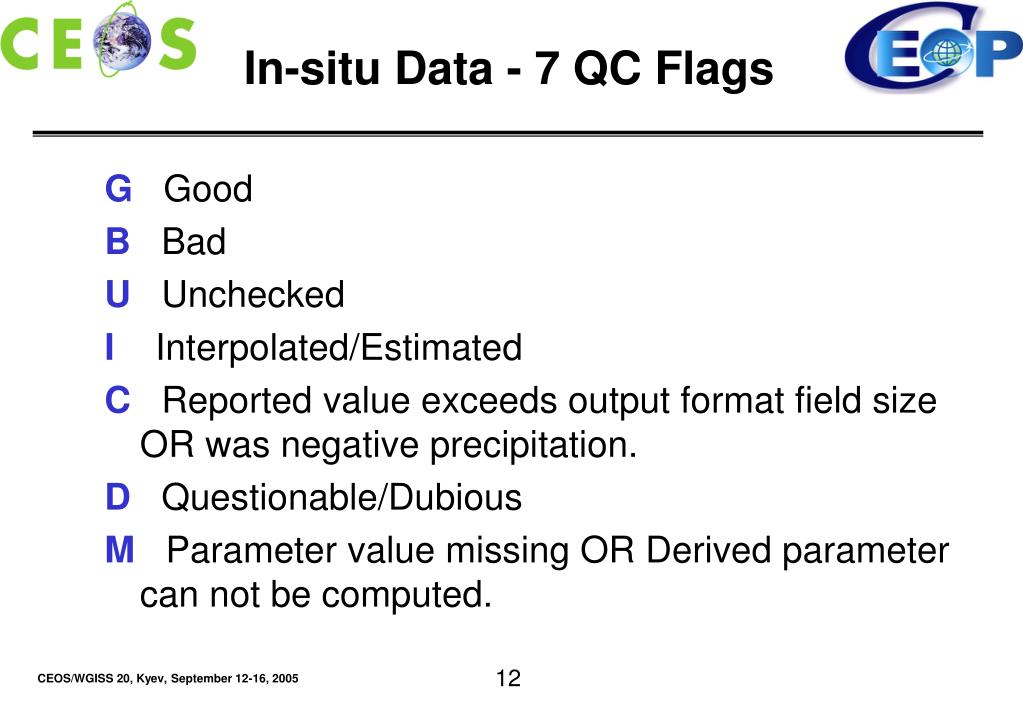

  12. G Good B Bad U Unchecked I Interpolated/Estimated C Reported value exceeds output format field size OR was negative precipitation. D Questionable/Dubious M Parameter value missing OR Derived parameter can not be computed. In-situ Data - 7 QC Flags

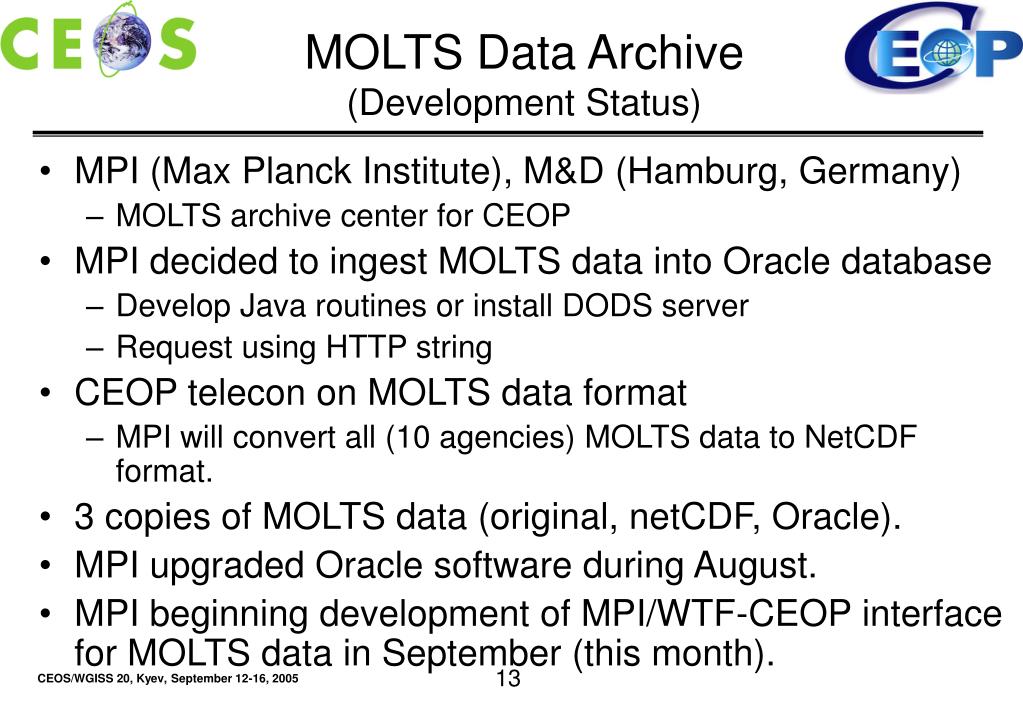

  13. MPI (Max Planck Institute), M&D (Hamburg, Germany) MOLTS archive center for CEOP MPI decided to ingest MOLTS data into Oracle database Develop Java routines or install DODS server Request using HTTP string CEOP telecon on MOLTS data format MPI will convert all (10 agencies) MOLTS data to NetCDF format. 3 copies of MOLTS data (original, netCDF, Oracle). MPI upgraded Oracle software during August. MPI beginning development of MPI/WTF-CEOP interface for MOLTS data in September (this month). MOLTS Data Archive(Development Status)

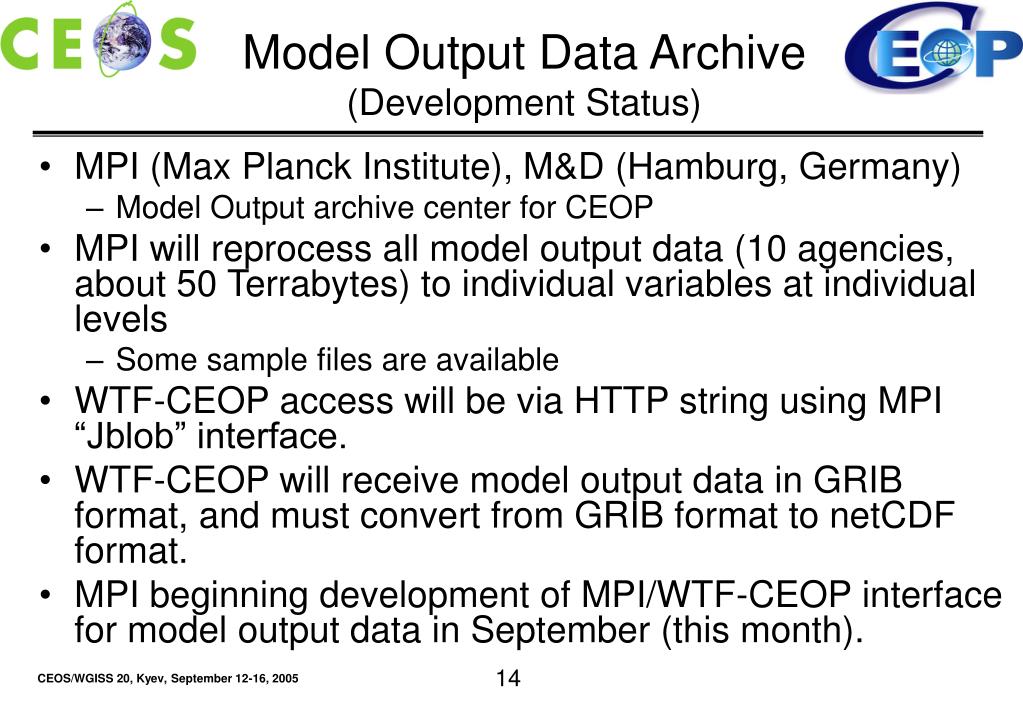

  14. MPI (Max Planck Institute), M&D (Hamburg, Germany) Model Output archive center for CEOP MPI will reprocess all model output data (10 agencies, about 50 Terrabytes) to individual variables at individual levels Some sample files are available WTF-CEOP access will be via HTTP string using MPI “Jblob” interface. WTF-CEOP will receive model output data in GRIB format, and must convert from GRIB format to netCDF format. MPI beginning development of MPI/WTF-CEOP interface for model output data in September (this month). Model Output Data Archive(Development Status)

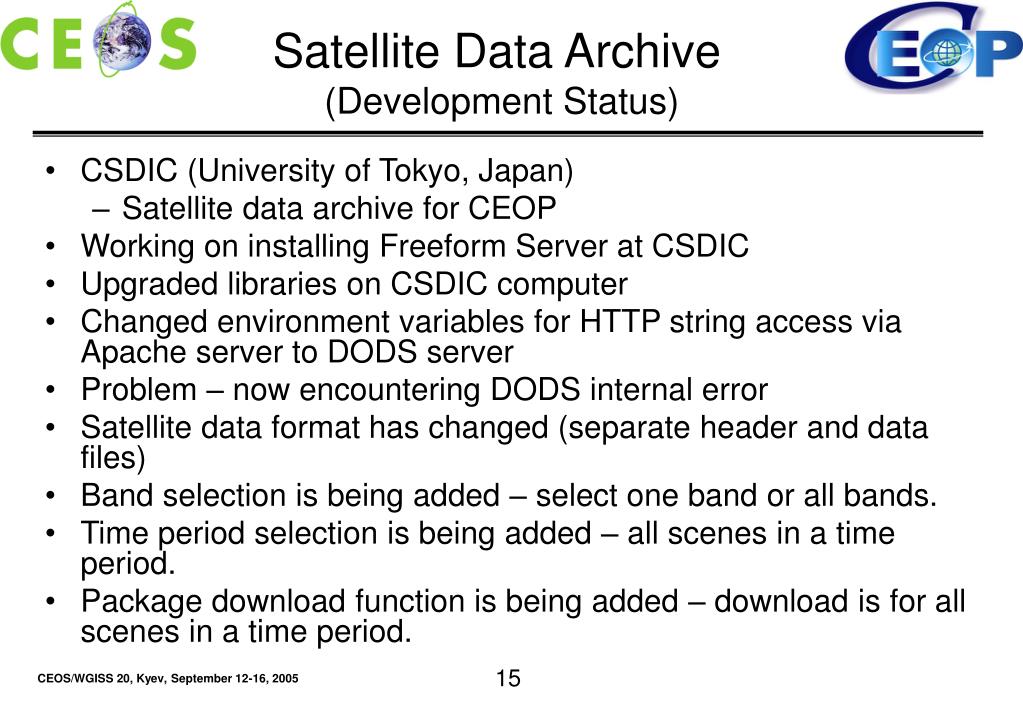

  15. Satellite Data Archive (Development Status) • CSDIC (University of Tokyo, Japan) • Satellite data archive for CEOP • Working on installing Freeform Server at CSDIC • Upgraded libraries on CSDIC computer • Changed environment variables for HTTP string access via Apache server to DODS server • Problem – now encountering DODS internal error • Satellite data format has changed (separate header and data files) • Band selection is being added – select one band or all bands. • Time period selection is being added – all scenes in a time period. • Package download function is being added – download is for all scenes in a time period.

  16. Implementation Plan #1 Review Implementation Plan #1 Status Status of archives (In-situ, MO, Satellite) Adding additional functions CEOP GCMD Portal Documentation and manuals Conclusions and JAXA Future Plan Table of Contents

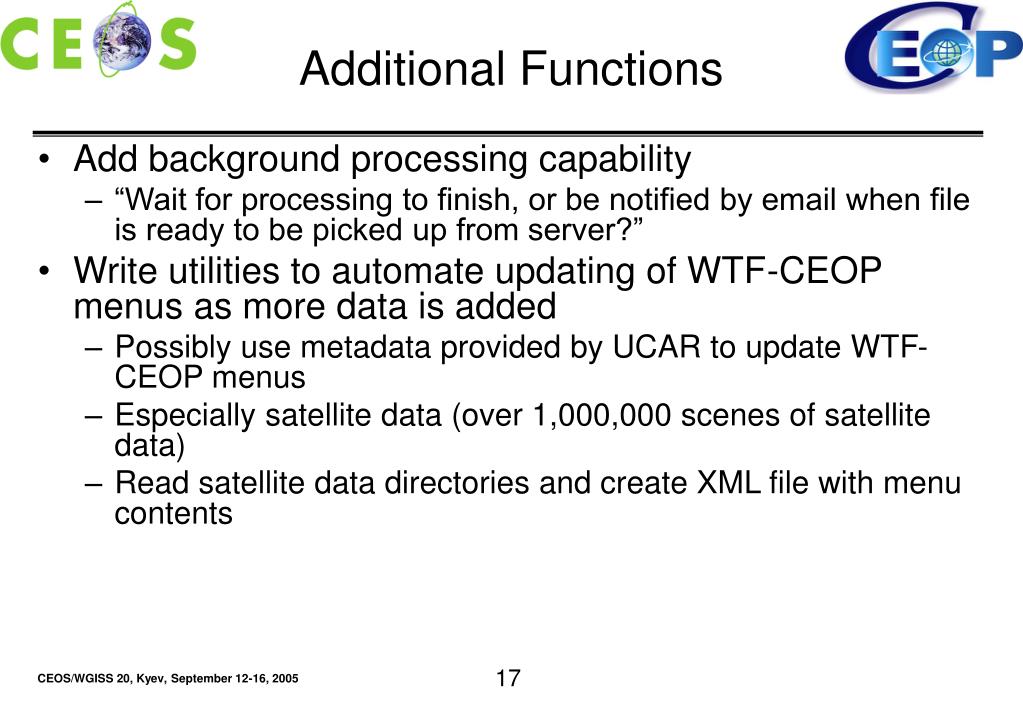

  17. Add background processing capability “Wait for processing to finish, or be notified by email when file is ready to be picked up from server?” Write utilities to automate updating of WTF-CEOP menus as more data is added Possibly use metadata provided by UCAR to update WTF-CEOP menus Especially satellite data (over 1,000,000 scenes of satellite data) Read satellite data directories and create XML file with menu contents Additional Functions

  18. Implementation Plan #1 Review Implementation Plan #1 Status Status of archives (In-situ, MO, Satellite) Adding additional functions CEOP GCMD Portal Documentation and manuals Conclusions and JAXA Future Plan Table of Contents

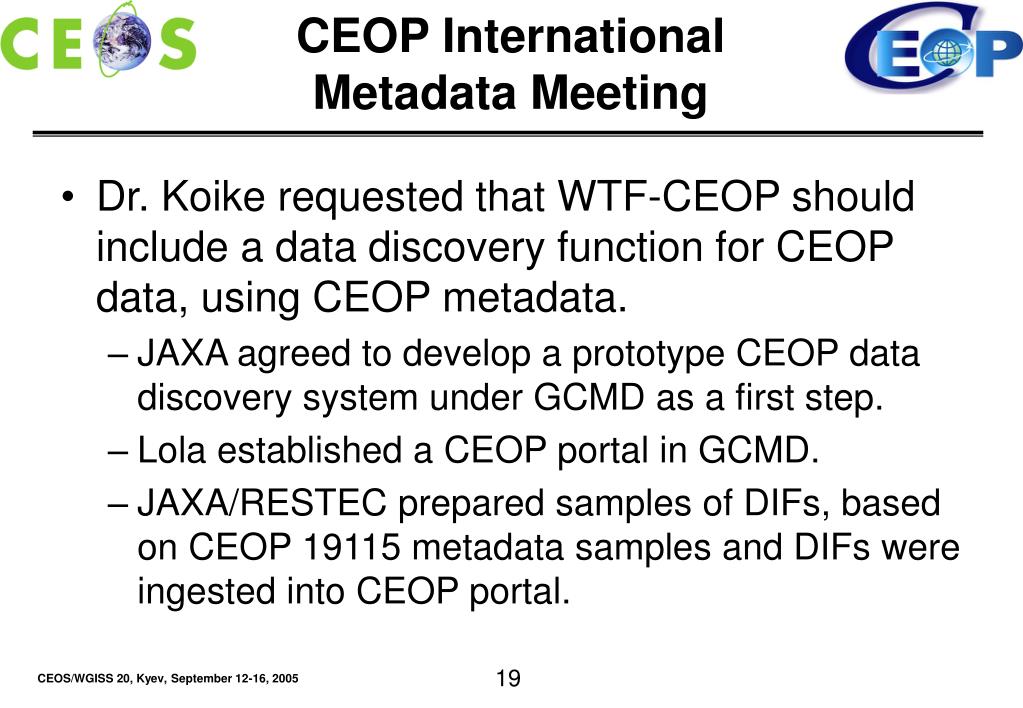

  19. Dr. Koike requested that WTF-CEOP should include a data discovery function for CEOP data, using CEOP metadata. JAXA agreed to develop a prototype CEOP data discovery system under GCMD as a first step. Lola established a CEOP portal in GCMD. JAXA/RESTEC prepared samples of DIFs, based on CEOP 19115 metadata samples and DIFs were ingested into CEOP portal. CEOP InternationalMetadata Meeting

  20. CEOP GCMD Portal

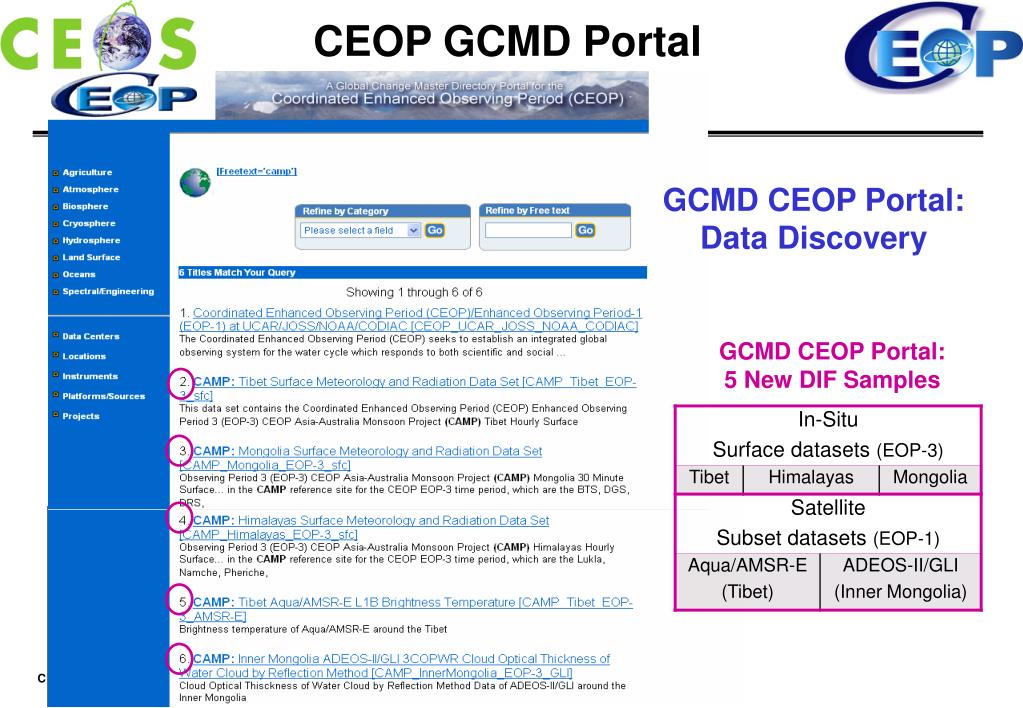

  21. CEOP GCMD Portal GCMD CEOP Portal: Data Discovery GCMD CEOP Portal: 5 New DIF Samples

  22. Work this year Modify existing DIFs to provide a clear path to access WTF-CEOP from DIFs Create DIFs for MOLTS data Create DIFs for Model Output data CEOP GCMD Portal

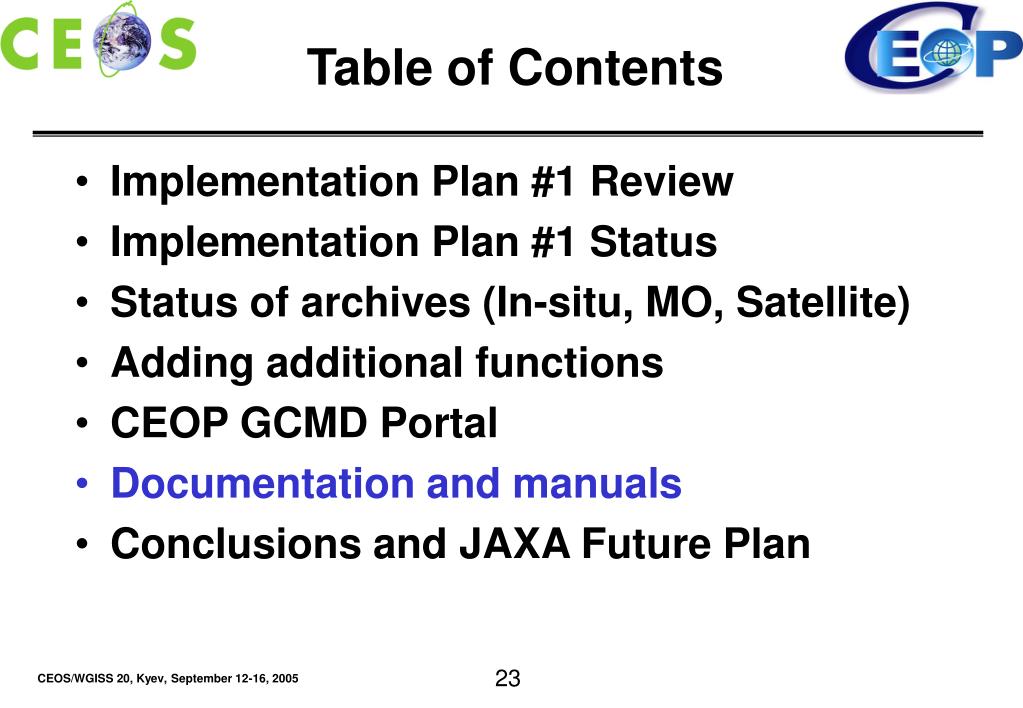

  23. Implementation Plan #1 Review Implementation Plan #1 Status Status of archives (In-situ, MO, Satellite) Adding additional functions CEOP GCMD Portal Documentation and manuals Conclusions and JAXA Future Plan Table of Contents

  24. Revise and expand User’s Manual Write System Maintenance Manual Recently updated WTF-CEOP Project Plan Added information R&D plans for 3 years (to be presented by Osamu) Documentation

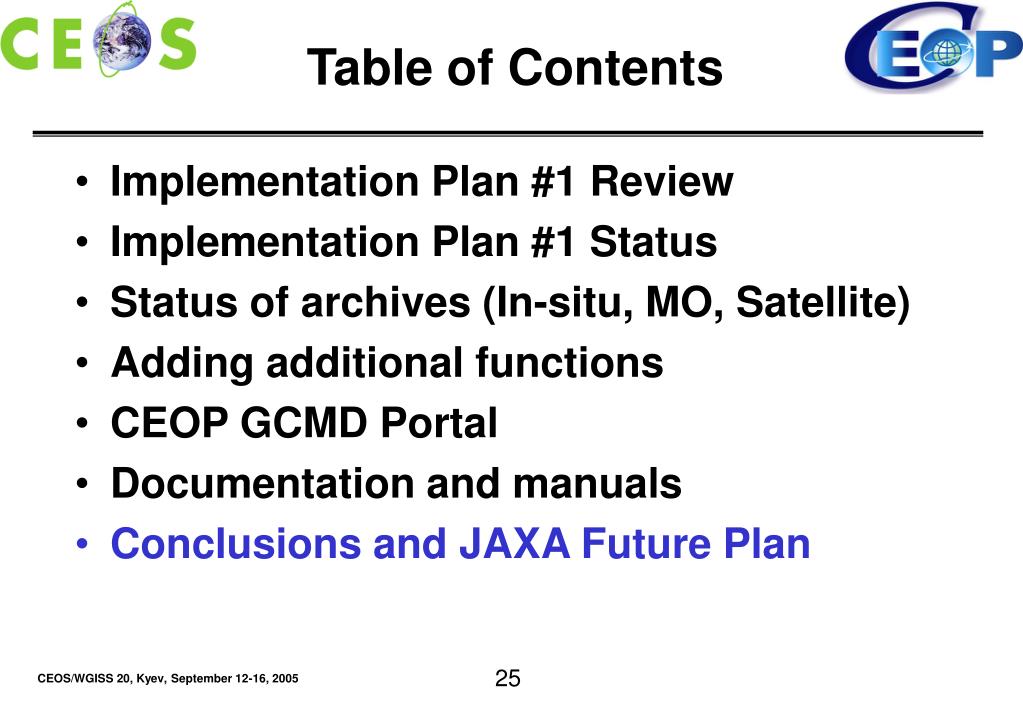

  25. Implementation Plan #1 Review Implementation Plan #1 Status Status of archives (In-situ, MO, Satellite) Adding additional functions CEOP GCMD Portal Documentation and manuals Conclusions and JAXA Future Plan Table of Contents

  26. Implementation Plan #1 will finish at the end of this Fiscal year (March 31, 2006) All 4 types of CEOP data will be fully functional A new R&D effort is beginning this year and will continue for two more years (until March 31, 2008) To be presented by Osamu Conclusions andFuture plan (c) Prof. Shibasaki@Univ. Tokyo
