Project 2

Project 2. Task 1: Design, analyze and implement the algorithm of computing Huffman code . Input: 26 English characters (your can add some other characters, such as space, “,”, “.”) and their frequencies (the sum of the frequencies is 100). Output: Huffman codeword of each character.

varana
Télécharger la présentation

Project 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

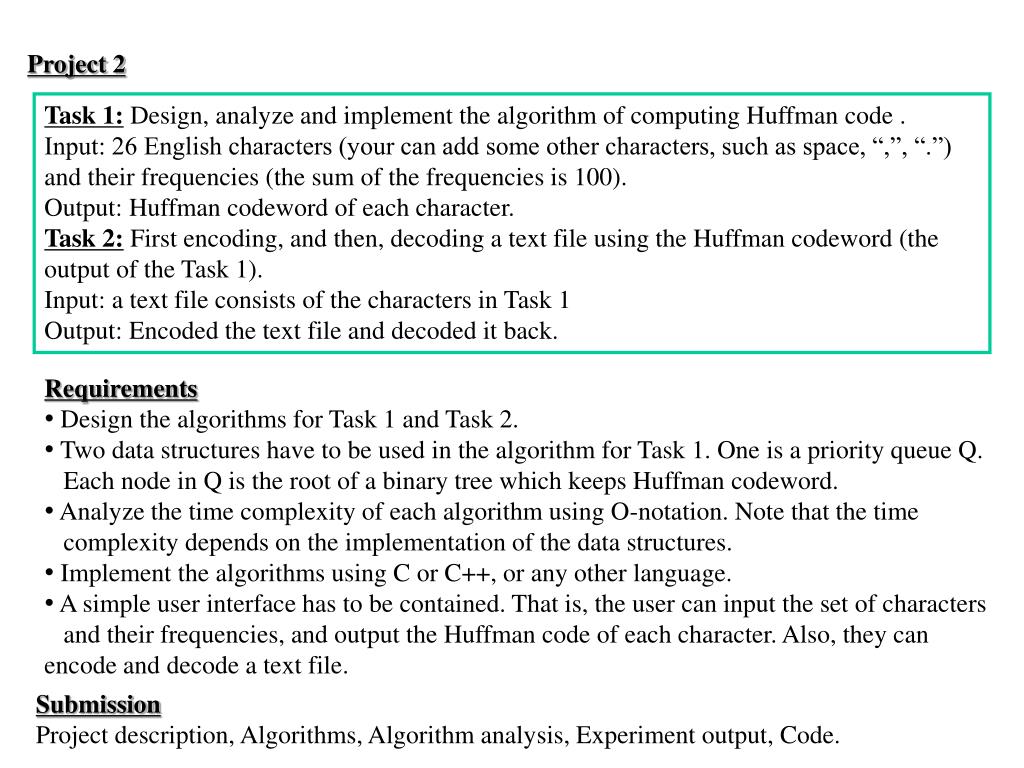

  1. Project 2 Task 1: Design, analyze and implement the algorithm of computing Huffman code . Input: 26 English characters (your can add some other characters, such as space, “,”, “.”) and their frequencies (the sum of the frequencies is 100). Output: Huffman codeword of each character. Task 2: First encoding, and then, decoding a text file using the Huffman codeword (the output of the Task 1). Input: a text file consists of the characters in Task 1 Output: Encoded the text file and decoded it back. • Requirements • Design the algorithms for Task 1 and Task 2. • Two data structures have to be used in the algorithm for Task 1. One is a priority queue Q. • Each node in Q is the root of a binary tree which keeps Huffman codeword. • Analyze the time complexity of each algorithm using O-notation. Note that the time • complexity depends on the implementation of the data structures. • Implement the algorithms using C or C++, or any other language. • A simple user interface has to be contained. That is, the user can input the set of characters • and their frequencies, and output the Huffman code of each character. Also, they can encode and decode a text file. Submission Project description, Algorithms, Algorithm analysis, Experiment output, Code.
