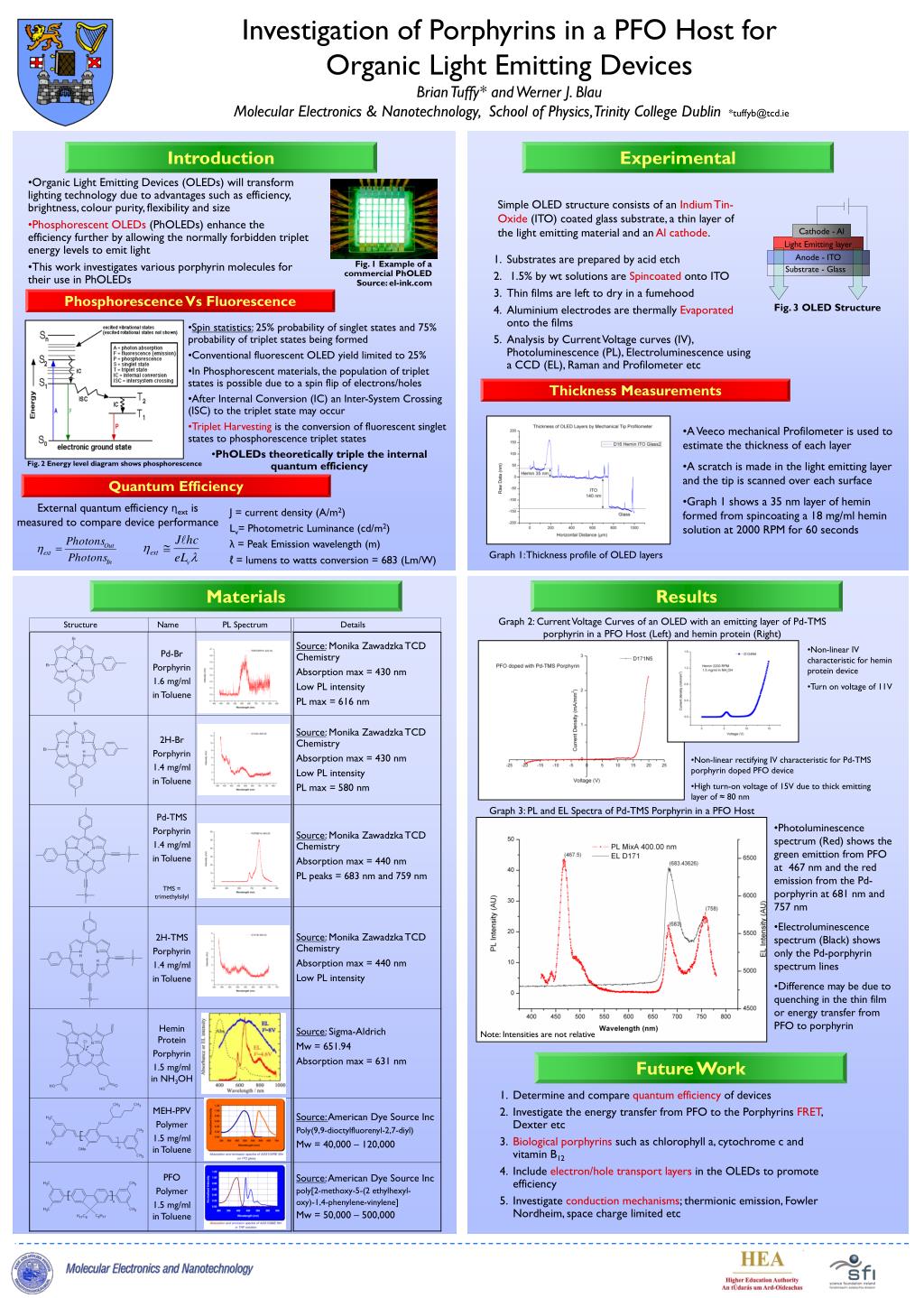

Cathode - Al. Light Emitting layer. Substrate - Glass. Fig. 3 OLED Structure. Anode - ITO. Investigation of Porphyrins in a PFO Host for Organic Light Emitting Devices Brian Tuffy* and Werner J. Blau

varana
Télécharger la présentation

Results

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Cathode - Al Light Emitting layer Substrate - Glass Fig. 3 OLED Structure Anode - ITO Investigation of Porphyrins in a PFO Host for Organic Light Emitting Devices Brian Tuffy* and Werner J. Blau Molecular Electronics & Nanotechnology, School of Physics, Trinity College Dublin*tuffyb@tcd.ie Introduction Experimental • Organic Light Emitting Devices (OLEDs) will transform lighting technology due to advantages such as efficiency, brightness, colour purity, flexibility and size • Phosphorescent OLEDs (PhOLEDs) enhance the efficiency further by allowing the normally forbidden triplet energy levels to emit light • This work investigates various porphyrin molecules for their use in PhOLEDs Simple OLED structure consists of an Indium Tin-Oxide (ITO) coated glass substrate, a thin layer of the light emitting material and an Al cathode. • Substrates are prepared by acid etch • 1.5% by wt solutions are Spincoated onto ITO • Thin films are left to dry in a fumehood • Aluminium electrodes are thermally Evaporated onto the films • Analysis by Current Voltage curves (IV), Photoluminescence (PL), Electroluminescence using a CCD (EL), Raman and Profilometer etc Fig. 1 Example of a commercial PhOLED Source: el-ink.com Phosphorescence Vs Fluorescence • Spin statistics: 25% probability of singlet states and 75% probability of triplet states being formed • Conventional fluorescent OLED yield limited to 25% • In Phosphorescent materials, the population of triplet states is possible due to a spin flip of electrons/holes • After Internal Conversion (IC) an Inter-System Crossing (ISC) to the triplet state may occur • Triplet Harvesting is the conversion of fluorescent singlet states to phosphorescence triplet states • PhOLEDs theoretically triple the internal quantum efficiency Thickness Measurements • A Veeco mechanical Profilometer is used to estimate the thickness of each layer • A scratch is made in the light emitting layer and the tip is scanned over each surface • Graph 1 shows a 35 nm layer of hemin formed from spincoating a 18 mg/ml hemin solution at 2000 RPM for 60 seconds Fig. 2 Energy level diagram shows phosphorescence Quantum Efficiency External quantum efficiency ηextis measured to compare device performance J = current density (A/m2) Lv= Photometric Luminance (cd/m2) λ = Peak Emission wavelength (m) ℓ = lumens to watts conversion = 683 (Lm/W) Graph 1: Thickness profile of OLED layers Materials Results Graph 2: Current Voltage Curves of an OLED with an emitting layer of Pd-TMS porphyrin in a PFO Host (Left) and hemin protein (Right) Structure Name PL Spectrum Details • Non-linear IV characteristic for hemin protein device • Turn on voltage of 11V • Non-linear rectifying IV characteristic for Pd-TMS porphyrin doped PFO device • High turn-on voltage of 15V due to thick emitting layer of ≈ 80 nm Graph 3: PL and EL Spectra of Pd-TMS Porphyrin in a PFO Host • Photoluminescence spectrum (Red) shows the green emittion from PFO at 467 nm and the red emission from the Pd-porphyrin at 681 nm and 757 nm • Electroluminescence spectrum (Black) shows only the Pd-porphyrin spectrum lines • Difference may be due to quenching in the thin film or energy transfer from PFO to porphyrin Note: Intensities are not relative Future Work • Determine and compare quantum efficiency of devices • Investigate the energy transfer from PFO to the Porphyrins FRET, Dexter etc • Biological porphyrins such as chlorophyll a, cytochrome c and vitamin B12 • Include electron/hole transport layers in the OLEDs to promote efficiency • Investigate conduction mechanisms; thermionic emission, Fowler Nordheim, space charge limited etc
