Right Triangle Trigonometry

Right Triangle Trigonometry. Section 12.1. hyp. opp. adj. SOH CAH TOA. “Some old horse caught another horse taking oats away.”. “Some old hippie caught another hippie tripping on acid.”. hyp. adj. opp. 16. x. SOH CAH TOA. 24. x. SOH CAH TOA. x. SOH CAH TOA. 18. 18. x.

vaughan
Télécharger la présentation

Right Triangle Trigonometry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Right Triangle Trigonometry Section 12.1

  2. hyp. opp. adj. SOH CAH TOA “Some old horse caught another horse taking oats away.” “Some old hippie caught another hippie tripping on acid.”

  3. hyp. adj. opp.

  4. 16 x SOH CAH TOA

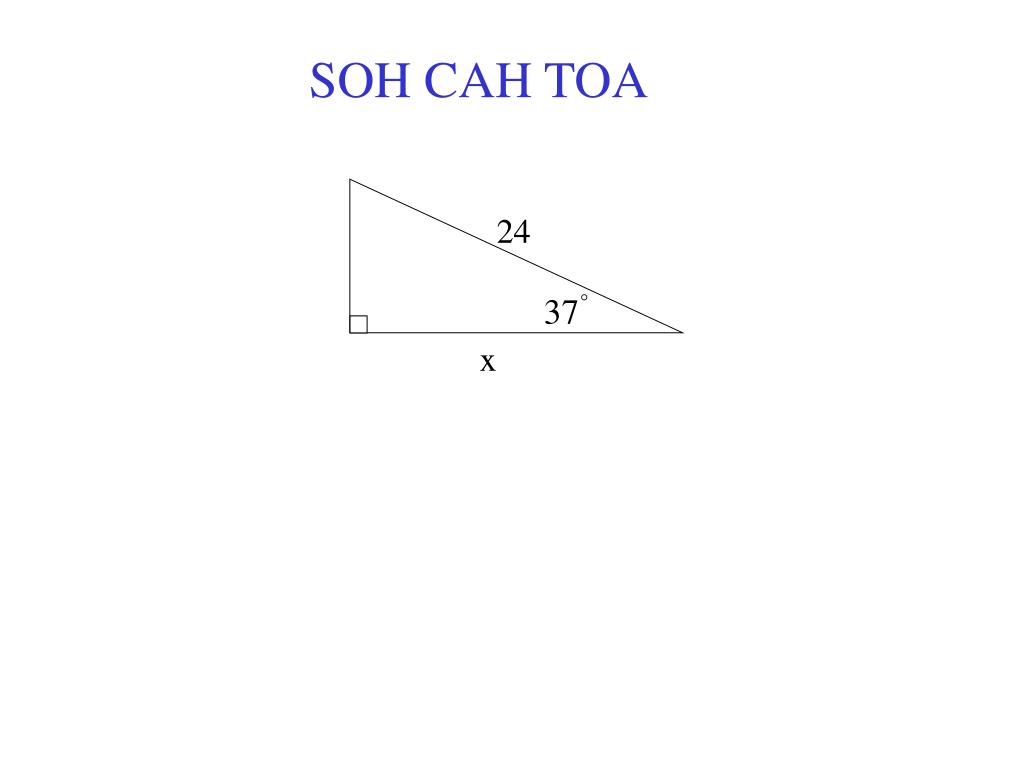

  5. 24 x SOH CAH TOA

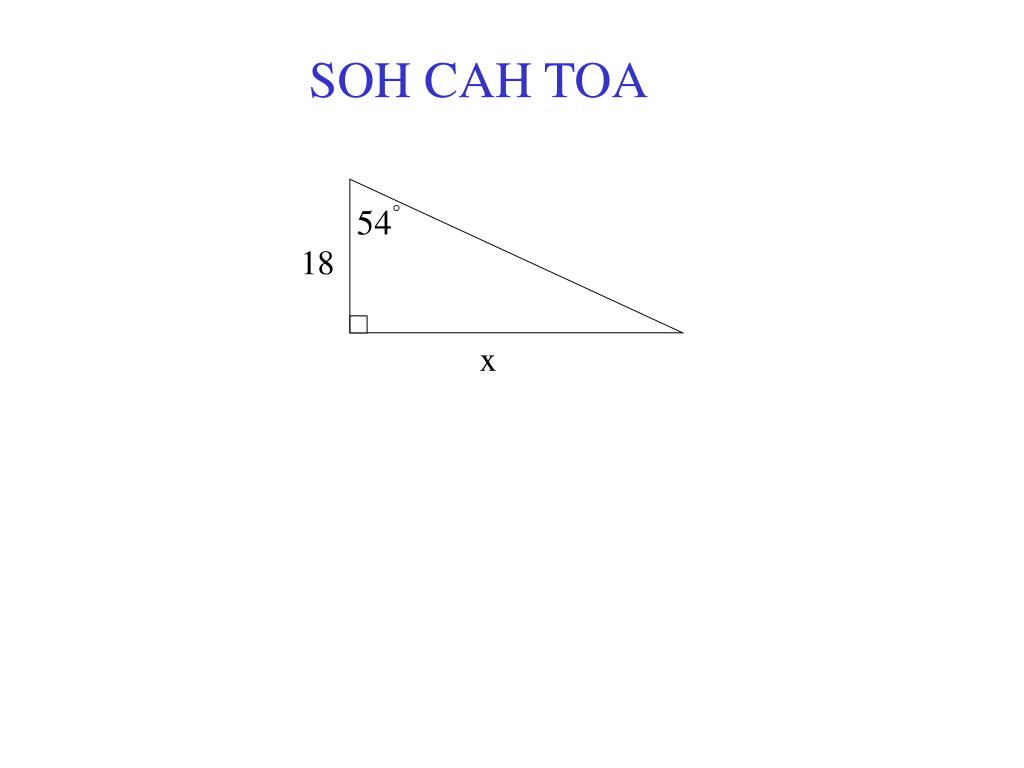

  6. x SOH CAH TOA 18

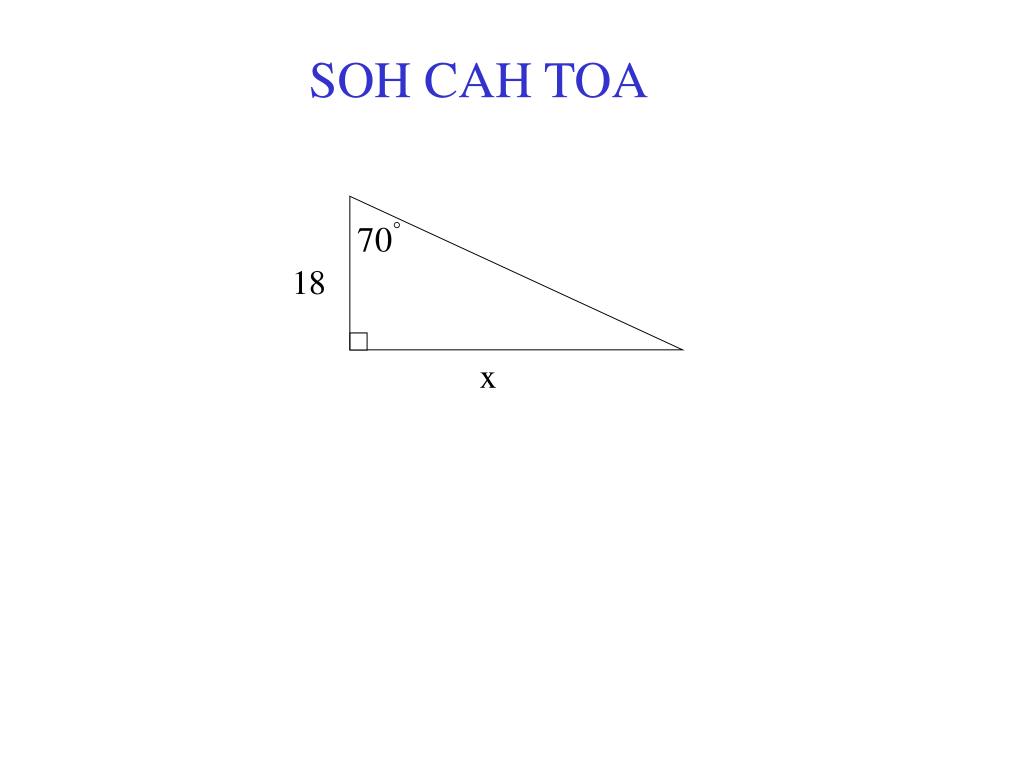

  7. 18 x SOH CAH TOA

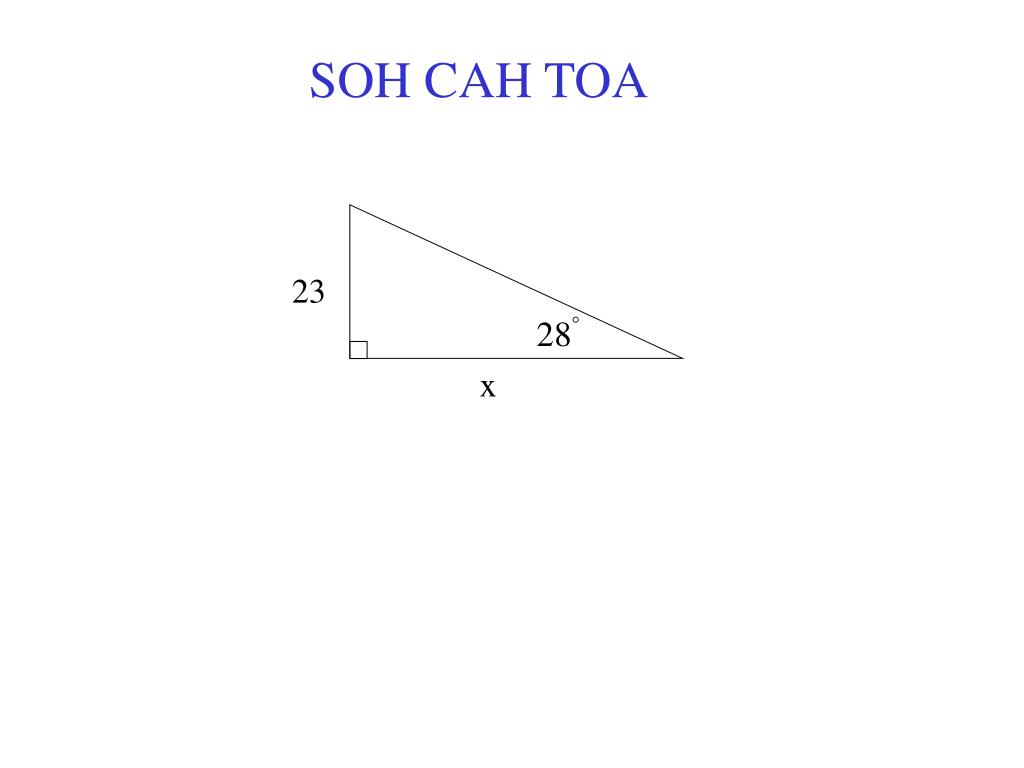

  8. x SOH CAH TOA 23

  9. 35 x

  10. SOH CAH TOA A slide that is 5.4 meters long makes an angle of 34 degrees with the ground. How high is the top of the slide?

  11. SOH CAH TOA Susan drives 20 km up a hill that is at a grade of 11 degrees. What horizontal distance, to the nearest tenth of a km, has she covered?

  12. SOH CAH TOA To find the height of a tower, a surveyor positions a transit that is 2 meters tall at a spot 40 meters from the base of the tower. She measures the angle of elevation to the top of the tower to be 56 degrees. What is the height of the tower to the nearest meter?

  13. Homework Trig. worksheet
