  1. ASIC 121: Practical VHDL Digital Design for FPGAs Tutorial 2 October 4, 2006

  2. Contributions • I have taken some of the slides in this tutorial from Jeff Wentworth’s ASIC 120

  3. Combination vs Sequential • Combinational Logic • Output only depends on input • Examples: AND, OR, MUX • Sequential Logic • Output depends on inputs and memory • Examples: State Machine, Counter

  4. Memory • Two popular ways of implementing memory: • Synchronous memory (most popular) • Uses Flip Flops with a Clock signal • Asynchronous memory • Uses Latches • Much more difficult to design with

  5. Basic Feedback Element: SR latch

  6. D Flip-Flop or Register

  7. ASIC 120 • Read through the ASIC 120 Tutorial 2 • Gives a good explanation of state machines and basic VHDL

  8. Independent Tasks • All students should have evaluation copies of Modelsim and Quartus II, if not see Tutorial 1

  9. Quartus II Exercise • This exercise builds on the one performed in Tutorial 1 • Open Quartus II, Select File->New Project Wizard, Select a valid working directory (should be an empty folder) • Name the project and entity “full_adder” • Click next for all other menus • Select File->New. Select VHDL File

  10. Quartus II Exercise Cont • Save the file as full_adder.vhd, with the contents: library ieee; use ieee.std_logic_1164.all; entity full_adder is Port ( i_X, i_Y, i_Cin : in STD_LOGIC; o_FA_Sum, o_FA_Cout : out STD_LOGIC ); end full_adder; architecture main of full_adder is Component half_adder Port ( i_A, i_B : in STD_LOGIC; o_Sum, o_Carry : out STD_LOGIC ); end Component; signal carry_1, carry_2, sum_1: STD_LOGIC;

  11. Quartus II Exercise Cont begin adder1 : half_adder Port map( i_A => i_X, i_B => i_Y, o_Sum => sum_1, o_Carry => carry_1); adder2 : half_adder Port map( i_A => i_Cin, i_B => sum_1, o_Sum => o_FA_Sum, o_Carry => carry_2); o_FA_Cout <= carry_1 or carry_2; end main;

  12. Quartus II Exercise Cont • Go to Project->Add Files and add the half_adder.vhd file from Tutorial 1 • You have now seen a hierarchical VHDL design with multiple files

  13. Quartus II Exercise Cont • Select Processing->Start->Analysis and Synthesis • Make sure it completes successfully • Next Step • Read through the help file under “simulation” • Try Simulating the design

  14. Full Adder Full Adder Full Adder Exercise 2 • Full adders can be chained together into something called a “ripple adder” • 3 bit adder (A + B = S): B2 A2 B1 A1 B0 A0 Carry Out Carry In S2 S1 S0

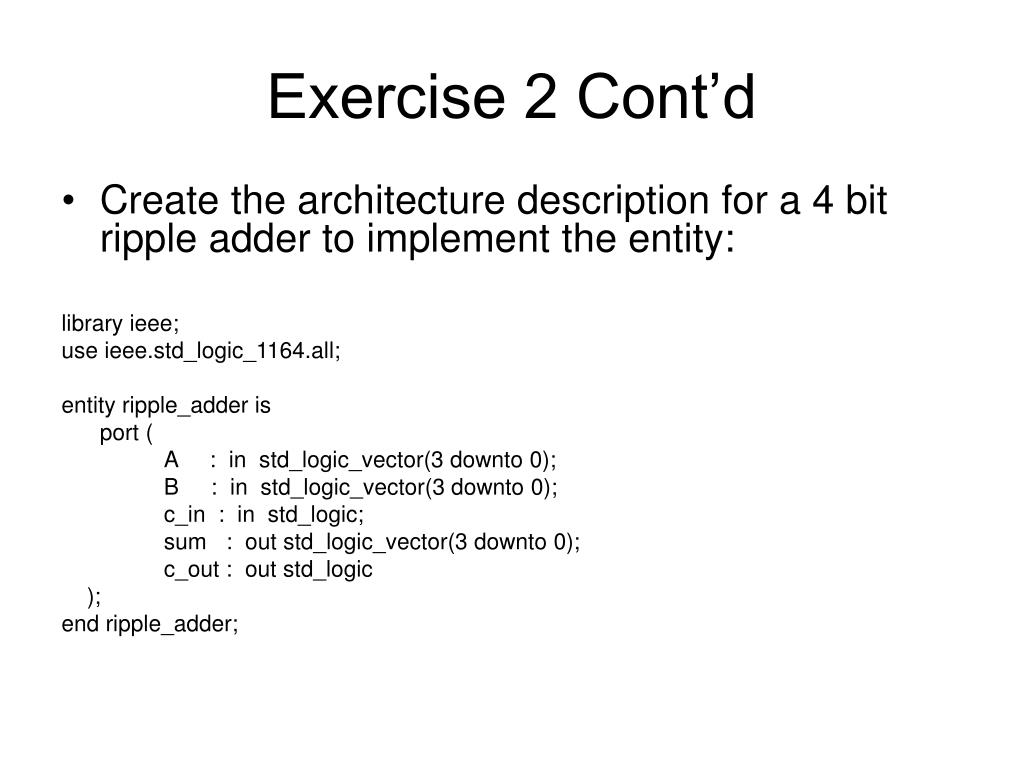

  15. Exercise 2 Cont’d • Create the architecture description for a 4 bit ripple adder to implement the entity: library ieee; use ieee.std_logic_1164.all; entity ripple_adder is port ( A : in std_logic_vector(3 downto 0); B : in std_logic_vector(3 downto 0); c_in : in std_logic; sum : out std_logic_vector(3 downto 0); c_out : out std_logic ); end ripple_adder;

  16. VHDL DFF (Flip Flop) library ieee; use ieee.std_logic_1164.all; entity DFF is port ( d, clk : in STD_LOGIC; q : out STD_LOGIC ); end DFF; architecture main of DFF is begin process (clk) begin if (clk'event and clk = '1') then q <= d; end if; end process; end main;
