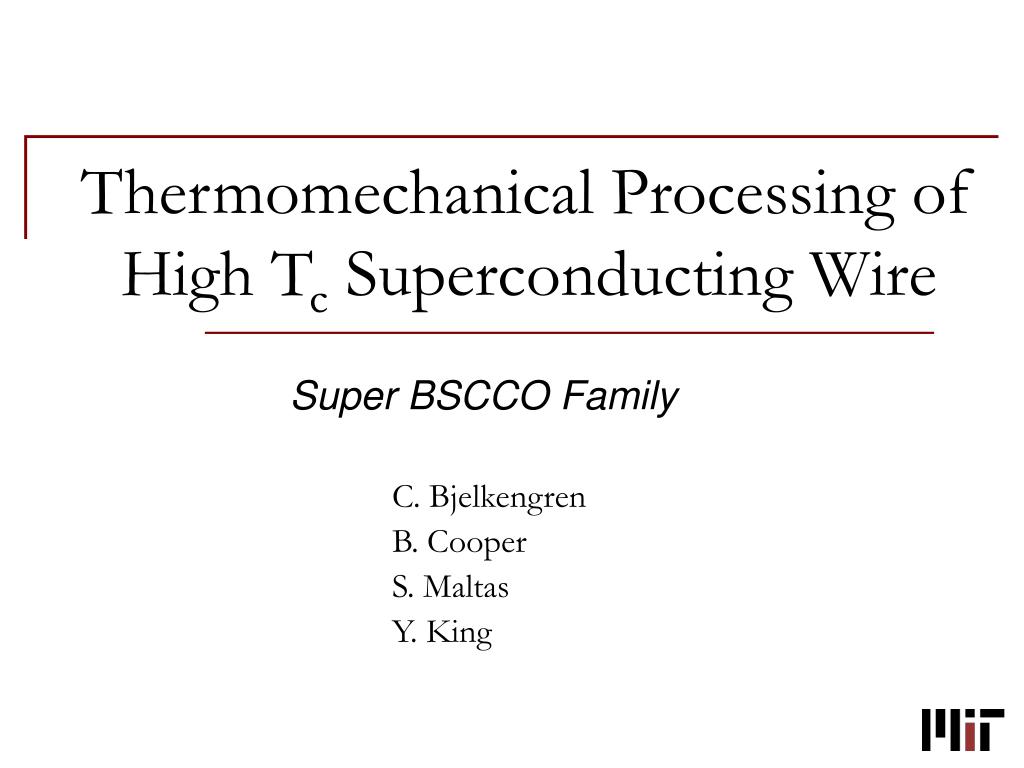

  1. Thermomechanical Processing of High Tc Superconducting Wire Super BSCCO Family C. Bjelkengren B. Cooper S. Maltas Y. King

  2. Project Overview • BiSrCaCuO-2223 ceramic encased in a silver tape • Supercurrent flows along Cu-O planes Super BSCCO Family 2

  3. Project Overview • Texture controls critical current Bad Good Worst Super BSCCO Family 3

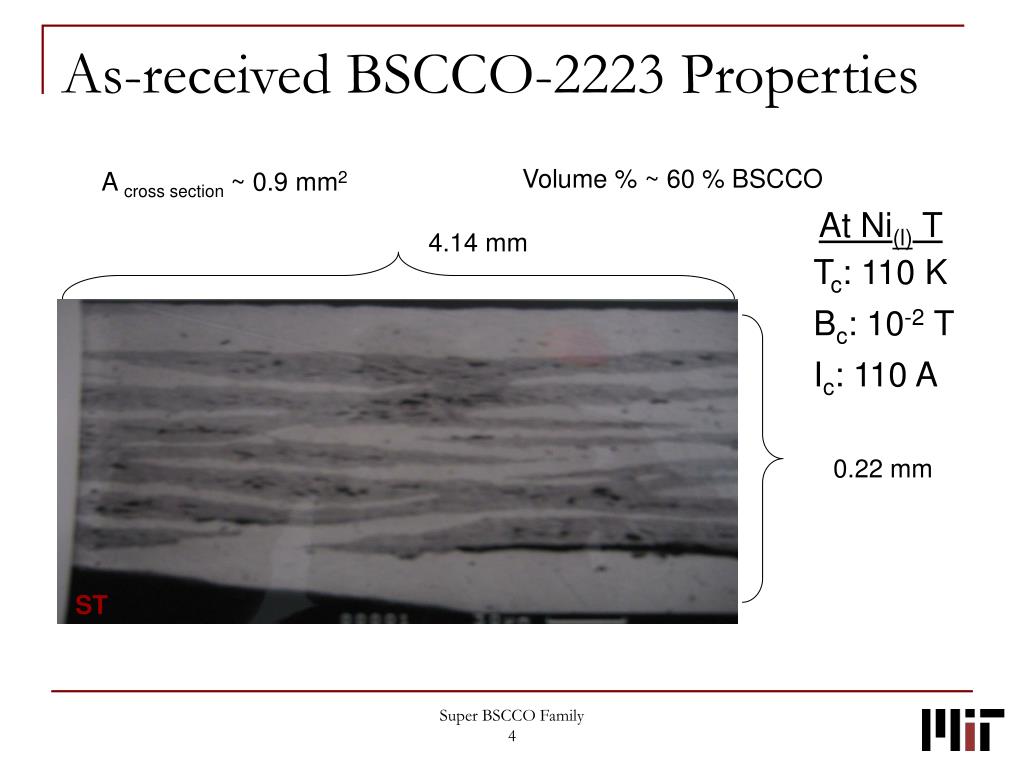

  4. As-received BSCCO-2223 Properties Volume % ~ 60 % BSCCO A cross section ~ 0.9 mm2 At Ni(l) T 4.14 mm Tc: 110 K Bc: 10-2 T Ic: 110 A 0.22 mm ST Super BSCCO Family 4

  5. Cold Rolling Hot Rolling Uniaxial Deformation Compression Annealing Annealing Directional Grain Growth Hot Isostatic Pressing Available Thermomechanical Processes Super BSCCO Family 5

  6. Cold Rolling Hot Rolling Uniaxial Deformation Compression Annealing Directional Grain Growth Hot Isostatic Pressing Available Thermomechanical Processes Super BSCCO Family 6

  7. Pure Annealing Super BSCCO Family 7

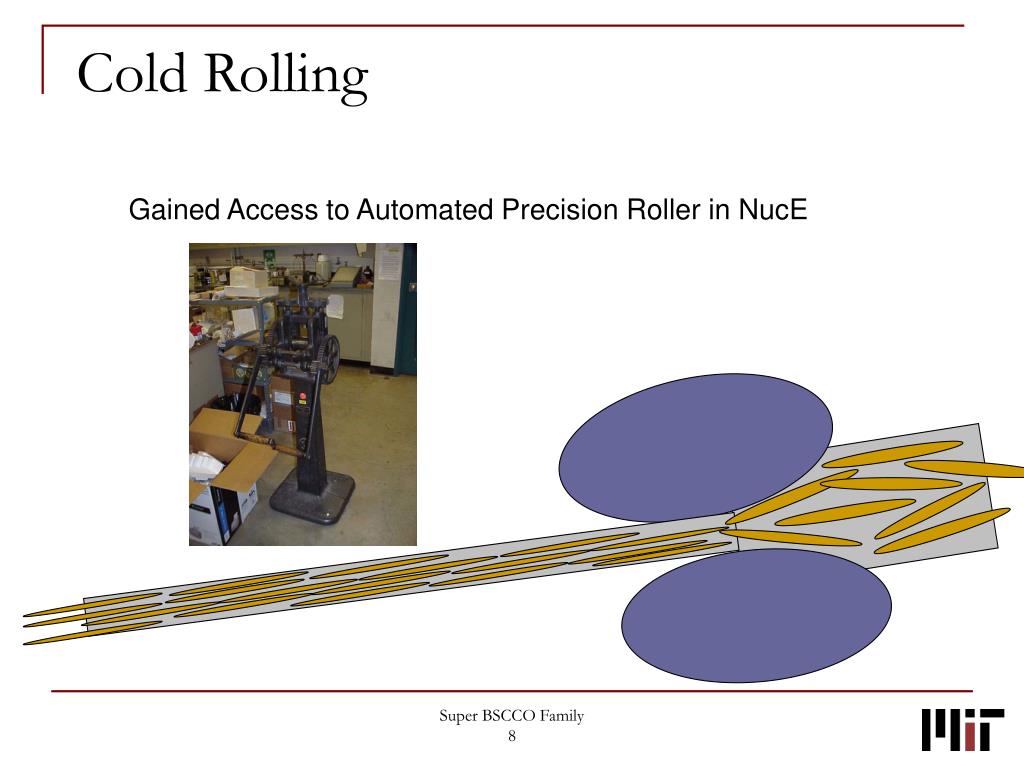

  8. Cold Rolling Gained Access to Automated Precision Roller in NucE Super BSCCO Family 8

  9. Cold Rolling • Fixed • O2 Partial Pressure: 107 Pa • Anneal Temperature: 815oC • Variable • Strain: ∆w / w0 • Anneal Time Super BSCCO Family 9

  10. Cold Rolling Super BSCCO Family 10

  11. Compression Annealing • Simultaneous heat, strain, and oxidation Super BSCCO Family 11

  12. Compression Annealing • Fixed • O2 Partial Pressure: 107 Pa • Torque: 10 N·m • Variable • Anneal Time • Anneal Temperature Super BSCCO Family 12

  13. Compression Annealing Super BSCCO Family 13

  14. Hot Isostatic Pressing • t ~ 40 hours • T ~ 400-500 oC • P ~ 70 MPa • Ag-based solder • Annealing to restore Ox Super BSCCO Family 14

  15. Hot Isostatic Pressing Temperature Pressure = 70 MPa 500 C Time 40 hours Super BSCCO Family 15

  16. Cold Rolling Hot Rolling Uniaxial Deformation Compression Annealing Annealing Directional Grain Growth Hot Isostatic Pressing Results so Far! Super BSCCO Family 16

  17. Cold Rolling Hot Rolling Uniaxial Deformation Compression Annealing Directional Grain Growth Hot Isostatic Pressing Results so Far! Super BSCCO Family 17

  18. Loss of Superconductivity Super BSCCO Family 18

  19. Improvements in Superconductivity Super BSCCO Family 19

  20. Ic After Hot Isostatic Pressing ? Super BSCCO Family 20

  21. Further Assessment • Deduce: • Most effective process variables using the variable-squares outlined above • Relate: • Improvements in Ic to better texture • Investigate: • Lotgering Factor • SEM Super BSCCO Family 21

  22. Gantt Chart Super BSCCO Family 22
