Basic Anatomy of a Sensor System

Basic Anatomy of a Sensor System. Signal Conditioning. Microprocessor. Sensor. A/D. Analog Mux. A/D. Sensor. H/L. Sensor. Control Bus. 8 bit Analog to Digital Converters Share A/D via analog multiplexer Analog signal conditioning. Sensing Challenges. Switch.

vernon
Télécharger la présentation

Basic Anatomy of a Sensor System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

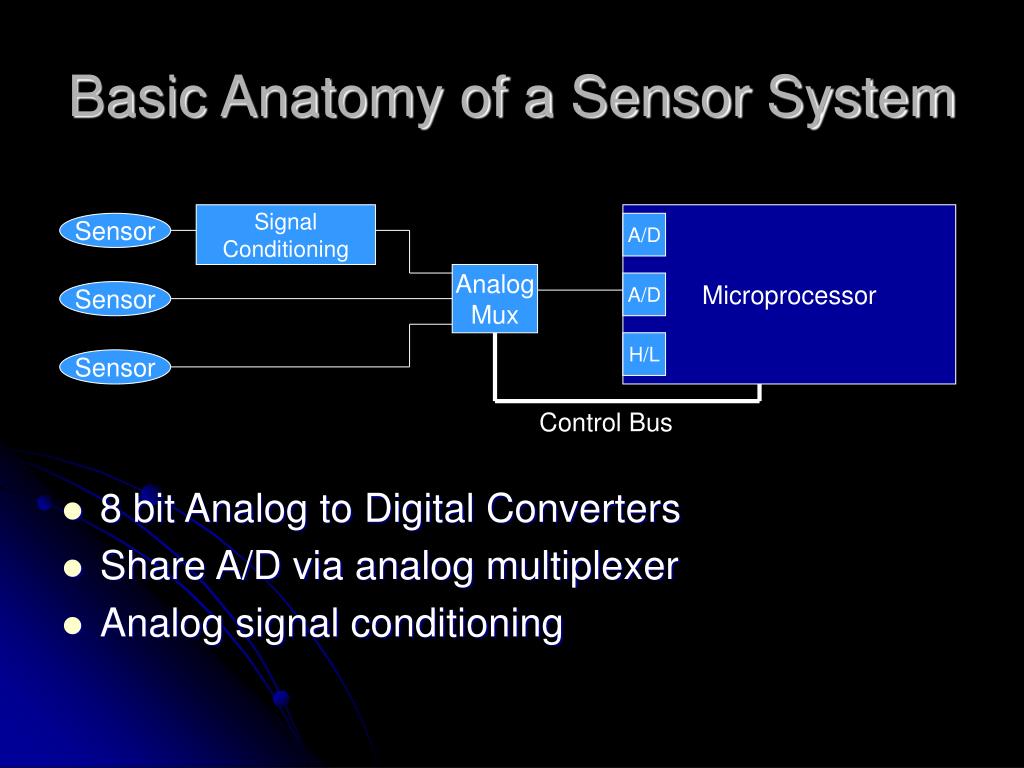

  1. Basic Anatomy of a Sensor System Signal Conditioning Microprocessor Sensor A/D Analog Mux A/D Sensor H/L Sensor Control Bus • 8 bit Analog to Digital Converters • Share A/D via analog multiplexer • Analog signal conditioning

  2. Sensing Challenges

  3. Switch • As easy as on / off, right? ...nope signal bounces

  4. Switch

  5. Temperature • MTS102 (available in parts shop) • Linear temp response • Use Diff Amp with V2 = 0.637mV, V1 = buffered MTS102 output, R1=1k, R2=40k

  6. Infrared • Modulate infrared LED at 40kHz • LM555 Timer / LC circuit • Columnate LED with Bic Pen • Hack Sharp GP1U58X to obtain analog output reading (may be obsolete) • (http://www.mil.ufl.edu/imdl/handouts/sharphack.pdf) LED 40kHz Modulation Bic Sharp IR Sensor 1.5V to 2.5V output 100ms Rise time

  7. Obtaining Datasheets • Manufacturers Home Pages • Data Bookshelf (http://www.crhc.uiuc.edu/~dburke/databookshelf.html) • Links to Manufacturer’s homepages and other resources • Datasheet Repositories • www.questlink.com • www.tds-net.com • www.info-quick.com
