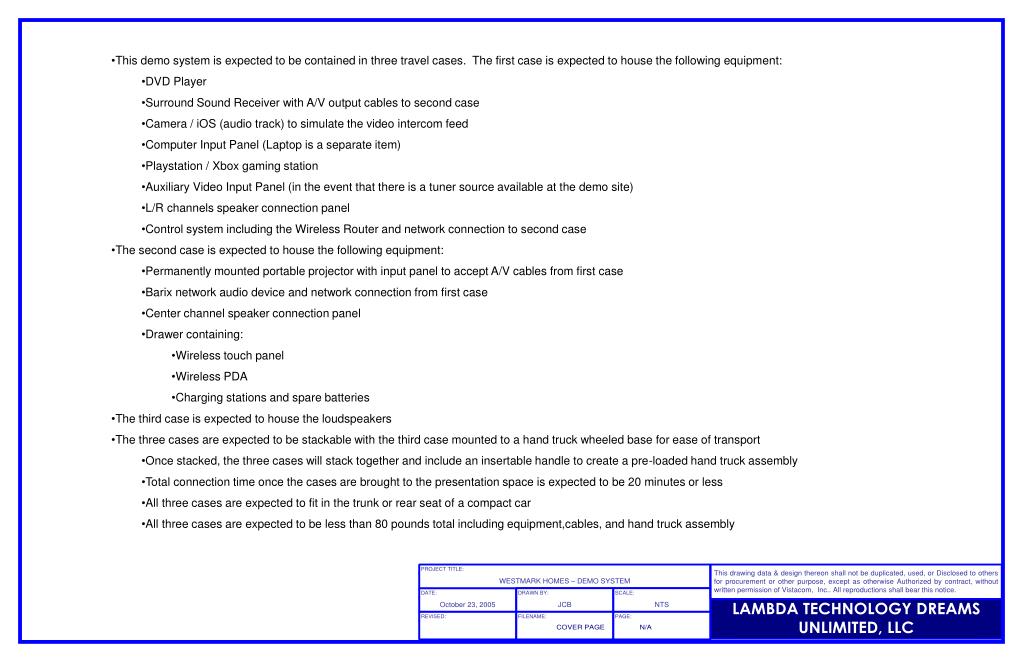

  1. This demo system is expected to be contained in three travel cases. The first case is expected to house the following equipment: • DVD Player • Surround Sound Receiver with A/V output cables to second case • Camera / iOS (audio track) to simulate the video intercom feed • Computer Input Panel (Laptop is a separate item) • Playstation / Xbox gaming station • Auxiliary Video Input Panel (in the event that there is a tuner source available at the demo site) • L/R channels speaker connection panel • Control system including the Wireless Router and network connection to second case • The second case is expected to house the following equipment: • Permanently mounted portable projector with input panel to accept A/V cables from first case • Barix network audio device and network connection from first case • Center channel speaker connection panel • Drawer containing: • Wireless touch panel • Wireless PDA • Charging stations and spare batteries • The third case is expected to house the loudspeakers • The three cases are expected to be stackable with the third case mounted to a hand truck wheeled base for ease of transport • Once stacked, the three cases will stack together and include an insertable handle to create a pre-loaded hand truck assembly • Total connection time once the cases are brought to the presentation space is expected to be 20 minutes or less • All three cases are expected to fit in the trunk or rear seat of a compact car • All three cases are expected to be less than 80 pounds total including equipment,cables, and hand truck assembly

  2. TCP / IP RS - 232 WACI NX + Secure Remote Access by Internet and VPN RC - 5 Wired Touch Panel Wireless Touch Panel Wireless PDA Wireless Laptop 7 . 1 Surround Sound Receiver Wireless Capable Network Router TCP I TCP TCP / / / / IP IP IP R 1 - Zone Stereo Amplifier - Barix Center Channel Surround Speaker Portable LCD Projector DVD Player ( S - Video )

  3. Main Left Main Right Center Channel ( HKTS - 14 ) ( HKTS - 14 ) Barix - Routed Portable LCD Projector Main R TCP/IP Main L Component Video Subwoofer S - Video ( HKTS - 14 ) Composite Video VGA Connection Front Right SW ( Pre Out ) Front Left Computer Input 7 . 1 Surround Sound Receiver DVD Player Game Station ( S - Video ) ( S - Video ) Video Intercom Feed Auxiliary Input ( Composite Video ) ( Composite Video )
