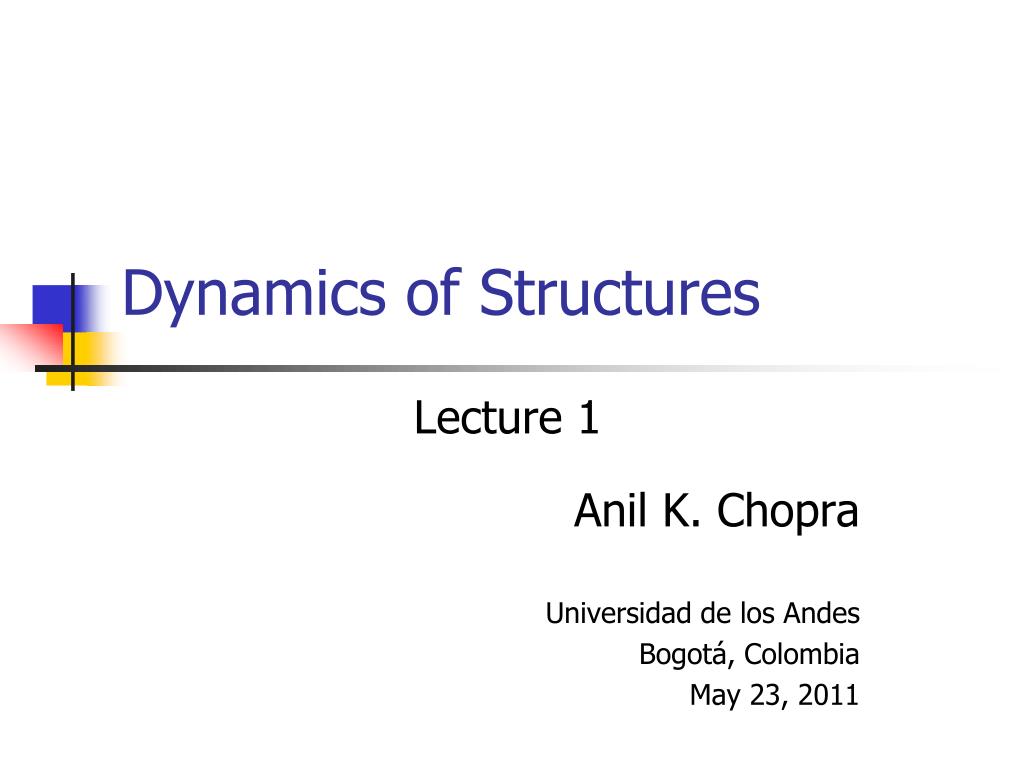

  1. Dynamics of Structures Lecture 1 Anil K. Chopra Universidad de los Andes Bogotá, Colombia May 23, 2011

  2. Simple System Bogata, Colombia

  3. Simple System Bogata, Colombia

  4. Free Vibration of Idealized Systems Idealized Systems Free Vibration Bogata, Colombia

  5. Decay of Free Vibration Aluminum Model Plexiglass Model Bogata, Colombia

  6. Equation of Motion Single-Degree-of-Freedom System Bogata, Colombia

  7. Lateral Stiffness Bogata, Colombia

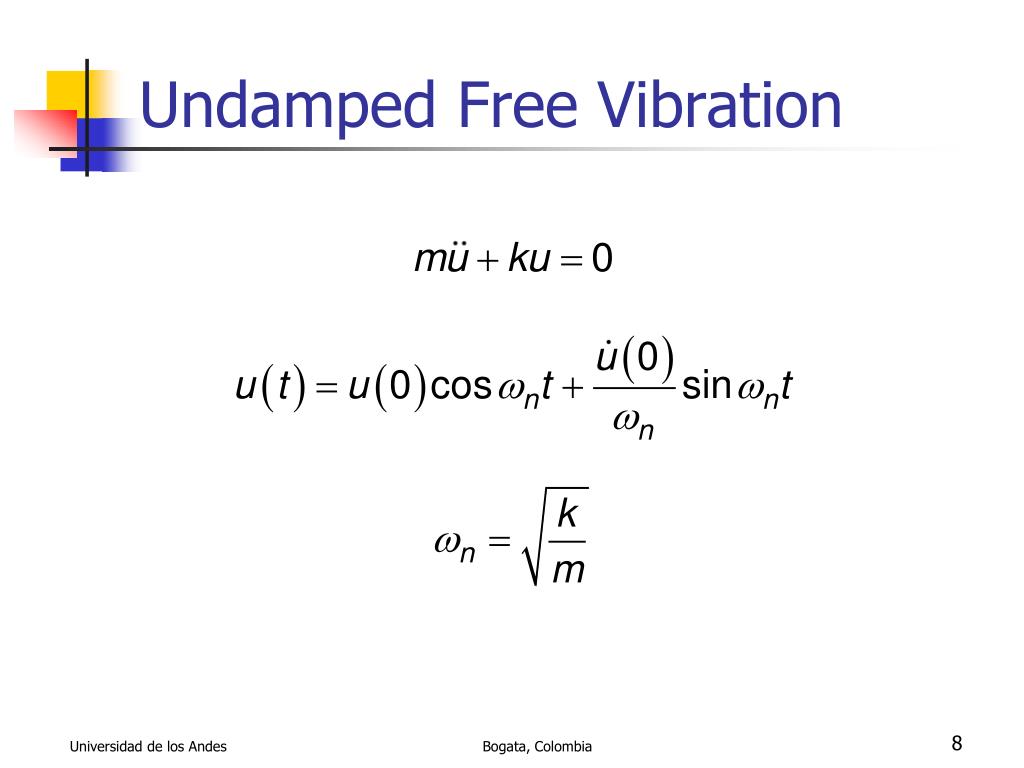

  8. Undamped Free Vibration Bogata, Colombia

  9. Natural Frequency (Period) of Vibration Bogata, Colombia

  10. Three-Story Steel Frame Building Bogata, Colombia

  11. 49-Story Steel Frame Building Period = 2.90 sec Bogata, Colombia

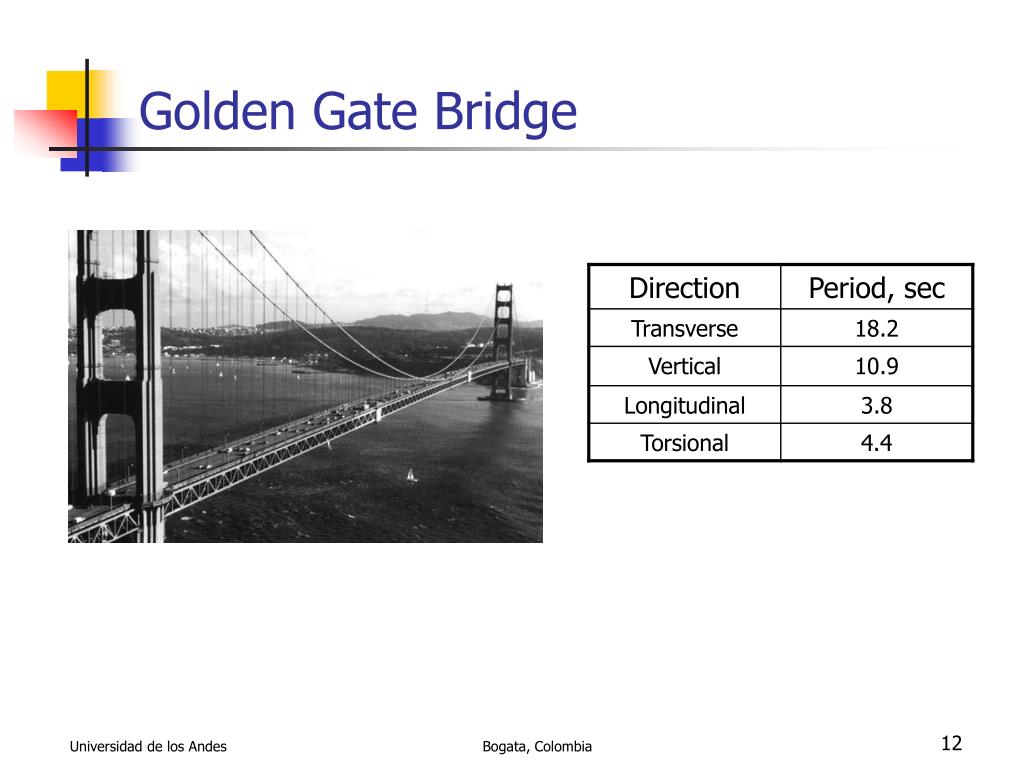

  12. Golden Gate Bridge Bogata, Colombia

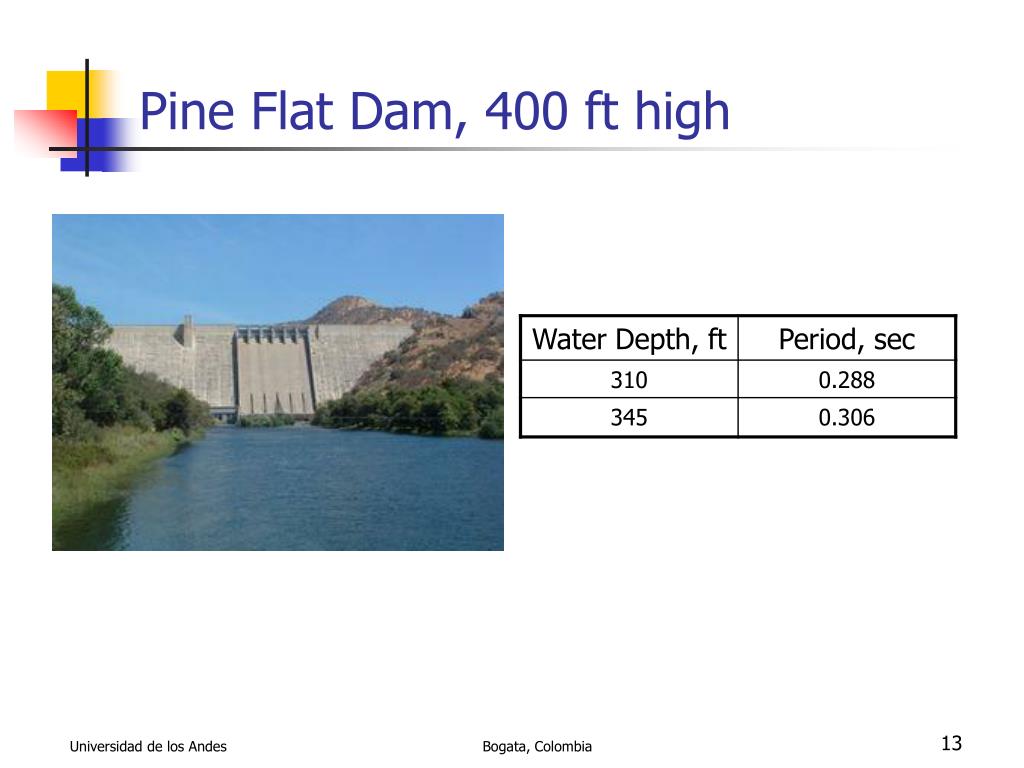

  13. Pine Flat Dam, 400 ft high Bogata, Colombia

  14. Damped Free Vibration • Damping Ratio • Equation of Motion Bogata, Colombia

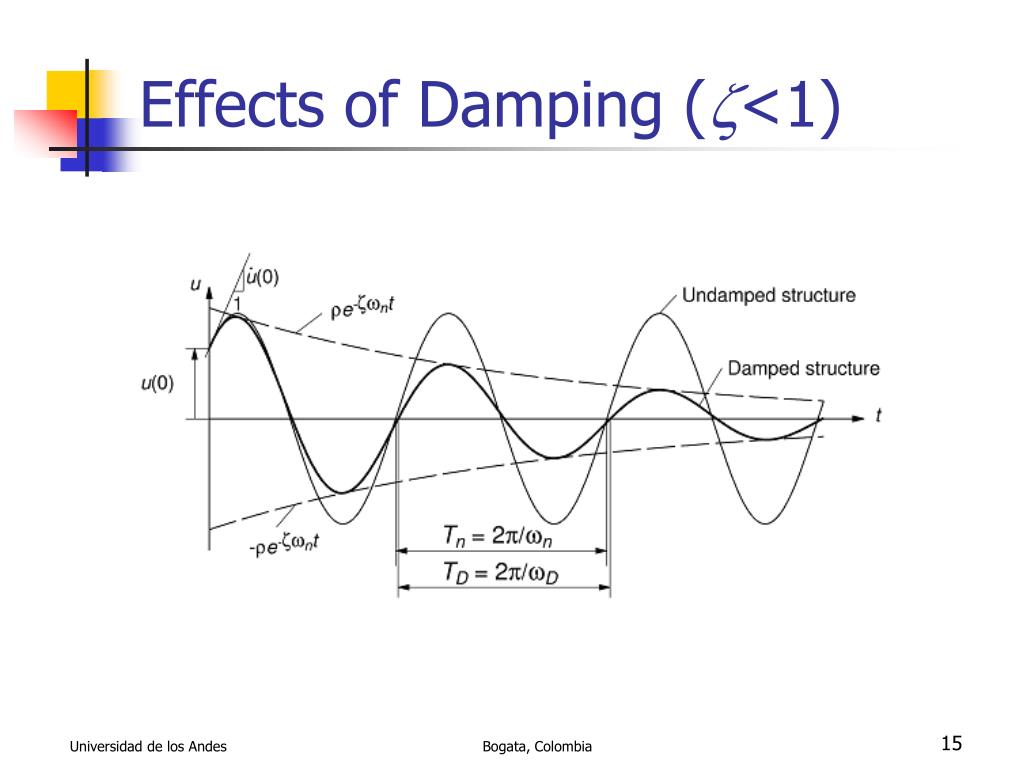

  15. Effects of Damping (<1) Bogata, Colombia

  16. Effects of Damping Bogata, Colombia

  17. Measurement of Period & Damping Bogata, Colombia

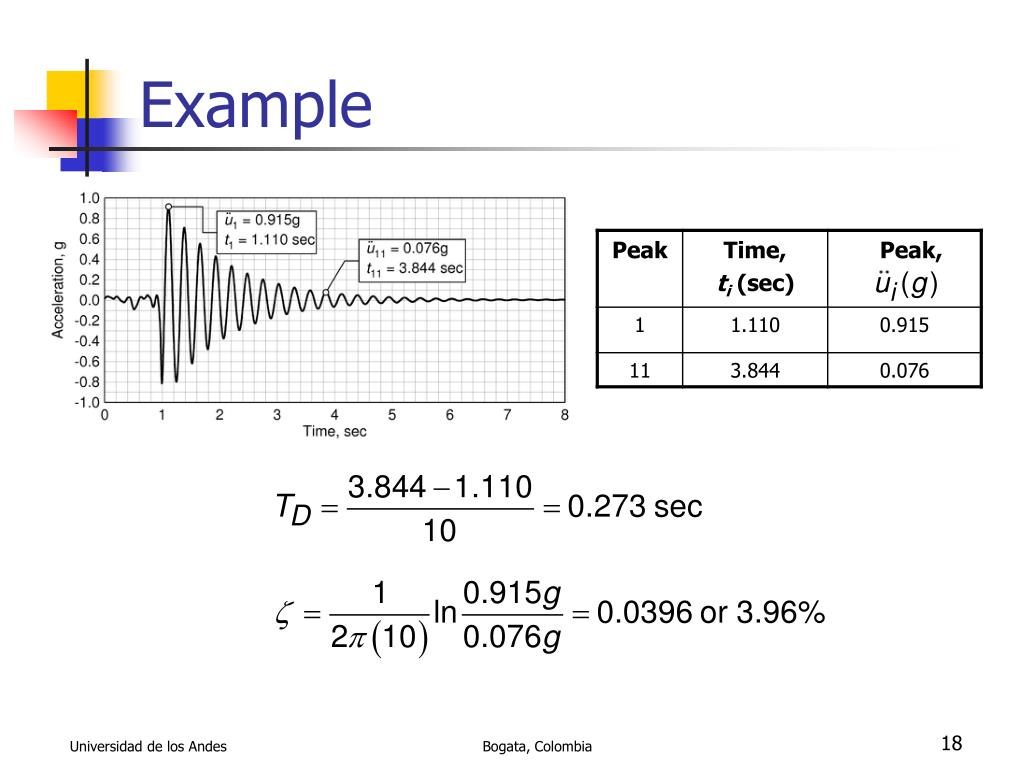

  18. Example Bogata, Colombia

  19. Vibration Generator Bogata, Colombia

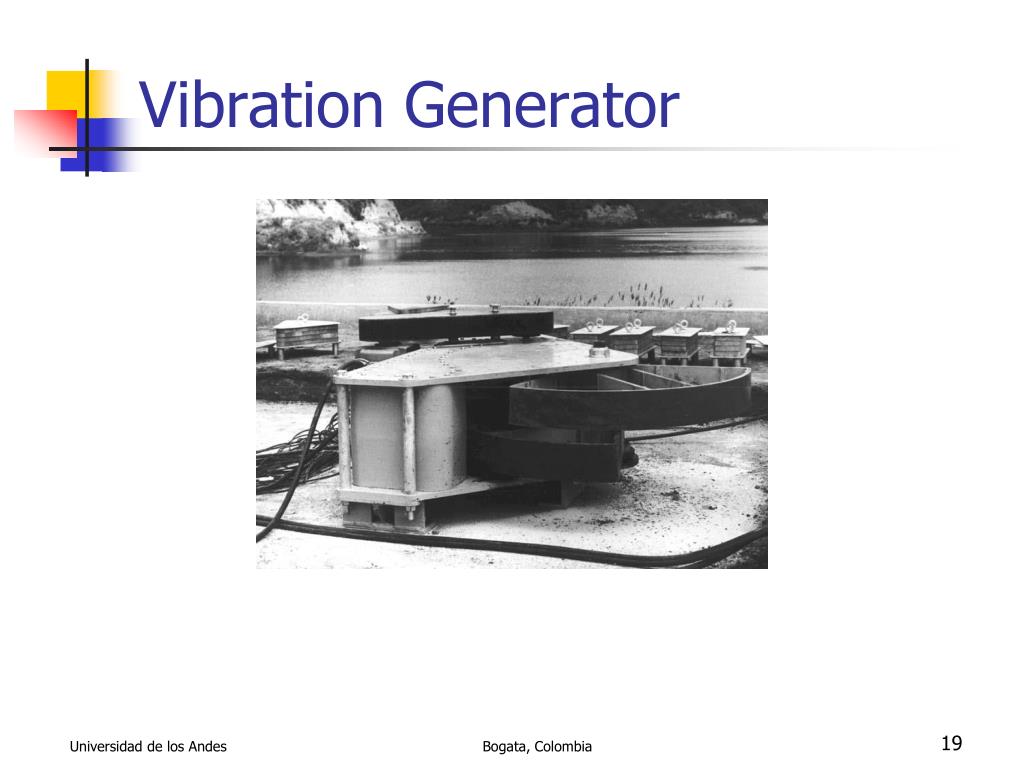

  20. Vibration Generator Bogata, Colombia

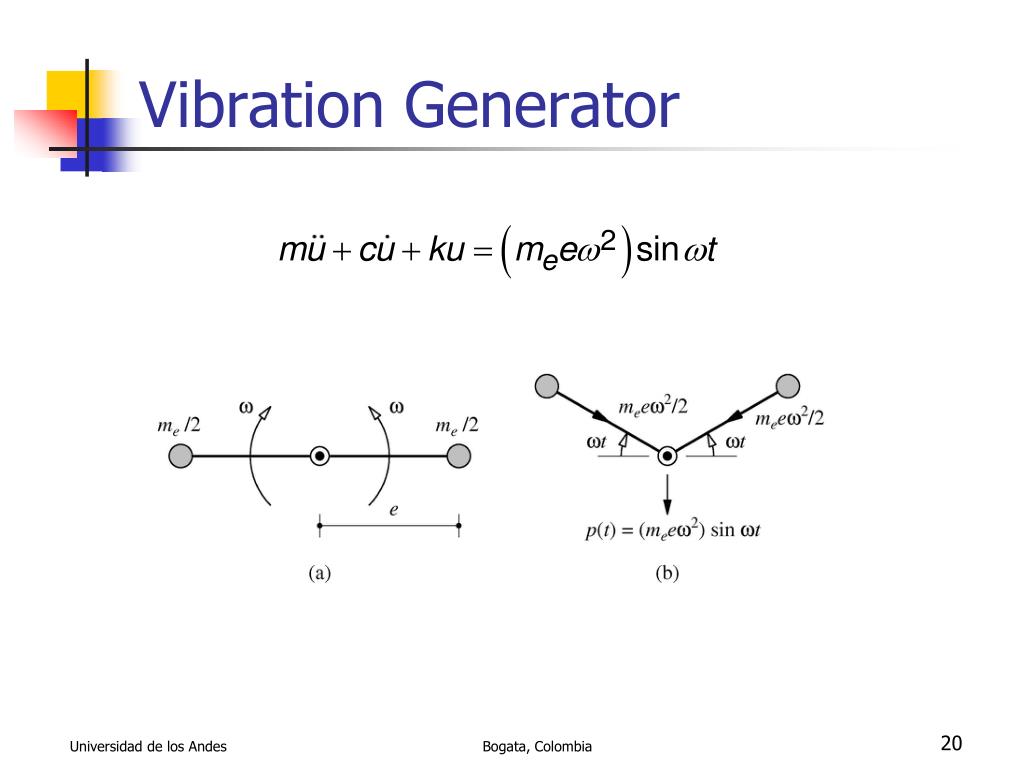

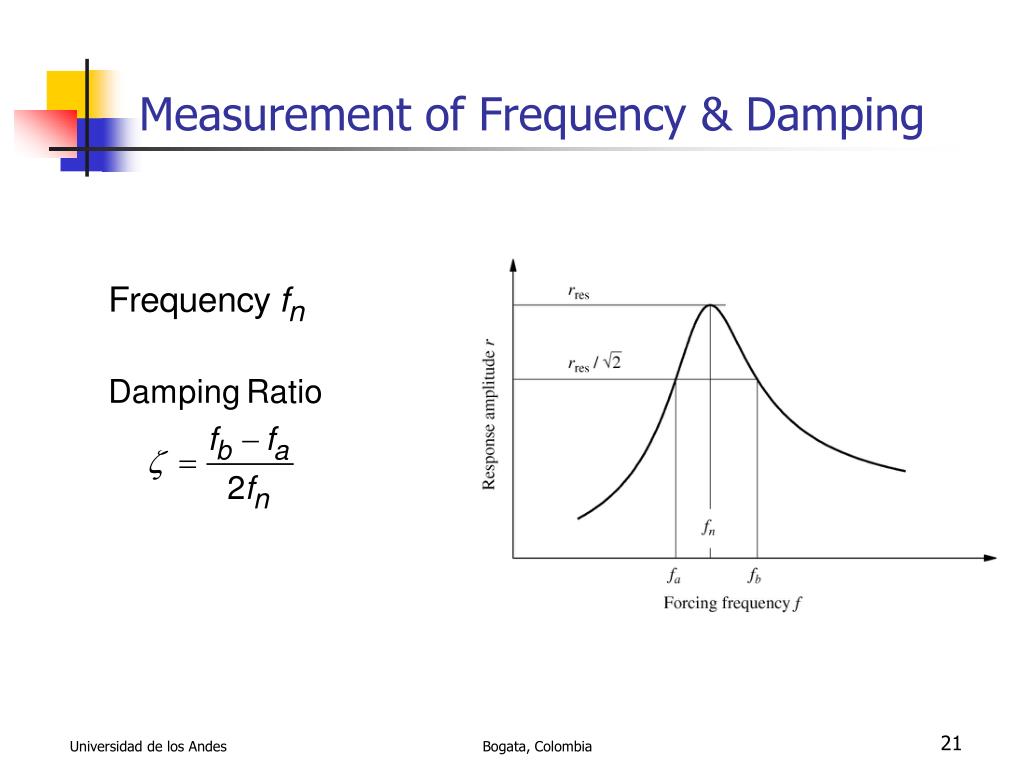

  21. Measurement of Frequency & Damping Bogata, Colombia

  22. Earthquake Ground Motions Bogata, Colombia

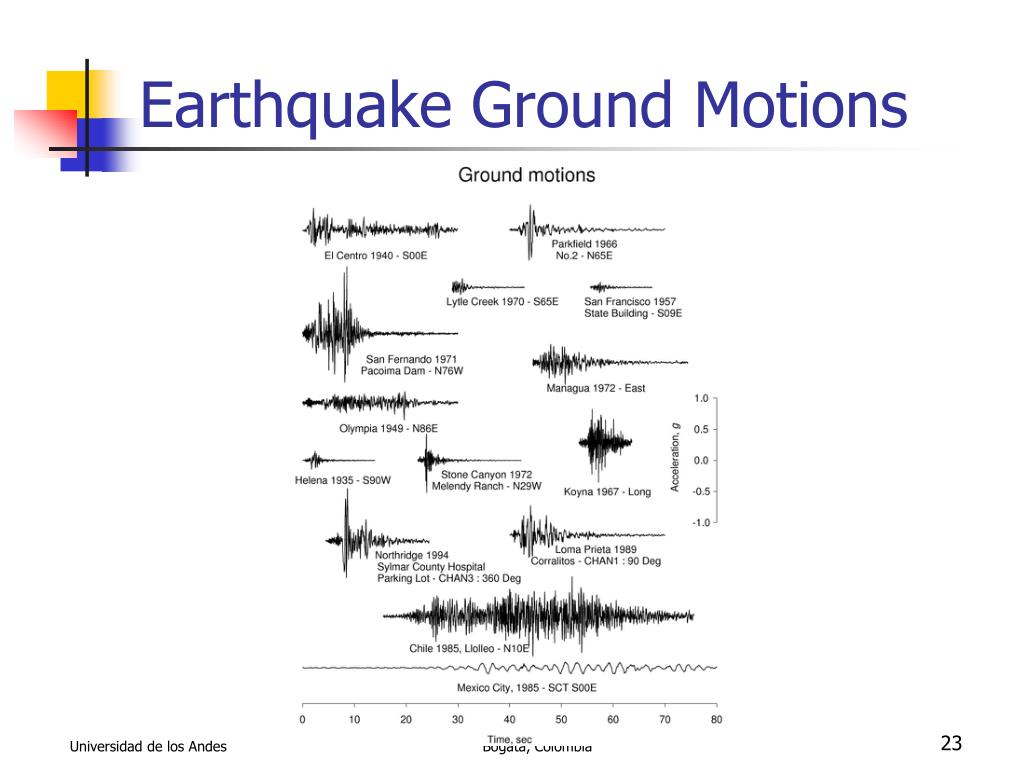

  23. Earthquake Ground Motions Bogata, Colombia

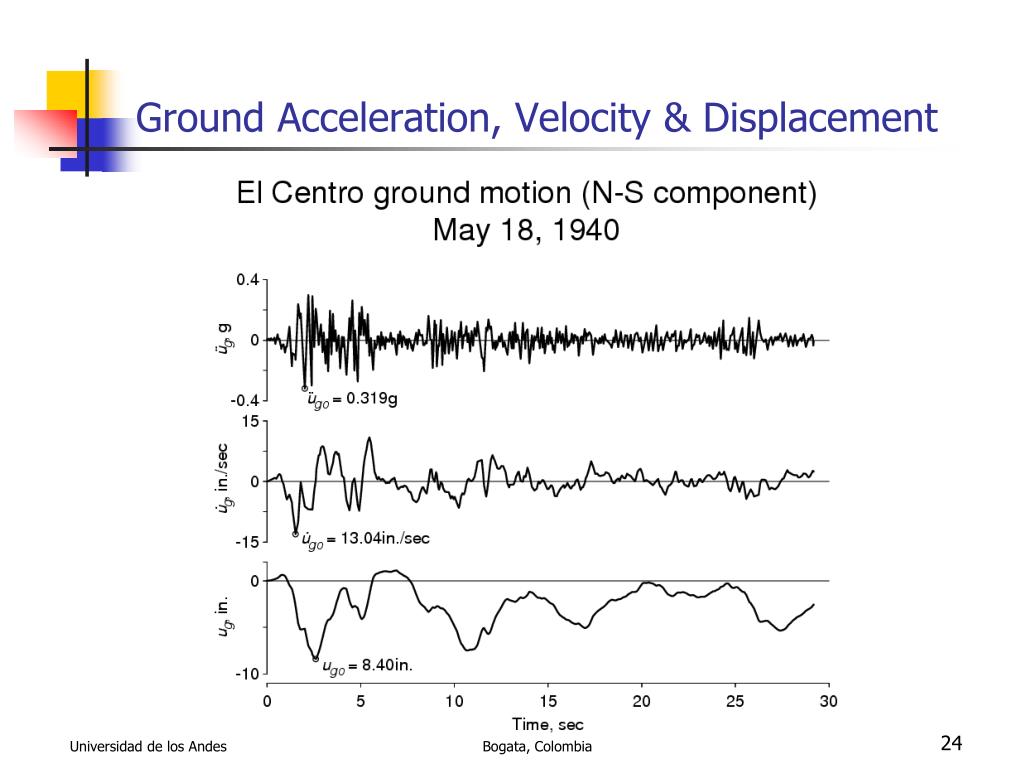

  24. Ground Acceleration, Velocity & Displacement Bogata, Colombia

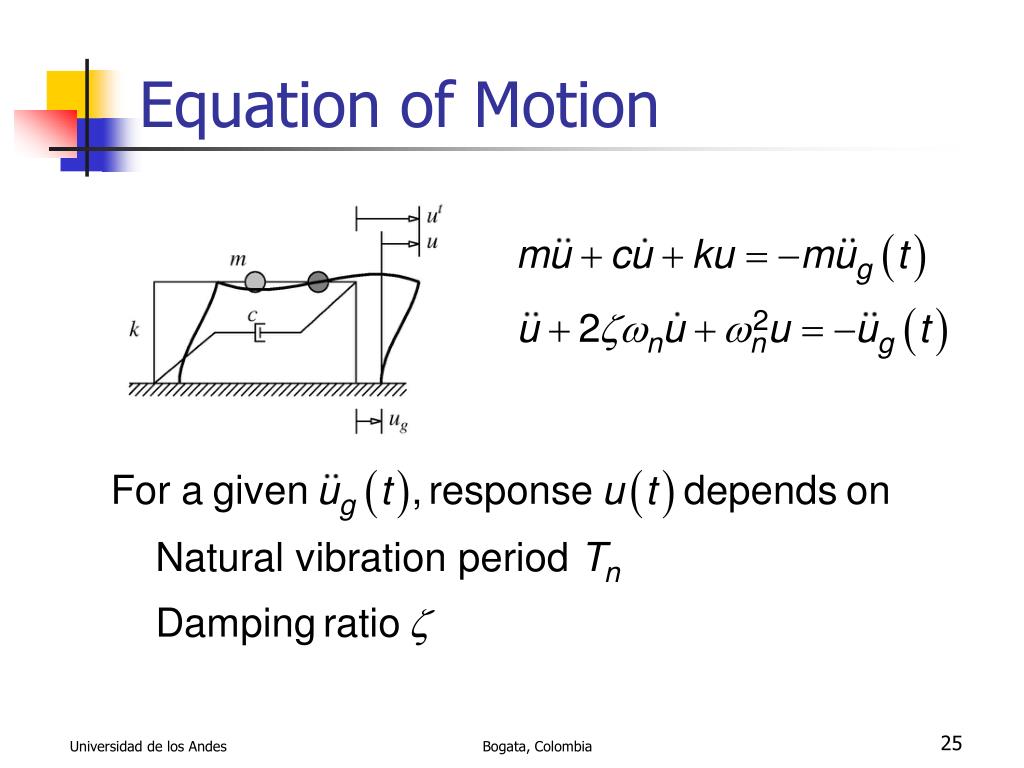

  25. Equation of Motion Bogata, Colombia

  26. Structural Response Depends on Tn and  Bogata, Colombia

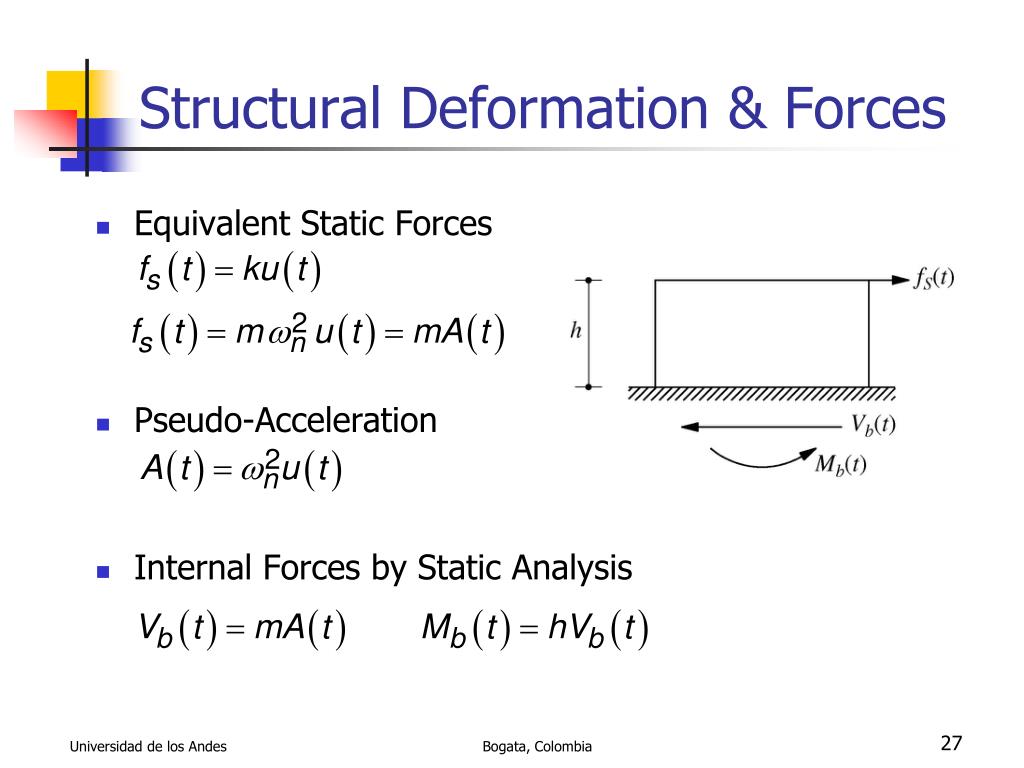

  27. Structural Deformation & Forces • Equivalent Static Forces • Pseudo-Acceleration • Internal Forces by Static Analysis Bogata, Colombia

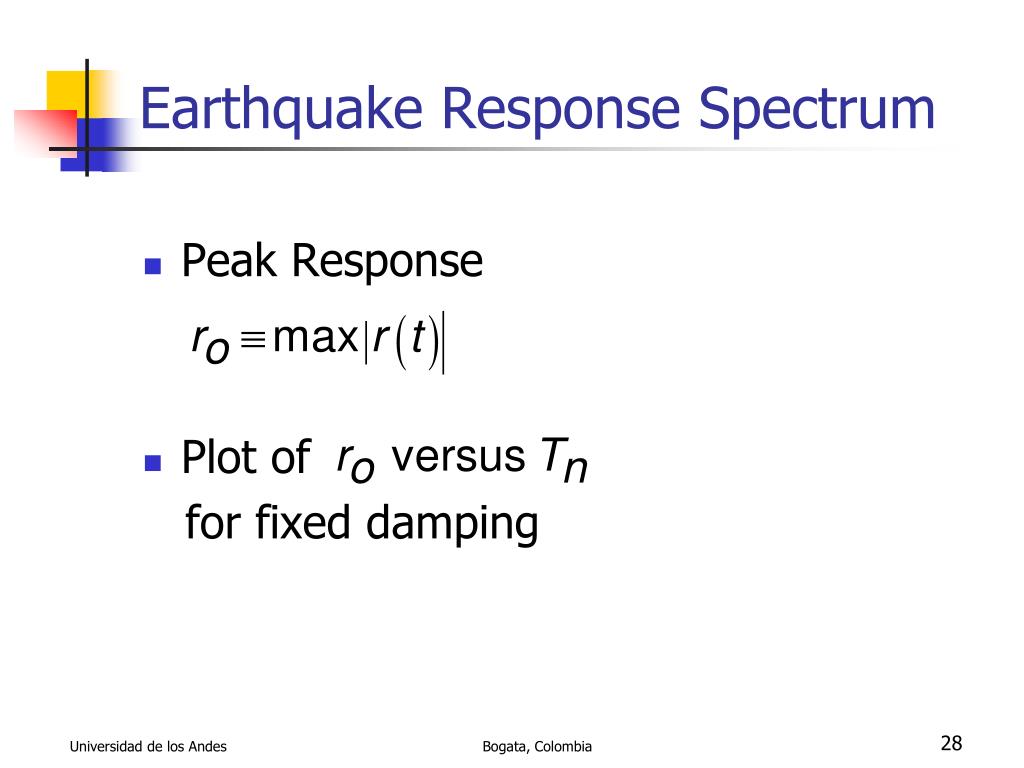

  28. Earthquake Response Spectrum • Peak Response • Plot of for fixed damping Bogata, Colombia

  29. Deformation Response Spectrum Bogata, Colombia

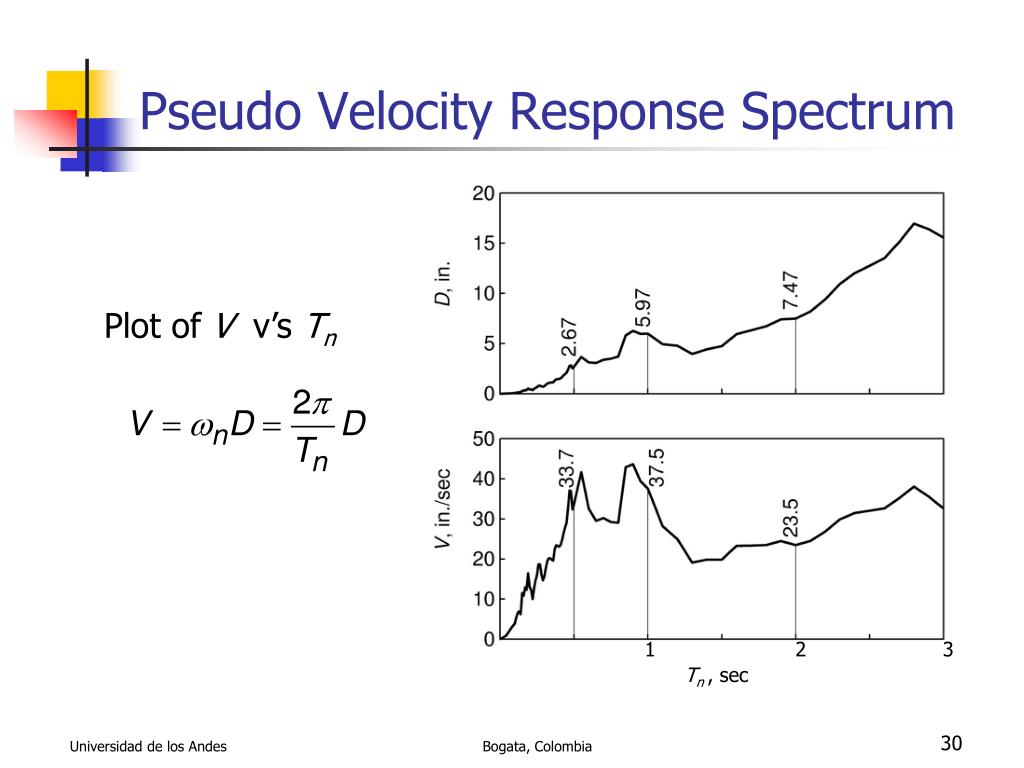

  30. Pseudo Velocity Response Spectrum Plot of V v’s Tn • 2 3 Tn, sec Bogata, Colombia

  31. Pseudo Acceleration Response Spectrum Plot of A v’s Tn Peak Force Bogata, Colombia

  32. Combined D-V-A Spectrum Bogata, Colombia

  33. Combined D-V-A Spectrum  = 0, 2, 5, 10, and 20% Bogata, Colombia

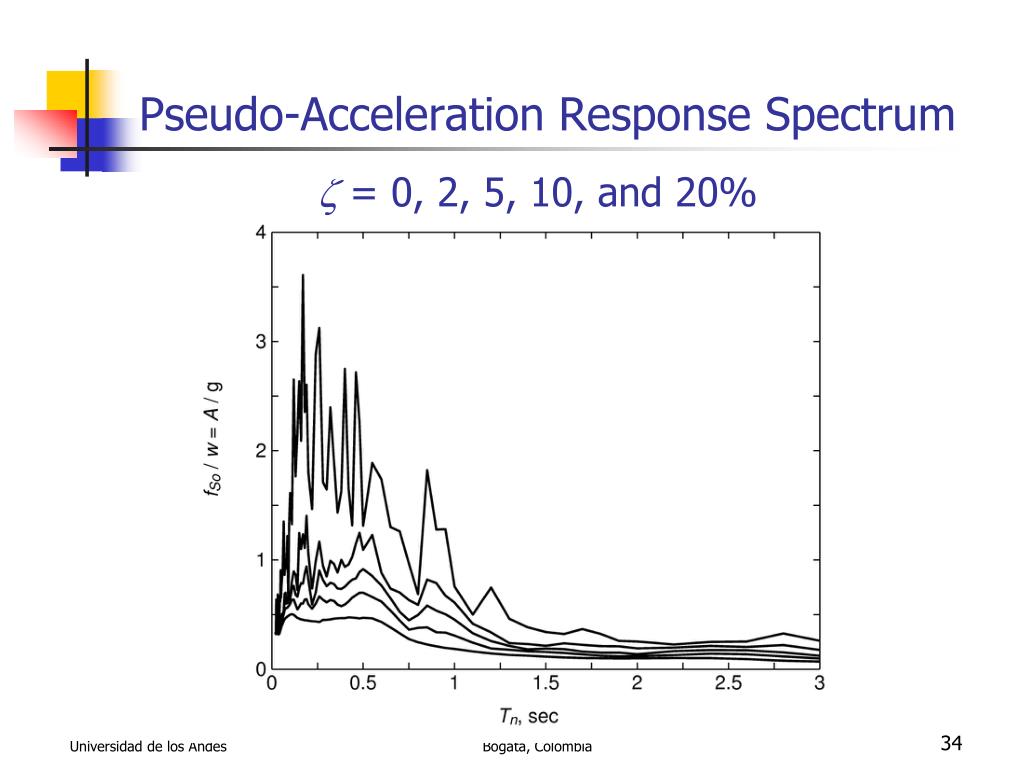

  34. Pseudo-Acceleration Response Spectrum  = 0, 2, 5, 10, and 20% Bogata, Colombia

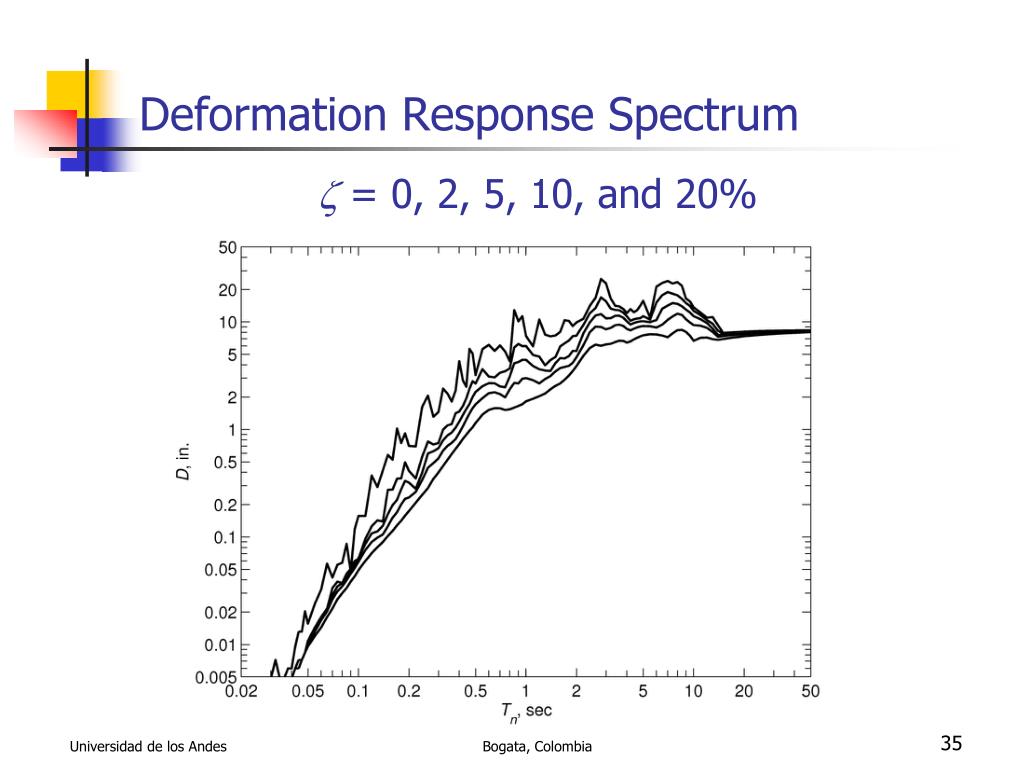

  35. Deformation Response Spectrum  = 0, 2, 5, 10, and 20% Bogata, Colombia

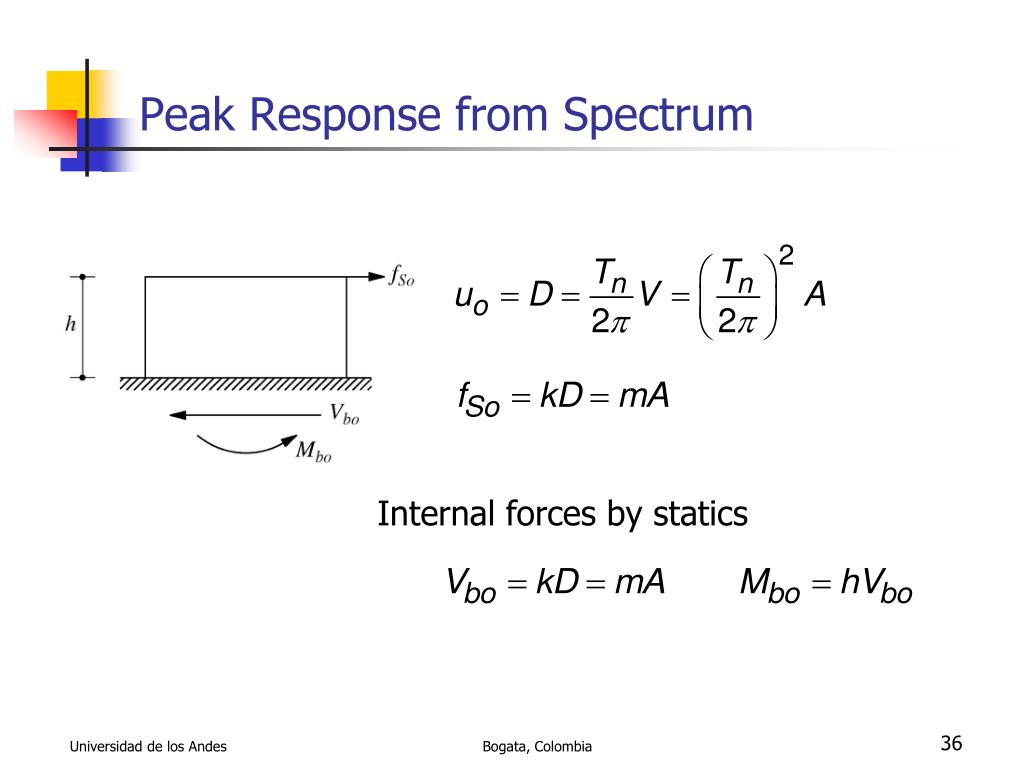

  36. Peak Response from Spectrum Internal forces by statics Bogata, Colombia

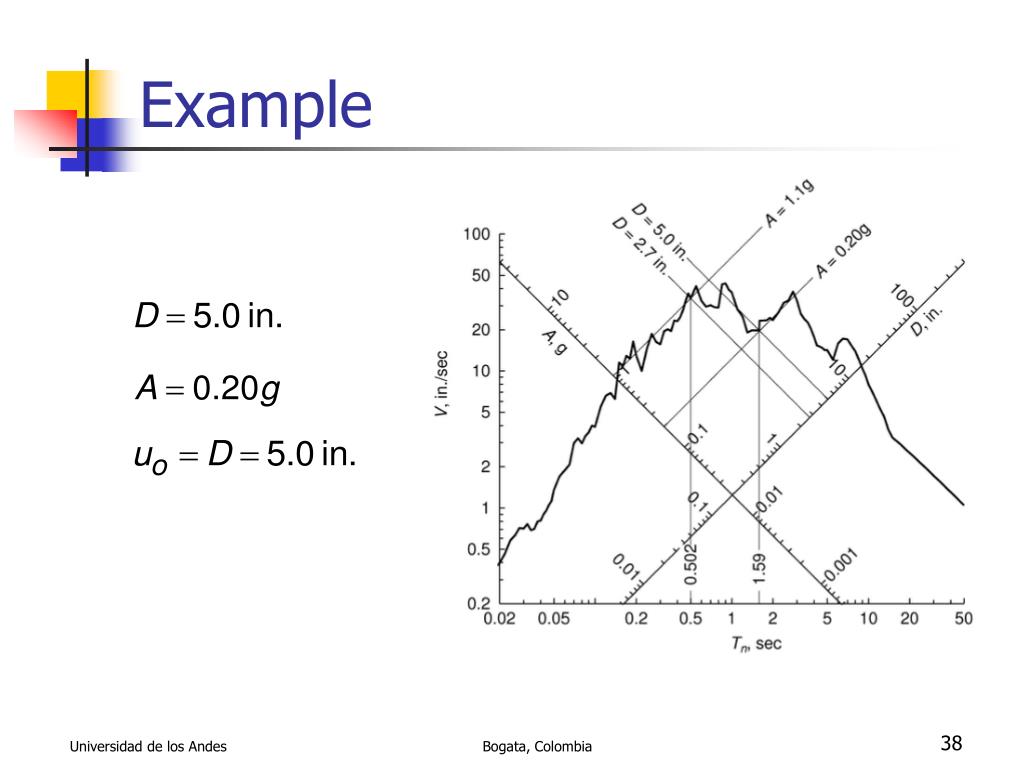

  37. Example Bogata, Colombia

  38. Example Bogata, Colombia

  39. Example Bogata, Colombia

  40. Response Spectrum and Peak Ground Accleration, Velocity, and Displacement Bogata, Colombia

  41. Ground Acceleration, Velocity & Displacement Bogata, Colombia

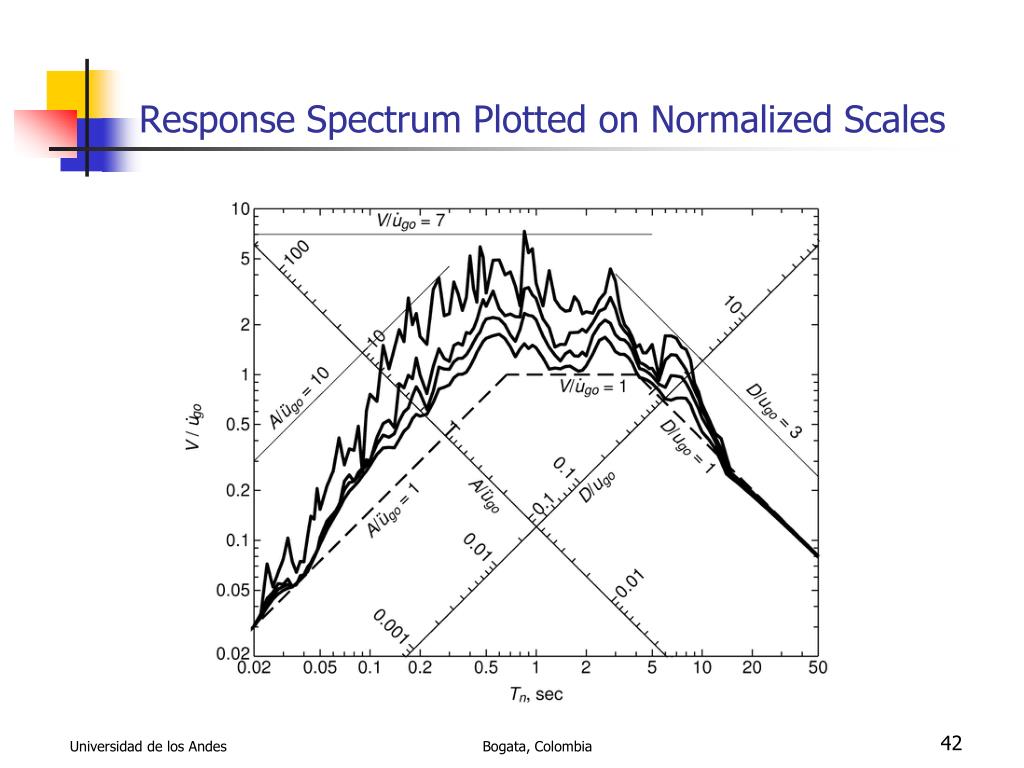

  42. Response Spectrum Plotted on Normalized Scales Bogata, Colombia

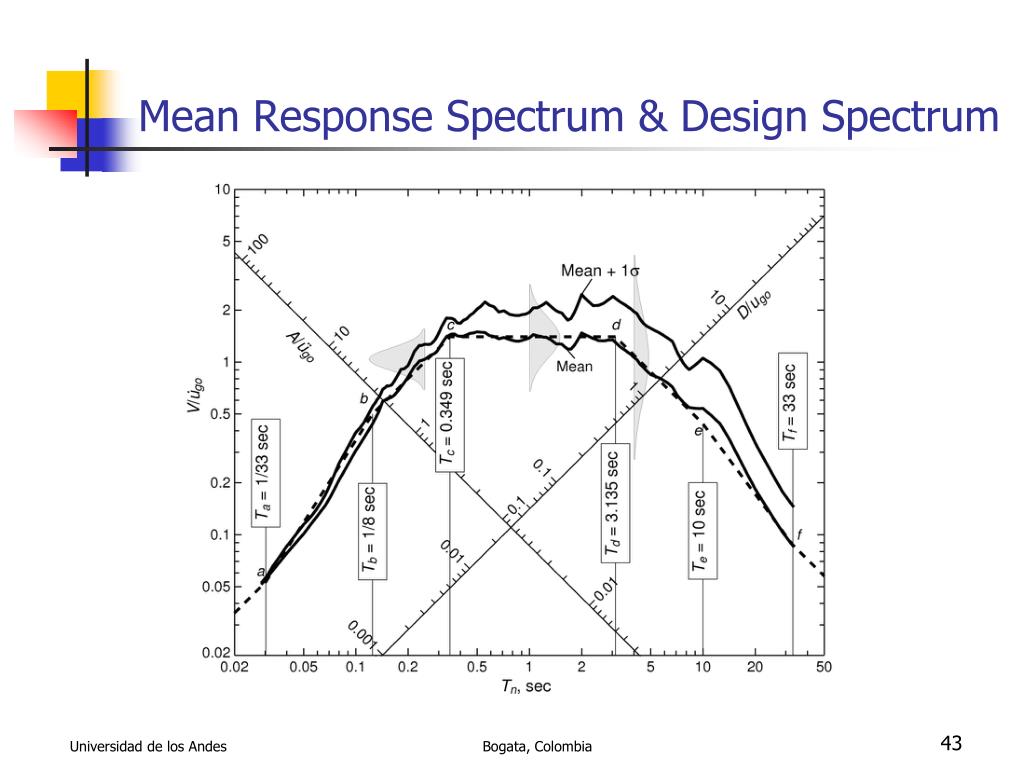

  43. Mean Response Spectrum & Design Spectrum Bogata, Colombia

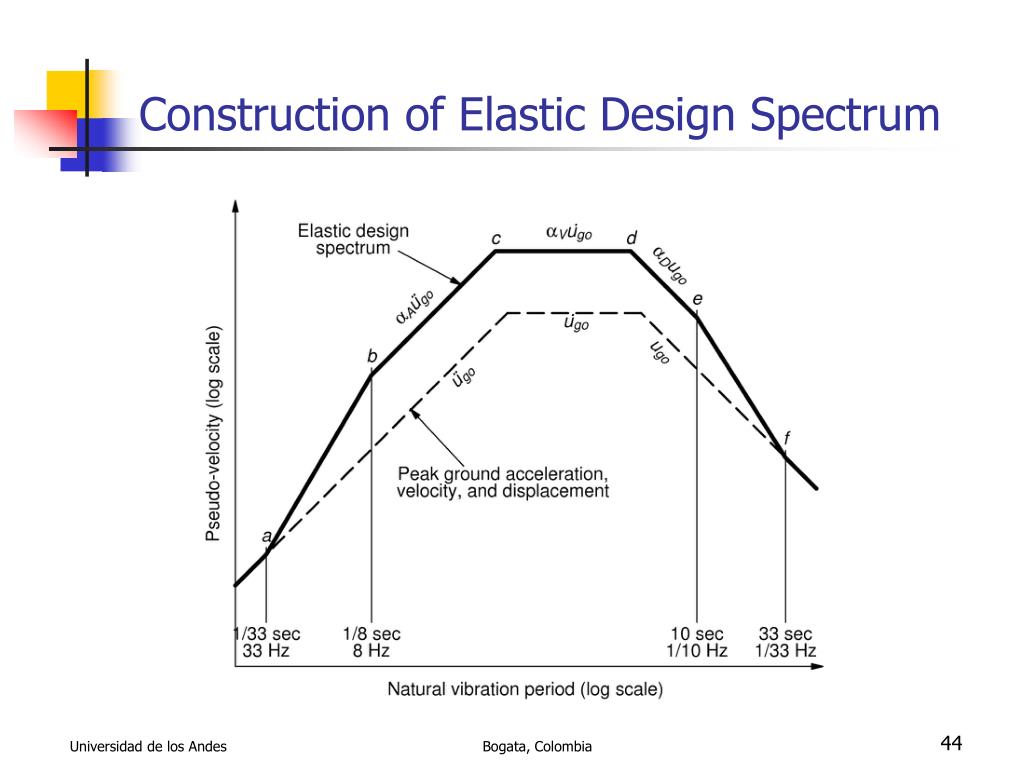

  44. Construction of Elastic Design Spectrum Bogata, Colombia

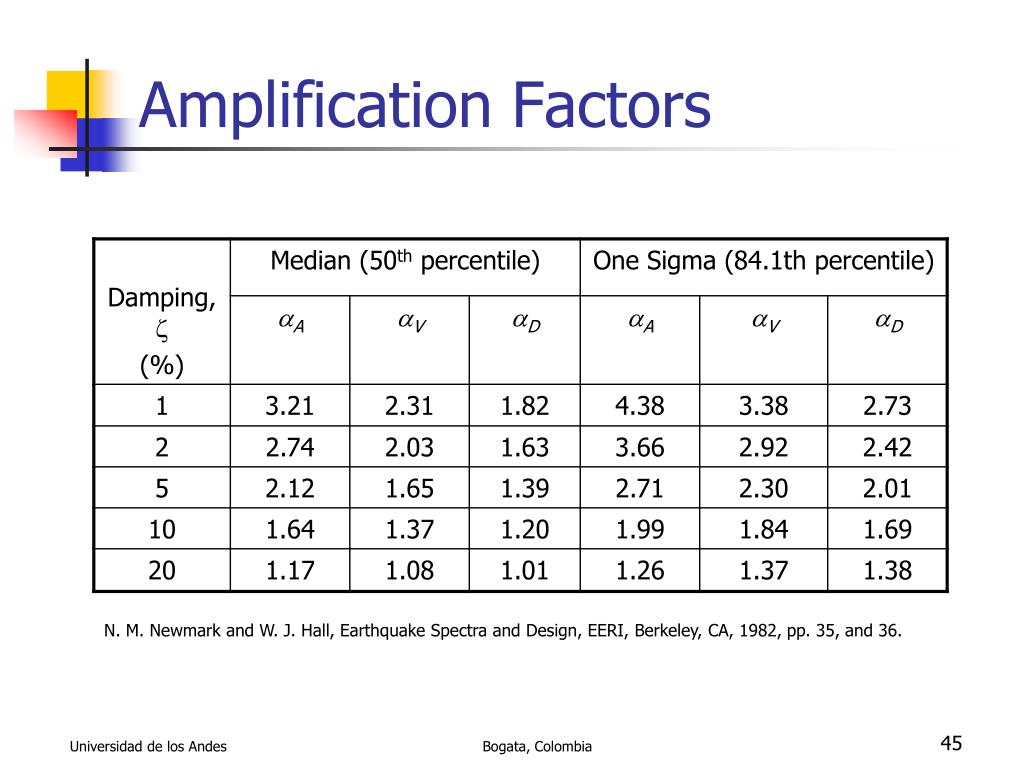

  45. Amplification Factors N. M. Newmark and W. J. Hall, Earthquake Spectra and Design, EERI, Berkeley, CA, 1982, pp. 35, and 36. Bogata, Colombia

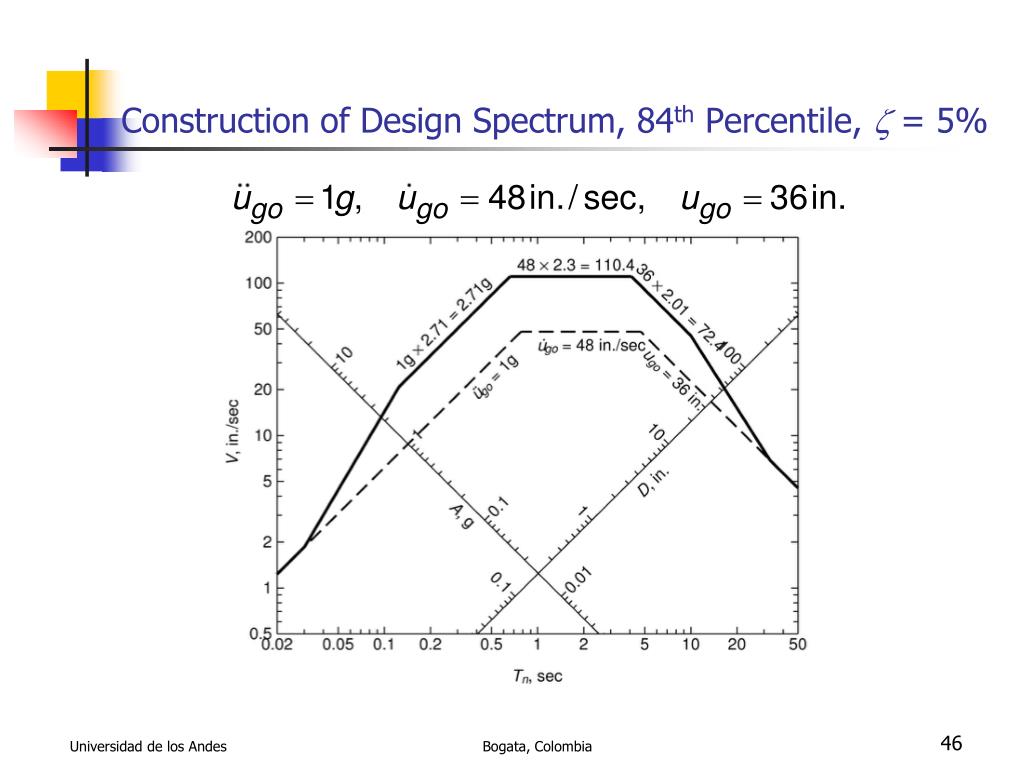

  46. Construction of Design Spectrum, 84th Percentile,  = 5% Bogata, Colombia

  47. Elastic Design Spectrum, 84th Percentile,  = 5% Bogata, Colombia

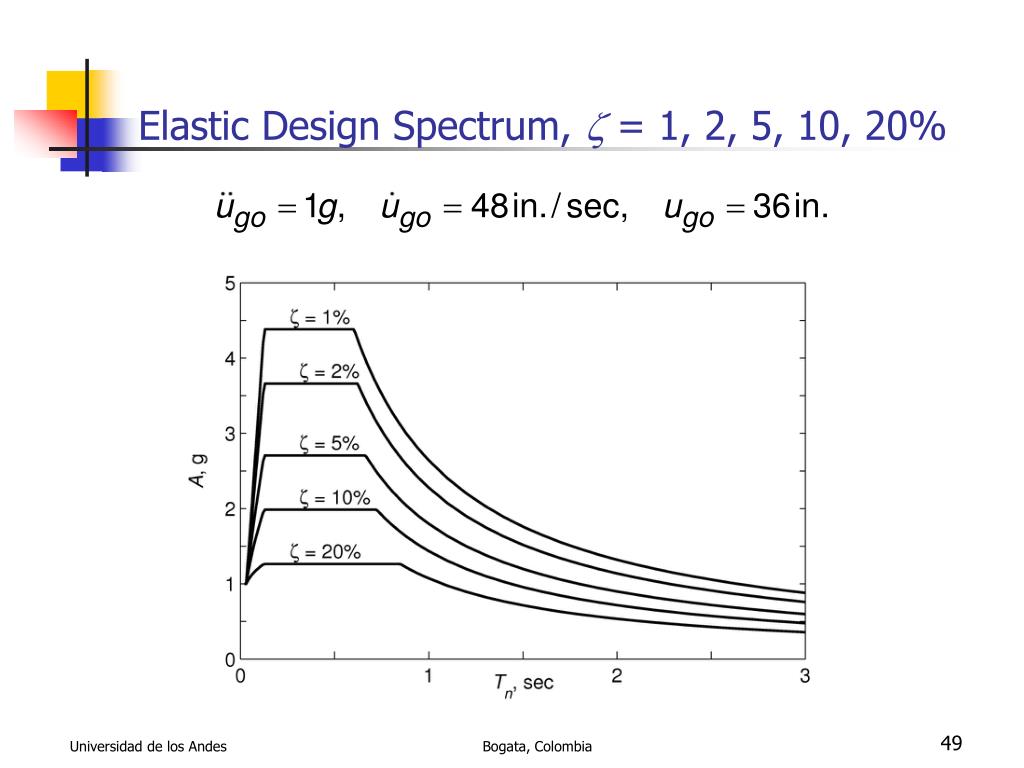

  48. Elastic Design Spectrum,  = 1, 2, 5, 10, 20% Bogata, Colombia

  49. Elastic Design Spectrum,  = 1, 2, 5, 10, 20% Bogata, Colombia
