  1. Pooling and Interrupts Input and Output Devices CMPUT 229

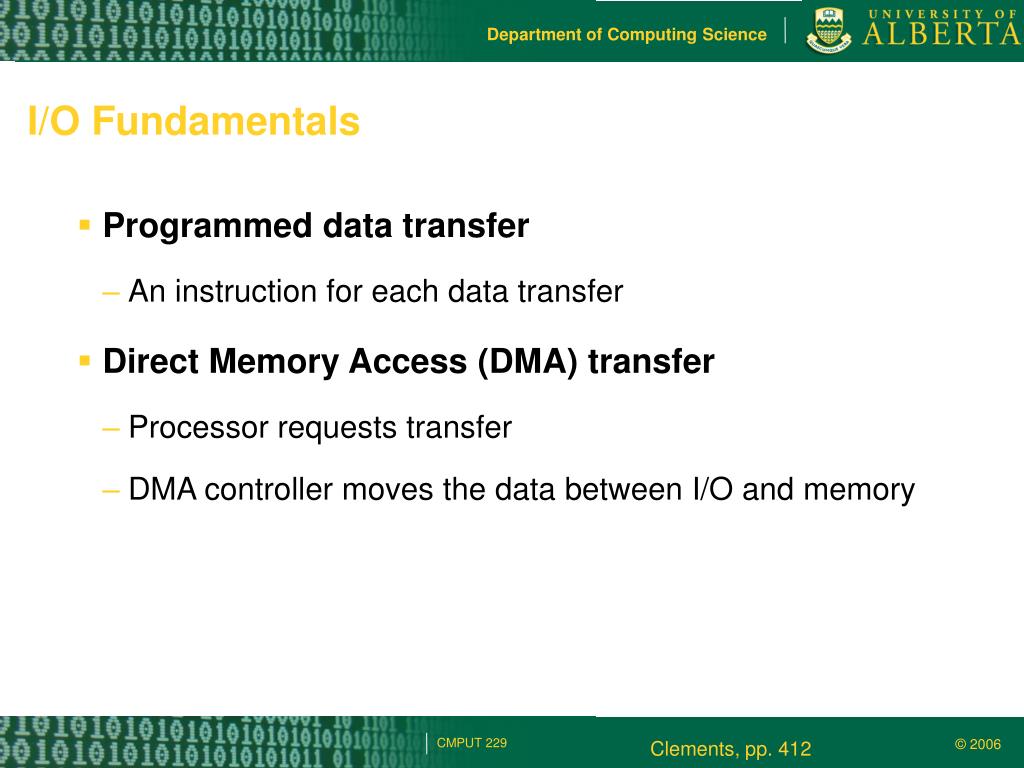

  2. CMPUT 229 I/O Fundamentals Programmed data transfer An instruction for each data transfer Direct Memory Access (DMA) transfer Processor requests transfer DMA controller moves the data between I/O and memory Clements, pp. 412

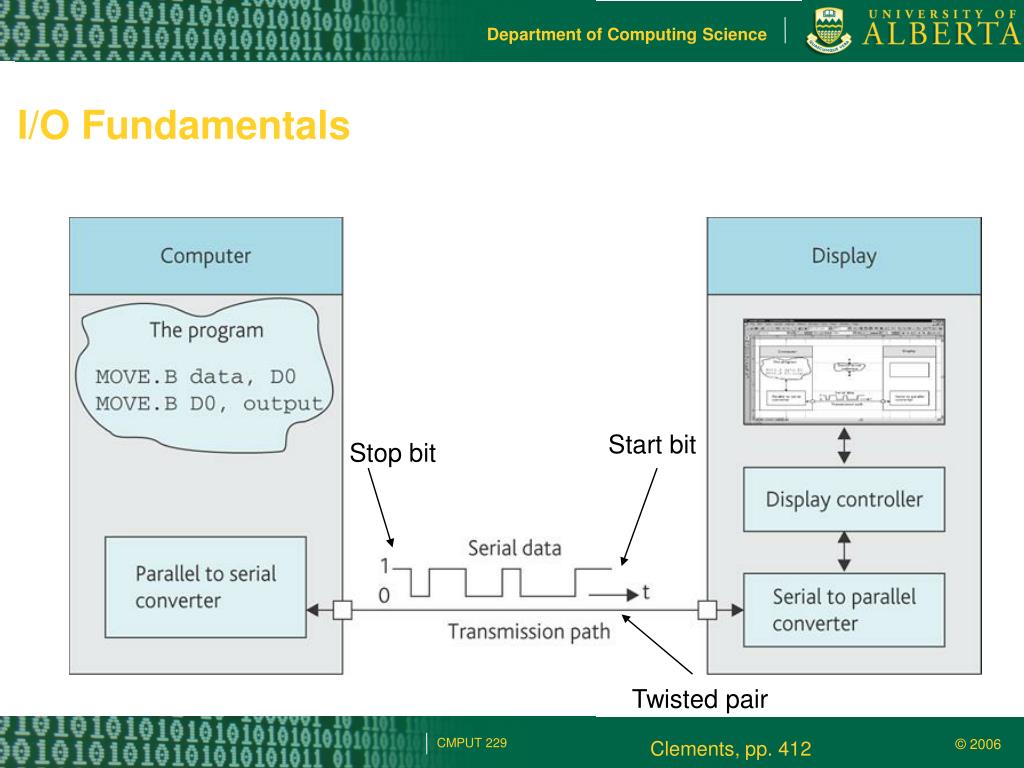

  3. CMPUT 229 I/O Fundamentals Start bit Stop bit Twisted pair Clements, pp. 412

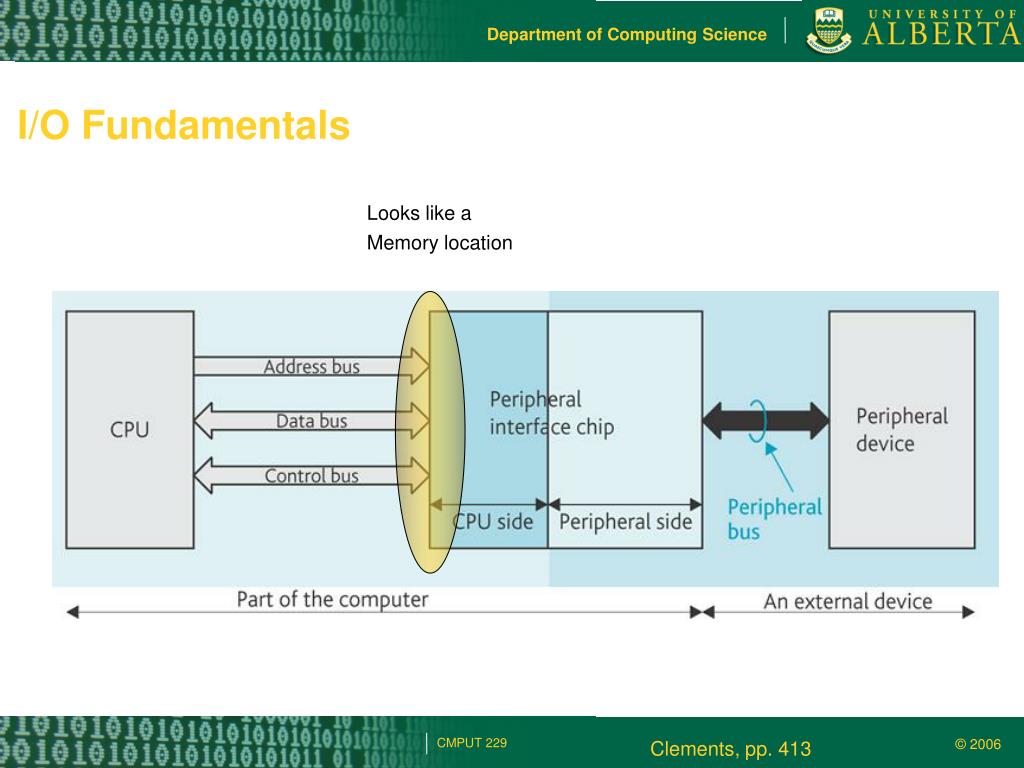

  4. CMPUT 229 Looks like a Memory location I/O Fundamentals Clements, pp. 413

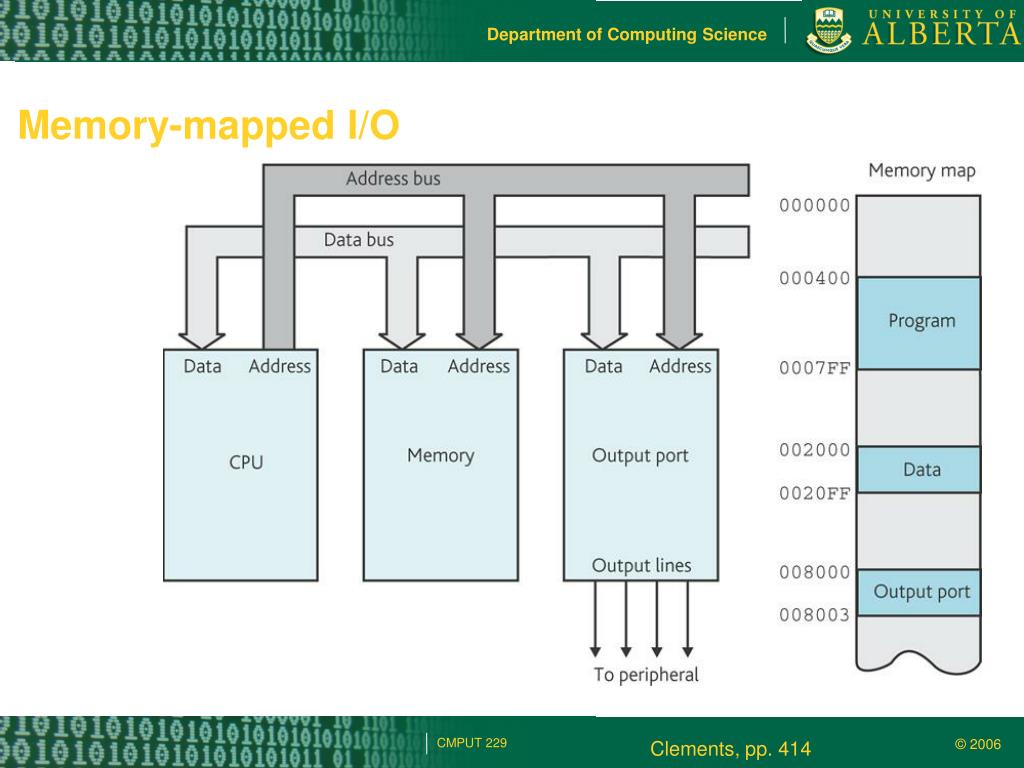

  5. CMPUT 229 Memory-mapped I/O Clements, pp. 414

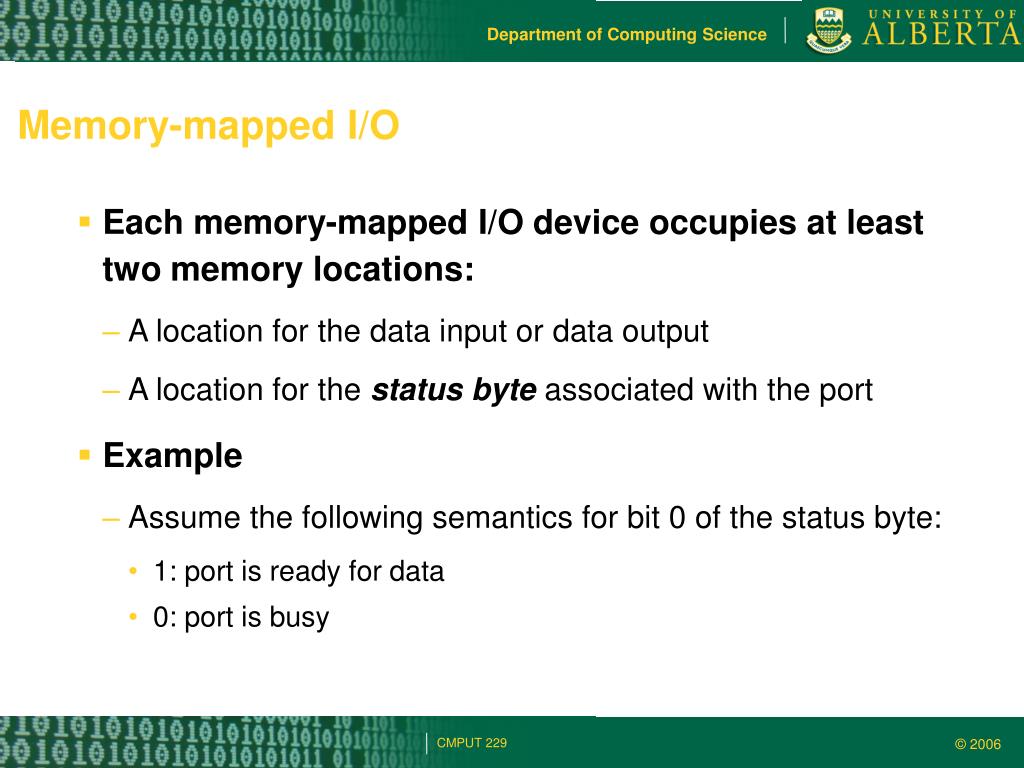

  6. CMPUT 229 Memory-mapped I/O • Each memory-mapped I/O device occupies at least two memory locations: • A location for the data input or data output • A location for the status byte associated with the port • Example • Assume the following semantics for bit 0 of the status byte: • 1: port is ready for data • 0: port is busy

  7. CMPUT 229 Pooling FOR I = 1 TO 128 REPEAT Read Port_status_byte UNTIL Port_not_busy Move data from Tablei to output_port ENDFOR Clements, pp. 415

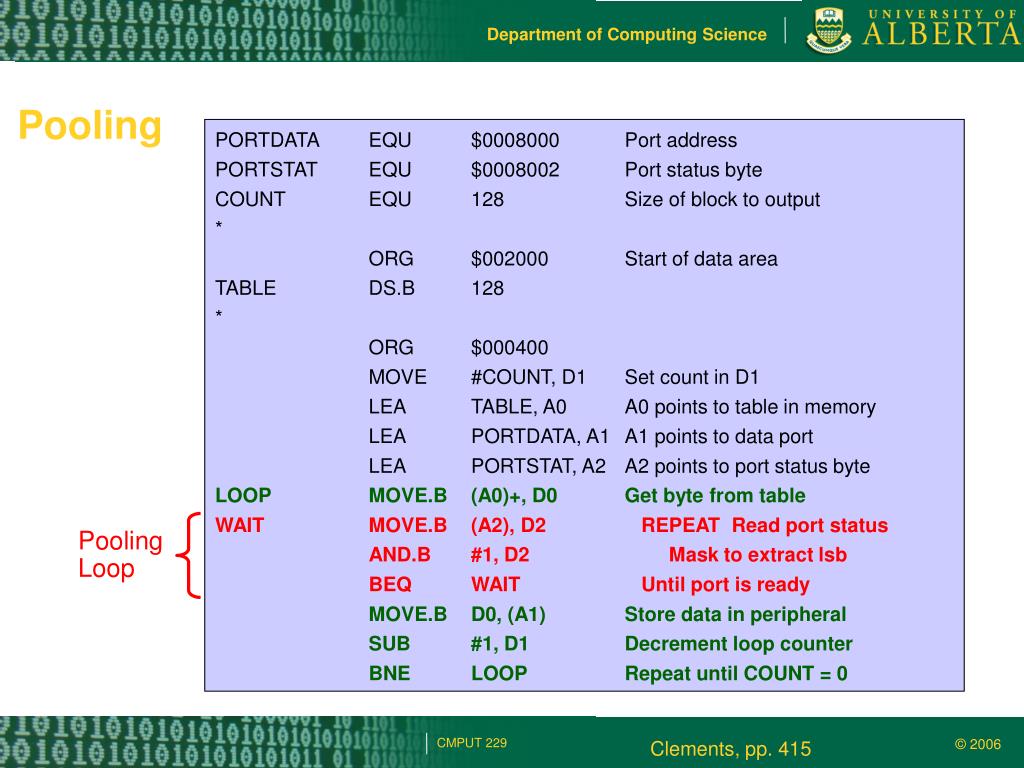

  8. CMPUT 229 Pooling Loop Pooling PORTDATA EQU $0008000 Port address PORTSTAT EQU $0008002 Port status byte COUNT EQU 128 Size of block to output * ORG $002000 Start of data area TABLE DS.B 128 * ORG $000400 MOVE #COUNT, D1 Set count in D1 LEA TABLE, A0 A0 points to table in memory LEA PORTDATA, A1 A1 points to data port LEA PORTSTAT, A2 A2 points to port status byte LOOP MOVE.B (A0)+, D0 Get byte from table WAIT MOVE.B (A2), D2 REPEAT Read port status AND.B #1, D2 Mask to extract lsb BEQ WAIT Until port is ready MOVE.B D0, (A1) Store data in peripheral SUB #1, D1 Decrement loop counter BNE LOOP Repeat until COUNT = 0 Clements, pp. 415

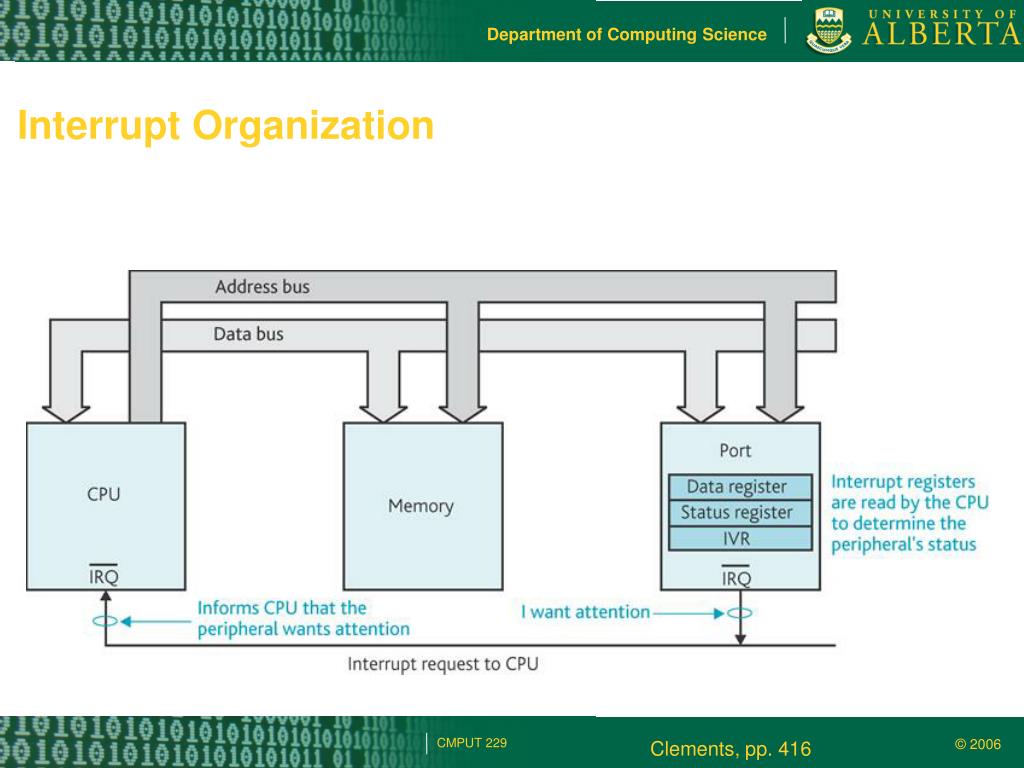

  9. CMPUT 229 Interrupt Organization Clements, pp. 416

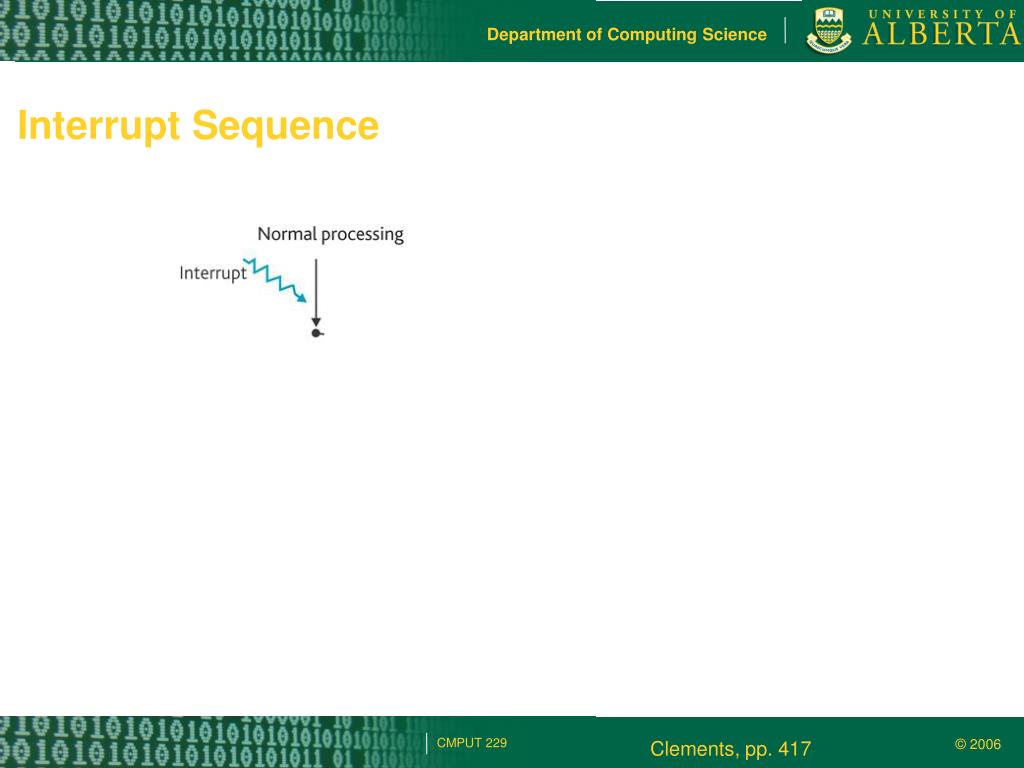

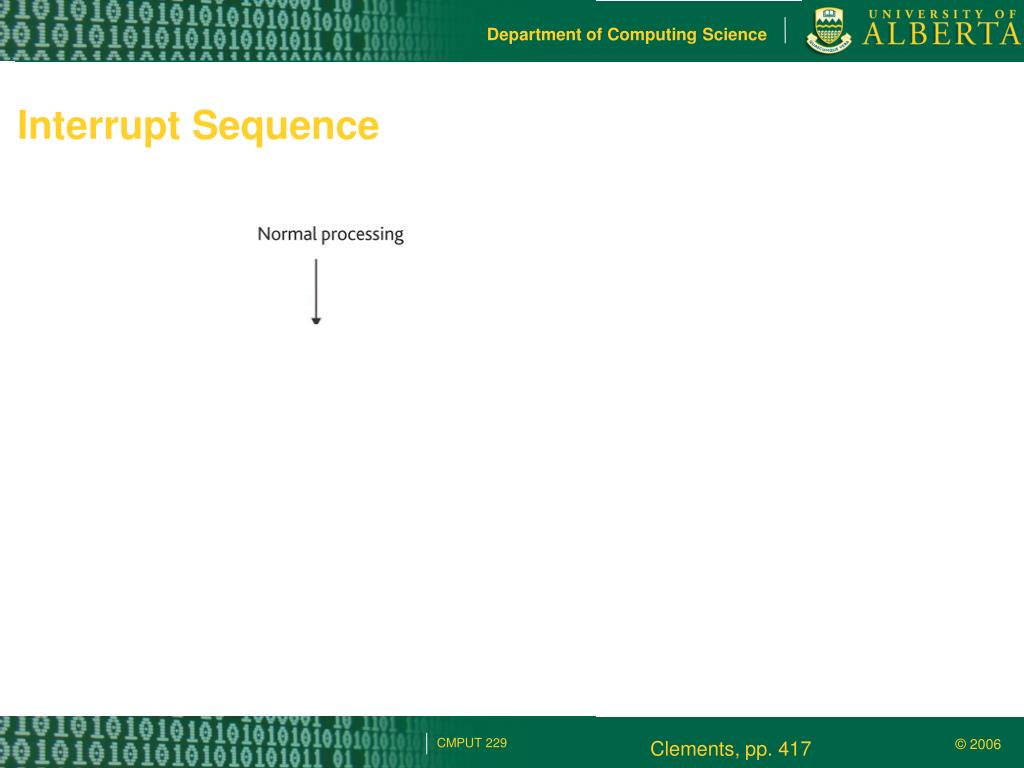

  10. CMPUT 229 Interrupt Sequence Clements, pp. 417

  11. CMPUT 229 Interrupt Sequence Clements, pp. 417

  12. CMPUT 229 Interrupt Sequence Clements, pp. 417

  13. CMPUT 229 Interrupt Sequence Clements, pp. 417

  14. CMPUT 229 Interrupt Sequence Clements, pp. 417

  15. CMPUT 229 Prioritized Interrupts • The 68K supports seven interrupt request inputs: • IRQ7 is the most important • also called a non-maskable interrupt request • IRQ1 is the least important • The seven interrupt requests are encoded in three interrupt request inputs: • IPL0, IPL1, and IPL2

  16. CMPUT 229 Masking Interrupts • The 68K has an interrupt mask that determines which interrupt requests are enabled • This mask is formed three bits (I2, I1, I0) of the processor status register • When the 68K services an interrupt, the mask is changed to match the level of the interrupt being serviced • Thus lower level interrupts are disabled until the current one is serviced

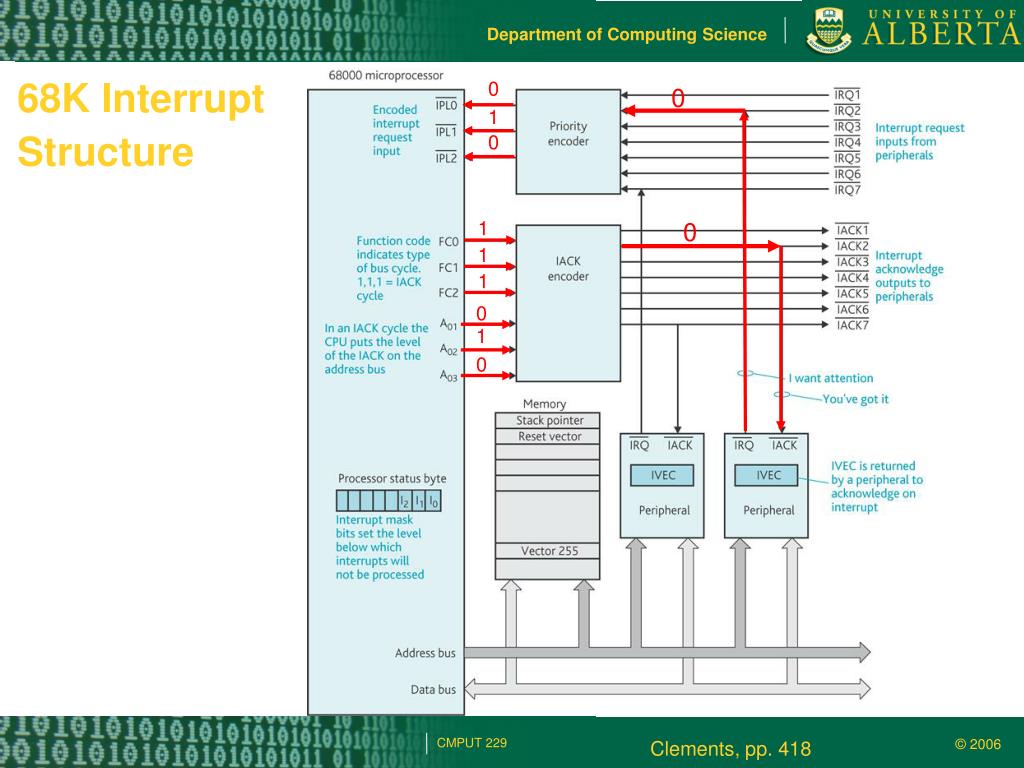

  17. CMPUT 229 0 1 0 0 1 1 0 1 0 1 0 68K Interrupt Structure Clements, pp. 418

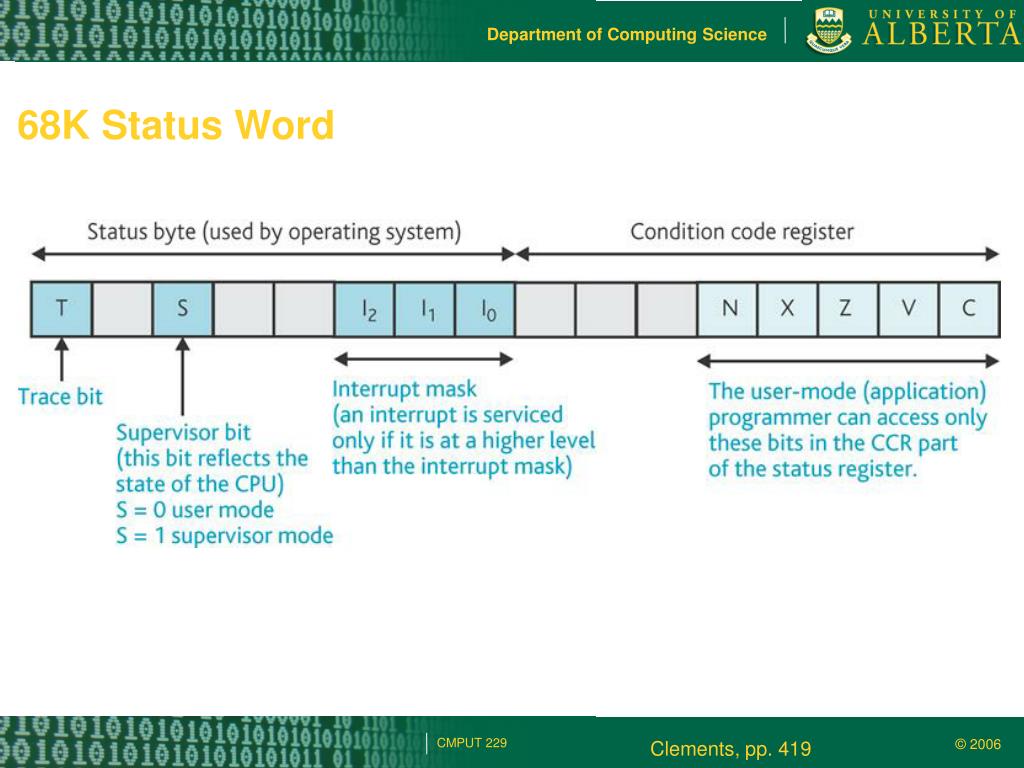

  18. CMPUT 229 68K Status Word Clements, pp. 419

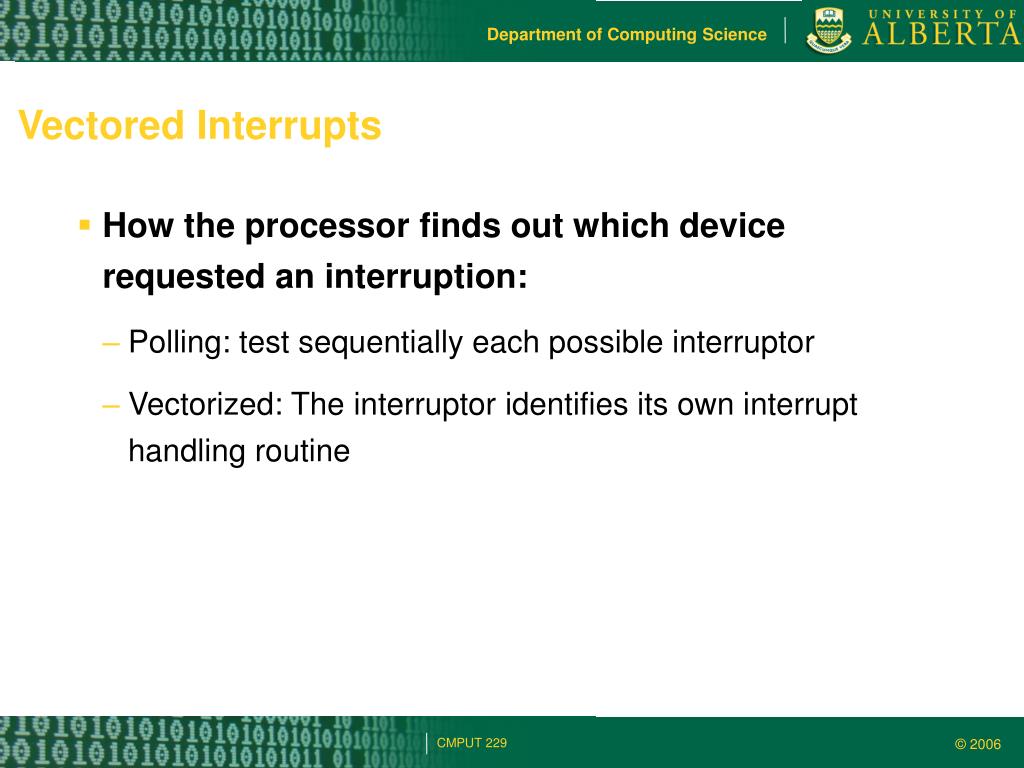

  19. CMPUT 229 Vectored Interrupts • How the processor finds out which device requested an interruption: • Polling: test sequentially each possible interruptor • Vectorized: The interruptor identifies its own interrupt handling routine

  20. CMPUT 229 Interface polling: Memory-mapped data and status port Clements, pp. 419

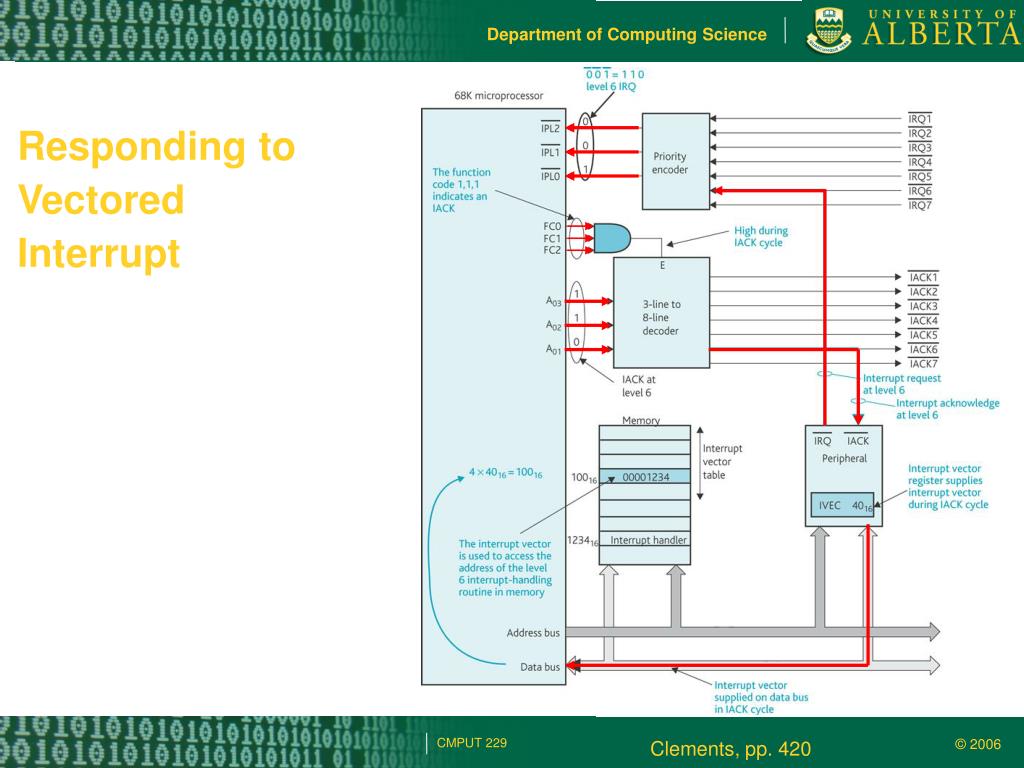

  21. CMPUT 229 Responding to VectoredInterrupt Clements, pp. 420

  22. CMPUT 229 Daisy-chaining • There 256 interrupt vector numbers • But the 68K supports only seven levels of interrupt • Daisy-chain links several peripherals together in a line. • Devices closer to the CPU have more chances of having their interrupts acknowledged.

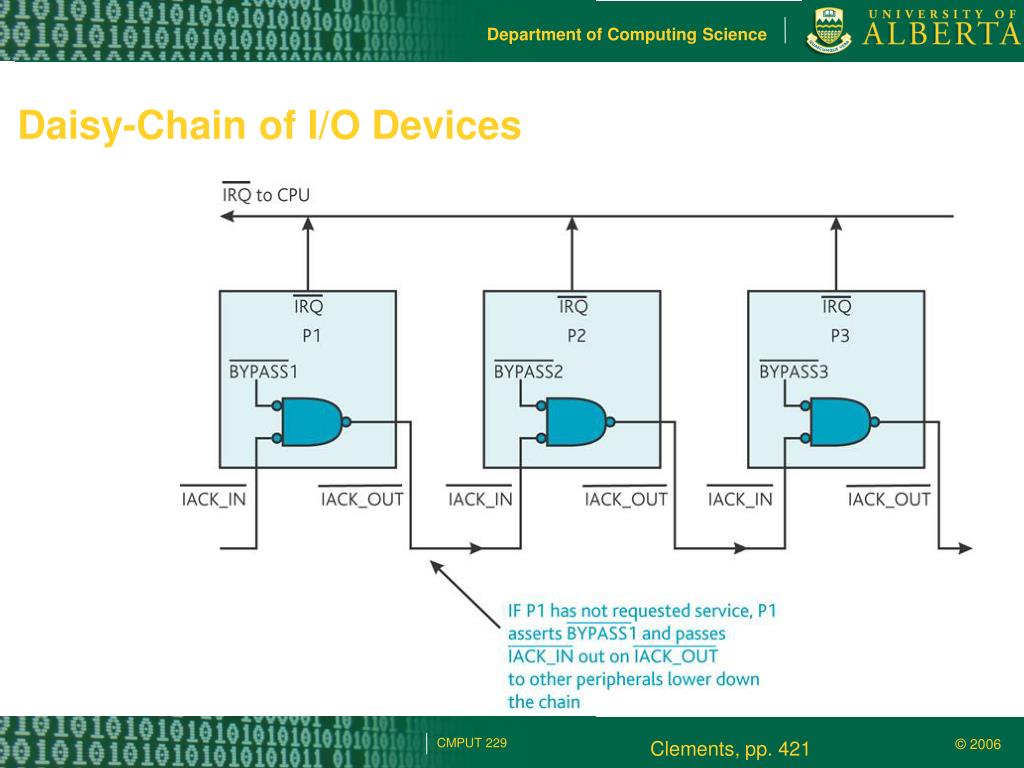

  23. CMPUT 229 Daisy-Chain of I/O Devices Clements, pp. 421

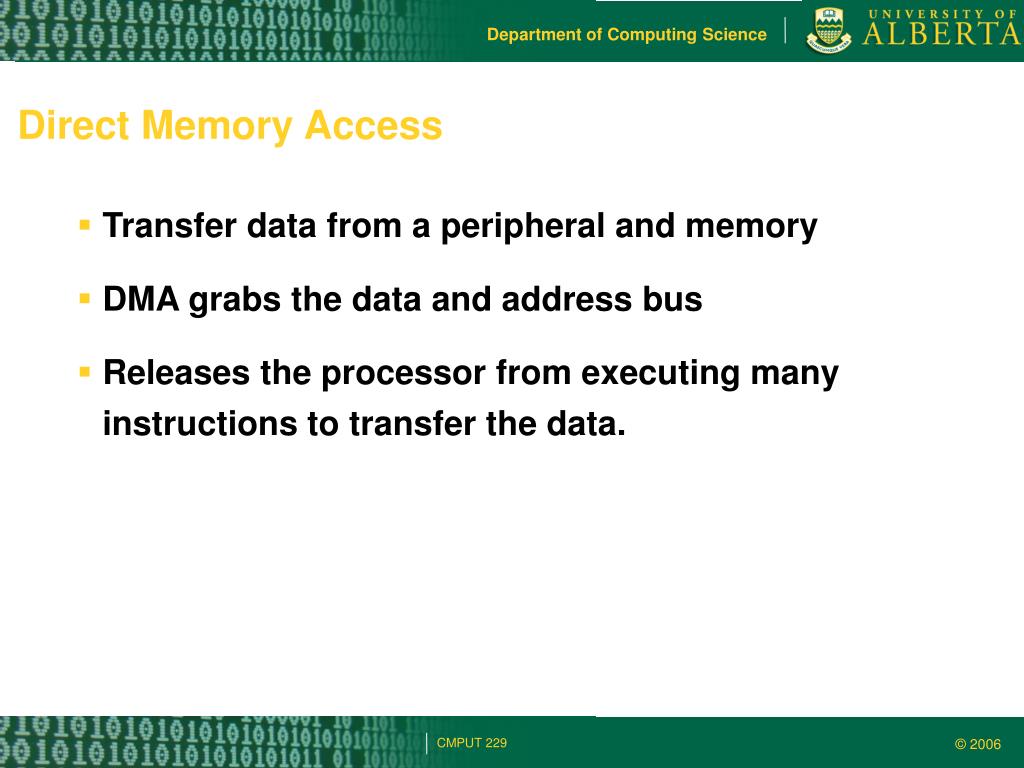

  24. CMPUT 229 Direct Memory Access • Transfer data from a peripheral and memory • DMA grabs the data and address bus • Releases the processor from executing many instructions to transfer the data.

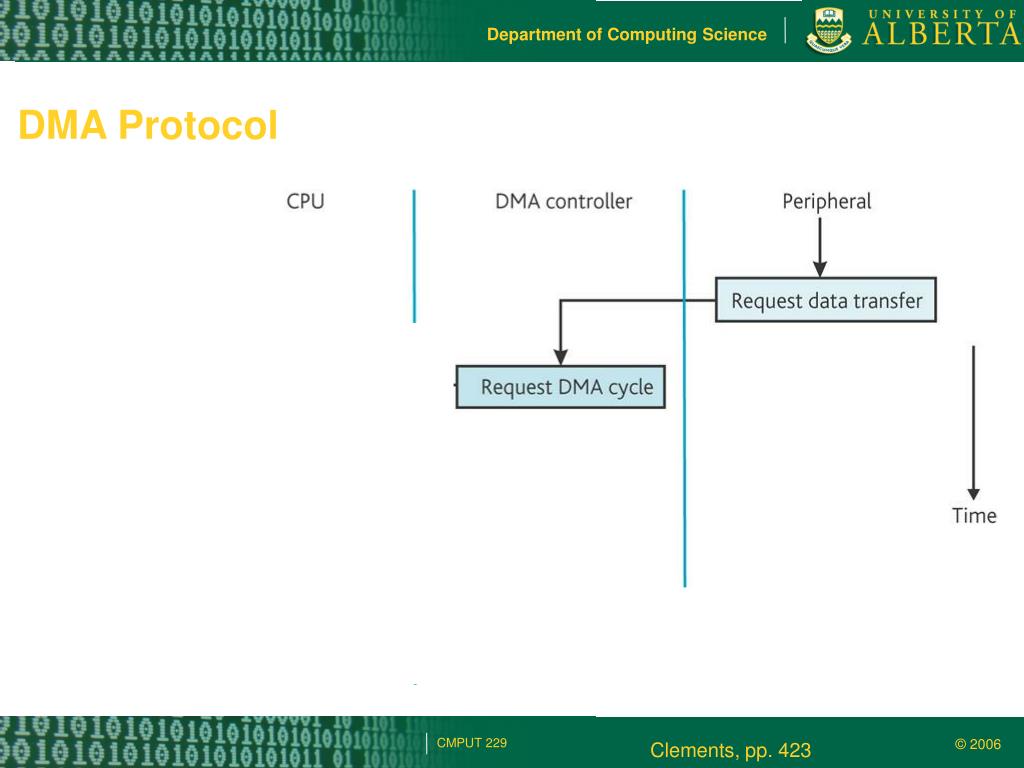

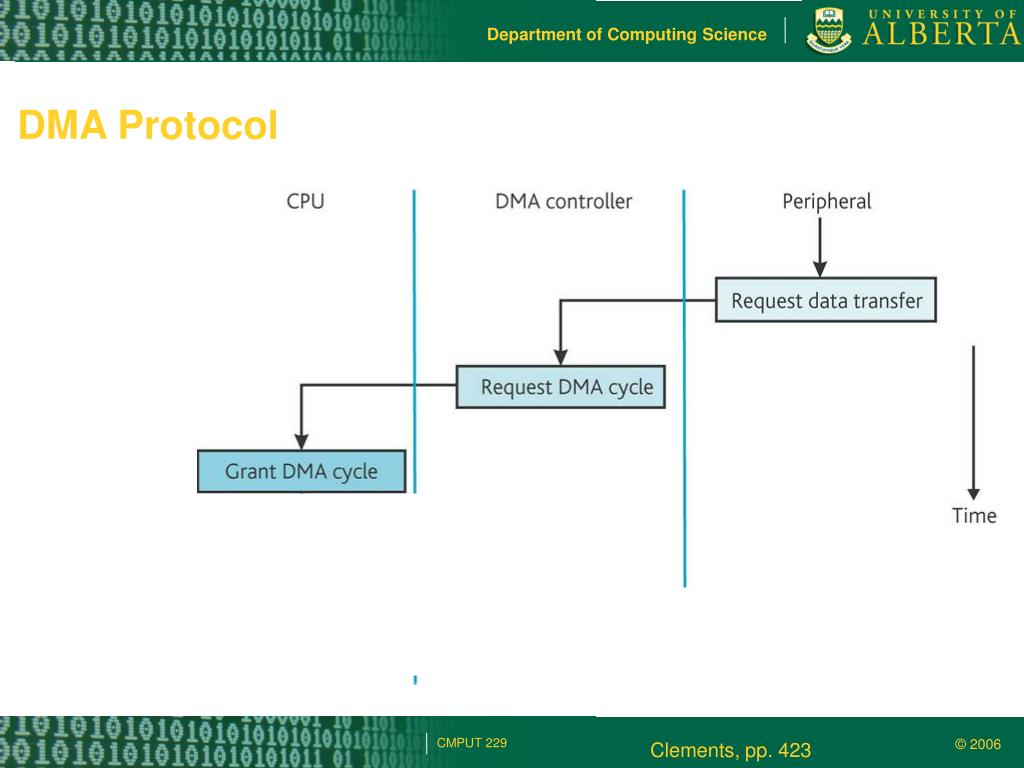

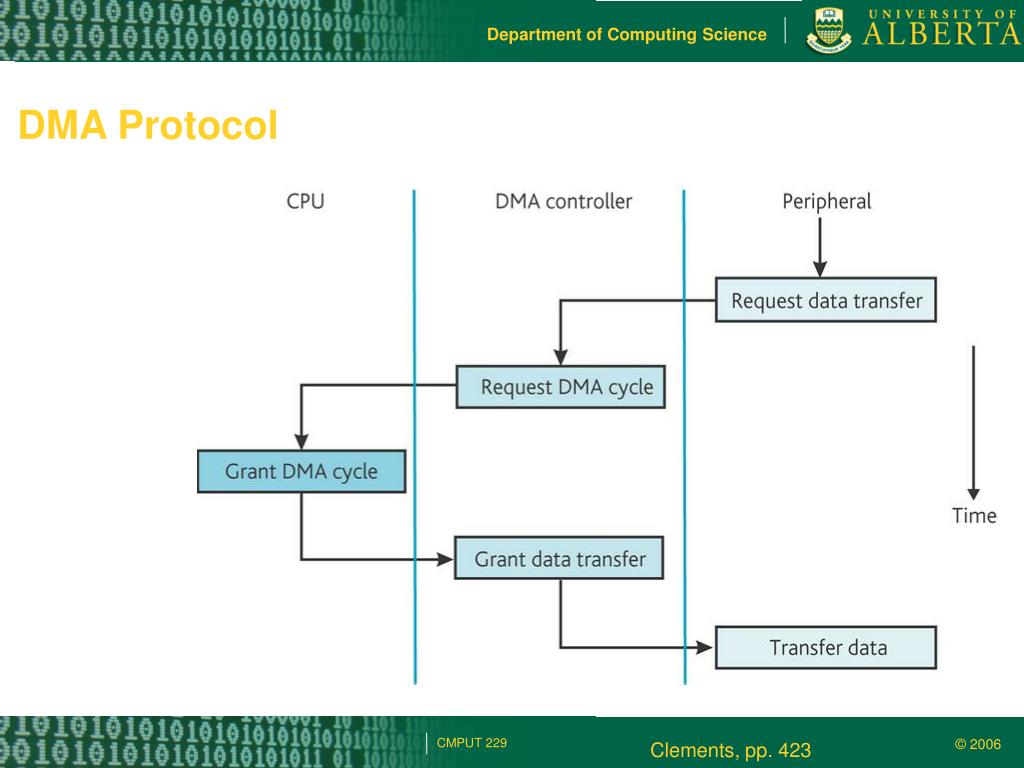

  25. CMPUT 229 DMA Protocol Clements, pp. 423

  26. CMPUT 229 DMA Protocol Clements, pp. 423

  27. CMPUT 229 DMA Protocol Clements, pp. 423

  28. CMPUT 229 DMA Protocol Clements, pp. 423

  29. CMPUT 229 DMA Protocol Clements, pp. 423

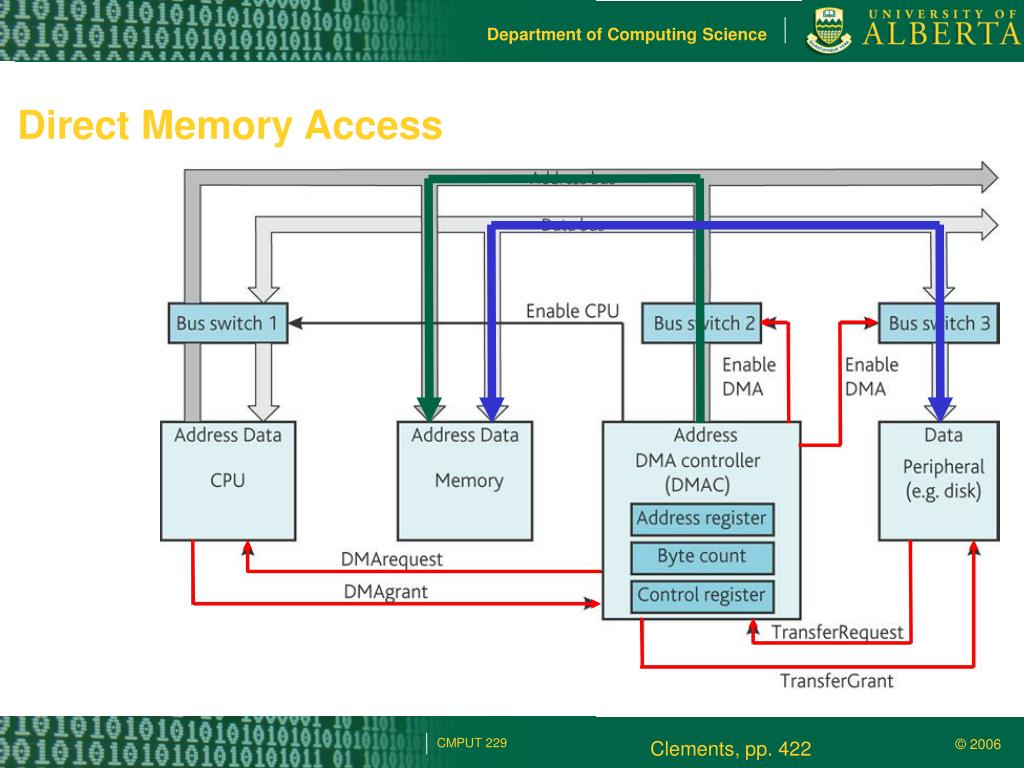

  30. CMPUT 229 Direct Memory Access Clements, pp. 422

  31. CMPUT 229 Direct Memory Access Clements, pp. 422

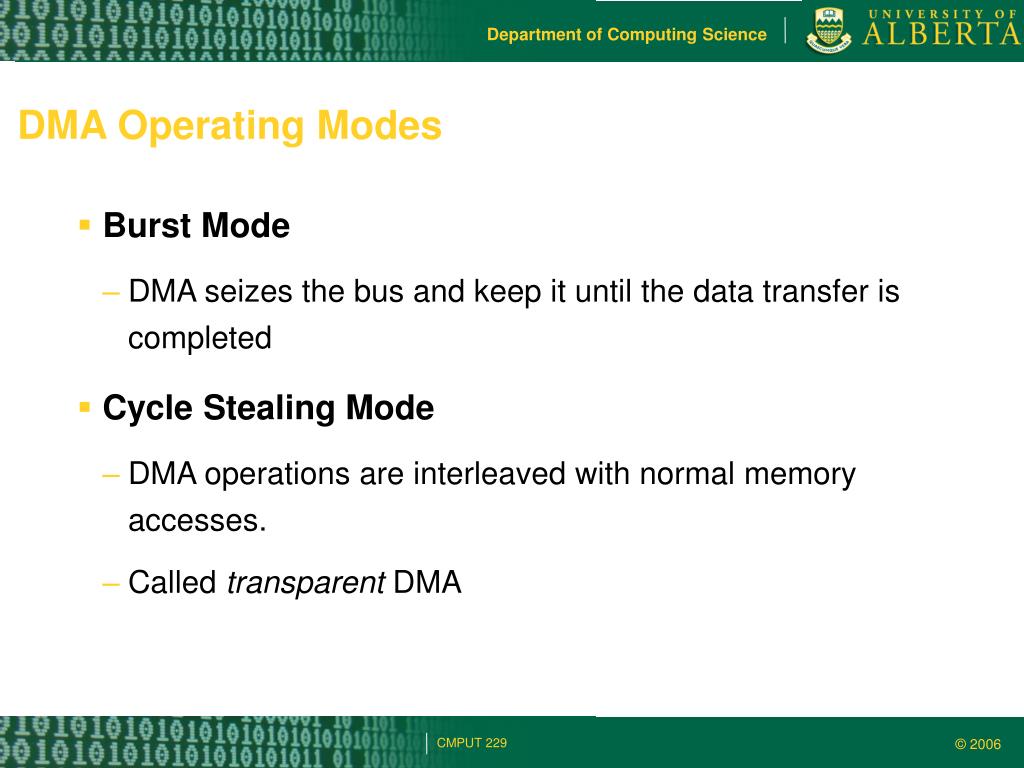

  32. CMPUT 229 DMA Operating Modes • Burst Mode • DMA seizes the bus and keep it until the data transfer is completed • Cycle Stealing Mode • DMA operations are interleaved with normal memory accesses. • Called transparent DMA

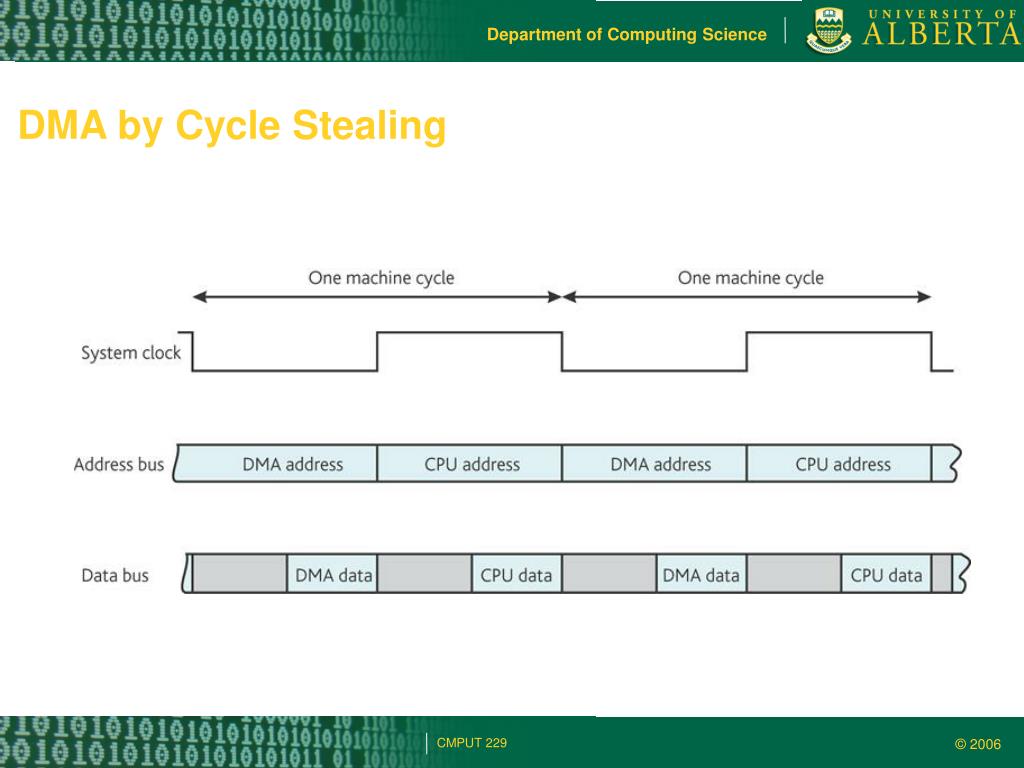

  33. CMPUT 229 DMA by Cycle Stealing
