  1. Fundamentals of Laser Marking

  2. Introduction • Laser engraving, or laser marking, is the practice of using lasers to mark an object. • The technique does not involve the use of inks, nor does it involve tools which contact the engraving surface which results in wear out. • It is done with the help of Laser engraving machines Laser Marked Electronic Part

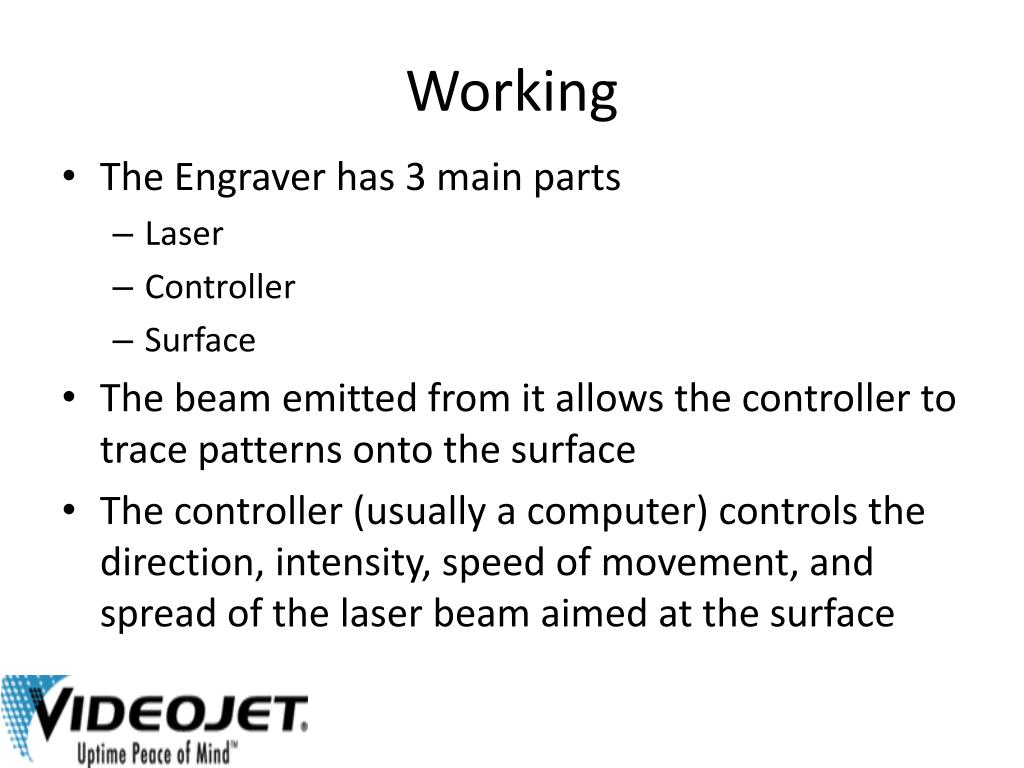

  3. Working • The Engraver has 3 main parts • Laser • Controller • Surface • The beam emitted from it allows the controller to trace patterns onto the surface • The controller (usually a computer) controls the direction, intensity, speed of movement, and spread of the laser beam aimed at the surface

  4. Engraving Machines

  5. Materials Engraved • Natural Materials (Wood) • Plastics • Metals • Coated Metals • Stone & Glass • Fine Arts

  6. Industrial Application • Photopolymer Laser Imaging • Flexographic Plates and Cylinders • Sub – Surface Laser Engraving

  7. Advantages • High Speed • Fast Turnaround Time • Permanent Mark • Non-Contact Process • High Accuracy & Repeatability • High Resolution

  8. Laser Marking Product Lines Videojet 7320 & 7310 Videojet 3120 Videojet 3430 Videojet 3320 Visit - http://www.videojet.com/in/en/laser-marking-systemsfor more information.

  9. Why Videojet? • Broadest range of technologies • Pan India Presence • Quality Service • Customer Satisfaction • Wide range of products • Offers printing solutions with maximum uptime and less cost

  10. Website : www.videojet.com/in/en/index Phone : 022-30933155 /022-27780619 Toll Free No. : 1800-3000-1199 Email : marketing.india@videojet.com Address : 101/102, Bldg 5, Millennium Business Park Sector – 2, Mahape, Navi Mumbai – 400 710
