Rigid body rotation

Physics 7C lecture 13. Rigid body rotation. Tuesday November 12, 8:00 AM – 9:20 AM Engineering Hall 1200. Applying a torque. Torque: τ = r × F. Torque and angular acceleration for a rigid body. The rotational analog of Newton ’ s second law for a rigid body is   z = I z .

viet
Télécharger la présentation

Rigid body rotation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Physics 7C lecture 13 • Rigid body rotation Tuesday November 12, 8:00 AM – 9:20 AM Engineering Hall 1200

  2. Applying a torque • Torque: • τ = r × F

  3. Torque and angular acceleration for a rigid body • The rotational analog of Newton’s second law for a rigid body is z =Iz.

  4. Another unwinding cable • What is the angular acceleration, assuming uniform disk?

  5. Another unwinding cable

  6. Q10.5 A glider of mass m1 on a frictionless horizontal track is connected to an object of mass m2 by a massless string. The glider accelerates to the right, the object accelerates downward, and the string rotates the pulley. What is the relationship among T1 (the tension in the horizontal part of the string), T2 (the tension in the vertical part of the string), and the weight m2g of the object? A. m2g = T2 = T1 B. m2g > T2 = T1 C. m2g > T2 > T1 D. m2g = T2 > T1 E. none of the above

  7. A10.5 A glider of mass m1 on a frictionless horizontal track is connected to an object of mass m2 by a massless string. The glider accelerates to the right, the object accelerates downward, and the string rotates the pulley. What is the relationship among T1 (the tension in the horizontal part of the string), T2 (the tension in the vertical part of the string), and the weight m2g of the object? A. m2g = T2 = T1 B. m2g > T2 = T1 C. m2g > T2 > T1 D. m2g = T2 > T1 E. none of the above

  8. Rigid body rotation about a moving axis • The motion of a rigid body is a combination of translational motion of the center of mass and rotation about the center of mass. • The kinetic energy of a rotating and translating rigid body is K = 1/2 Mvcm2 + 1/2 Icm2.

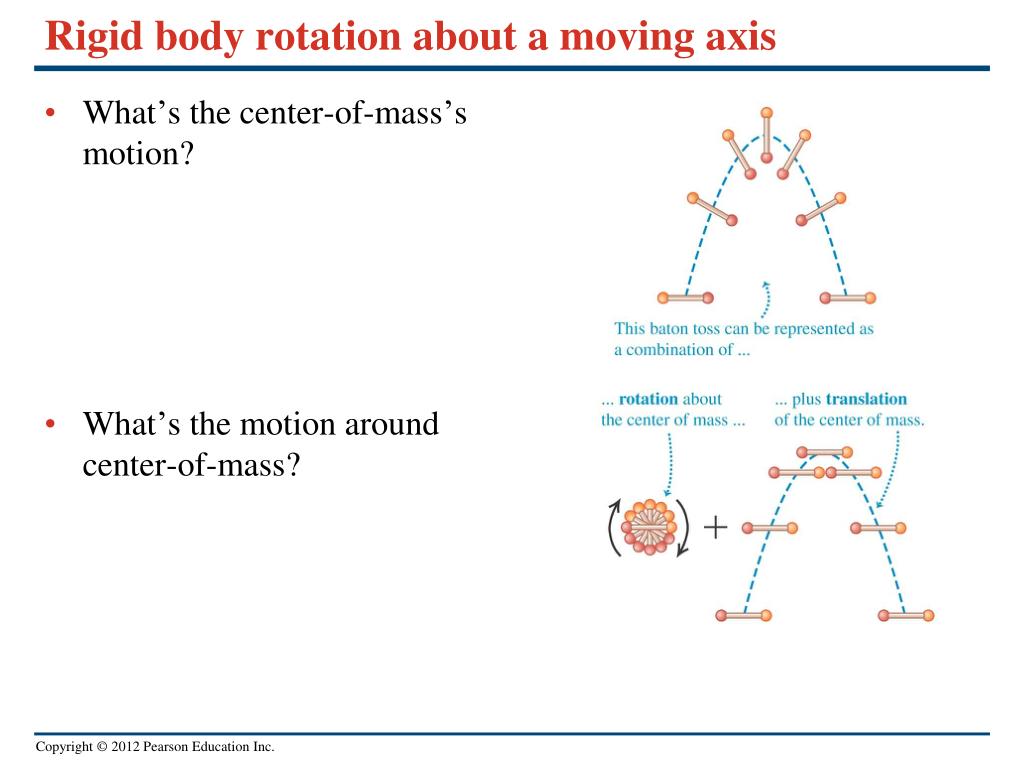

  9. Rigid body rotation about a moving axis • What’s the center-of-mass’s motion? • What’s the motion around center-of-mass?

  10. Rolling without slipping • The condition for rolling without slipping is vcm = R.

  11. A yo-yo • Find the angular speed of yo-yo.

  12. A yo-yo • Find the angular speed of yo-yo.

  13. Q10.6 A lightweight string is wrapped several times around the rim of a small hoop. If the free end of the string is held in place and the hoop is released from rest, the string unwinds and the hoop descends. How does the tension in the string (T) compare to the weight of the hoop (w)? A. T = w B. T > w C. T < w D. not enough information given to decide

  14. A10.6 A lightweight string is wrapped several times around the rim of a small hoop. If the free end of the string is held in place and the hoop is released from rest, the string unwinds and the hoop descends. How does the tension in the string (T) compare to the weight of the hoop (w)? A. T = w B. T > w C. T < w D. not enough information given to decide

  15. The race of the rolling bodies • These objects have the same mass. Which would acquire the largest speed at the bottom?

  16. The race of the rolling bodies • These objects have the same mass. Which would acquire the largest speed at the bottom?

  17. Acceleration of a yo-yo • We have translation and rotation, so we use Newton’s second law for the acceleration of the center of mass and the rotational analog of Newton’s second law for the angular acceleration about the center of mass. • Find the acceleration.

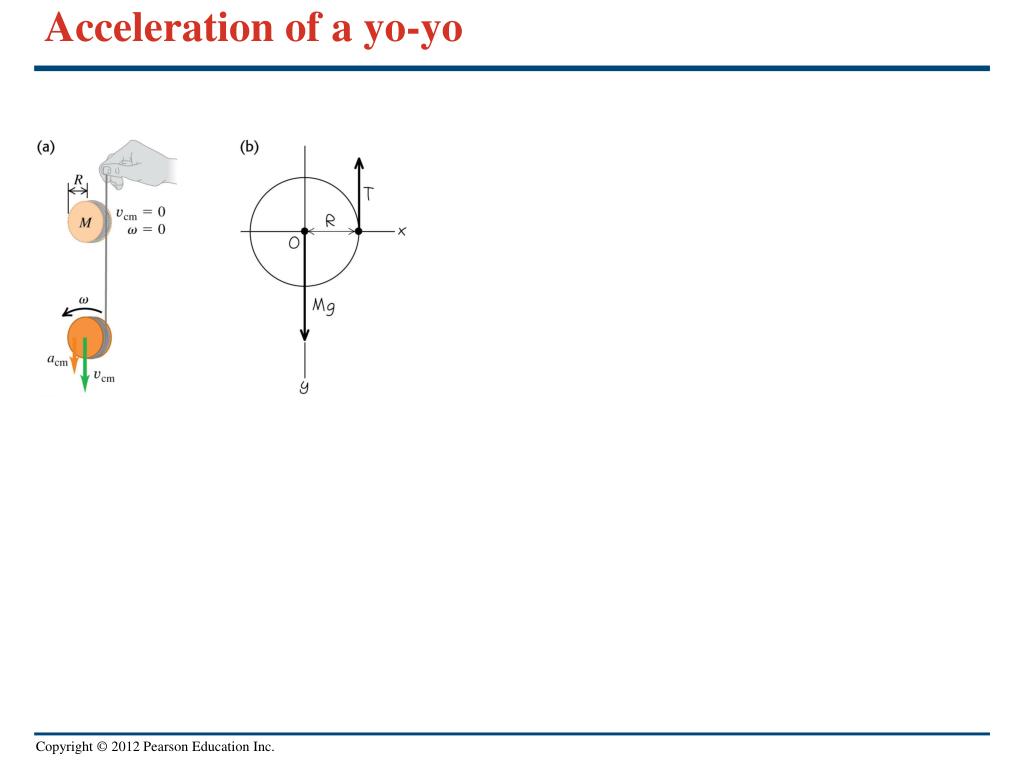

  18. Acceleration of a yo-yo

  19. Q10.7 A solid bowling ball rolls down a ramp. Which of the following forces exerts a torque on the bowling ball about its center? A. the weight of the ball B. the normal force exerted by the ramp C. the friction force exerted by the ramp D. more than one of the above E. The answer depends on whether the ball rolls without slipping.

  20. A10.7 A solid bowling ball rolls down a ramp. Which of the following forces exerts a torque on the bowling ball about its center? A. the weight of the ball B. the normal force exerted by the ramp C. the friction force exerted by the ramp D. more than one of the above E. The answer depends on whether the ball rolls without slipping.

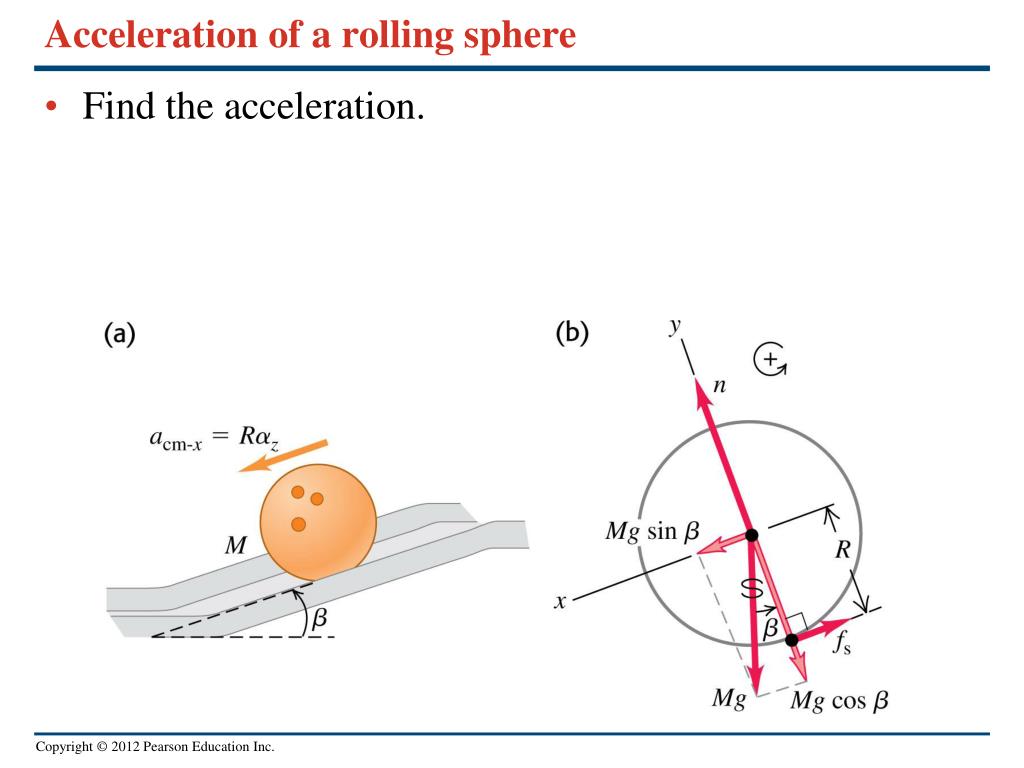

  21. Acceleration of a rolling sphere • Find the acceleration.

  22. Acceleration of a rolling sphere • Find the acceleration.

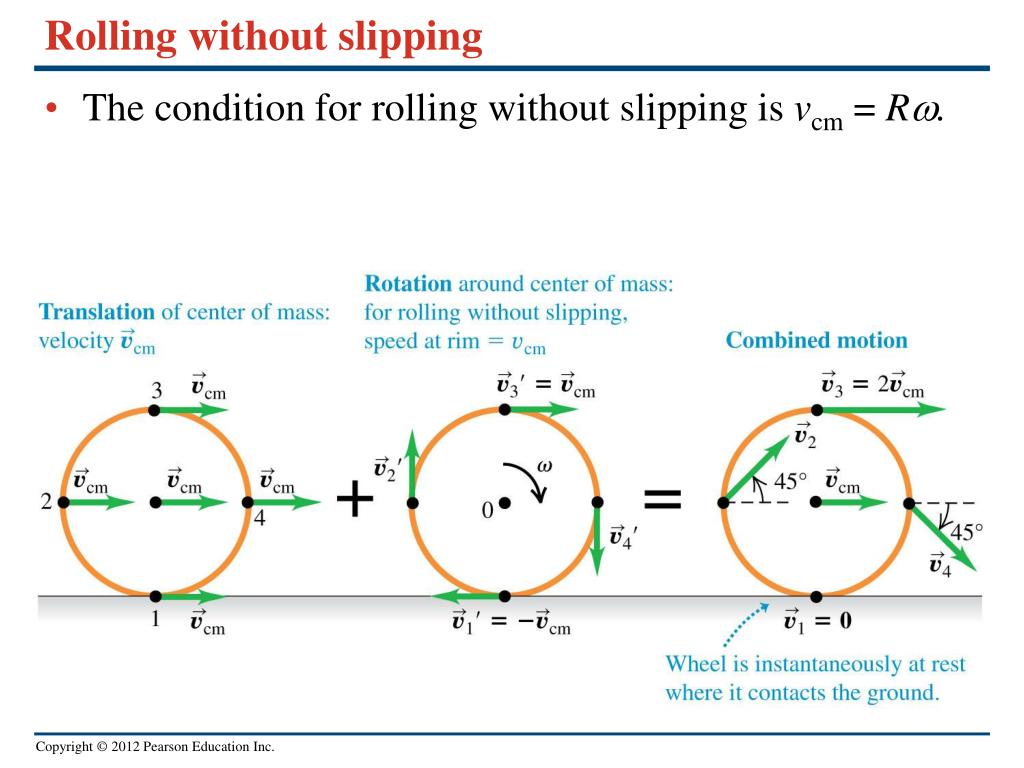

  23. Rolling without slipping • The condition for rolling without slipping is vcm = R.

  24. Q10.8 F A yo-yo is placed on a horizontal surface as shown. There is sufficient friction for the yo-yo to roll without slipping. If the string is pulled to the right as shown, A. the yo-yo rolls to the right. B. the yo-yo rolls to the left. C. the yo-yo remains at rest. D. The answer depends on the magnitude F of the pulling force compared to the magnitude of the friction force.

  25. A10.8 F A yo-yo is placed on a horizontal surface as shown. There is sufficient friction for the yo-yo to roll without slipping. If the string is pulled to the right as shown, A. the yo-yo rolls to the right. B. the yo-yo rolls to the left. C. the yo-yo remains at rest. D. The answer depends on the magnitude F of the pulling force compared to the magnitude of the friction force.

  26. Q10.10 F A yo-yo is placed on a horizontal surface as shown. There is sufficient friction for the yo-yo to roll without slipping. If the string is pulled straight up as shown, A. the yo-yo rolls to the right. B. the yo-yo rolls to the left. C. the yo-yo remains at rest. D. The answer depends on the magnitude F of the pulling force compared to the magnitude of the friction force.

  27. A10.10 F A yo-yo is placed on a horizontal surface as shown. There is sufficient friction for the yo-yo to roll without slipping. If the string is pulled straight up as shown, A. the yo-yo rolls to the right. B. the yo-yo rolls to the left. C. the yo-yo remains at rest. D. The answer depends on the magnitude F of the pulling force compared to the magnitude of the friction force.

  28. Q10.9 A yo-yo is placed on a horizontal surface as shown. There is sufficient friction for the yo-yo to roll without slipping. If the string is pulled to the right as shown, F A. the yo-yo rolls to the right. B. the yo-yo rolls to the left. C. the yo-yo remains at rest. D. The answer depends on the magnitude F of the pulling force compared to the magnitude of the friction force.

  29. A10.9 A yo-yo is placed on a horizontal surface as shown. There is sufficient friction for the yo-yo to roll without slipping. If the string is pulled to the right as shown, F A. the yo-yo rolls to the right. B. the yo-yo rolls to the left. C. the yo-yo remains at rest. D. The answer depends on the magnitude F of the pulling force compared to the magnitude of the friction force.

  30. Q10.9 A yo-yo is placed on a horizontal surface as shown. There is sufficient friction for the yo-yo to roll without slipping. If the string is pulled to the right as shown, F

  31. Work and power in rotational motion • A tangential force applied to a rotating body does work on it. • The total work done on a body by the torque is equal to the change in rotational kinetic energy of the body and the power due to a torque is P = zz.

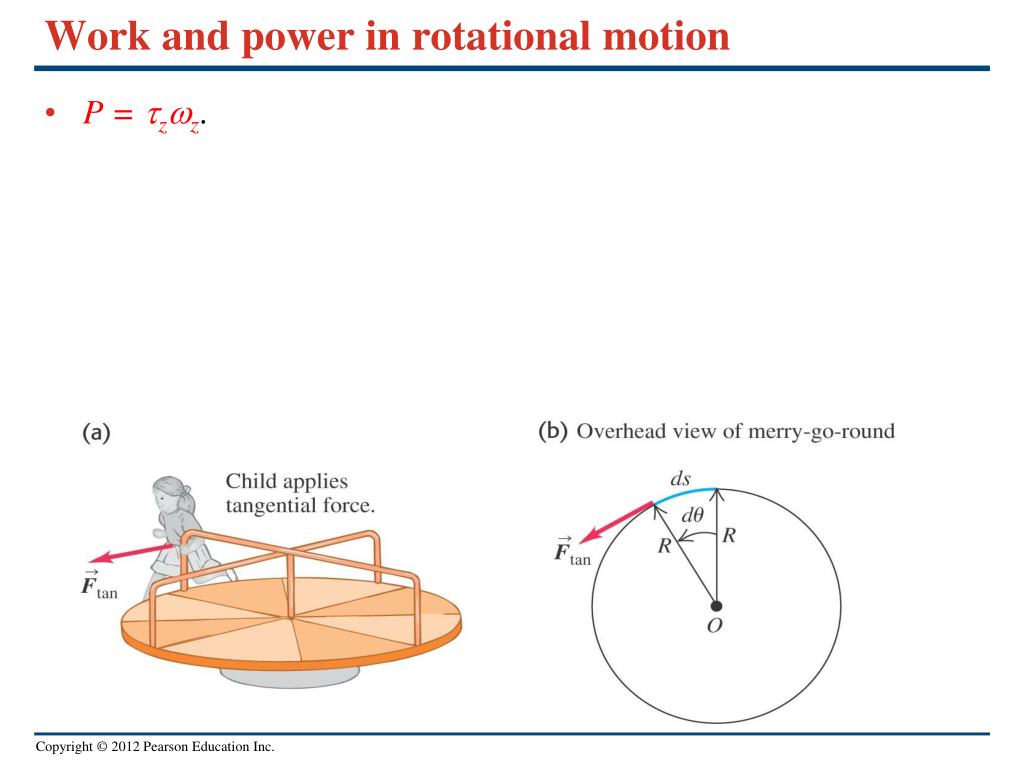

  32. Work and power in rotational motion • P = zz.
