  1. Continuous Time Markov Chainsand Basic Queueing Theory EE384X Review 4 Winter 2004

  2. Review: DTMC • pij is the transition probability from i to j over one time slot • The time spent in a state is geometrically distributed • Result of the Markov (memoryless) property • When there is a jump from state i, it goes to state j with probability

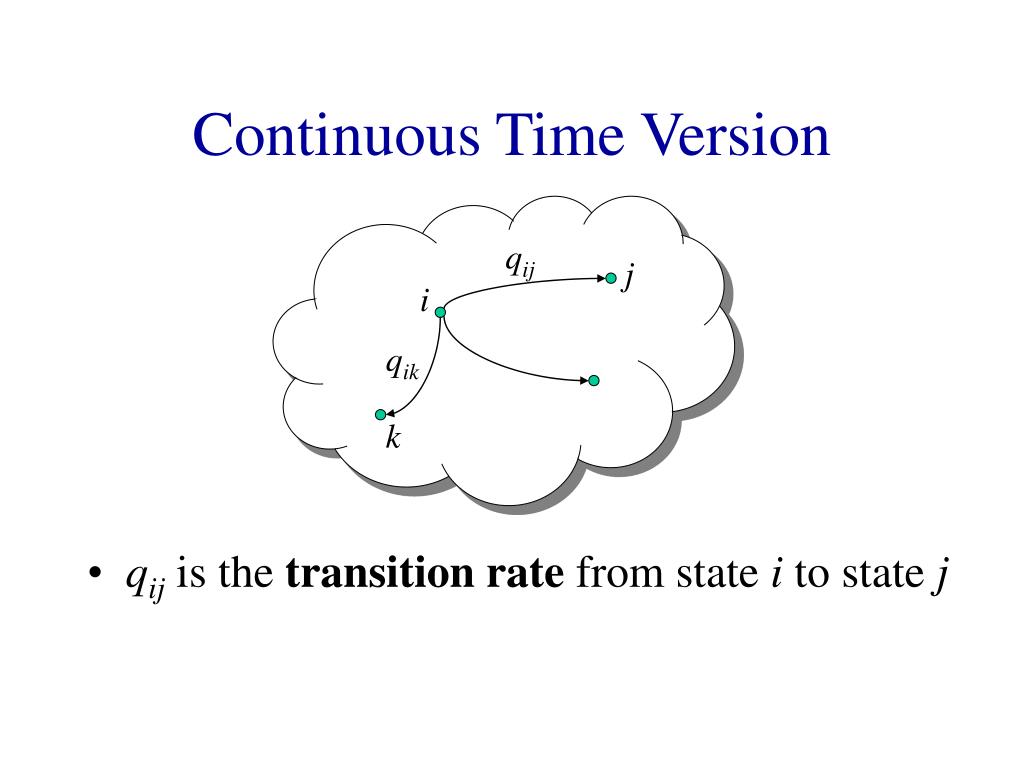

  3. qij j i qik k Continuous Time Version • qij is the transitionrate from state i to state j

  4. CTMC • Upon entering state i, a random timer Tij»Exp(qij) is started for each potential transition i!j • These timers are independent of each other • Recall that Exponential distribution is memoryless • When the first timer expires, the MC makes the corresponding transition • Let Ti be the time spent in state i, and qi=åj¹i qij, then Ti» Exp(qi) • When there is a transition, the probability of jumping to state j is qij /qi

  5. Definitions • {X(t):t¸0} is a continuous time Markov chain ifP{X(s+t)=j | X(u); u·s} = P{X(s+t)=j | X(s)} • Similar to Discrete Time MCs, Continuous Time MCs have stationary distributionp • Exists when Markov chain is positive recurrent and irreducible

  6. Stationary Distribution • Balance equations: • Transition rates in and out of state i are equal • Define matrix transition rate Q = (qij) with qii= -qi, then p Q = 0, where p is a row vector • Together with åip(i) = 1, can solve for p

  7. Queueing Theory Notation • A/S/s/k • A is the arrival process, e.g., Geometric, Poisson, Deterministic • S is the service distribution, e.g., Geometric, Exponential, Deterministic • s is the number of servers, e.g., 1, N, 1 • k is the buffer size (if k is absent, then k = 1) • E.g., Geom/M/1, M/M/1, M/D/1, M/M/1

  8. l l l l 3 0 2 1 m m m m M/M/1 Queue • Arrivals are Poisson with rate l • Inter-arrival times are exp(l) • Services are exponential with rate m • These are also transition rates for the Markov chain • This looks very similar to Geom/Geom/1 queue, but different

  9. Solving M/M/1 Queue • We have pil = pi+1m • Let r = l/m, then pi = pi-1 r = p0ri • If r < 1, the stationary distribution exists:pi = (1 - r) ri • Average Queue size:

  10. M/M/1 Queue • NQ is the queue size, excluding the one in service:

  11. l l l l 3 0 2 1 m 4m 2m 3m M/M/1 Queue • Customer arrival process is Poisson(l) • All customers are served in parallel »exp(m) • Departure rate proportional to # of customers

  12. Solving M/M/1 Queue • We have pi-1l = pi i m • Let r = l/m, then • Thus

  13. M/M/1 Queue • The queue size distribution of the M/M/1 queue is Poisson(r) • Therefore the average queue size is E(Q)=r • What’s the condition for the queue to be recurrent?
