Presentation Transcript

  1. CT-KIP Magnus Nyström, RSA Security OTPS Workshop, October 2005

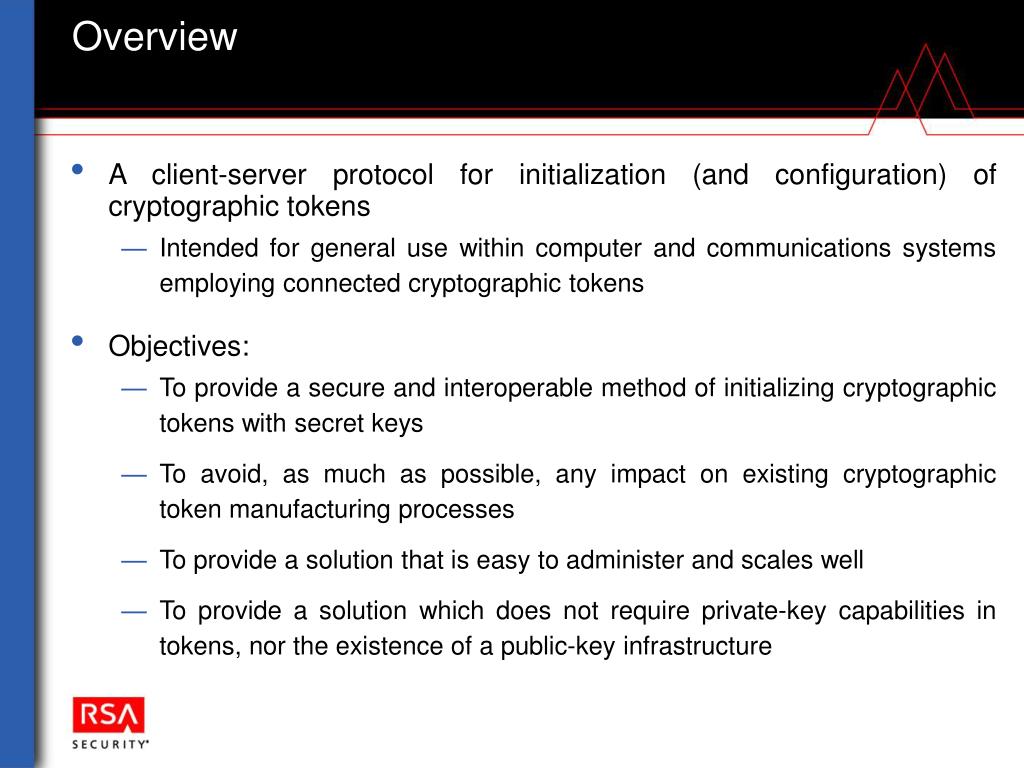

  2. Overview • A client-server protocol for initialization (and configuration) of cryptographic tokens • Intended for general use within computer and communications systems employing connected cryptographic tokens • Objectives: • To provide a secure and interoperable method of initializing cryptographic tokens with secret keys • To avoid, as much as possible, any impact on existing cryptographic token manufacturing processes • To provide a solution that is easy to administer and scales well • To provide a solution which does not require private-key capabilities in tokens, nor the existence of a public-key infrastructure

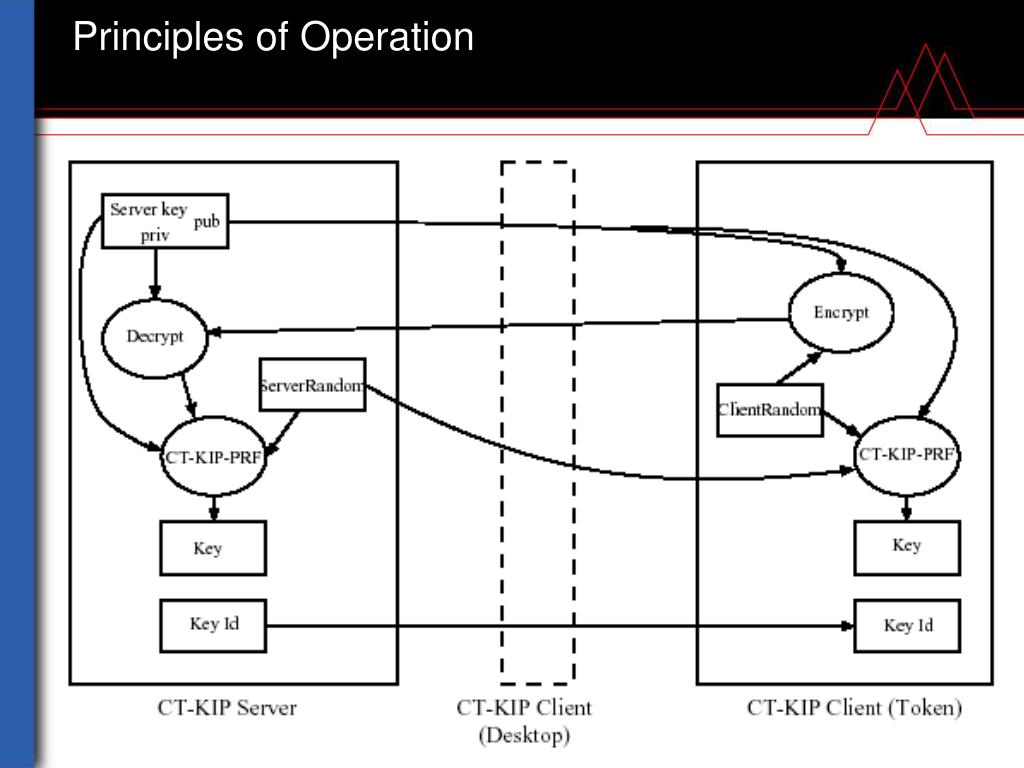

  3. Principles of Operation

  4. Recent Modifications – CT-KIP: 4th draft • XML related • Switched to UpperCamelCase for XML names, as per discussion at the May workshop • Switched to explicit XML namespace usage, as per discussion at the May workshop • PDU (message) names changed to more descriptive names • Introduced an optional <KeyID> element in the client's initial message • For use when token already is initialized • Replaced the <Nonce> element in the server's initial message with a <Payload> element, which in turn is a <choice> • For future use • Suggested MIME type is now application/vnd.otps.ct-kip, since application/ct-kip would (normally) have required an RFC and approval by the IESG.

  5. Recent Modifications – CT-KIP 5th draft • Clarified that the length of nonces RC and RS may depend on selected key types • Expanded discussion in Section 3.3 on ways for the server to couple an initial user authentication to a CT-KIP session (and hence a particular key) • Expanded text on comparison of XML string values • Introduced a CT-KIP "trigger" or initialization message • In the ClientHello message, clarified that the <TokenID> element must be present only if provided by the CT-KIP server in a trigger or if there is a key shared between the token and the CT-KIP server • Clients cannot assign a Token Identifier • In the ServerHello and ServerFinished message, clarified that the parameters to the MAC are the same regardless of the MAC algorithm • In the ServerFinished message, added a <TokenID> element allowing the server to assign an identifier also for the token and not just the generated key • Added a "Security Considerations" section

  6. Recent Modifications – CT-KIP’s PKCS #11 Interface 4th and 5th draft • Clarified that the <KeyID> element from CT-KIP may be used as CKA_ID • In Appendix B, modified the proposed/suggested procedure to let KTOKEN be generated after receipt of the ServerFinished message. This simplifies providing a complete template to C_DeriveKey • Editorial corrections and clarifications thanks to Laszlo Elteto, Safenet • Still missing here is actual assignment of mechanism identifiers

  7. For Discussion • Security Considerations section needs review • Agreement and stabilization of document content • Need to verify completeness wrt OTP-PKCS #11, EAP-POTP, etc. • Applies to all OTPS documents • Assignment of PKCS #11 mechanism identifiers • Possible future contribution of document, to (new) OASIS TC or elsewhere? • Proposed schedule • Produce final draft versions within a month from this workshop • Publish Version 1.0 about two weeks after that
