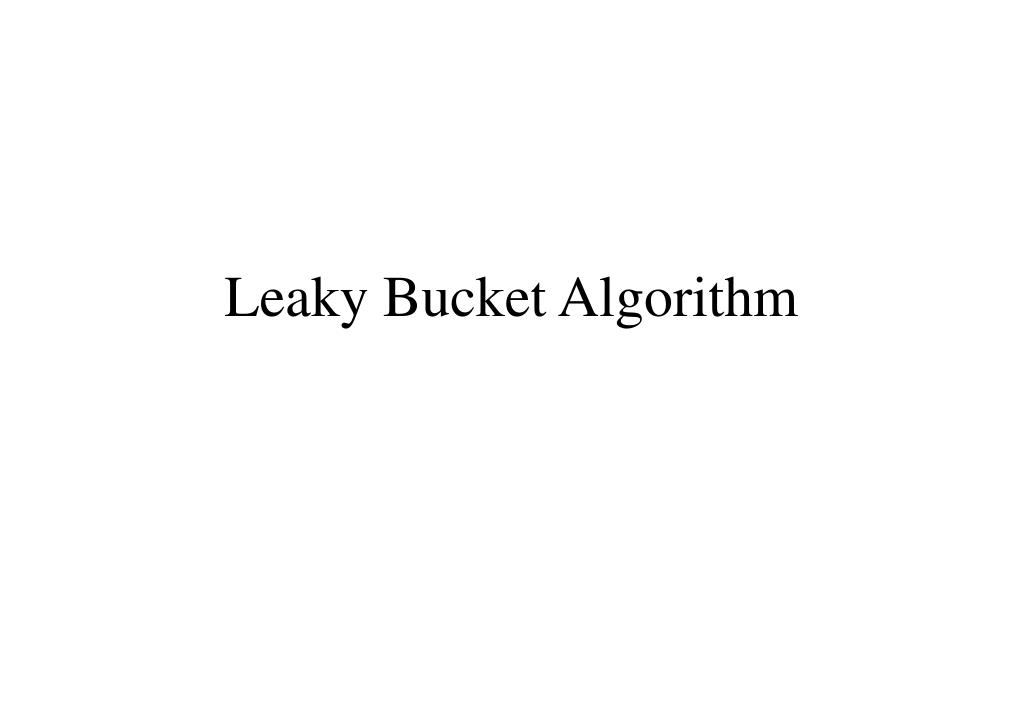

  1. Leaky Bucket Algorithm

  2. Generic Cell Rate Algorithm (GCRA) • Used to define conformance with respect to the traffic contract • Define the relationship b.w. PCR and the CDVT, and the relationship b.w. SCR and the BT • Be a virtual scheduling algorithm or a continuous-state leaky bucket algorithm • Be defined with two parameters: the Increment (I) and the Limit (L)  GCRA(I,L)

  3. Arrival of a cell k at time ta(k) X’=X-(ta(k)-LCT) Yes TAT<ta(k) ? Yes • GCRA(I,L) X’<0? No TAT=ta(k) No X’=0 Yes Non Conforming cell TAT>ta(k) +L? Yes Non Conforming cell X’>L? No No X=X’+I LCT=ta(k) Conforming cell TAT=TAT+I Conforming cell Virtual Scheduling Algorithm Continuous-state Leaky Bucket Algorithm X: Value of the Leaky Bucket counter X’: Auxiliary variable LCT: Last Compliance Time TAT: Theoretical Arrival Time ta(k): Time of arrival of a cell

  4. ta(k) (a) Time • Virtual scheduling algorithm • Conforming cell • Non-conforming cell • At the time of arrival of the first cell of the connection, TAT = ta(k) TAT(k-1) TAT(k+1) TAT(k) TAT(k) ta(k) (b) Time TAT(k-1) TAT(k) TAT(k+1) ta(k) Time TAT(k-2) TAT(k-1) TAT(k)

  5. (a) (b) I+L I+L I+L I+L X X ta(k)-LCT • Continuous-state leaky bucket algorithm • Conforming cell • Non-conforming cell • At the time of arrival of the first cell of the connection, X=0 and LCT=ta(k) L L L L X’ ta(k)-LCT X’(=0) I+L I+L X ta(k)-LCT I X’ L L L

  6. These two algorithms are equivalent ( TAT=X+LCT ) • For any sequence of cell arrival times , they determine the same cells to be conforming and thus the same cells to be non-conforming • The capacity of the bucket is L+I • As L increases, the minimum inter-arrival time between conforming cells decreases • Given GCRA(T,) and the transmission time of a cell required,, the maximum number N of conforming back-to-back cells, i.e., at the full link rate, equals

  7. If a cell stream conforms to the SCR (=1/Ts), the BT (=s), and the PCR (=1/T), then it offers traffic conforming to GCRA(Ts,s) and GCRA(T,0) •  The maximum burst size (MBS) is • Over any closed time interval of length t, the number of cells, N(t), can be emitted with spacing no less than T and still be in conformance with GCRA(Ts,s) is bounded by

  8. If the minimum spacing between bursts and the MBS (with inter-cell spacing T) are TI and B, respectively, and the cell stream is conforming with GCRA(Ts,s), then Tsand s are chosen at least large enough to satisfy Time
