  1. BackupPC LINSAM-Infosessie 19/04/2007 R. Moreas, J. Thielemans Departement Werktuigkunde

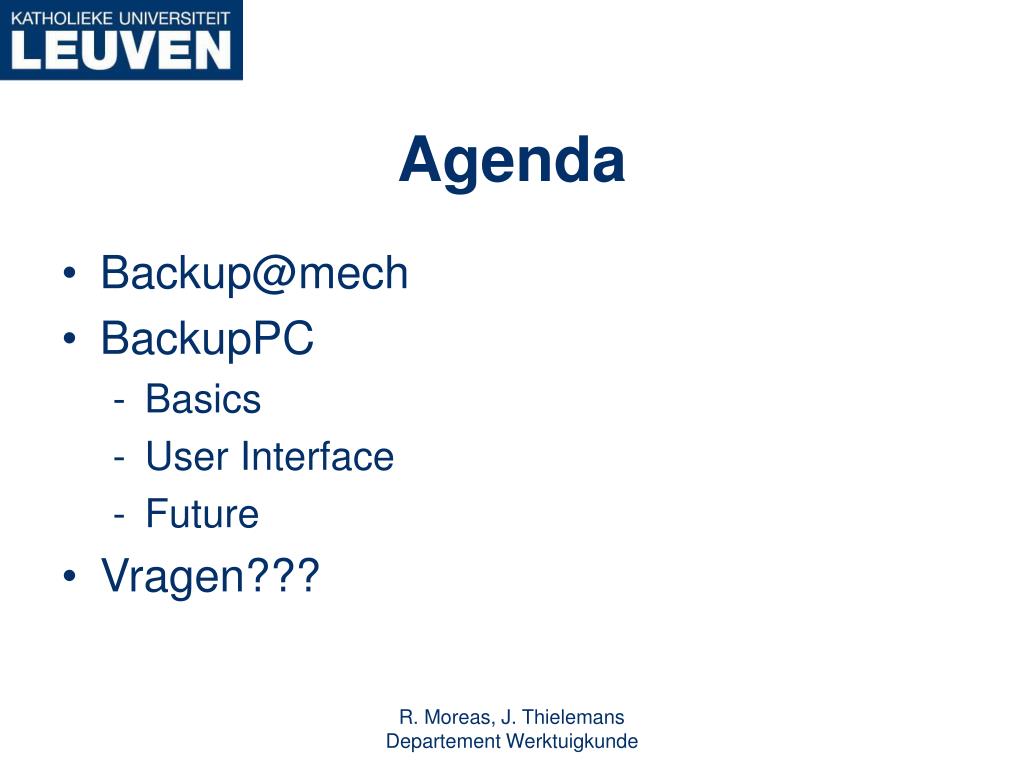

  2. Agenda • Backup@mech • BackupPC • Basics • User Interface • Future • Vragen??? R. Moreas, J. Thielemans Departement Werktuigkunde

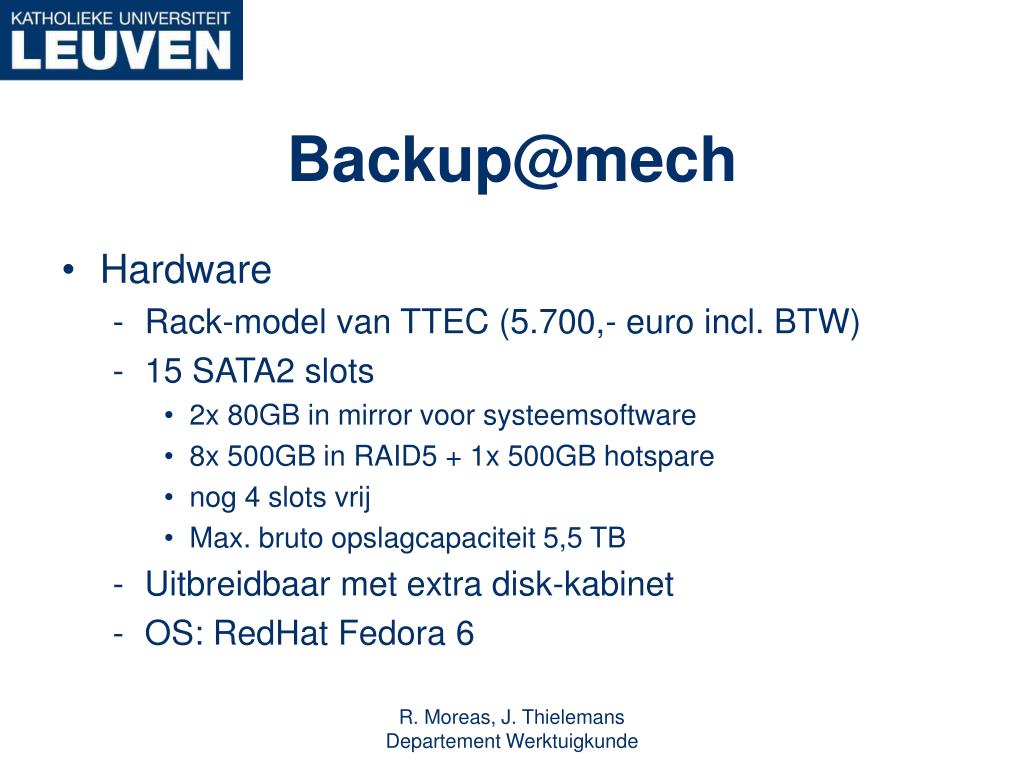

  3. Backup@mech • Hardware • Rack-model van TTEC (5.700,- euro incl. BTW) • 15 SATA2 slots • 2x 80GB in mirror voor systeemsoftware • 8x 500GB in RAID5 + 1x 500GB hotspare • nog 4 slots vrij • Max. bruto opslagcapaciteit 5,5 TB • Uitbreidbaar met extra disk-kabinet • OS: RedHat Fedora 6 R. Moreas, J. Thielemans Departement Werktuigkunde

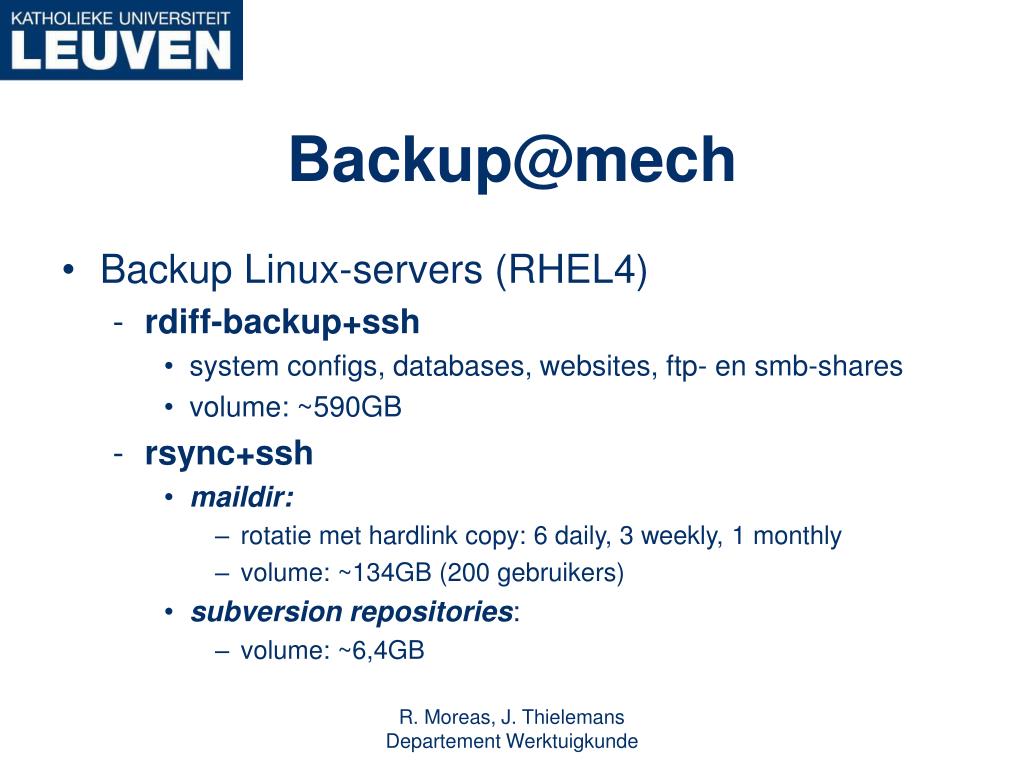

  4. Backup@mech • Backup Linux-servers (RHEL4) • rdiff-backup+ssh • system configs, databases, websites, ftp- en smb-shares • volume: ~590GB • rsync+ssh • maildir: • rotatie met hardlink copy: 6 daily, 3 weekly, 1 monthly • volume: ~134GB (200 gebruikers) • subversion repositories: • volume: ~6,4GB R. Moreas, J. Thielemans Departement Werktuigkunde

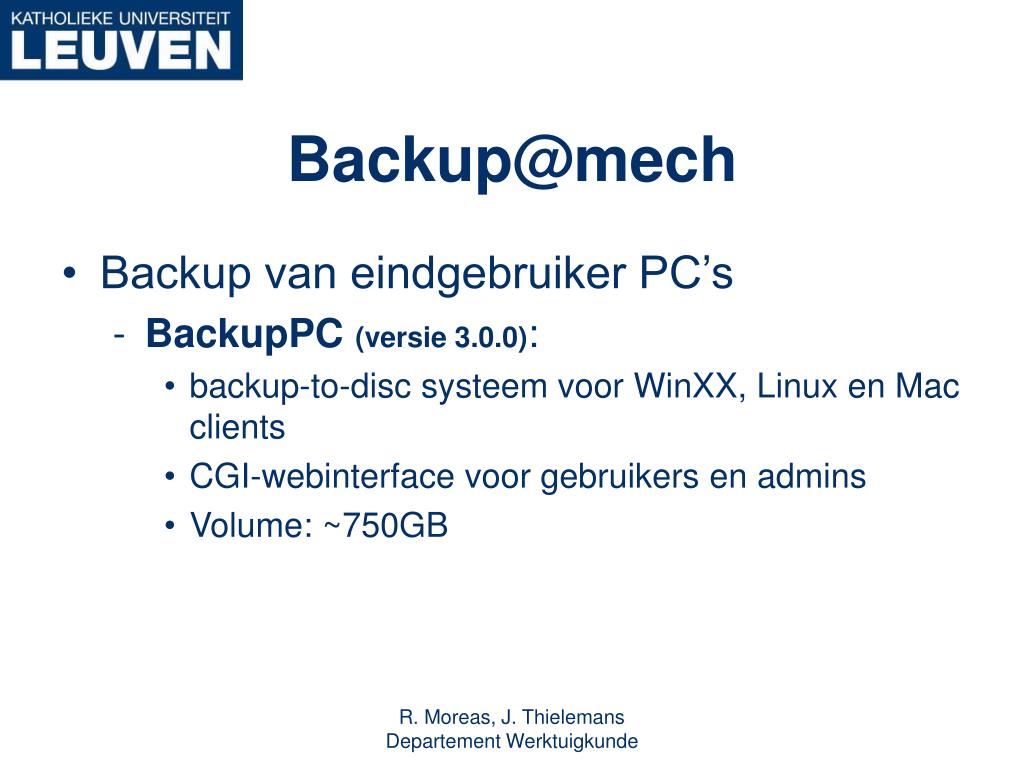

  5. Backup@mech • Backup van eindgebruiker PC’s • BackupPC (versie 3.0.0): • backup-to-disc systeem voor WinXX, Linux en Mac clients • CGI-webinterface voor gebruikers en admins • Volume: ~750GB R. Moreas, J. Thielemans Departement Werktuigkunde

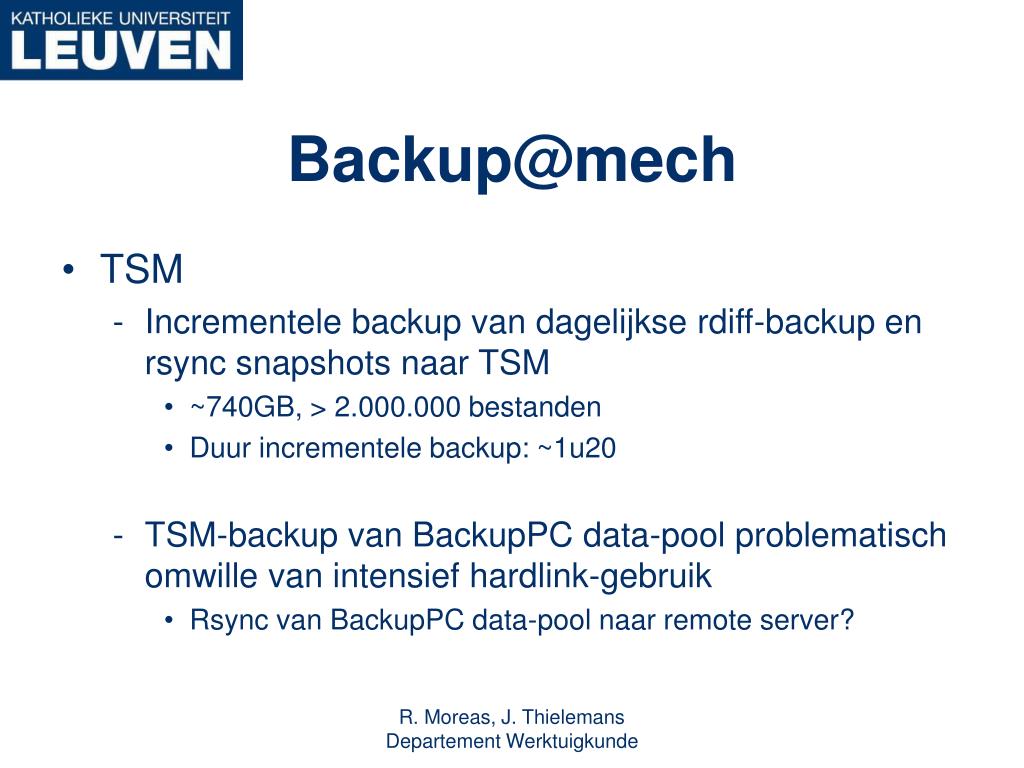

  6. Backup@mech • TSM • Incrementele backup van dagelijkse rdiff-backup en rsync snapshots naar TSM • ~740GB, > 2.000.000 bestanden • Duur incrementele backup: ~1u20 • TSM-backup van BackupPC data-pool problematisch omwille van intensief hardlink-gebruik • Rsync van BackupPC data-pool naar remote server? R. Moreas, J. Thielemans Departement Werktuigkunde

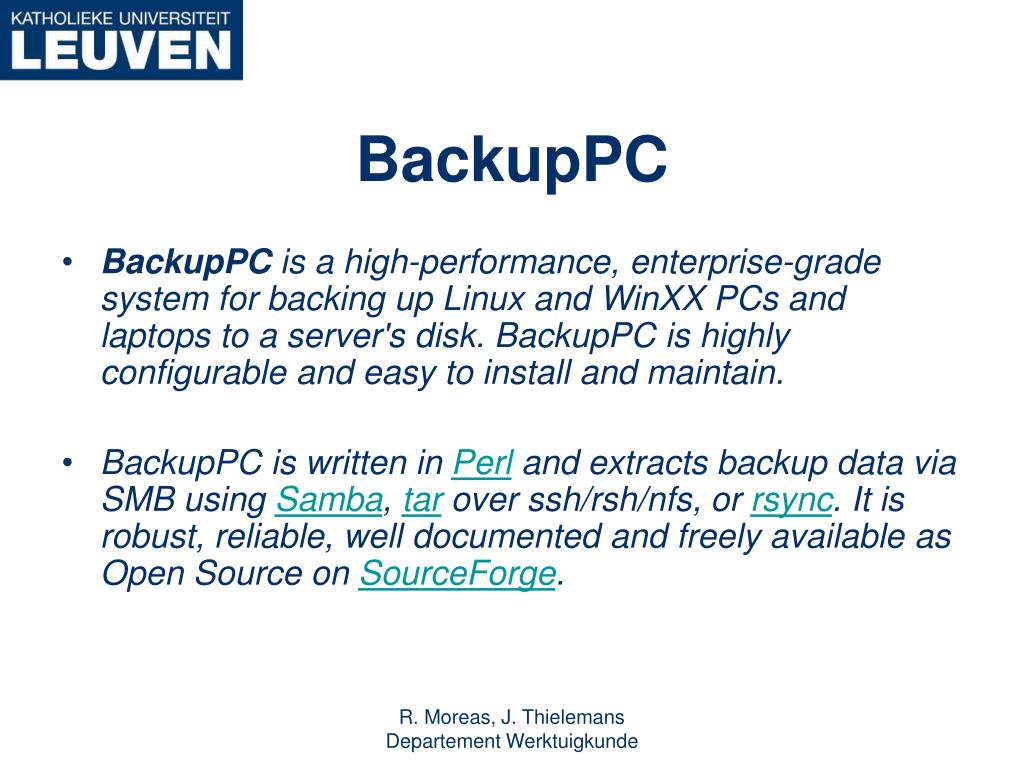

  7. BackupPC • BackupPC is a high-performance, enterprise-grade system for backing up Linux and WinXX PCs and laptops to a server's disk. BackupPC is highly configurable and easy to install and maintain. • BackupPC is written in Perl and extracts backup data via SMB using Samba, tar over ssh/rsh/nfs, or rsync. It is robust, reliable, well documented and freely available as Open Source on SourceForge. R. Moreas, J. Thielemans Departement Werktuigkunde

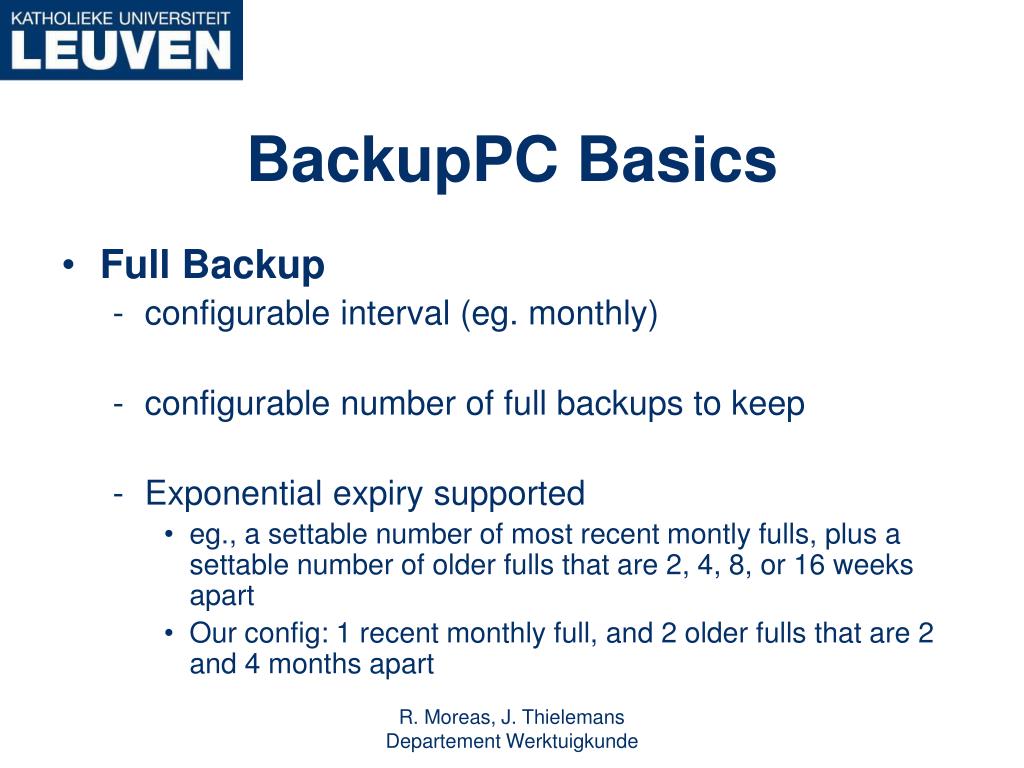

  8. BackupPC Basics • Full Backup • configurable interval (eg. monthly) • configurable number of full backups to keep • Exponential expiry supported • eg., a settable number of most recent montly fulls, plus a settable number of older fulls that are 2, 4, 8, or 16 weeks apart • Our config: 1 recent monthly full, and 2 older fulls that are 2 and 4 months apart R. Moreas, J. Thielemans Departement Werktuigkunde

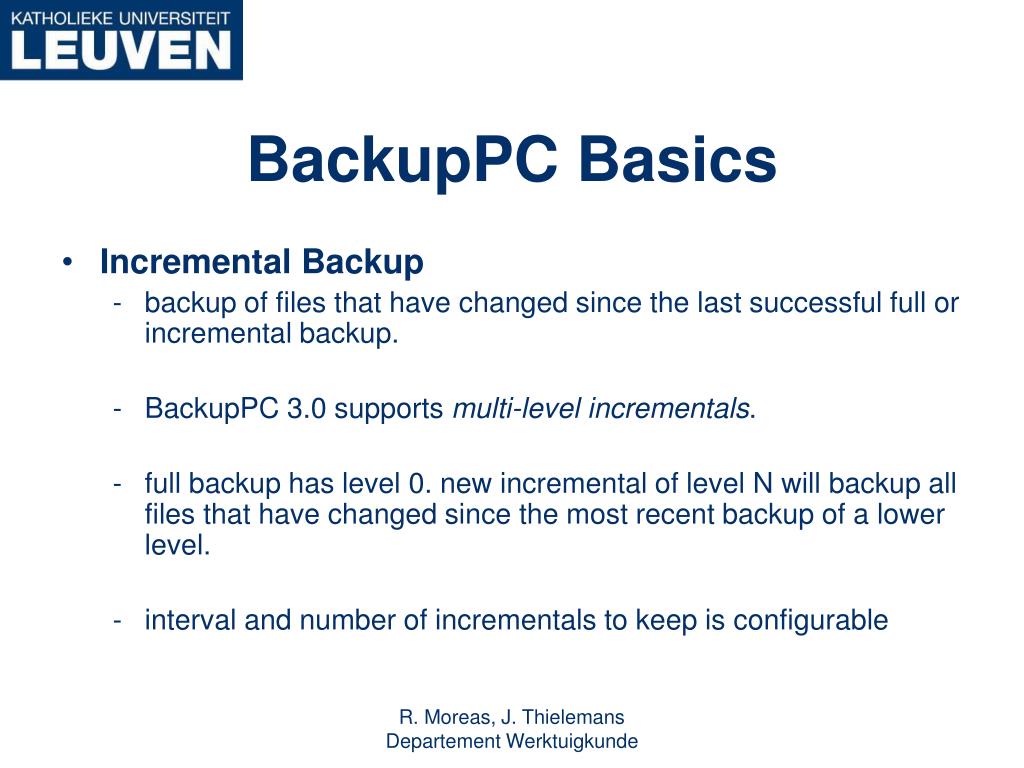

  9. BackupPC Basics • Incremental Backup • backup of files that have changed since the last successful full or incremental backup. • BackupPC 3.0 supports multi-level incrementals. • full backup has level 0. new incremental of level N will backup all files that have changed since the most recent backup of a lower level. • interval and number of incrementals to keep is configurable R. Moreas, J. Thielemans Departement Werktuigkunde

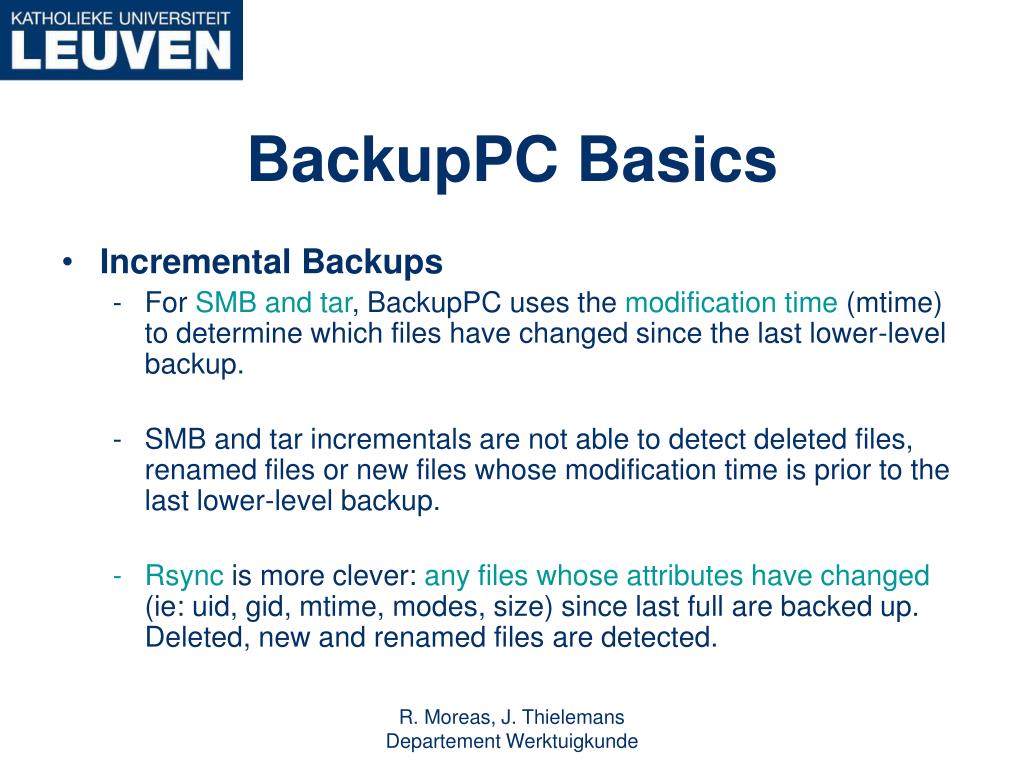

  10. BackupPC Basics • Incremental Backups • For SMB and tar, BackupPC uses the modification time (mtime) to determine which files have changed since the last lower-level backup. • SMB and tar incrementals are not able to detect deleted files, renamed files or new files whose modification time is prior to the last lower-level backup. • Rsync is more clever: any files whose attributes have changed (ie: uid, gid, mtime, modes, size) since last full are backed up. Deleted, new and renamed files are detected. R. Moreas, J. Thielemans Departement Werktuigkunde

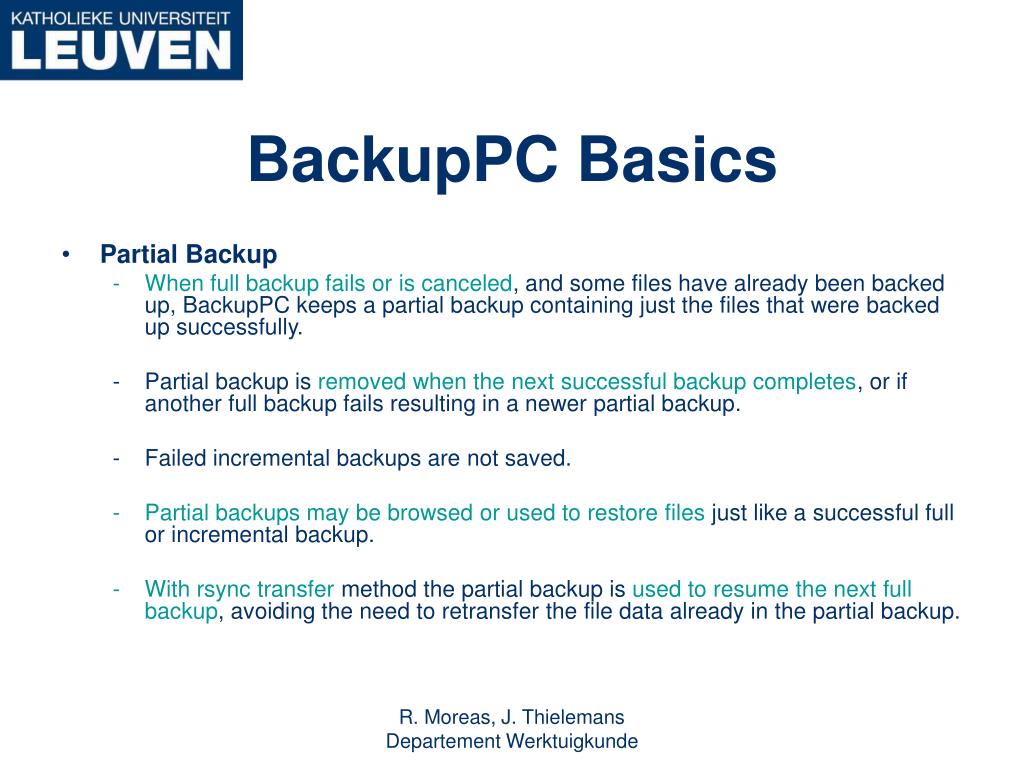

  11. BackupPC Basics • Partial Backup • When full backup fails or is canceled, and some files have already been backed up, BackupPC keeps a partial backup containing just the files that were backed up successfully. • Partial backup is removed when the next successful backup completes, or if another full backup fails resulting in a newer partial backup. • Failed incremental backups are not saved. • Partial backups may be browsed or used to restore files just like a successful full or incremental backup. • With rsync transfer method the partial backup is used to resume the next full backup, avoiding the need to retransfer the file data already in the partial backup. R. Moreas, J. Thielemans Departement Werktuigkunde

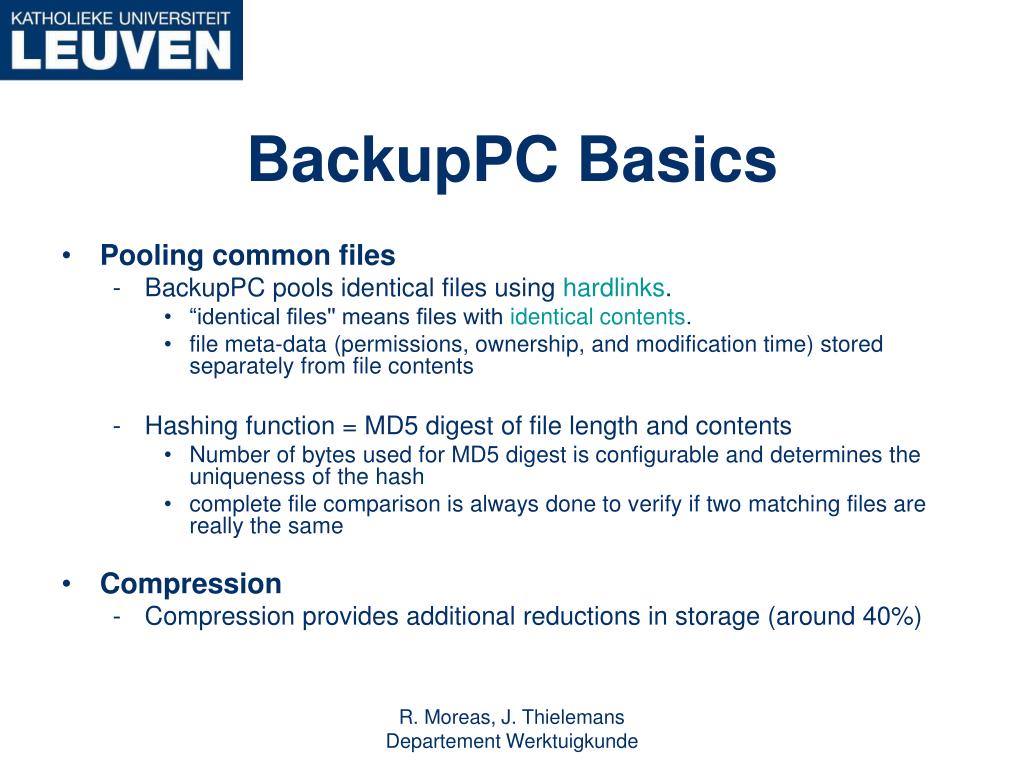

  12. BackupPC Basics • Pooling common files • BackupPC pools identical files using hardlinks. • “identical files'' means files with identical contents. • file meta-data (permissions, ownership, and modification time) stored separately from file contents • Hashing function = MD5 digest of file length and contents • Number of bytes used for MD5 digest is configurable and determines the uniqueness of the hash • complete file comparison is always done to verify if two matching files are really the same • Compression • Compression provides additional reductions in storage (around 40%) R. Moreas, J. Thielemans Departement Werktuigkunde

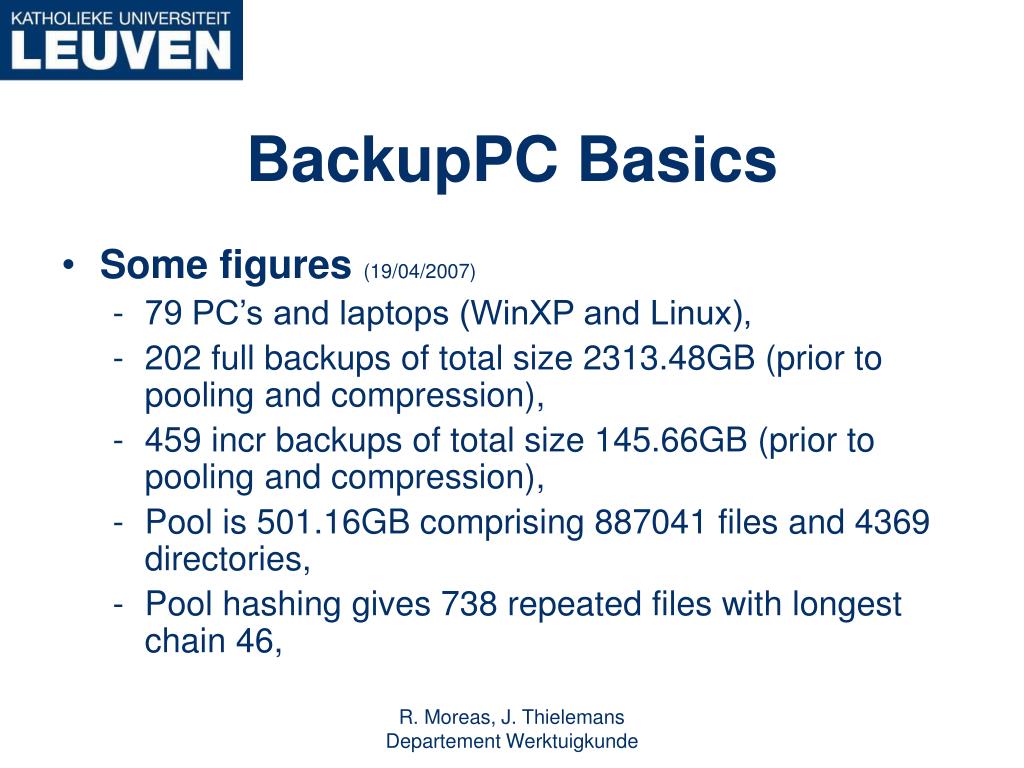

  13. BackupPC Basics • Some figures(19/04/2007) • 79 PC’s and laptops (WinXP and Linux), • 202 full backups of total size 2313.48GB (prior to pooling and compression), • 459 incr backups of total size 145.66GB (prior to pooling and compression), • Pool is 501.16GB comprising 887041 files and 4369 directories, • Pool hashing gives 738 repeated files with longest chain 46, R. Moreas, J. Thielemans Departement Werktuigkunde

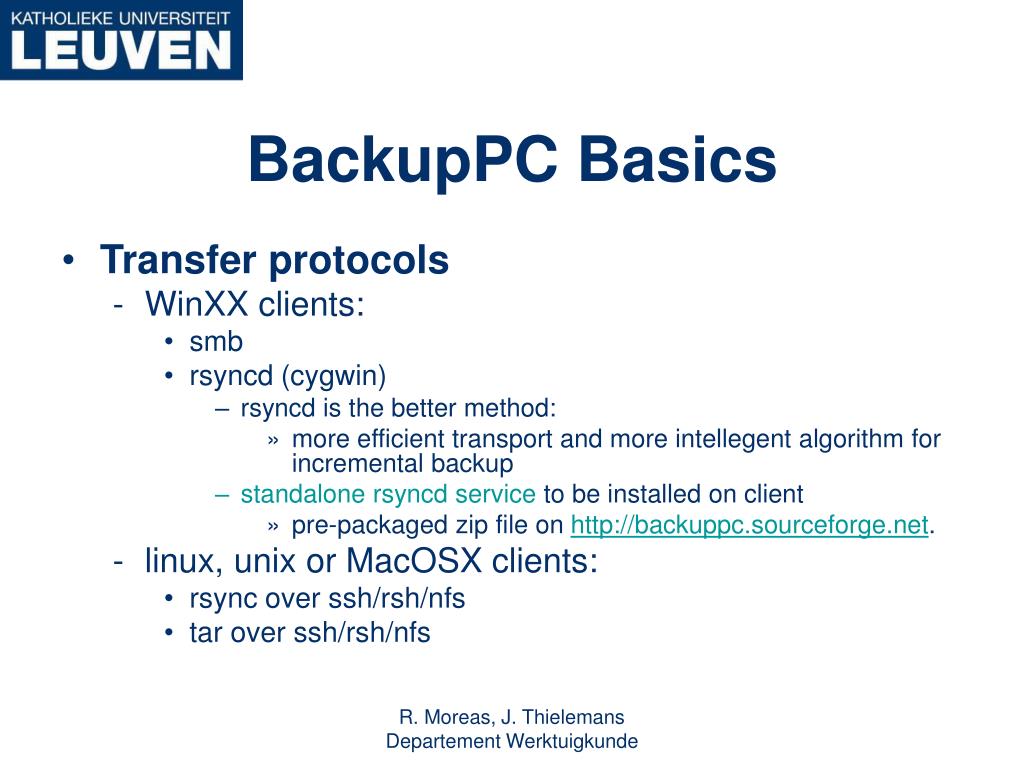

  14. BackupPC Basics • Transfer protocols • WinXX clients: • smb • rsyncd (cygwin) • rsyncd is the better method: • more efficient transport and more intellegent algorithm for incremental backup • standalone rsyncd service to be installed on client • pre-packaged zip file on http://backuppc.sourceforge.net. • linux, unix or MacOSX clients: • rsync over ssh/rsh/nfs • tar over ssh/rsh/nfs R. Moreas, J. Thielemans Departement Werktuigkunde

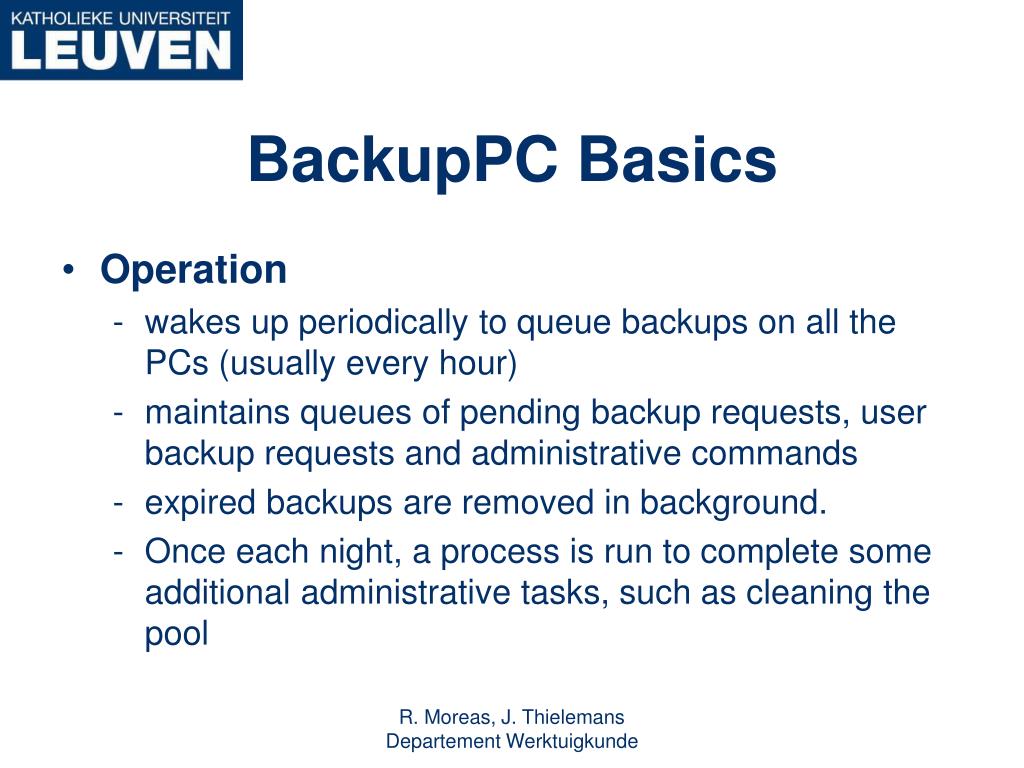

  15. BackupPC Basics • Operation • wakes up periodically to queue backups on all the PCs (usually every hour) • maintains queues of pending backup requests, user backup requests and administrative commands • expired backups are removed in background. • Once each night, a process is run to complete some additional administrative tasks, such as cleaning the pool R. Moreas, J. Thielemans Departement Werktuigkunde

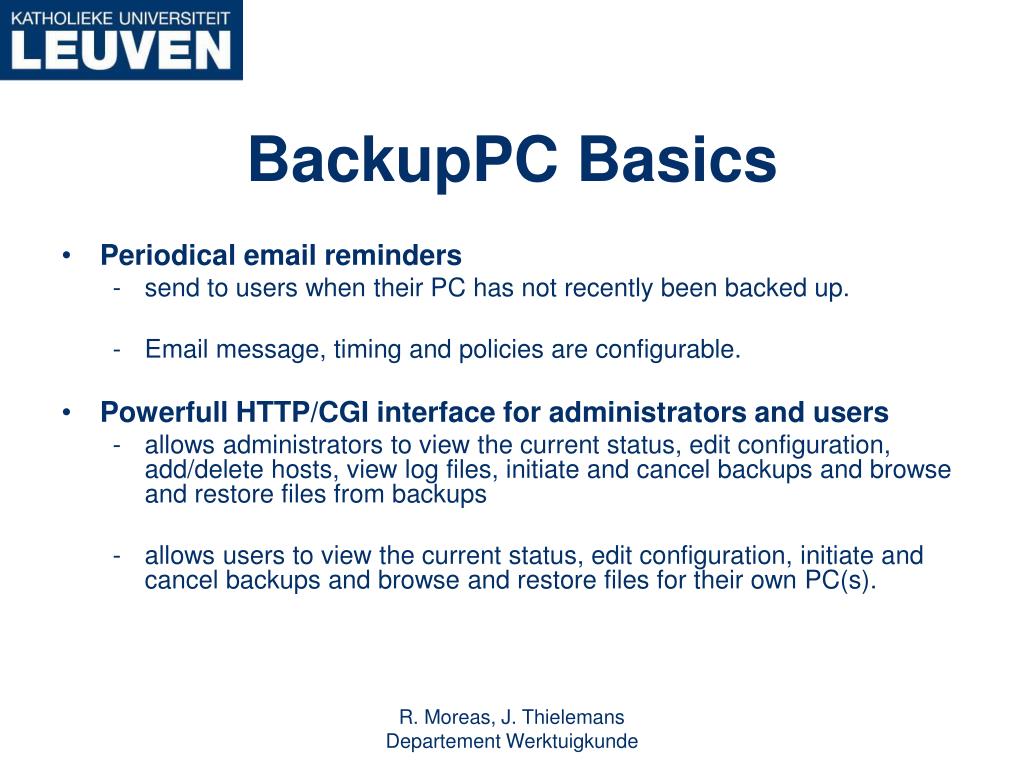

  16. BackupPC Basics • Periodical email reminders • send to users when their PC has not recently been backed up. • Email message, timing and policies are configurable. • Powerfull HTTP/CGI interface for administrators and users • allows administrators to view the current status, edit configuration, add/delete hosts, view log files, initiate and cancel backups and browse and restore files from backups • allows users to view the current status, edit configuration, initiate and cancel backups and browse and restore files for their own PC(s). R. Moreas, J. Thielemans Departement Werktuigkunde

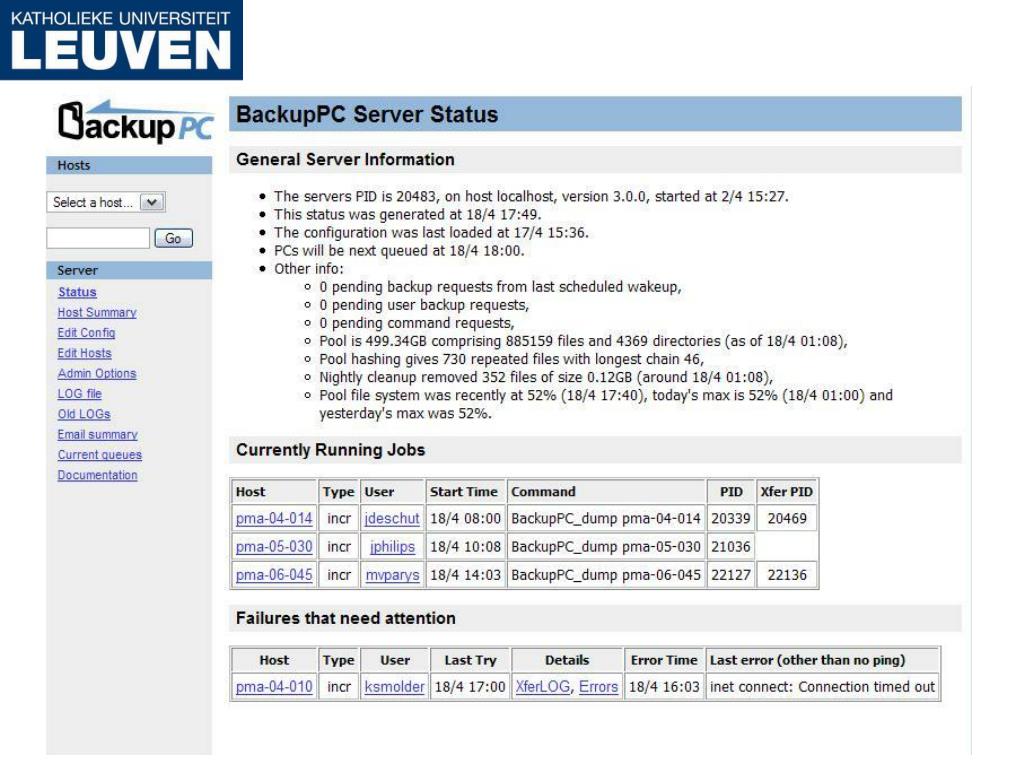

  17. BackupPC Server Status R. Moreas, J. Thielemans Departement Werktuigkunde

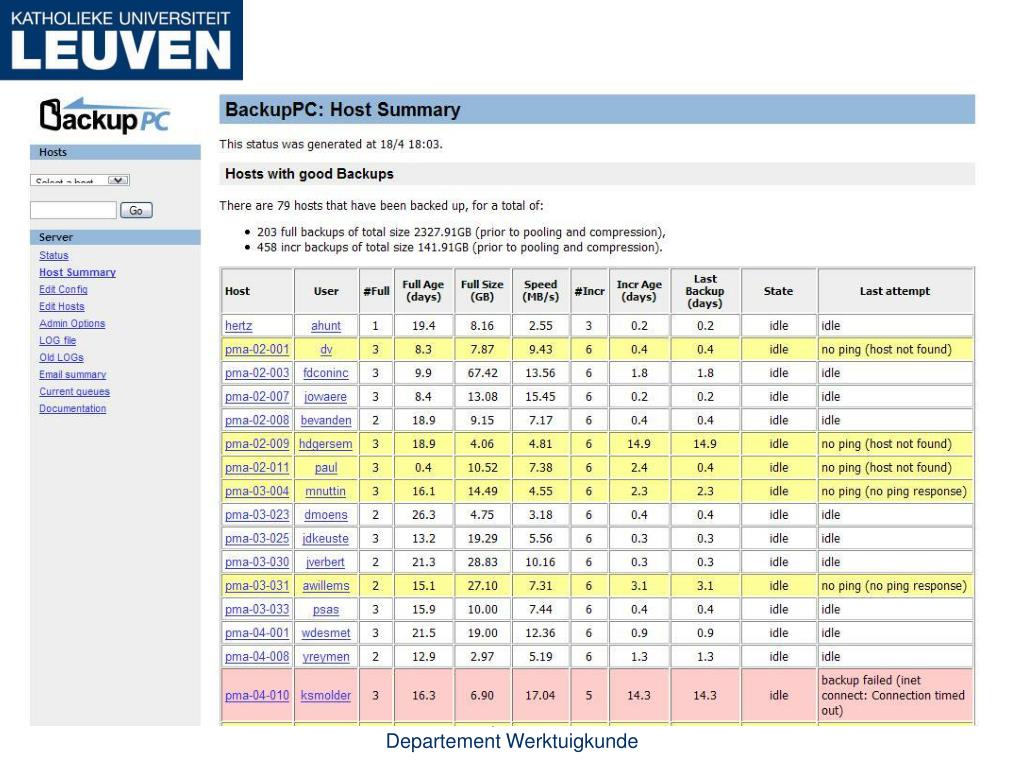

  18. BackupPC Host Summary R. Moreas, J. Thielemans Departement Werktuigkunde

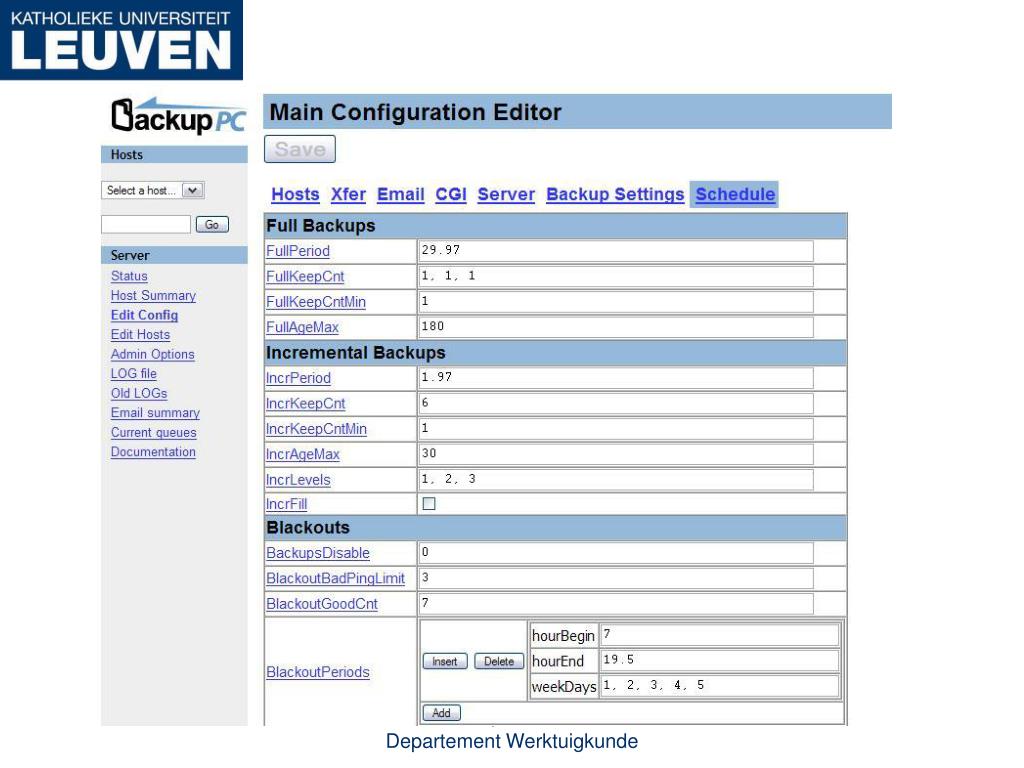

  19. Main Config Editor R. Moreas, J. Thielemans Departement Werktuigkunde

  20. Add/Delete Hosts R. Moreas, J. Thielemans Departement Werktuigkunde

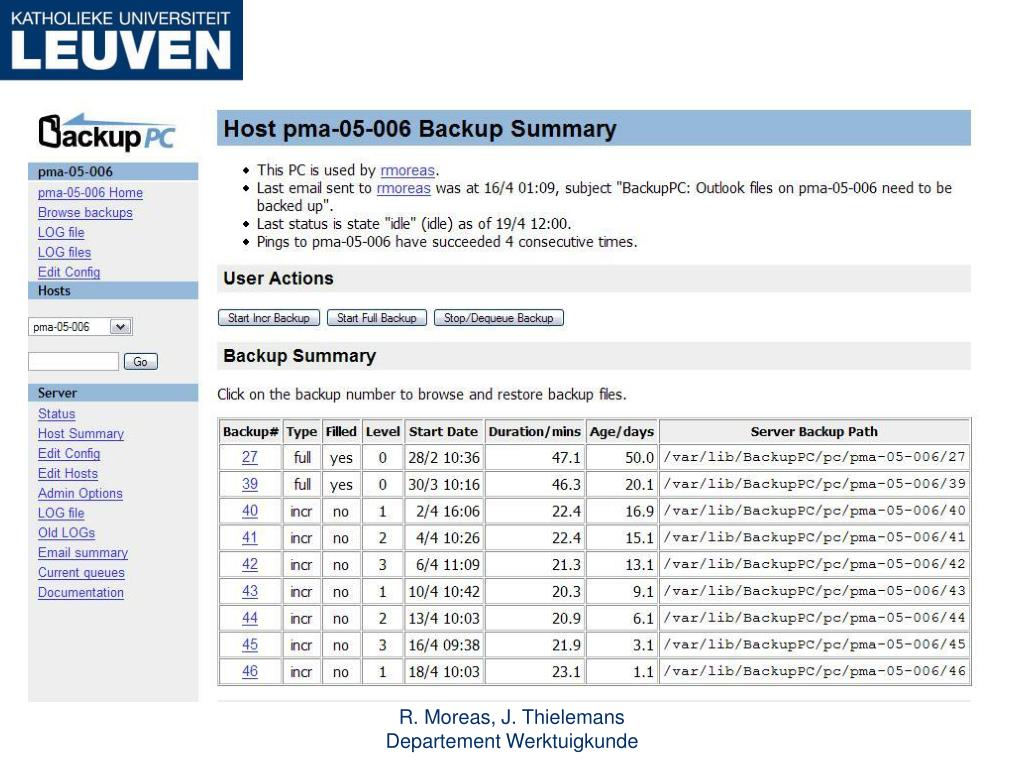

  21. Host Backup Summary R. Moreas, J. Thielemans Departement Werktuigkunde

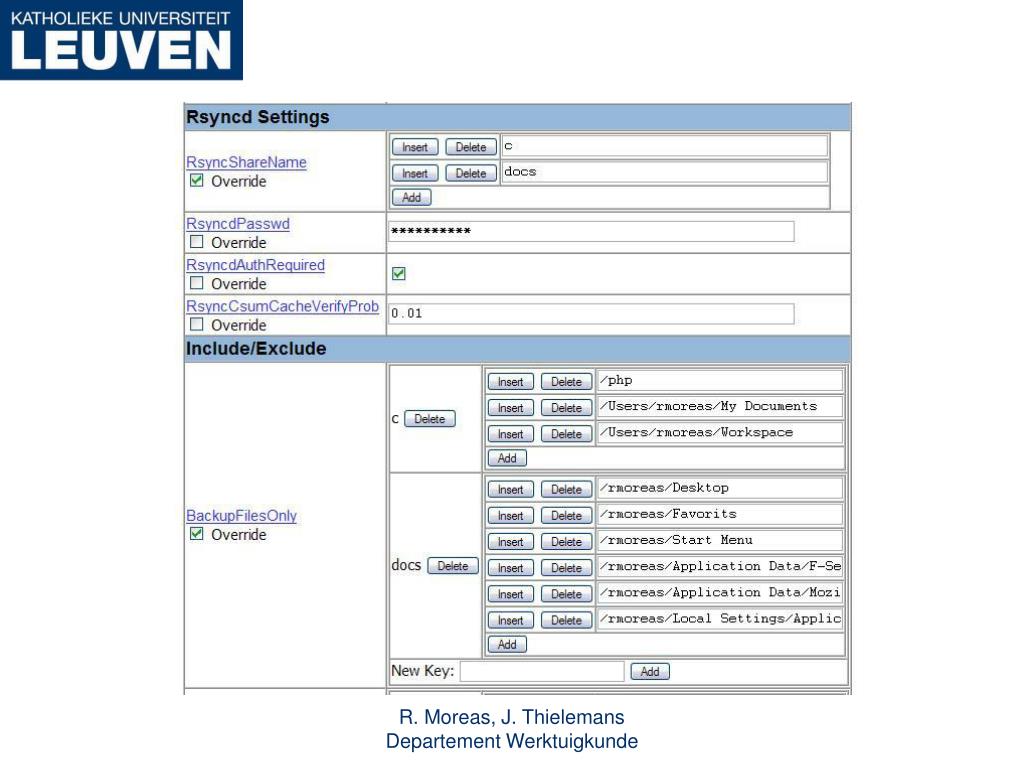

  22. Host Config R. Moreas, J. Thielemans Departement Werktuigkunde

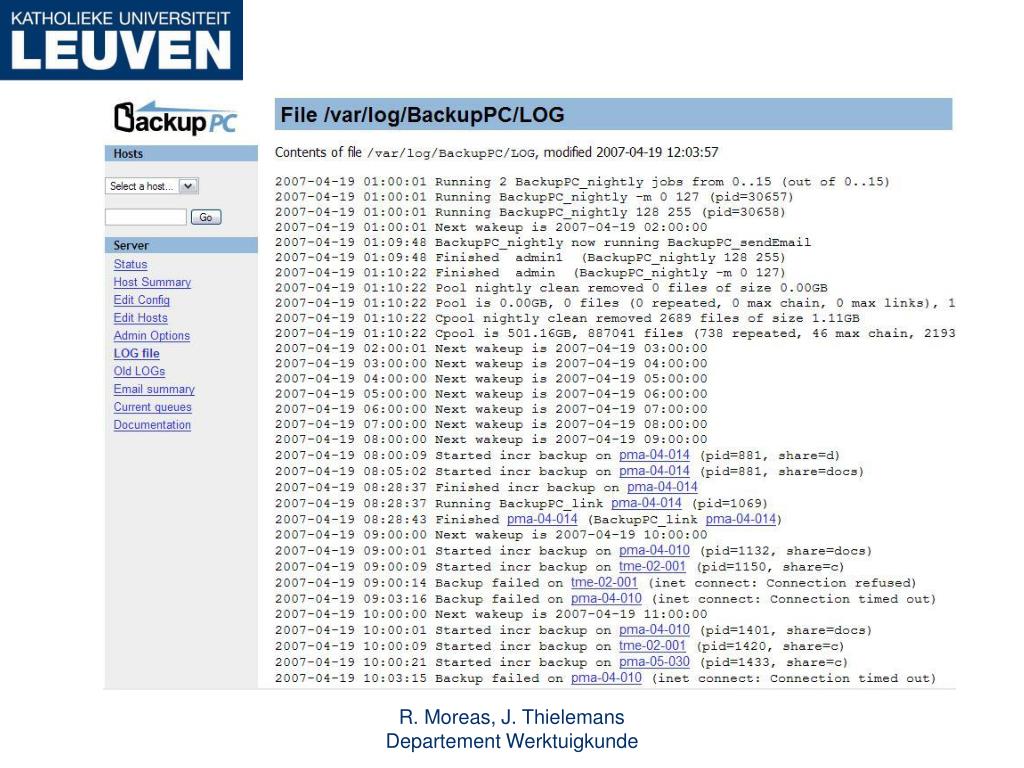

  23. LOG File R. Moreas, J. Thielemans Departement Werktuigkunde

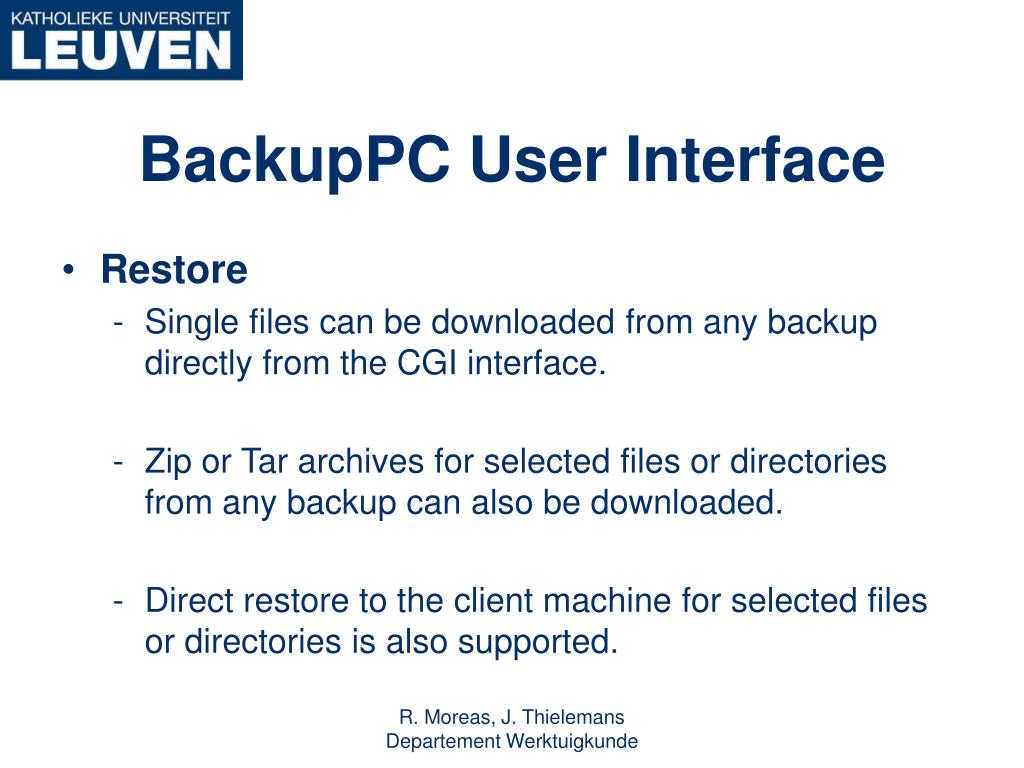

  24. BackupPC User Interface • Restore • Single files can be downloaded from any backup directly from the CGI interface. • Zip or Tar archives for selected files or directories from any backup can also be downloaded. • Direct restore to the client machine for selected files or directories is also supported. R. Moreas, J. Thielemans Departement Werktuigkunde

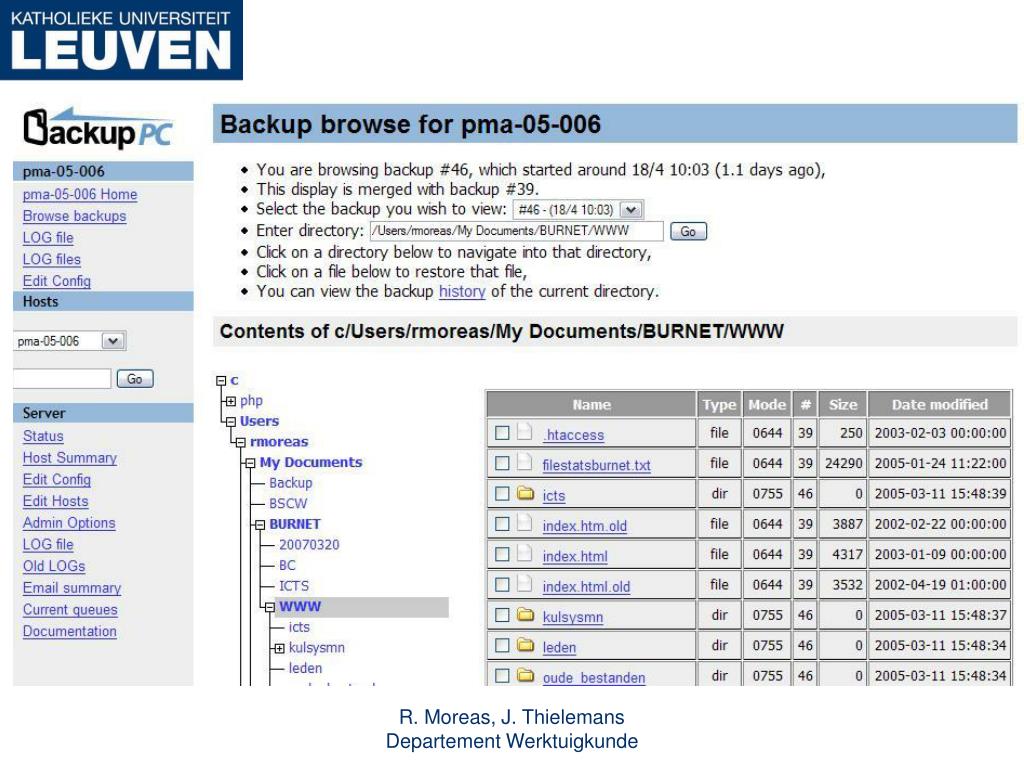

  25. Browse Backups R. Moreas, J. Thielemans Departement Werktuigkunde

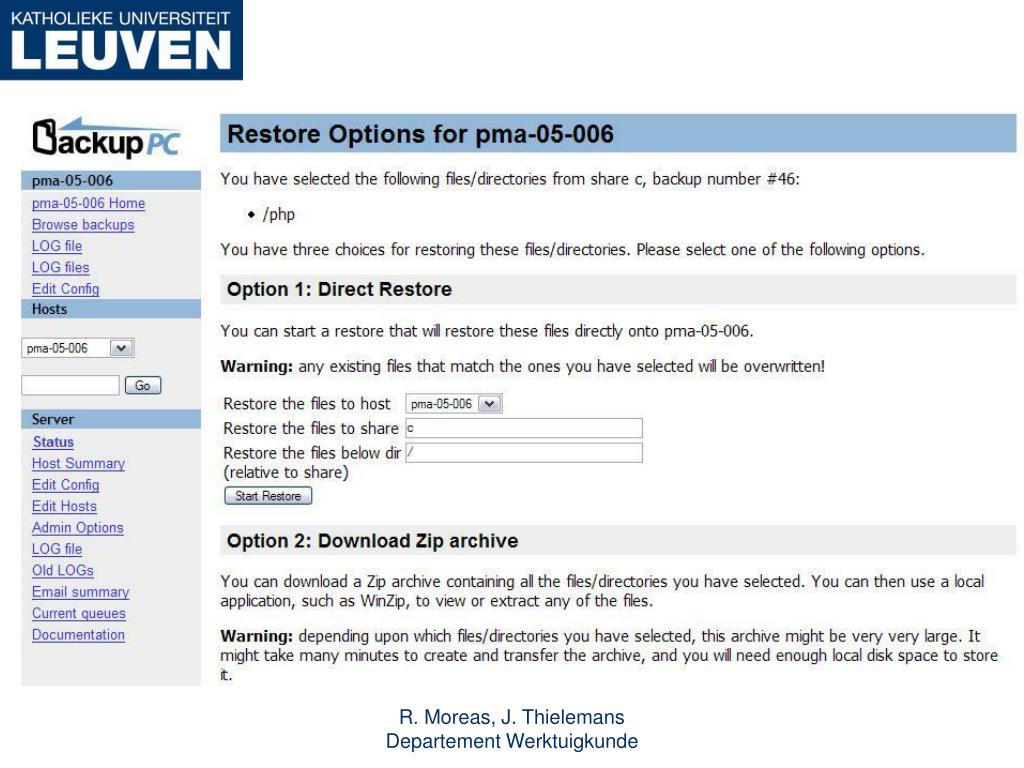

  26. Restore R. Moreas, J. Thielemans Departement Werktuigkunde

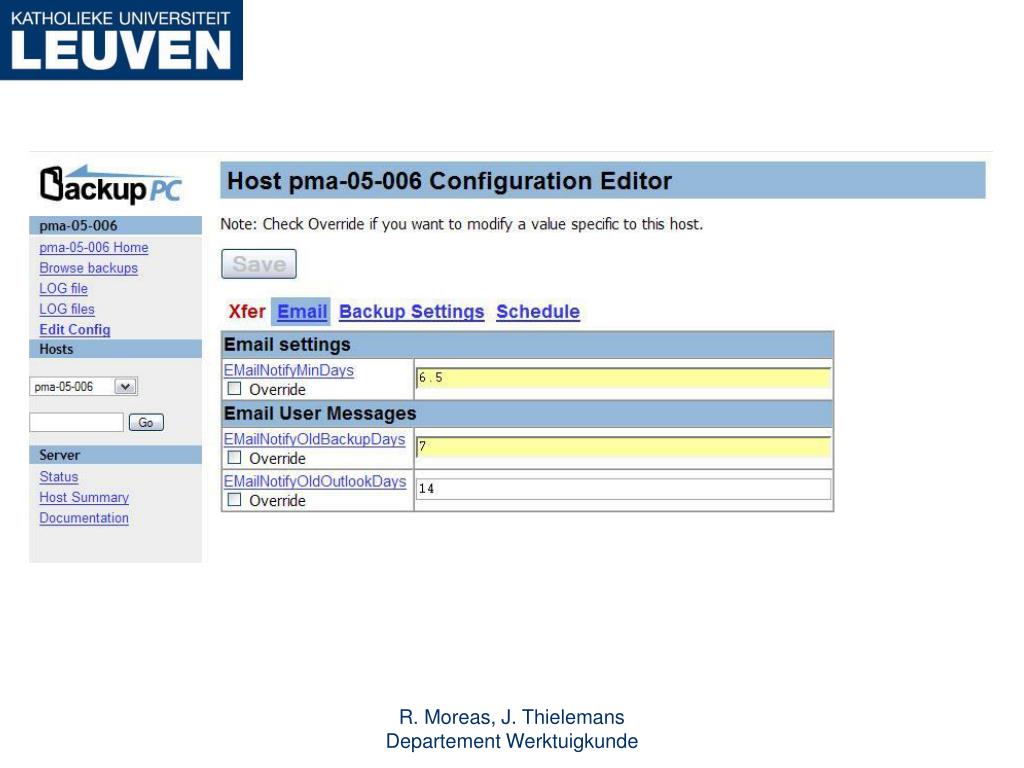

  27. R. Moreas, J. Thielemans Departement Werktuigkunde

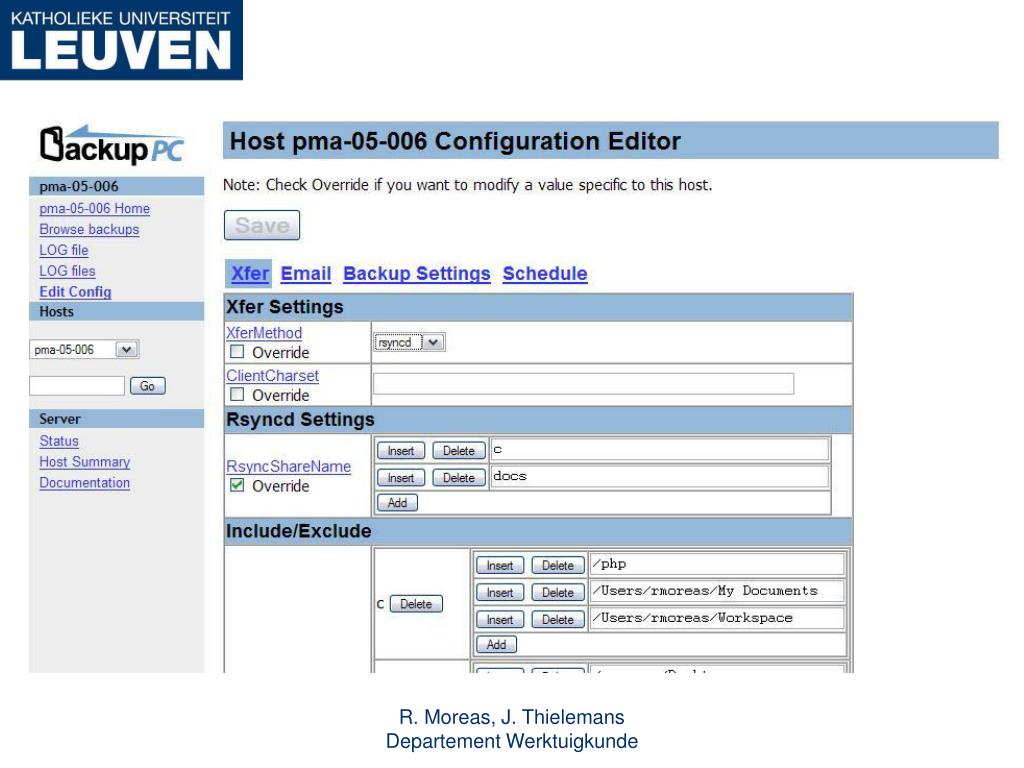

  28. R. Moreas, J. Thielemans Departement Werktuigkunde

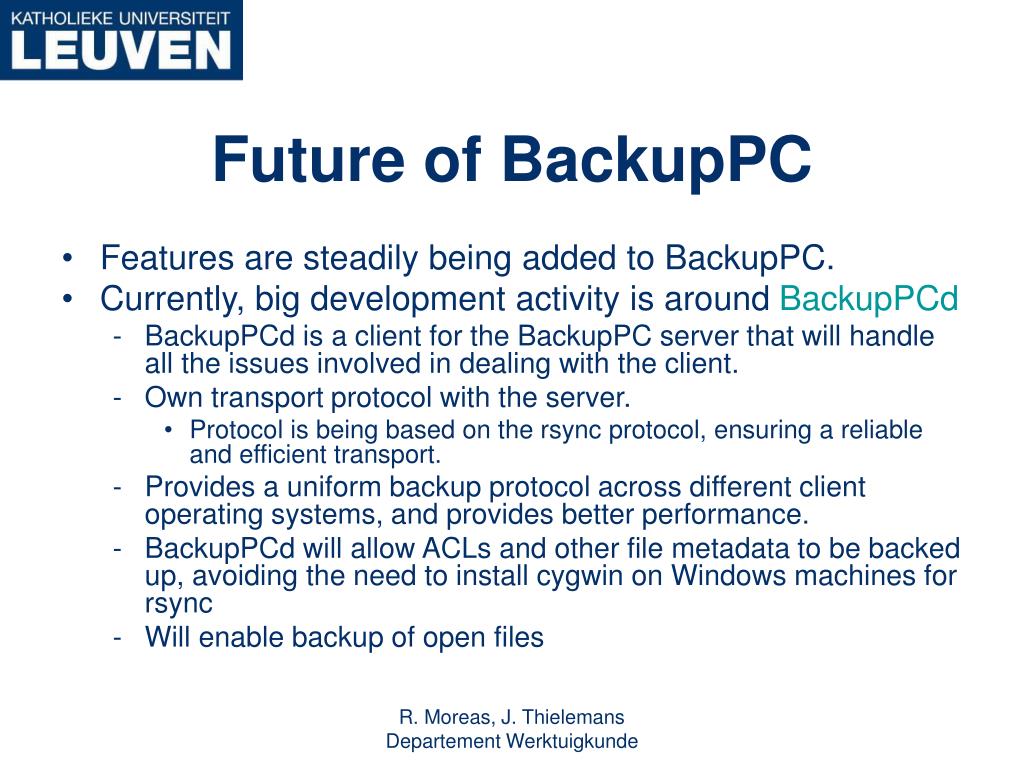

  29. Future of BackupPC • Features are steadily being added to BackupPC. • Currently, big development activity is around BackupPCd • BackupPCd is a client for the BackupPC server that will handle all the issues involved in dealing with the client. • Own transport protocol with the server. • Protocol is being based on the rsync protocol, ensuring a reliable and efficient transport. • Provides a uniform backup protocol across different client operating systems, and provides better performance. • BackupPCd will allow ACLs and other file metadata to be backed up, avoiding the need to install cygwin on Windows machines for rsync • Will enable backup of open files R. Moreas, J. Thielemans Departement Werktuigkunde

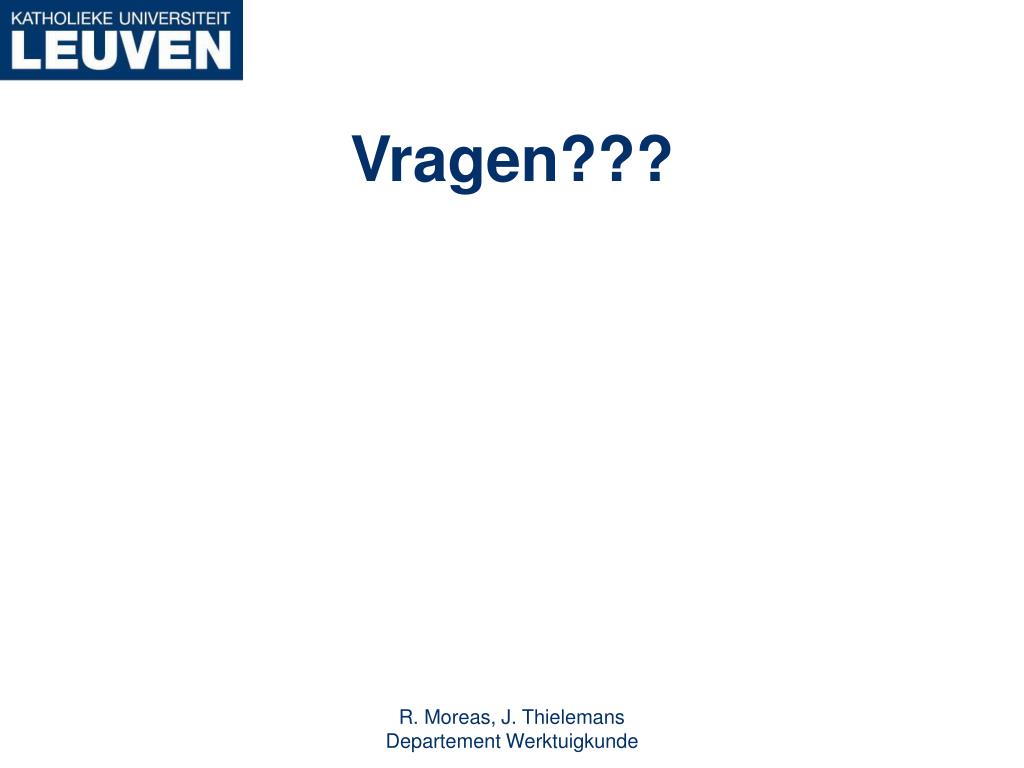

  30. Vragen??? R. Moreas, J. Thielemans Departement Werktuigkunde
