  1. ExESSSteps to handle CLP classification For Mixtures Stepwards CLP calculation for Mixtures

  2. ExESS IT toolbox CLP calculation Management Stepwards CLP calculation for Mixtures

  3. Stepwards overview • Define the mixture composition • Add exact concentrations of components • All components should be CLP classified • Add CLP relevant data for the mixture • Physical and chemical data • Physical and chemical questions • Health hazard data • Health hazard questionnaire • Environmental hazard data • Calculate based on Annex VII, component data and Mixture data • Check de labelling results Stepwards CLP calculation for Mixtures

  4. CLP Algorithm for Mixtures Preparation End point data Substances Preparations Classification substance Substances with much data X,Y,Z,.. Annex VI (CLP) (3/9/2008) Comp : A % B % C % … N % Calculation (CLP_GHS tables ….) ATE M-factors Concentrations ???? General Check Rules & criteria preparation ATE M-factors Concentrations Annex VII Σformulas • Symbol • Signal Word • H-statements • P-statements • Major constituent • EUH phrases • notes Non Annex data Cutoff information Basic verifications (combination Symbol/phrases/etc….) Stepwards CLP calculation for Mixtures

  5. General classification parameters Name, composition, state of aggretion, intended for general public, etc... Attention : All components should already have their CLP classification (calculated or taken from Annex VI or Annex VII) Stepwards CLP calculation for Mixtures

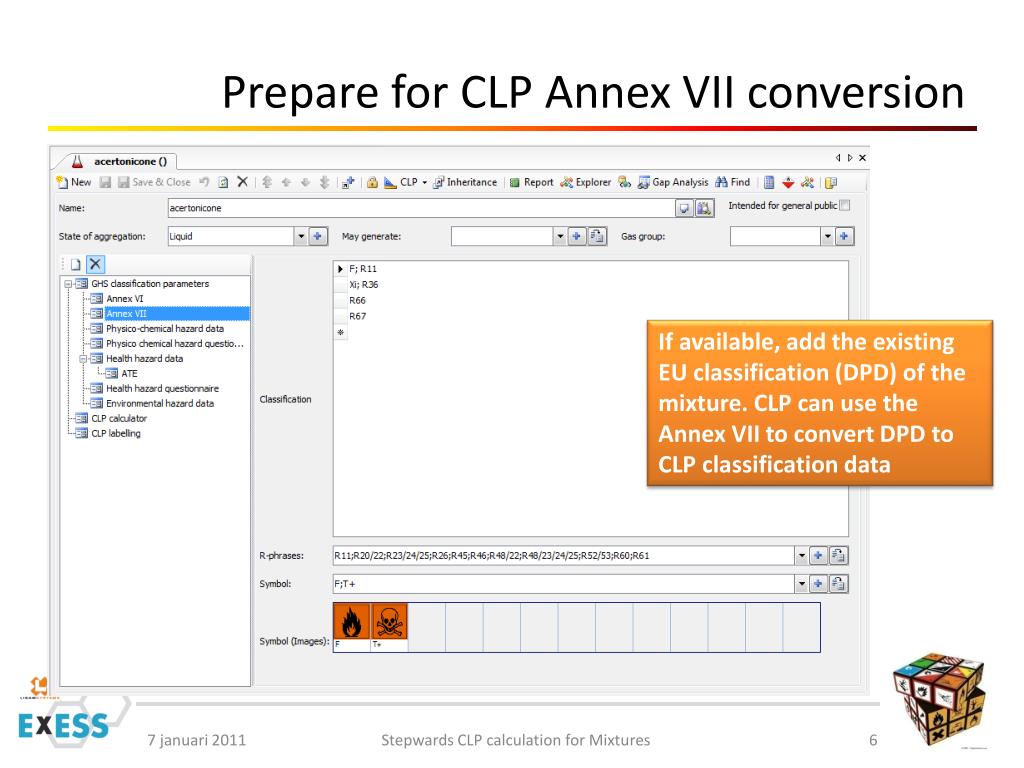

  6. Prepare for CLP Annex VII conversion If available, add the existing EU classification (DPD) of the mixture. CLP can use the Annex VII to convert DPD to CLP classification data Stepwards CLP calculation for Mixtures

  7. Add physical and chemical data for the mixture If available, add the known physical and chemical data of the mixture, important for the CLP classification Stepwards CLP calculation for Mixtures

  8. Refine with questionnaire data If relevant and within expert domain, complete the CLP questionnaires for Physical and Chemical classification refinement Stepwards CLP calculation for Mixtures

  9. Add data for health hazard classification If available, add real data relevant for health hazard classification Stepwards CLP calculation for Mixtures

  10. Additional data for health hazard classification If relevant, add PH data and questionnaire information relevant for health hazard classification Stepwards CLP calculation for Mixtures

  11. Add data for environmental hazard classification Add relevant data to calculate the environmental hazard classification Stepwards CLP calculation for Mixtures

  12. CLP calculation for Mixtures 1 Click on the CALCULATE button to apply all information available to classify the mixture. Accept in blue highlighted items 1 2 2 Stepwards CLP calculation for Mixtures

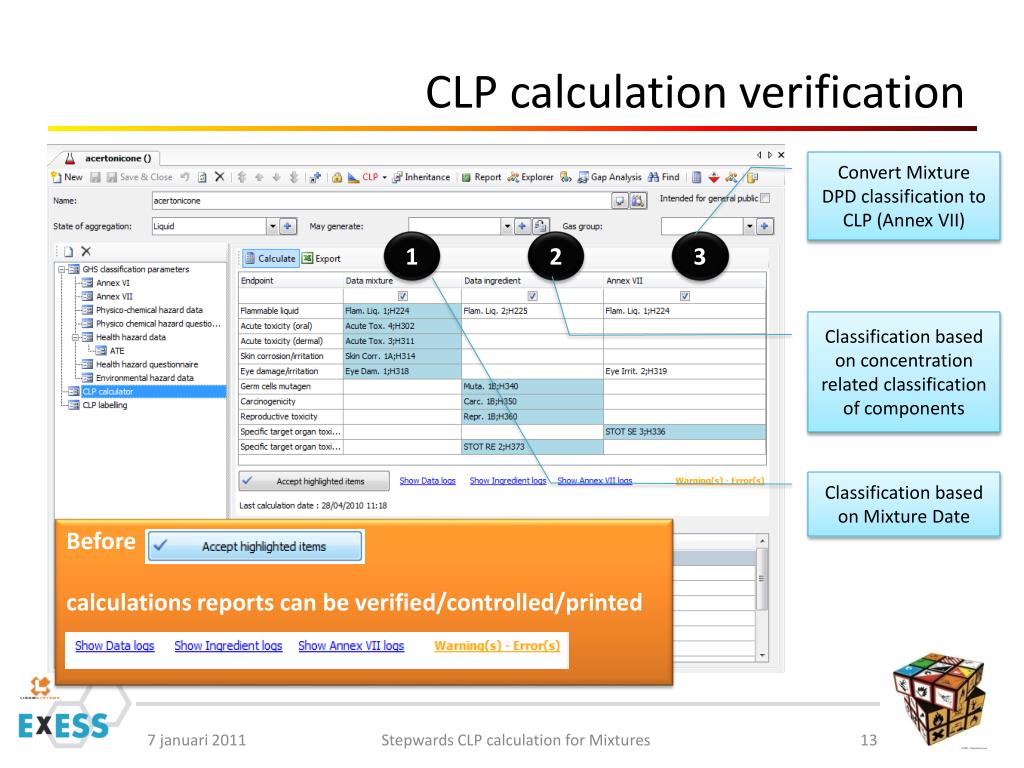

  13. CLP calculation verification Convert Mixture DPD classification to CLP (Annex VII) 1 2 3 Classification based on concentration related classification of components Classification based on Mixture Date Before calculations reports can be verified/controlled/printed Stepwards CLP calculation for Mixtures

  14. CLP Data logs 1 Stepwards CLP calculation for Mixtures

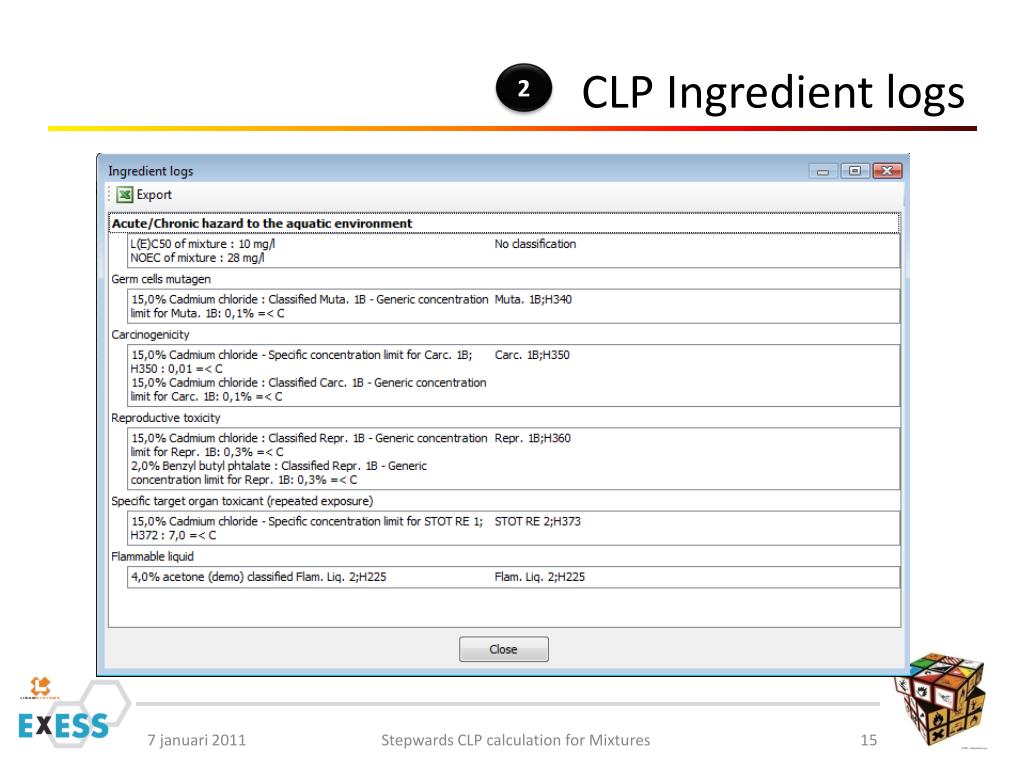

  15. CLP Ingredient logs 2 Stepwards CLP calculation for Mixtures

  16. DPD to CLP Annex VII conversions 3 Stepwards CLP calculation for Mixtures

  17. Warnings • Reporting of potential : • Warnings • Errors • Invalid classification • ... Stepwards CLP calculation for Mixtures

  18. CLP calculation Results for Mixtures • Based on the classification calculation, ExESS adds the relevant CLP results : • H and P statements • Signal Word • EUH phrases • CLP pictograms • ATE values • Application of rules for labelling Stepwards CLP calculation for Mixtures

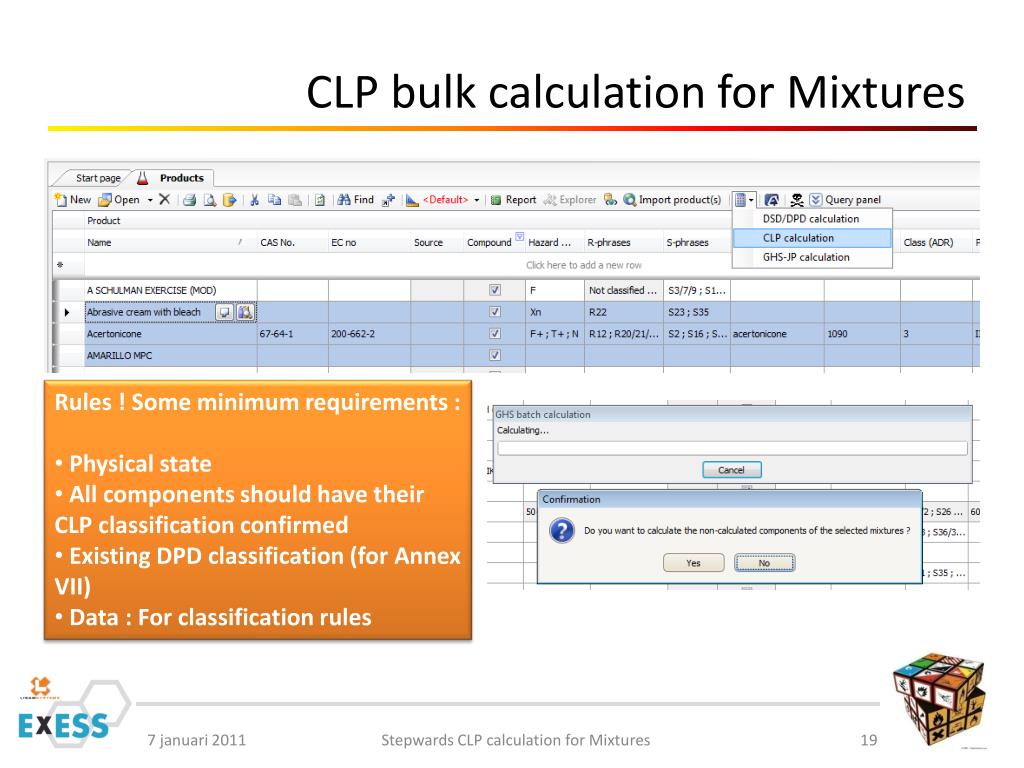

  19. CLP bulk calculation for Mixtures • Rules ! Some minimum requirements : • Physical state • All components should have their CLP classification confirmed • Existing DPD classification (for Annex VII) • Data : For classification rules Stepwards CLP calculation for Mixtures

  20. CLP bulk calculation for Mixtures Stepwards CLP calculation for Mixtures

  21. CLP bulk calculation settings Stepwards CLP calculation for Mixtures

  22. ExESS, more with less • Compiled by Frans Lemaire, January 2011, Lisam: fransL@Lisam.com Although the information in this presentation are presented in good faith and are believed to be correct at the time of compilation, LISAM are never responsible for the completeness or accuracy of the information in this presentation Stepwards CLP calculation for Mixtures
