  1. Efficiently Computing SSA

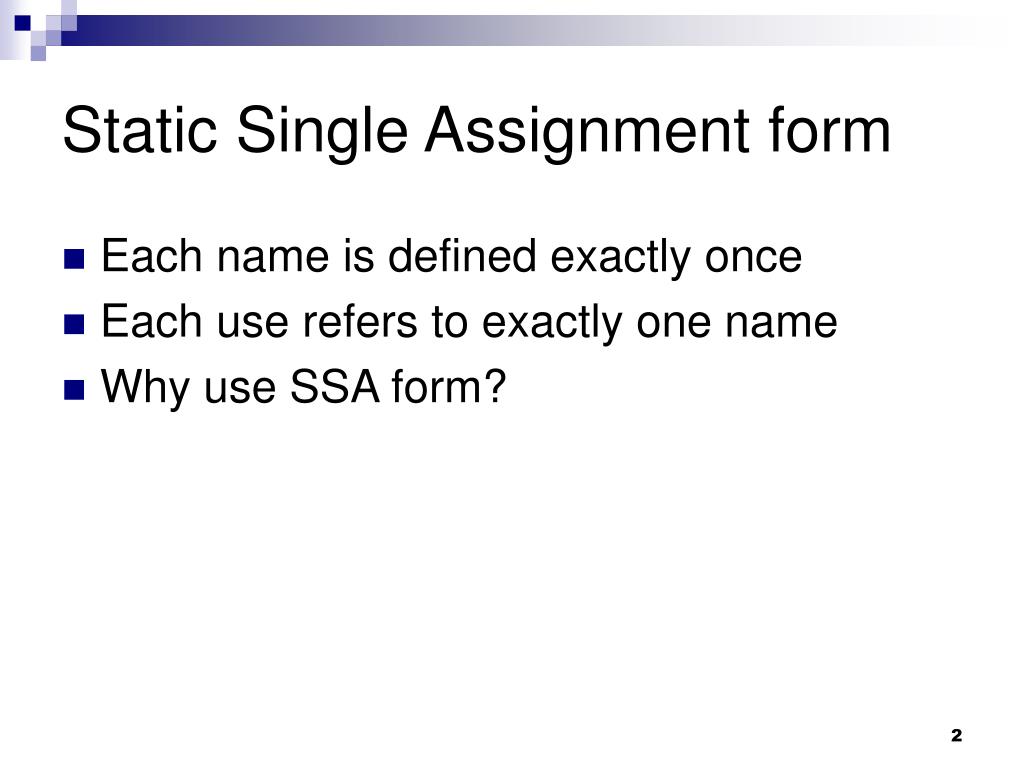

  2. Static Single Assignment form • Each name is defined exactly once • Each use refers to exactly one name • Why use SSA form?

  3. Joins • What to do when two different values meet on the Control Flow Graph? • Φ-Functions • A Φ-function is a special kind of copy that selects one of its parameters

  4. Sparse Representation • Only want to propagate facts where relevant • Don’t care about the rest • Use the SSA Graph

  5. SSA Graph • Add edges from definitions to uses

  6. Example i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T

  7. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Example Number existing defns i1 = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i2 = i + 6 until T

  8. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Example Add ϕ-functions where needed i1 = j = k = l = 1 repeat i3 = ϕ() if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i2 = i + 6 until T

  9. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Example Fill in the use numbers --- Then repeat for other variables i1 = j = k = l = 1 repeat i3 = ϕ(i1,i2) if (p) then begin j = i3 if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i3,j,k,l) repeat if R then l = l + 4 until S i2 = i3 + 6 until T

  10. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Example i1 = j1 = k1 = l1 = 1 repeat i3 = f(i1,i2) j2 = f(j1,j4) k2 = f(k5,k1) l2 = f(l9,l1) if (p) then begin j3 = i2 if Q then l3 = 2 else l4 = 3 l5 = f(l3,l4) k3 = k2 + 1 end else k4 = k2 + 2 j4 = f(j3,j2) k5 = f(k3,k4) l6 = f(l2,l5) print (i3,j4,k5,l6) repeat l7 = f(l9,l6) if R then l8 = l7 + 4 l9 = f(l7,l8) until S i2 = i3 + 6 until T

  11. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Example - CFG Entry 1 2 3 4 5 7 6 8 9 10 11 Exit 12

  12. Constructing SSA (Naively) • Insert Φ-functions at every join for every name • Solve Reaching Definitions • Rename each use to the definition that reaches it

  13. Constructing SSA (Naively) • Why is the previous bad? • Too many ϕ-functions! • Can we do better?

  14. Efficiently Constructing SSA • Perform Control-flow analysis • Insert ϕ-Functions • Rename Values • However – where do we put the ϕ-Functions?

  15. Formalizing ϕ placement • We need a Φfunction at node Z if • Two non-null CFG paths that both define v • Such that both paths start at two distinct nodes and end at Z

  16. Dominance Frontiers Illustration Dominated by X Dominance Frontier of X (Not Dominated by X)

  17. Dominance Frontiers • If z is the first node we encounter on the path from x which x does not strictly dominate, z is in the dominance frontier of x • For this to happen, there is some path from node x to z, x …  y  z where (x SDOM y) but not (x SDOM z).

  18. Example {1} {7} • DF(1) = • DF(2) = • DF(3) = • DF(4) = • DF(5) = • DF(6) = • DF(7) = {6} {6} {1, 7} {7} ∅

  19. Computing Dominance Frontiers • Two components to DF(X): • DFlocal(X) = {Y∊ succ(X) | X> Y} • Any child of X not (strictly) dominated by X is in DF(X) • Let Z be such that idom(Z) = X • idom(Z) is the parent of Z in the dominator tree • DFup(Z) = {Y∊ DF(Z) | X>Y} • Nodes from DF(Z) that are not strictly dominated by X are also in DF(X)

  20. Algorithm • Let SDOM(X) = {Y | X>Y} • For each Z such that idom(Z) = X do • DF(X) = DFlocal(X) ∪ (DF(Z) - SDOM(X)) • I.e., DF(X) = DFlocal(X) ∪ DFup(Z)

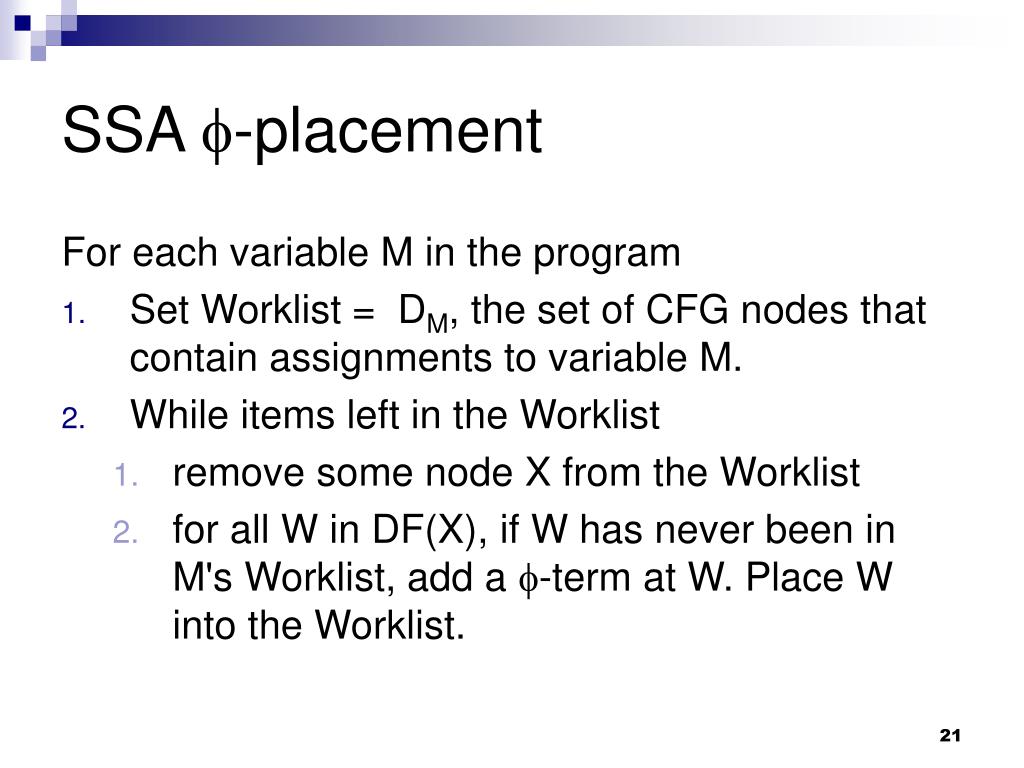

  21. SSA f-placement For each variable M in the program • Set Worklist = DM, the set of CFG nodes that contain assignments to variable M. • While items left in the Worklist • remove some node X from the Worklist • for all W in DF(X), if W has never been in M's Worklist, add a f-term at W. Place W into the Worklist.

  22. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T CFG for example – Variable k Entry 1 2 3 1 2 4 5 7 7 3 8 6 4 5 6 9 8 11 10 9 10 12 11 Exit 12

  23. 1 dominates the entire graph Entry 1 2 3 • Worklist = {1,6,7} – location of k’s assignments • Compute DF(1) = {2,3,4,5,6,7,8,9,10,11,12,Exit } – {2,3,4,5,6,7,8,9,10,11,12,Exit} = { } Remember that DF(x) = (SUCC(DOM-1(x)) – SDOM-1(x) where SUCC(x) is set of successors of x in the CFG) 4 5 7 6 8 9 10 11 Exit 12

  24. Entry 1 2 3 • Worklist = {6,7} • Compute DF(6) = {8} – {} = {8} • put f in node 8 Remember that DF(x) = (SUCC(DOM-1(x)) – SDOM-1(x) where SUCC(x) is set of successors of x in the CFG) 4 5 7 node 6 only dominates itself 6 f 8 9 10 11 Exit 12

  25. Entry 1 2 3 • Worklist = {7,8} • Compute DF(7) = {8} – {} = {8} • node 8 already in worklist Remember that DF(x) = (SUCC(DOM-1(x)) – SDOM-1(x) where SUCC(x) is set of successors of x in the CFG) 4 5 7 node 7 only dominates itself 6 f 8 9 10 11 Exit 12

  26. Entry 1 f 2 3 • Worklist = {8} • Compute DF(8) = {2,9,10,11,12, exit} – {9,10,11,12,exit} = {2} • put f in node 2 Remember that DF(x) = (SUCC(DOM-1(x)) – SDOM-1(x) where SUCC(x) is set of successors of x in the CFG) 4 5 7 node 8 dominates {8,9,10,11,12,exit} 6 f 8 9 10 11 Exit 12

  27. Entry 1 f 2 3 • Worklist = {2} • Compute DF(2) = {2-12, exit} – {3-12,exit} = {2} Remember that DF(x) = (SUCC(DOM-1(x)) – SDOM-1(x) where SUCC(x) is set of successors of x in the CFG) 4 5 7 node 2 dominates {2-12,exit} 6 f 8 9 10 11 Exit 12

  28. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T CFG for example – Variable k Entry k = 1 1 2 k = f(k,k) 3 4 5 7 k =k + 2 6 k =k + 1 8 k = f(k,k) 9 10 11 12 Exit

  29. Linking it all together Initially, for each variable V C(V) = 0 /* counter */ S(V) = Empty /* stack for each variable*/ Other important information: RHS(A) = set of variables used on right side of assignment LHS(A) = set of variables assigned to on left side WhichPred(X,Y) = j where Y is the jth predecessor of X in CFG Children(X) = children in the IDOM tree ‘Search(entry)’ will do renaming of all variables in program.

  30. top(S(v)) will hold the ‘current’ # for variable v Search (X: CFG node) for each statement A in X If A is an ordinary assignment statement For each v in RHS(A) replace the use of v with vi, where i = top(S(v)) For each v in LHS(A) i = C(v); replace v by vi push i on S(v); C(v)++ end end For each Y in Succ(X) do J = WhichPred(X,Y) /* predecessors have unique # wrt successor */ For each f-function F in Y Replace j-th operand v in RHS(F) by vi where i = Top(S(v)) End end For each Y in Children() call Search() end For each assignment A in X For each v in LHS(A) pop S(v) end end end New assignment – update the counter and push

  31. Search (X: CFG node) for each statement A in X If A is an ordinary assignment statement For each v in RHS(A) replace the use of v with vi, where i = top(S(v)) For each v in LHS(A) i = C(v); replace v by vi push i on S(v); C(v)++ end end For each Y in Succ(X) do j = WhichPred(X,Y) /* predecessors have unique # wrt successor */ For each f-function F in Y Replace j-th operand v in RHS(F) by vi where i = Top(S(v)) End end For each Y in Children() call Search() end For each assignment A in X For each v in LHS(A) pop S(v) end end end Look at successors of this node in CFG Resolve any ϕ functions in successors

  32. Search (X: CFG node) for each statement A in X If A is an ordinary assignment statement For each v in RHS(A) replace the use of v with vi, where i = top(S(v)) For each v in LHS(A) i = C(v); replace v by vi push i on S(v); C(v)++ end end For each Y in Succ(X) do J = WhichPred(X,Y) /* predecessors have unique # wrt successor */ For each f-function F in Y Replace j-th operand v in RHS(F) by vi where i = Top(S(v)) End end For each D in Children(X) call Search(D) end For each assignment A in X For each v in LHS(A) pop S(v) end end end Look at all nodes dominated by X

  33. Search (X: CFG node) for each statement A in X If A is an ordinary assignment statement For each v in RHS(A) replace the use of v with vi, where i = top(S(v)) For each v in LHS(A) i = C(v); replace v by vi push i on S(v); C(v)++ end end For each Y in Succ(X) do J = WhichPred(X,Y) /* predecessors have unique # wrt successor */ For each f-function F in Y Replace j-th operand v in RHS(F) by vi where i = Top(S(v)) End end For each D in Children(X) call Search(D) end For each assignment A in X For each v in LHS(A) pop S(v) end end end Pop the var # pushed earlier

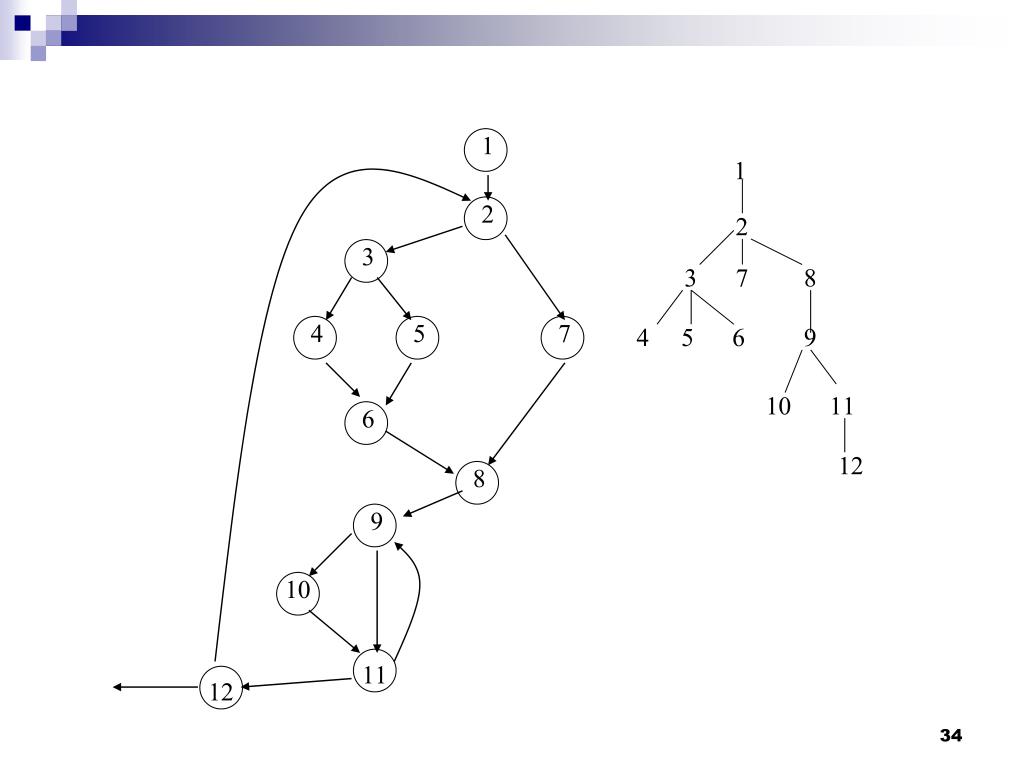

  34. 1 1 2 2 3 3 7 8 4 5 7 4 5 6 9 10 11 6 12 8 9 10 11 12

  35. Just deal with k in this example Search(1) C(k) = 1 S(k) = {0} Children(1) = {2} k0 = 1 1 2 k = f(k0,k) 3 4 5 7 1 k =k + 2 6 2 k =k + 1 3 7 8 8 k = f(k,k) 9 4 5 6 9 10 10 11 12 11 Exit 12

  36. Search(2) C(k) = 2 S(k) = {0,1} None of the successors have f functions Children(2) = {3,7,8} k0 = 1 1 2 k1 = f(k0,k) 3 4 5 7 1 k =k + 2 6 2 k =k + 1 3 7 8 8 k = f(k,k) 9 4 5 6 9 10 10 11 12 11 Exit 12

  37. Search(3) C(k) = 2 S(k) = {0,1} Children(3) = {4,5,6} Search(4) Children(4) = {} Search(5) Children(5) = {} Search(6) C(k) = 3 S(k) = {0,1,2} Children(6) = {} Pop(S(k)) = {0,1} k0 = 1 1 2 k1 = f(k0,k) 3 4 5 7 k =k + 2 6 1 k2 =k1 + 1 8 k = f(k2,k) 2 9 3 7 8 10 4 5 6 9 11 10 11 Exit 12 12

  38. Search(7) C(k) = 4 S(k) = {0,1,3} Children(7) = { } Pop(S(k)) = {0,1} k0 = 1 1 2 k1 = f(k0,k) 3 4 5 7 1 k3 =k1 + 2 6 2 k2 =k1 + 1 8 3 7 8 k = f(k2,k3) 9 4 5 6 9 10 10 11 12 11 Exit 12

  39. Search(8) C(k) = 5 S(k) = {0,1,4} Children(8) = {9} Search(9) Children(9) = {10,11} Search(10) Search(11) k0 = 1 1 2 k1 = f(k0,k) 3 4 5 7 k3 =k1 + 2 1 6 k2 =k1 + 1 2 8 k4 = f(k2,k3) 3 7 8 9 4 5 6 9 10 10 11 11 Exit 12 12

  40. Search(12) C(k) = 5 S(k) = {0,1,4} k0 = 1 1 2 k1 = f(k0,k4) 3 4 5 7 k3 =k1 + 2 1 6 2 k2 =k1 + 1 8 k4 = f(k2,k3) 3 7 8 9 4 5 6 9 10 10 11 11 12 Exit 12

  41. i = j= k = l = 1 Repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T i = j = k1 = l = 1 Repeat k2 = f(k1,k5) if (p) then begin j = i if Q then l = 2 else l = 3 k3 = k2 + 1 end else k4 = k2 + 2 k5 = f(k3,k4) print (i,j,k5,l) repeat if R then l = l + 4 until S i = i + 6 until T

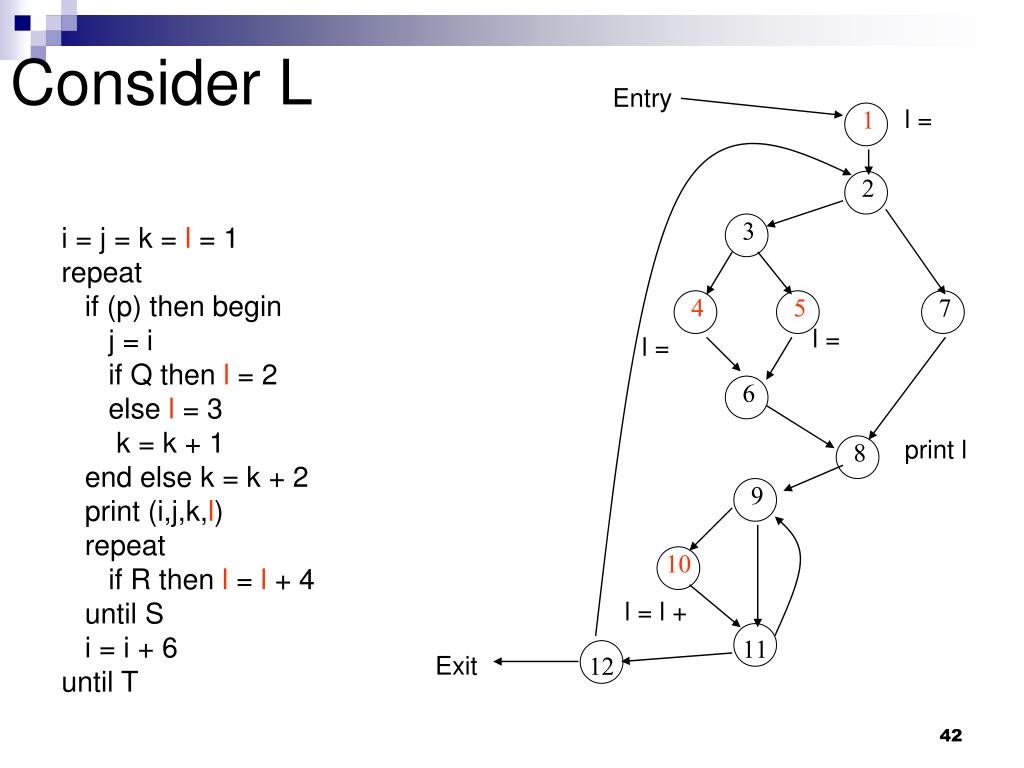

  42. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Consider L Entry l = 1 2 3 4 5 7 l = l = 6 print l 8 9 10 l = l + 11 Exit 12

  43. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Computing the DF Entry l = 1 l = f 2 3 1 4 5 7 2 l = l = 7 3 8 6 l = f l = f 4 5 6 9 print l 8 9 11 10 l = f 10 12 l = l + l = f 11 Exit 12

  44. i = j= k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T i = j = k = l = 1 repeat l = f(l,l) if (p) then begin j = i if Q then l = 2 else l = 3 l = f(l,l) k = k + 1 end else k = k + 2 l = f(l,l) print (i,j,k,l) repeat l = f(l,l) if R then l = l + 4 l = f(l,l) until S i = i + 6 until T

  45. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Adding the numbers:search(1) Entry l1 = 1 l = f(l1) 2 3 1 4 5 7 2 l = l = 7 3 8 6 l = f l = f 4 5 6 9 print l 8 9 11 10 l = f 10 12 l = l + l = f 11 Exit 12

  46. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Adding the numbers:search(2) Entry l1 = 1 l2 = f(l1) 2 3 1 4 5 7 2 l = l = 7 3 8 6 l = f l = f 4 5 6 9 print l 8 9 11 10 l = f 10 12 l = l + l = f 11 Exit 12

  47. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Adding the numbers:search(3) Entry l1 = 1 l2 = f(l1) 2 3 1 4 5 7 2 l = l = 7 3 8 6 l = f l = f 4 5 6 9 print l 8 9 11 10 l = f 10 12 l = l + l = f 11 Exit 12

  48. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Adding the numbers:search(4) Entry l1 = 1 l2 = f(l1) 2 3 1 4 5 7 2 l = l3 = 7 3 8 6 l = f(l3) l = f 4 5 6 9 print l 8 9 11 10 l = f 10 12 l = l + l = f 11 Exit 12

  49. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Adding the numbers:search(5) Entry l1 = 1 l2 = f(l1) 2 3 1 4 5 7 2 l4 = l3 = 7 3 8 6 l = f(l3,l4) l = f 4 5 6 9 print l 8 9 11 10 l = f 10 12 l = l + l = f 11 Exit 12

  50. i = j = k = l = 1 repeat if (p) then begin j = i if Q then l = 2 else l = 3 k = k + 1 end else k = k + 2 print (i,j,k,l) repeat if R then l = l + 4 until S i = i + 6 until T Adding the numbers:search(6) Entry l1 = 1 l2 = f(l1) 2 3 1 4 5 7 2 l4 = l3 = 7 3 8 6 l5 = f(l3,l4) l = f(l5 4 5 6 9 print l 8 9 11 10 l = f 10 12 l = l + l = f 11 Exit 12
