Scalable Continuous Query Processing by Tracking Hotspots

1. Scalable Continuous Query Processing by Tracking Hotspots Junyi Xie joint work with Pankaj Agarwal, Jun Yang and Hai Yu Department of Computer Science, Duke University Durham, North Carolina 27708, U.S.A.

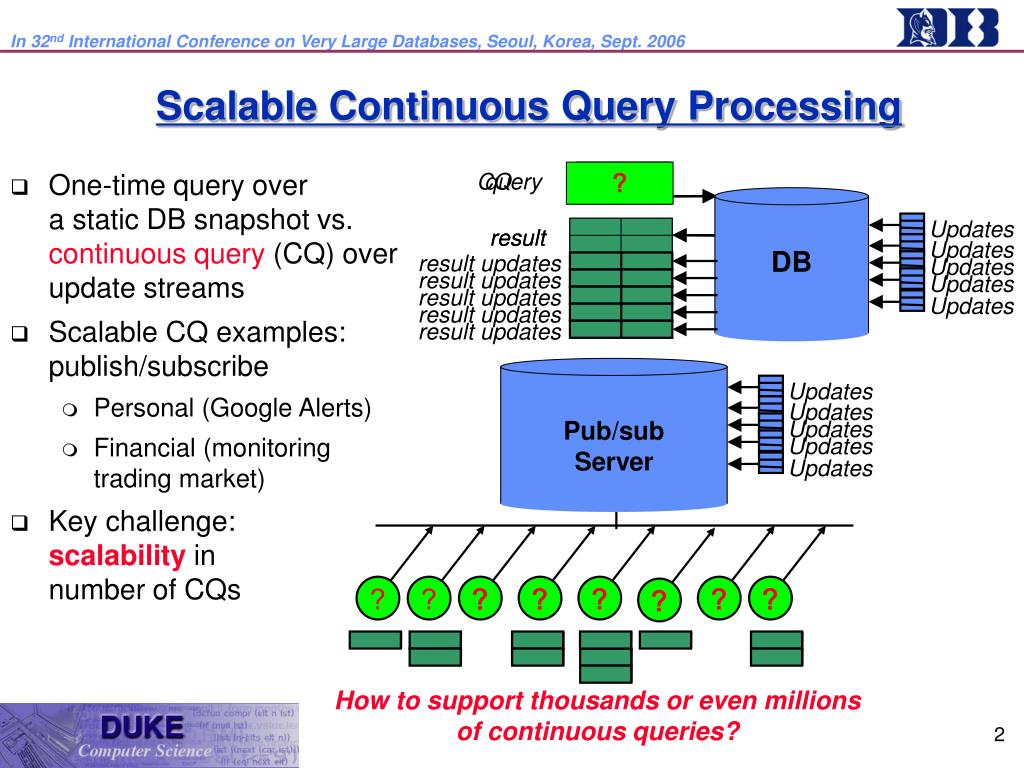

2. CQ ? Updates Updates Updates Updates Updates Updates Updates Updates Updates Updates result result result updates result updates result updates result updates result updates query ? Pub/subServer DB ? ? ? ? ? ? ? ? Scalable Continuous Query Processing • One-time query over a static DB snapshot vs.continuous query (CQ) over update streams • Scalable CQ examples: publish/subscribe • Personal (Google Alerts) • Financial (monitoring trading market) • Key challenge: scalability in number of CQs How to support thousands or even millions of continuous queries?

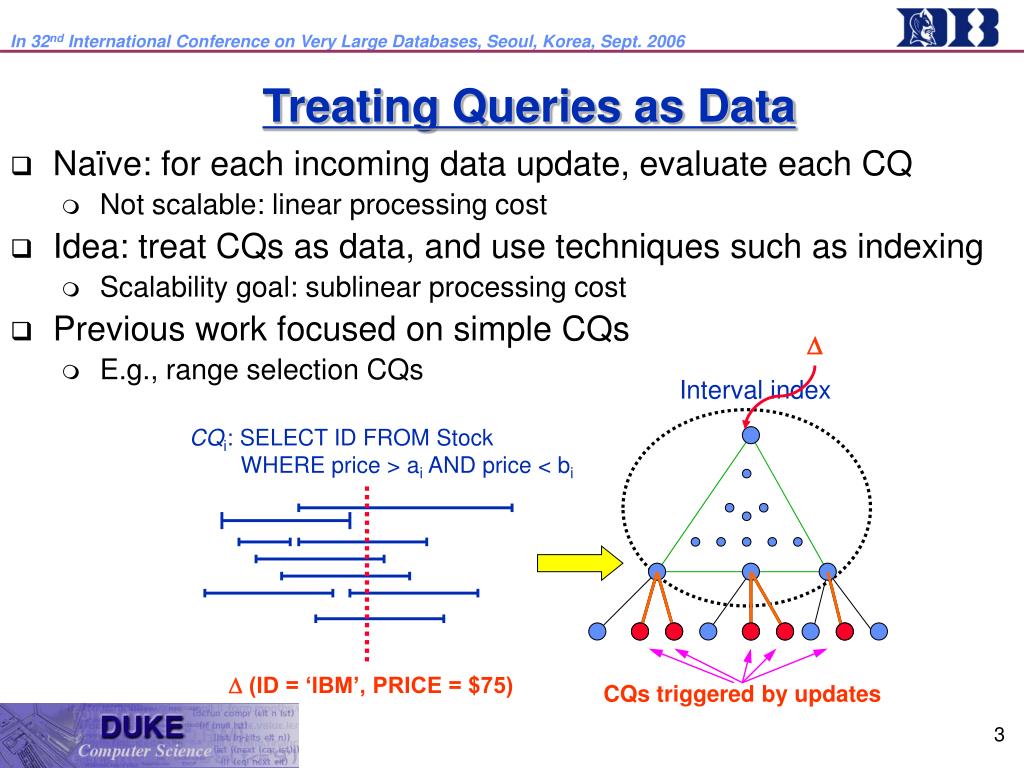

3. Interval index  CQi: SELECT ID FROM Stock WHERE price > ai AND price < bi  (ID = ‘IBM’, PRICE = $75) CQs triggered by updates Treating Queries as Data • Naïve: for each incoming data update, evaluate each CQ • Not scalable: linear processing cost • Idea: treat CQs as data, and use techniques such as indexing • Scalability goal: sublinear processing cost • Previous work focused on simple CQs • E.g., range selection CQs

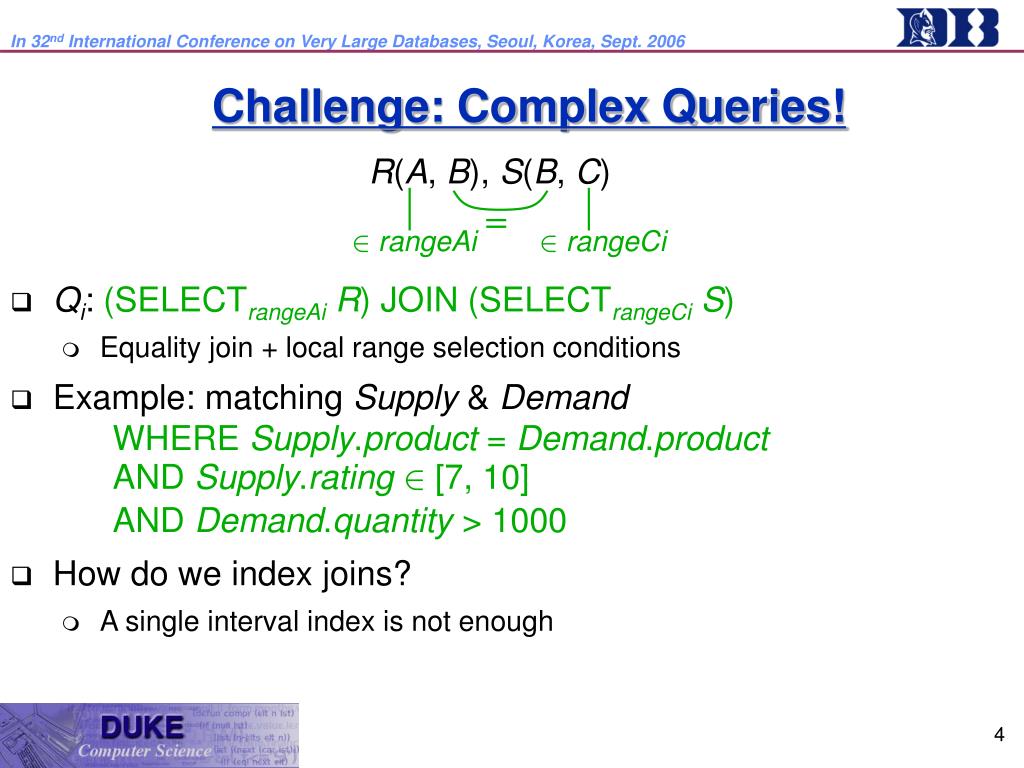

4. = 2 rangeAi 2 rangeCi Challenge: Complex Queries! R(A, B), S(B, C) • Qi: (SELECTrangeAiR) JOIN (SELECTrangeCiS) • Equality join + local range selection conditions • Example: matching Supply & DemandWHERE Supply.product = Demand.product AND Supply.rating2 [7, 10] AND Demand.quantity > 1000 • How do we index joins? • A single interval index is not enough

5. Method 1: Select First Q1: (SELECTrangeA1R) JOIN (SELECTrangeC1S), Q2: (SELECTrangeA2R) JOIN (SELECTrangeC2S), … … Given an insertion r(a,b) into R • Find subset of CQs whose selection cond. on R is satisfied by r • Use a predicate index on all rangeAi’s • Process each such CQ • Use an index on S (e.g., B-tree w/ compound key BC) to identify S tuples with S.B = b and S.C2rangeCi • But what if lots of queries survive the first step?

6. rangeCi A geometric interpretation R.A Qi rangeAi a S.C Method 2: Join First Given an insertion r(a,b) into R • Find all S tuples that join with r • Use an index on S • Process each such tuple s • Use an index on all CQs (e.g., R-tree on {rangeAi£rangeCi}) to identify Qi’s for which a2rangeAi and s.C2rangeCi • But what if lots of S tuplesjoin with r? Space of (R JOIN S) tuples

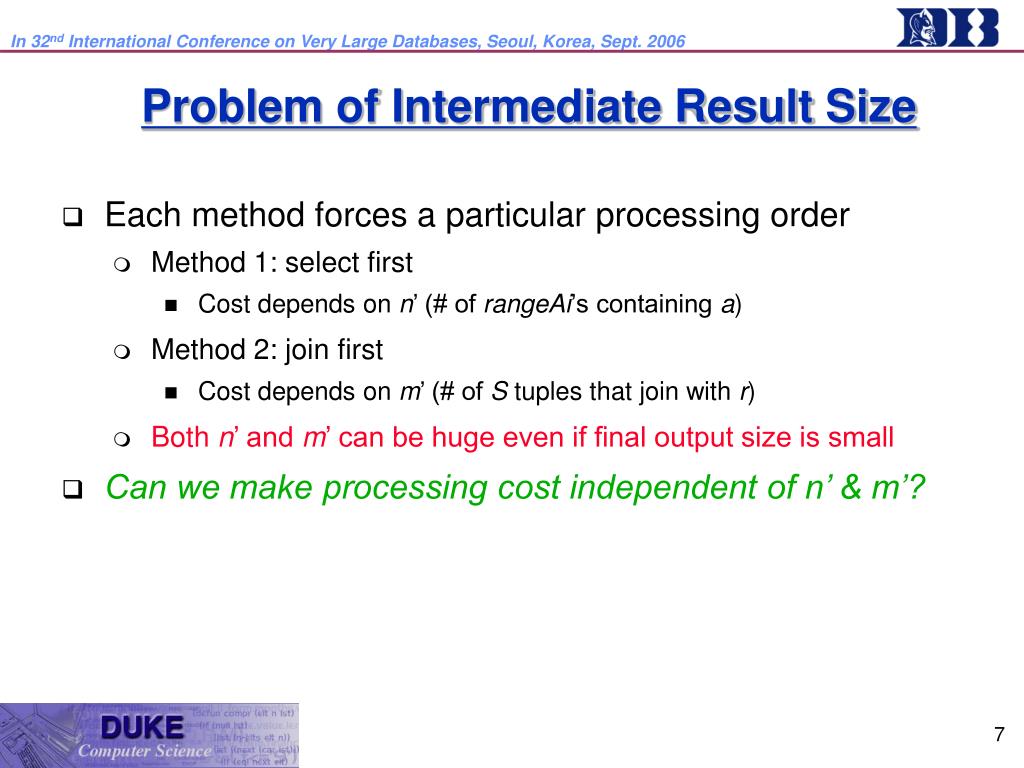

7. Problem of Intermediate Result Size • Each method forces a particular processing order • Method 1: select first • Cost depends on n’ (# of rangeAi’s containing a) • Method 2: join first • Cost depends on m’ (# of S tuples that join with r) • Both n’ and m’ can be huge even if final output size is small • Can we make processing cost independent of n’ & m’?

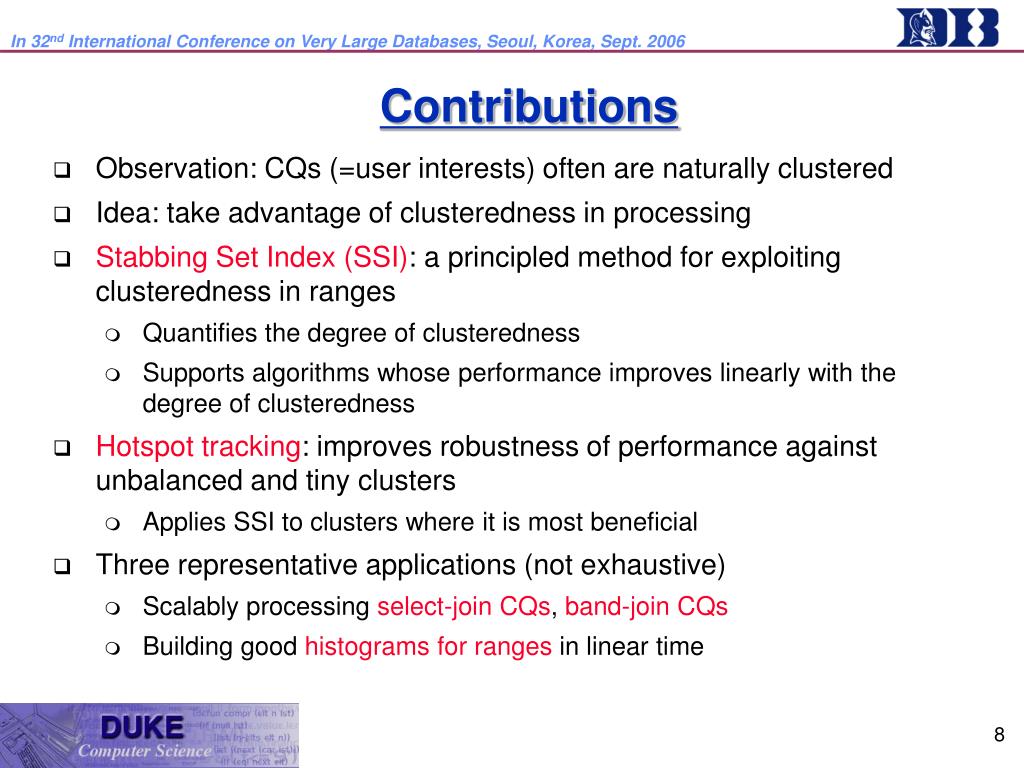

8. Contributions • Observation: CQs (=user interests) often are naturally clustered • Idea: take advantage of clusteredness in processing • Stabbing Set Index (SSI): a principled method for exploiting clusteredness in ranges • Quantifies the degree of clusteredness • Supports algorithms whose performance improves linearly with the degree of clusteredness • Hotspot tracking: improves robustness of performance against unbalanced and tiny clusters • Applies SSI to clusters where it is most beneficial • Three representative applications (not exhaustive) • Scalably processing select-join CQs, band-join CQs • Building good histograms for ranges in linear time

9. Stabbing Set Index (SSI) • A principled way of exploiting clusteredness in ranges • Partition intervals into disjoint stabbing groups, where in each group all intervals are stabbed by a same point • Stabbing number (t )= # of stabbing groups • SSI can be constructed optimally (with smallest t possible) in O(n log n) • A simple greedy algorithm • SSI can be dynamically maintained within 1+eof the optimal in O(1/e log n) time • See paper for details. n ranges of interests

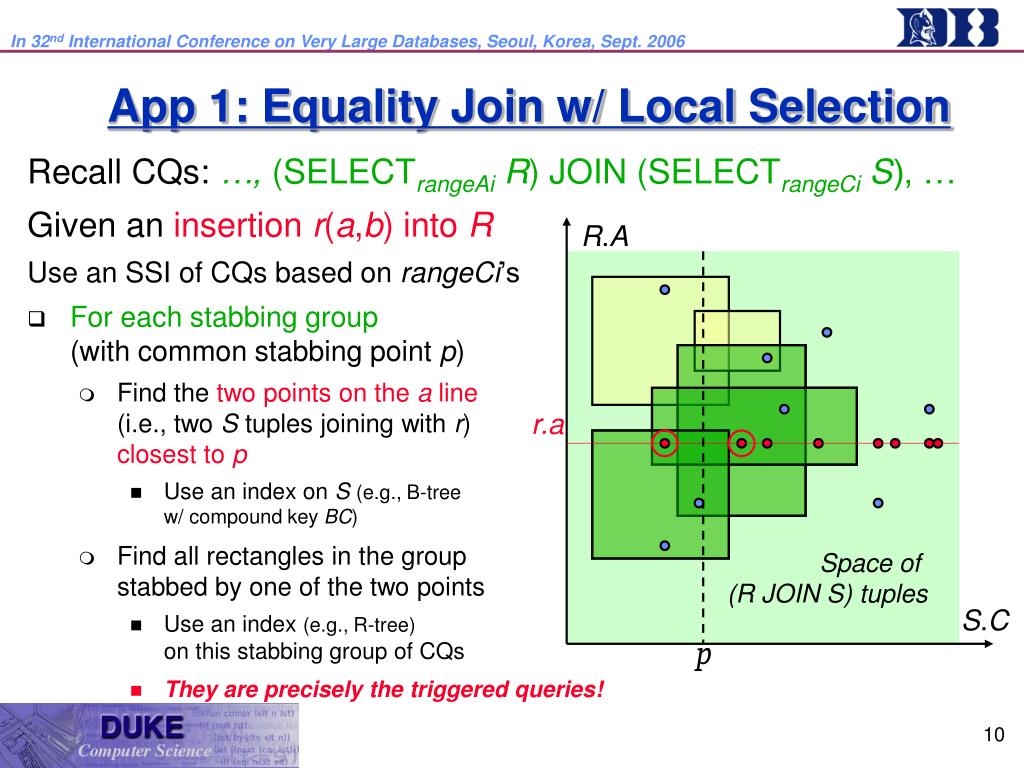

10. R.A S.C p r.a App 1: Equality Join w/ Local Selection Recall CQs: …, (SELECTrangeAiR) JOIN (SELECTrangeCiS), … Given an insertion r(a,b) into R Use an SSI of CQs based on rangeCi’s • For each stabbing group(with common stabbing point p) • Find the two points on the a line (i.e., two S tuples joining with r) closest to p • Use an index on S(e.g., B-tree w/ compound key BC) • Find all rectangles in the group stabbed by one of the two points • Use an index (e.g., R-tree)on this stabbing group of CQs • They are precisely the triggered queries! Space of (R JOIN S) tuples

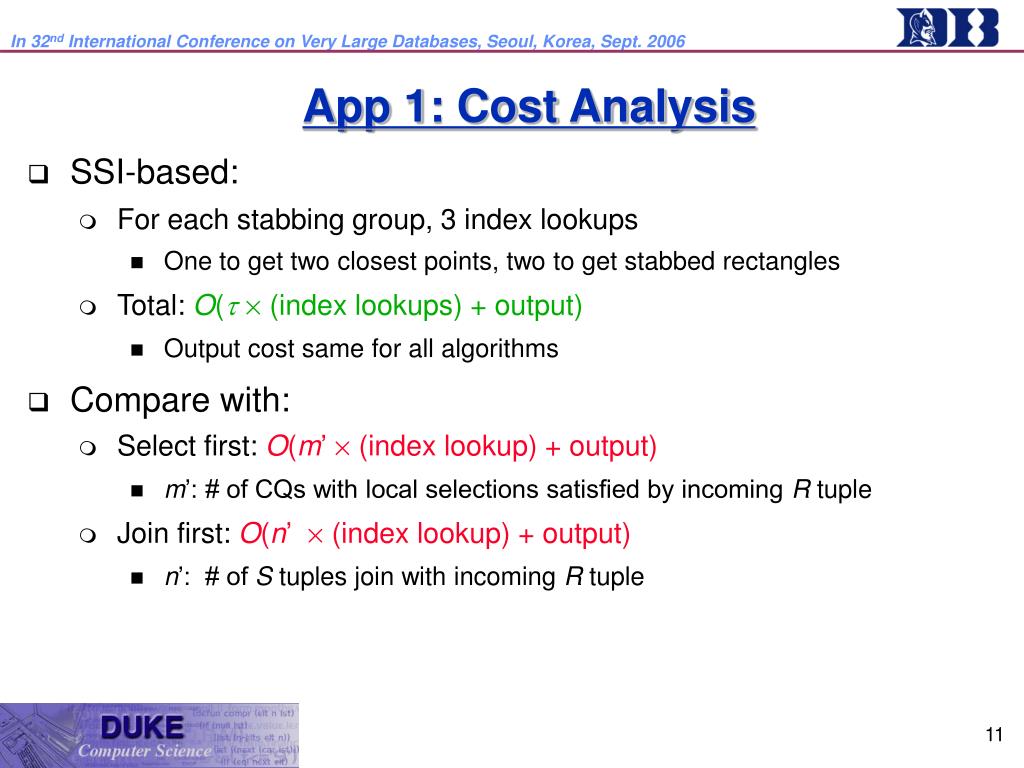

11. App 1: Cost Analysis • SSI-based: • For each stabbing group, 3 index lookups • One to get two closest points, two to get stabbed rectangles • Total: O(t£ (index lookups) + output) • Output cost same for all algorithms • Compare with: • Select first: O(m’ £ (index lookup) + output) • m’: # of CQs with local selections satisfied by incoming R tuple • Join first: O(n’ £ (index lookup) + output) • n’: # of S tuples join with incoming R tuple

12. App 2: Band Join Qi: R JOINR.B – S.B2rangeiS • Band-join conditions Given an insertion s(b, c) into S: • BJ-D (data-outer): for each R tuple, use R.B – b to probe a query index to find stabbed rangei’s (triggered queries) • Cost increases linearly with # of R tuples • BJ-Q (query-outer): for each Qi (with rangei), perform range search with (rangei + b) over an index for R • Cost increases linearly with # of CQs • BJ-MJ (merge join): merge-join R (presorted by R.B) and queries (presorted by range endpoints) • Cost linear in # of CQs and # of R tuples • Same problem: cannot dodge the linearity in cost

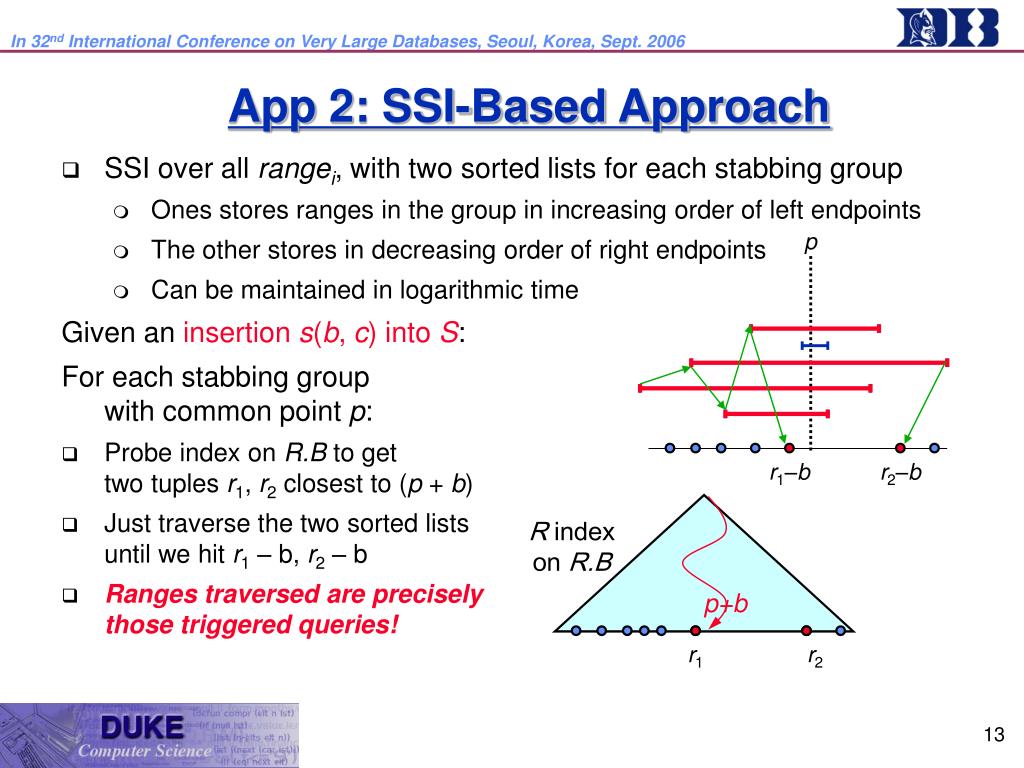

13. R index on R.B p+b r1 r2 p r1–b r2–b App 2: SSI-Based Approach • SSI over all rangei, with two sorted lists for each stabbing group • Ones stores ranges in the group in increasing order of left endpoints • The other stores in decreasing order of right endpoints • Can be maintained in logarithmic time Given an insertion s(b, c) into S: For each stabbing group with common point p: • Probe index on R.B to get two tuples r1, r2 closest to (p + b) • Just traverse the two sorted lists until we hit r1 – b, r2 – b • Ranges traversed are precisely those triggered queries!

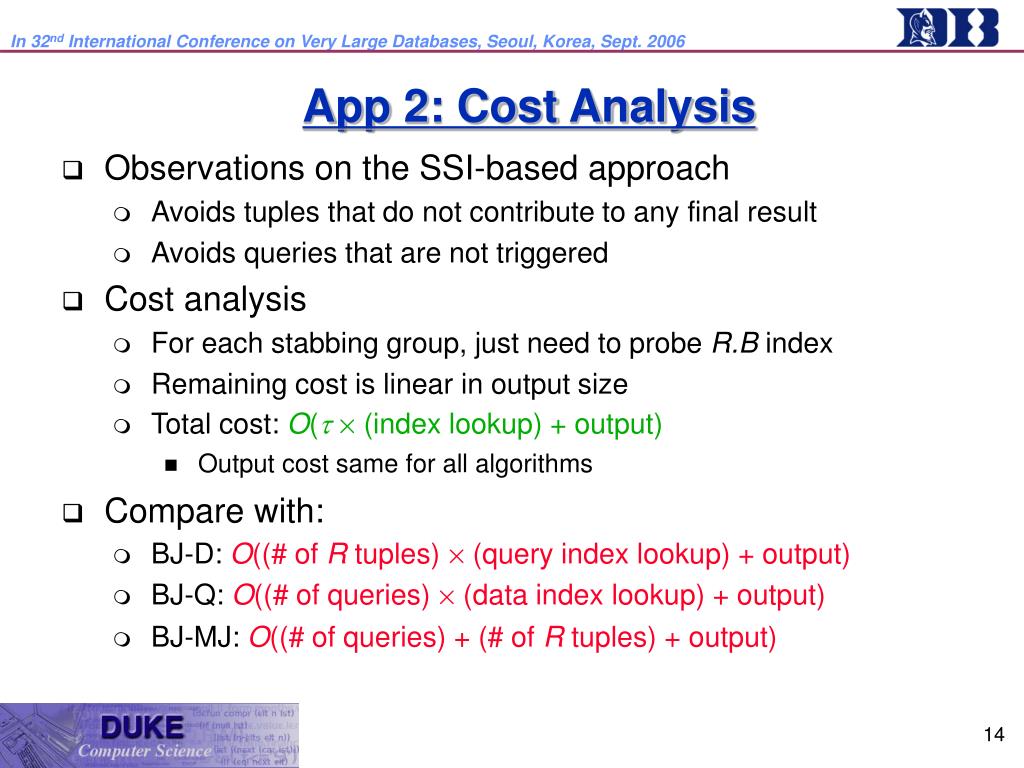

14. App 2: Cost Analysis • Observations on the SSI-based approach • Avoids tuples that do not contribute to any final result • Avoids queries that are not triggered • Cost analysis • For each stabbing group, just need to probe R.B index • Remaining cost is linear in output size • Total cost: O(t£ (index lookup) + output) • Output cost same for all algorithms • Compare with: • BJ-D: O((# of R tuples) £(query index lookup) + output) • BJ-Q: O((# of queries) £ (data index lookup) + output) • BJ-MJ: O((# of queries) + (# of R tuples) + output)

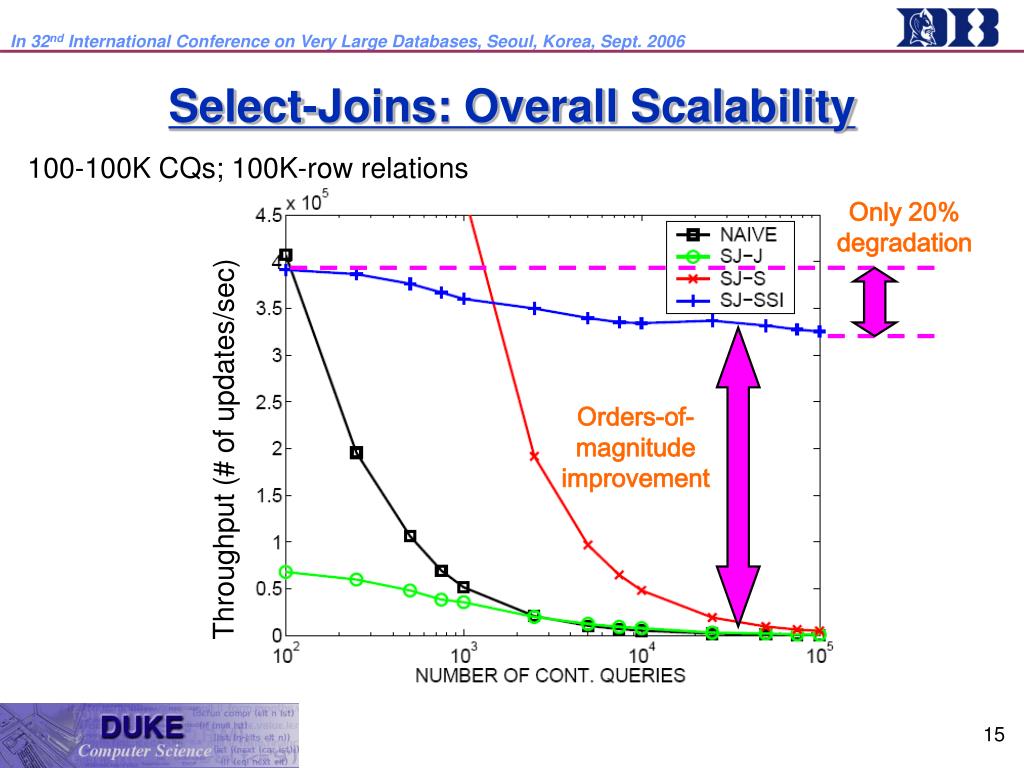

15. Only 20% degradation Select-Joins: Overall Scalability 100-100K CQs; 100K-row relations Orders-of-magnitudeimprovement Throughput (# of updates/sec)

16. Orders-of-magnitudeimprovement Throughput (# of updates/sec) Band Joins: Overall Scalability 50-500K CQs;100K-row relations

17. Linear degradation as # groups increases Select-Joins: Sensitivity to # Stabbing Groups 100K CQs; 100K-row relations Throughput (# of updates/sec) # of stabbing groups (t)

18. Linear degradation as # groups increases Band Joins: Sensitivity to # Stabbing Groups 100K CQs; 100K-row relations Throughput (# of updates/sec) # of stabbing groups (t)

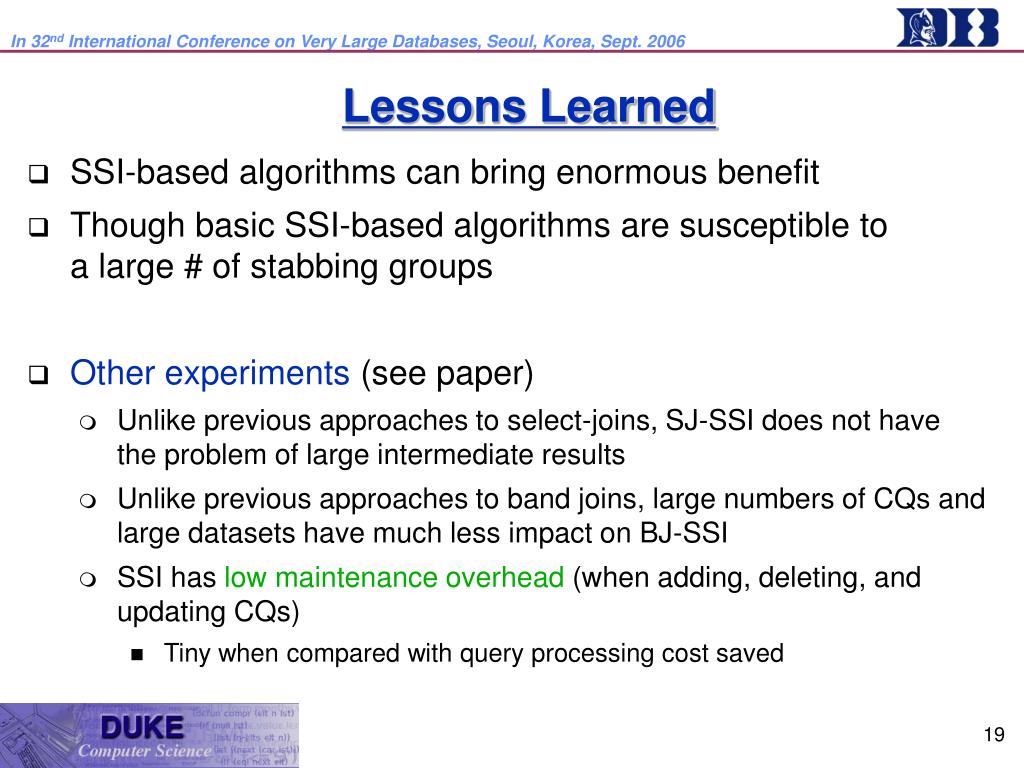

19. Lessons Learned • SSI-based algorithms can bring enormous benefit • Though basic SSI-based algorithms are susceptible to a large # of stabbing groups • Other experiments (see paper) • Unlike previous approaches to select-joins, SJ-SSI does not have the problem of large intermediate results • Unlike previous approaches to band joins, large numbers of CQs and large datasets have much less impact on BJ-SSI • SSI has low maintenance overhead (when adding, deleting, and updating CQs) • Tiny when compared with query processing cost saved

20. Tracking Hotspots • Power law: SSI may have unbalanced stabbing groups • Just a few groups may contain most of the intervals • Other queries are scattered across many groups • Bad for SSI, because they increase # of groups a lot! • -hotspot: a group with at least £ total # of intervals • Use SSI to process hotspots • # of -hotspots is at most 1/—processing cost becomes bounded • Using traditional algorithms on non-hotspots “cold” groups “hot” groups

21. Becomes an -hotspot Slack between a & a/2 guards against flip-flops Is no longer an / 2-hotspot Dynamic Hotspot Tracking • As CQs come and go, a hotspot may become cold, and vice versa and allows us to bound the amortized # of intervals crossing the boundary to a constant “hot” groups “cold” groups

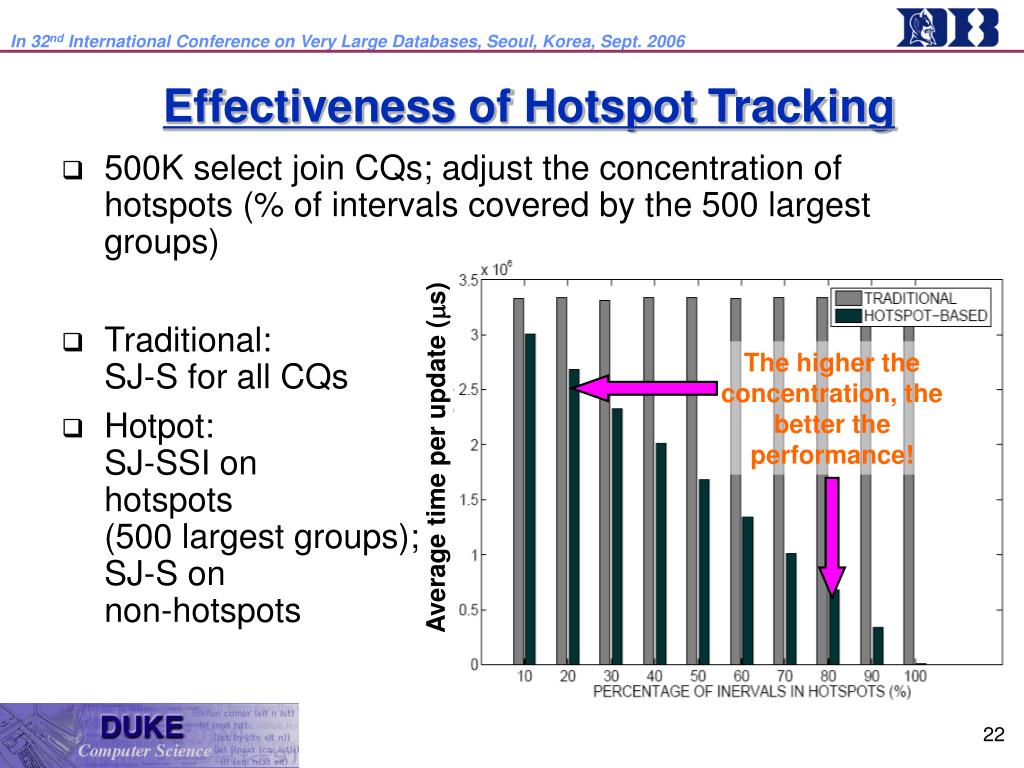

22. The higher the concentration, the better the performance! Effectiveness of Hotspot Tracking • 500K select join CQs; adjust the concentration of hotspots (% of intervals covered by the 500 largest groups) • Traditional: SJ-S for all CQs • Hotpot: SJ-SSI on hotspots (500 largest groups); SJ-S on non-hotspots Average time per update (s)

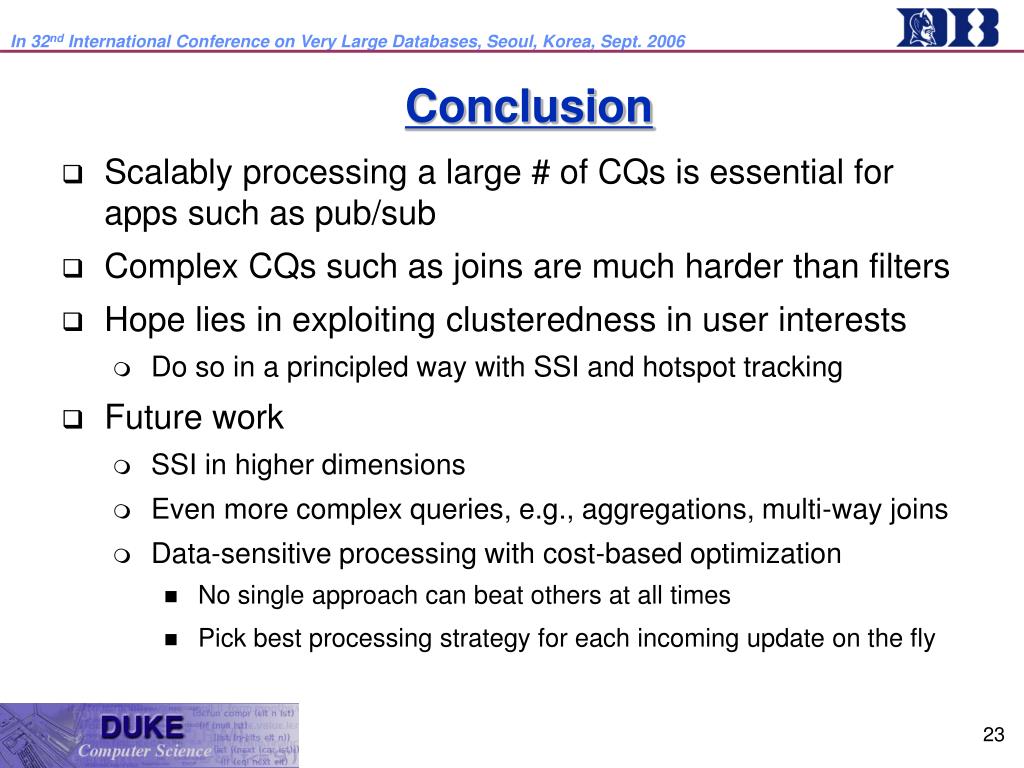

23. Conclusion • Scalably processing a large # of CQs is essential for apps such as pub/sub • Complex CQs such as joins are much harder than filters • Hope lies in exploiting clusteredness in user interests • Do so in a principled way with SSI and hotspot tracking • Future work • SSI in higher dimensions • Even more complex queries, e.g., aggregations, multi-way joins • Data-sensitive processing with cost-based optimization • No single approach can beat others at all times • Pick best processing strategy for each incoming update on the fly

24. Thank you!

25. Back-up slides

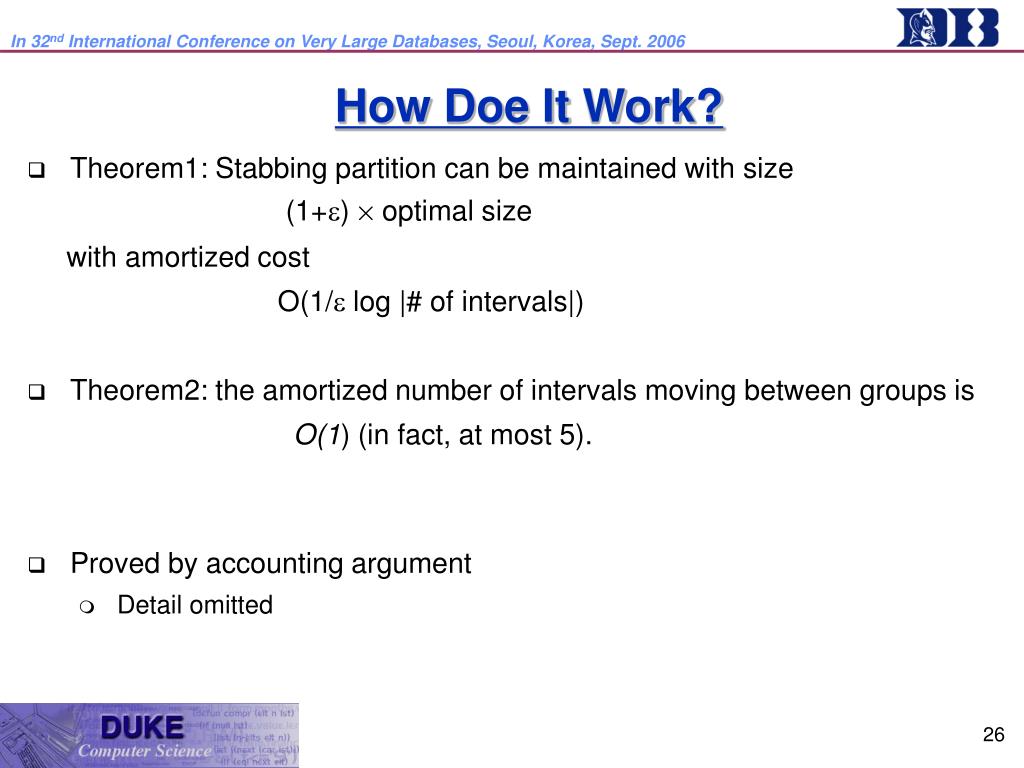

26. How Doe It Work? • Theorem1: Stabbing partition can be maintained with size (1+) £ optimal size with amortized cost O(1/ log |# of intervals|) • Theorem2: the amortized number of intervals moving between groups is O(1) (in fact, at most 5). • Proved by accounting argument • Detail omitted

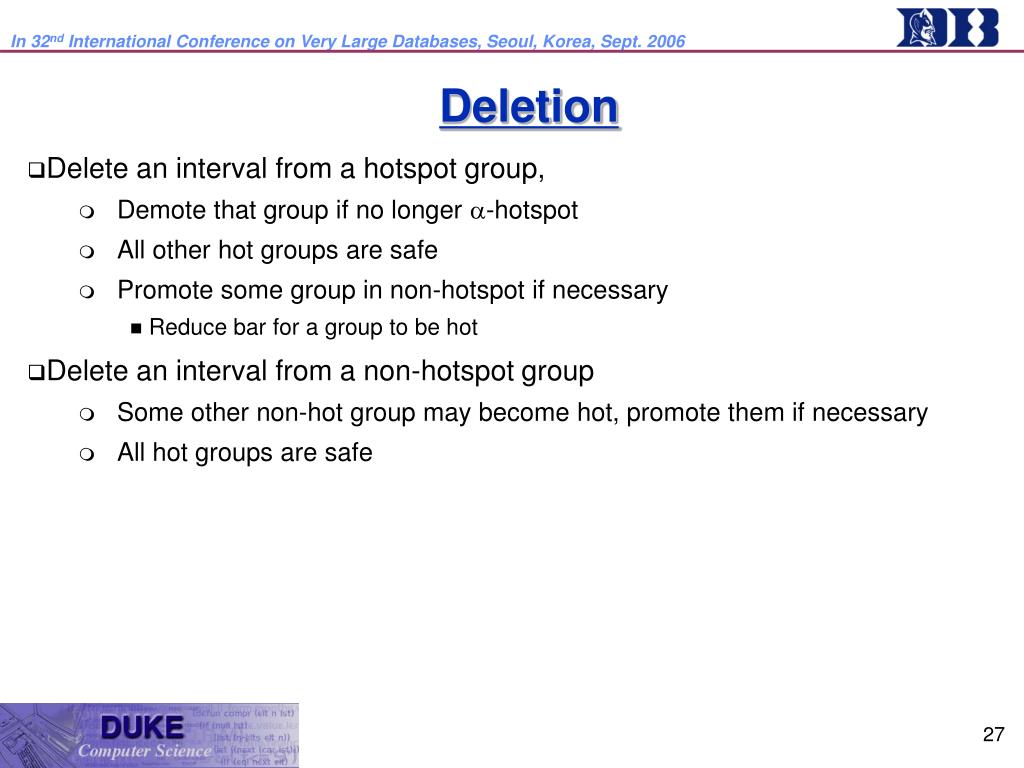

27. Deletion • Delete an interval from a hotspot group, • Demote that group if no longer -hotspot • All other hot groups are safe • Promote some group in non-hotspot if necessary • Reduce bar for a group to be hot • Delete an interval from a non-hotspot group • Some other non-hot group may become hot, promote them if necessary • All hot groups are safe

28. no longer an  / 2-hotspot non-hotspot groups Insertion • Insert an interval to a non-hotspot group • Put it in that group • Demote other hot group to non-hotspot groups • Insert each interval one by one and maintain stabbing sets in non-hot groups hotspot groups non-hotspot groups

29. become an -hotspot Insertion • Insert an interval into a non-hotspot group, • Put it in that group • Promote the group if it becomes hot • Demote some group in hotspot if necessary • Similar for deletion • The amortized number of intervals moving between groups is constant. hotspot groups non-hotspot groups

30. Stabbing Set Based Histogram • Histogram for intervals • Selectivity estimation: how many queries will be triggered by incoming tuple? • Useful to optimization • Previous approach: dynamic programming to compute optimal histogram • Quadratic time, usually not practical for large number of queries • SSI based histogram • Build histogram for each stabbing set • Map to the problem computing weighted k-mean clustering • Can be computed in nearly linear time: O(n) +ploy(k, 1/, log n) • Or using iterative k-mean • Need to allocate number of buckets for each set

31. Experiments Stabbing-set based histogram: 100K intervals Optimal: over 6.5 hours of construction time! SSI-based: < 1 min to build

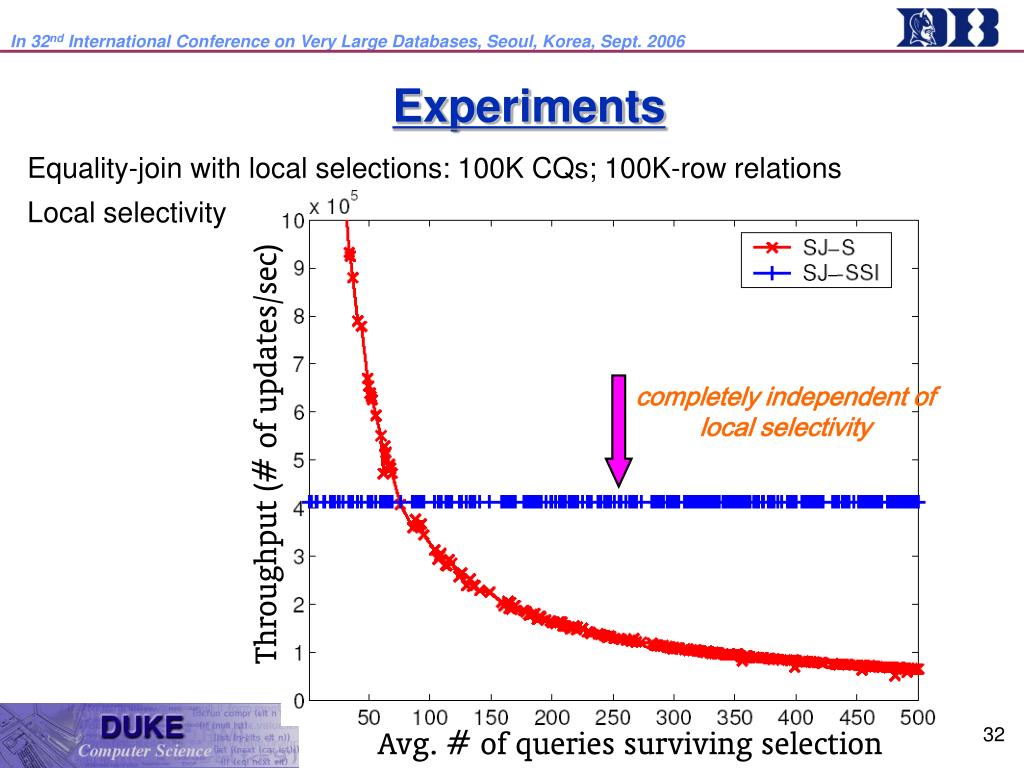

32. completely independent of local selectivity Throughput (# of updates/sec) Avg. # of queries surviving selection Experiments Equality-join with local selections: 100K CQs; 100K-row relations Local selectivity

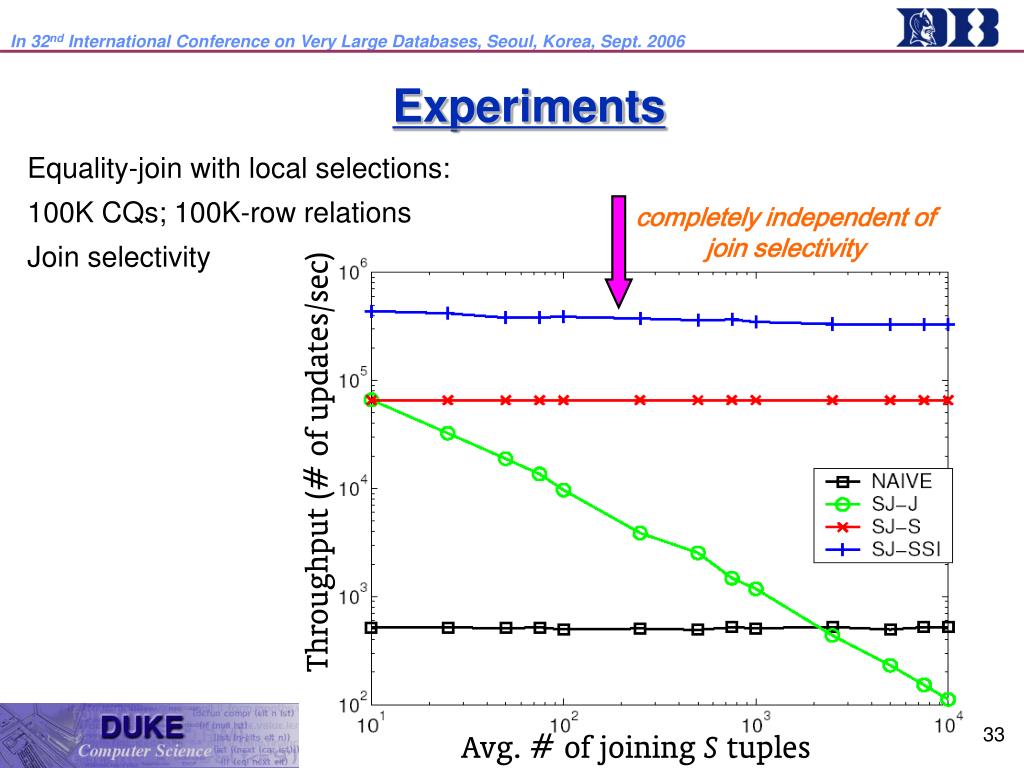

33. completely independent of join selectivity Throughput (# of updates/sec) Avg. # of joining S tuples Experiments Equality-join with local selections: 100K CQs; 100K-row relations Join selectivity

34. only 20% higher! Experiments Band joins: 100K CQs; 100K query updates (insert / delete) Dynamic maintenance cost: Amortized time to update associated data structure (ns)
