Pairs of Angles

Pairs of Angles. Geometry (Holt 1-4) k.Santos. Adjacent Angles. Adjacent angles—two angles in the same plane (coplanar) with a common vertex , a common side but no common interior points A D B C < ABD and <DBC are adjacent angles.

wesley-stout
Télécharger la présentation

Pairs of Angles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Pairs of Angles Geometry (Holt 1-4) k.Santos

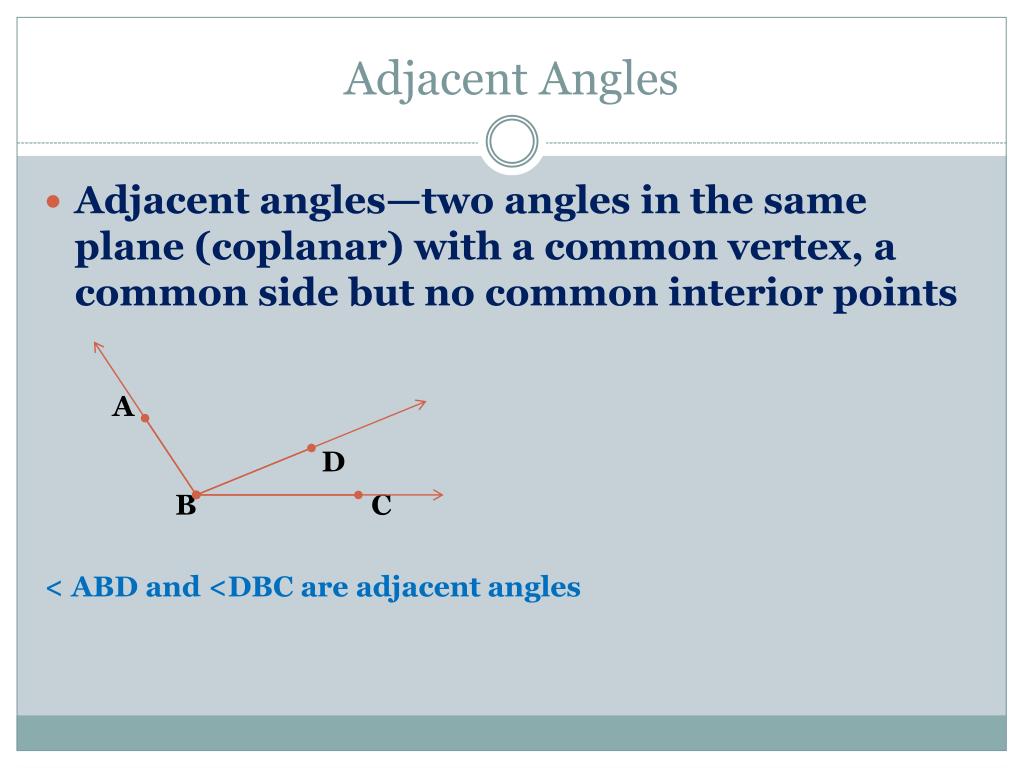

  2. Adjacent Angles Adjacent angles—two angles in the same plane (coplanar) with a common vertex, a common side but no common interior points A D B C < ABD and <DBC are adjacent angles

  3. Linear Pair Linear Pair—a pair of adjacent angles whose noncommon sides are opposite sides 1 2 < 1 and < 2 form a linear pair

  4. Complementary Angles Complementary Angles—two angles whose measures have a sum of 90 A D 30 60 B C Adjacent and non-adjacent and Complementary complementary <ABD and <DBC 30= 90

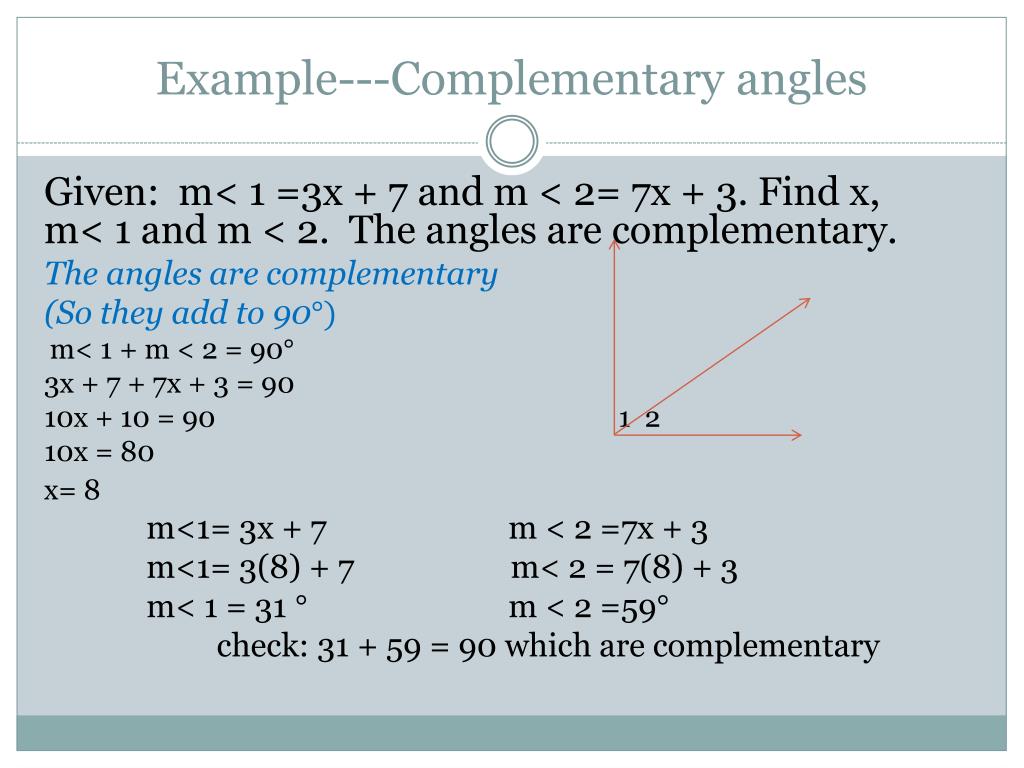

  5. Example---Complementary angles Given: m< 1 =3x + 7 and m < 2= 7x + 3. Find x, m< 1 and m < 2. The angles are complementary. The angles are complementary (So they add to 90 m< 1 + m < 2 = 90 3x + 7 + 7x + 3 = 90 10x + 10 = 90 1 2 10x = 80 x= 8 m<1= 3x + 7 m < 2 =7x + 3 m<1= 3(8) + 7 m< 2 = 7(8) + 3 m< 1 = 31 m < 2 =59 check: 31 + 59 = 90 which are complementary

  6. Supplementary Angles Supplementary Angles—two angles whose measures have the sum is 180 1 2 110 70 Adjacent and Non-adjacent and Supplementary supplementary m<1 + m < 2 = 180 110 = 180

  7. Example—Supplementary Angles Given m< 2 = 125Find the m< 1: This is a linear pair So the angles are supplementary (which means they add to 1802 1 m< 1 + m< 2 = 180 x + 125 = 180 x = 55 So m<1 = 55

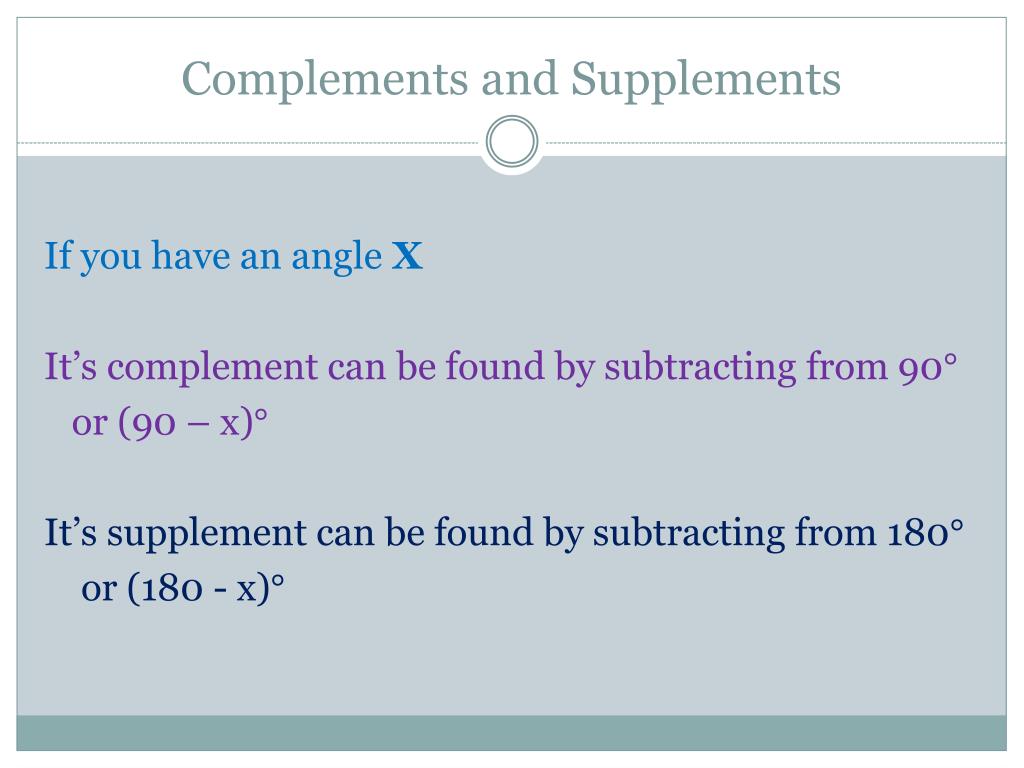

  8. Complements and Supplements If you have an angle X It’s complement can be found by subtracting from 90 or (90 – x) It’s supplement can be found by subtracting from 180 or (180 - x)

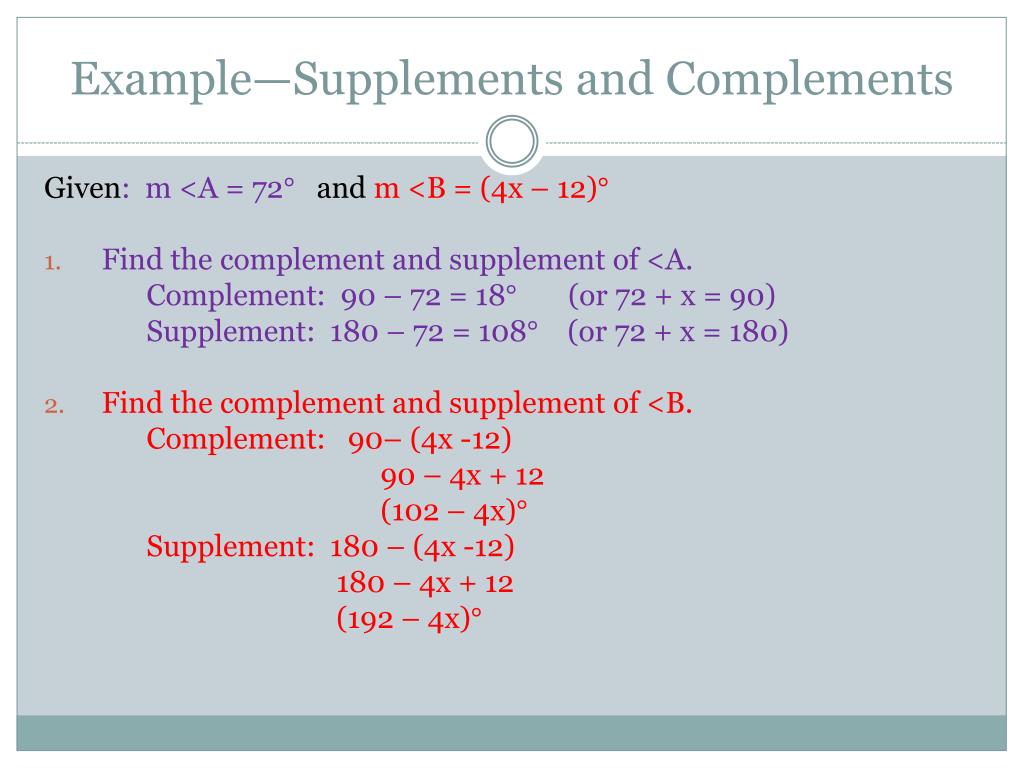

  9. Example—Supplements and Complements Given: m <A = 72and m <B = (4x – 12) Find the complement and supplement of <A. Complement: 90 – 72 = 18 (or 72 + x = 90) Supplement: 180 – 72 = 108 (or 72 + x = 180) Find the complement and supplement of <B. Complement: 90– (4x -12) 90 – 4x + 12 (102 – 4x) Supplement: 180 – (4x -12) 180 – 4x + 12 (192 – 4x)

  10. VerticalAngles Vertical angles—two angles whose sides form two pairs of opposite rays 13 24 Picture always looks like an X < 1 and < 4 are vertical angles < 2 and < 3 are vertical angles

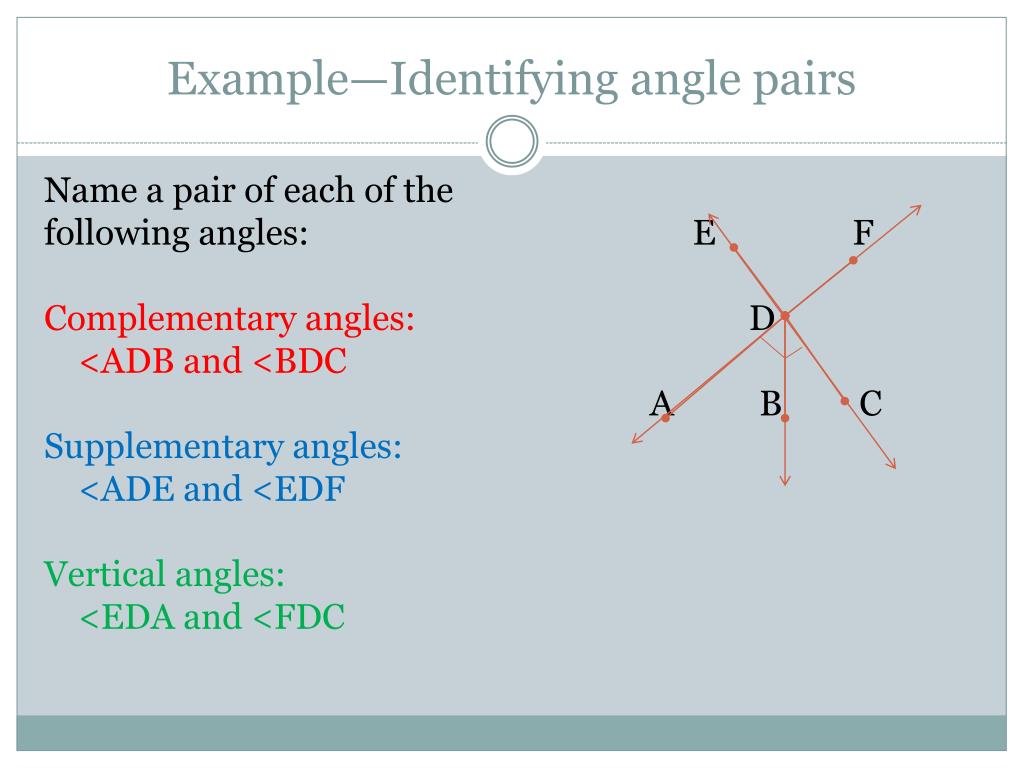

  11. Example—Identifying angle pairs Name a pair of each of the following angles: E F Complementary angles: D <ADB and <BDC A B C Supplementary angles: <ADE and <EDF Vertical angles: <EDA and <FDC
