Find the correlation coefficient & interpret it. Find & interpret the slope.

A medical researcher wishes to determine how the dosage (in mg) of a drug affects the heart rate of the patient. Find the correlation coefficient & interpret it. Find & interpret the slope. Find & interpret the y-intercept. Give the least squares regression line.

wilda
Télécharger la présentation

Find the correlation coefficient & interpret it. Find & interpret the slope.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

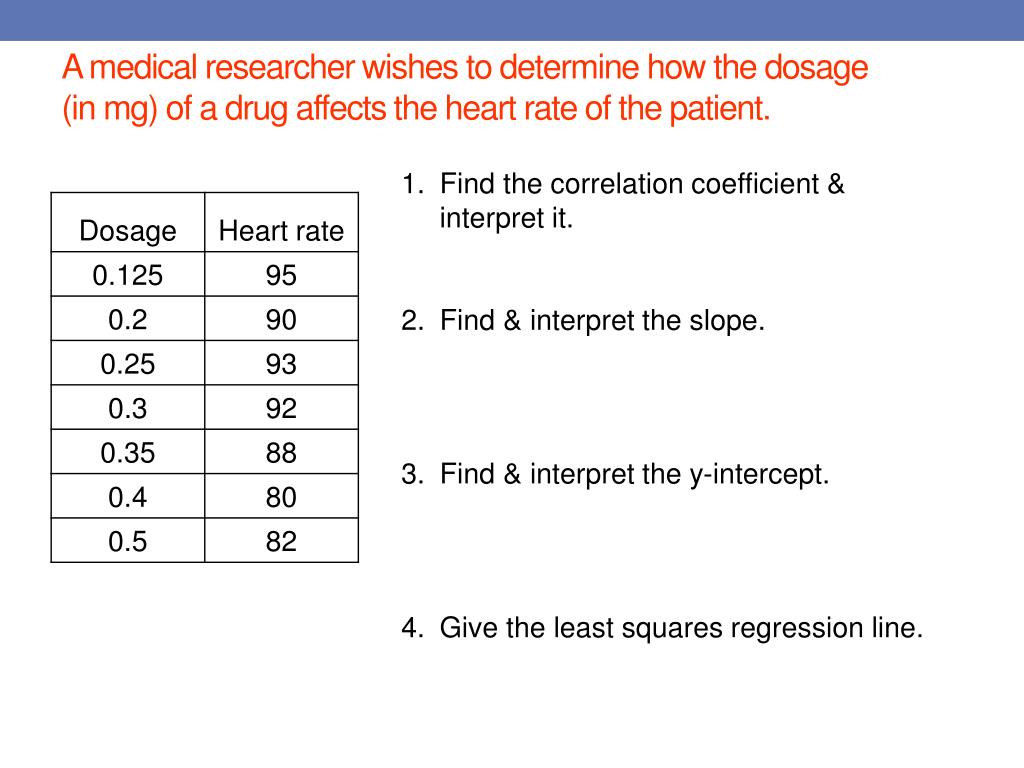

  1. A medical researcher wishes to determine how the dosage (in mg) of a drug affects the heart rate of the patient. • Find the correlation coefficient & interpret it. • Find & interpret the slope. • Find & interpret the y-intercept. • Give the least squares regression line.

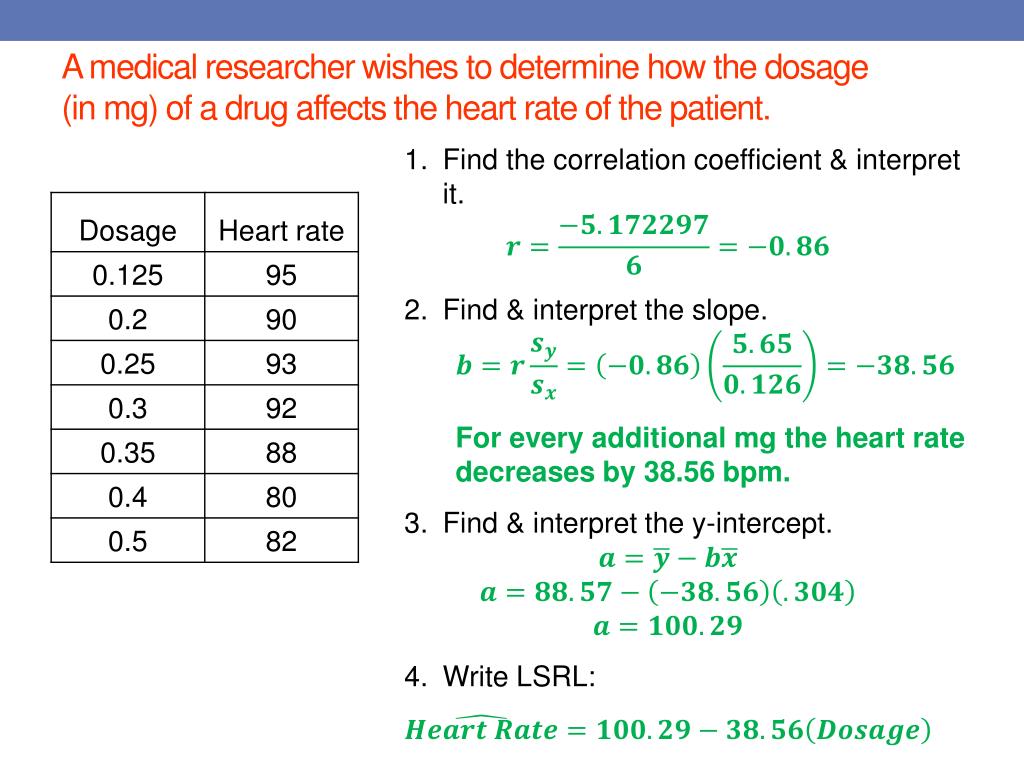

  2. A medical researcher wishes to determine how the dosage (in mg) of a drug affects the heart rate of the patient. • Find the correlation coefficient & interpret it. • Find & interpret the slope. • For every additional mg the heart rate decreases by 38.56 bpm. • Find & interpret the y-intercept. • Write LSRL:

  3. Residuals Section 3.2B

  4. Residuals • Variation in the y values can be effectively explained when the residuals are small – close to the line. • Remember a residual = observed – exp.

  5. The equation to explain the relationship between drug dosage and heart rate is shown below. Find the predicted value for a dosage of 0.4 mg. Find the residual for (0.4, 80).

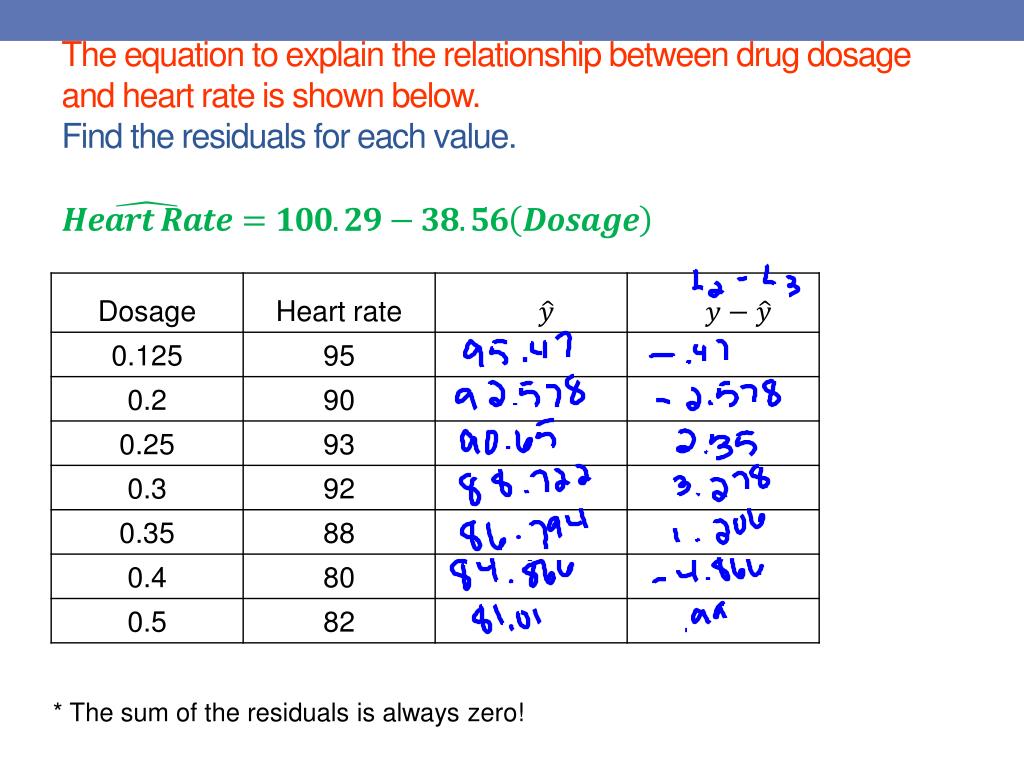

  6. The equation to explain the relationship between drug dosage and heart rate is shown below.Find the residuals for each value. * The sum of the residuals is always zero!

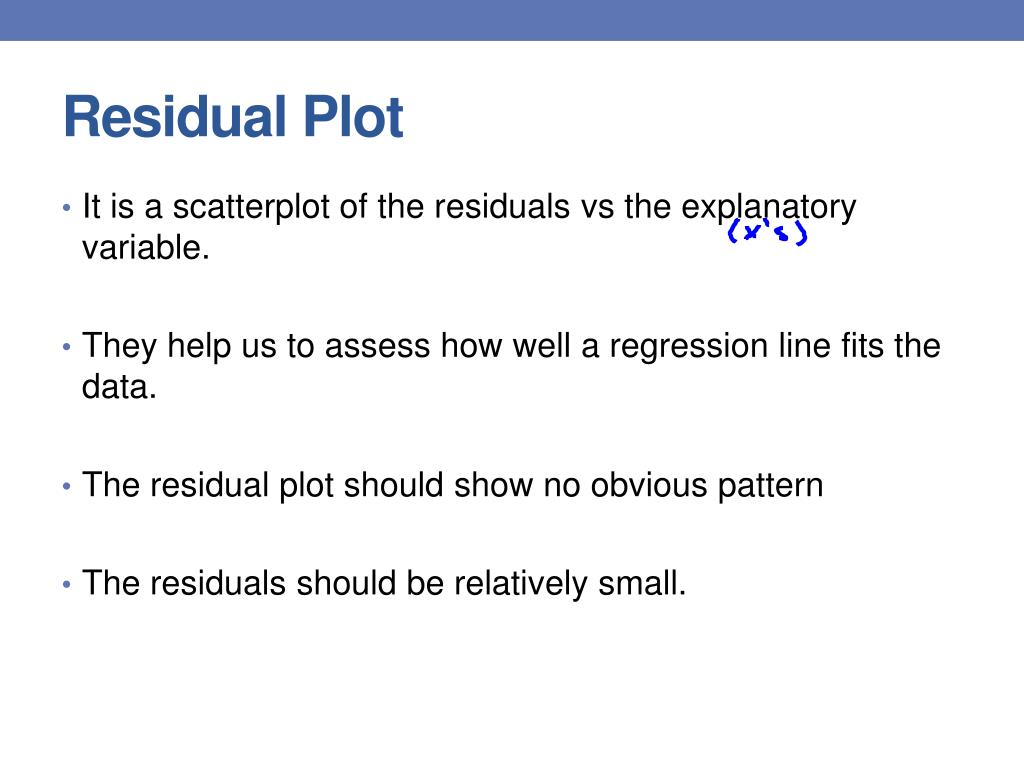

  7. Residual Plot • It is a scatterplot of the residuals vs the explanatory variable. • They help us to assess how well a regression line fits the data. • The residual plot should show no obvious pattern • The residuals should be relatively small.

  8. The equation to explain the relationship between drug dosage and heart rate is shown below.Graph the residual Plot. Is the linear model appropriate? * The sum of the residuals is always zero!

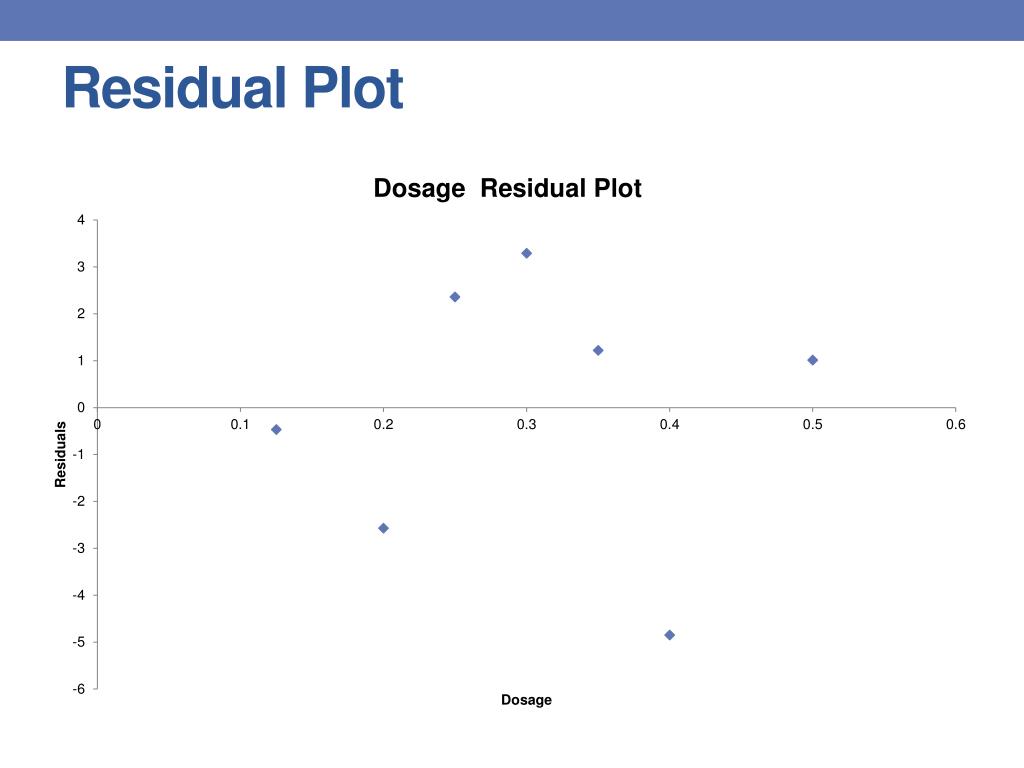

  9. Residual Plot

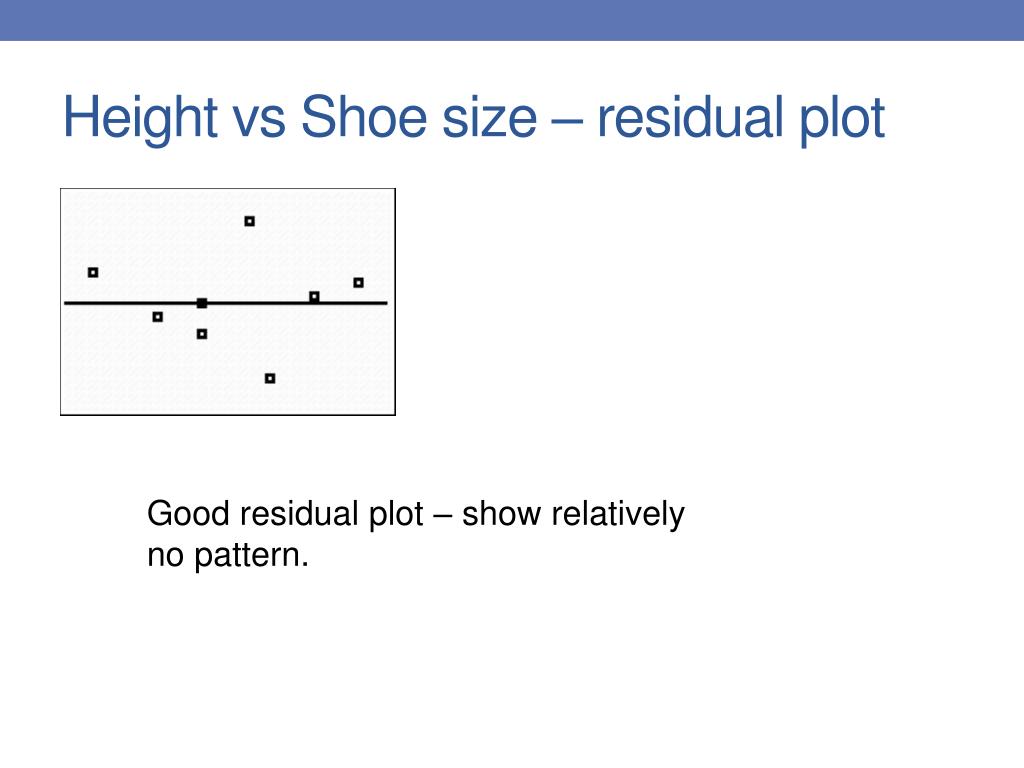

  10. Height vs Shoe size – residual plot Good residual plot – show relatively no pattern.

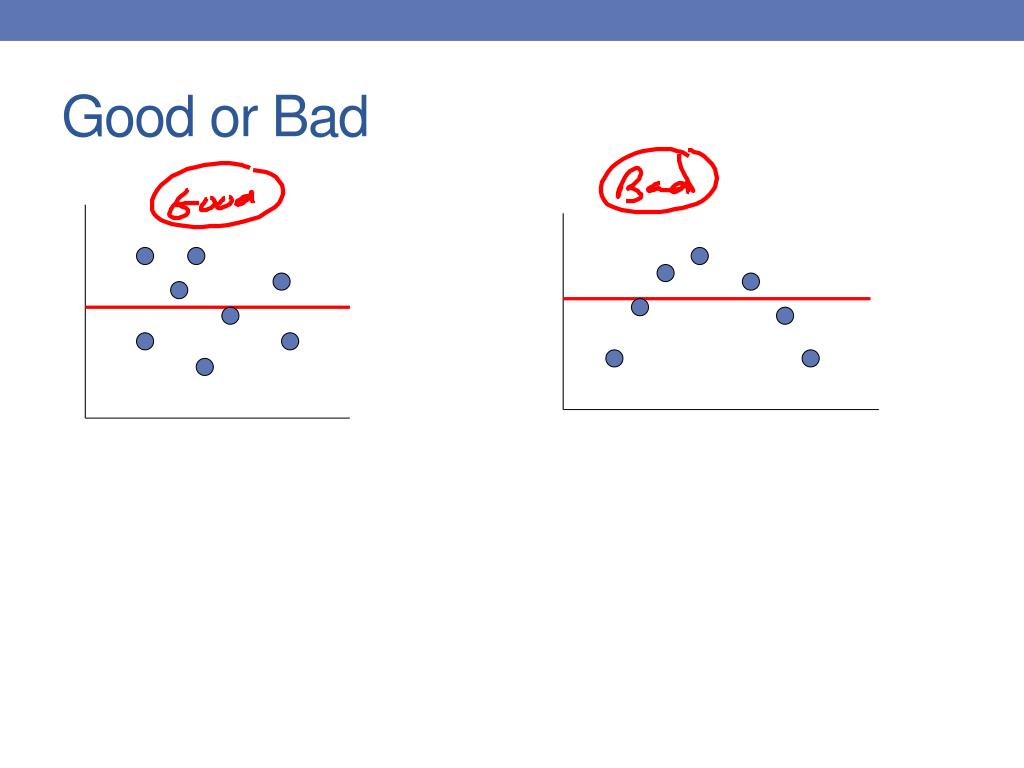

  11. Good or Bad

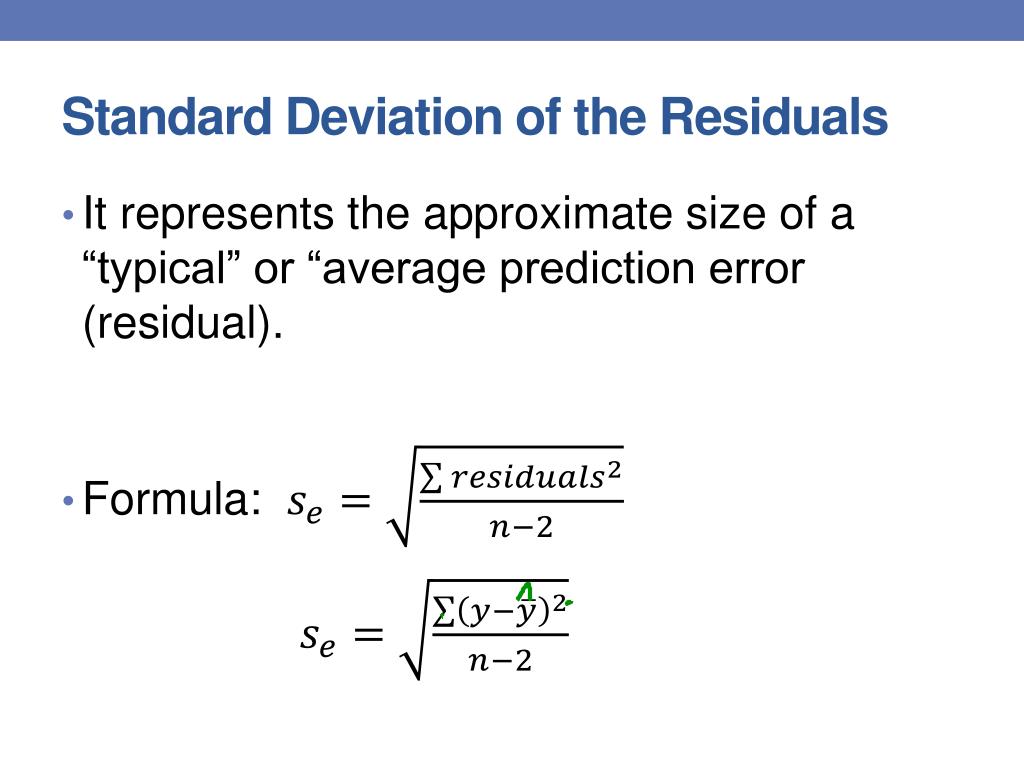

  12. Standard Deviation of the Residuals • It represents the approximate size of a “typical” or “average prediction error (residual). • Formula:

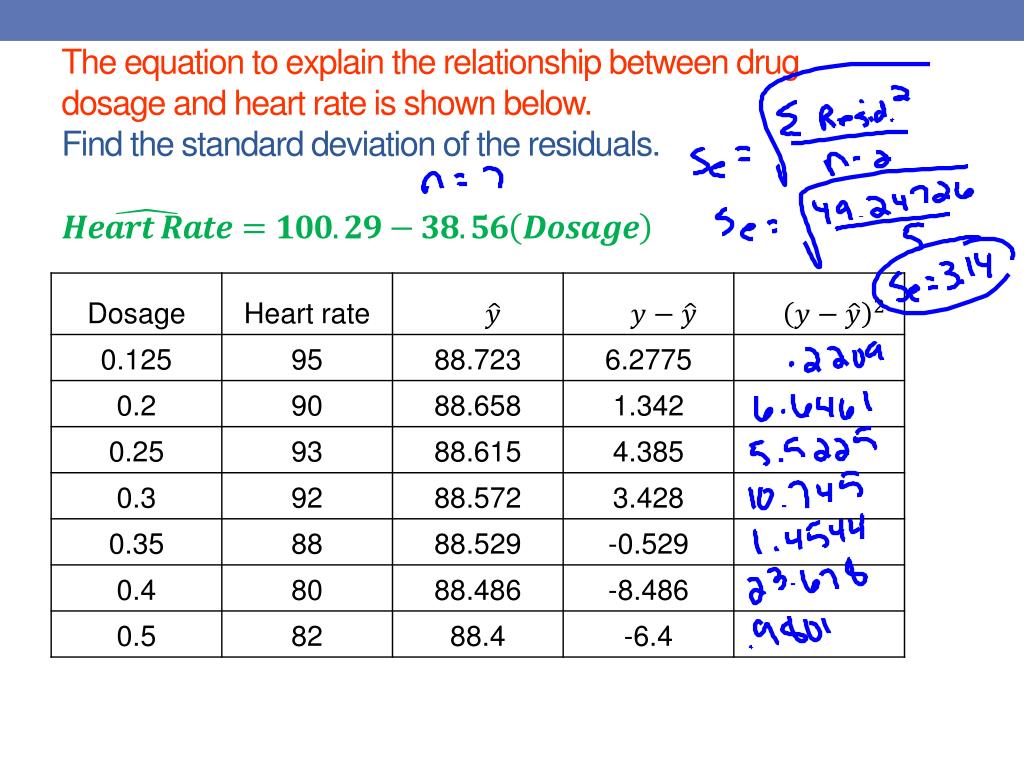

  13. The equation to explain the relationship between drug dosage and heart rate is shown below.Find the standard deviation of the residuals.

  14. Homework *Page 191 (43, 45, 55, 60, 62)
