  1. LDAP: LDIF & DSML Fall 2004 Rev. 2

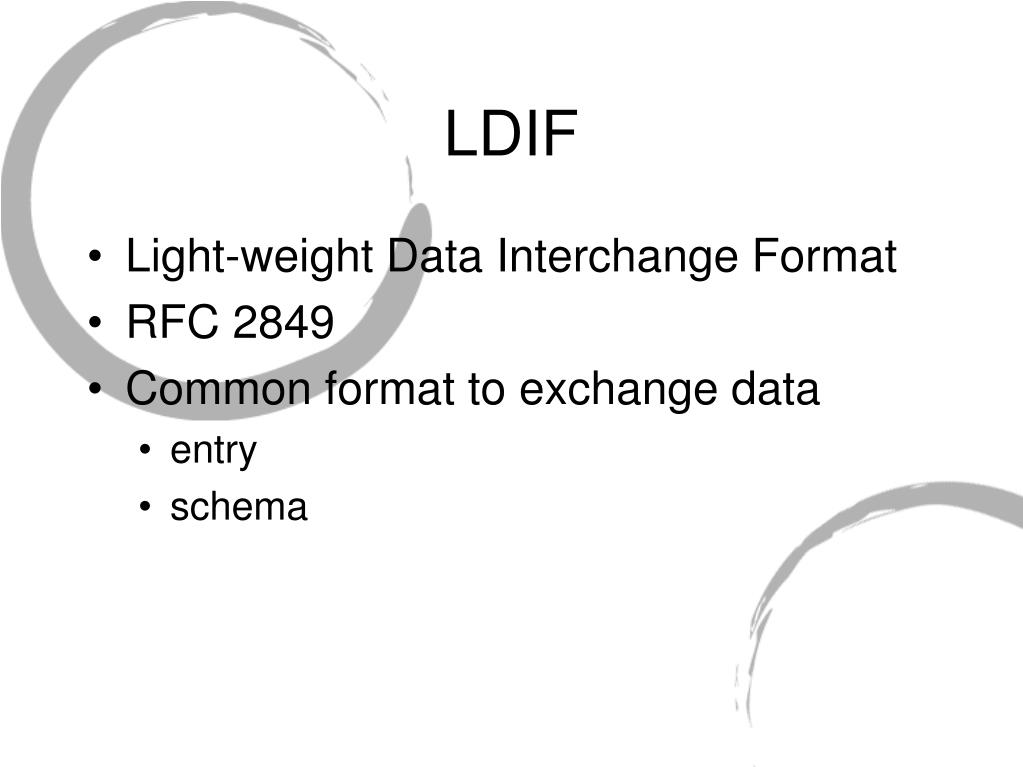

  2. LDIF • Light-weight Data Interchange Format • RFC 2849 • Common format to exchange data • entry • schema

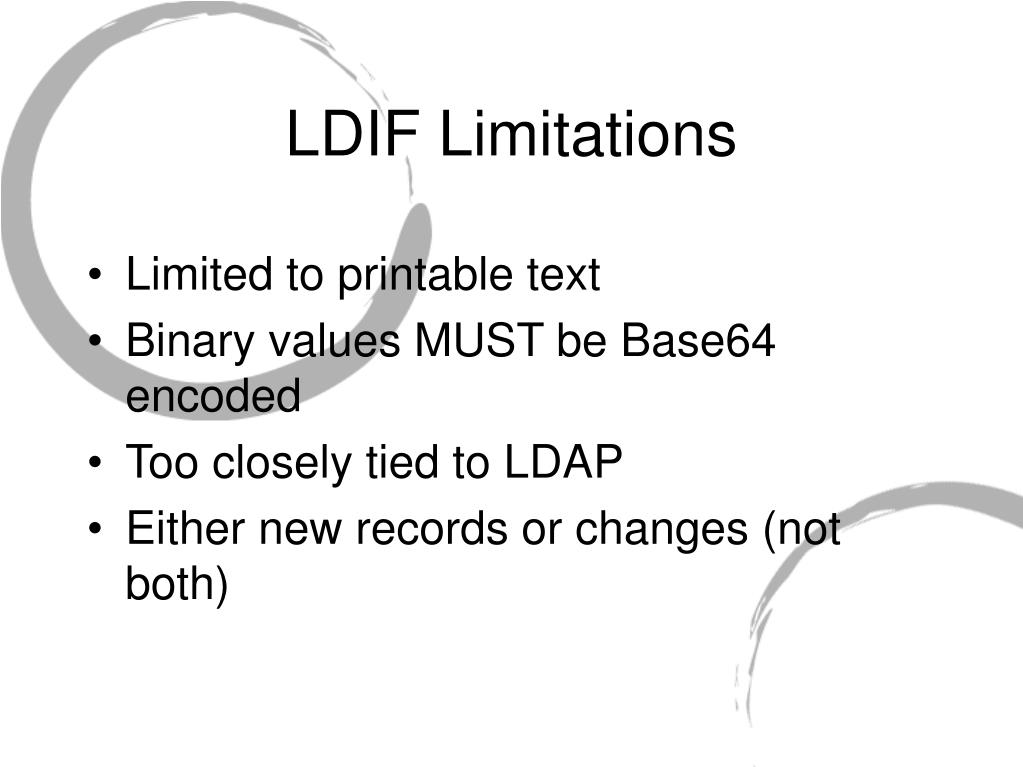

  3. LDIF Limitations • Limited to printable text • Binary values MUST be Base64 encoded • Too closely tied to LDAP • Either new records or changes (not both)

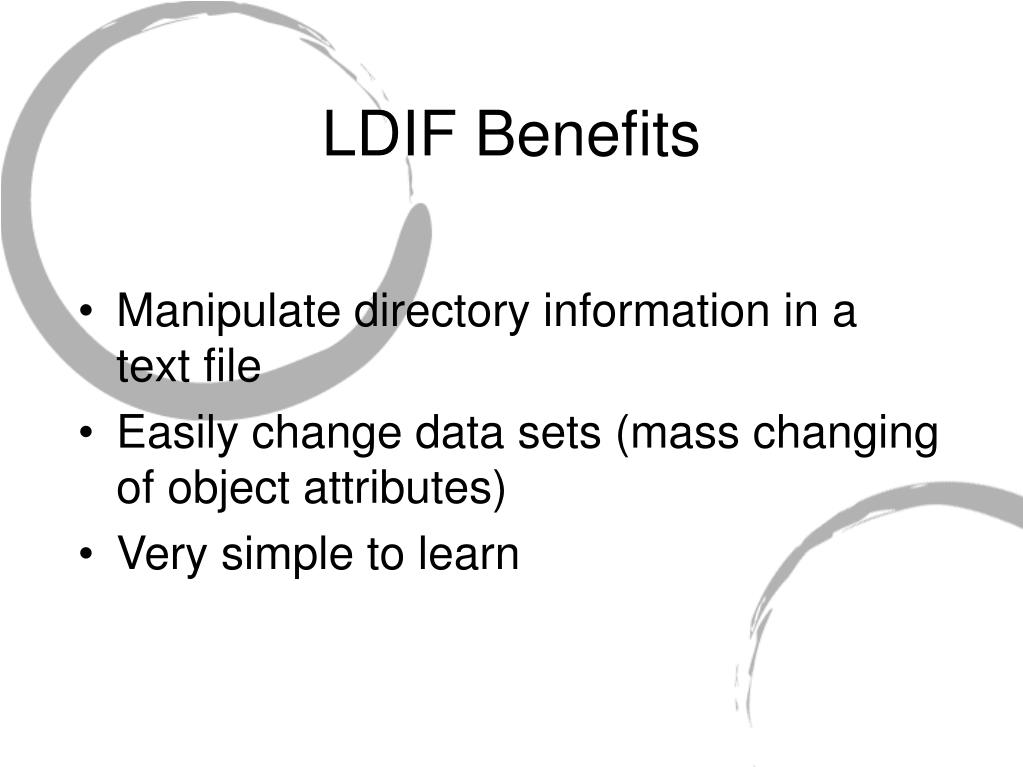

  4. LDIF Benefits • Manipulate directory information in a text file • Easily change data sets (mass changing of object attributes) • Very simple to learn

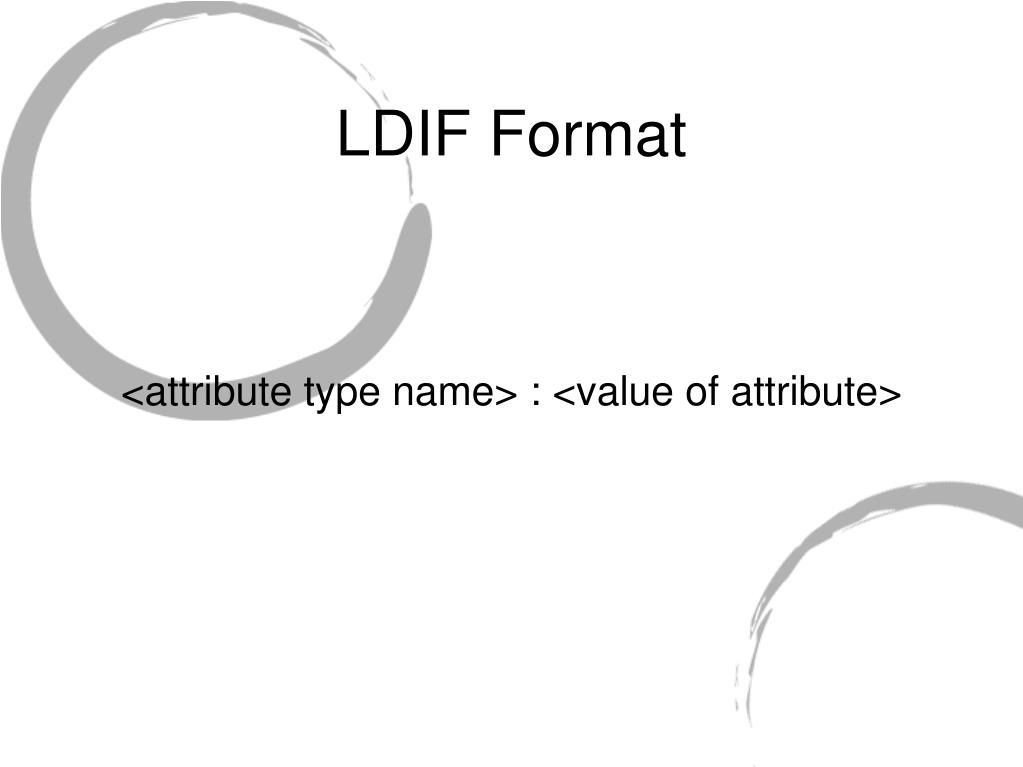

  5. LDIF Format <attribute type name> : <value of attribute>

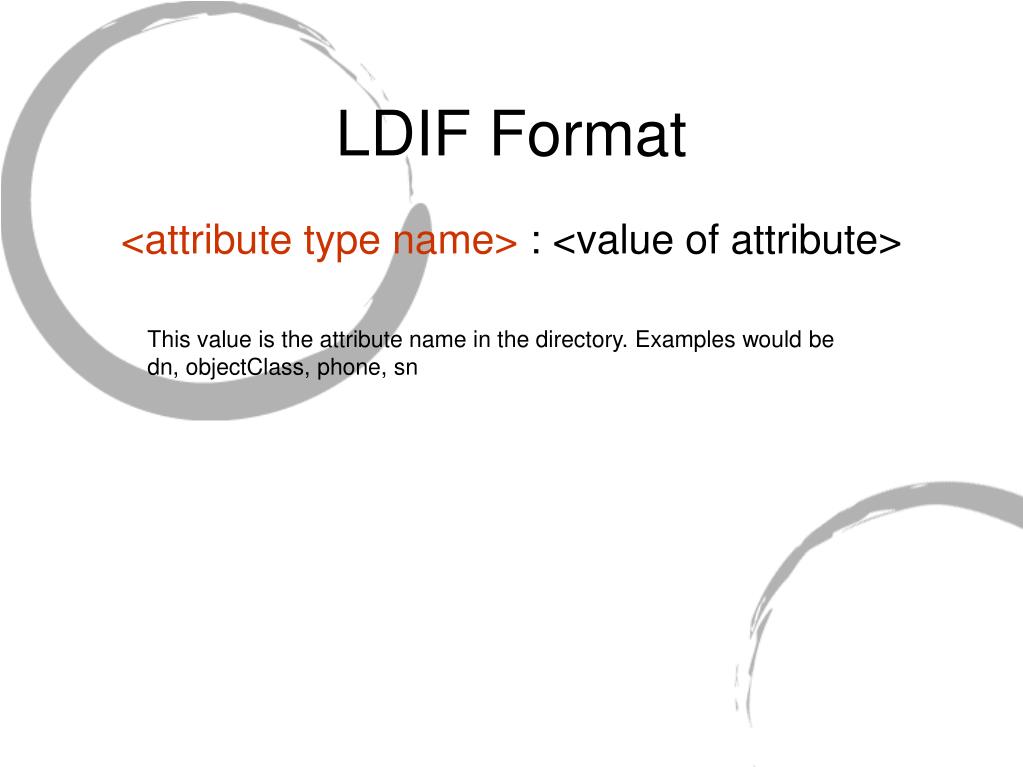

  6. LDIF Format <attribute type name> : <value of attribute> This value is the attribute name in the directory. Examples would be dn, objectClass, phone, sn

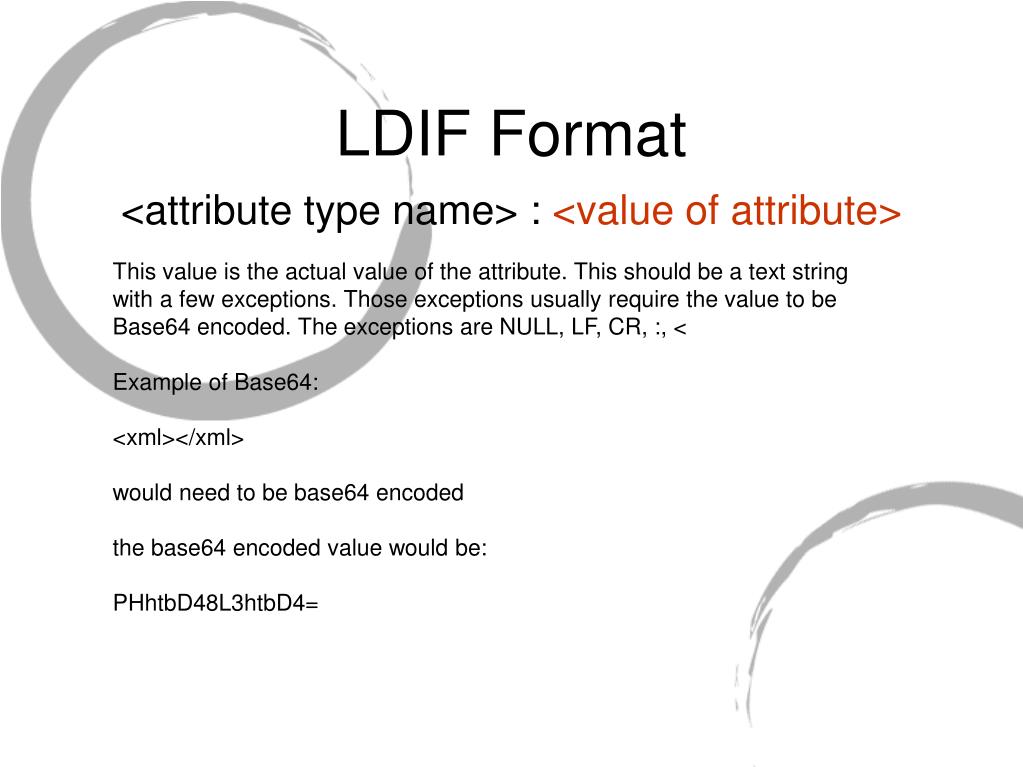

  7. LDIF Format <attribute type name> : <value of attribute> This value is the actual value of the attribute. This should be a text string with a few exceptions. Those exceptions usually require the value to be Base64 encoded. The exceptions are NULL, LF, CR, :, < Example of Base64: <xml></xml> would need to be base64 encoded the base64 encoded value would be: PHhtbD48L3htbD4=

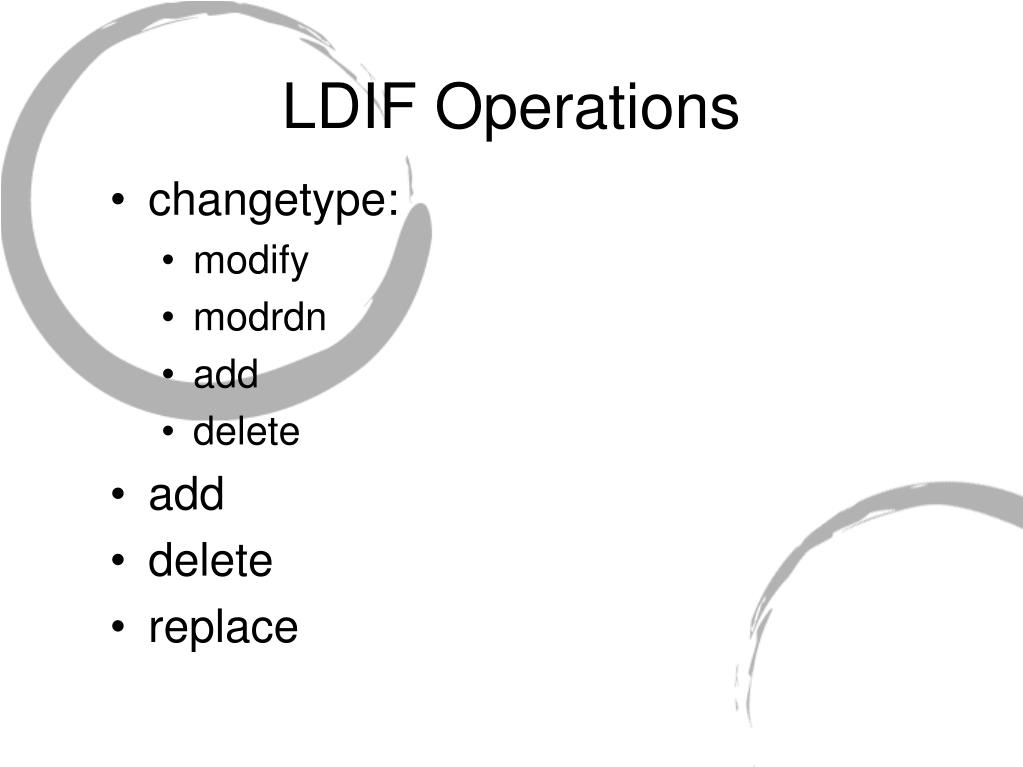

  8. LDIF Operations • changetype: • modify • modrdn • add • delete • add • delete • replace

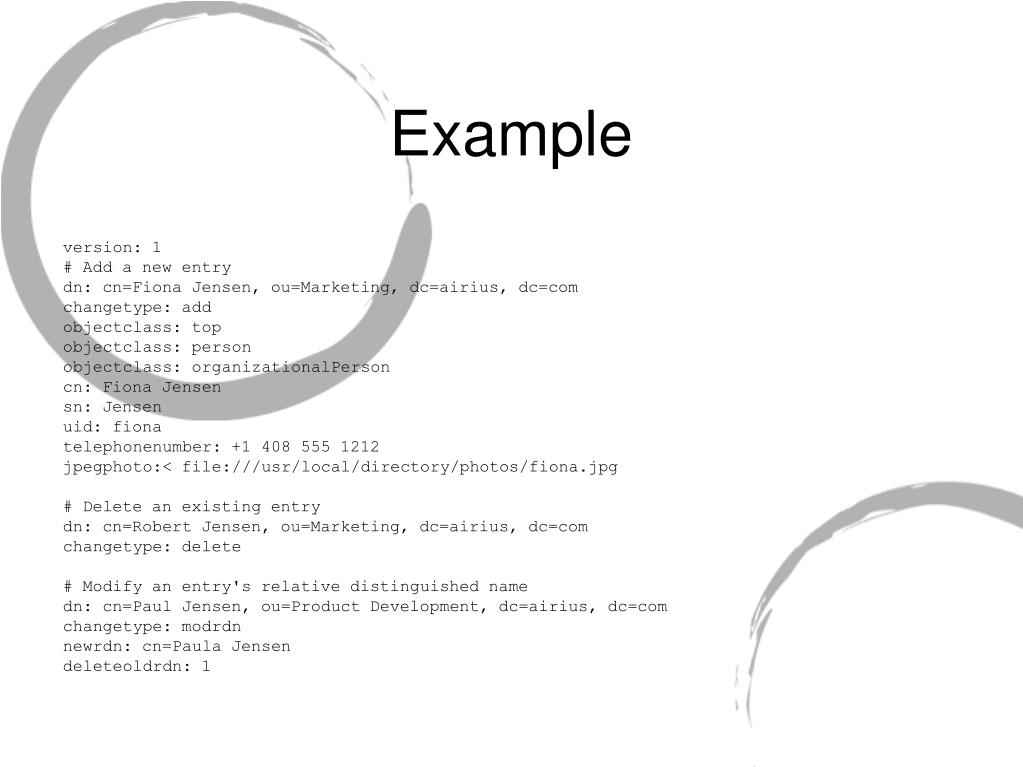

  9. Example version: 1 # Add a new entry dn: cn=Fiona Jensen, ou=Marketing, dc=airius, dc=com changetype: add objectclass: top objectclass: person objectclass: organizationalPerson cn: Fiona Jensen sn: Jensen uid: fiona telephonenumber: +1 408 555 1212 jpegphoto:< file:///usr/local/directory/photos/fiona.jpg # Delete an existing entry dn: cn=Robert Jensen, ou=Marketing, dc=airius, dc=com changetype: delete # Modify an entry's relative distinguished name dn: cn=Paul Jensen, ou=Product Development, dc=airius, dc=com changetype: modrdn newrdn: cn=Paula Jensen deleteoldrdn: 1

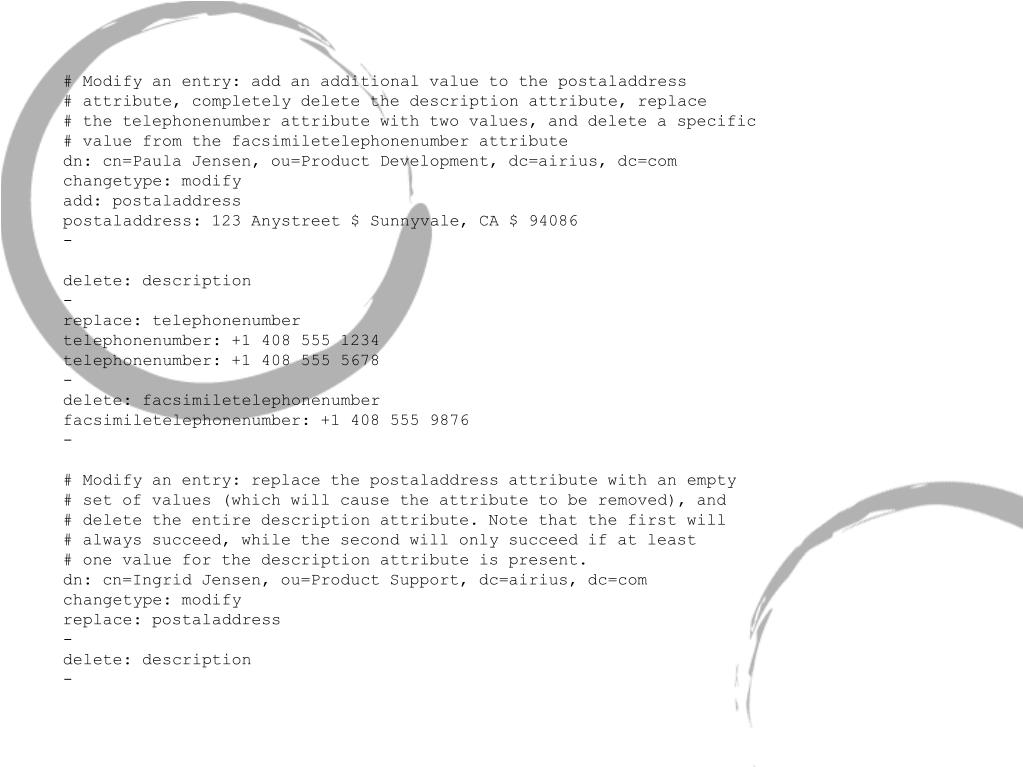

  10. # Modify an entry: add an additional value to the postaladdress # attribute, completely delete the description attribute, replace # the telephonenumber attribute with two values, and delete a specific # value from the facsimiletelephonenumber attribute dn: cn=Paula Jensen, ou=Product Development, dc=airius, dc=com changetype: modify add: postaladdress postaladdress: 123 Anystreet $ Sunnyvale, CA $ 94086 - delete: description - replace: telephonenumber telephonenumber: +1 408 555 1234 telephonenumber: +1 408 555 5678 - delete: facsimiletelephonenumber facsimiletelephonenumber: +1 408 555 9876 - # Modify an entry: replace the postaladdress attribute with an empty # set of values (which will cause the attribute to be removed), and # delete the entire description attribute. Note that the first will # always succeed, while the second will only succeed if at least # one value for the description attribute is present. dn: cn=Ingrid Jensen, ou=Product Support, dc=airius, dc=com changetype: modify replace: postaladdress - delete: description -

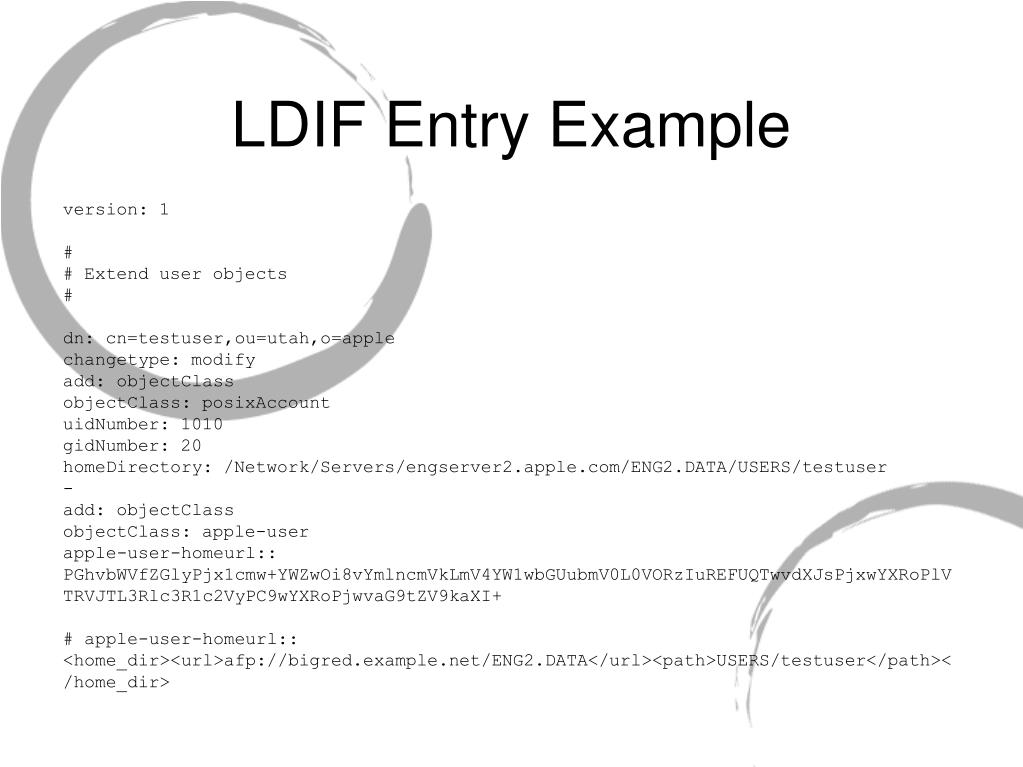

  11. LDIF Entry Example version: 1 # # Extend user objects # dn: cn=testuser,ou=utah,o=apple changetype: modify add: objectClass objectClass: posixAccount uidNumber: 1010 gidNumber: 20 homeDirectory: /Network/Servers/engserver2.apple.com/ENG2.DATA/USERS/testuser - add: objectClass objectClass: apple-user apple-user-homeurl:: PGhvbWVfZGlyPjx1cmw+YWZwOi8vYmlncmVkLmV4YW1wbGUubmV0L0VORzIuREFUQTwvdXJsPjxwYXRoPlVTRVJTL3Rlc3R1c2VyPC9wYXRoPjwvaG9tZV9kaXI+ # apple-user-homeurl:: <home_dir><url>afp://bigred.example.net/ENG2.DATA</url><path>USERS/testuser</path></home_dir>

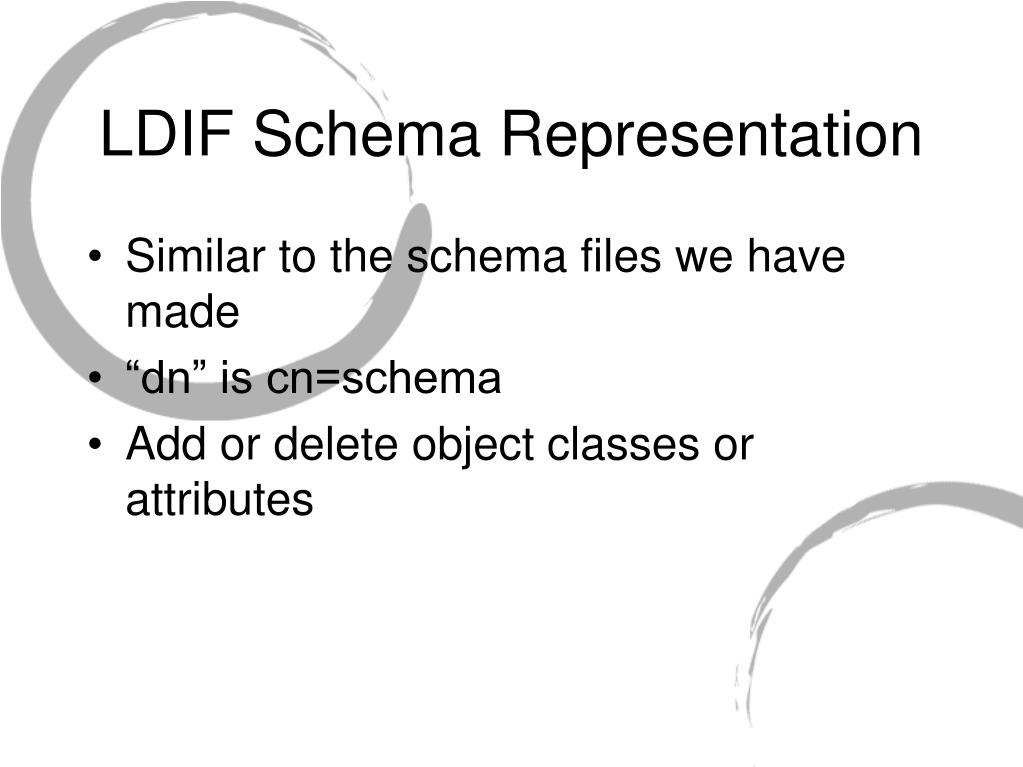

  12. LDIF Schema Representation • Similar to the schema files we have made • “dn” is cn=schema • Add or delete object classes or attributes

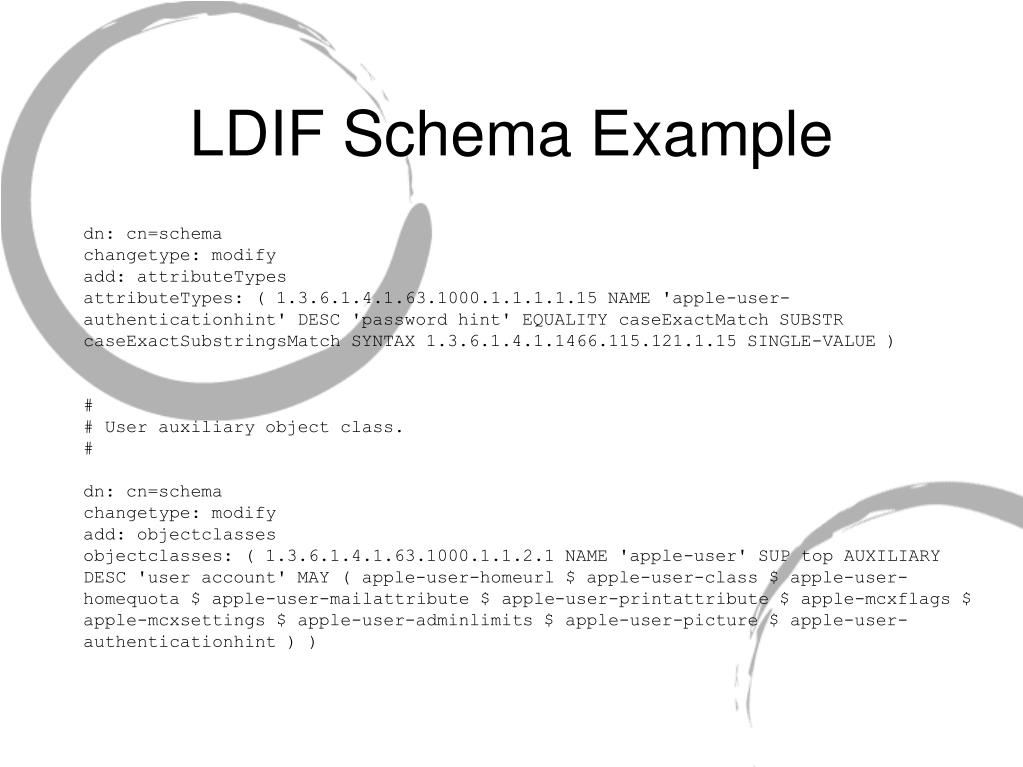

  13. LDIF Schema Example dn: cn=schema changetype: modify add: attributeTypes attributeTypes: ( 1.3.6.1.4.1.63.1000.1.1.1.1.15 NAME 'apple-user-authenticationhint' DESC 'password hint' EQUALITY caseExactMatch SUBSTR caseExactSubstringsMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15 SINGLE-VALUE ) # # User auxiliary object class. # dn: cn=schema changetype: modify add: objectclasses objectclasses: ( 1.3.6.1.4.1.63.1000.1.1.2.1 NAME 'apple-user' SUP top AUXILIARY DESC 'user account' MAY ( apple-user-homeurl $ apple-user-class $ apple-user-homequota $ apple-user-mailattribute $ apple-user-printattribute $ apple-mcxflags $ apple-mcxsettings $ apple-user-adminlimits $ apple-user-picture $ apple-user-authenticationhint ) )

  14. DSML • Dan Sinema • CNS 4650

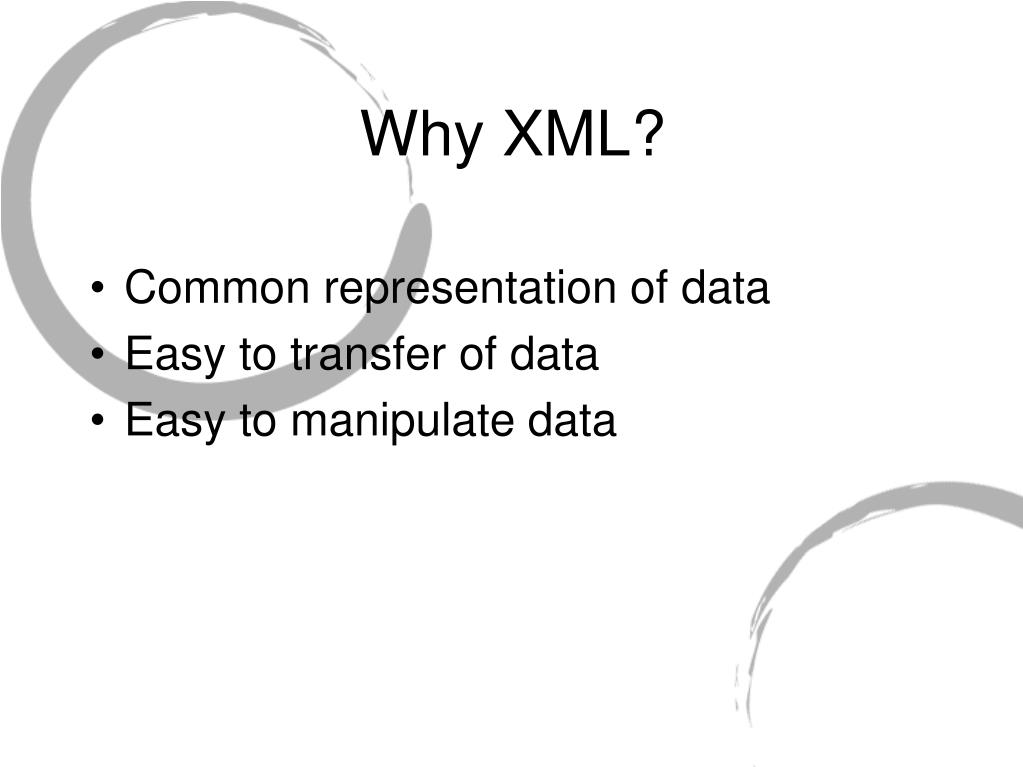

  15. Why XML? • Common representation of data • Easy to transfer of data • Easy to manipulate data

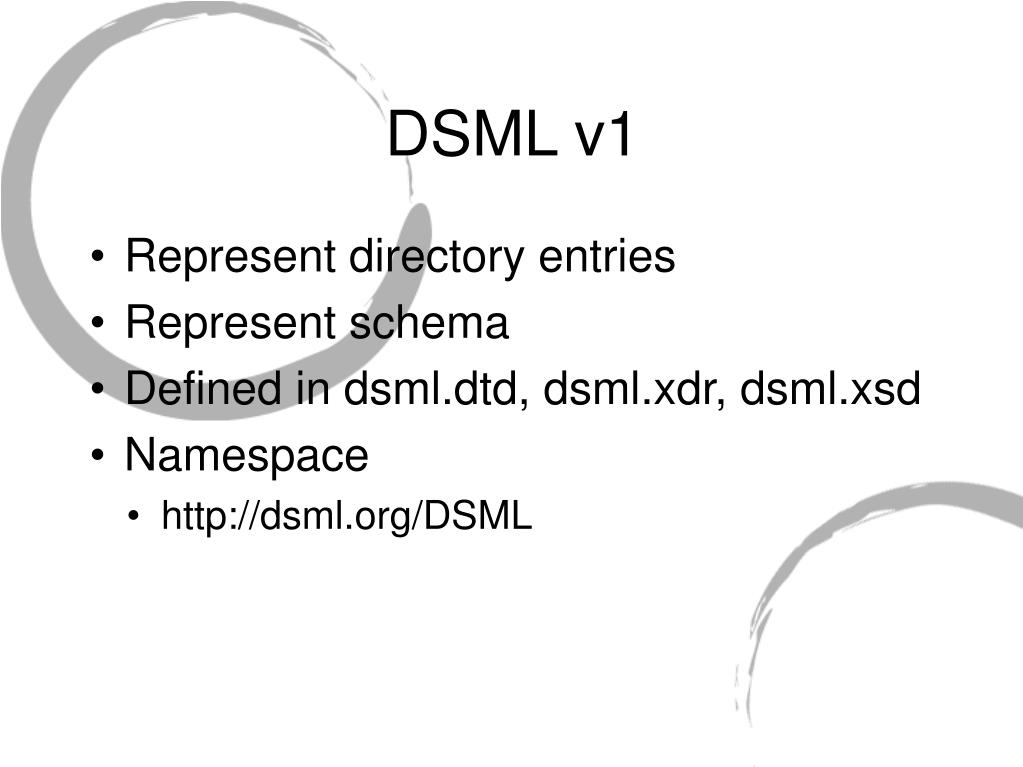

  16. DSML v1 • Represent directory entries • Represent schema • Defined in dsml.dtd, dsml.xdr, dsml.xsd • Namespace • http://dsml.org/DSML

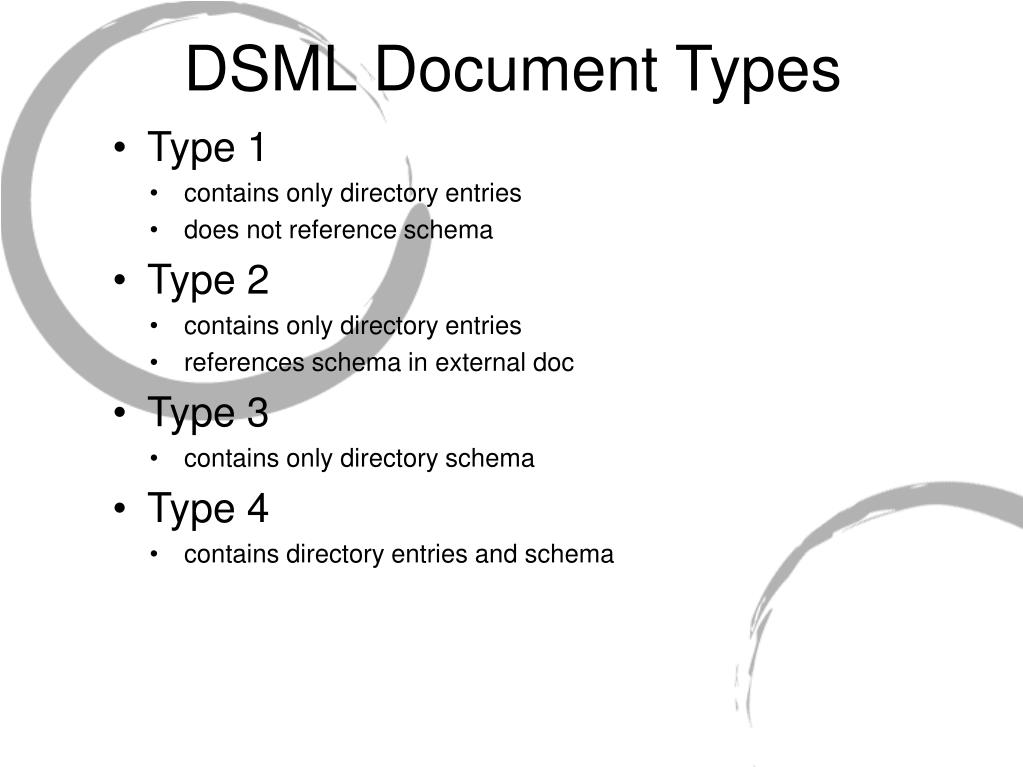

  17. DSML Document Types • Type 1 • contains only directory entries • does not reference schema • Type 2 • contains only directory entries • references schema in external doc • Type 3 • contains only directory schema • Type 4 • contains directory entries and schema

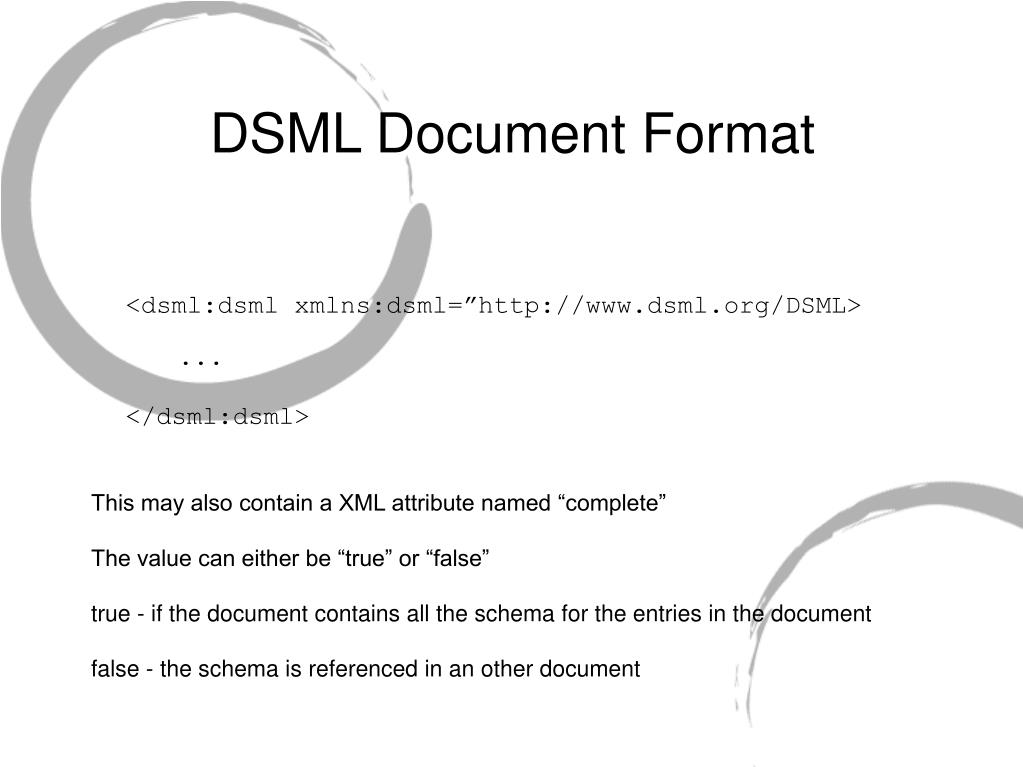

  18. DSML Document Format <dsml:dsml xmlns:dsml=”http://www.dsml.org/DSML> ... </dsml:dsml> This may also contain a XML attribute named “complete” The value can either be “true” or “false” true - if the document contains all the schema for the entries in the document false - the schema is referenced in an other document

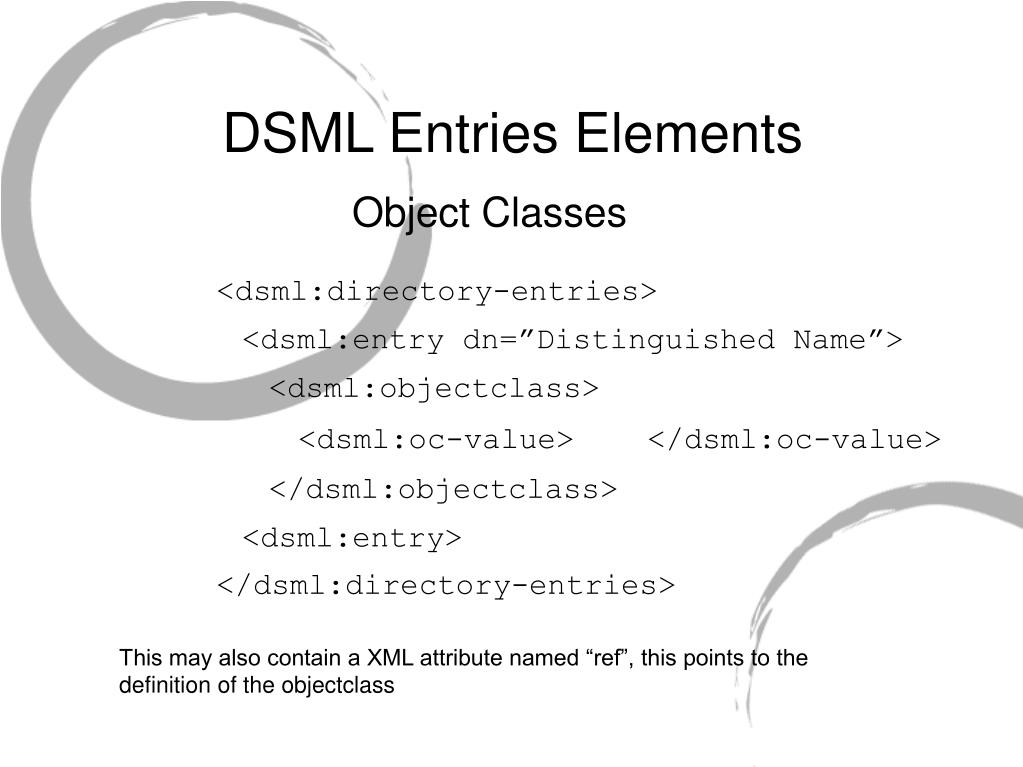

  19. DSML Entries Elements Object Classes <dsml:directory-entries> <dsml:entry dn=”Distinguished Name”> <dsml:objectclass> <dsml:oc-value> </dsml:oc-value> </dsml:objectclass> <dsml:entry> </dsml:directory-entries> This may also contain a XML attribute named “ref”, this points to the definition of the objectclass

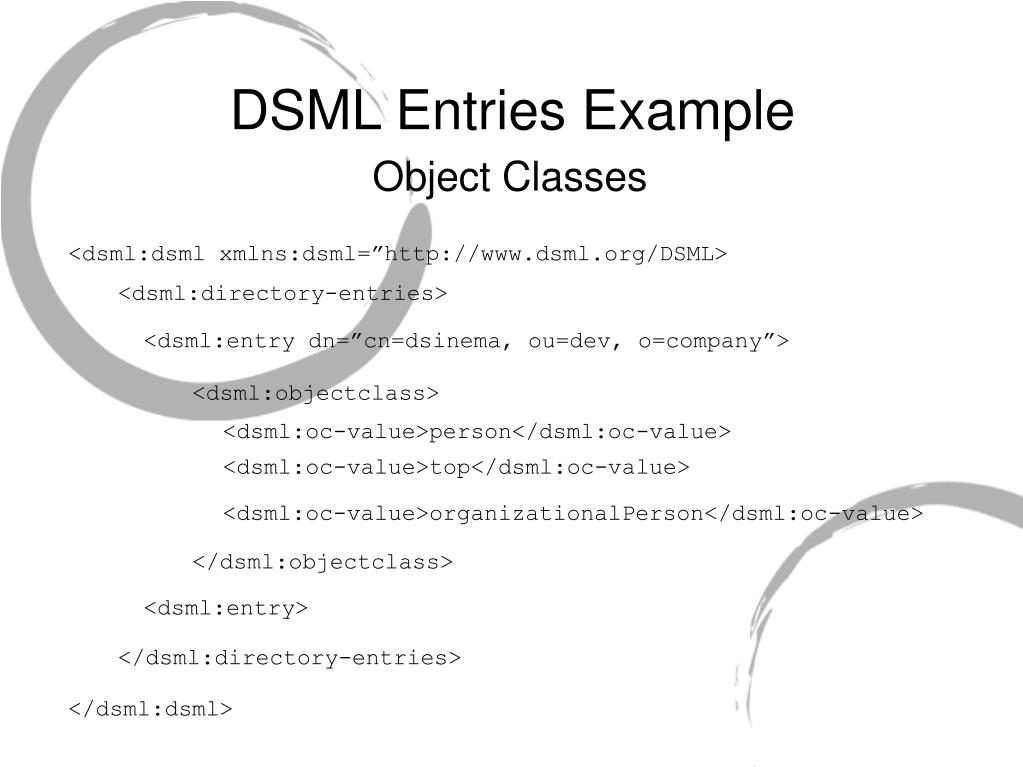

  20. DSML Entries Example Object Classes <dsml:dsml xmlns:dsml=”http://www.dsml.org/DSML> <dsml:directory-entries> <dsml:entry dn=”cn=dsinema, ou=dev, o=company”> <dsml:objectclass> <dsml:oc-value>person</dsml:oc-value> <dsml:oc-value>top</dsml:oc-value> <dsml:oc-value>organizationalPerson</dsml:oc-value> </dsml:objectclass> <dsml:entry> </dsml:directory-entries> </dsml:dsml>

  21. DSML Entries Example Object Classes <dsml:dsml xmlns:dsml=”http://www.dsml.org/DSML> <dsml:directory-entries> <dsml:entry dn=”cn=dsinema, ou=dev, o=company”> <dsml:objectclass> <dsml:oc-value>person</dsml:oc-value> <dsml:oc-value>top</dsml:oc-value> <dsml:oc-value>organizationalPerson</dsml:oc-value> </dsml:objectclass> <dsml:entry> </dsml:directory-entries> </dsml:dsml>

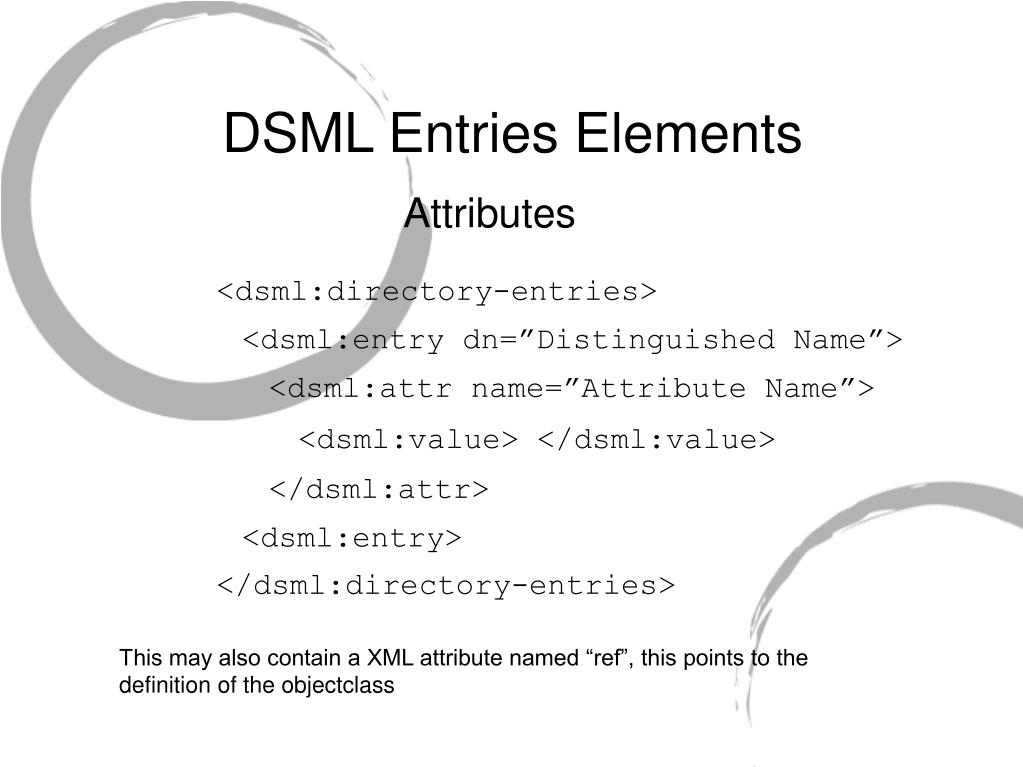

  22. DSML Entries Elements Attributes <dsml:directory-entries> <dsml:entry dn=”Distinguished Name”> <dsml:attr name=”Attribute Name”> <dsml:value> </dsml:value> </dsml:attr> <dsml:entry> </dsml:directory-entries> This may also contain a XML attribute named “ref”, this points to the definition of the objectclass

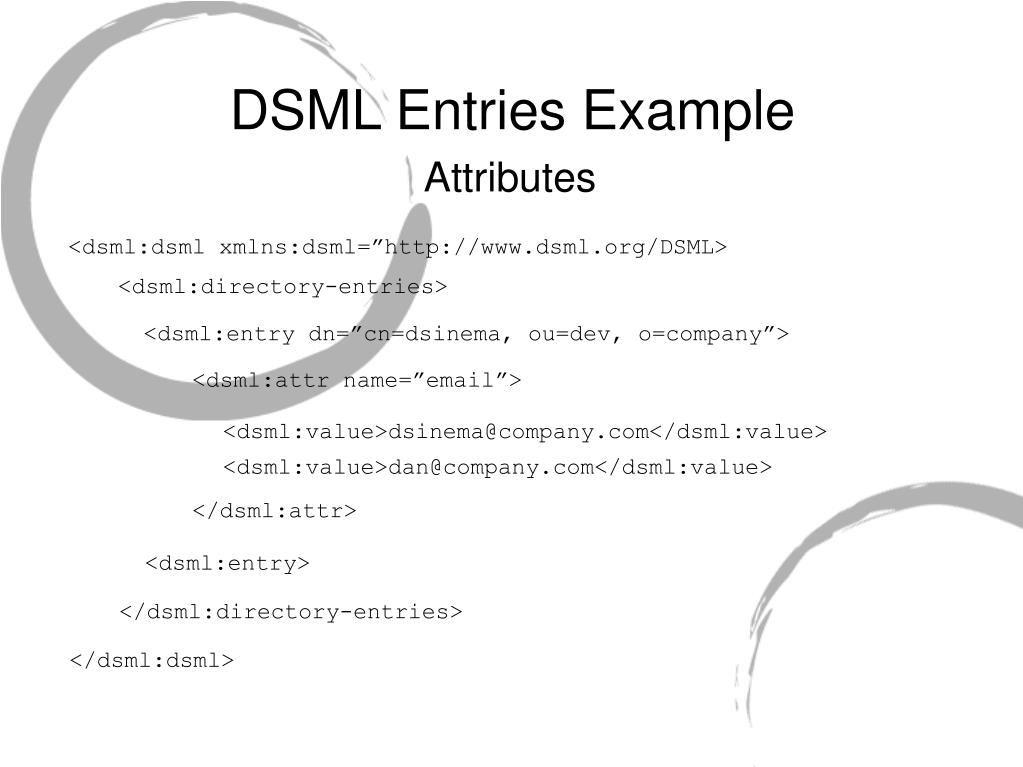

  23. DSML Entries Example Attributes <dsml:dsml xmlns:dsml=”http://www.dsml.org/DSML> <dsml:directory-entries> <dsml:entry dn=”cn=dsinema, ou=dev, o=company”> <dsml:attr name=”email”> <dsml:value>dsinema@company.com</dsml:value> <dsml:value>dan@company.com</dsml:value> </dsml:attr> <dsml:entry> </dsml:directory-entries> </dsml:dsml>

  24. DSML Entries Example Attributes <dsml:attr name=”certifcate”> <dsml:value encoding=”base64”> XZKiASLiWNDAL92jJ= </dsml:value> </dsml:attr> Binary values must still be encoded. At this point still in Base64, this limitation is because of LDAP. NOTE: that values in LDIF that were not binary that had to be base64 encoded DO NOT need to be encoded (example is a string starting with a : or <)

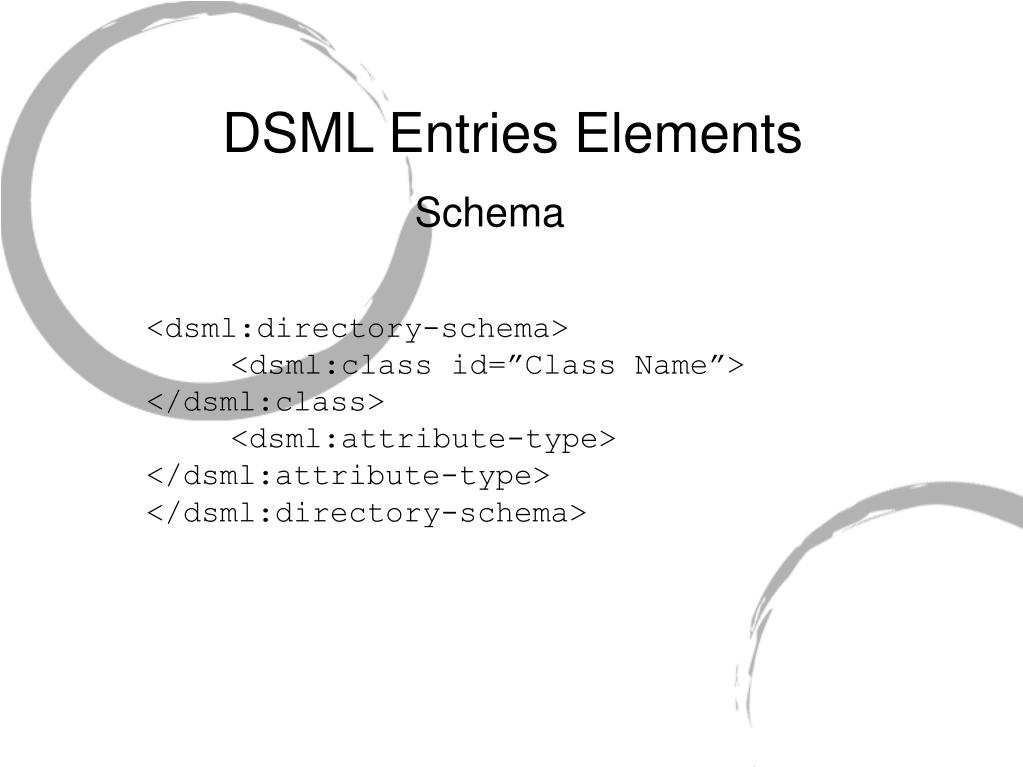

  25. DSML Entries Elements Schema <dsml:directory-schema> <dsml:class id=”Class Name”> </dsml:class> <dsml:attribute-type> </dsml:attribute-type> </dsml:directory-schema>

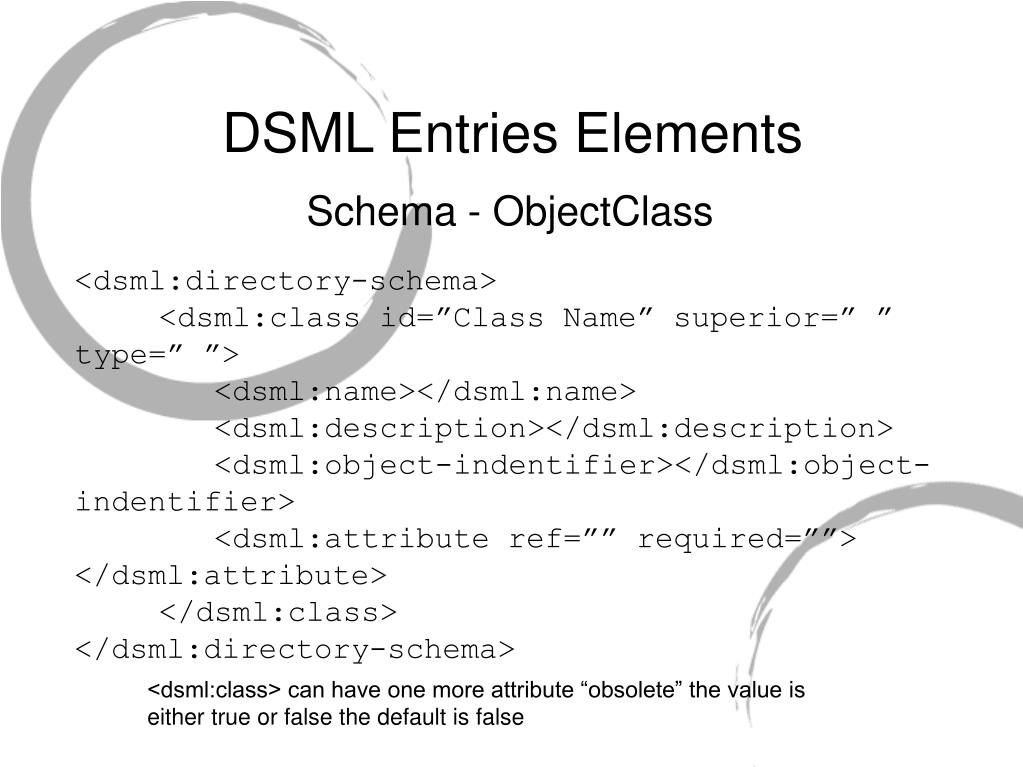

  26. DSML Entries Elements Schema - ObjectClass <dsml:directory-schema> <dsml:class id=”Class Name” superior=” ” type=” ”> <dsml:name></dsml:name> <dsml:description></dsml:description> <dsml:object-indentifier></dsml:object-indentifier> <dsml:attribute ref=”” required=””> </dsml:attribute> </dsml:class> </dsml:directory-schema> <dsml:class> can have one more attribute “obsolete” the value is either true or false the default is false

  27. DSML Entries Elements Schema - Attributes <dsml:directory-schema> <dsml:attribute id=”Attr Name”> <dsml:name></dsml:name> <dsml:description></dsml:description> <dsml:object-indentifier></dsml:object-indentifier> <dsml:syntax> </dsml:syntax> <dsml:equality> </dsml:equality> </dsml:attribute> </dsml:directory-schema> <dsml:class> can have a couple more attributes “obsolete”, “single-value”, “user-modification”

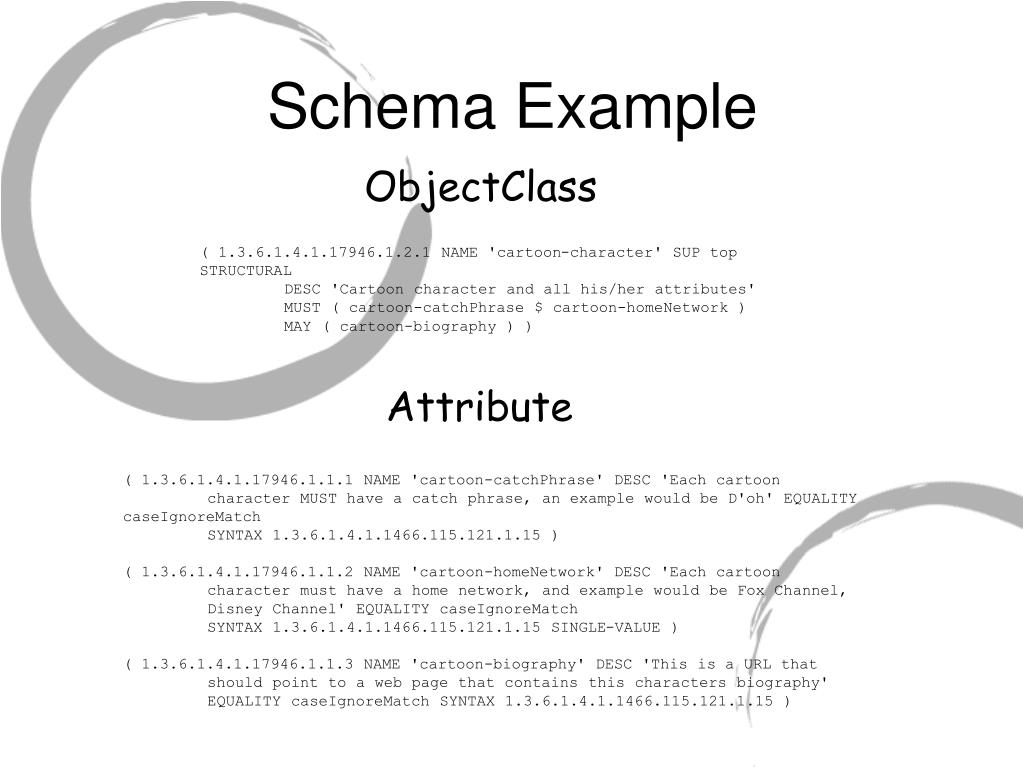

  28. Schema Example ObjectClass ( 1.3.6.1.4.1.17946.1.2.1 NAME 'cartoon-character' SUP top STRUCTURAL DESC 'Cartoon character and all his/her attributes' MUST ( cartoon-catchPhrase $ cartoon-homeNetwork ) MAY ( cartoon-biography ) ) Attribute ( 1.3.6.1.4.1.17946.1.1.1 NAME 'cartoon-catchPhrase' DESC 'Each cartoon character MUST have a catch phrase, an example would be D'oh' EQUALITY caseIgnoreMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15 ) ( 1.3.6.1.4.1.17946.1.1.2 NAME 'cartoon-homeNetwork' DESC 'Each cartoon character must have a home network, and example would be Fox Channel, Disney Channel' EQUALITY caseIgnoreMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15 SINGLE-VALUE ) ( 1.3.6.1.4.1.17946.1.1.3 NAME 'cartoon-biography' DESC 'This is a URL that should point to a web page that contains this characters biography' EQUALITY caseIgnoreMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15 )

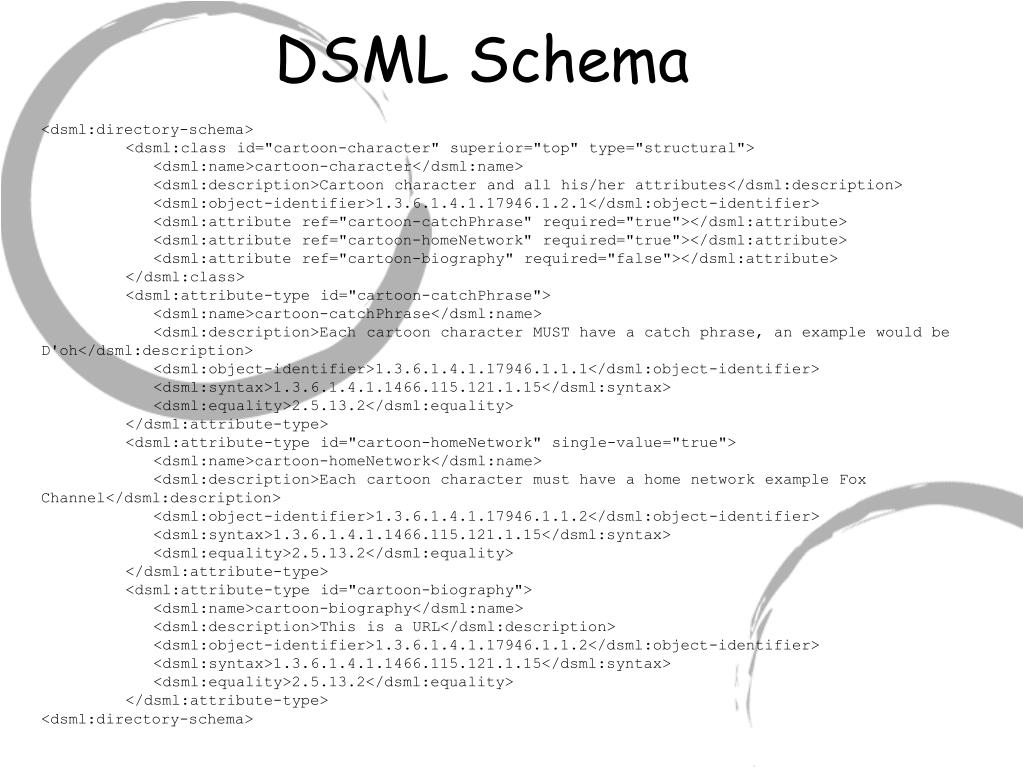

  29. DSML Schema <dsml:directory-schema> <dsml:class id="cartoon-character" superior="top" type="structural"> <dsml:name>cartoon-character</dsml:name> <dsml:description>Cartoon character and all his/her attributes</dsml:description> <dsml:object-identifier>1.3.6.1.4.1.17946.1.2.1</dsml:object-identifier> <dsml:attribute ref="cartoon-catchPhrase" required="true"></dsml:attribute> <dsml:attribute ref="cartoon-homeNetwork" required="true"></dsml:attribute> <dsml:attribute ref="cartoon-biography" required="false"></dsml:attribute> </dsml:class> <dsml:attribute-type id="cartoon-catchPhrase"> <dsml:name>cartoon-catchPhrase</dsml:name> <dsml:description>Each cartoon character MUST have a catch phrase, an example would be D'oh</dsml:description> <dsml:object-identifier>1.3.6.1.4.1.17946.1.1.1</dsml:object-identifier> <dsml:syntax>1.3.6.1.4.1.1466.115.121.1.15</dsml:syntax> <dsml:equality>2.5.13.2</dsml:equality> </dsml:attribute-type> <dsml:attribute-type id="cartoon-homeNetwork" single-value="true"> <dsml:name>cartoon-homeNetwork</dsml:name> <dsml:description>Each cartoon character must have a home network example Fox Channel</dsml:description> <dsml:object-identifier>1.3.6.1.4.1.17946.1.1.2</dsml:object-identifier> <dsml:syntax>1.3.6.1.4.1.1466.115.121.1.15</dsml:syntax> <dsml:equality>2.5.13.2</dsml:equality> </dsml:attribute-type> <dsml:attribute-type id="cartoon-biography"> <dsml:name>cartoon-biography</dsml:name> <dsml:description>This is a URL</dsml:description> <dsml:object-identifier>1.3.6.1.4.1.17946.1.1.2</dsml:object-identifier> <dsml:syntax>1.3.6.1.4.1.1466.115.121.1.15</dsml:syntax> <dsml:equality>2.5.13.2</dsml:equality> </dsml:attribute-type> <dsml:directory-schema>
