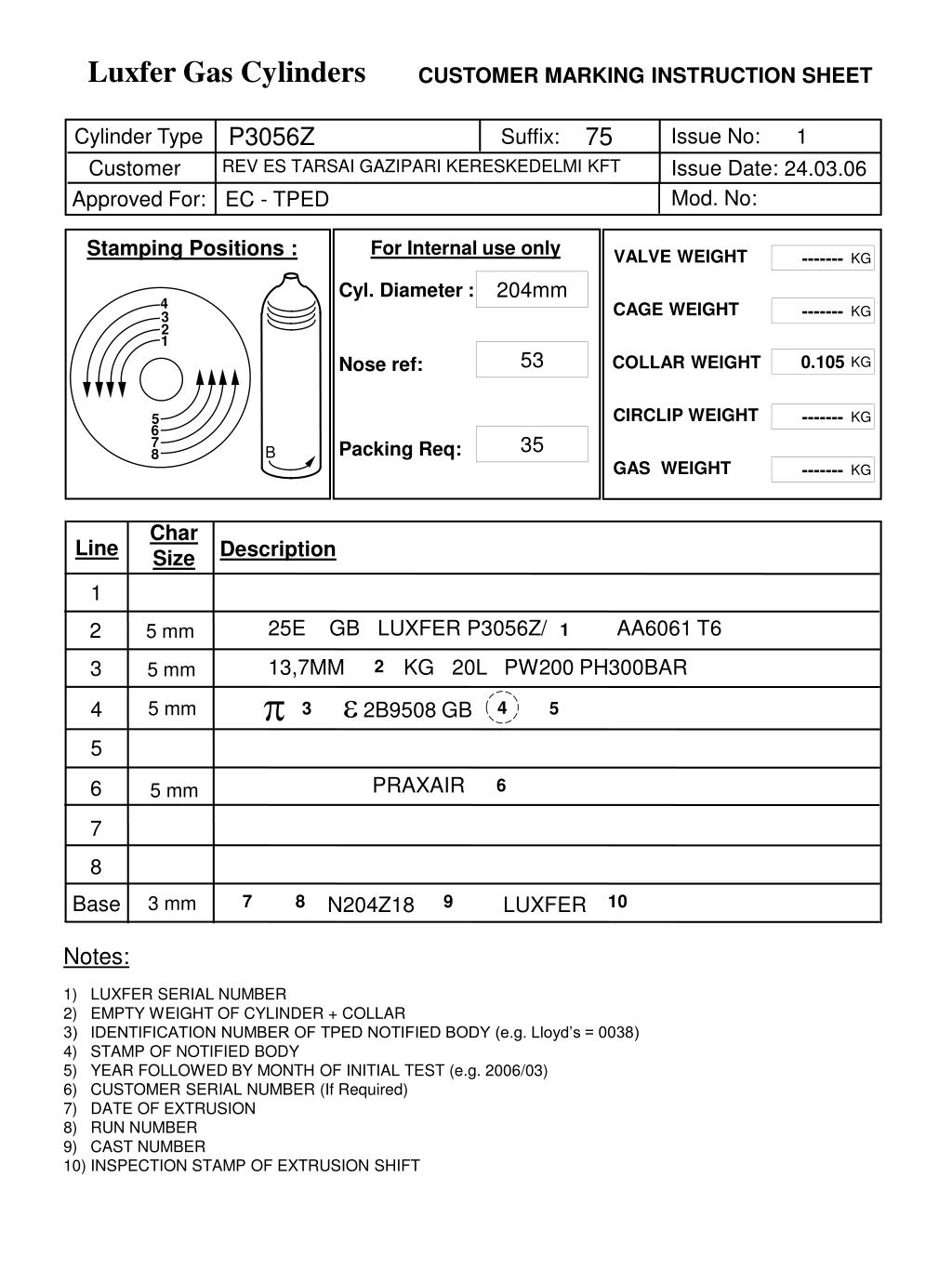

  1. Luxfer Gas Cylinders CUSTOMER MARKING INSTRUCTION SHEET P3056Z 75 Issue No: Cylinder Type Suffix: 1 Customer Issue Date: REV ES TARSAI GAZIPARI KERESKEDELMI KFT 24.03.06 Approved For: EC - TPED Stamping Positions : For Internal use only VALVE WEIGHT 204mm Cyl. Diameter : 4 CAGE WEIGHT 3 2 1 53 ------- ------- ------- ------- 0.105 KG KG KG KG KG Nose ref: COLLAR WEIGHT CIRCLIP WEIGHT 5 6 35 7 Packing Req: B 8 GAS WEIGHT Char Size Line Description 1 25E GB LUXFER P3056Z/ AA6061 T6 2 5 mm 13,7MM KG 20L PW200 PH300BAR 3 5 mm 4 5 mm 2B9508 GB 5 6 7 8 Base 3 mm N204Z18 LUXFER Notes: 1) LUXFER SERIAL NUMBER 2) EMPTY WEIGHT OF CYLINDER + COLLAR 3) IDENTIFICATION NUMBER OF TPED NOTIFIED BODY (e.g. Lloyd’s = 0038) 4) STAMP OF NOTIFIED BODY 5) YEAR FOLLOWED BY MONTH OF INITIAL TEST (e.g. 2006/03) 6) CUSTOMER SERIAL NUMBER (If Required) 7) DATE OF EXTRUSION 8) RUN NUMBER 9) CAST NUMBER 10) INSPECTION STAMP OF EXTRUSION SHIFT Mod. No: 1 2 p e 4 3 5 PRAXAIR 5 mm 6 7 8 9 10
