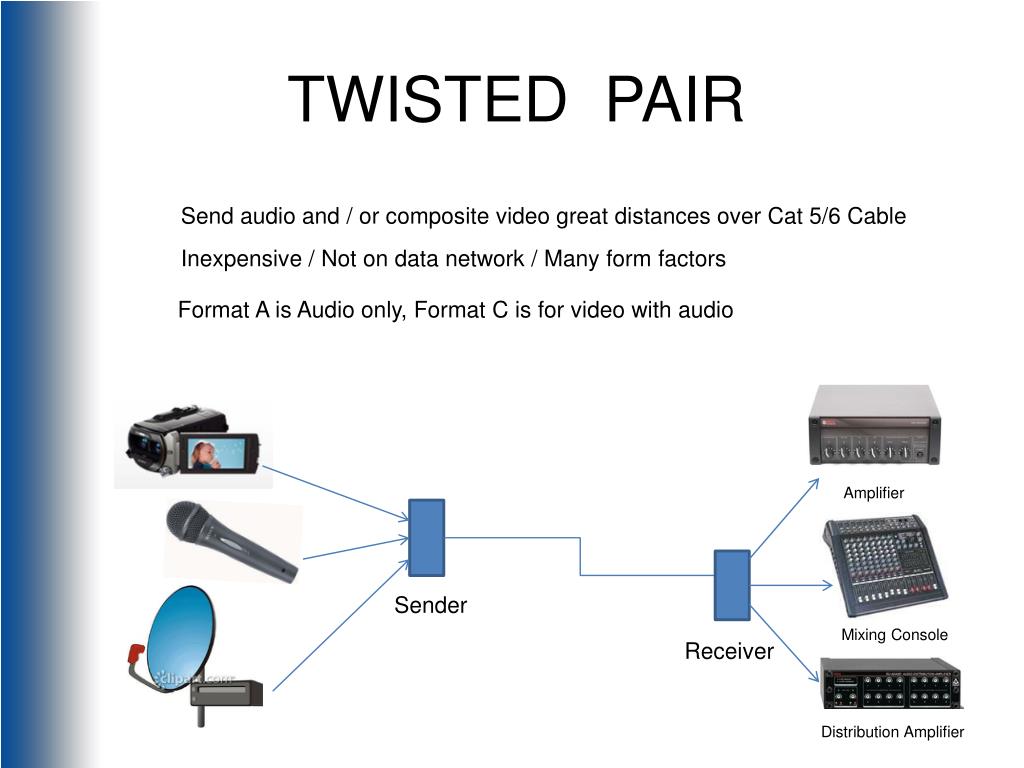

  1. TWISTED PAIR Send audio and / or composite video great distances over Cat 5/6 Cable Inexpensive / Not on data network / Many form factors Format A is Audio only, Format C is for video with audio Amplifier Sender Mixing Console Receiver Distribution Amplifier

  2. TWISTED PAIR FORMAT A - AUDIO ONLY • Audio can be transmitted to 2,200’ (670m) without loss • Installations beyond 5 miles (8km) • Three pair for audio, 1 pair is power • Active (powered) and passive senders • Mic and line level signals • Some inputs will sum stereo to mono • Senders can be looped to add new sources • Receivers can be looped for multiple drops

  3. TWISTED PAIR FORMAT C - AUDIO AND VIDEO • Composite video • Multiple channels of audio • Audio with video • Unbalanced or balanced audio • If sent with Format C, must be received in Format C • All senders and receivers are powered

  4. Twisted Pair - Power Power can be attached to sender and/or receiver Active Senders and Receivers require power within 800’ or 240m Power is on 4th pair Power inserter provides power both ways within 800’ TX-Power Inserter RU-Power Inserter Four Senders/Receivers

  5. Twisted Pair Receivers • 3 channel audio mixer • Balanced or unbalanced out • Audio presence detector • +4dBu or -10dBv with Vu meter and control • VCA 10v volume control FP-TPX3A • 3 channel audio receiver • RCA or terminal block • Balanced or unbalanced out • Most popular receiver TX-TPR3A

  6. Hotel Guest Room Audio System The Newest Twisted Pair Solution • Unbalanced Stereo RCA or speaker level 1-3 W mono • Dual Senders • Sends Stereo on B and C pairs • 3.5W into 8Ω or 6.5W into 4Ω • VCA volume control • No power when turned down • Bedside headphone amplifier • Can link to additional units Perfect for High End or Boutique Hotels and Residential
