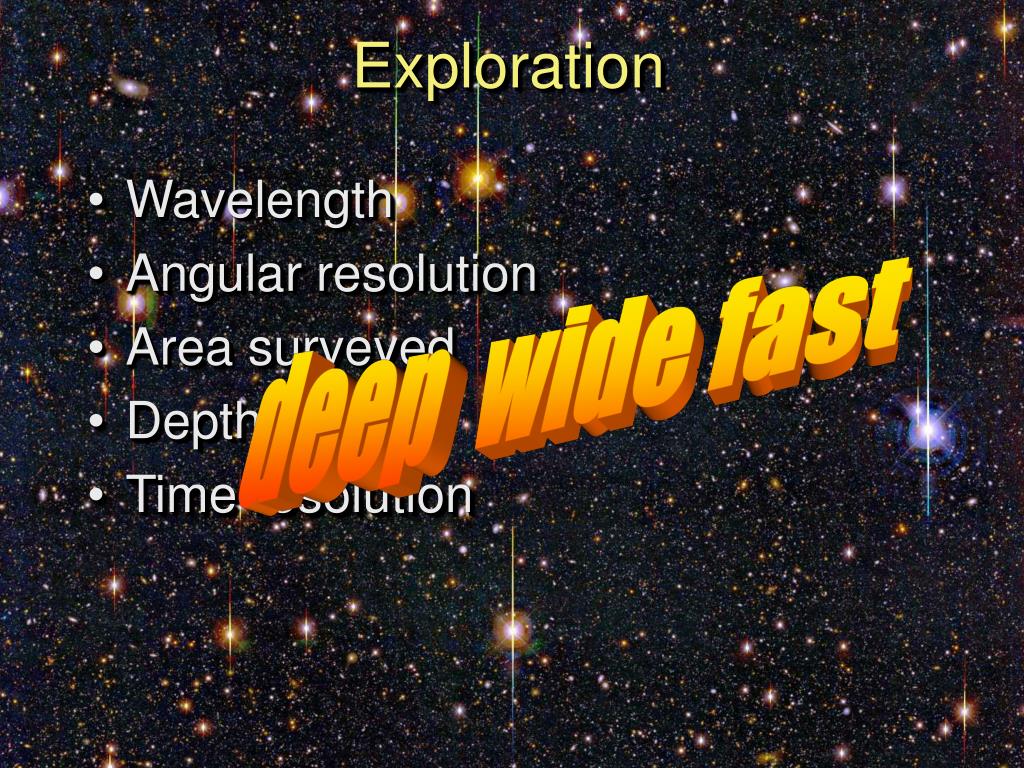

  1. Exploration • Wavelength • Angular resolution • Area surveyed • Depth • Time resolution deep wide fast

  2. Large aspheric optics • Microelectronics • Software

  3. What if we could go faint fastover the entire visible sky? • Unprecedented Planetary Probes • NEO > 250m, KBO, Comets, debris • Probe Dark Energy & Dark Matter • Open the Time Window • Faint Transients (GRB, SN, …?) • Variability studies: stars, galaxies… Requires: reach 24 V mag in ~10 sec over ~5-10 sq deg field LSST

  4. 8.4m diameter primary mirror 7 square degree field of view >15000 Gbytes per night Real-time analysis Celestial Cinematography

  5. DATA

  6. LSST Data Flow Model ~600 MB/sec peak, 15 sec cycle ~ 18 TB/night 103 – 104/night?, 1-10 GB? 10-100GBytes/night? Working Flat Readout and Flatfield Calib. insertion Stacked Sum Boxcar Flat Gen Image Difference “Static” DB Variability Detection Y N • Alert, export: • photometry • flags • Light Curve... Known Obj? Update LC DB Update Calib DB Classifier

  7. 1 bit per 10 trillion cubic light years LSST 2017: 15 Petabyte time-tagged imaging database 1 TB photometric catalog

  8. Petabytes on spinning disks Now LSST • Not a problem in 2008 • Multi-site disk farms • Co-located computing

  9. A Challenge: Software • Key Project Pipelines • Robust Automated Variability Discrimination • Automated Variability Classification • Software adaptive optics – PSF control • Detection Efficiency Calibration • Lossy mining algorithms • Data visualization We can start now, and are doing so.

  10. Key Science Pipelines • multi-taps & realtime calibration • defined data products • data quality verification • duplicate pipelines for testing • industrial model • build on SLOAN, DLS, S-MACHO

  11. Data Quality Assessment

  12. Challenge: Craft the database and tools to enable answers to unanticipated questions

  13. LSST Precursor Projects • SDSS • Deep Lens Survey • Super MACHO • RAPTOR • 80-member LSST Collaboration • has members from all these • projects

  14. The Large Synoptic Survey Telescope – Massively Parallel Astronomy DATA PUBLIC Simultaneously address: • Solar System Probes: Earth-crossing asteroids, Comets, TNOs • Space assets & space junk to 1 cm • Dark matter/dark energy via weak lensing • Dark matter/dark energy via supernovae • Galactic Structure encompassing local group • Dense astrometry over 30000 sq.deg -> deep proper motion science • Gamma Ray Bursts and transients to high z • Gravitational mlensing • Variable stars/galaxies • QSO time delays vs z • Transients to 25 mag: the unknown • 5-band 27 mag photometric survey • Unprecedented many Pbyte time-tagged photometric database
