A Survey on Context-Aware Computing : Past, Present, and Future

1. A Survey on Context-Aware Computing: Past, Present, and Future • Sang-keun Lee Intelligent Database Systems Lab School of Computer Science & Engineering Seoul National University, Seoul, Korea Center for E-Business Technology Seoul National University Seoul, Korea

2. Motivation Context-Aware System

3. History of Context-Aware Computing :Context Definition • Term ‘Context-aware’ appeared in Schilit and Theimer(1994) • Authors describe context as location, identities of nearby people, objects, and changes to those objects • Ryan et al. (1997) referred to context as the user’s location, environment, identity, time • Day (1998) : the user’s emotional state, focus on attention, location, and orientation, date and time, as well as objects and people in the environment • Dey and Abowd (2000) • Any information that can be used to characterize the situation of entities that are considered relevant to the interaction between a user and an application, including the user and the application themselves

4. History of Context-Aware Computing :Application & System, Context Model • Active Badge Location System (Wang et al., 1992) • One of the first context-aware systems • Forward phone calls to a telephone close to the user • Couple of location-aware tour guides • Abowd et al., 1997; Sumi et al., 1998; Cheverst et al.,2000 • Providing information according to the user’s current location • Watson Project (Budzik and Hammond, 2000) • W3C, RDF available (2000) • IntelliZap (Finkelstein, 2001) • Context Toolkit (Dey and Abowd, 2001) • p2p architecture + centralized discoverer, attribute-value tuple/XML - Context aggregation/interpretation, historical context data, Context Ownership (Privacy) • Hydrogen (Hofer, 2002) • local/remote context, Object Oriented Model, process higher-level context abstraction in application layer

5. History of Context-Aware Computing :Application & System, Context Model • Gaia project (Roman’s) • Extends operating system contepts to include context-awareness • 4-ary predicates in DAML+OIL, context processing is based on first-order logic operation • Graphical Context Model: ORM (Hendricksen, 2003) • Context Managing Framework (Koripaa, 2003) • Centralized server • CoBrA- Context Broker Architecture (Chen, 2003) • COBRA-Ont(Ontology Model), Inference Engine, historical context data, • Broker federation – Avoiding bottleneck • Context Knowledge base – You can assert, delete, modify, query the stored data(API) • Flexibile policy language to control context access called Rei (privacy) • 2004 W3C, OWL available

6. History of Context-Aware Computing :Application & System, Context Model • Markup scheme model: Composite Capabilities/Preference Profile (CC/PP) (W3C, 2004) • SOCAM(Service-Oriented Context-Aware Middleware) (Gu, 2004) • Upper ontology, Domain-specific Ontology • CASS (Fahy and Clarke, 2004) • CORTEX (2004) • Based on sentient object model – sensor fusion to manage uncertainty of sensor data • Graphical Context Model: Context Modeling using UML (Sheng and Benatallah, 2004) • CoCA (Ejigu, 2007) • Enhanced CoCA (Ejigu, 2008) • Using a hybrid context management model – Relational Database, Ontology Tools • Heuristics for better performance

7. History of Context-Aware Computing:Sensor Definition • Burnett (2003) and Gustavsen (2002) • External and internal • Hofer et al. (2002) • Physical and logical Context that can be measured by hardware sensors, i.e,., locationa, light, sound, movement, touch, temperature or air pressure Context that can be captured by user interactions, i.e., the user’s goals, tasks, work context, emotional state Easier to sense

10. The History in Summary • Specific Context Definition to General Context Definition • Non-Flexible Context Models to Flexible and Extensible Context Model • Domain-specific Applications to General Frameworks

11. Categories of Context Aware Applications • Schilit (1994) • Proximate Selection • A user interface technique where the located-objects that are nearby are emphasized or otherwise made easier to choose • Automatic Contextual Reconfigurations • Reconfiguration is the process of adding new components, removing existing components or altering the connections between components • Contextual Information and Commands • Queries on contextual information can produce different results according to the context in which they are issued • Context-Triggered Actions • Context-triggered actions are simple IF-THEN rules used to specify how context-aware systems should adapt • Sang-keun Lee • Context-Aware / Personalized Contents Push • Seamless Device Switching • Automatic Device Configuration • Decision Support/Suggestion • Context Aware User Interface Context-aware computing applications (Schilit, B.; Adams, N.; Want, R.) Mobile Computing Systems and Applications, 1994. Proceedings., Workshop onVolume , Issue , 8-9 Dec 1994 Page(s):85 - 90

12. An Example of Domain-dependent Applications: Cyberguide : A mobile context-aware tour guide (1997) • Goal • know where tourist is, and what she is looking for • predict and answer question she may pose • provide interaction with other people and environment

13. Design Principles – Architecture • Chen (2004) presents three different approaches on how to acquire contextual information • Direct sensor access – devices with sensors locally built in • Middleware infrastructure – hiding low-level sensing details, more extensible • Context Server – multiple clients access to remote data source • Winograd(2001) • Widgets – a software component that provides a public interface for a hardware sensor, hiding low-level details of sensing, managed by widget manager • Networked services – more flexible, discovery techniques are used, not as efficient as a widget architecture but provides robustness • Blackboard model – data centric view, simplicity of adding new context sources (easy configuration) • Architecture Style • Peer to Peer • Limitation of Memory Resource, CPU Performance • Only uses local built-in sensors • Centralized Approach • Robustness Baldauf, M., Dustdar, S., and Rosenberg, F. 2007. A survey on context-aware systems. Int. J. Ad Hoc Ubiquitous Comput. 2, 4 (Jun. 2007), 263-277. DOI= http://dx.doi.org/10.1504/IJAHUC.2007.014070

14. Hydrogen (2002) • Framework Architecture • Three layer • Application layer • Management layer • Providing and retrievingcontexts and sharingcontext informationwith other devices usingP2P communication • Adaptor Layer • Separating context storing, sensing from other layers • Responsible to get information from sensors • Providing same context information to multiple applications • All application have access to all context data by querying the ContextServer • All layers are located on one device • Robust against network disconnections, Peer to Peer • Object-oriented Context Model

15. SOCAM Architecture (2004) • Context providers, Context interpreter, Context database, Context-aware services, and Service locating service • Architectural Requirements • A common context model that can be shared by all devices and services • A set of services that perform context acquisition, context discovery, context interpretation and context dissemination • Upper/Domain-specific Ontology

16. The Context Fabric (2004) • Primarily concerned with privacy rather than with context sensing and processing • provides an architecture for privacy-sensitive systems, as well as a set of privacy mechanisms that can be used by application developers • Previous work on privacy has tended to focus on anonymity or on keeping information from hackers • Confab’s focus is in empowering people with choice and informed consent, so that they can share the right information, with the right people and services, in the right situation

17. The CoCA Service Platform (2007) It Keeps the rules in the rule repository It consists of domain dependent/independent ontology • The Platform aims at acquiring and utilizing context information to provide appropriate services • E.g) A cell phone is always set to vibrating mode when its holder is in the library It filters and sends useful contexts to the context repository • Interface Manager • Manages a UI and interface between the CoCA platform and other modules • Data Source • Responsible to provide necessary data to the core service (GCoM) • Core Service • Responsible to provide the core context aware service after reasoning on the components • Supplementary Service • Knowledge discovery & Collaboration service Reasoning -> Decision & Action Interpretation, Aggregation IDS Lab.

18. The Enhanced CoCA Service Platform (2008) • Enhanced version of CoCA • Combine the best of the relational approach and ontology approach • Selective feature of loading only relevant context data into the reasoner using heuristics

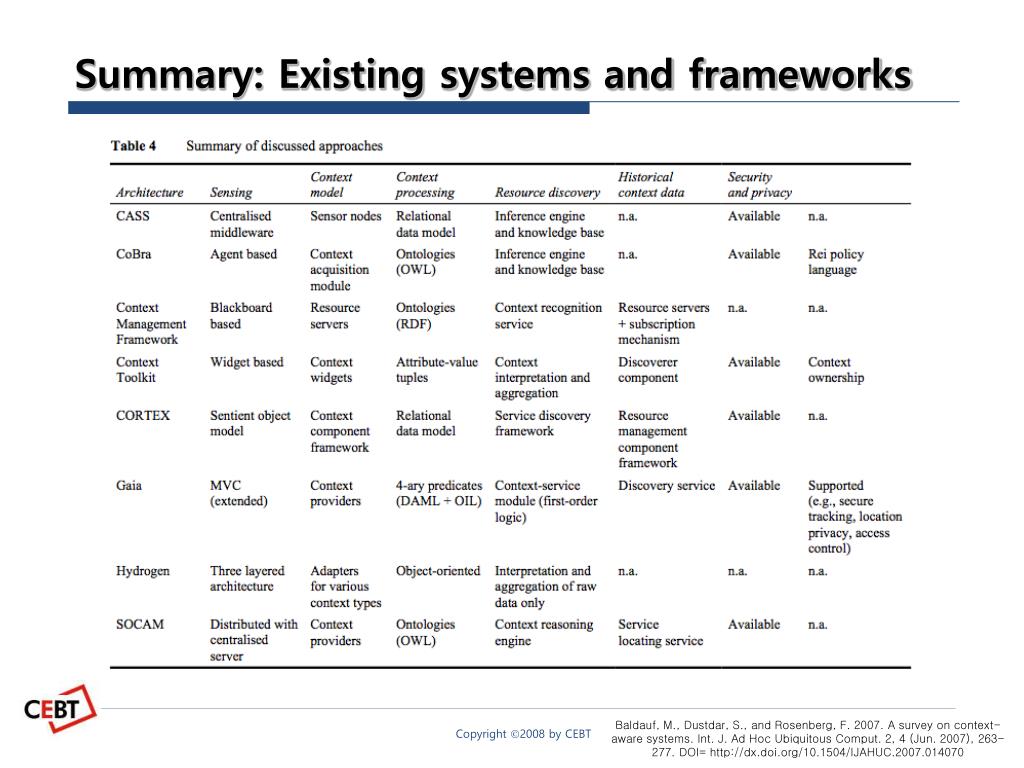

19. Summary: Existing systems and frameworks Baldauf, M., Dustdar, S., and Rosenberg, F. 2007. A survey on context-aware systems. Int. J. Ad Hoc Ubiquitous Comput. 2, 4 (Jun. 2007), 263-277. DOI= http://dx.doi.org/10.1504/IJAHUC.2007.014070

20. Criteria Henricksen, K., Indulska, J., McFadden, T. and Balasubramaniam, S. (2005). Middleware for distributed context-aware systems. In: Robert meersman and ZahirTari et al International Symposium on Distributed Objects and Applications (DOA), Agia Napa, Cyprus, 31 October - 4 November, 2005.

21. Discussion • Does a context-aware system bother users? • MS Office Assistant Clippy • Three Levels of Interactivity • Personalization • The majority of users use the default setting of change a small subset of the possible features • Passive Context-awareness • Presenting the updated context to the user • Let the user specify how the application should change • Ex) mobile phone prompts the user with information about the time zone change • Active Context-awareness • Changing the content autonomously on the basis of measured sensor data • Ex) Mobile phone that changes its time autonomously by new time zone • The authors conclude that people are willing to give up partial control if the reward in usefulness is great enough • How could we deal with the imperfect/probabilistic context data? • Fuzzy Logic • Context Data Abstraction • What could be the Killer Application? • What could we mine from the log data? • Support Rules • Peer to Peer vs. Centralized System L Barkhuus, A Dey, Is Context-Aware Computing Taking Control Away from the User? Three Levels of Interactivity Examined,2003

22. Layered Conceptual Framework with Core Components Private Seamless Scalable Intelligent Ubiquitous Context-Aware Services: Context Aware User Interface Context-Aware Personalized Contents Push Seamless Device Switching Automatic Device Configuration Decision Support& Suggestion Service & Application Design Layer: Domain-specificContext Data Modeling RuleDefining ServiceAlgorithm Implementation Privacy & SecurityPolicy Defining Semantic Technology Layer: Ontology Repository Inference Engine Context OntologyModeling Context Fusion & Abstraction Rule based Action Triggering Ontology DataStorage& Management Foundation Layer: Sensors Data/Rule Mining Relational Database Network Low-levelData Modeling Context Acquisition DeviceCommunication Data Management & Mining

23. Conclusions • We talked about • Motivation • History of Context-aware Computing • Categories of Context-aware Applications • Design Principle • Examples of Context-aware Systems • Criteria & Discussion • What will be the future Context-aware System? • A Context-aware system with • Better scalability and performance • Utilizing historical context data (Rule mining, ...) • Better Security policies and privacy protection • Virtual and logical sensor support • Standard communication protocol and context model
