  1. Web Design & DevelopmentLecture 19

  2. Java Graphics 2

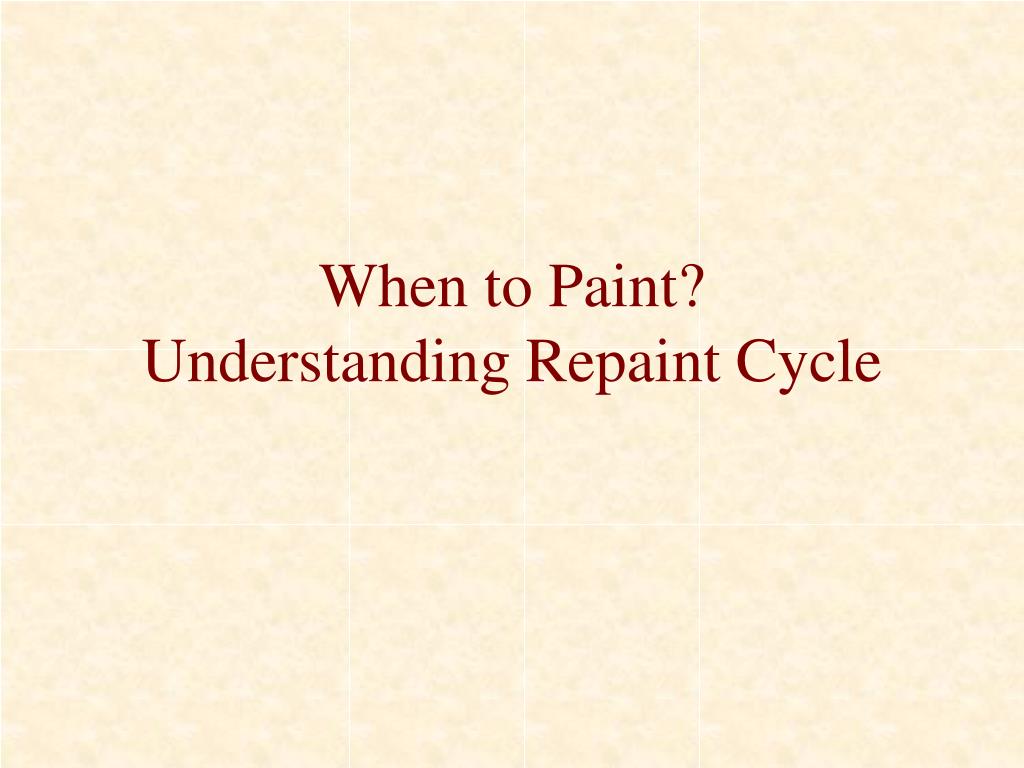

  3. When to Paint?Understanding Repaint Cycle

  4. Your Painting Strategy • Steps • Subclass JPanel • class MyPanel extends JPanel • Override the paintComponent(Graphics g) method • Inside method do what ever you want to do by using graphics object. • Install that JPanel inside a JFrame • When frame becomes visible and its paintChildren() gets called your panel will become visible. • To become visible your panel calls paintComponent() method on itself which will do your custom drawing

  5. Last Example Code: MyPanel.java import javax.swing.*; import java.awt.*; public class MyPanel extends JPanel { public void paintComponent(Graphics g){ super.paintComponent(g); // erasing behaviour Graphics2D g2 = (Graphics2D)g; g2.drawRect(20,20,20,20); g2.setColor(Color.blue); g2.fillOval(50,50,20,20); g2.drawString("Hello World", 120, 50); } }

  6. Last Example Code: Test.java import javax.swing.*; import java.awt.*; public class Test{ JFrame f; MyPanel p; public Test1(){ f = new JFrame(); Container c = f.getContentPane(); c.setLayout(new BorderLayout()); p = new MyPanel(); c.add(p); f.setSize(400,400); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } // end constructor

  7. Last Example Code: Test.java public static void main(String args[ ]){ Test1 = new Test(); } } // end class

  8. How to Animate • Constantly need to call paintComponent() and draw the shape at new place (new co-ordinates) • Painting is managed by system and calling paintComponent() directly is not recommended at all • Use Repaint() mechanism

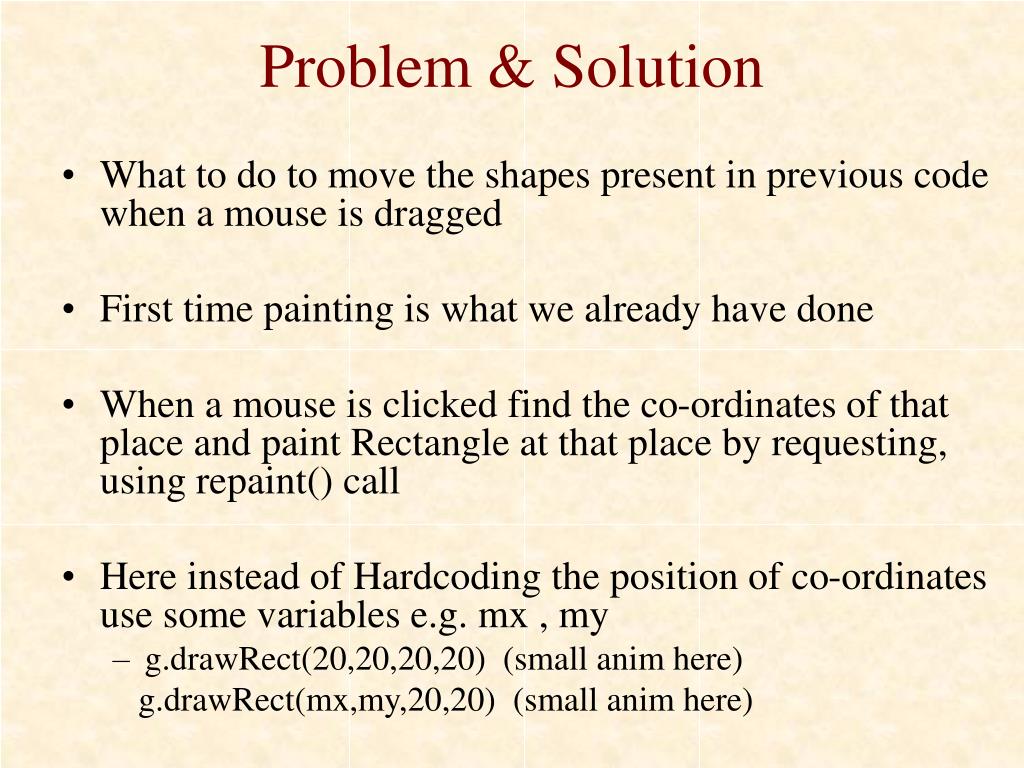

  9. Problem & Solution • What to do to move the shapes present in previous code when a mouse is dragged • First time painting is what we already have done • When a mouse is clicked find the co-ordinates of that place and paint Rectangle at that place by requesting, using repaint() call • Here instead of Hardcoding the position of co-ordinates use some variables e.g. mx , my • g.drawRect(20,20,20,20) (small anim here) g.drawRect(mx,my,20,20) (small anim here)

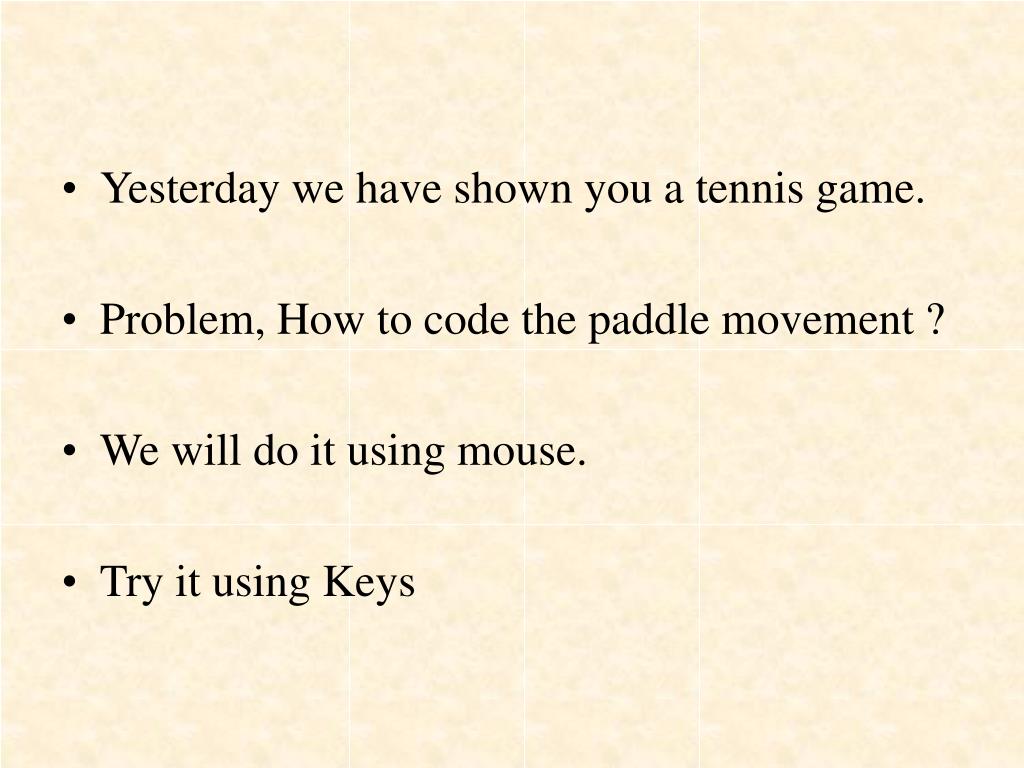

  10. Yesterday we have shown you a tennis game. • Problem, How to code the paddle movement ? • We will do it using mouse. • Try it using Keys

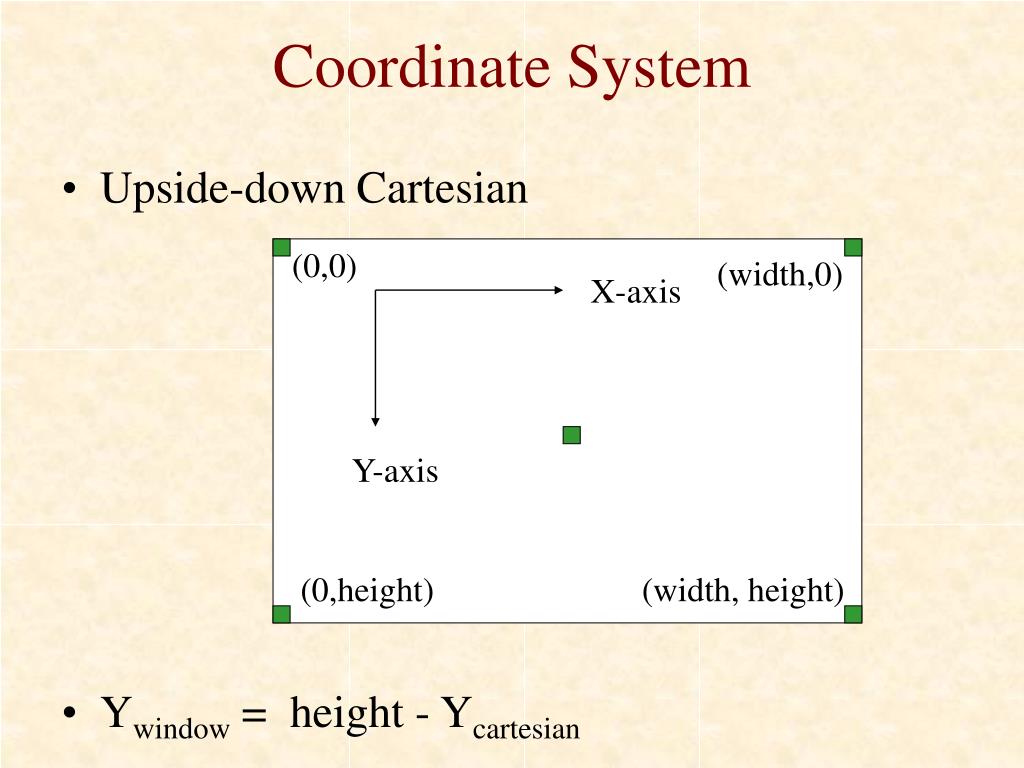

  11. Coordinate System • Upside-down Cartesian • Ywindow = height - Ycartesian (0,0) (width,0) X-axis Y-axis (0,height) (width, height)

  12. Live Output

  13. Example Code: MyPanel.java import javax.swing.*; import java.awt.*; public class MyPanel extends JPanel { int mX = 20; int mY = 20; public void paintComponent(Graphics g){ super.paintComponent(g); // erasing behaviour Graphics2D g2 = (Graphics2D)g; g2.fillRect(mX, mY,10, 20); } }

  14. Example Code: Test.java import javax.swing.*; import java.awt.*; Import java.awt.event.*; public class Test{ JFrame f; MyPanel p; public Test(){ f = new JFrame(); Container c = f.getContentPane(); c.setLayout(new BorderLayout()); p = new MyPanel(); c.add(p);

  15. Example Code: Test.java f.setSize(400,400); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); Handler h = new Handler (); p.addMouseMotionListener(h); } // end constructor public class Handler extends MouseMotionAdapter{ public void mouseDragged(MouseEvent me){ p.mX = me.getX() ; p.mY = me.getY() ; p.repaint() ; } }

  16. Example Code: Test.java public static void main(String args[ ]){ Test t = new Test( ); } } // end class

  17. Example Code: MyPanel.java import javax.swing.*; import java.awt.*; public class MyPanel extends JPanel { int mX = 200; int mY = 0; public void paintComponent(Graphics g){ super.paintComponent(g); // erasing behaviour Graphics2D g2 = (Graphics2D)g; g2.setColor(Color.blue); g2.fillOval(mX, mY, 20, 20); } } // end class

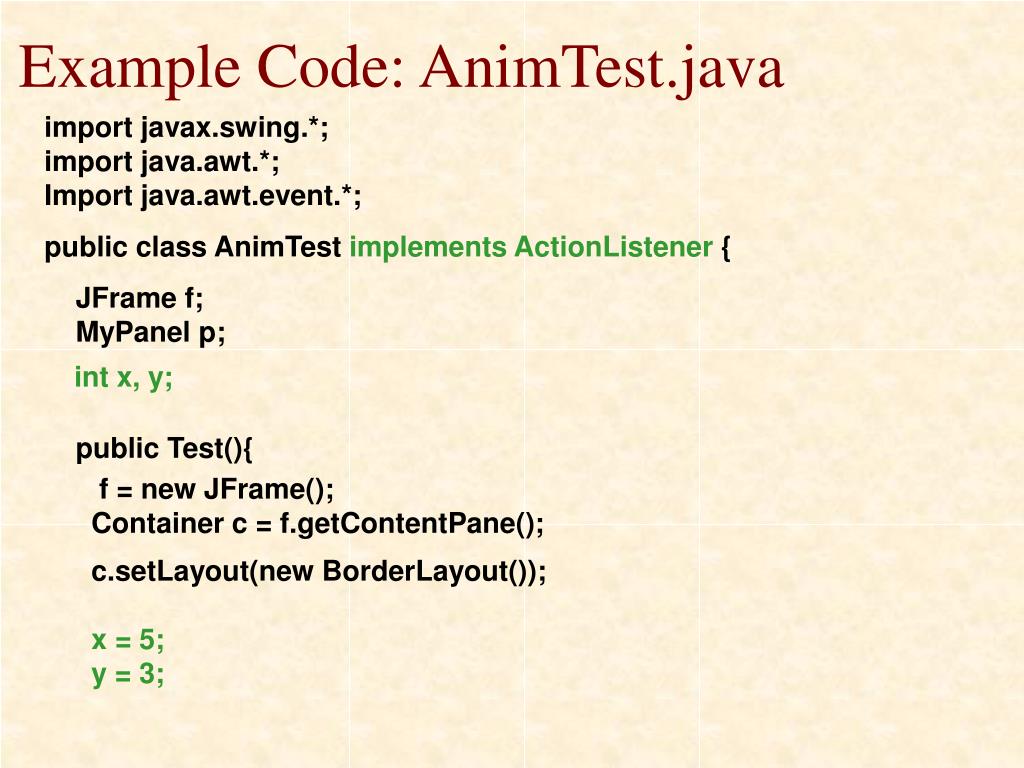

  18. Example Code: AnimTest.java import javax.swing.*; import java.awt.*; Import java.awt.event.*; public class AnimTest implements ActionListener { JFrame f; MyPanel p; int x, y; public Test(){ f = new JFrame(); Container c = f.getContentPane(); c.setLayout(new BorderLayout()); x = 5; y = 3;

  19. Example Code: AnimTest.java p = new MyPanel(); c.add(p); f.setSize(400,400); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); Timer t = new Timer (5, this); t.start(); } // end constructor …..

  20. Example Code: AnimTest.java public void actionPerformed(ActionEvent ae){ if (f.getWidth()-40 == p.mX) x= -5; if (f.getHeight()-40 == p.mY) y= -3; if (p.mX == 0 ) x = 5; if (p.mY == 0 ) y=3; p.mX+=x; p.mY+=y; p.repaint() ; }

  21. Example Code: AnimTest.java public static void main(String args[ ]){ AnimTest at = new AnimTest( ); } } // end class

  22. Live Output
