  1. Introduction to SQL Server 2000 Presented by Tarek Ghazali IT Technical Specialist Microsoft SQL Server MVP Web Development MCP LebDev Vice President © 2006 Tarek Ghazali. All rights reserved.

  2. What is SQL Server 2000? (1) • SQL Server is a client/server based relational database management system • Runs on Windows 2003 server ,2000 Professional & Server, Advanced Server, NT 4, Windows 9x/ME/XP Pro. or Windows CE • Included in BackOffice product family • Included in .Net Servers family

  3. What is SQL Server 2000? (2) Client SQL Server Results Query Client Application Relational Database Management System

  4. What is SQL Server 2000? (3) • Microsoft SQL Server 2000 is designed to work effectively as: • A central database on a server shared by many users who connect to it over a network. • A desktop database that services only applications running on the same desktop

  5. SQL Server Services • Consists of 3 Services: • MSSQLServer • Data & query processing • SQL Server Agent • Scheduled jobs & alerts • Microsoft Distributed Transaction Coordinator • The Microsoft Distributed Transaction Coordinator (MS DTC) is a transaction manager that allows client applications to include several different sources of data in one transaction. MS DTC coordinates committing the distributed transaction across all the servers enlisted in the transaction.

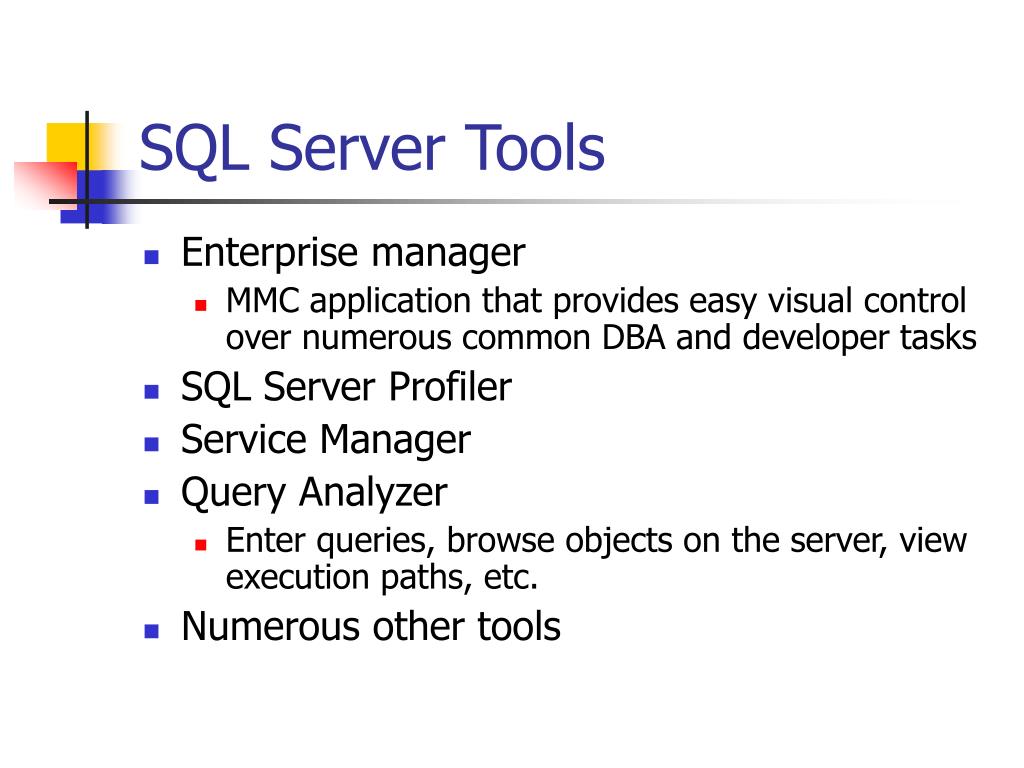

  6. SQL Server Tools • Enterprise manager • MMC application that provides easy visual control over numerous common DBA and developer tasks • SQL Server Profiler • Service Manager • Query Analyzer • Enter queries, browse objects on the server, view execution paths, etc. • Numerous other tools

  7. Query Client-Server Communication Process Client Application SQL Server 1 Server Net-Libraries Result Set Database API (OLE DB, ODBC, DB-Library) 5 Open Data Services 3 Query Result Set Relational Engine Client Net-Library 2 Client Server 4 Storage Engine Processor Memory Local Database

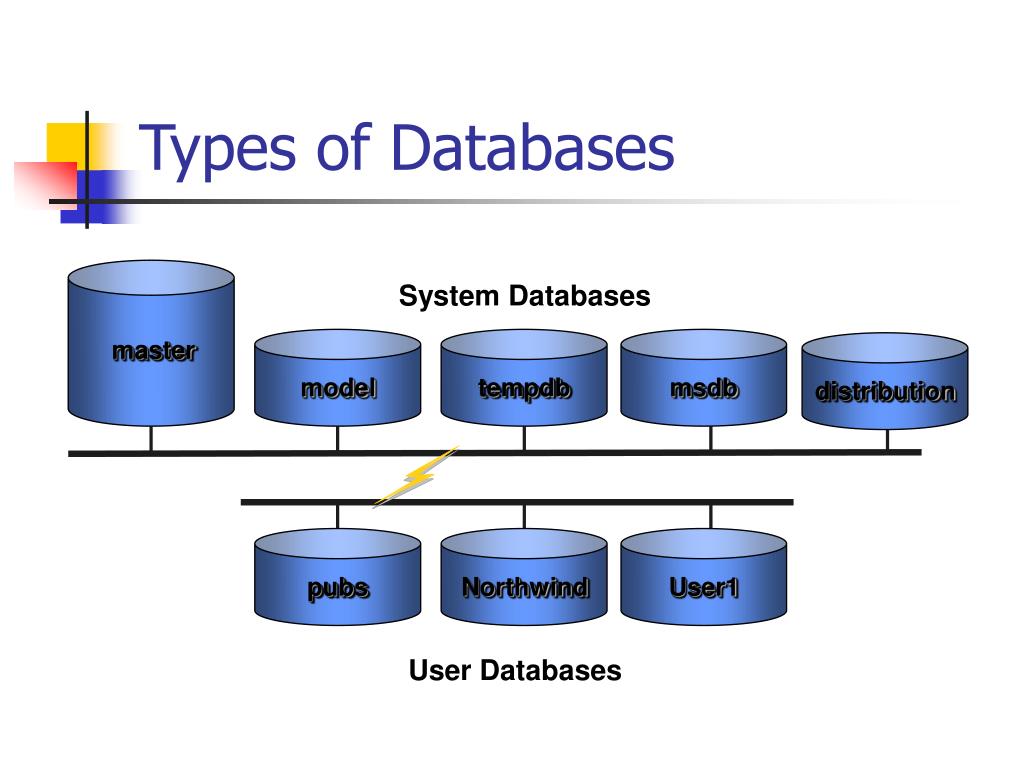

  8. Types of Databases System Databases master model tempdb msdb distribution pubs Northwind User1 User Databases

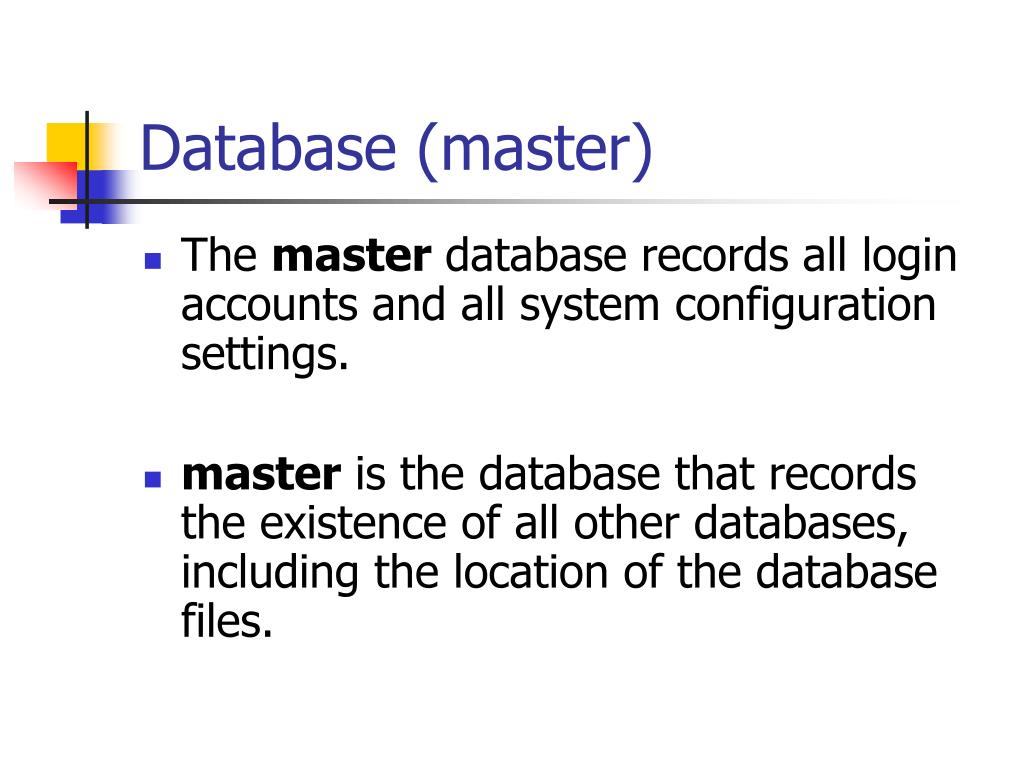

  9. Database (master) • The master database records all login accounts and all system configuration settings. • master is the database that records the existence of all other databases, including the location of the database files.

  10. Databases (msdb,distribution,model) • The msdb database is used by SQL Server Agent for scheduling alerts and jobs, and recording operators. • The distribution database is used for replication. • The model database is used as the template for all databases created on a system.

  11. Database (tempdb) • tempdb holds all temporary tables and temporary stored procedures. It also fills any other temporary storage needs such as work tables generated by SQL Server. • tempdb is re-created every time SQL Server is started so the system starts with a clean copy of the database.

  12. System Tables • System tables store information (metadata) about the system and database objects • Database catalog stores metadata about a specific database • System catalog stores metadata about the entire system and all other databases

  13. User Tables • Defined by DBA or developer to hold application specific information • Created either through Transact-SQL script or Enterprise Manager • System catalog is updated to hold meta-information about the user tables

  14. Clustered Index Anderson Anderson Barr ... FK PK longstring integer longstring varchar(20) char(2) char(6) Checkx##### StoredProcedureUpdatePhone Trigger EmpNum LastName FirstName CtryCode Extension LastMod 10191 Labrie Angela FR x19891 \HR\KarlD 10192 Labrie Eva FR x19433 \HR\KarlD 10202 Martin Jose SP x21467 \HR\AmyL EmployeePhoneView SELECT lastname, firstname, extension FROM employee

  15. Referring to SQL Server Objects • Fully Qualified Names • server.database.owner.object • Partially Specified Names • Server defaults to the current instance on the local server • Database defaults to current database • Owner defaults to the user name in the database CREATE TABLE Northwind.dbo.OrderHistory . . .

  16. Implementing a SQL Server Database • Designing the Database • Creating the Database and Database Objects • Testing and Tuning the Application and Database • Planning Deployment

  17. SQL Server Demonstration

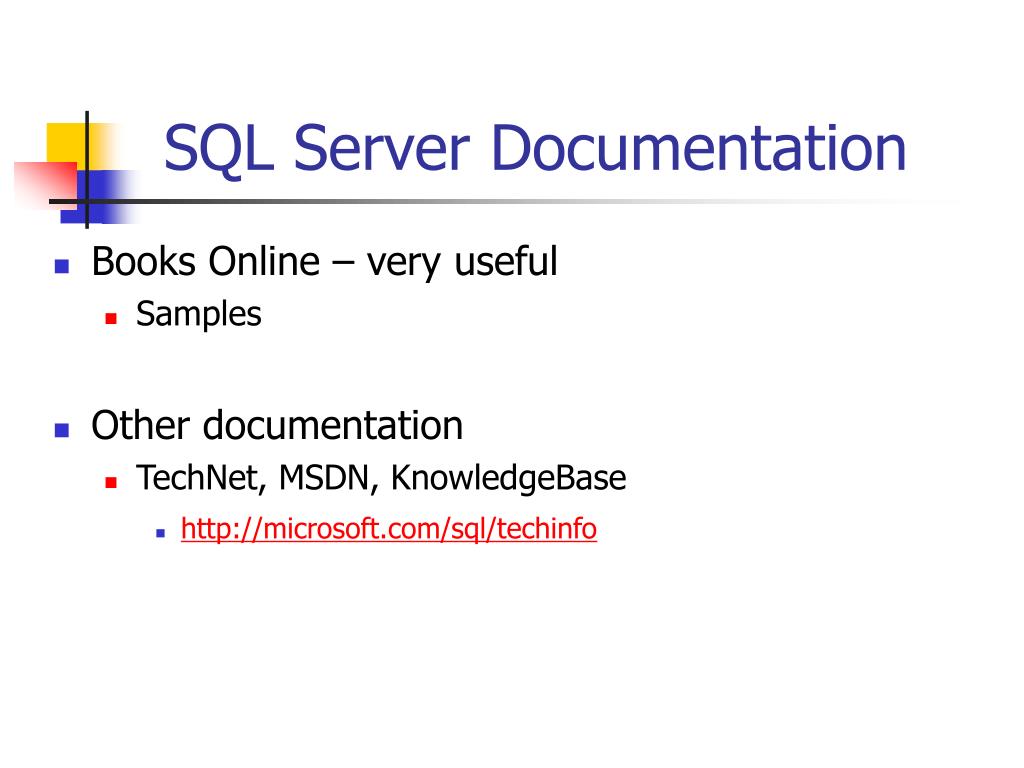

  18. SQL Server Documentation • Books Online – very useful • Samples • Other documentation • TechNet, MSDN, KnowledgeBase • http://microsoft.com/sql/techinfo

  19. SQL Server Usage • SQL Server is used in solutions for systems from 10 MBs to 100 TB • SQL Server is used on highly available systems (web sites, etc.) where 99.999% availability is required • See http://www.microsoft.com/sql for references

  20. Thank you! • Microsoft Resources: • msdn.microsoft.com/sqlserver/ • www.microsoft.com/sql/community • Contact me: • tghazali@sqlmvp.com • www.sqlmvp.com(will be available soon) • Download Presentation : • www.lebdev.net
