  1. Computer Buses SJSU - Fall 2008 CS 147 Vu Luu

  2. Contents 1. Concepts 2. Measurement 3. Operation

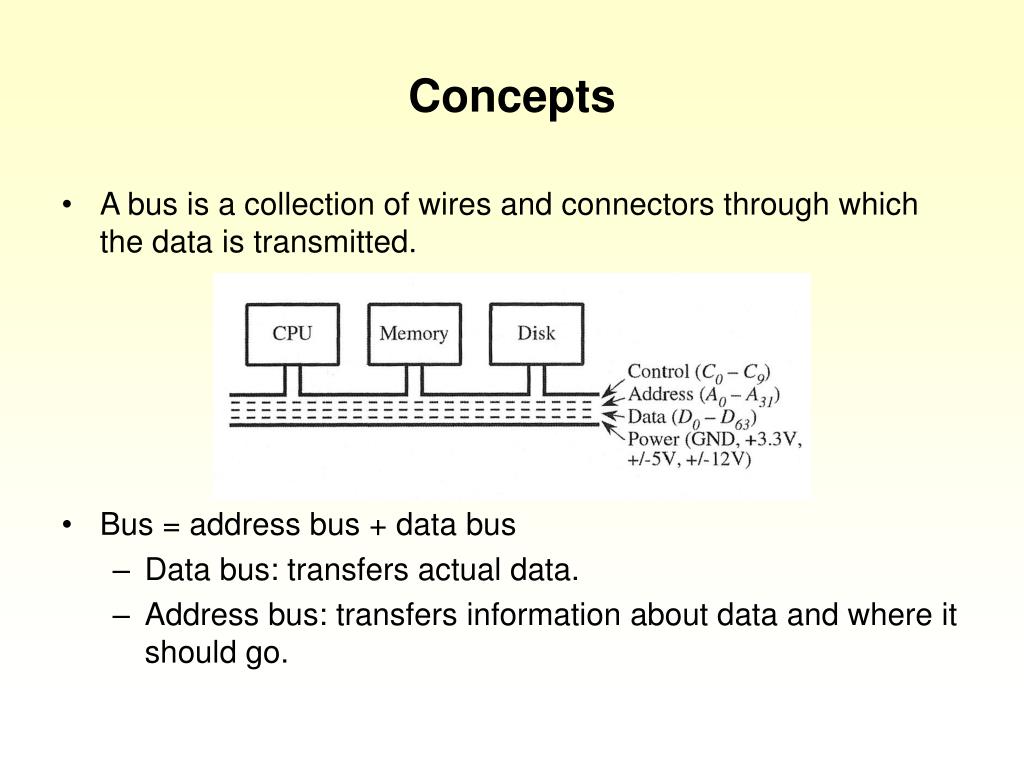

  3. Concepts • A bus is a collection of wires and connectors through which the data is transmitted. • Bus = address bus + data bus • Data bus: transfers actual data. • Address bus: transfers information about data and where it should go.

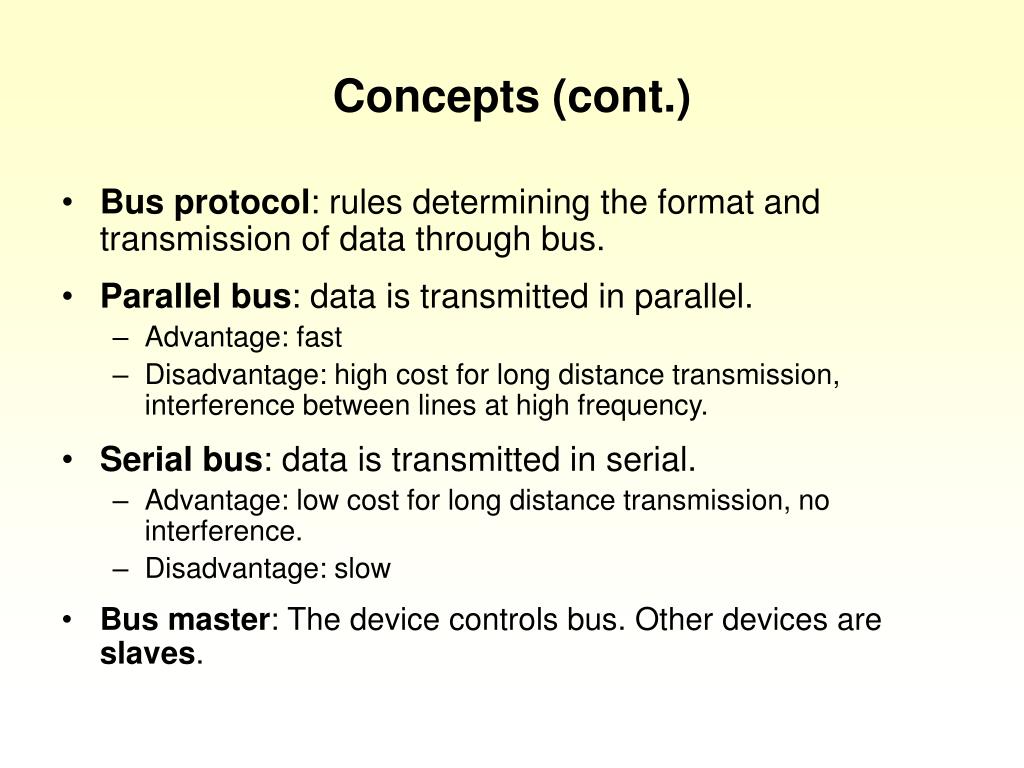

  4. Concepts (cont.) • Bus protocol: rules determining the format and transmission of data through bus. • Parallel bus: data is transmitted in parallel. • Advantage: fast • Disadvantage: high cost for long distance transmission, interference between lines at high frequency. • Serial bus: data is transmitted in serial. • Advantage: low cost for long distance transmission, no interference. • Disadvantage: slow • Bus master: The device controls bus. Other devices are slaves.

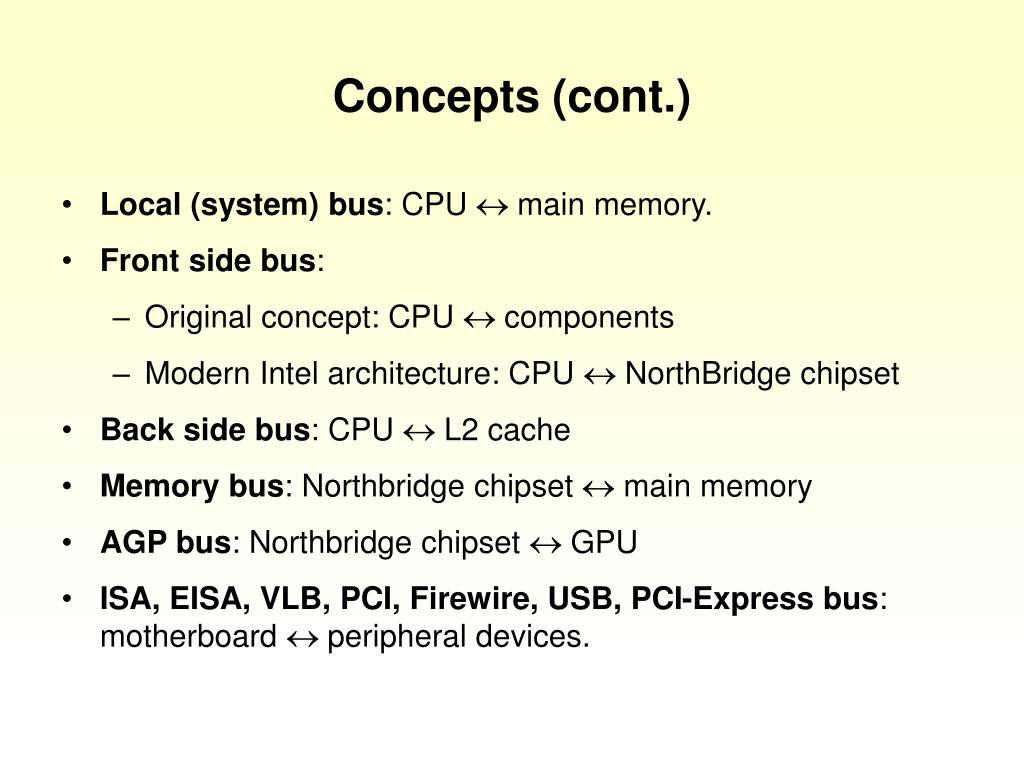

  5. Concepts (cont.) • Local (system) bus: CPU  main memory. • Front side bus: • Original concept: CPU  components • Modern Intel architecture: CPU  NorthBridge chipset • Back side bus: CPU  L2 cache • Memory bus: Northbridge chipset  main memory • AGP bus: Northbridge chipset  GPU • ISA, EISA, VLB, PCI, Firewire, USB, PCI-Express bus: motherboard  peripheral devices.

  6. Measurement • Bus width: indicates the number of wires in the bus for transferring data. • Bus bandwidth: refers to the total amount of data that can theoretically be transferred on the bus in a given unit of time.

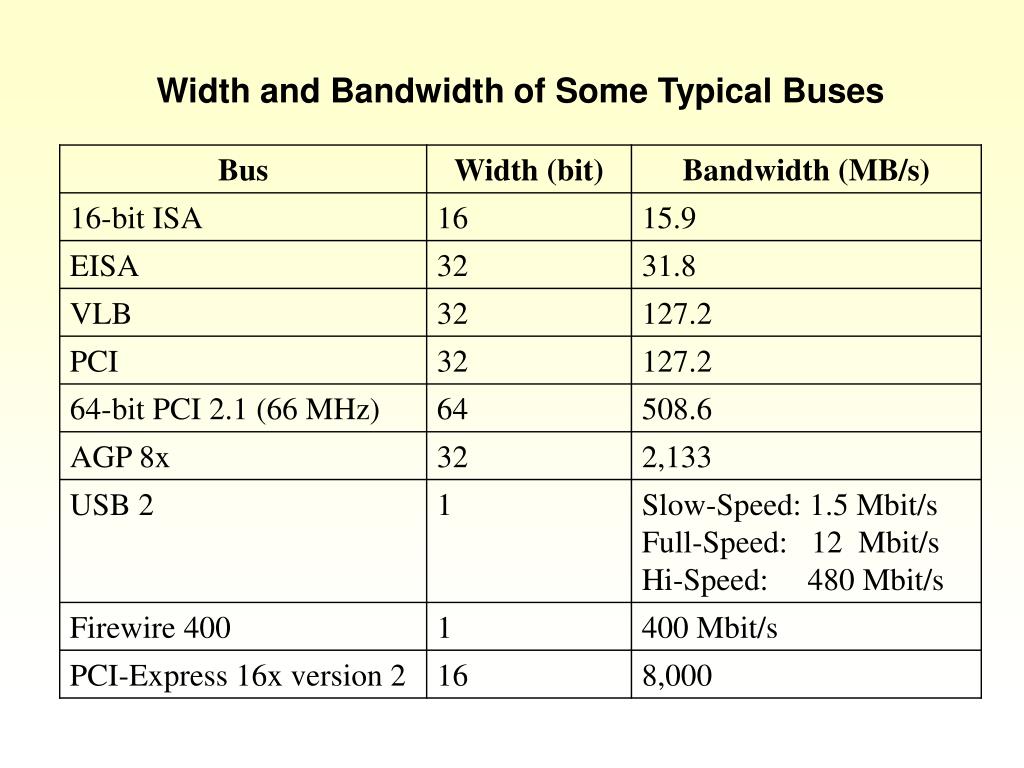

  7. Width and Bandwidth of Some Typical Buses

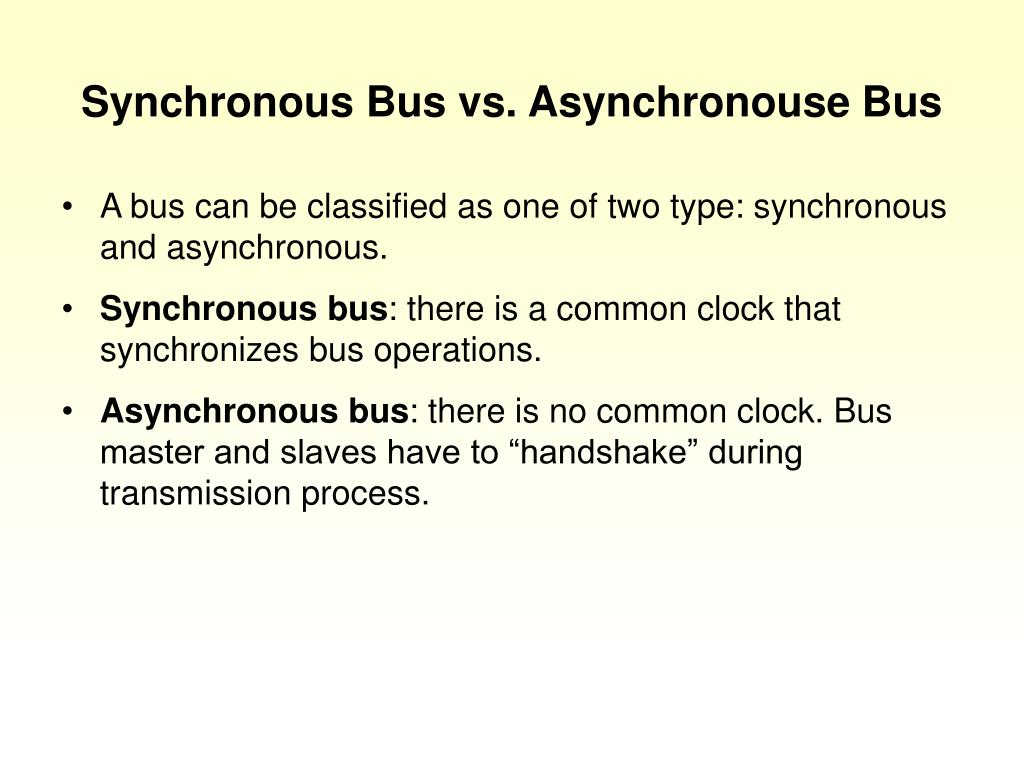

  8. Synchronous Bus vs. Asynchronouse Bus • A bus can be classified as one of two type: synchronous and asynchronous. • Synchronous bus: there is a common clock that synchronizes bus operations. • Asynchronous bus: there is no common clock. Bus master and slaves have to “handshake” during transmission process.

  9. 1. CPU places address of the location it wants to read on the address lines. 1

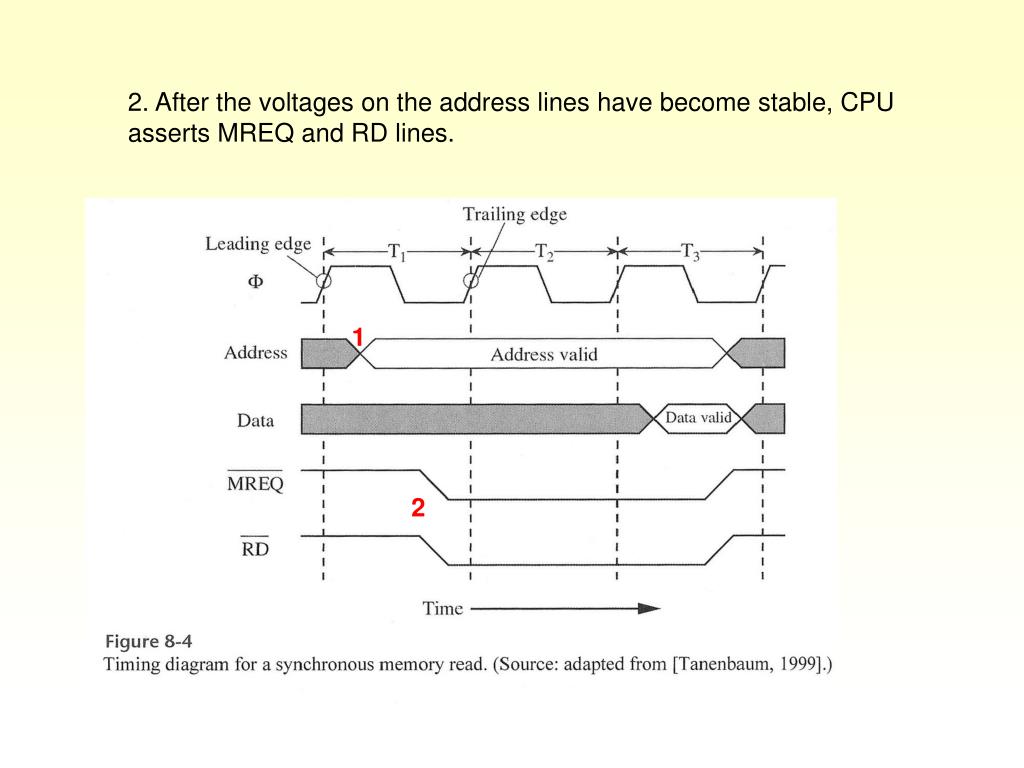

  10. 2. After the voltages on the address lines have become stable, CPU asserts MREQ and RD lines. 1 2

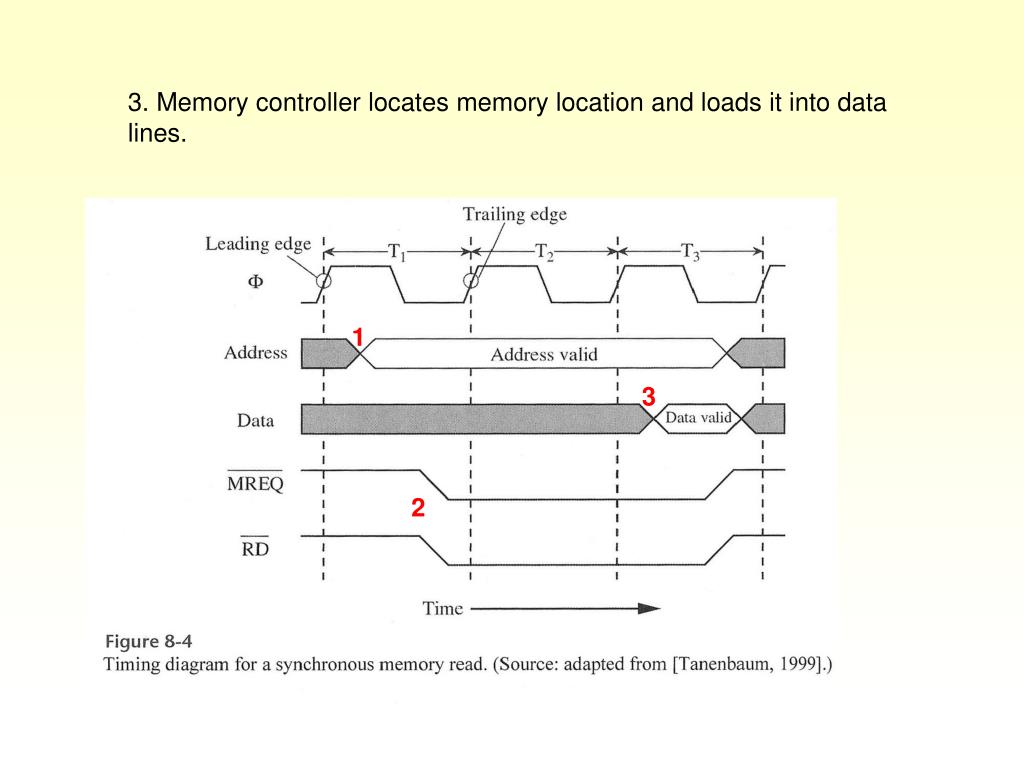

  11. 3. Memory controller locates memory location and loads it into data lines. 1 3 2

  12. 4. CPU takes data from data lines and then de-asserts MREQ and RD to release the bus. 1 3 2 4

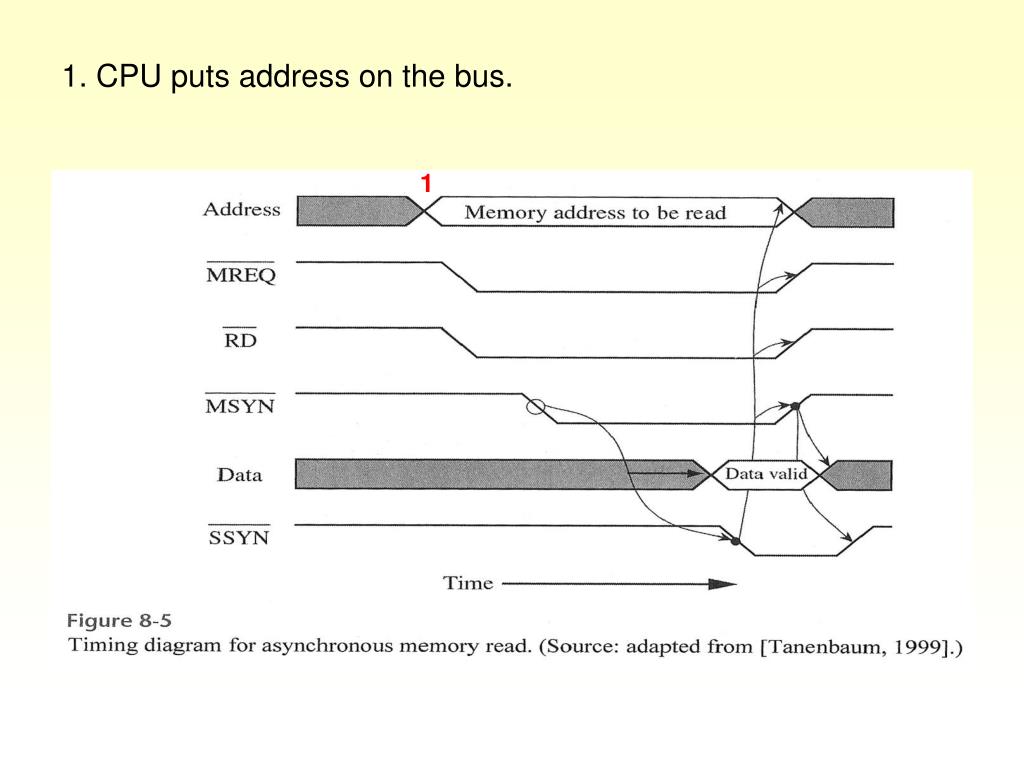

  13. 1 1. CPU puts address on the bus.

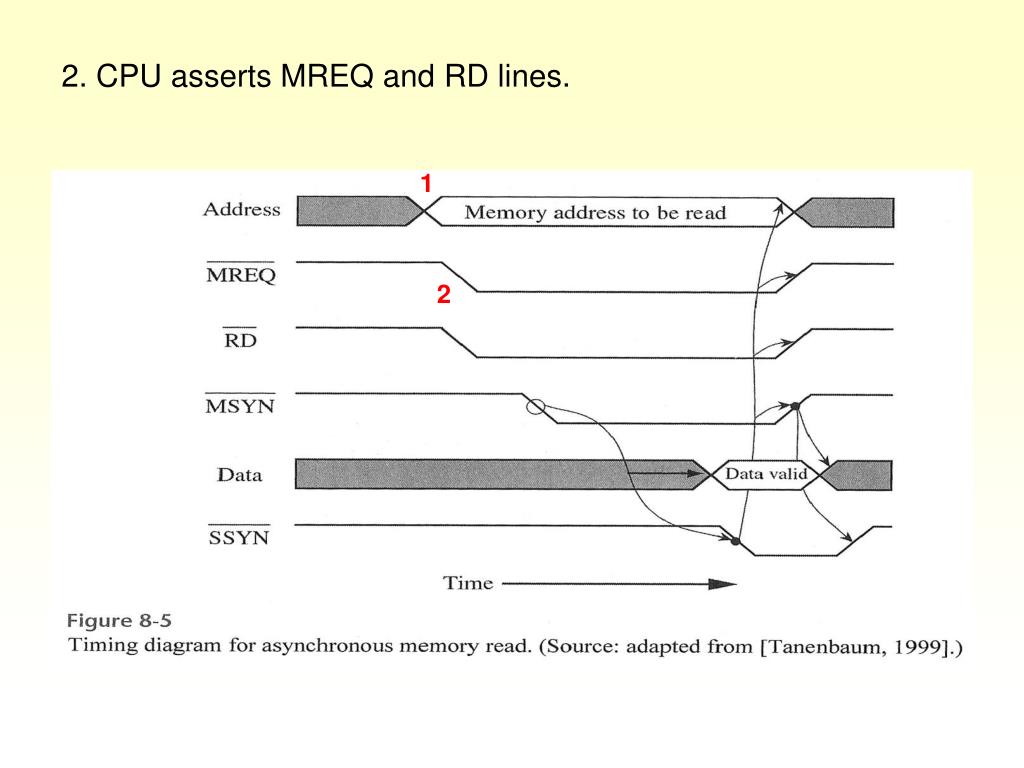

  14. 1 2. CPU asserts MREQ and RD lines. 2

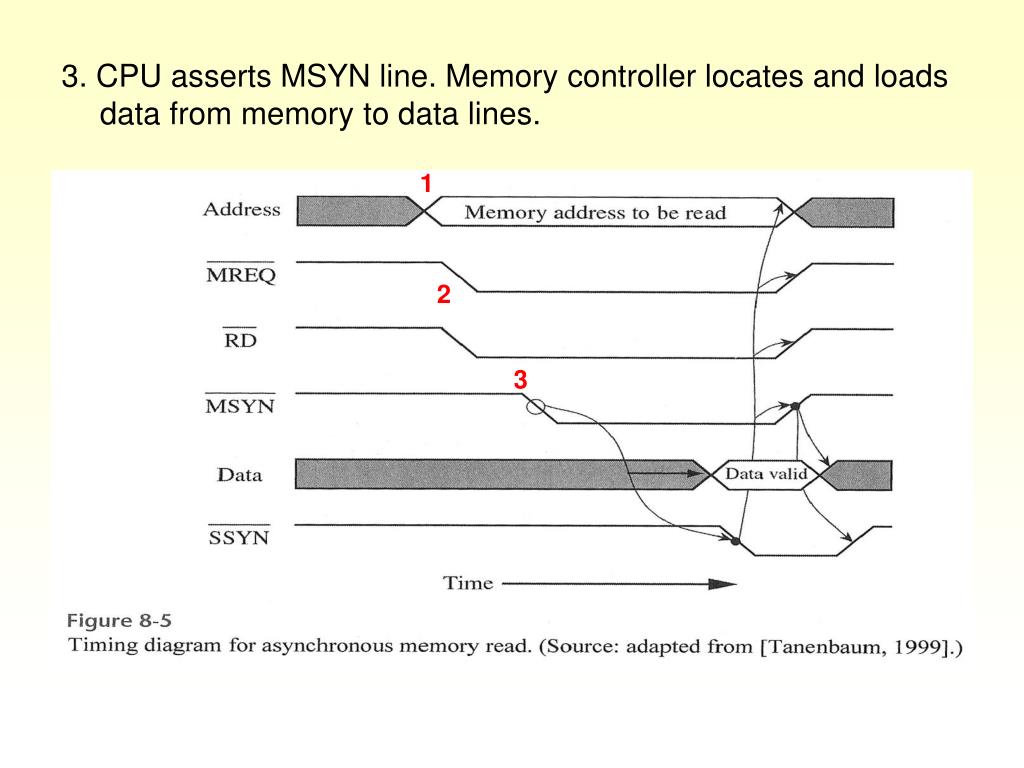

  15. 1 3. CPU asserts MSYN line. Memory controller locates and loads data from memory to data lines. 2 3

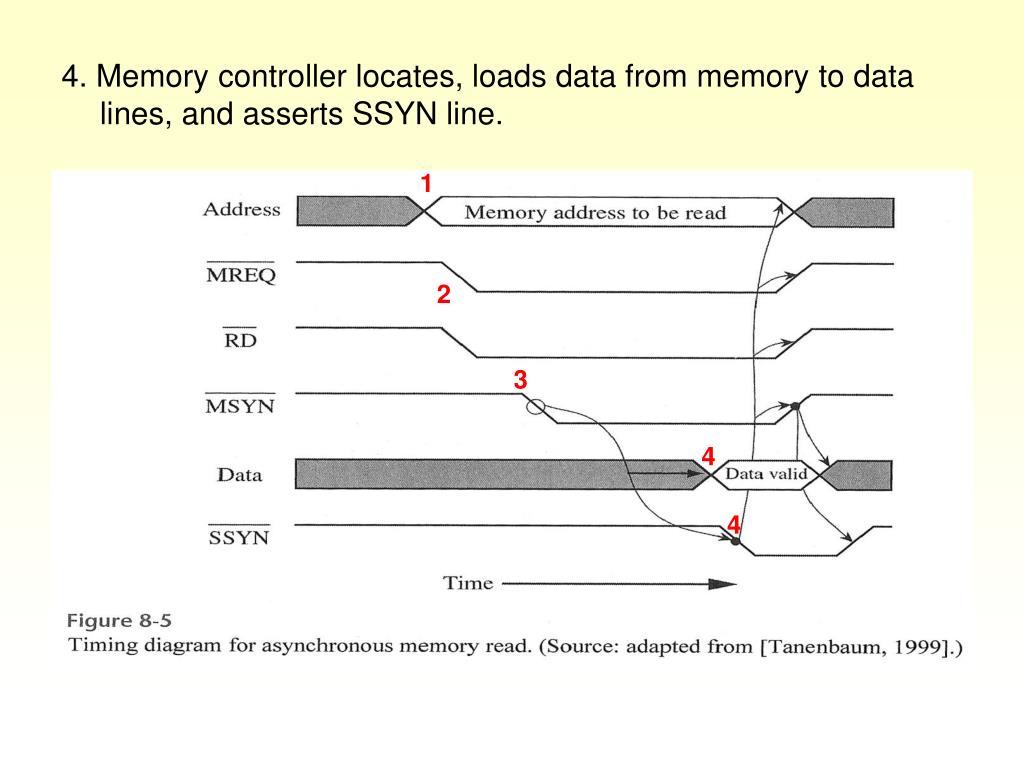

  16. 1 4. Memory controller locates, loads data from memory to data lines, and asserts SSYN line. 2 3 4 4

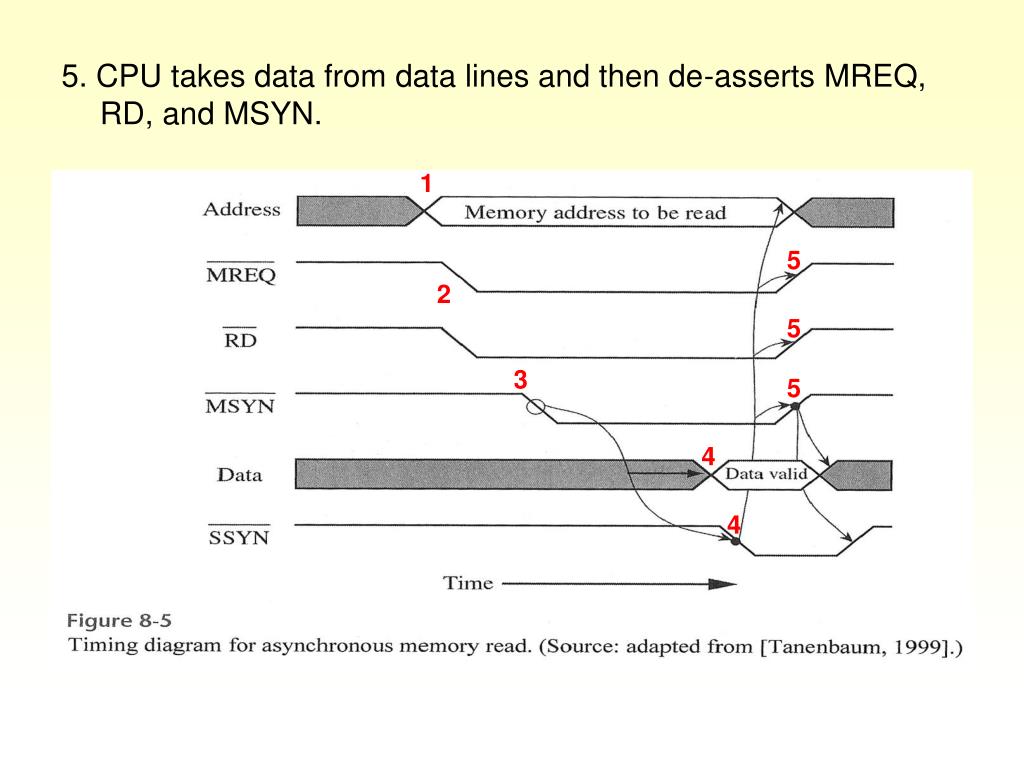

  17. 1 5. CPU takes data from data lines and then de-asserts MREQ, RD, and MSYN. 5 2 5 3 5 4 4

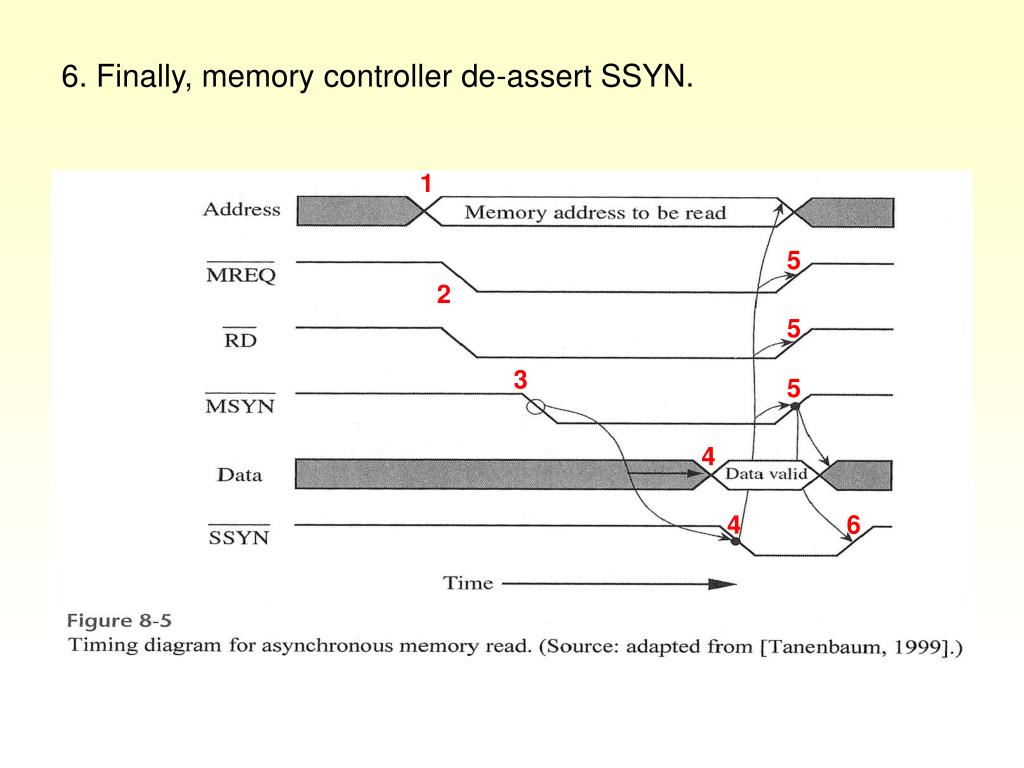

  18. 1 6. Finally, memory controller de-assert SSYN. 5 2 5 3 5 4 4 6

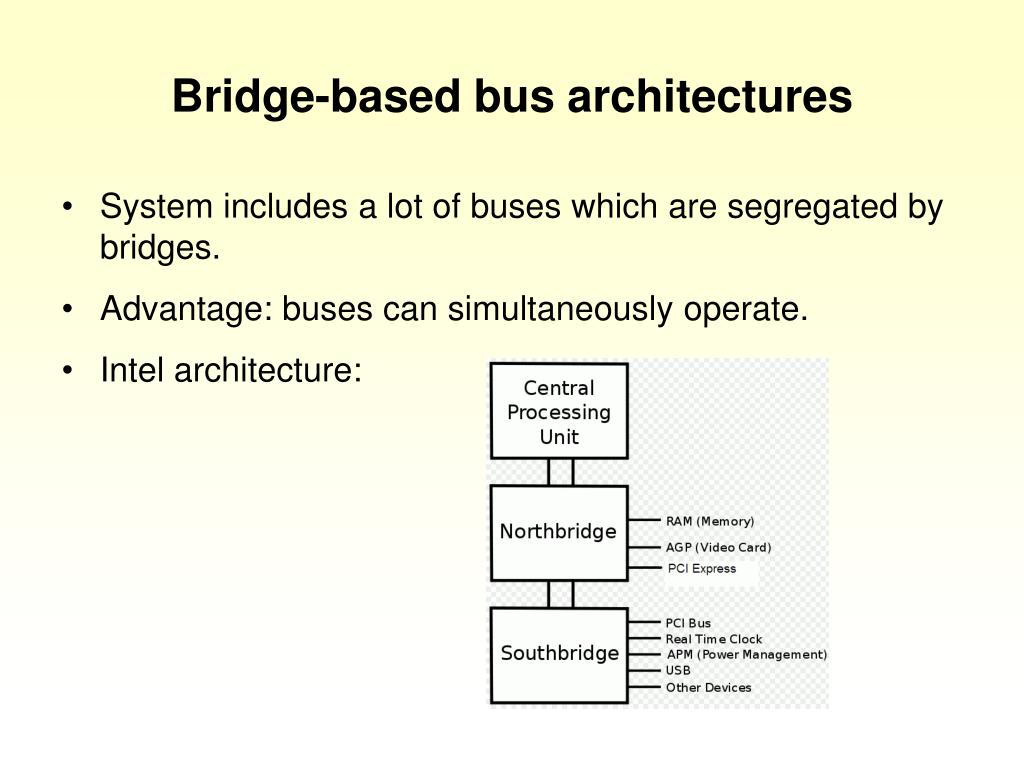

  19. Bridge-based bus architectures • System includes a lot of buses which are segregated by bridges. • Advantage: buses can simultaneously operate. • Intel architecture:

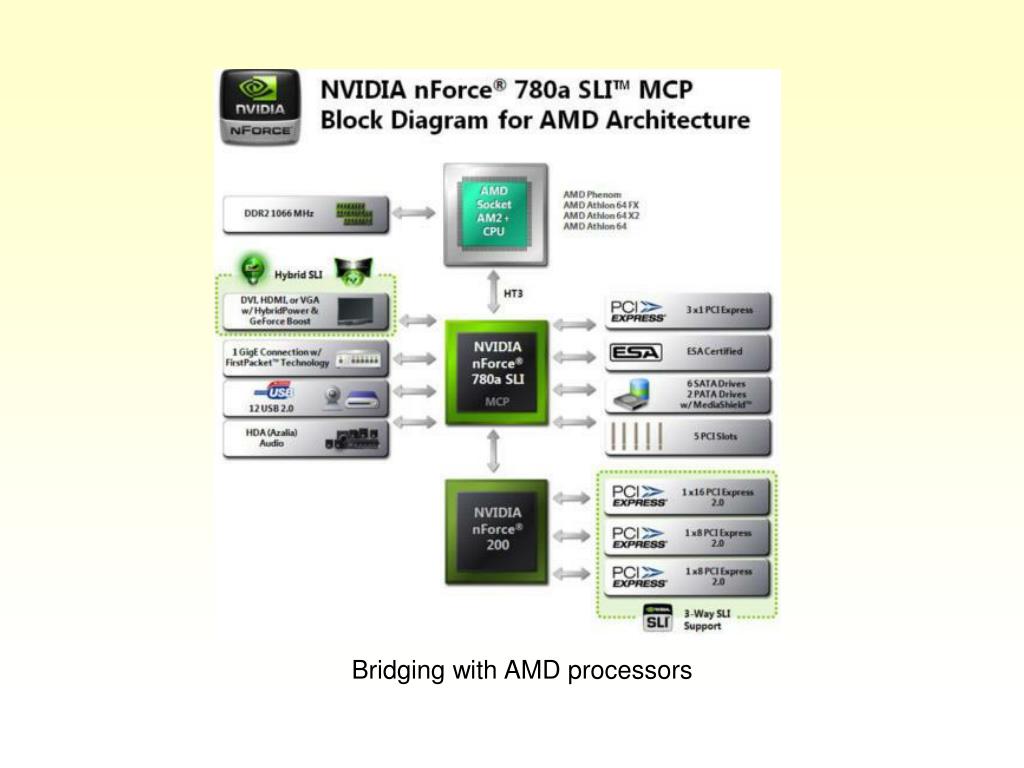

  20. Bridging with AMD processors

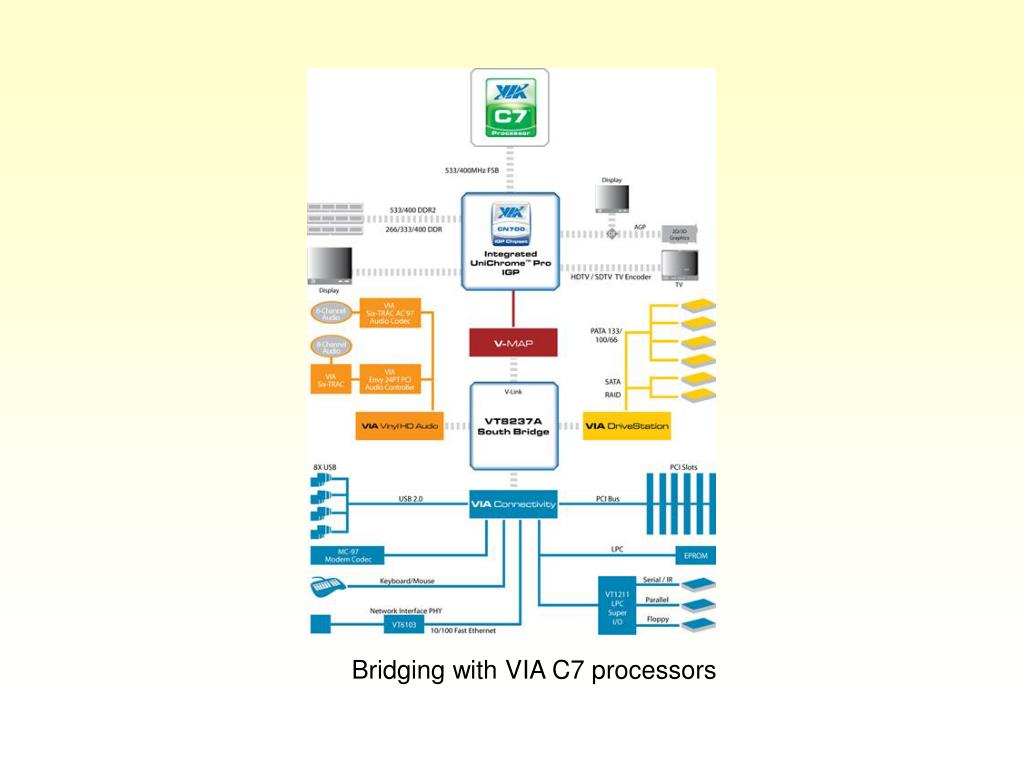

  21. Bridging with VIA C7 processors

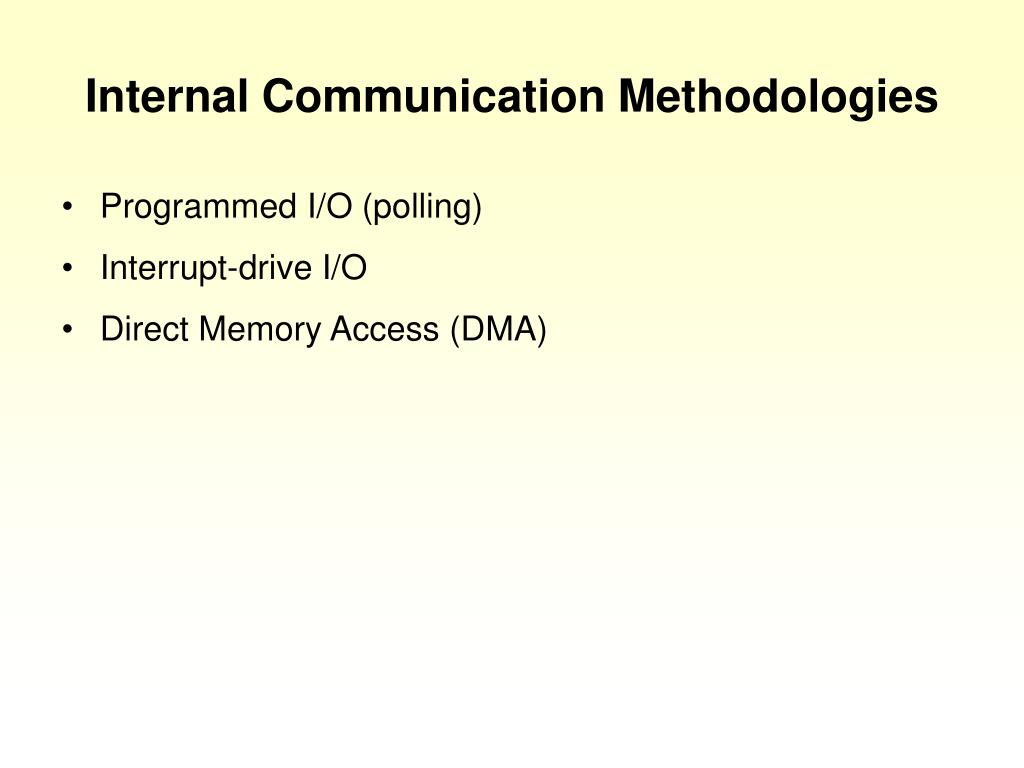

  22. Internal Communication Methodologies • Programmed I/O (polling) • Interrupt-drive I/O • Direct Memory Access (DMA)

  23. Programmed I/O (polling) • CPU polls each device to see if it needs servicing. • Drawback: The CPU wastes time for polling devices (busy-wait.)

  24. Programmed I/O modes in the ATA interface

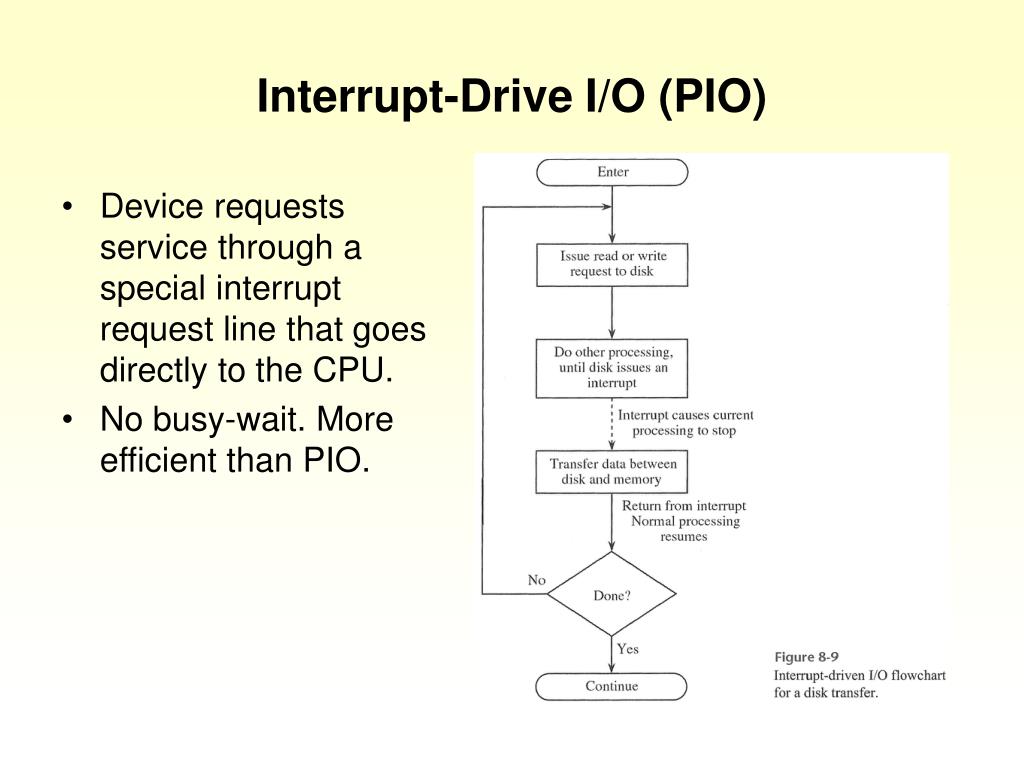

  25. Interrupt-Drive I/O (PIO) • Device requests service through a special interrupt request line that goes directly to the CPU. • No busy-wait. More efficient than PIO.

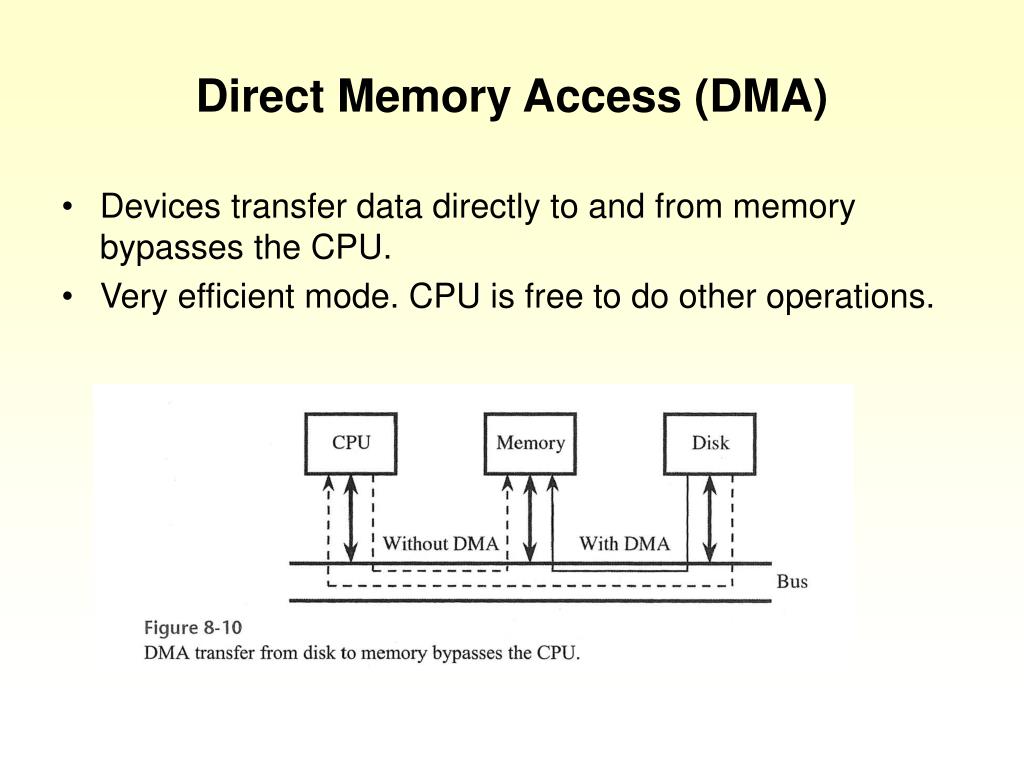

  26. Direct Memory Access (DMA) • Devices transfer data directly to and from memory bypasses the CPU. • Very efficient mode. CPU is free to do other operations.

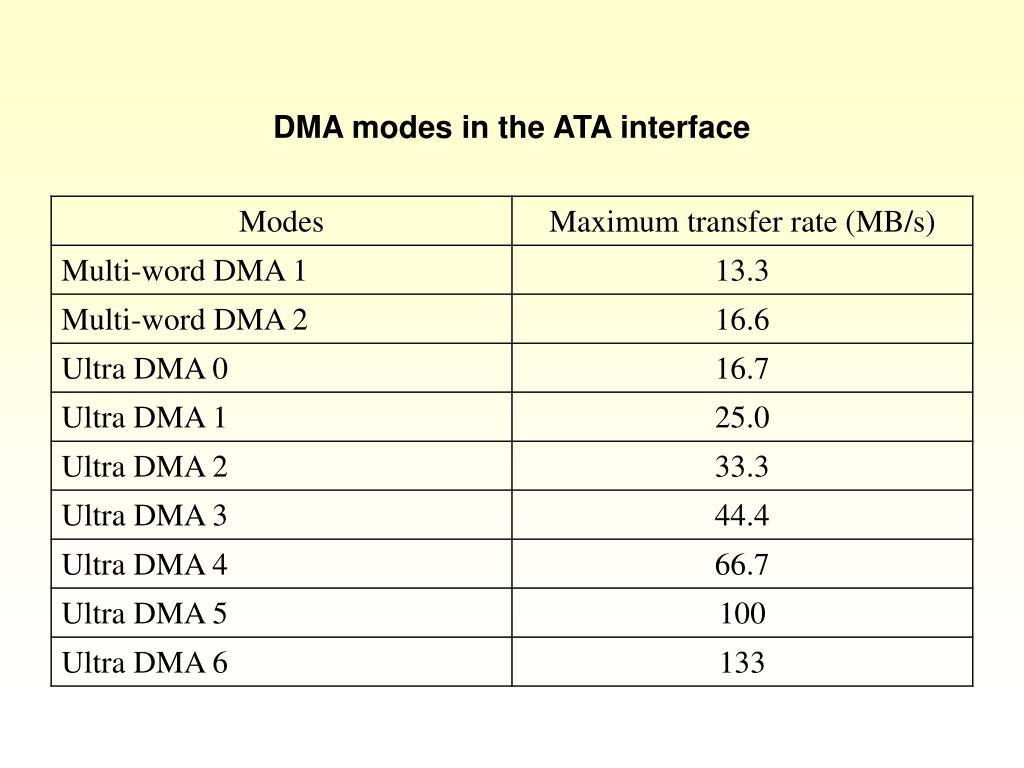

  27. DMA modes in the ATA interface

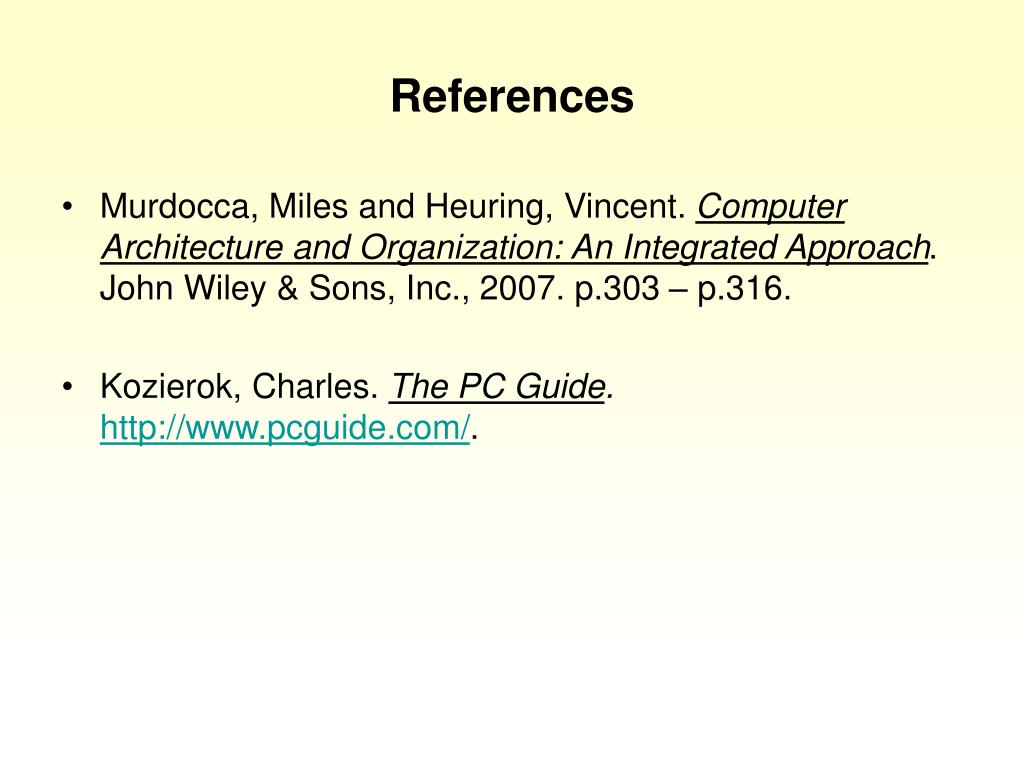

  28. References • Murdocca, Miles and Heuring, Vincent. Computer Architecture and Organization: An Integrated Approach. John Wiley & Sons, Inc., 2007. p.303 – p.316. • Kozierok, Charles. The PC Guide.http://www.pcguide.com/.
