Notes Over 10 - 6

l. b. b. l. Notes Over 10 - 6. Surface Area. Cone. Notes Over 10 - 6. Surface Area. Sphere. Notes Over 10 - 6. Surface Area. 1. 8 m. 5 m. Notes Over 10 - 6. Surface Area. Find the surface area of each figure. 5. 8. 5. 80. + 25. = 105 m 2. 2. 7 m. 3 m. Notes Over 10 - 6.

wyoming-duke
Télécharger la présentation

Notes Over 10 - 6

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. l b b l Notes Over 10 - 6 Surface Area

  2. Cone Notes Over 10 - 6 Surface Area .

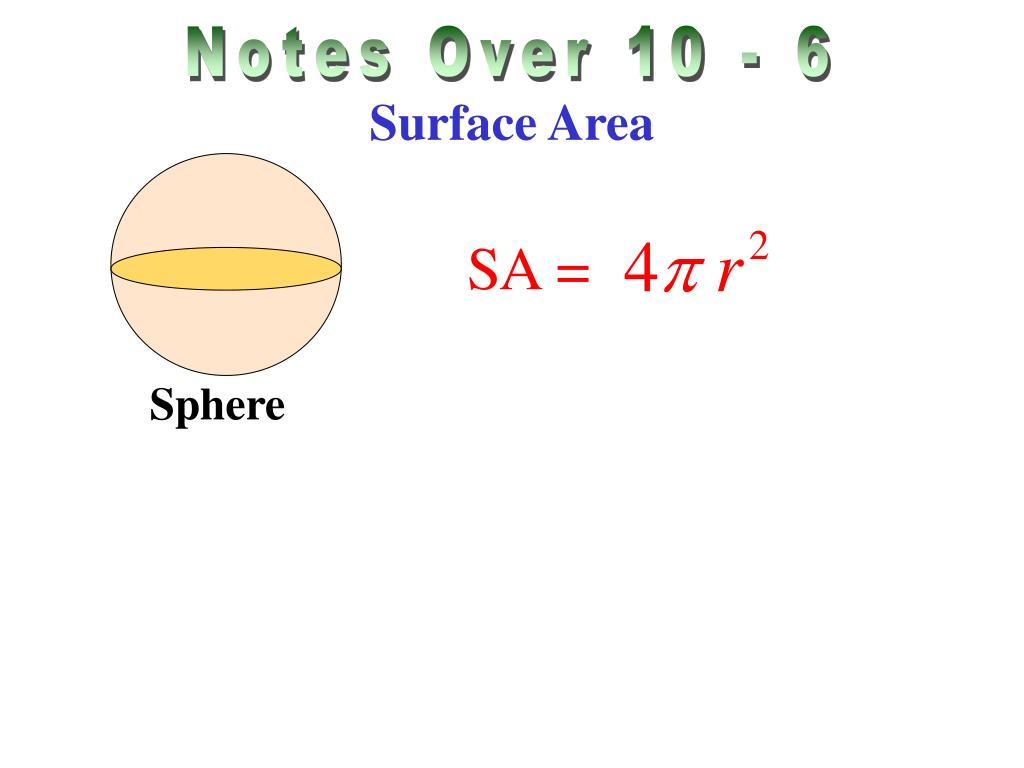

  3. Sphere Notes Over 10 - 6 Surface Area

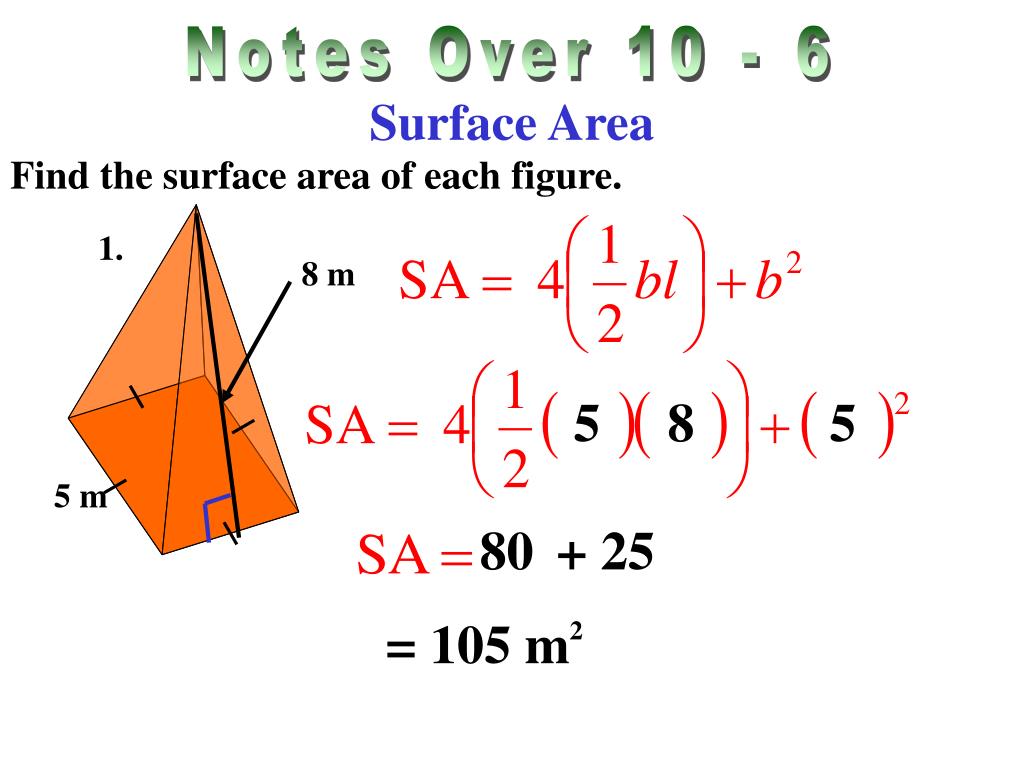

  4. 1. 8 m 5 m Notes Over 10 - 6 Surface Area Find the surface area of each figure. 5 8 5 80 + 25 = 105 m2

  5. 2. 7 m 3 m Notes Over 10 - 6 Surface Area Find the surface area of each figure. 3.14 3 7 3.14 3 3.14 21 3.14 9 65.94 + 28.26 94.2 m2

  6. 3,963 mi. Notes Over 10 - 6 Surface Area Find the surface area of each figure. 3. 3.14 3,963 12.56 15,705,369 197,259,434.6 mi2

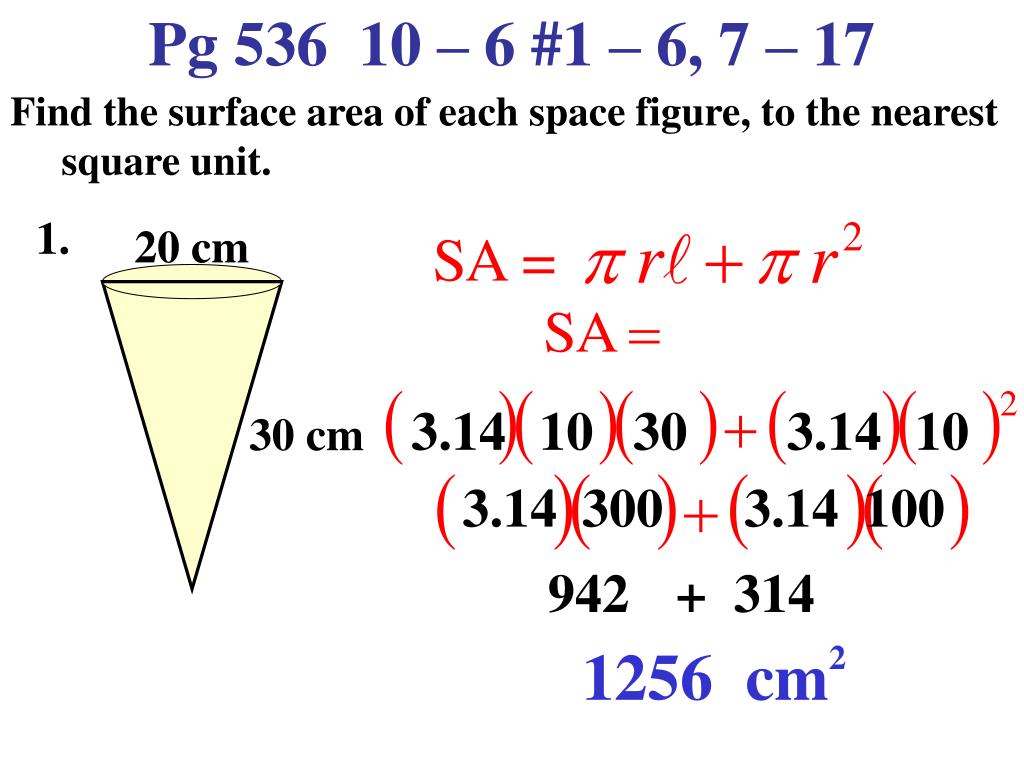

  7. Pg 536 10 – 6 #1 – 6, 7 – 17 Find the surface area of each space figure, to the nearest square unit. 1. 20 cm 3.14 10 30 3.14 10 30 cm 3.14 300 3.14 100 942 + 314 1256 cm2

  8. Pg 536 10 – 6 #1 – 6, 7 – 17 Find the surface area of each space figure, to the nearest square unit. 9 cm 2. 3.14 9 12.56 81 1,017 cm2

  9. Pg 536 10 – 6 #1 – 6, 7 – 17 Find the surface area of each space figure, to the nearest square unit. 5.5 m 3. 4 m 4 5.5 4 44 + 16 = 60 m2

  10. Pg 536 10 – 6 #1 – 6, 7 – 17 Find the surface area of each space figure, to the nearest square unit. • The base of a cone has radius 3 ft. Its slant height is 8 ft. Find the surface area of the cone. 3 8 3.14 3 3.14 3.14 24 3.14 9 75.36 + 28.26 104 ft2

  11. Pg 536 10 – 6 #1 – 6, 7 – 17 Find the surface area of each space figure, to the nearest square unit. • The length of the base of a square pyramid is 5 cm. Its slant height is 8 cm. Find the surface area of the square pyramid. 8 5 5 80 + 25 = 105 cm2

  12. Pg 536 10 – 6 #1 – 6, 7 – 17 • Which has the greater surface area, a cylinder with height 2 in. and radius of base 2 in., or a sphere with radius 2 in.? Justify your answer. p 2 2 in 2 in 2 in SA = 2prh + 2pr2 SA = 2p( )( ) + 2p( )2 2 2 2 16 pin2 8 p 8 p SA = + = 16 p in 2 THE SAME

  13. Pg 536 10 – 6 #1 – 6, 7 – 17
