802 Architecture Group

1. 802 Architecture Group Website: http://www.ieee802.org/1/files/public/802_architecture_group/ Joining the Email exploder: http://www.ieee802.org/1/email-pages/joining.html

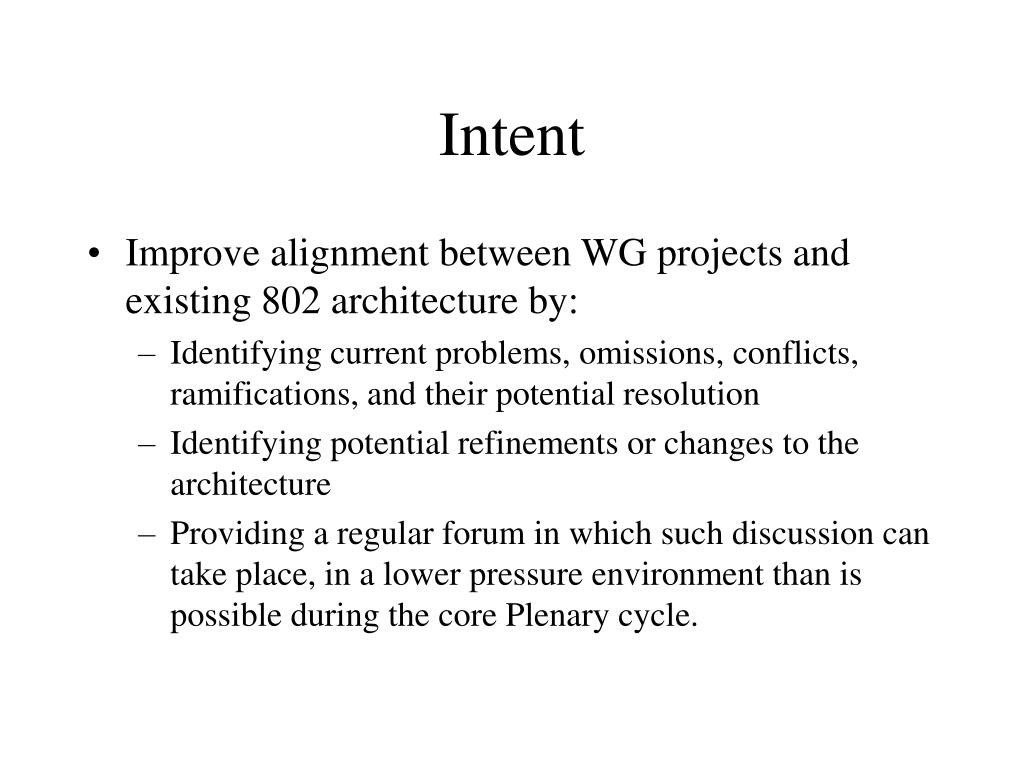

2. Intent • Improve alignment between WG projects and existing 802 architecture by: • Identifying current problems, omissions, conflicts, ramifications, and their potential resolution • Identifying potential refinements or changes to the architecture • Providing a regular forum in which such discussion can take place, in a lower pressure environment than is possible during the core Plenary cycle.

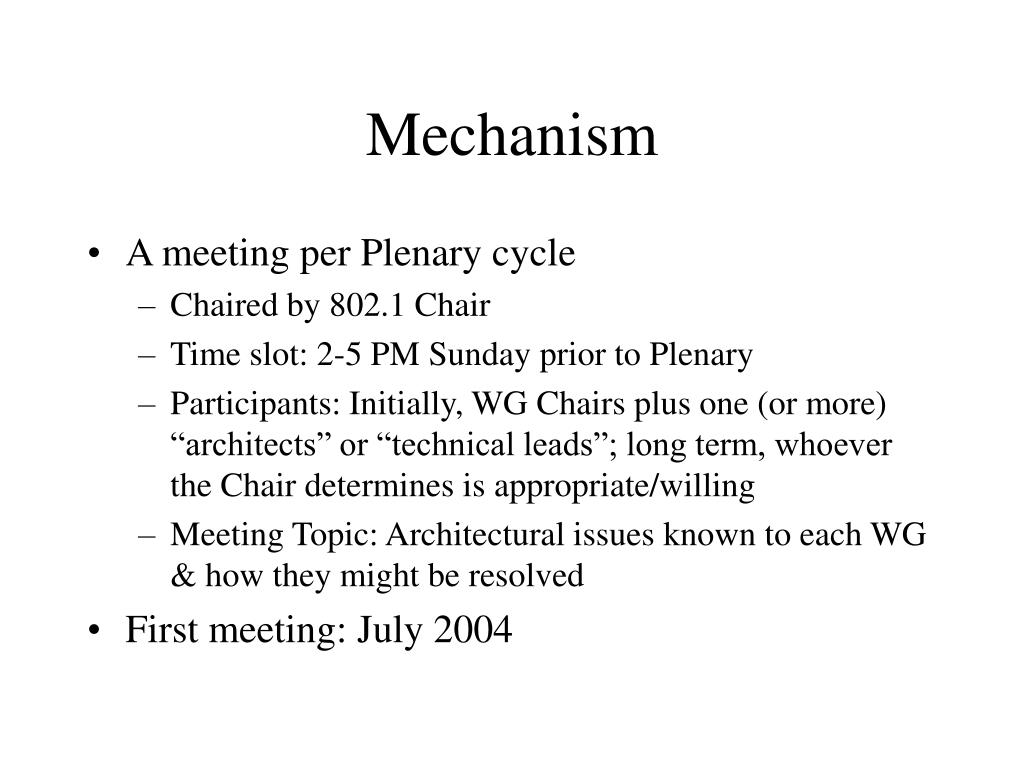

3. Mechanism • A meeting per Plenary cycle • Chaired by 802.1 Chair • Time slot: 2-5 PM Sunday prior to Plenary • Participants: Initially, WG Chairs plus one (or more) “architects” or “technical leads”; long term, whoever the Chair determines is appropriate/willing • Meeting Topic: Architectural issues known to each WG & how they might be resolved • First meeting: July 2004

4. Purpose • To actually have a recurring discussion on architectural issues • To improve cross-WG discussion/understanding • To promote a common view

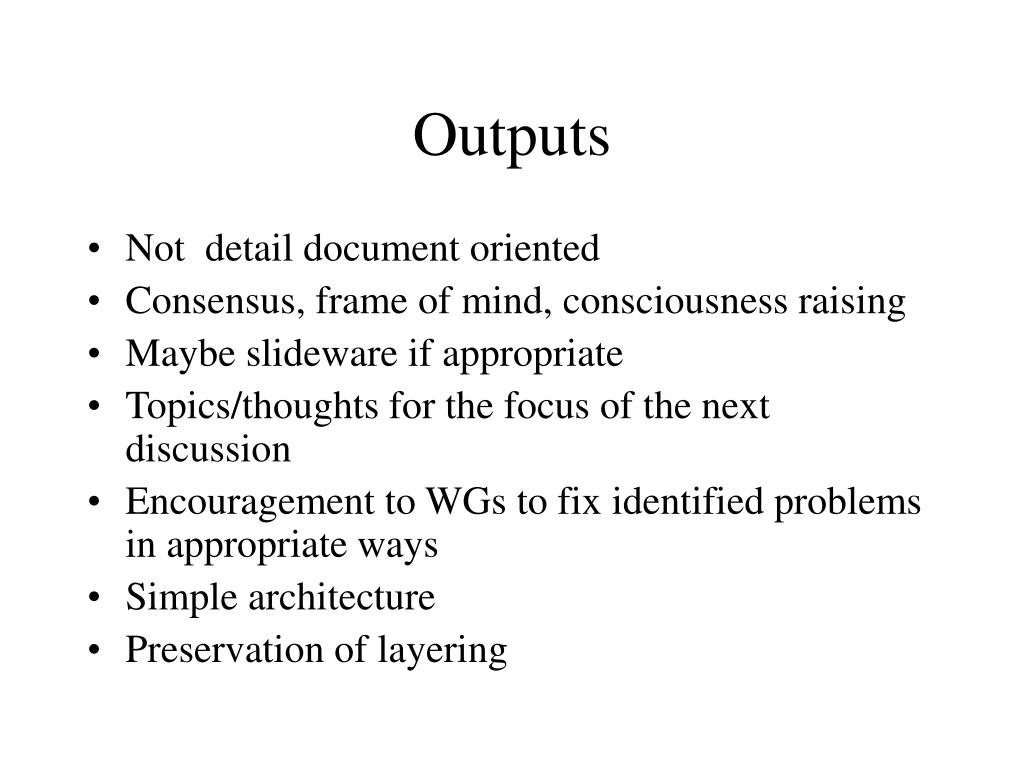

5. Outputs • Not detail document oriented • Consensus, frame of mind, consciousness raising • Maybe slideware if appropriate • Topics/thoughts for the focus of the next discussion • Encouragement to WGs to fix identified problems in appropriate ways • Simple architecture • Preservation of layering

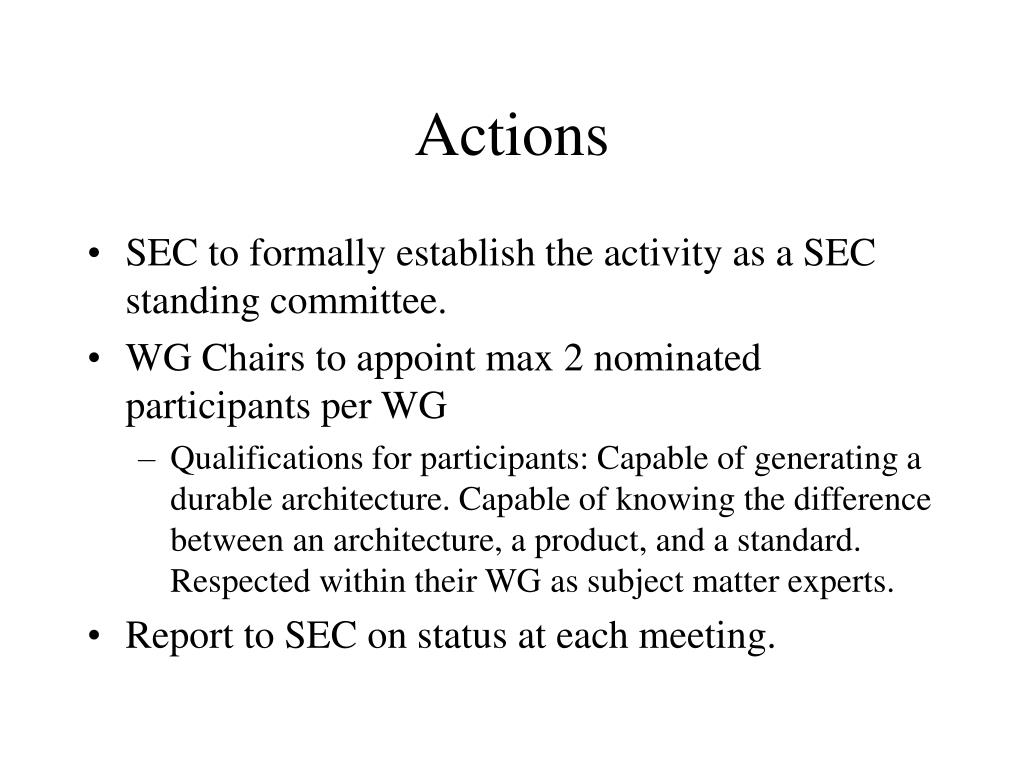

6. Actions • SEC to formally establish the activity as a SEC standing committee. • WG Chairs to appoint max 2 nominated participants per WG • Qualifications for participants: Capable of generating a durable architecture. Capable of knowing the difference between an architecture, a product, and a standard. Respected within their WG as subject matter experts. • Report to SEC on status at each meeting.

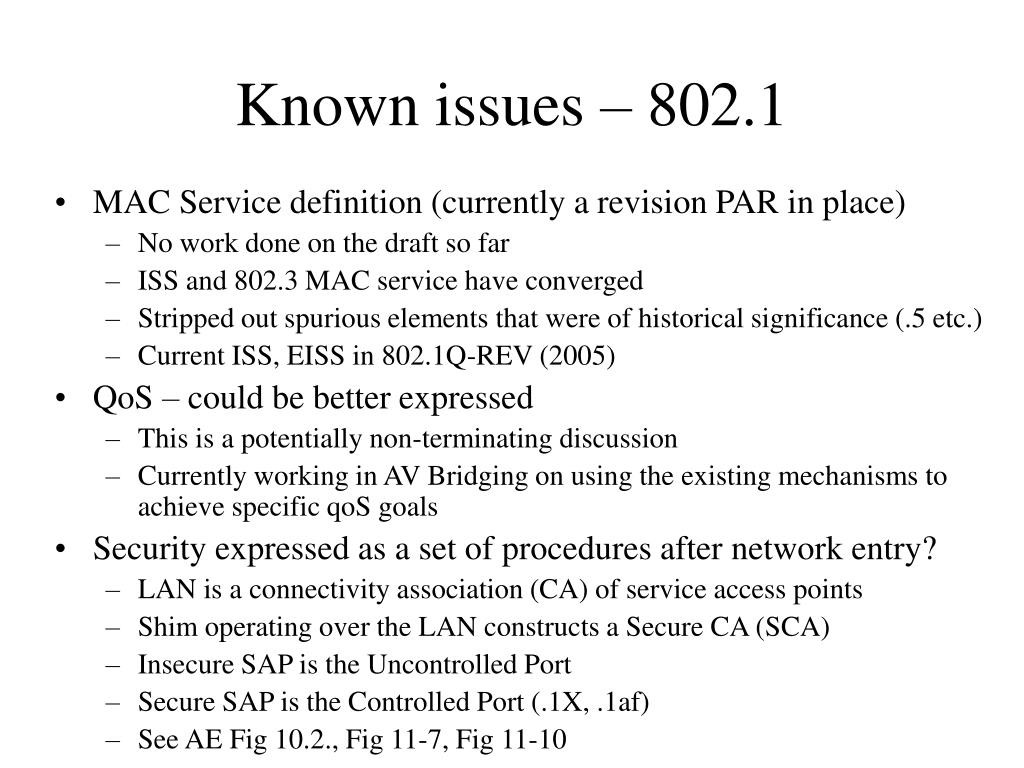

7. Known issues – 802.1 • MAC Service definition (currently a revision PAR in place) • No work done on the draft so far • ISS and 802.3 MAC service have converged • Stripped out spurious elements that were of historical significance (.5 etc.) • Current ISS, EISS in 802.1Q-REV (2005) • QoS – could be better expressed • This is a potentially non-terminating discussion • Currently working in AV Bridging on using the existing mechanisms to achieve specific qoS goals • Security expressed as a set of procedures after network entry? • LAN is a connectivity association (CA) of service access points • Shim operating over the LAN constructs a Secure CA (SCA) • Insecure SAP is the Uncontrolled Port • Secure SAP is the Controlled Port (.1X, .1af) • See AE Fig 10.2., Fig 11-7, Fig 11-10

8. Known issues – 802.1 • Management – scope and interface • Commonality of MAC/PHY management interfaces (managed object definitions)? • Some sentiment in the room that it is a desirable goal, although implementation would be challenging. Action item on this for WG reps to look at what possibilities might exist • MIB definition for service discovery • Potential need for a common approach to providing service discovery information (type of MAC, speed,….etc.) • Where work gets done – 802.1 vs 802.X • This one will run and run • Process – ensuring due diligence • This has been aired recently • Assumption is that dot groups will be held accountable for how they meet their PAR obligations • Max frame size • Ongoing 802.3 project to adjust frame size for additional headers • Hits certain aspects of QoS vs certain aspects of efficiency – how to make this trade-off? • Not clear that there is a universal answer here. • Position/location awareness • May be a need for a common approach to providing LAN-specific data that could assist with determining physical location.

9. IEEE Architecture Group802.3 Issues13 November 2005 Pat ThalerBob Grow

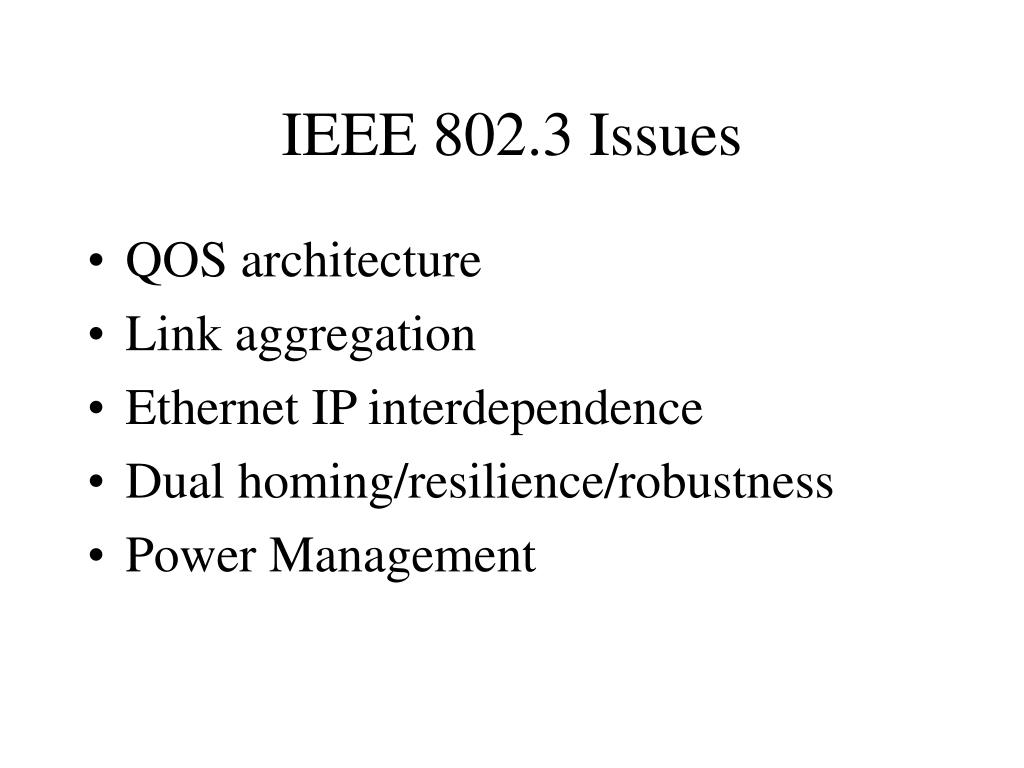

10. IEEE 802.3 Issues • QOS architecture • Link aggregation • Ethernet IP interdependence • Dual homing/resilience/robustness • Power Management

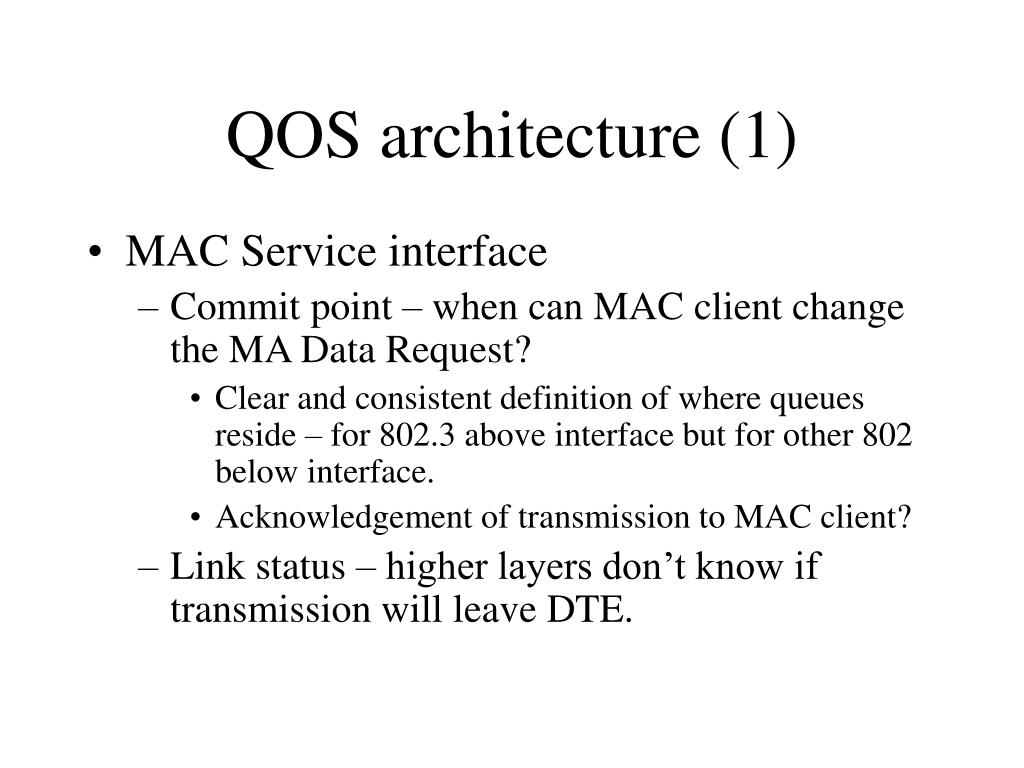

11. QOS architecture (1) • MAC Service interface • Commit point – when can MAC client change the MA Data Request? • Clear and consistent definition of where queues reside – for 802.3 above interface but for other 802 below interface. • Acknowledgement of transmission to MAC client? • Link status – higher layers don’t know if transmission will leave DTE.

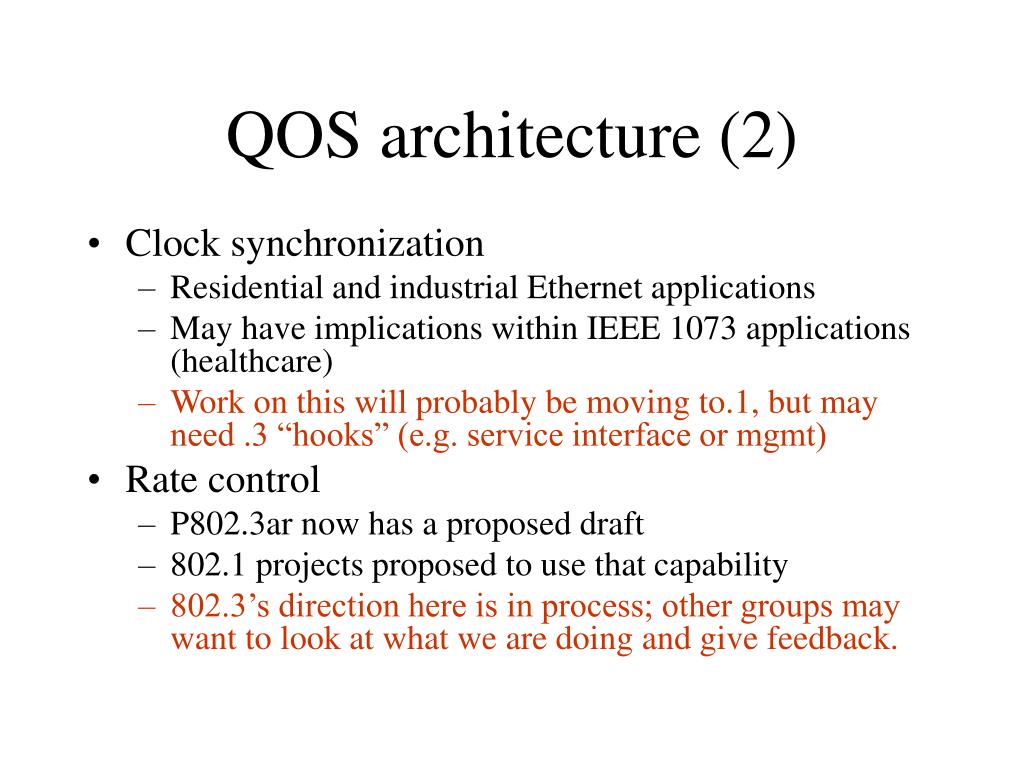

12. QOS architecture (2) • Clock synchronization • Residential and industrial Ethernet applications • May have implications within IEEE 1073 applications (healthcare) • Work on this will probably be moving to.1, but may need .3 “hooks” (e.g. service interface or mgmt) • Rate control • P802.3ar now has a proposed draft • 802.1 projects proposed to use that capability • 802.3’s direction here is in process; other groups may want to look at what we are doing and give feedback.

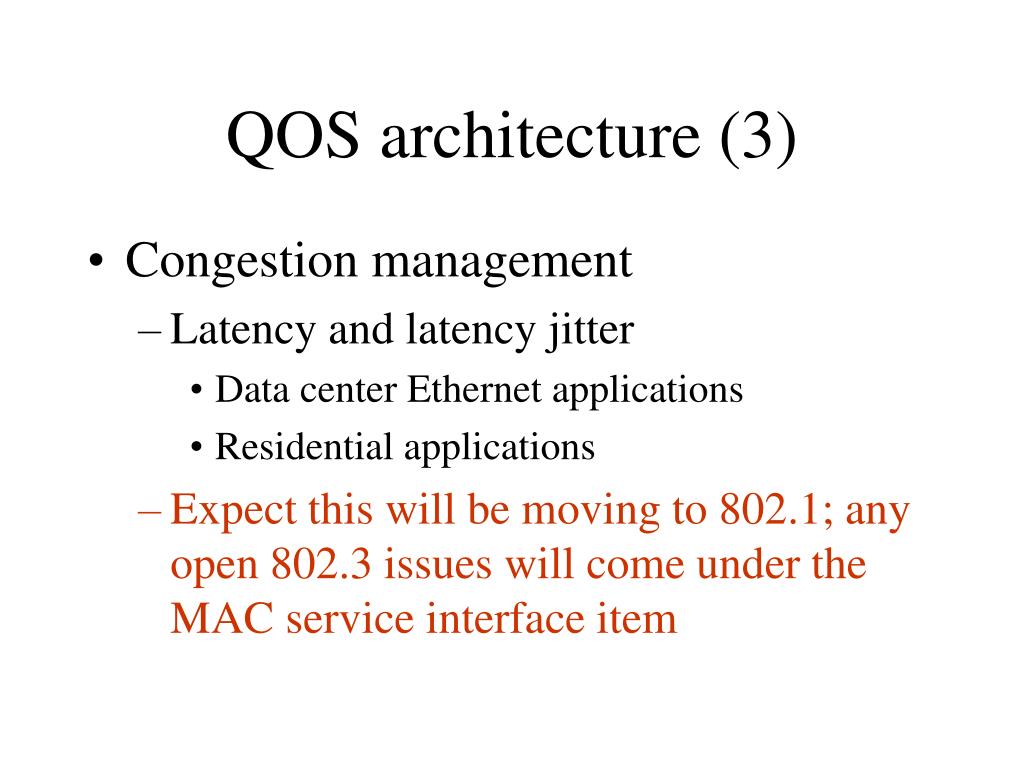

13. QOS architecture (3) • Congestion management • Latency and latency jitter • Data center Ethernet applications • Residential applications • Expect this will be moving to 802.1; any open 802.3 issues will come under the MAC service interface item

14. Link aggregation • Layering • It is an 802.3 sublayer but it has to go above 802.1x • 802.1 current plan on media converters • Media converters will be transparent to link ag – i.e. a physical link with a media converter in it can be aggregated. • Issue: no way for management above link ag to address management frames to a media converter in an aggregated link • Do we need additional capabilities such as ability to co-operate to keep both directions of a flow on the same link? – Decision: not at this time. closed

15. Miscellaneous • Ethernet IP interdependence - closed • Ethernet is used with protocols other than IP • Mostly just an issue of awareness, not architecture • Dual homing/resilience/robustness - closed • Low priority • Link Aggregation and Fast Spanning Tree help • Conclusion: not currently an 802.3 issue based on 802.1 projects

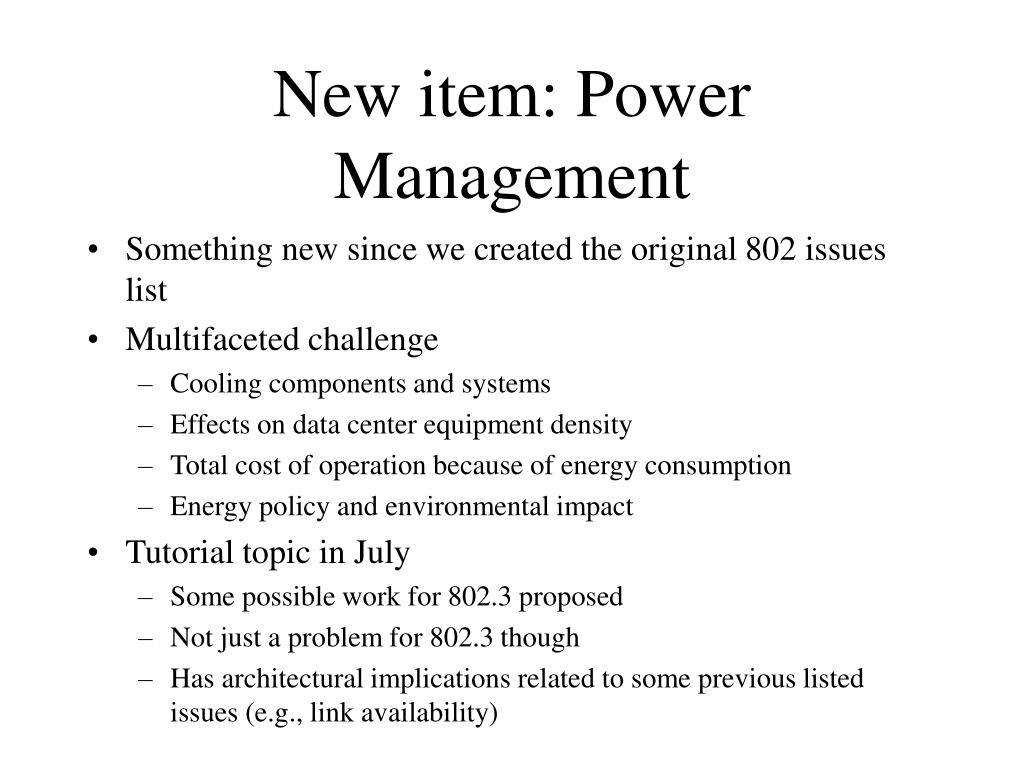

16. New item: Power Management • Something new since we created the original 802 issues list • Multifaceted challenge • Cooling components and systems • Effects on data center equipment density • Total cost of operation because of energy consumption • Energy policy and environmental impact • Tutorial topic in July • Some possible work for 802.3 proposed • Not just a problem for 802.3 though • Has architectural implications related to some previous listed issues (e.g., link availability)

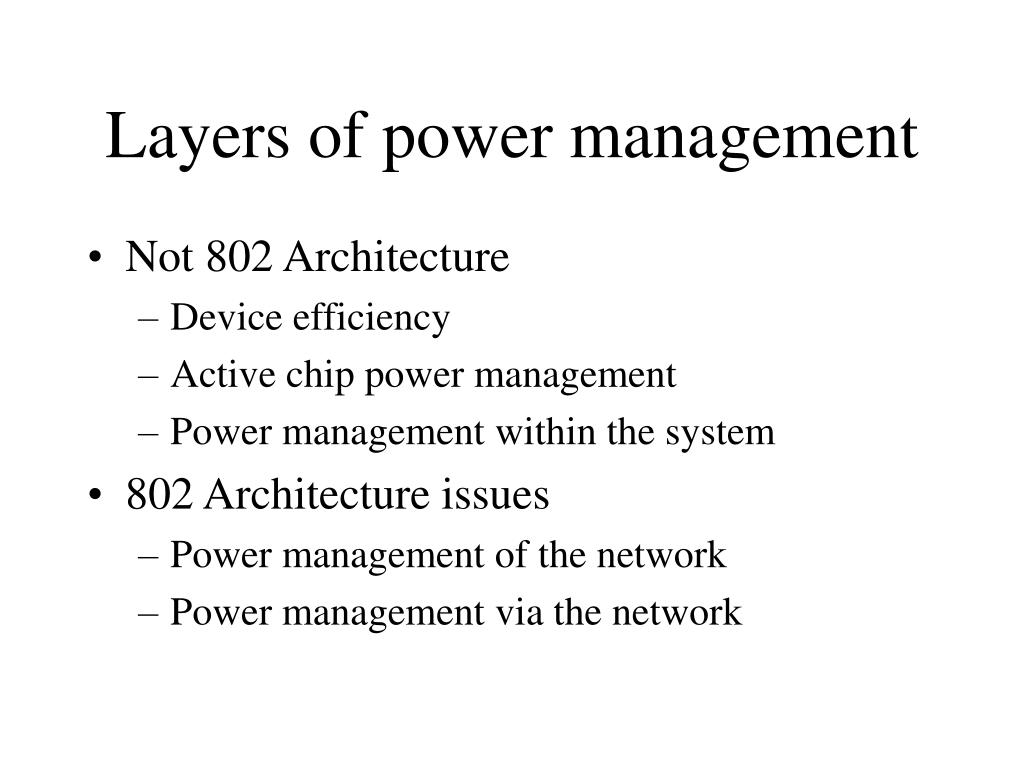

17. Layers of power management • Not 802 Architecture • Device efficiency • Active chip power management • Power management within the system • 802 Architecture issues • Power management of the network • Power management via the network

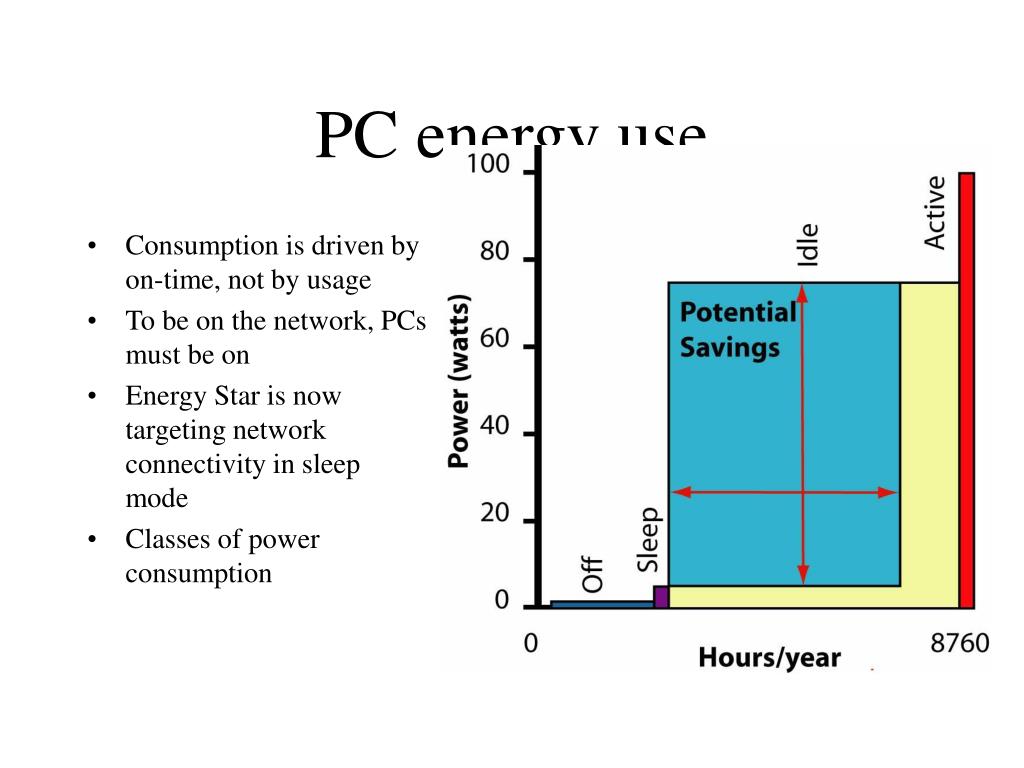

18. PC energy use • Consumption is driven by on-time, not by usage • To be on the network, PCs must be on • Energy Star is now targeting network connectivity in sleep mode • Classes of power consumption

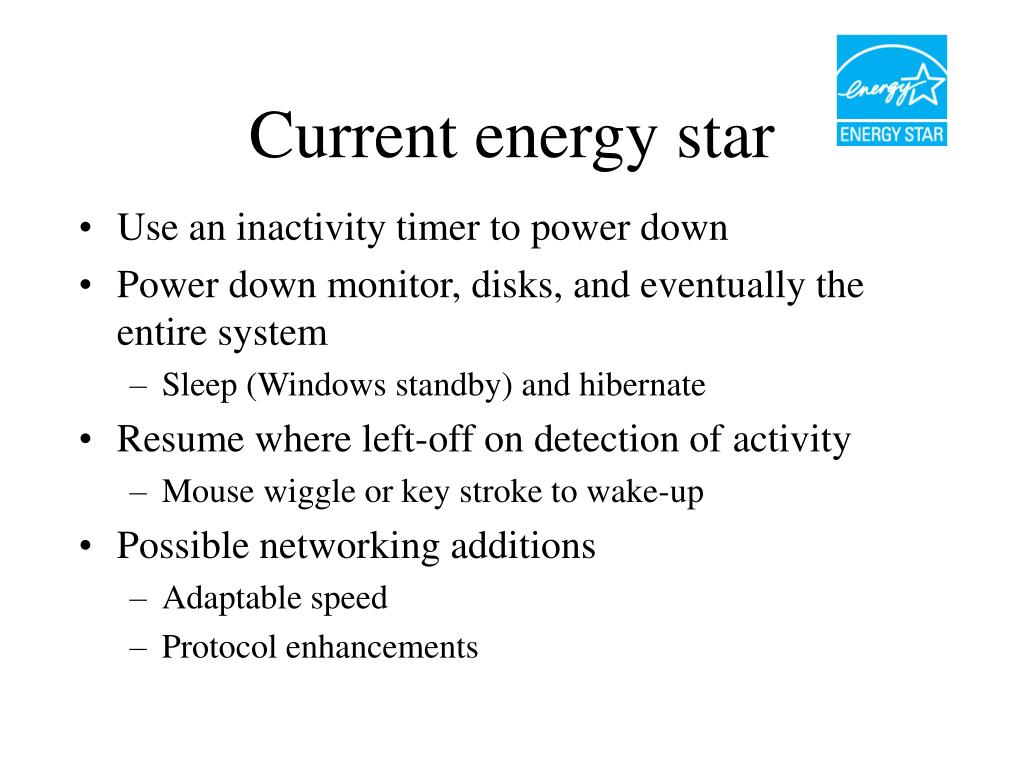

19. Current energy star • Use an inactivity timer to power down • Power down monitor, disks, and eventually the entire system • Sleep (Windows standby) and hibernate • Resume where left-off on detection of activity • Mouse wiggle or key stroke to wake-up • Possible networking additions • Adaptable speed • Protocol enhancements

20. Network based alternatives • Wake-on-LAN • Directed packet • Link speed change • Proxies

21. Wake-on-LAN • A special (non-standard) MAC frame • Repeat MAC address 16 times in data field • Common in 802.3 NICs • Also in some 802.11 NICs • Assumes limited mobility of device • Applications and protocols do not support WOL • Can’t route to target device when timeout causes discard of ARP cache entry • TCP connection starts with a SYN

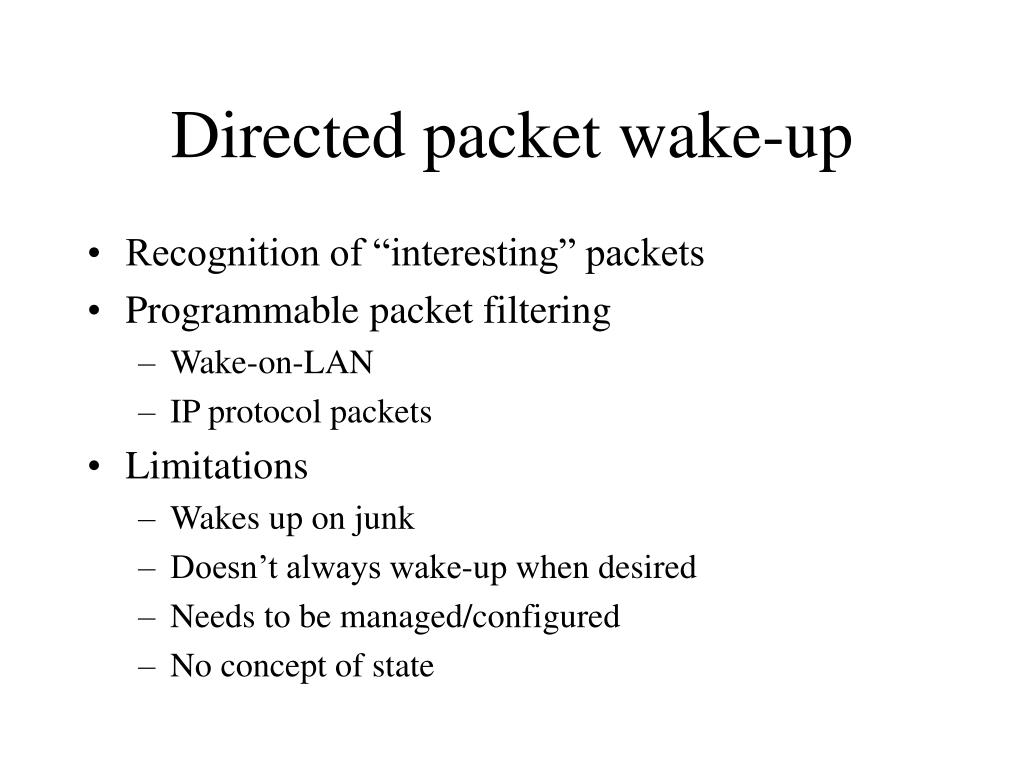

22. Directed packet wake-up • Recognition of “interesting” packets • Programmable packet filtering • Wake-on-LAN • IP protocol packets • Limitations • Wakes up on junk • Doesn’t always wake-up when desired • Needs to be managed/configured • No concept of state

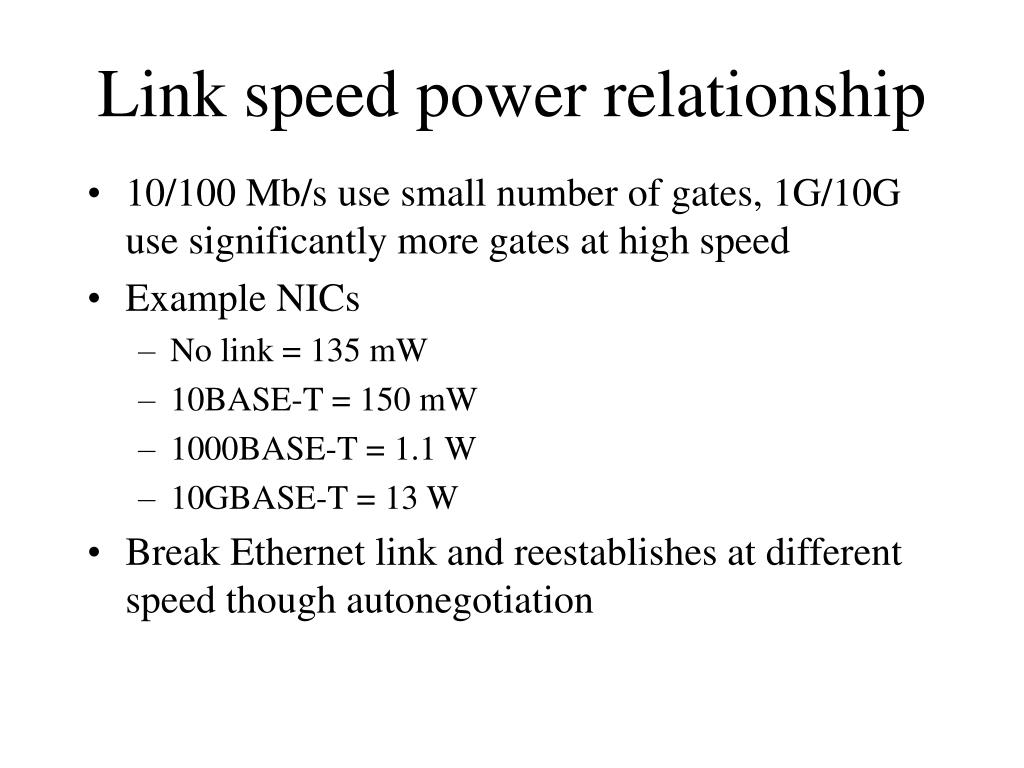

23. Link speed power relationship • 10/100 Mb/s use small number of gates, 1G/10G use significantly more gates at high speed • Example NICs • No link = 135 mW • 10BASE-T = 150 mW • 1000BASE-T = 1.1 W • 10GBASE-T = 13 W • Break Ethernet link and reestablishes at different speed though autonegotiation

24. Network connectivity trends • More PCs left active • Network protocols not designed power effects • Network applications assume always on • Permanent connections are becoming more common • Sleep is not a network state, but a device state • No way to know sleep state of remote device • Limited non-guaranteed wake-up capability

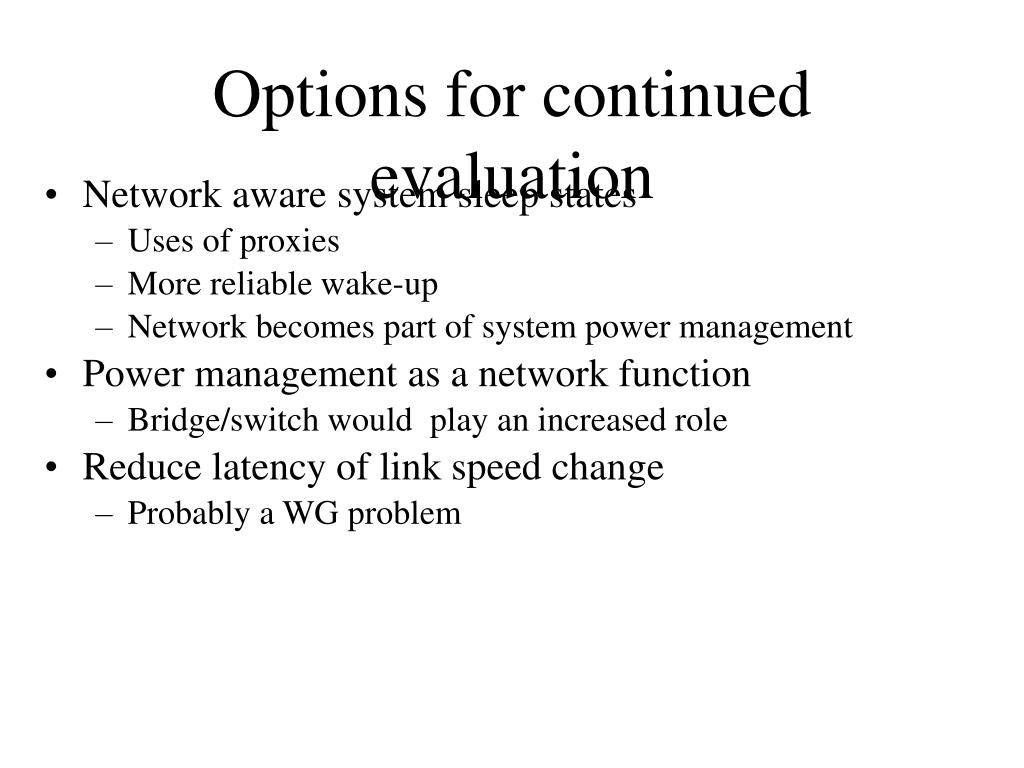

25. Options for continued evaluation • Network aware system sleep states • Uses of proxies • More reliable wake-up • Network becomes part of system power management • Power management as a network function • Bridge/switch would play an increased role • Reduce latency of link speed change • Probably a WG problem

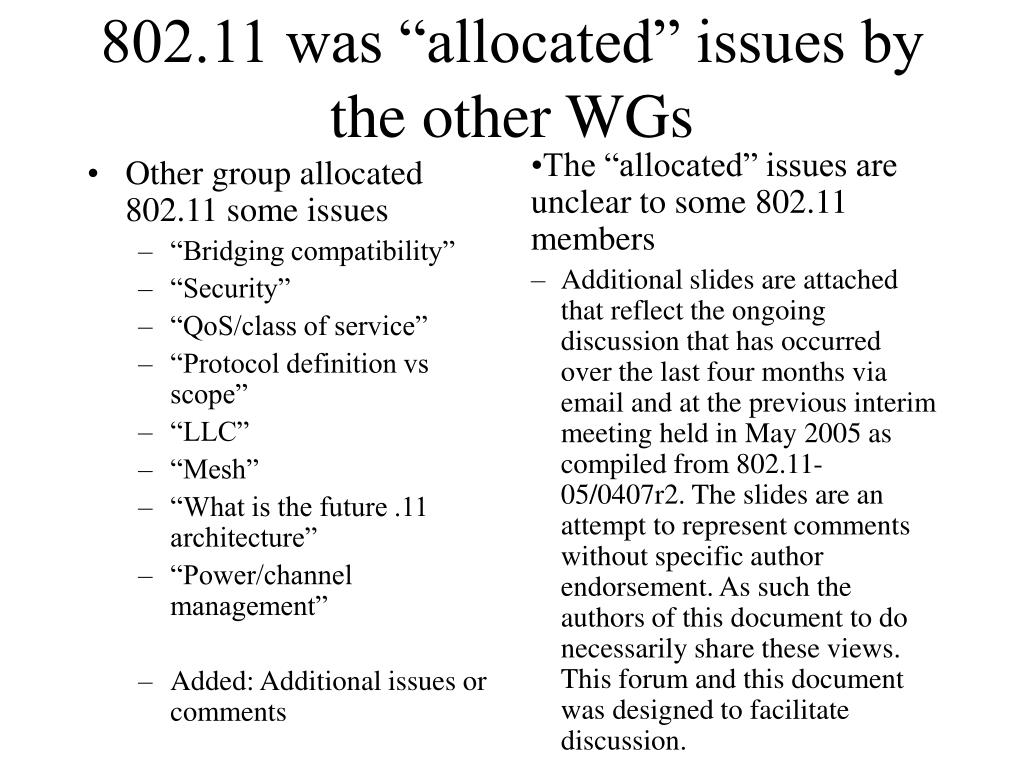

26. Other group allocated 802.11 some issues “Bridging compatibility” “Security” “QoS/class of service” “Protocol definition vs scope” “LLC” “Mesh” “What is the future .11 architecture” “Power/channel management” Added: Additional issues or comments The “allocated” issues are unclear to some 802.11 members Additional slides are attached that reflect the ongoing discussion that has occurred over the last four months via email and at the previous interim meeting held in May 2005 as compiled from 802.11-05/0407r2. The slides are an attempt to represent comments without specific author endorsement. As such the authors of this document to do necessarily share these views. This forum and this document was designed to facilitate discussion. 802.11 was “allocated” issues by the other WGs

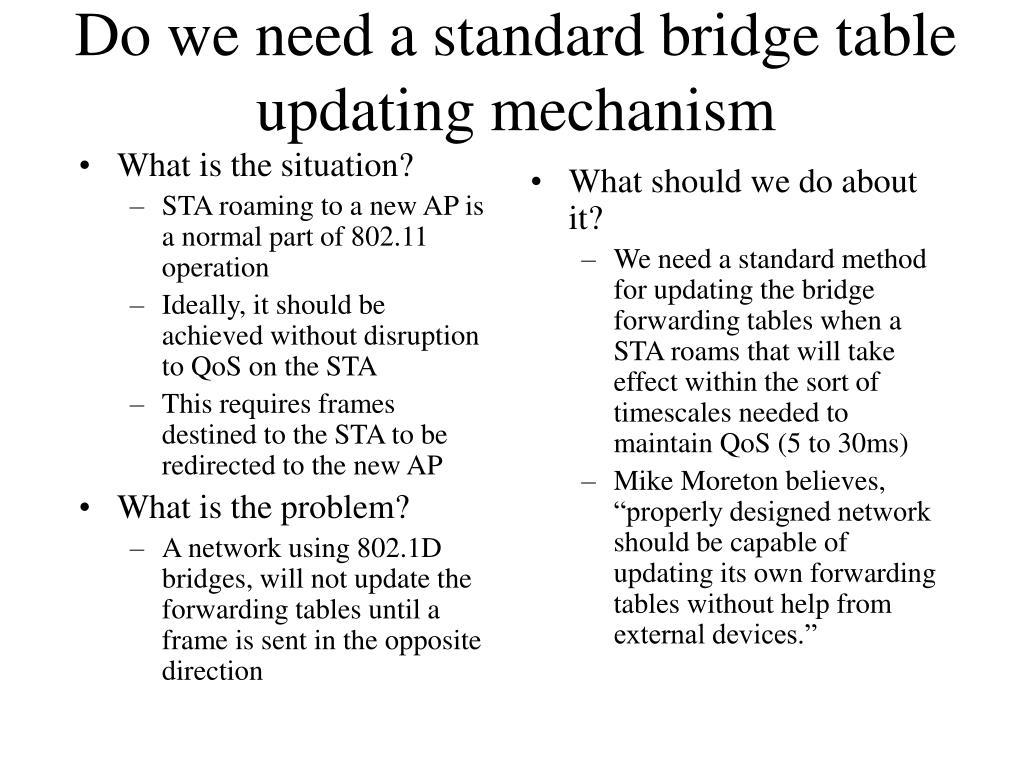

27. What is the situation? STA roaming to a new AP is a normal part of 802.11 operation Ideally, it should be achieved without disruption to QoS on the STA This requires frames destined to the STA to be redirected to the new AP What is the problem? A network using 802.1D bridges, will not update the forwarding tables until a frame is sent in the opposite direction What should we do about it? We need a standard method for updating the bridge forwarding tables when a STA roams that will take effect within the sort of timescales needed to maintain QoS (5 to 30ms) Mike Moreton believes, “properly designed network should be capable of updating its own forwarding tables without help from external devices.” Do we need a standard bridge table updating mechanism

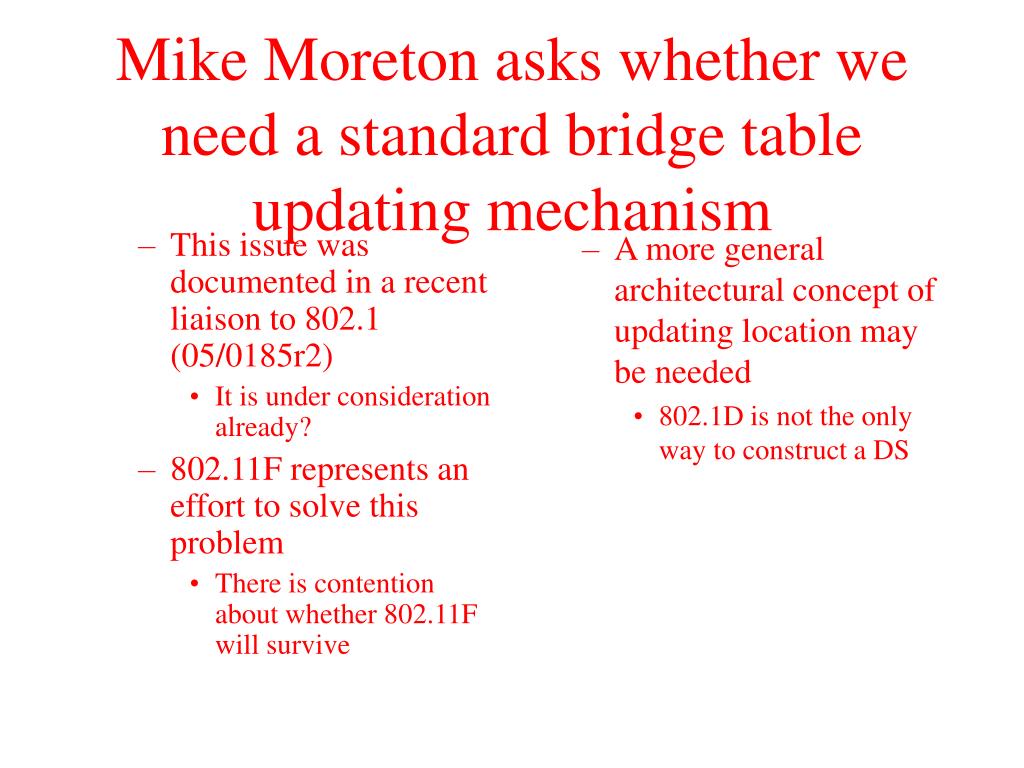

28. This issue was documented in a recent liaison to 802.1 (05/0185r2) It is under consideration already? 802.11F represents an effort to solve this problem There is contention about whether 802.11F will survive A more general architectural concept of updating location may be needed 802.1D is not the only way to construct a DS Mike Moreton asks whether we need a standard bridge table updating mechanism

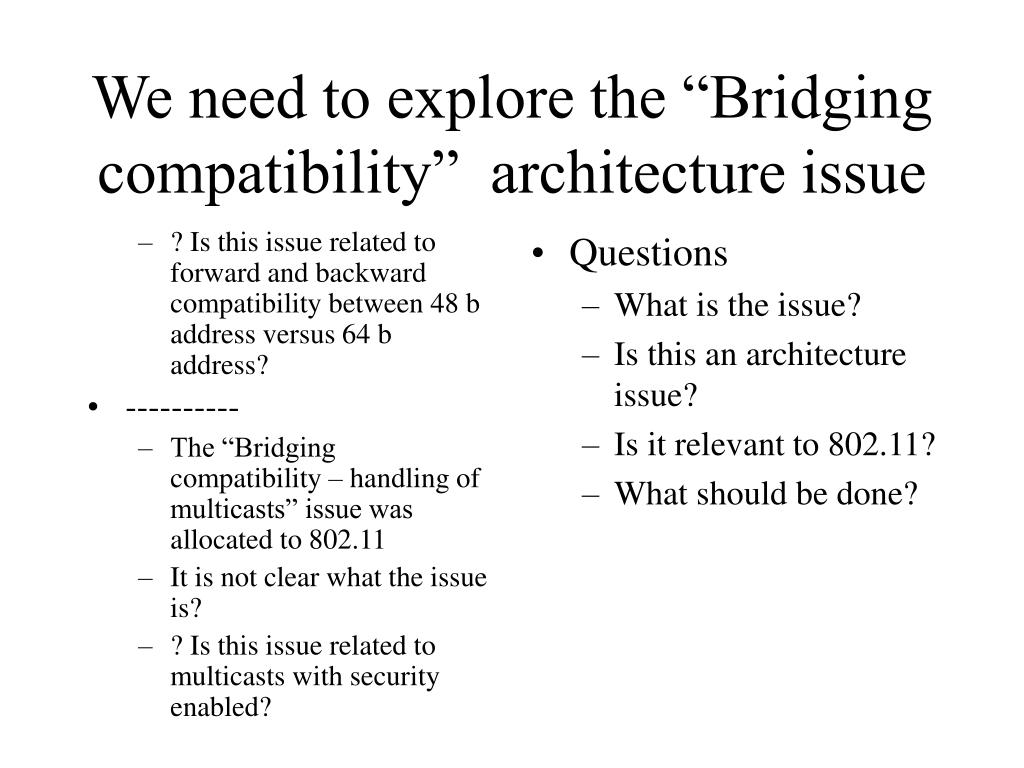

29. ? Is this issue related to forward and backward compatibility between 48 b address versus 64 b address? ---------- The “Bridging compatibility – handling of multicasts” issue was allocated to 802.11 It is not clear what the issue is? ? Is this issue related to multicasts with security enabled? Questions What is the issue? Is this an architecture issue? Is it relevant to 802.11? What should be done? We need to explore the “Bridging compatibility” architecture issue

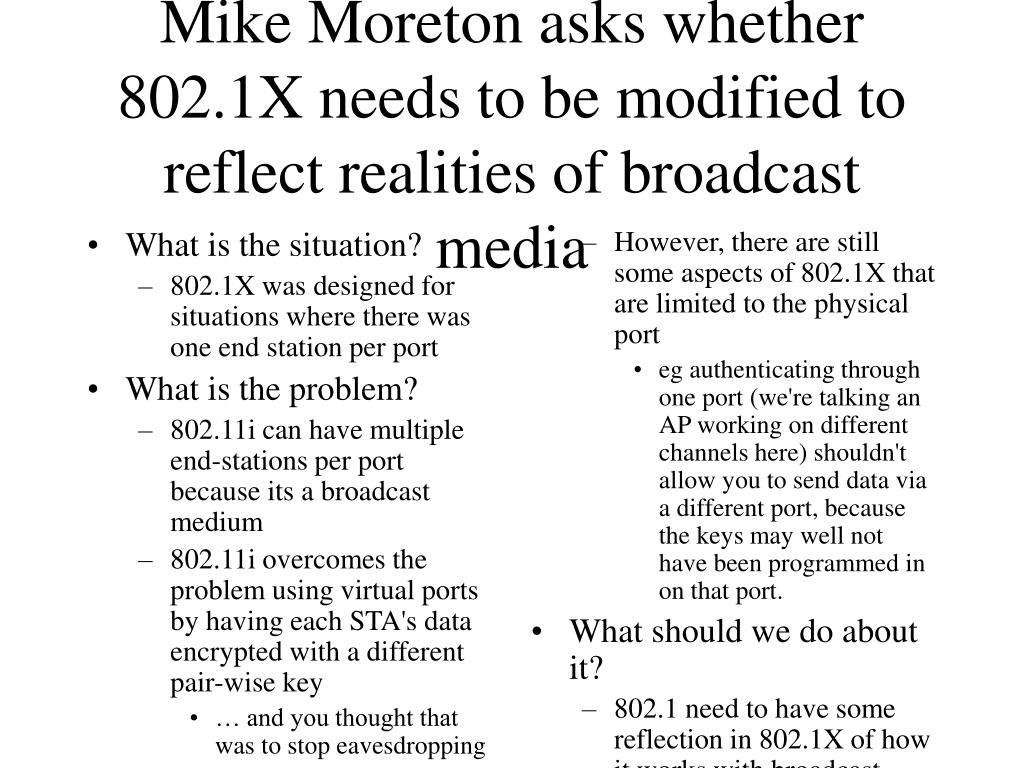

30. What is the situation? 802.1X was designed for situations where there was one end station per port What is the problem? 802.11i can have multiple end-stations per port because its a broadcast medium 802.11i overcomes the problem using virtual ports by having each STA's data encrypted with a different pair-wise key … and you thought that was to stop eavesdropping See last part of 04/1191r5 However, there are still some aspects of 802.1X that are limited to the physical port eg authenticating through one port (we're talking an AP working on different channels here) shouldn't allow you to send data via a different port, because the keys may well not have been programmed in on that port. What should we do about it? 802.1 need to have some reflection in 802.1X of how it works with broadcast media where traffic is segmented by separate keys. Mike Moreton asks whether 802.1X needs to be modified to reflect realities of broadcast media

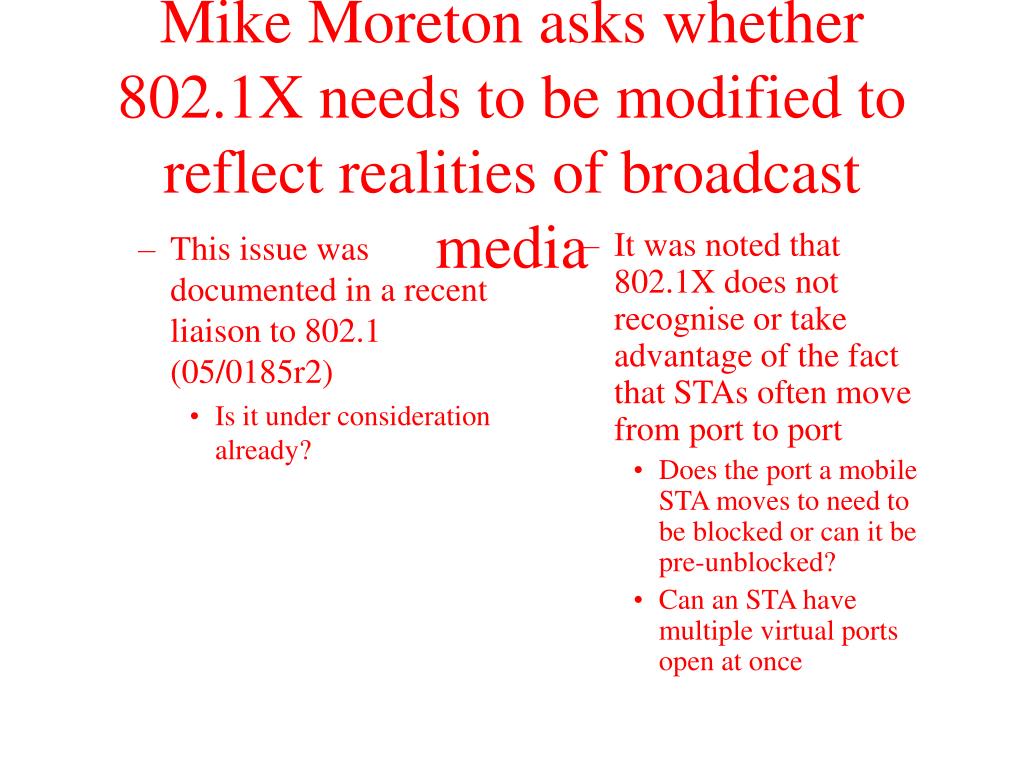

31. This issue was documented in a recent liaison to 802.1 (05/0185r2) Is it under consideration already? It was noted that 802.1X does not recognise or take advantage of the fact that STAs often move from port to port Does the port a mobile STA moves to need to be blocked or can it be pre-unblocked? Can an STA have multiple virtual ports open at once Mike Moreton asks whether 802.1X needs to be modified to reflect realities of broadcast media

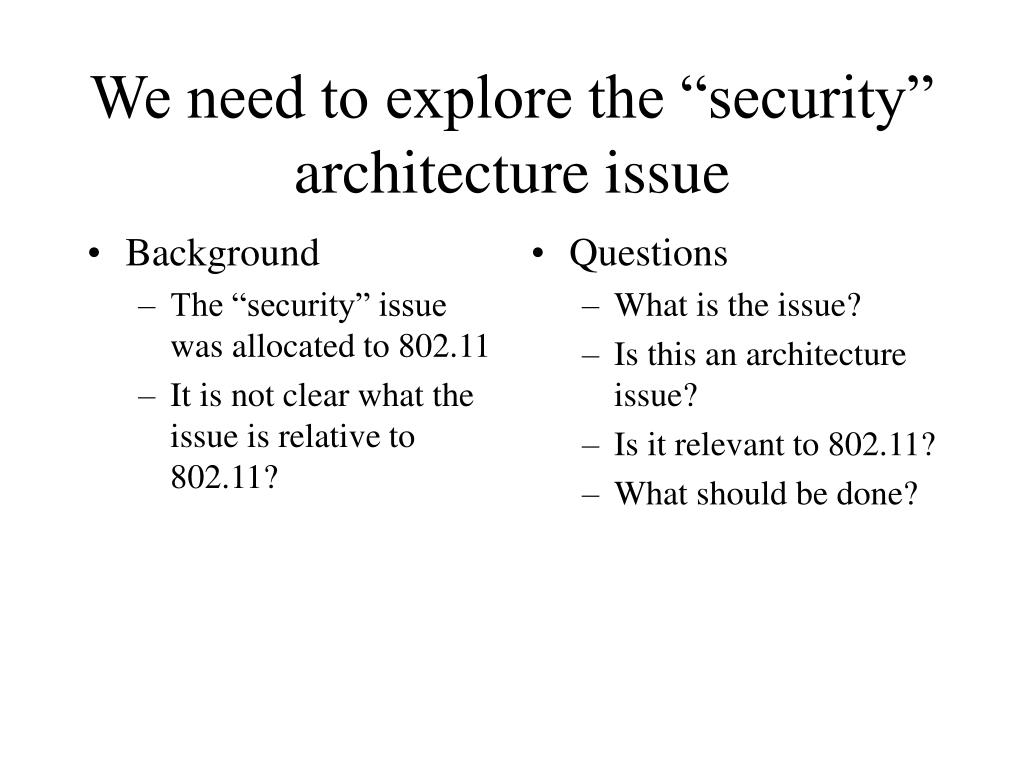

32. Background The “security” issue was allocated to 802.11 It is not clear what the issue is relative to 802.11? Questions What is the issue? Is this an architecture issue? Is it relevant to 802.11? What should be done? We need to explore the “security” architecture issue

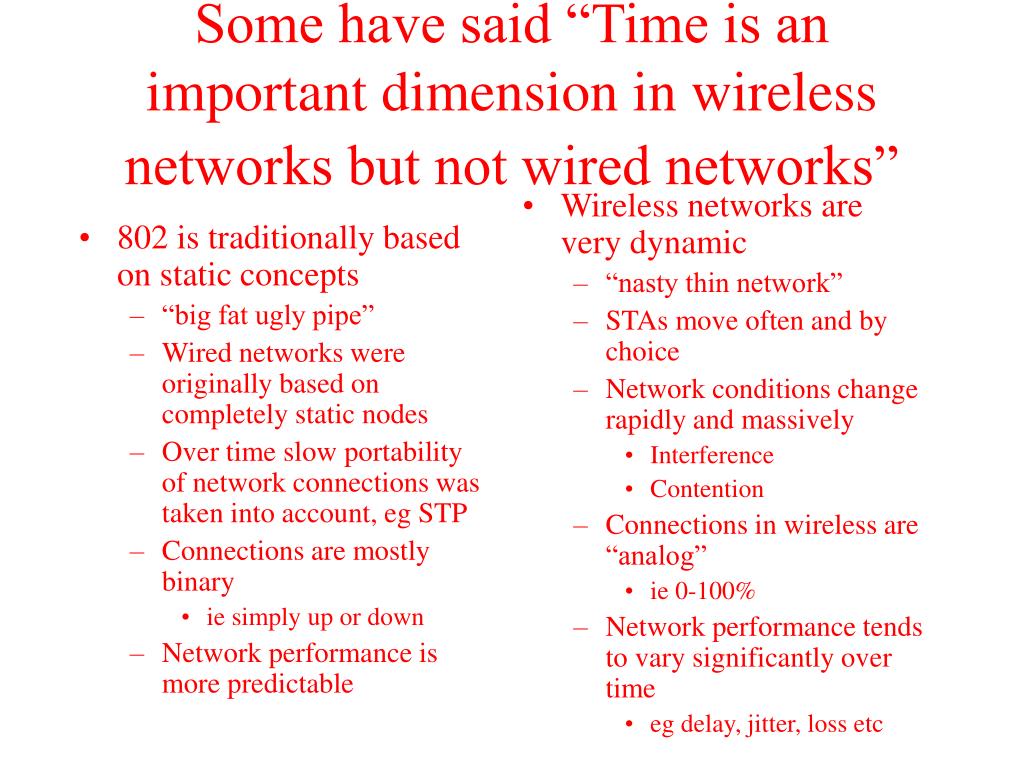

33. 802 is traditionally based on static concepts “big fat ugly pipe” Wired networks were originally based on completely static nodes Over time slow portability of network connections was taken into account, eg STP Connections are mostly binary ie simply up or down Network performance is more predictable Wireless networks are very dynamic “nasty thin network” STAs move often and by choice Network conditions change rapidly and massively Interference Contention Connections in wireless are “analog” ie 0-100% Network performance tends to vary significantly over time eg delay, jitter, loss etc Some have said “Time is an important dimension in wireless networks but not wired networks”

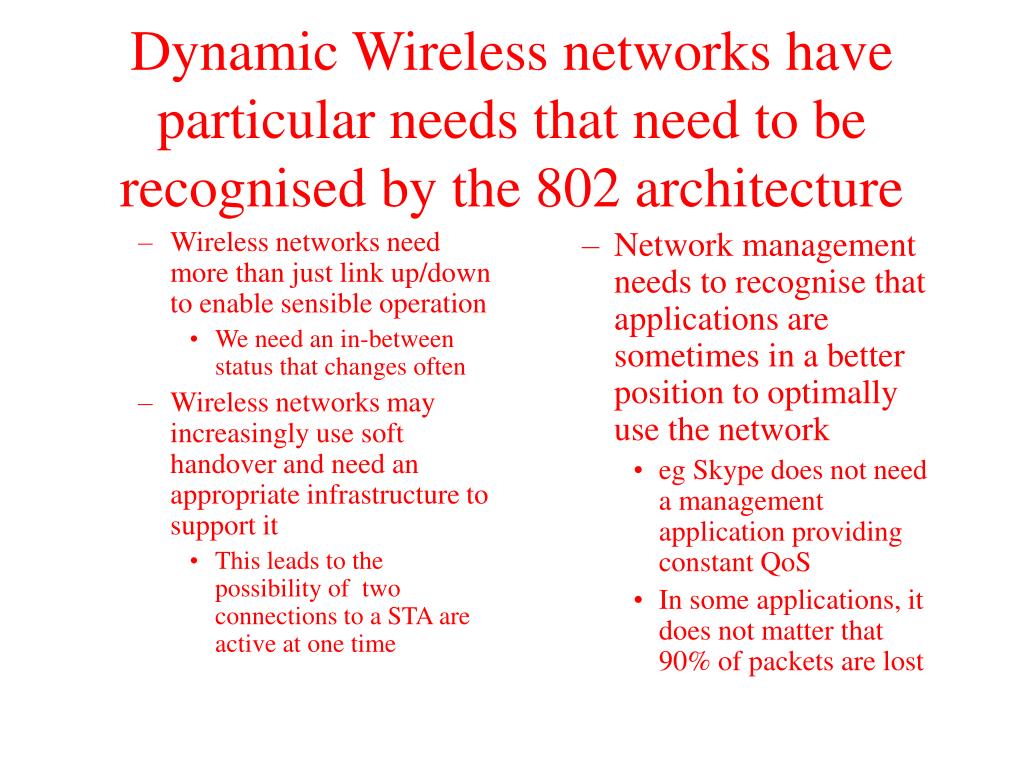

34. Wireless networks need more than just link up/down to enable sensible operation We need an in-between status that changes often Wireless networks may increasingly use soft handover and need an appropriate infrastructure to support it This leads to the possibility of two connections to a STA are active at one time Network management needs to recognise that applications are sometimes in a better position to optimally use the network eg Skype does not need a management application providing constant QoS In some applications, it does not matter that 90% of packets are lost Dynamic Wireless networks have particular needs that need to be recognised by the 802 architecture

35. One option was that we carefully map QoS from 802.11 to 802.x However, it was noted that the QoS capability changes rapidly and massively in wireless networks This might lead to the conclusion that any effort to define a formal QoS mapping is a waste of time Maybe the best approach is to allow people to independently do what they think is best at the time – a one size fits all approach may not make sense or be possible We need to explore the “QoS/class of service” architecture issue

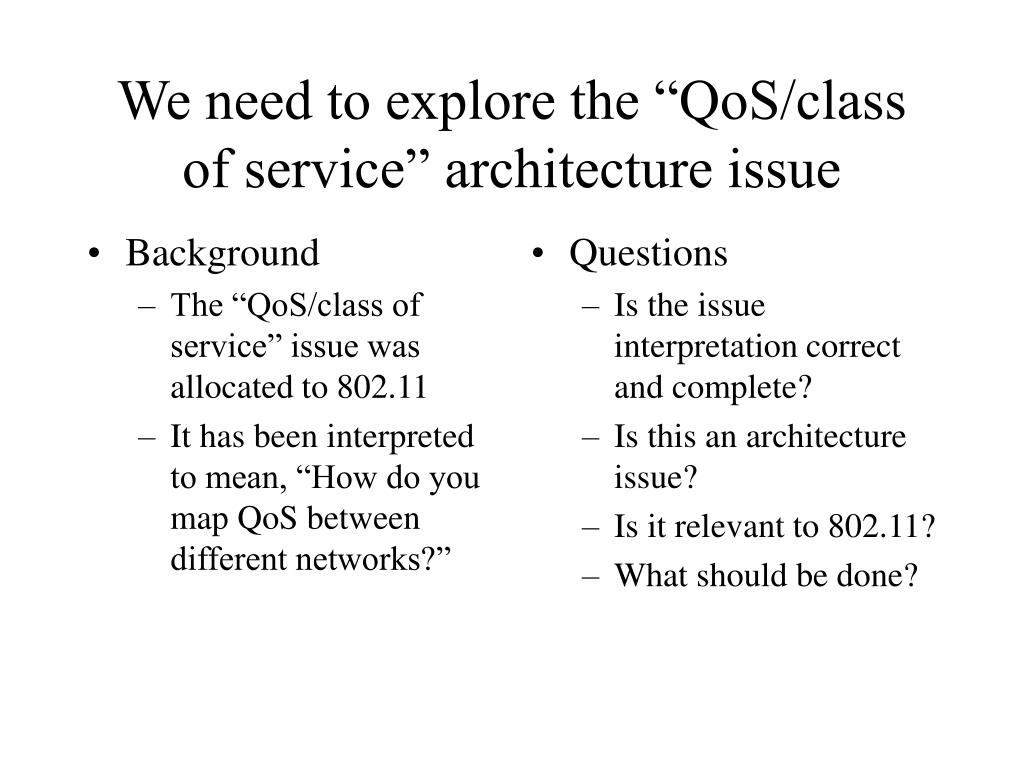

36. Background The “QoS/class of service” issue was allocated to 802.11 It has been interpreted to mean, “How do you map QoS between different networks?” Questions Is the issue interpretation correct and complete? Is this an architecture issue? Is it relevant to 802.11? What should be done? We need to explore the “QoS/class of service” architecture issue

37. It was not clear what the issue was Some hypothesised that this issue resulted from some thinking that 802.11 has defined features above L2 too often in the past When is it appropriate for 802.11 to define L2+ features? When the features are unique to 802.11? When 802.1 will not undertake the definition task? When non-802.11 (eg IETF) technologies are involved? We need to explore the “Protocol definition vs scope” architecture issue

38. Background The “LLC” issue was allocated to 802.11 The issue has been interpreted as meaning: The LLC provides no mechanism for passing additional parameters This means that it is difficult to up set up a QoS connection across multiple radio links Questions What is the issue? Is this an architecture issue? Is it relevant to 802.11? What should be done? We need to explore the “LLC” architecture issue

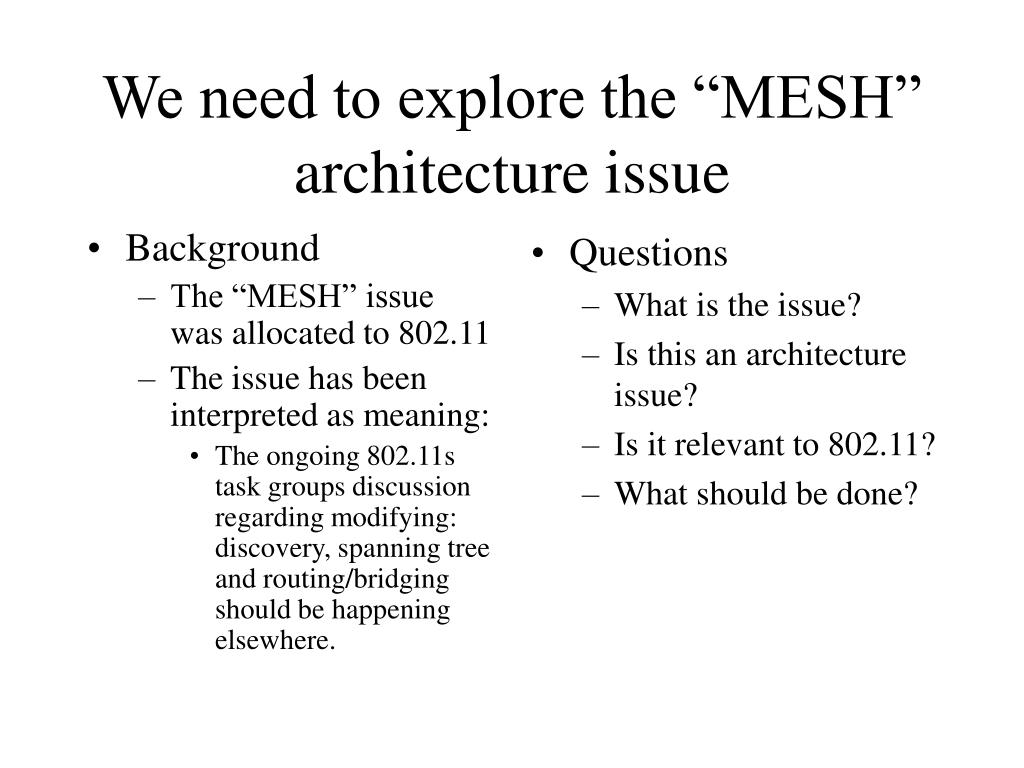

39. Background The “MESH” issue was allocated to 802.11 The issue has been interpreted as meaning: The ongoing 802.11s task groups discussion regarding modifying: discovery, spanning tree and routing/bridging should be happening elsewhere. Questions What is the issue? Is this an architecture issue? Is it relevant to 802.11? What should be done? We need to explore the “MESH” architecture issue

40. Background 802.11k is addressing common measurement some misunderstood or confused management with measurement 802.11v is considering this effort to be within its scope What is the problem Multiple working groups are presently or have already defined this issue using different definitions, semantics and formulas only for themselves Questions What is the issue for 802.11? Is this an architecture issue for 802? What should 802.11 do? We need to explore the Signal Power/ Channel Management architecture issue

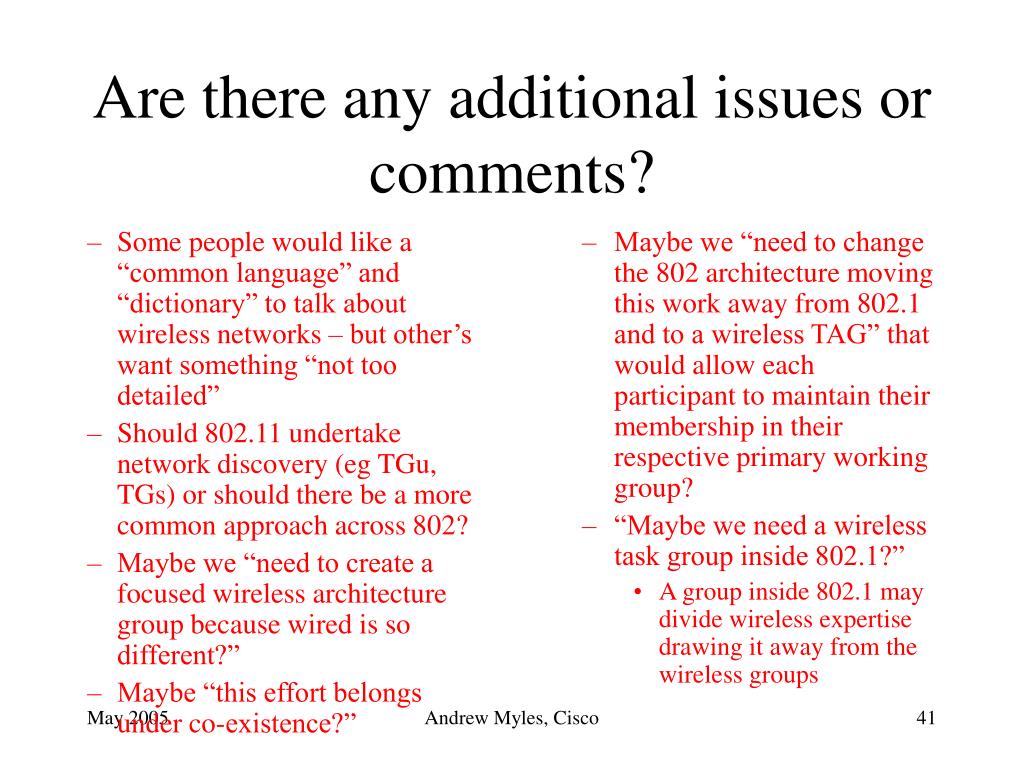

41. Some people would like a “common language” and “dictionary” to talk about wireless networks – but other’s want something “not too detailed” Should 802.11 undertake network discovery (eg TGu, TGs) or should there be a more common approach across 802? Maybe we “need to create a focused wireless architecture group because wired is so different?” Maybe “this effort belongs under co-existence?” Maybe we “need to change the 802 architecture moving this work away from 802.1 and to a wireless TAG” that would allow each participant to maintain their membership in their respective primary working group? “Maybe we need a wireless task group inside 802.1?” A group inside 802.1 may divide wireless expertise drawing it away from the wireless groups Are there any additional issues or comments? Andrew Myles, Cisco

42. NOTE: Changes made as a result of 13-Mar-05 802 Architecture Group meeting are in BLUE Dot15 802 Architecture Group Update Tom Siep Cambridge Silicon Radio 802.15 Liaison to 802 Architecture Committee

43. Prioritized issues – 802.15 Management Issues • Issues • LLC – acts as a block to passing additional (e.g., QoS) parameters • QoS • (Signal) Power/channel management • 64bit to 48 bit address mapping for bridging (new topic) • Smaller than 100 octets allowed for minimum packet size • Bridging compatibility – handling of multicasts, no clause 6 section for .1D • Non-Issues • Are PANs different from WLANs? • Security • Mesh (work TBD) • Architectural consistency across three MACs { Not architectural issues } Not addressed at Sunday meeting

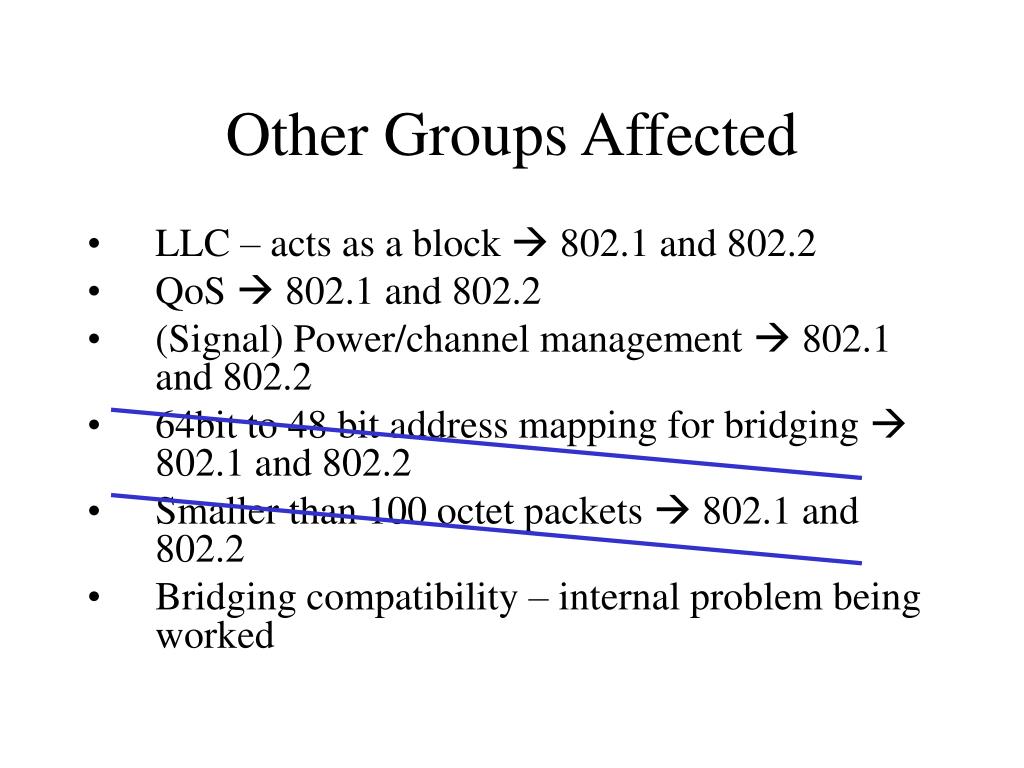

44. Other Groups Affected • LLC – acts as a block  802.1 and 802.2 • QoS  802.1 and 802.2 • (Signal) Power/channel management  802.1 and 802.2 • 64bit to 48 bit address mapping for bridging  802.1 and 802.2 • Smaller than 100 octet packets  802.1 and 802.2 • Bridging compatibility – internal problem being worked

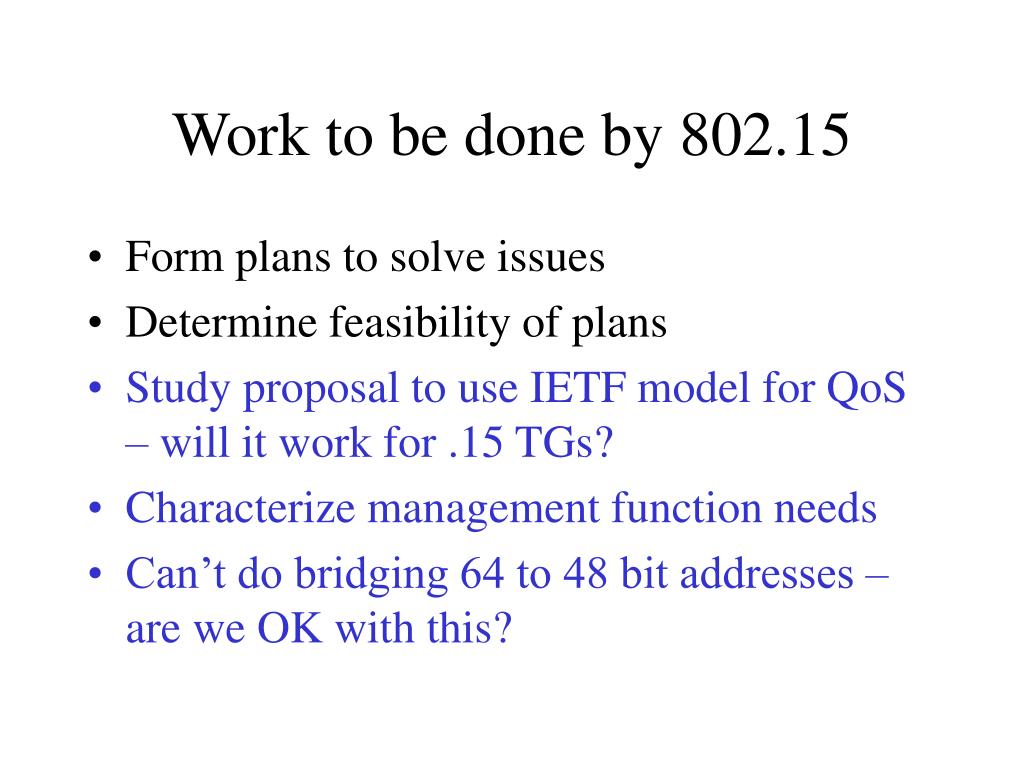

45. Work to be done by 802.15 • Form plans to solve issues • Determine feasibility of plans • Study proposal to use IETF model for QoS – will it work for .15 TGs? • Characterize management function needs • Can’t do bridging 64 to 48 bit addresses – are we OK with this?

46. LLC – acts as a block to passing additional (e.g., QoS) parameters • All 3 MAC need LLC support to requests to create/modify/terminate streams based on QoS parameters • Data needs to be able to be associated with a stream at the MAC SAP • QoS changes need to be communicated to the higher layers • Need to be able to inquire QoS characteristics of remote nodes

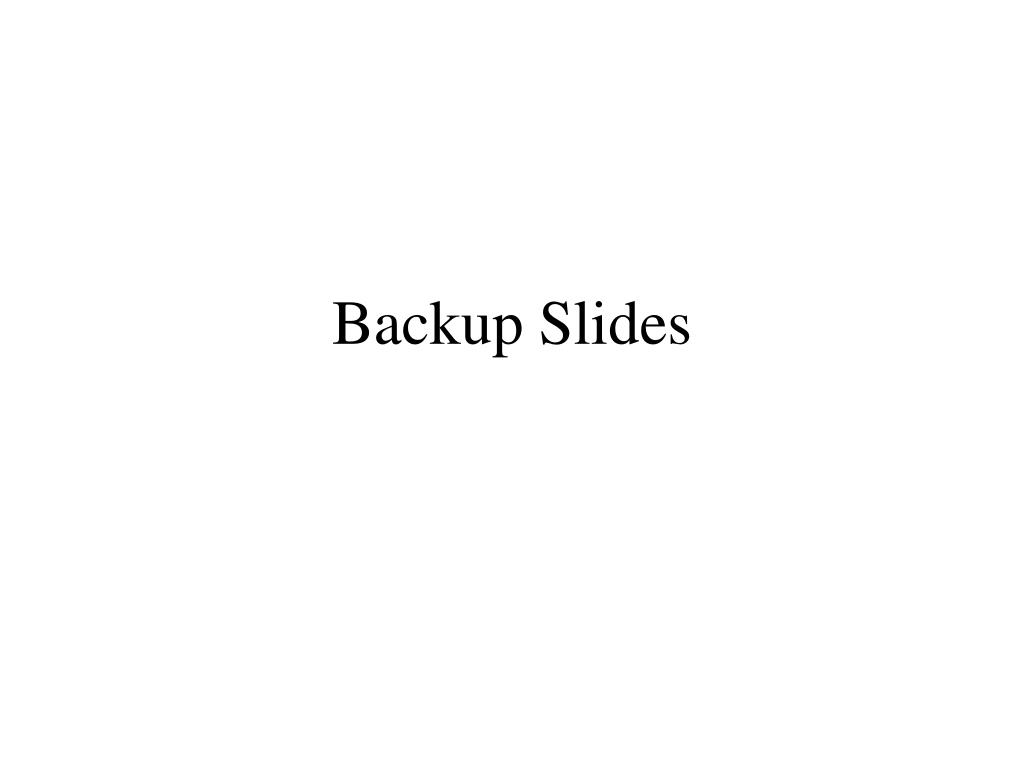

47. Backup Slides

48. Known issues – 802.15 (as presented at Sunday meeting in San Antonio) • Are PANs different from WLANs? • We hope the answer is “No” (wrt the MAC service) • Security • What functionality is needed • Who does what aspect • Bridging compatibility – handling of multicasts, no clause 6 section for .1D • LLC – acts as a block to passing additional (e.g., QoS) parameters • Mesh(not the same as the .11 issue though) • QoS • Architectural consistency across three MACs • (Signal) Power/channel management

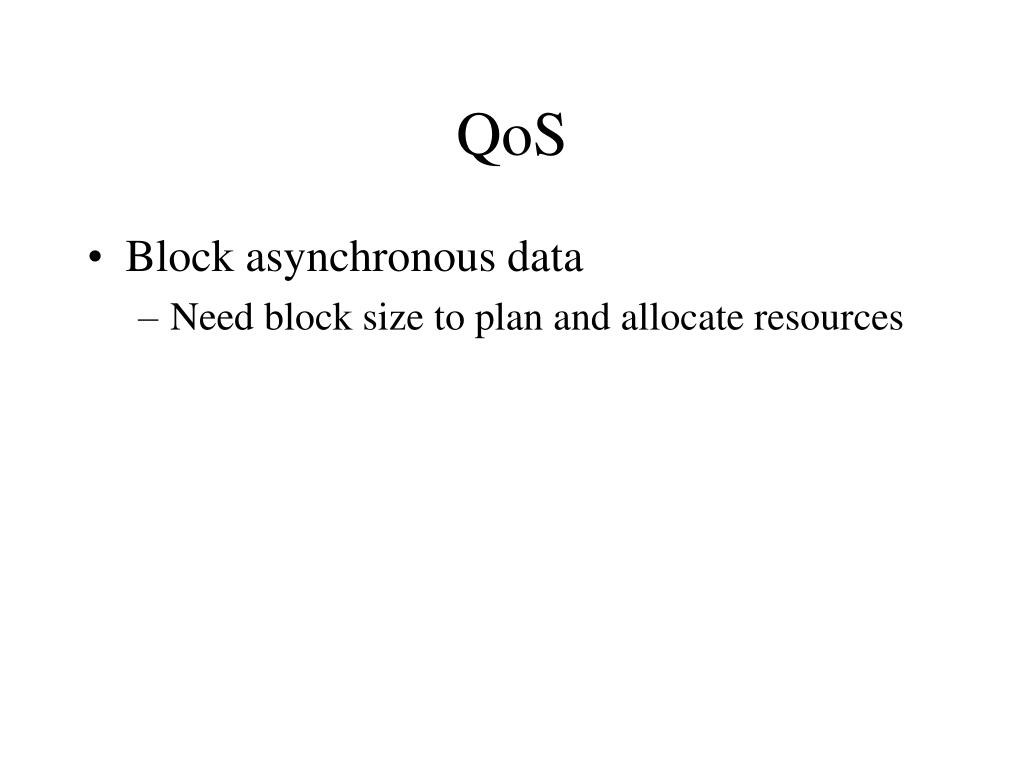

49. QoS • Block asynchronous data • Need block size to plan and allocate resources

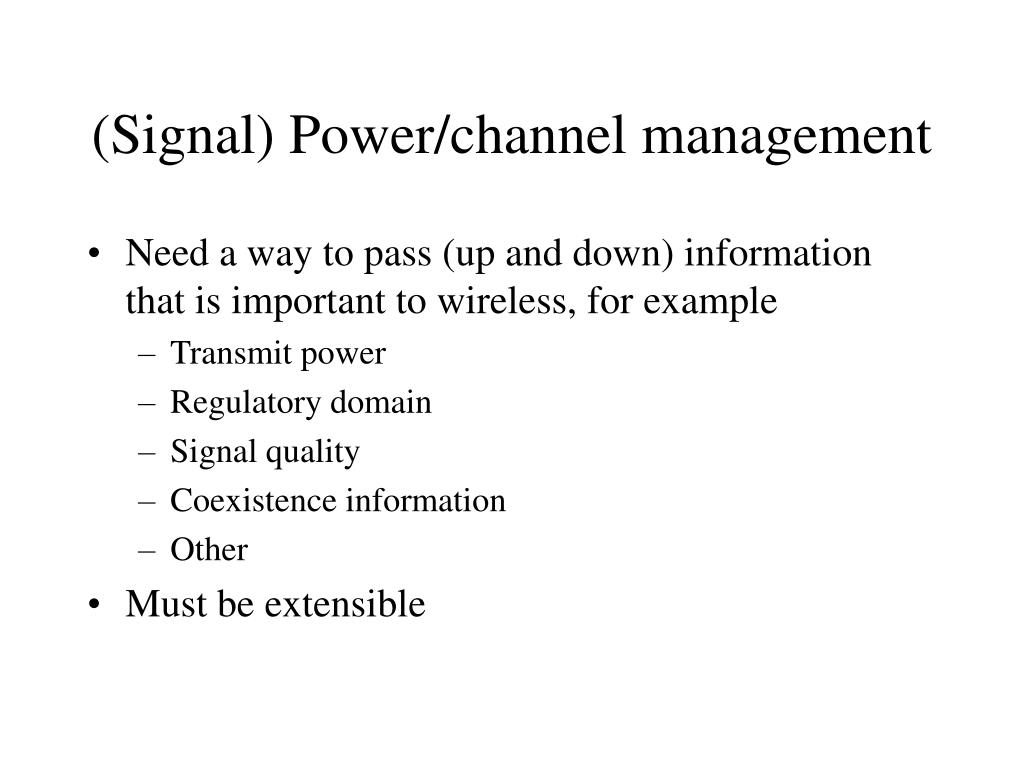

50. (Signal) Power/channel management • Need a way to pass (up and down) information that is important to wireless, for example • Transmit power • Regulatory domain • Signal quality • Coexistence information • Other • Must be extensible
