Presentation Transcript

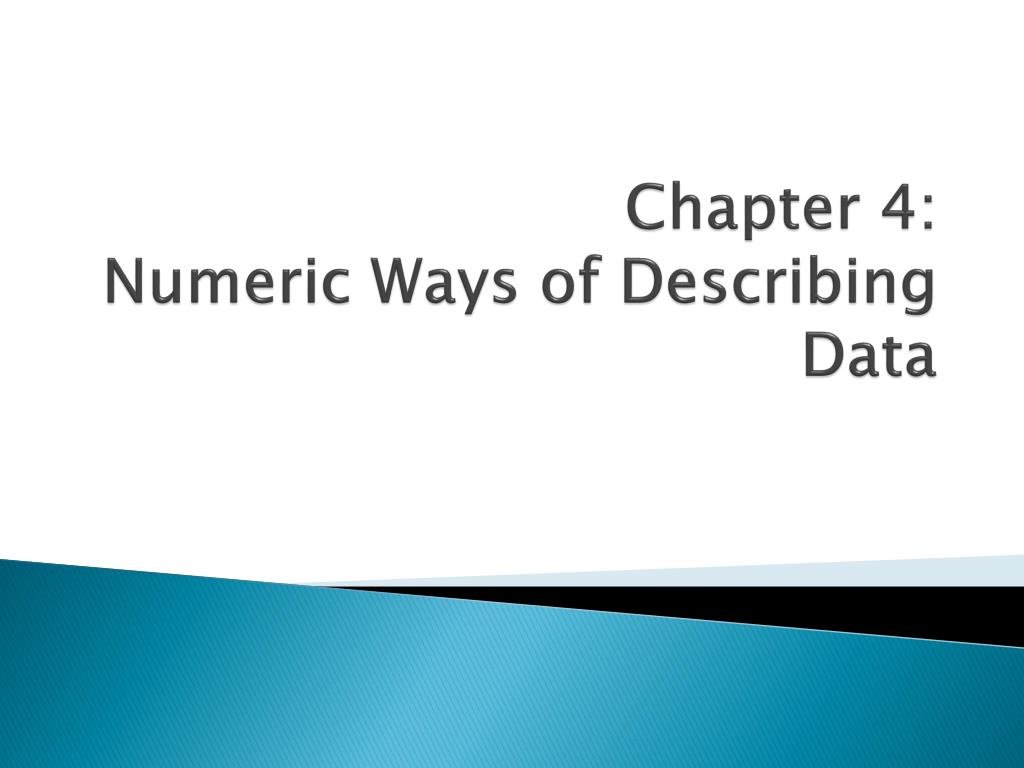

  1. Chapter 4:Numeric Ways of Describing Data

  2. Measures of Center • Mean • Formula • Substitution • Answer • Calculator • Symbols • Median • Even, odd sample size • Using mean vs. median • Mean for symmetric samples • Median for skewed samples

  3. Trimmed Mean • 10% trimmed mean ignores the top 10% and lowest 10% of observations • Order of resistance to outliers: • Least resistant: • Moderately resistant: • Most resistant: Mean Trimmed mean Median

  4. Proportion • Symbols • Proportion is always between 0 and 1

  5. Measures of Spread • Variance, standard deviation • Symbols • Formulas • Substitution • Calculator • Units

  6. Boxplots • Construction • 5 number summary: Q1, Q3, median, minimum, maximum • Outliers: <Q1 – 1.5IQR, >Q3 + 1.5IQR • Interpretation / Comparing • Center – median • Shape – cannot tell from boxplot • Spread – compare whiskers, upper/lower half of box • When comparing: • Look for overlap • Compare whiskers / boxes – which distribution has more variability?

  7. Boxplot Example

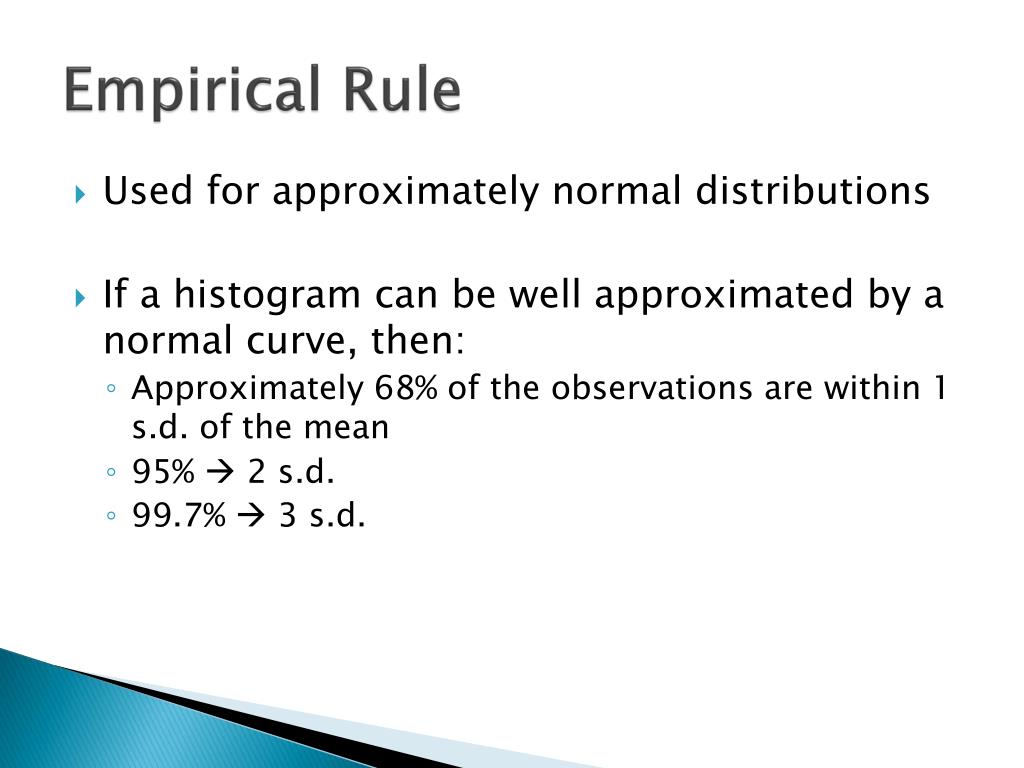

  8. Empirical Rule • Used for approximately normal distributions • If a histogram can be well approximated by a normal curve, then: • Approximately 68% of the observations are within 1 s.d. of the mean • 95%  2 s.d. • 99.7%  3 s.d.

  9. z – score • To compute: • Interpret: • Tells number of standard deviations from mean

  10. Percentile • Tells proportion/percent of observations at or below that value • If you score at the 83rd percentile on the ACT, then you scored the same as or better than 83% of students • If mean is 64 and s.d. is 2, find the score you would need to be at the 90th percentile:
