  1. Alarm Mode An in-depth guide

  2. Overview • Main module for loading configuration and monitoring system • Reader Open/Close • Arm/disarm zones • Control relays (& attached devices) • Reads config & Writes events to/from the database • Sends messages to other Alarm Mode stations • Can be run on many PCs simultaneously

  3. Main Screen • Select function from toolbar or menu • Save/Load configuration • Right-click menus

  4. System Menu • Loading configuration to hardware • User logout/lock

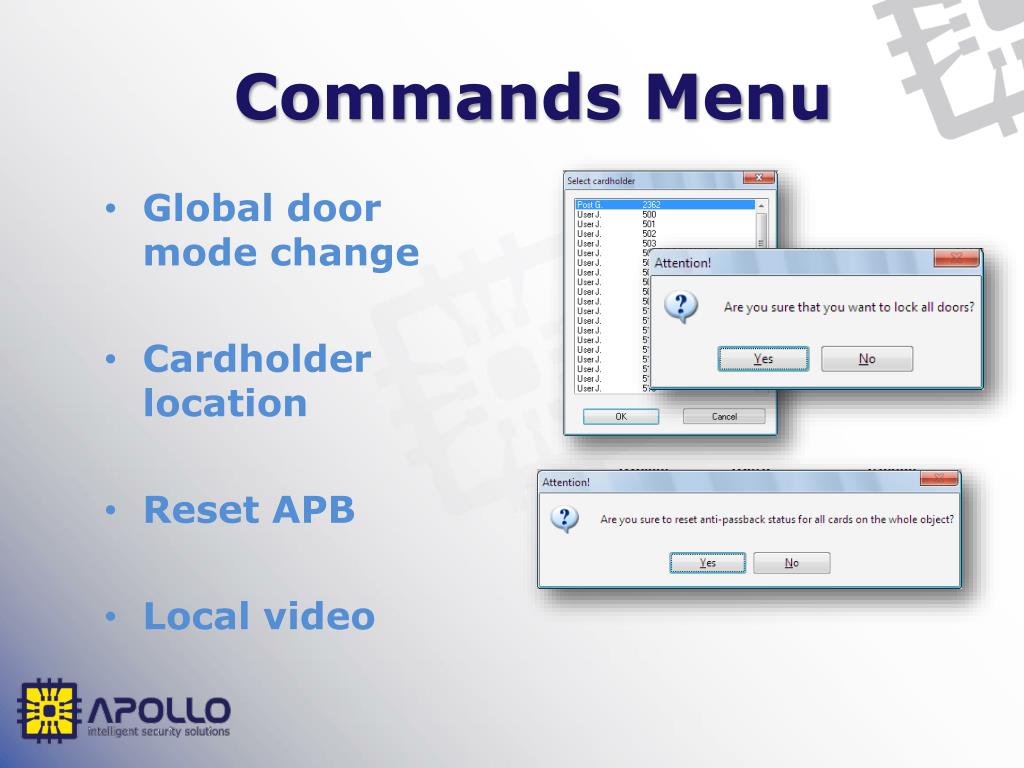

  5. Commands Menu • Global door mode change • Cardholder location • Reset APB • Local video

  6. Options Menu • Display of message types • Acknowledgement • Map parameters

  7. Reactions Menu • Execute custom commands

  8. Objects Control Menu • Interface for manual control off objects

  9. Plugins • Hardware Status • Check Point • Guard Tour • Visitor

  10. Maps - Viewing • Switching mode • Manual • Cycle • Priority • Icon bar

  11. Event Types • Alarm State • Middle State • Normal State

  12. Map Priority • Each event has priority • Affects what map is shown • Priority can be changed 100                Denied Access –Duress Detected 95                Duress Access 90                Tamper Switch 85                Power Problem 85                Door Tamper Switch 80                Device is Offline 55                Alarm Zone is Switched to Active 50                AUX Input is Active 50                 Door Forced Open 45                Access Request (awaits for answer) 40                Door Held Open 38                Diddle (Card, PIN) 35                Panel is Powered 35                Device is Online 35                Alarm Zone is Switched to Inactive 10                Access Denied 9                Access Granted 5                Operator Logins 5                Operator Logouts

  13. Message Acknowledgement • Records that message was seen • Can have other actions associated
