  1. CN1276 Server Kemtis Kunanuraksapong MSIS with Distinction MCTS, MCDST, MCP, A+

  2. Agenda • Chapter 10: Planning a Group Policy Management and Implementation Strategy • Quiz • Exercise

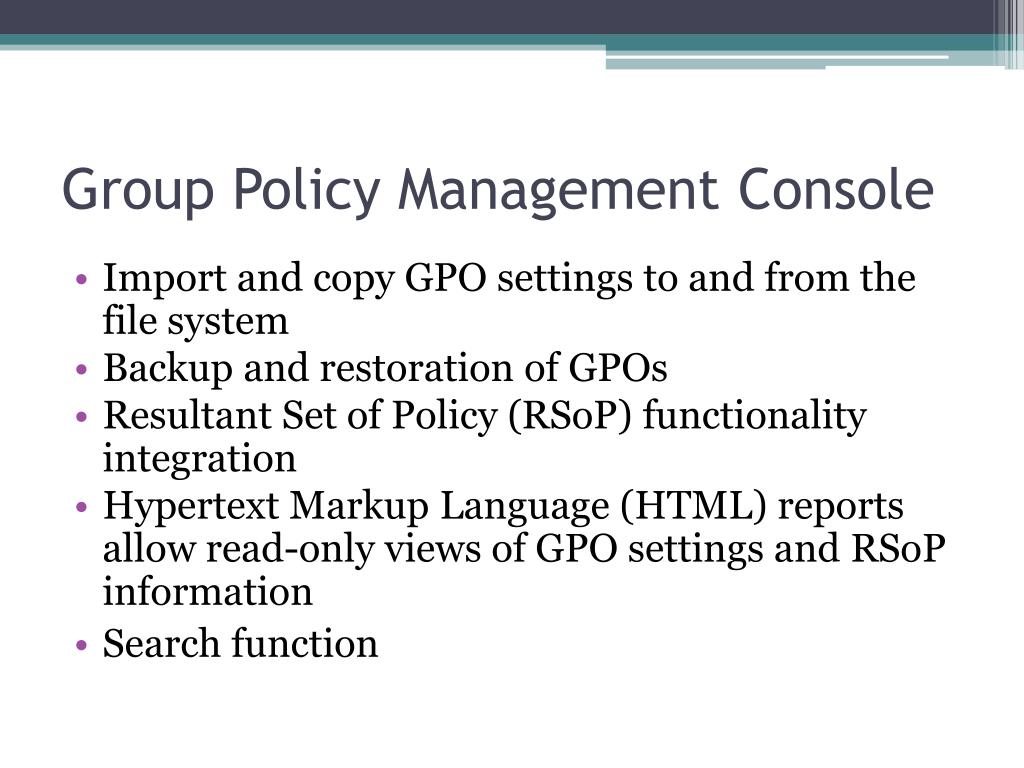

  3. Group Policy Management Console • Import and copy GPO settings to and from the file system • Backup and restoration of GPOs • Resultant Set of Policy (RSoP) functionality integration • Hypertext Markup Language (HTML) reports allow read-only views of GPO settings and RSoP information • Search function

  4. Group Policy Management Console • Is located in the Administrative Tools • See Figure 10-1 on Page 205 • Link order • See Figure 10-2 on Page 205 • Group Policy Inheritance • See Figure 10-3 on Page 205 • Delegation • See Figure 10-4 on Page 206

  5. Managing an Individual GPO • When a GPO is selected in the Group Policy Management interface: • Scope • Details • Settings • Delegation

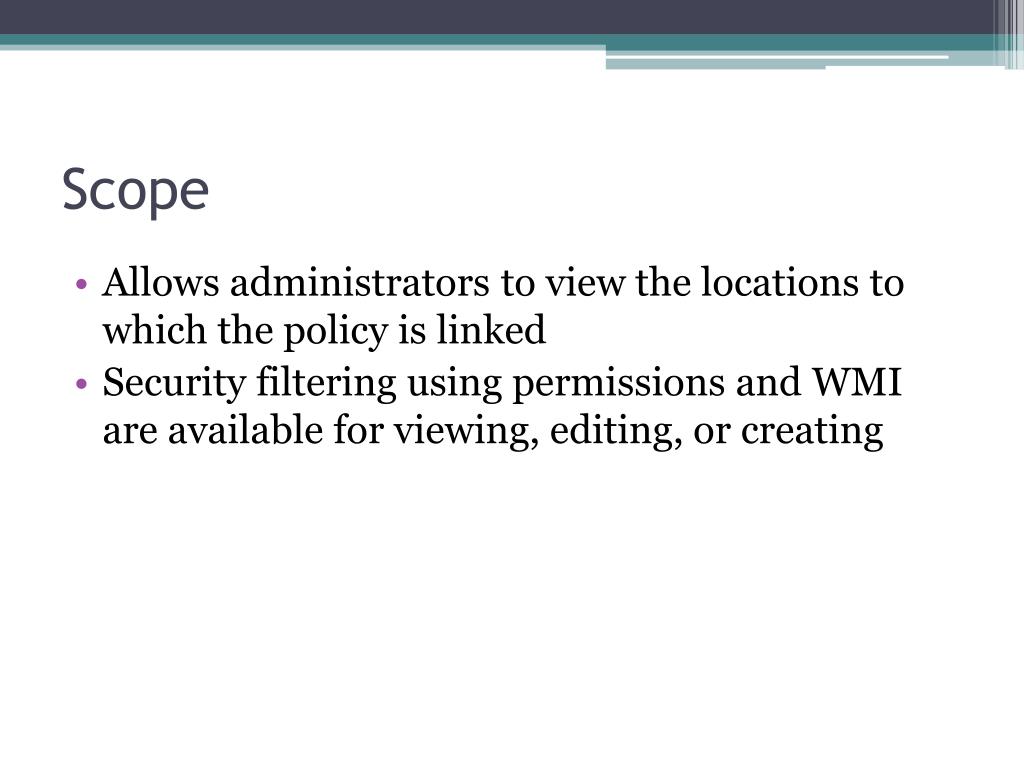

  6. Scope • Allows administrators to view the locations to which the policy is linked • Security filtering using permissions and WMI are available for viewing, editing, or creating

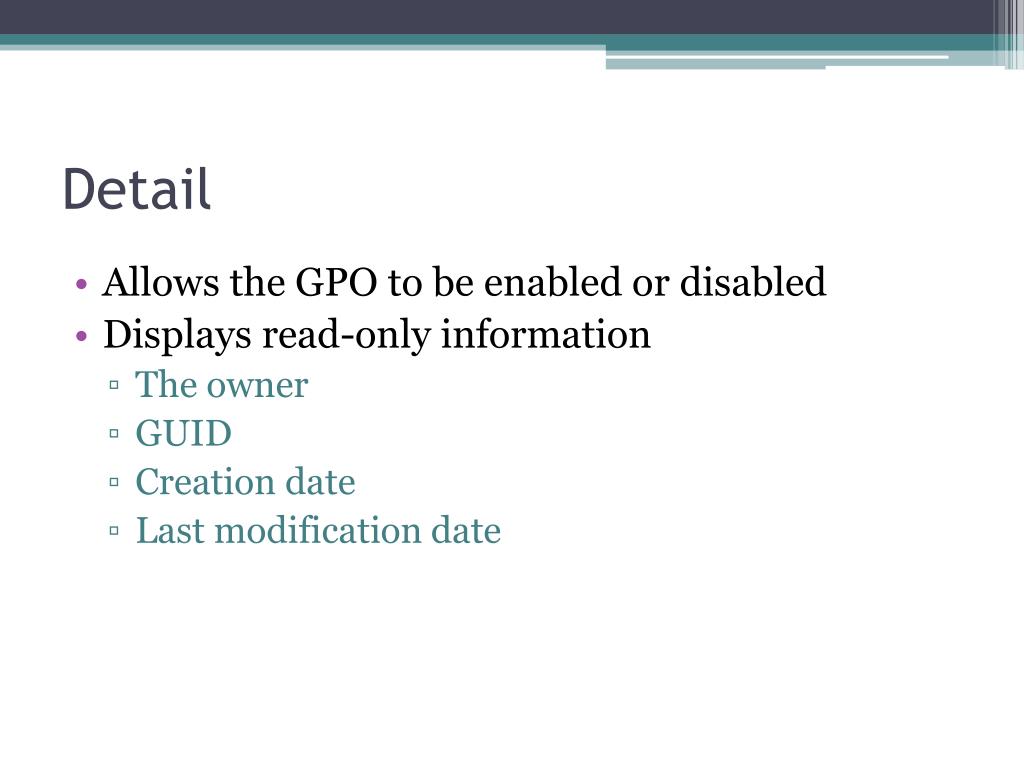

  7. Detail • Allows the GPO to be enabled or disabled • Displays read-only information • The owner • GUID • Creation date • Last modification date

  8. Settings • HTML report • View GPO settings that do not have the original default values • Right-clicking within this view to print or save the report

  9. Delegation • Lists the users and groups that have access to this GPO • Lists the permissions that apply to them • The Advanced button allows access to the Security tab to directly view the GPO’s ACL

  10. Filtering Group Policy Scope • Block Policy Inheritance policy setting • Enforce • Two additional filtering methods • Security Group Filtering • Uses the GPO’s Security tab to determine user and group account access to the policy • WMI Filtering • Uses filters written in the WMI Query Language (WQL) to control GPO application.

  11. Windows Management Instrumentation (WMI) • A component of the MS Windows that provides management information and control in an enterprise environment • You can use WMI: • To create queries based on hardware, software, operating systems, and services • To gather data or to determine where items, such as GPOs, will be applied. • To control which users or computers will be affected by a GPO based on defined criteria

  12. Windows Management Instrumentation (WMI) • To find all Win XP Prof. • Select * from Win32_OperatingSystem where Caption = “Microsoft Windows XP Professional” • Only one WMI filter can be applied to each GPO • See Table 10-2 on Page 211 for more WMI filter string example

  13. Group Policy EXCEPTION • You can applied the GPO to the domain and make an exception list • http://sdmsoftware.com/blog/2011/01/29/the-virtues-and-vices-of-gpo-deny-aces/

  14. Effective Policy Settings • Resultant Set of Policy Wizard (MMC Snap-in) • Group Policy Results and Group Policy Modeling components of Group Policy Management • GPResult command-line tool

  15. Resultant Set of Policy (RSoP) • The sum of the policies applied to a user or computer after all filters, security group permissions, and inheritance settings • Two modes within RSoP: • Planning mode • To simulate the effect of policy settings prior to implementing them on a computer or user • Logging mode • Useful for documenting and understanding how combined policies are affecting users and computers

  16. Using GPResult Command • GPResultallows you to create and display an RSoP query from the command line • It provides comprehensive information about the operating system, the user, and the computer

  17. Assignment • Case Scenario 10-1 • Question 2 • Question 3 • Matching • 1-10 • Multiple Choice • 1-10 • Online Lab 10
