CardSpace™

This installs: hicardie.dll, higgins-bho.dll, higgins-ss.dll and hss.exe (PARITY DEVELOPED). “Next Gen” HBX for IE (Windows only). hss.exe Control Panel app. This calls higgins-ss.dll to display selector selector UI (POTENTIALLY PARITY DEVELOPED). higgins.msi Higgins Installer.

yama
Télécharger la présentation

CardSpace™

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

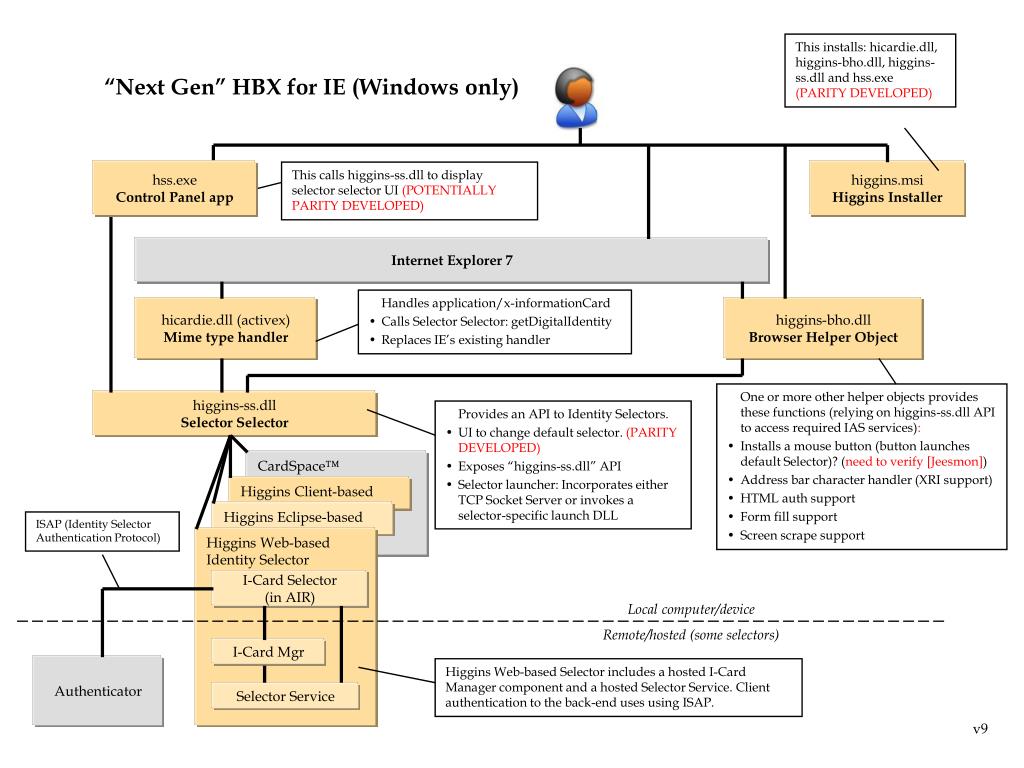

  1. This installs: hicardie.dll, higgins-bho.dll, higgins-ss.dll and hss.exe (PARITY DEVELOPED) “Next Gen” HBX for IE (Windows only) hss.exe Control Panel app This calls higgins-ss.dll to display selector selector UI (POTENTIALLY PARITY DEVELOPED) higgins.msi Higgins Installer Internet Explorer 7 • Handles application/x-informationCard • Calls Selector Selector: getDigitalIdentity • Replaces IE’s existing handler hicardie.dll (activex) Mime type handler higgins-bho.dll Browser Helper Object • One or more other helper objects provides these functions (relying on higgins-ss.dll API to access required IAS services): • Installs a mouse button (button launches default Selector)? (need to verify [Jeesmon]) • Address bar character handler (XRI support) • HTML auth support • Form fill support • Screen scrape support higgins-ss.dll Selector Selector • Provides an API to Identity Selectors. • UI to change default selector. (PARITY DEVELOPED) • Exposes “higgins-ss.dll” API • Selector launcher: Incorporates either TCP Socket Server or invokes a selector-specific launch DLL CardSpace™ Higgins Client-based Higgins Eclipse-based ISAP (Identity Selector Authentication Protocol) Higgins Web-basedIdentity Selector I-Card Selector (in AIR) Local computer/device Remote/hosted (some selectors) I-Card Mgr Authenticator Higgins Web-based Selector includes a hosted I-Card Manager component and a hosted Selector Service. Client authentication to the back-end uses using ISAP. Selector Service v9
