Coat Color in Mice

Coat Color in Mice. 2 different genes determine only 3 different phenotypes, rather than 4 phenotypes typical of a dihybrid cross. Homozygous, recessive genotype at C-locus is epistatic to genotype at B-locus . Another epistasis example - flower color in peas.

yannis
Télécharger la présentation

Coat Color in Mice

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Coat Color in Mice 2 different genes determine only 3 different phenotypes, rather than 4 phenotypes typical of a dihybrid cross

  2. Homozygous, recessive genotype at C-locus is epistatic to genotype at B-locus

  3. Another epistasis example - flower color in peas • Flower color is determined by two different genes • The pigment in colored flowers is produced by a two-step process

  4. The result is therefore a ratio of 9 flowered plants: 7 white plants

  5. Pleiotropic genes

  6. Yellow and gray coat color in mice • In 1904, researchers begin with a true-breeding strain of gray mice crossed with yellow mice • The F1 generation was 50% gray and 50% yellow • Yellow must be dominant to gray • The yellow mice must have been heterozygotes

  7. Yellow and gray coat color • Next a cross of two yellow mice was made • One predicts a 3:1 ratio of yellow to gray mice • The result was a 2:1 ratio of yellow to gray mice

  8. The ratio of 2:1 suggests a lethal gene • In the heterozygous condition, the Y allele causes a yellowing of the coat • In the homozygous condition, the Y alleles produce enough gene product to cause the mouse to die • The Y allele is said to be pleiotropic; it affects more than one phenotypic characteristic

  9. Punnett Square predictions

  10. Phenylketonuria - another example of pleiotropy • Metabolic defect caused by homozygous recessive alleles for enzyme phenylalanine hydroxylase

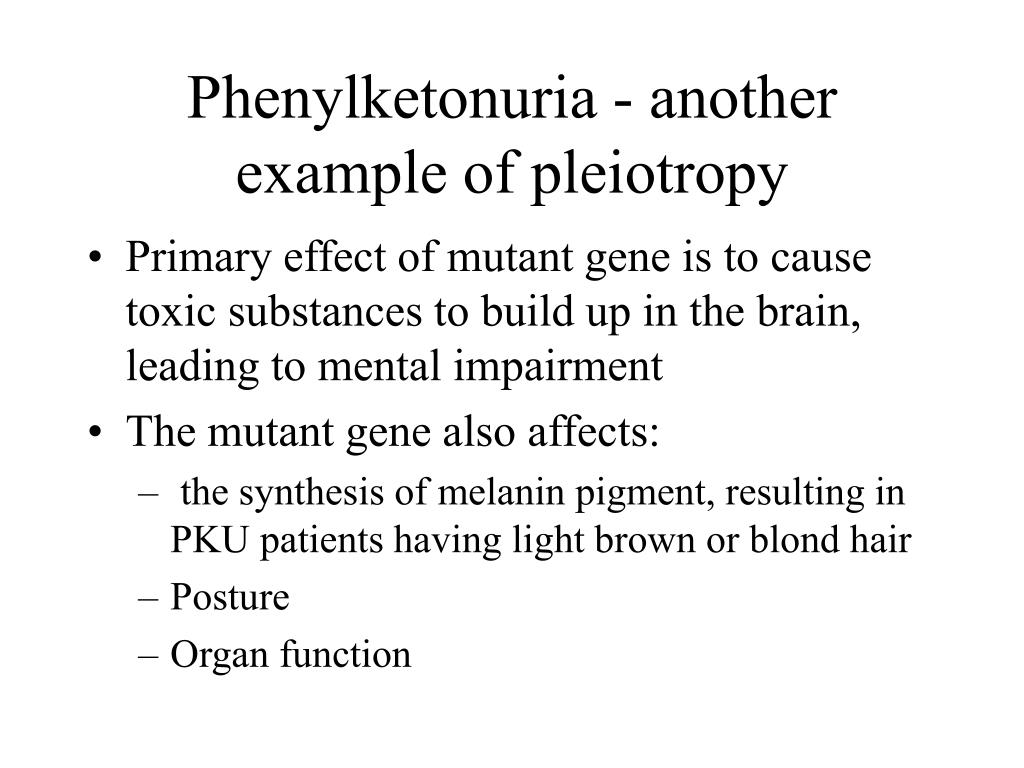

  11. Phenylketonuria - another example of pleiotropy • Primary effect of mutant gene is to cause toxic substances to build up in the brain, leading to mental impairment • The mutant gene also affects: • the synthesis of melanin pigment, resulting in PKU patients having light brown or blond hair • Posture • Organ function

  12. Figure 10.18a Fruit color is highly variable in bell peppers.

  13. Figure 10.18b Crosses between pure lines produce novel colors. Parental generation X Yellow Brown F1 generation Red Self-fertilization F2 generation Red Yellow Brown Green 9/16 3/16 3/16 1/16

  14. Figure 10.18c Model to explain 9 : 3 : 3 : 1 pattern observed above: Two genes interact to produce pepper color. Genotype Color Explanation of color R-Y- Red Red pigment + no chlorophyll rrY- Yellow Yellow pigment + no chlorophyll R-yy Brown Red pigment + chlorophyll rryy Green Yellow pigment + chlorophyll Gene 1 Gene 2 Y = Absence of green (no chlorophyll) R = Red y = Presence of green (+ chlorophyll) r = Yellow (-) = Y or y (-) = R or r

  15. Skin color in corn snakes

  16. Gene interactions in corn snakes • Two loci • One allele causes black pigment to be deposited (dominant allele is B+ and recessive is b) • One allele causes orange pigment to be deposited (dominant allele is O + and recessive is o)
