SEMAPHORES

SEMAPHORES. Scribe: Operating systems(27/02/2014) By Salman Ahmad (11cs10041). WAIT(S). When a process executes wait(s) and finds that s==0, then Process must wait =>block() Places the process into a waiting queue associated with s Switch from running state to waiting state. SIGNAL(S).

yaphet
Télécharger la présentation

SEMAPHORES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

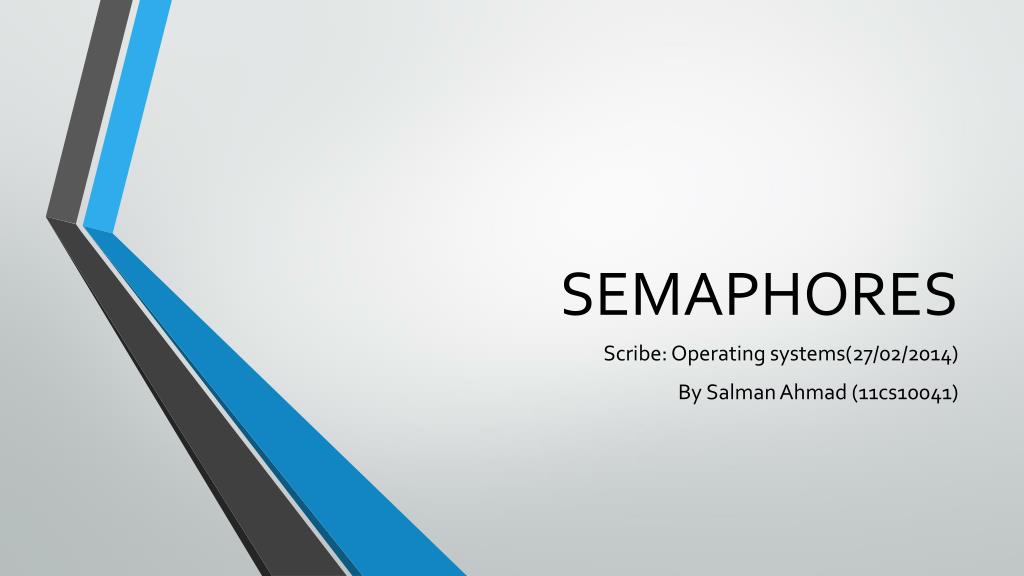

  1. SEMAPHORES Scribe: Operating systems(27/02/2014) By Salman Ahmad (11cs10041)

  2. WAIT(S) When a process executes wait(s) and finds that s==0, then Process must wait =>block() Places the process into a waiting queue associated with s Switch from running state to waiting state.

  3. SIGNAL(S) When a process P executes the signal(s),then Check if some other process Q is waiting on semaphore S and then wakeup(Q) Q changes from waiting state to ready state

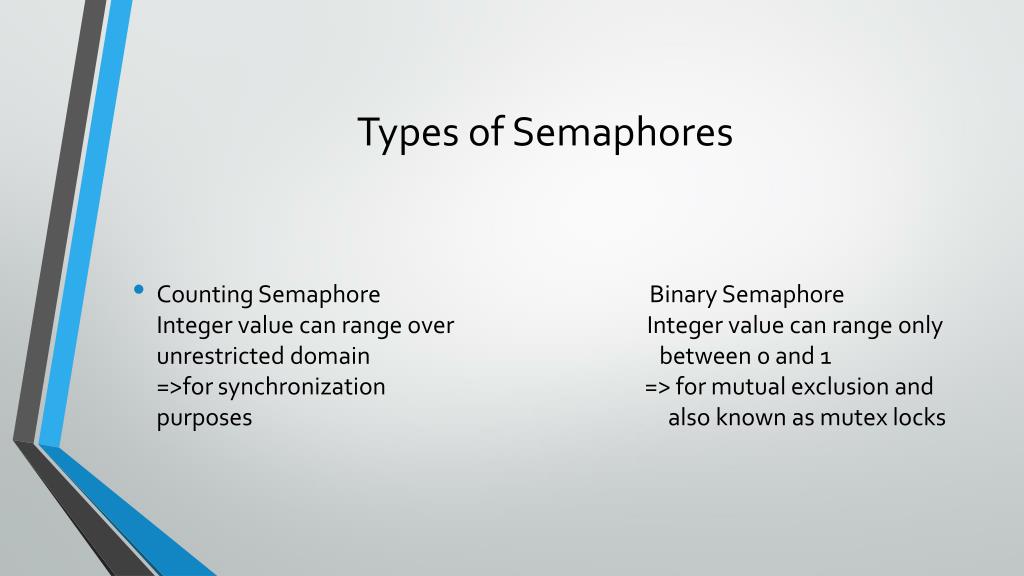

  4. Types of Semaphores Counting Semaphore Binary Semaphore Integer value can range over Integer value can range only unrestricted domain between 0 and 1 =>for synchronization => for mutual exclusion and purposes also known as mutex locks

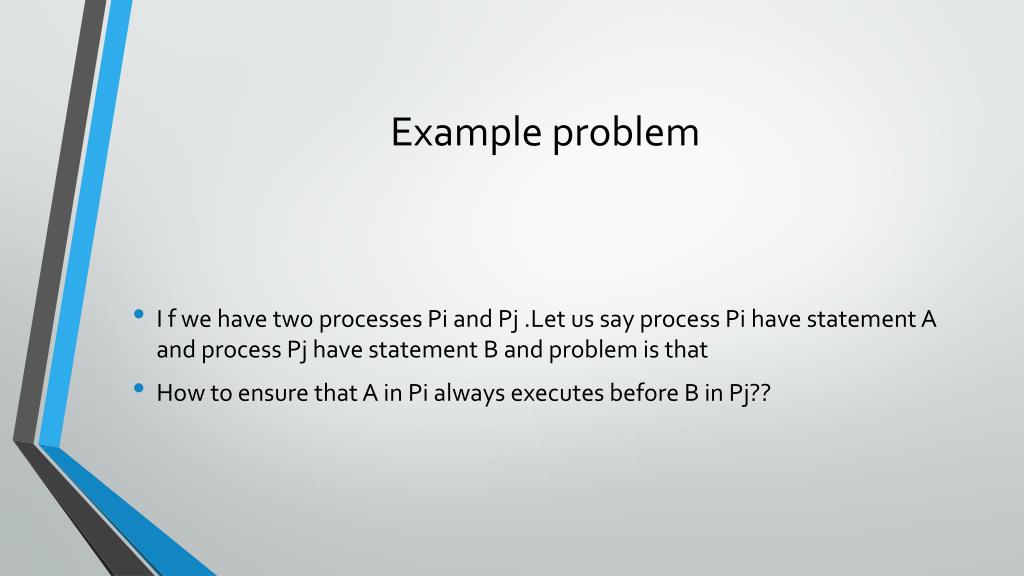

  5. Example problem I f we have two processes Pi and Pj .Let us say process Pi have statement A and process Pj have statement B and problem is that How to ensure that A in Pi always executes before B in Pj??

  6. Example problem (cont...d) Solution: Keep a binary semaphore S, signal(s) after statement A and wait(s) before B in this way we can ensure that A always executes before B Note: At start semaphore S is initialized with value s==0.

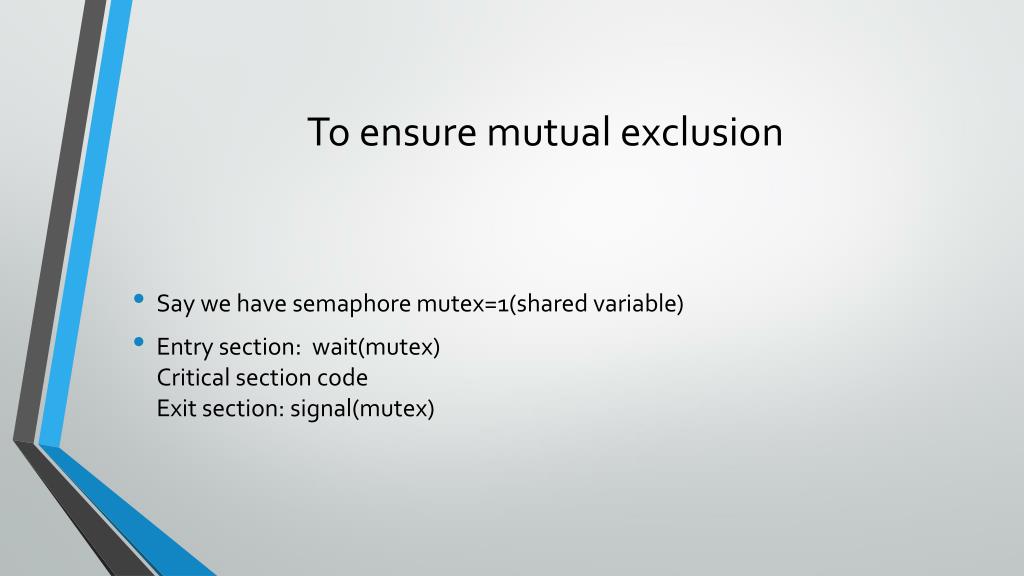

  7. To ensure mutual exclusion Say we have semaphore mutex=1(shared variable) Entry section: wait(mutex) Critical section code Exit section: signal(mutex)

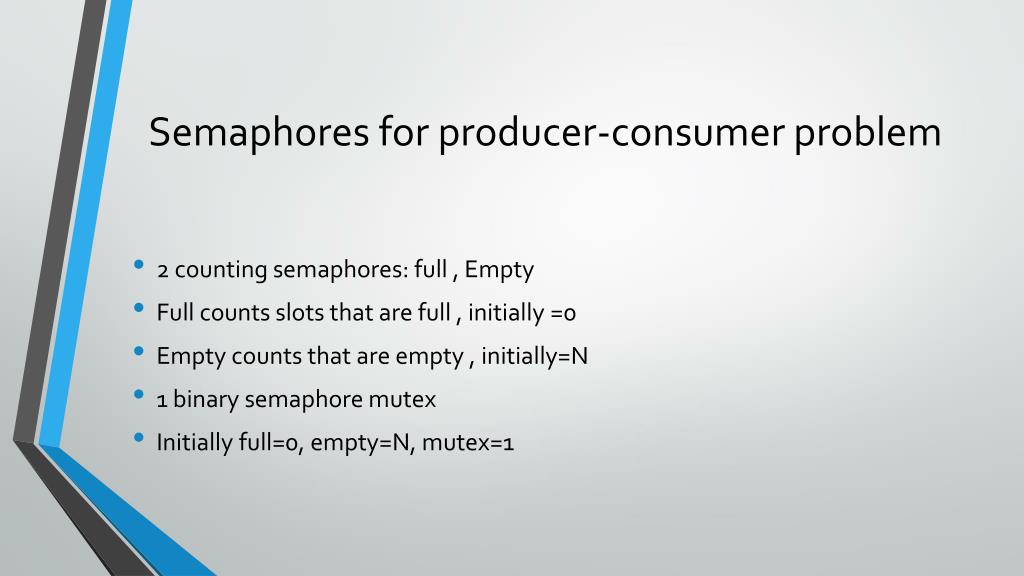

  8. Semaphores for producer-consumer problem 2 counting semaphores: full , Empty Full counts slots that are full , initially =0 Empty counts that are empty , initially=N 1 binary semaphore mutex Initially full=0, empty=N, mutex=1

  9. Producer-consumer problem (cont...d) In consumer , down(&full) i.e. if full==0 (buffer is empty) then consumer blocks on semaphore full. In producer , down(&empty) i.e. if empty==0 (buffer is full) then producer blocks on semaphore empty Down(&mutex) and up(mutex) ensure the mutual exclusion.

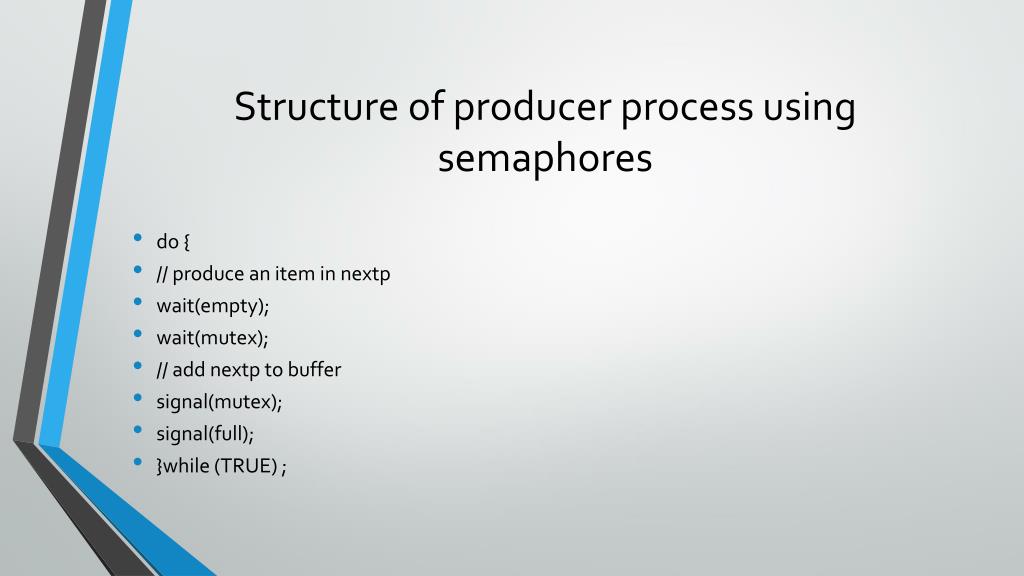

  10. Structure of producer process using semaphores do { // produce an item in nextp wait(empty); wait(mutex); // add nextp to buffer signal(mutex); signal(full); }while (TRUE) ;

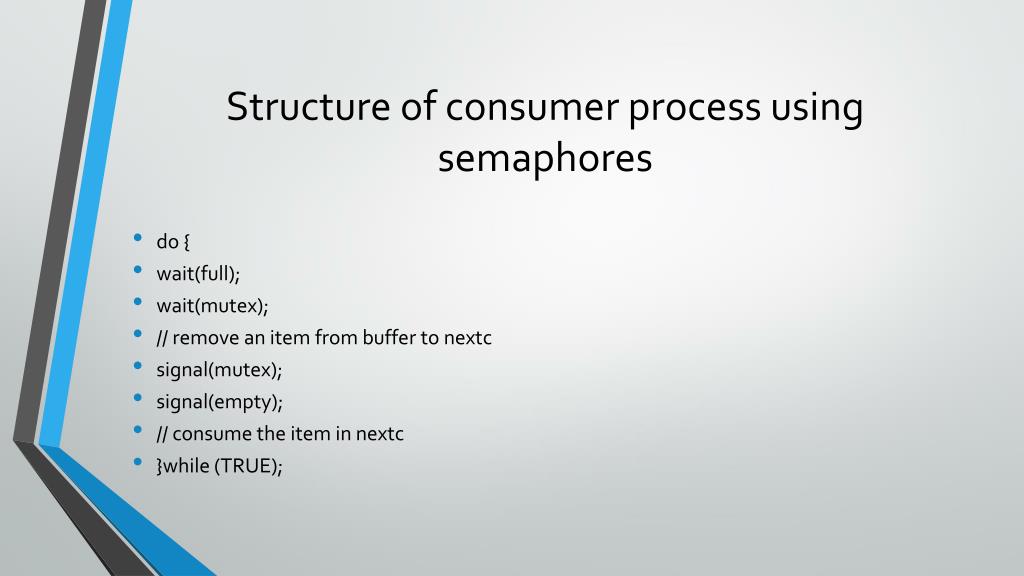

  11. Structure of consumer process using semaphores do { wait(full); wait(mutex); // remove an item from buffer to nextc signal(mutex); signal(empty); // consume the item in nextc }while (TRUE);
