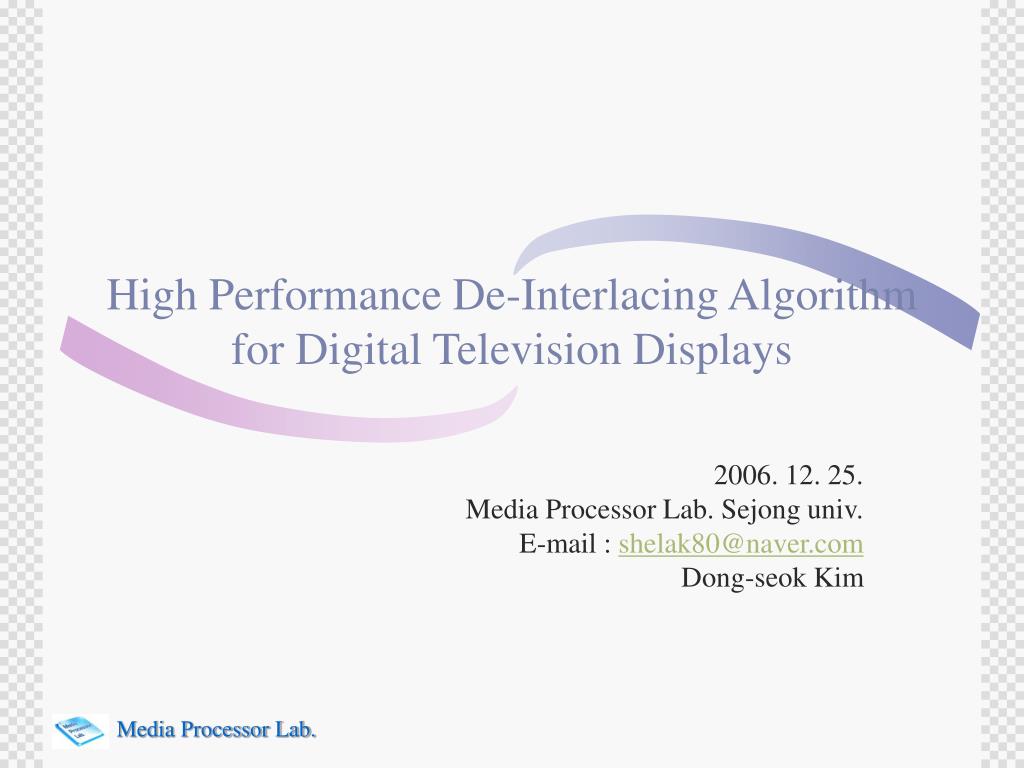

  1. High Performance De-Interlacing Algorithm for Digital Television Displays 2006. 12. 25. Media Processor Lab. Sejong univ. E-mail : shelak80@naver.com Dong-seok Kim

  2. Contents • Introduction • Proposed Algorithm • Experimental Results • Conclusion

  3. Introduction (1/2) • ELA (edge-based line average) algorithm • uses the directional correlation between adjacent lines to interpolate the missing pixels • good result, low computational complexity • has a drawback that the picture quality deteriorates in static area • Line-doubling method • Decides whether a horizontal edge exists or not • 2-D ELA algorithm • Reconstruct the missing field with the information obtained from the backward and the forward fields • Fuzzy motion detector • Inter-field information • Motion adaptive de-interlacing algorithm

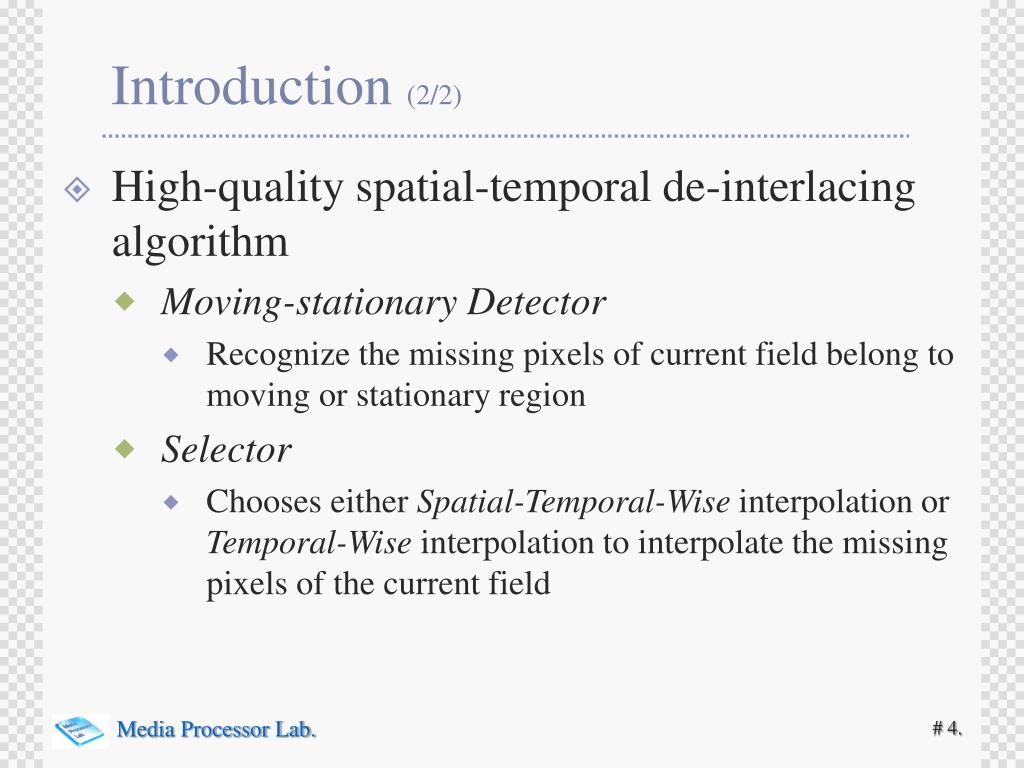

  4. Introduction (2/2) • High-quality spatial-temporal de-interlacing algorithm • Moving-stationary Detector • Recognize the missing pixels of current field belong to moving or stationary region • Selector • Chooses either Spatial-Temporal-Wise interpolation or Temporal-Wise interpolation to interpolate the missing pixels of the current field

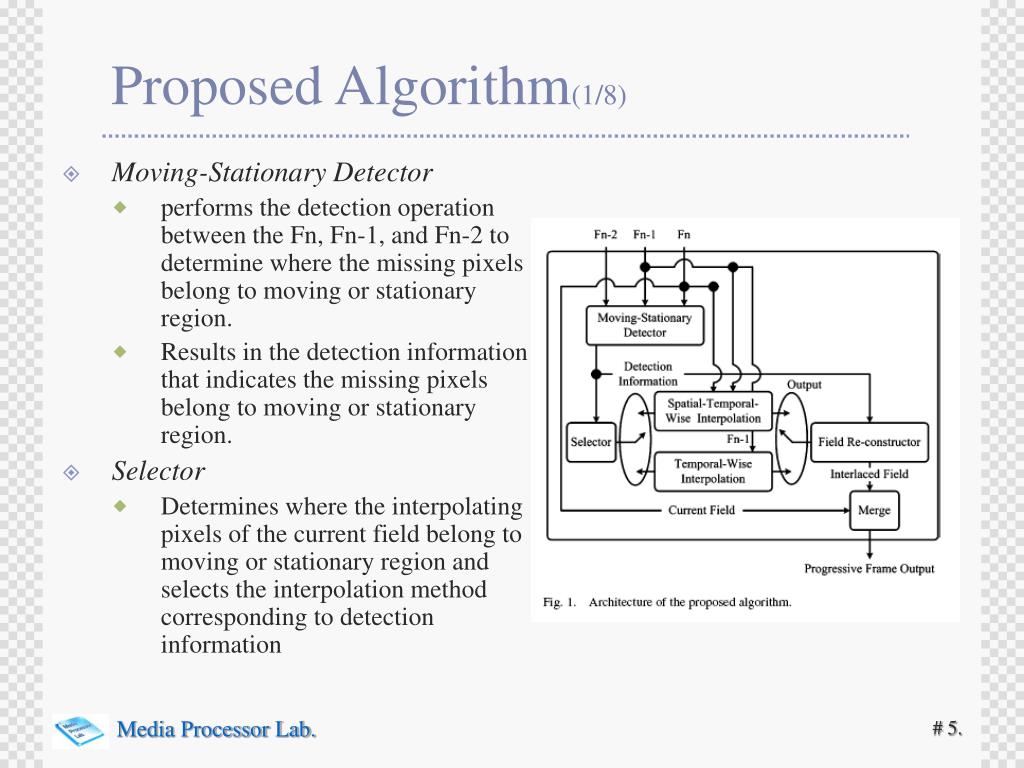

  5. Proposed Algorithm(1/8) • Moving-Stationary Detector • performs the detection operation between the Fn, Fn-1, and Fn-2 to determine where the missing pixels belong to moving or stationary region. • Results in the detection information that indicates the missing pixels belong to moving or stationary region. • Selector • Determines where the interpolating pixels of the current field belong to moving or stationary region and selects the interpolation method corresponding to detection information

  6. Proposed Algorithm(2/8) • Spatial-Temporal-Wise Interpolation • Performs the interpolation operation to interpolate the missing pixels by using the adjacent lines in the same field and the information of previous field • Temporal-Wise Interpolation • Performs the interpolation operation to interpolate the missing pixels by using the information of the previous field • Field Re-constructor • Reconstructs the pixels that produced by Spatial-Temporal-Wise interpolation of Temporal-Wise interpolation function to form a de-interlaced field • Merge • Combines the interpolated fields and the original fields to form a progressive frame

  7. Proposed Algorithm(3/8) • Moving-Stationary Detector

  8. Proposed Algorithm(4/8) • Moving-Stationary Detector(cont’) • DT (x, n) : difference of temporal information at vector x in the field n and field n - 2 • Ds (x, n) : difference of the spatial information at vector x in the field n - 1 • x : coordinates I and j of the current interpolating pixel • CIP (Conditions of Interpolated Pixels)

  9. Proposed Algorithm(5/8) • Selector • Determines where the current interpolating pixel belongs to moving or stationary region according to the detection information • Moving region : Spatial-Temporal-Wise interpolation • Stationary region : Temporal-Wise interpolation

  10. Proposed Algorithm(6/8) • Spatial-Temporal-Wise Interpolation • F (x, n) : the interpolated pixel at coordinate (i, j) • n : current field • Median( - ) : median operation

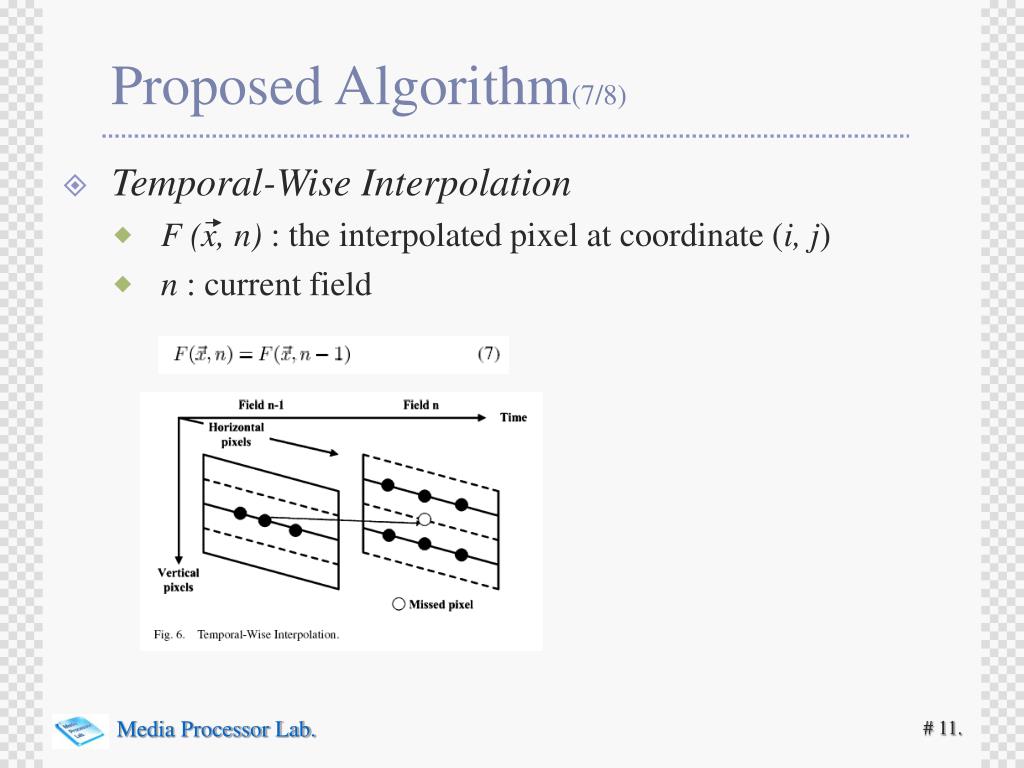

  11. Proposed Algorithm(7/8) • Temporal-Wise Interpolation • F (x, n) : the interpolated pixel at coordinate (i, j) • n : current field

  12. Proposed Algorithm(8/8) • Flowchart of proposed algorithm • Step1 : Determine the missing pixel that belongs to the moving or stationary region by Moving-Stationary Detector module. If the missing pixel belongs to moving region, go to Step2; otherwise, go to Step3. • Step2 : Interpolate the missing pixels by the Spatial-Temporal-Wise interpolation method. Go to Step4. • Step3 : Interpolate the missing pixels by the Temporal-Wise interpolation method. • Step4 : If all of the missing pixels are interpolated, go to Step5; otherwise, go to Step1. • Step5 : Merge the original fields and interpolated pixels to generate the progressive picture and finish the interpolation.

  13. Experimental Results

  14. Conclusion • In the proposed algorithm, the main idea is to classify the missing pixels into moving and stationary regions. • Two interpolation methods named spatial-temporal-wise and temporal-wise are used for producing the de-interlaced frame. • By simply operations, the proposed algorithm can be applied efficiently on high definition TV display applications.
