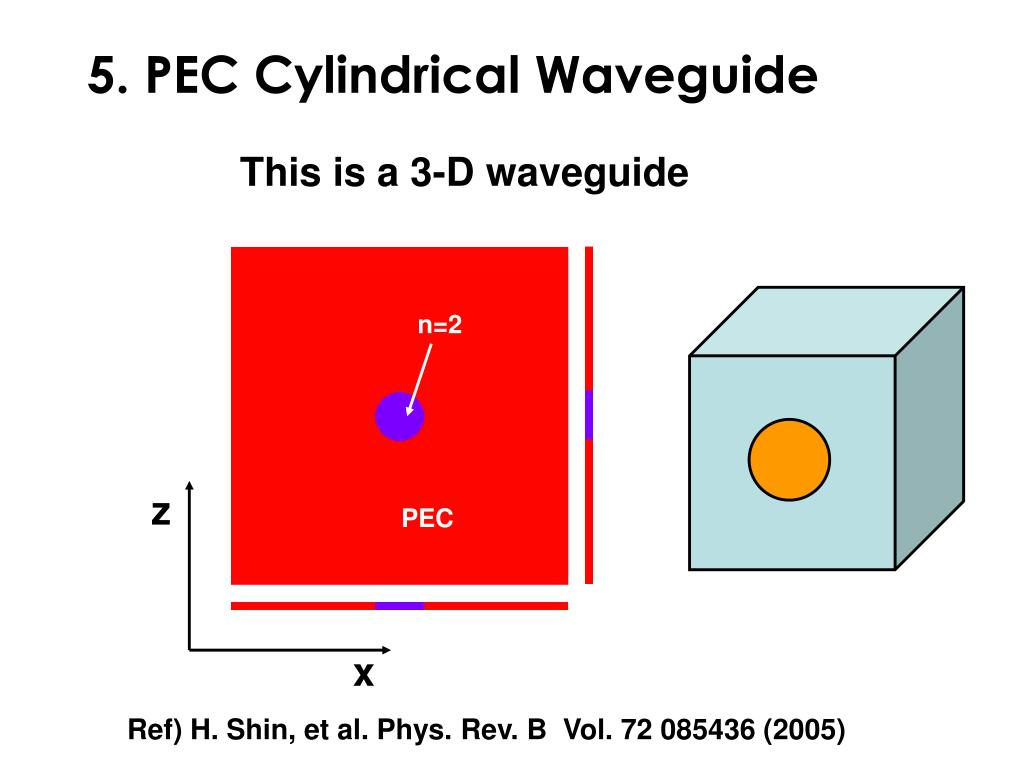

  1. 5. PEC Cylindrical Waveguide This is a 3-D waveguide n=2 z PEC x Ref) H. Shin, et al. Phys. Rev. B Vol. 72 085436 (2005)

  2. Example code 1/3 set lp = a L=0.1 a Symmetry of the guided mode From version X, one must insert “material_complexity(1)”. For further details, see the updated function reference.

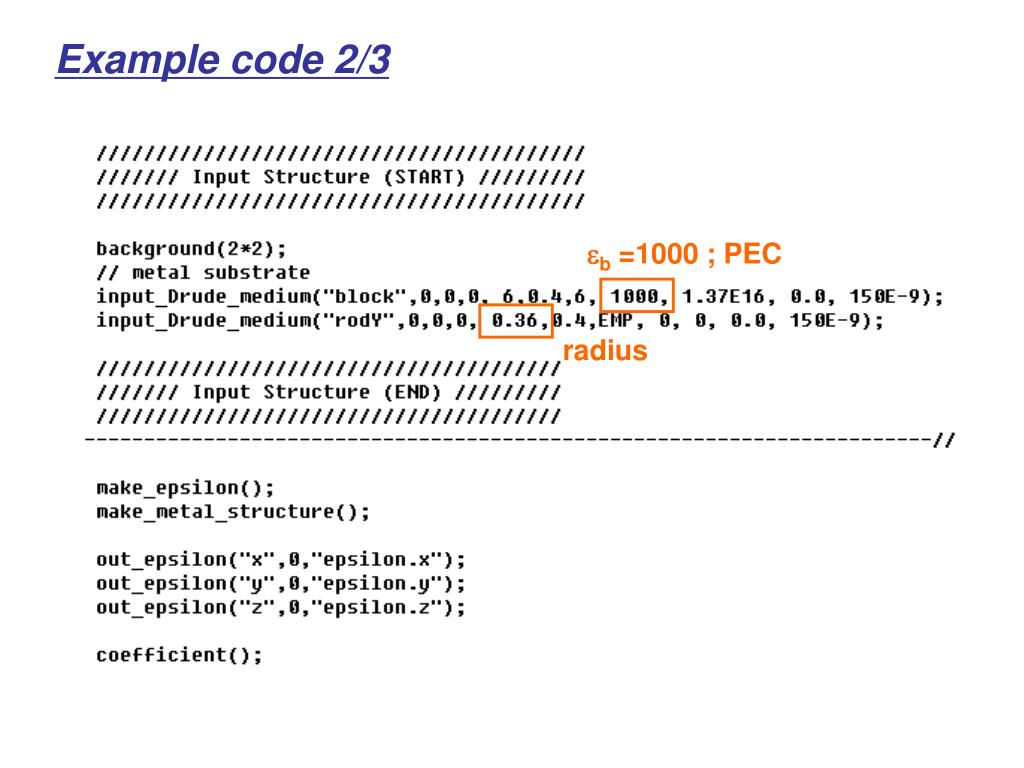

  3. Example code 2/3 eb =1000 ; PEC radius

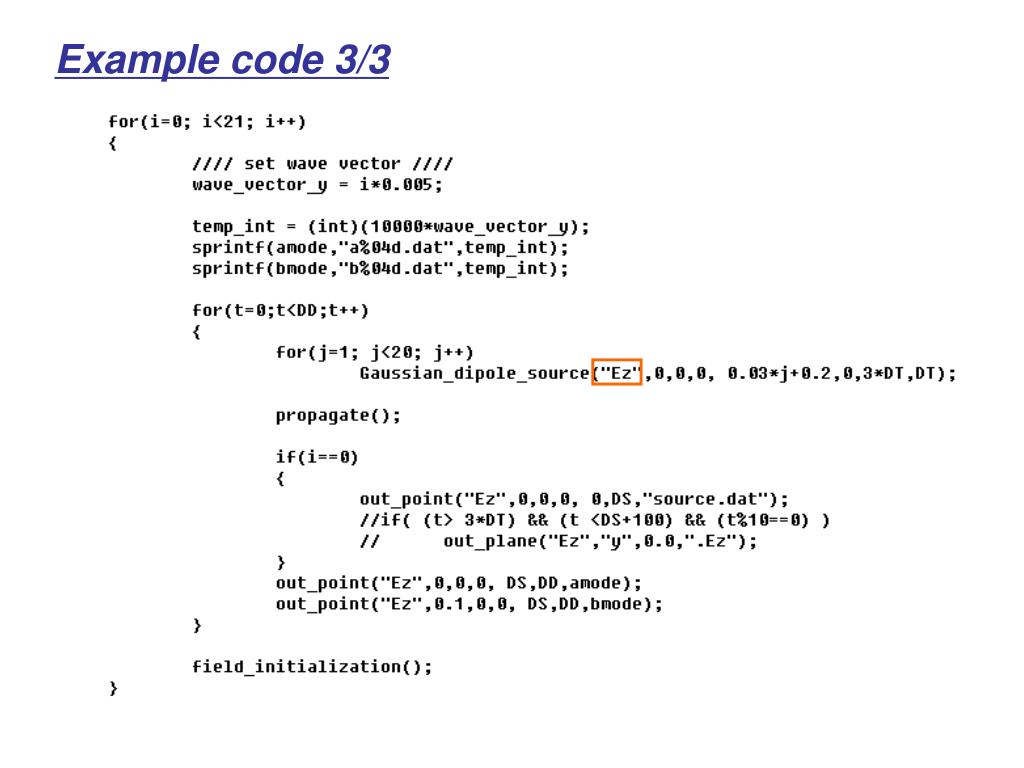

  4. Example code 3/3

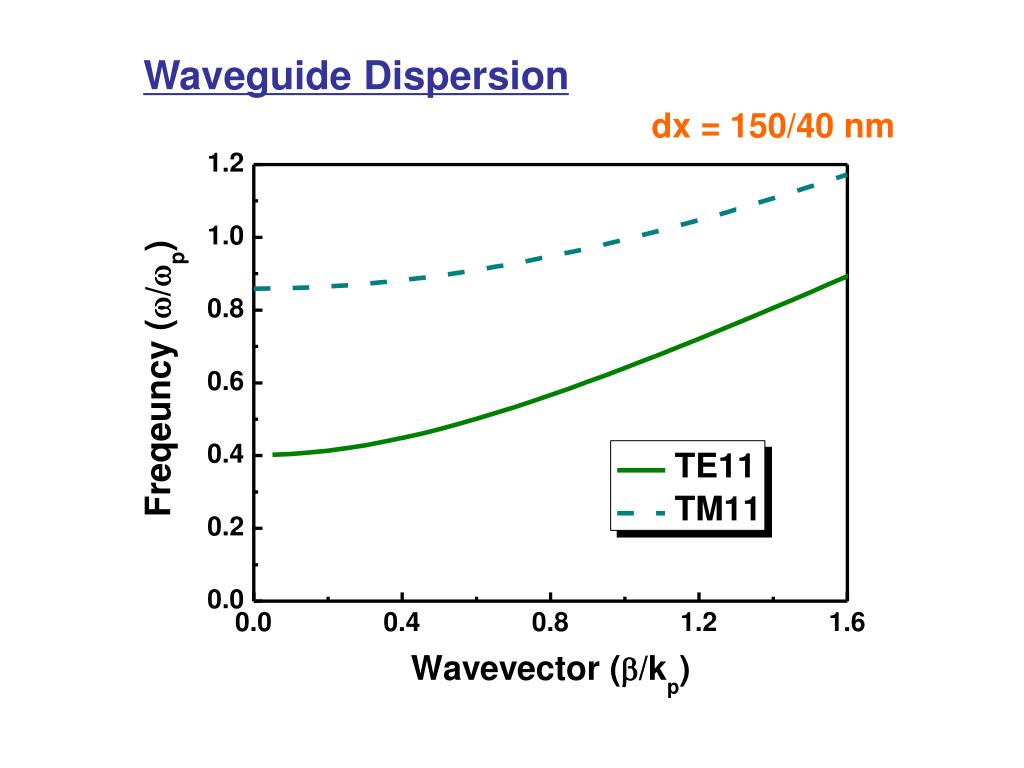

  5. Waveguide Dispersion dx = 150/40 nm
