  1. Data Conversions of Arithmetic Data Types HDF-EOS Workshop IX Quincey Koziol and Ray Lu 30 Nov 2005

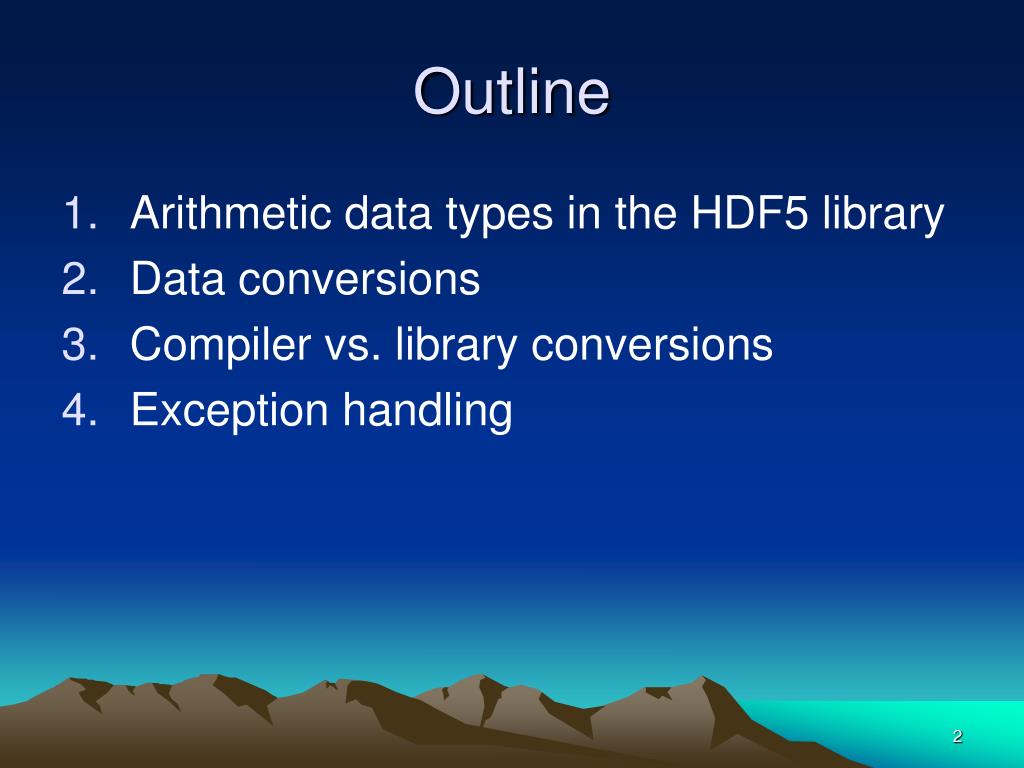

  2. Outline • Arithmetic data types in the HDF5 library • Data conversions • Compiler vs. library conversions • Exception handling

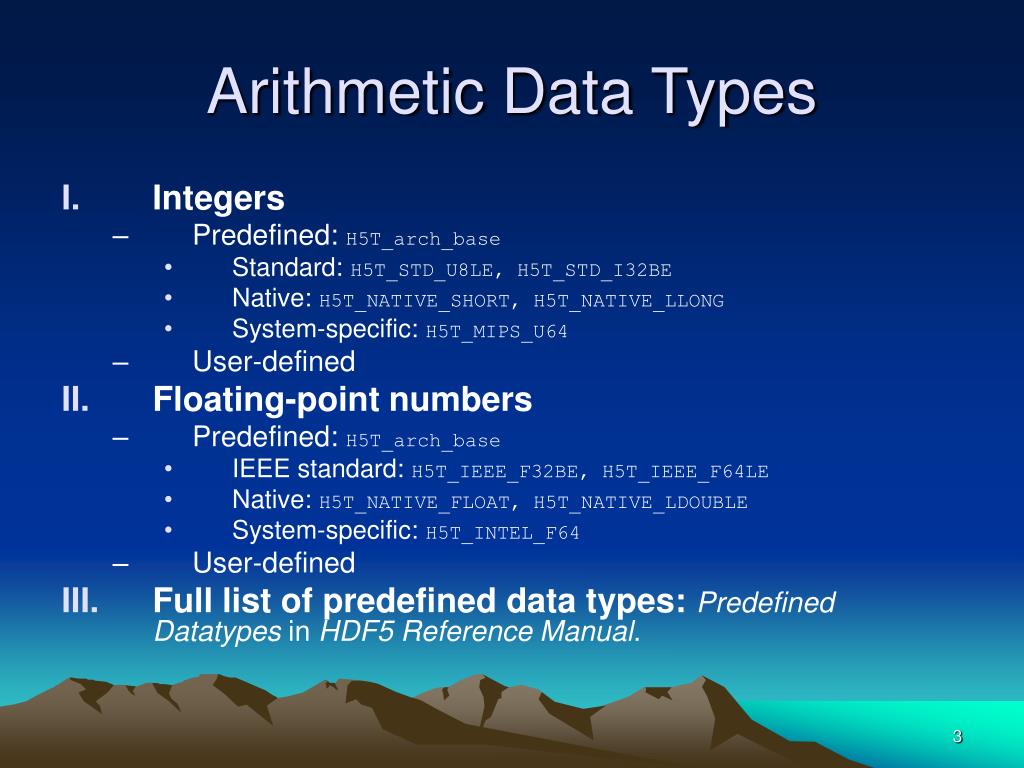

  3. Arithmetic Data Types • Integers • Predefined: H5T_arch_base • Standard: H5T_STD_U8LE, H5T_STD_I32BE • Native: H5T_NATIVE_SHORT, H5T_NATIVE_LLONG • System-specific: H5T_MIPS_U64 • User-defined • Floating-point numbers • Predefined: H5T_arch_base • IEEE standard: H5T_IEEE_F32BE, H5T_IEEE_F64LE • Native: H5T_NATIVE_FLOAT, H5T_NATIVE_LDOUBLE • System-specific: H5T_INTEL_F64 • User-defined • Full list of predefined data types:Predefined Datatypes in HDF5 Reference Manual.

  4. Outline • Arithmetic data types in the HDF5 library • Data conversions • Compiler vs. library conversions • Exception handling

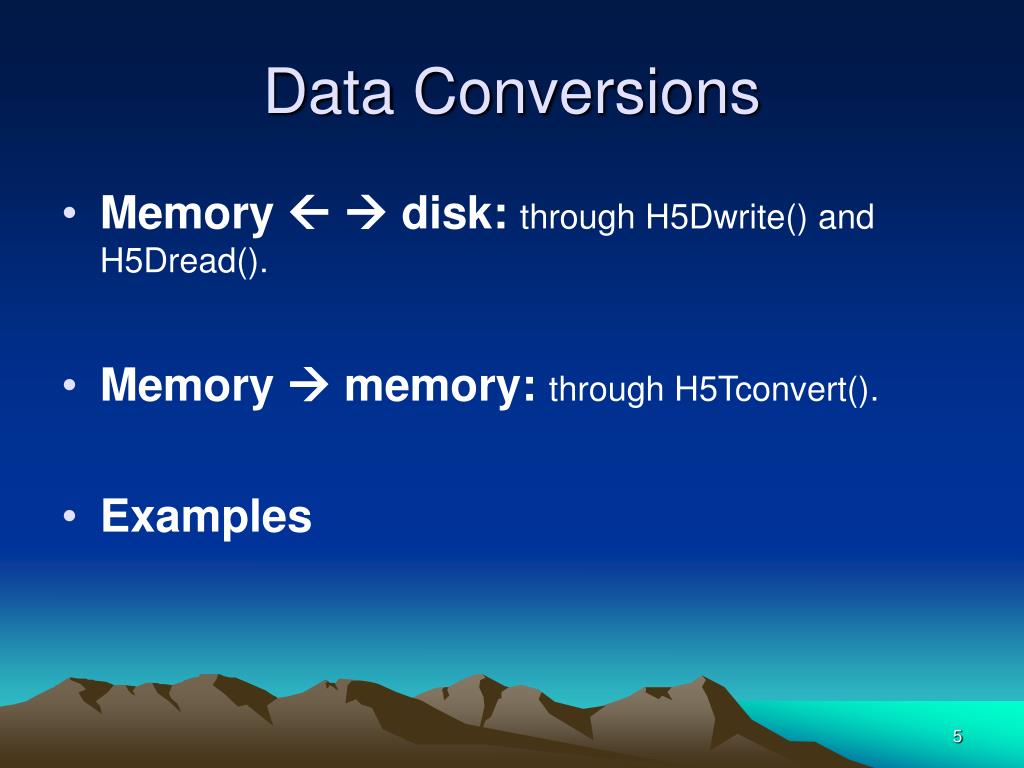

  5. Data Conversions • Memory   disk:through H5Dwrite() and H5Dread(). • Memory  memory:through H5Tconvert(). • Examples

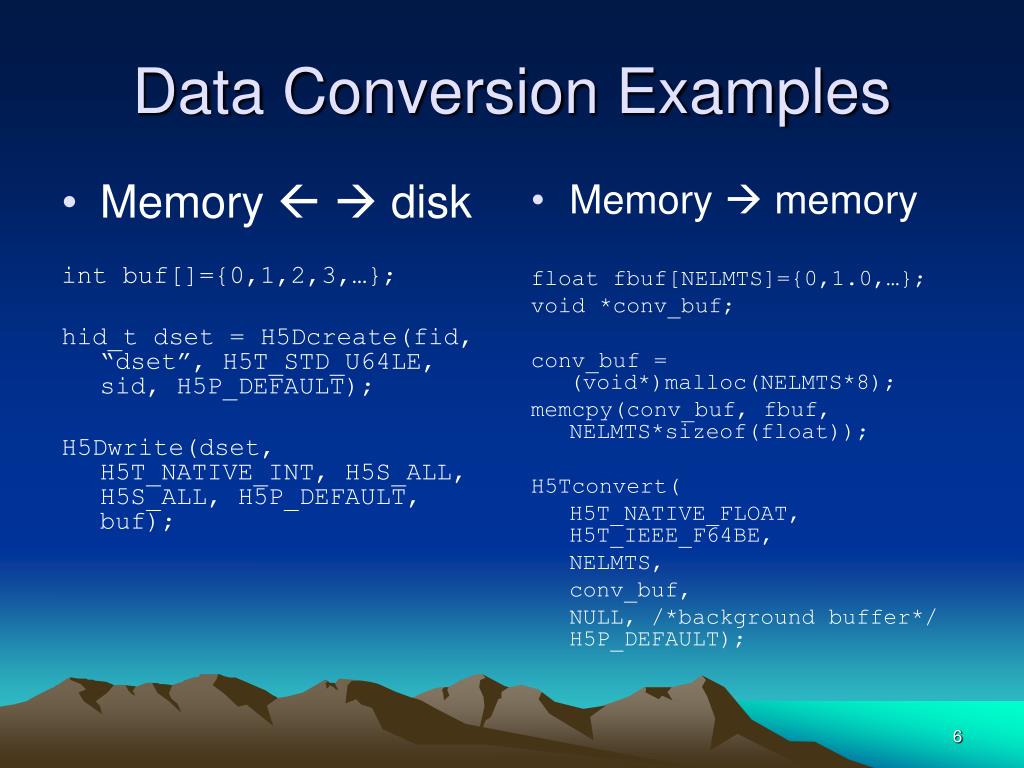

  6. Memory   disk int buf[]={0,1,2,3,…}; hid_t dset = H5Dcreate(fid, “dset”, H5T_STD_U64LE, sid, H5P_DEFAULT); H5Dwrite(dset, H5T_NATIVE_INT, H5S_ALL, H5S_ALL, H5P_DEFAULT, buf); Memory  memory float fbuf[NELMTS]={0,1.0,…}; void *conv_buf; conv_buf = (void*)malloc(NELMTS*8); memcpy(conv_buf, fbuf, NELMTS*sizeof(float)); H5Tconvert( H5T_NATIVE_FLOAT, H5T_IEEE_F64BE, NELMTS, conv_buf, NULL, /*background buffer*/ H5P_DEFAULT); Data Conversion Examples

  7. Outline • Arithmetic data types in the HDF5 library • Data conversions • Compiler vs. library conversions • Exception handling

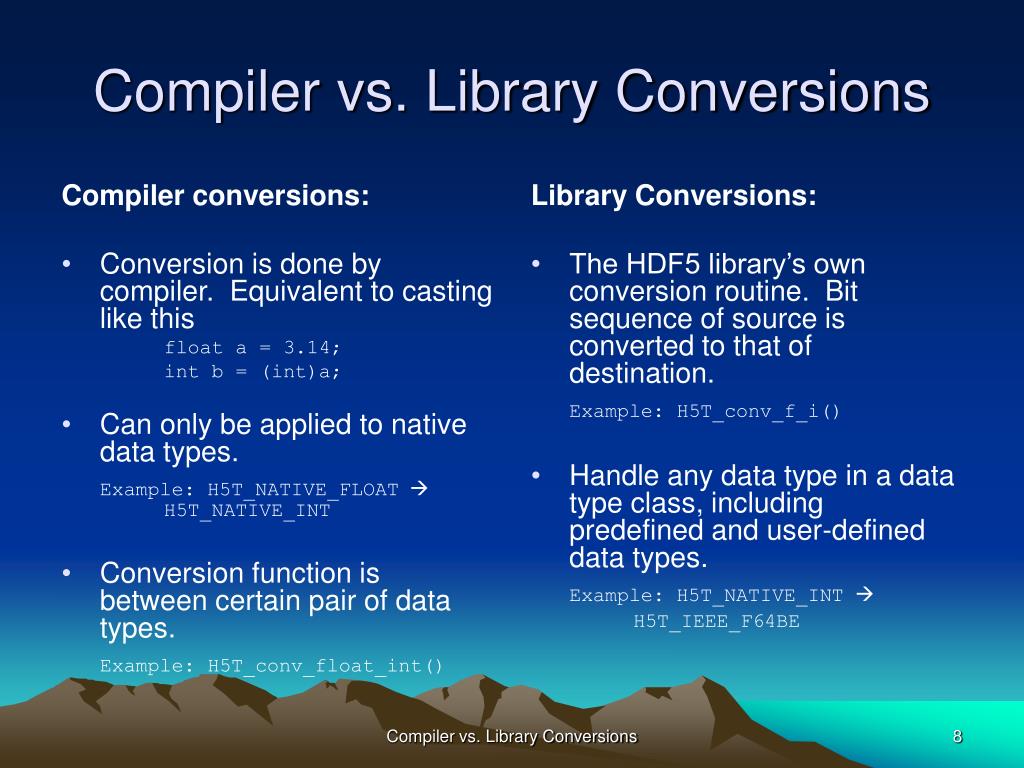

  8. Compiler conversions: Conversion is done by compiler. Equivalent to casting like this float a = 3.14; int b = (int)a; Can only be applied to native data types. Example: H5T_NATIVE_FLOAT  H5T_NATIVE_INT Conversion function is between certain pair of data types. Example: H5T_conv_float_int() Library Conversions: The HDF5 library’s own conversion routine. Bit sequence of source is converted to that of destination. Example: H5T_conv_f_i() Handle any data type in a data type class, including predefined and user-defined data types. Example: H5T_NATIVE_INT  H5T_IEEE_F64BE Compiler vs. Library Conversions Compiler vs. Library Conversions

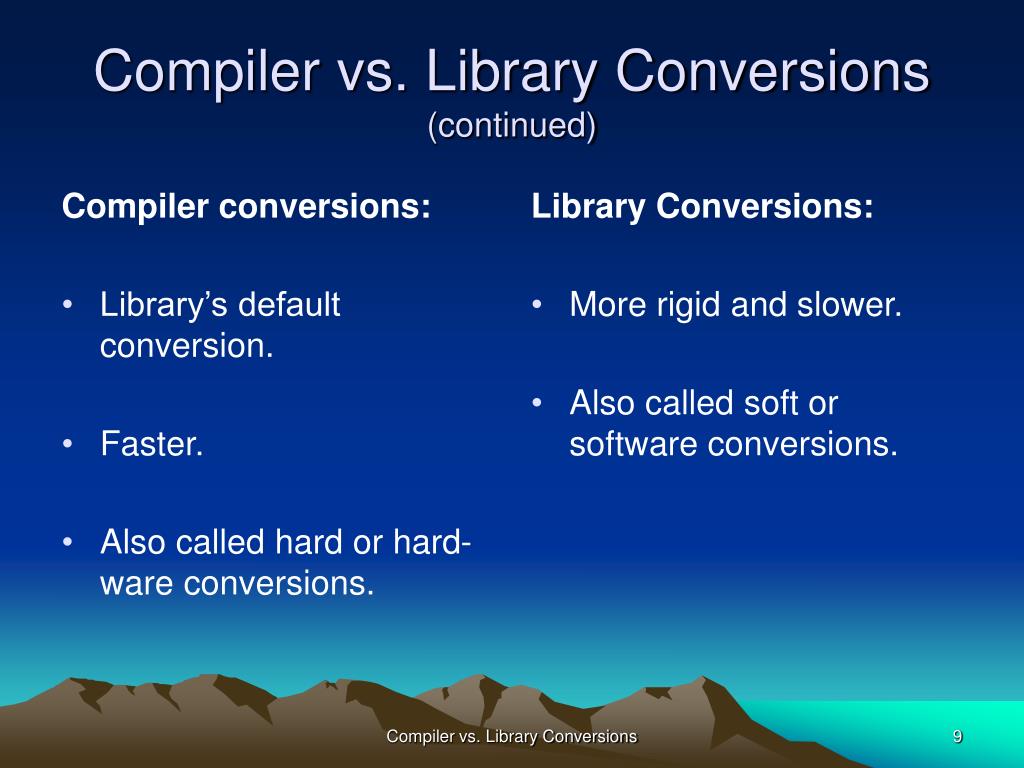

  9. Compiler conversions: Library’s default conversion. Faster. Also called hard or hard- ware conversions. Library Conversions: More rigid and slower. Also called soft or software conversions. Compiler vs. Library Conversions(continued) Compiler vs. Library Conversions

  10. Register Conversion Functions • Register a soft function will replace all conversions between data type classes: Example:H5Tregister(H5T_PERS_SOFT, “fp_integer”, H5T_NATIVE_FLOAT, H5T_NATIVE_LONG, conv_fp_integer). • Register a hard function will only replace the conversion between certain pair of data types: Example:H5Tregister(H5T_PERS_HARD, “float_long”, H5T_NATIVE_FLOAT, H5T_NATIVE_LONG, conv_float_long). Compiler vs. Library Conversions

  11. Un-register conversion functions If you only want to use library’s conversion, use H5Tunregister() to un-register all compiler conversions. Example: H5Tunregister(H5T_PERS_HARD, NULL, -1, -1, NULL); Compiler vs. Library Conversions

  12. Handling Incorrect Compiler Conversion • Some compilers don’t handle conversion correctly. • The library replaces these conversion with its own routine. • To find out, use htri_t H5Tcompiler_conv(hid_t source, hid_t destination) Compiler vs. Library Conversions

  13. Outline • Arithmetic data types in the HDF5 library • Data conversions • Compiler vs. library conversions • Handling Exception

  14. Handling Exception • To handle exceptions during conversions yourselves: register user’s handling function through H5Pset_type_conv_cb(). • Cases of exception: • H5T_CONV_EXCEPT_RANGE_HI • H5T_CONV_EXCEPT_RANGE_LOW • H5T_CONV_EXCEPT_TRUNCATE • H5T_CONV_EXCEPT_PRECISION • H5T_CONV_EXCEPT_PINF • H5T_CONV_EXCEPT_NINF • H5T_CONV_EXCEPT_NAN • Return values: H5T_CONV_ABORT, H5T_CONV_UNHANDLED, H5T_CONV_HANDLED

  15. Outline • Arithmetic data types in the HDF5 library • Data conversions • Compiler vs. library conversions • Exception handling

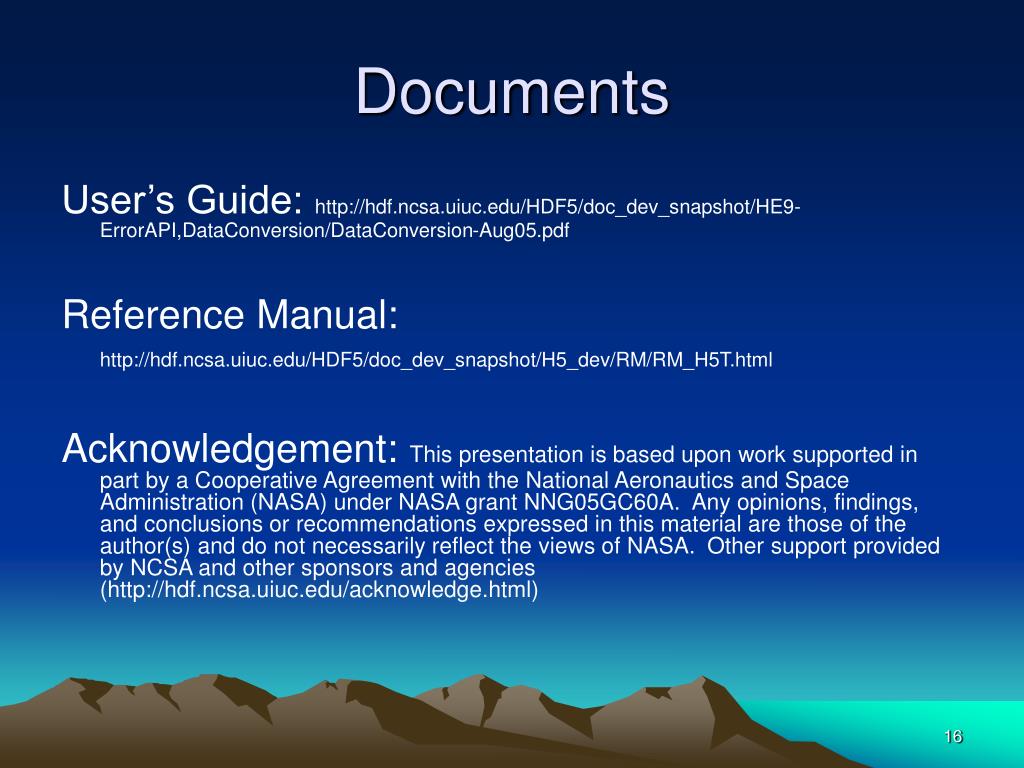

  16. Documents User’s Guide: http://hdf.ncsa.uiuc.edu/HDF5/doc_dev_snapshot/HE9-ErrorAPI,DataConversion/DataConversion-Aug05.pdf Reference Manual: http://hdf.ncsa.uiuc.edu/HDF5/doc_dev_snapshot/H5_dev/RM/RM_H5T.html Acknowledgement: This presentation is based upon work supported in part by a Cooperative Agreement with the National Aeronautics and Space Administration (NASA) under NASA grant NNG05GC60A.  Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of NASA.  Other support provided by NCSA and other sponsors and agencies (http://hdf.ncsa.uiuc.edu/acknowledge.html)
