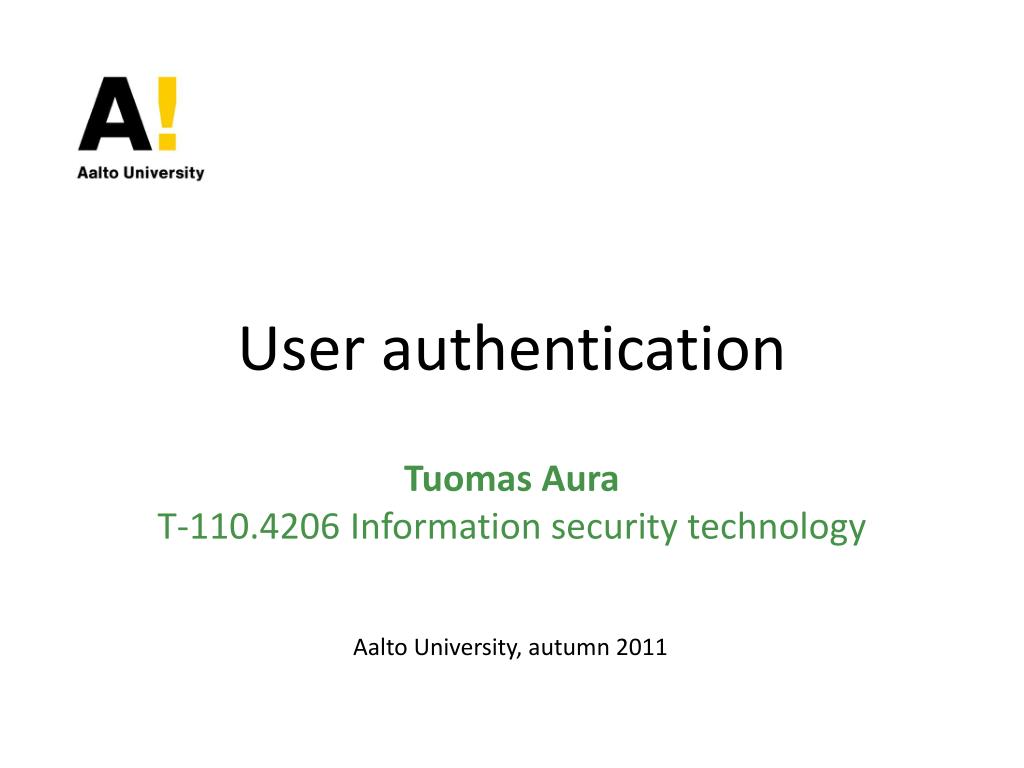

User authentication

1. User authentication Aalto University, autumn 2011

2. Outline • Passwords • Physical security tokens and two-method authentication • Biometrics • Common mantra:User authentication can be based on • something you know • something you have • something you are

3. Passwords

4. Username and password • Passwords are used for entity authentication • Needed for access control and auditing:access control = authentication + authorization • Entity authentication vs. message authentication • Password is a shared secret between the user and computer system • Limitations arise from the reliance on of human memory and input • What attacks are there against passwords?

5. Sniffing and key loggers • Password sniffing on the local network used to be a major problem; mostly solved by cryptographic authentication: • SSH, SSL, HTTP Digest Authentication, MS-CHAPv2 • Key logger: software or hardware that stores all key strokes (including passwords) typed on a computer • Particular danger in public-access computers e.g. at libraries and cafes • Why do some bank web sites ask you to use the mouse to enter the PIN code?

6. Password recovery • Humans are prone to forget things  need a process for recovering from password loss • What are the advantages and disadvantages of the following recovery mechanisms? • Security question or memorable secret, e.g. birth place, mother’s maiden name, pet’s name • Emailing password to another user account • Physical visit to helpdesk • Yellow sticker on the back of the keyboard • USB key or CD with a password recovery file

7. Password reuse • How many different user accounts and passwords do you have? Ever used the same password on two accounts? • Using the same or related passwords on multiple accounts means that one corrupt sysadmin or compromised account can lead to compromise of the other accounts • Administrative countermeasures: • Passwords chosen by the service, not set by users • Exotic password format requirements • Personal countermeasures: • Generating service-specific passwords from one master password • Password wallet (e.g. on phone) encrypted with a master password

8. Shoulder surfing • Keyboards and screens are highly visible  others may see what you are typing • Password and PIN prompts usually do not show the characters • Does this make sense for all secrets? *******

9. Password guessing • Intelligent guessing vs. brute-force guessing • dictionary attack • Countermeasures • Limit the number or rate of login attempts • Minimum password length and complexity, password quality check • Preventing reuse of old passwords • System-generated random passwords • Password aging i.e. mandatory periodic password changes (typically every three months)

10. Password entropy • Entropy = the amount of information the attacker is missing about the password Entropy =- ∑x ∈ passwordsP(x) ⋅ log2 P(x) ≤log2(number of possible passwords) • Examples: • Random 8-character 7-bit passwords have 56 bits of entropy • Random 8-character alphanumeric passwords have at most 8 × log2(26+26+10) ≈ 48 bits • 4-digit PIN codes have about 13 bits of entropy • Human-chosen passwords have less entropy than random ones because some passwords are more common than others • Do password quality checks increase entropy? • Passwords rely on human memory  entropy cannot grow over time  any system that relies on high password entropy to beat brute-force attacks will eventually fail

11. Online and offline guessing attacks • Offline attack: the attacker obtains a hash (or other function) of the password and tries to guess the password offline • Attacker who has the hash values from the password database • Older challenge-response network authentication, e.g. MS-CHAPv2 or HTTP digest authentication (without SSL) • Online guessing: attacker tries to login with different passwords • Login prompt at the console; PIN code on a phone • Network login to an authenticated server over SSH or SSL • Firewall blocks client IP address after some failed login attempts • In offline attack, the attacker can perform an exhaustive brute-force search; in online attack, target system can limit the number of guesses • Big difference in the required password entropy: • Online guessing success probability ≈ number of allowed guesses / number of possible passwords • Offline attack requires cryptographic strength, e.g. 128-bit entropy

12. Password database storage • Safer to assume that the database is public • Unix /etc/password is traditionally world readable • Attacks on web servers often manage to dump any file or database on the server; e.g. SQL injection • How to store passwords in a public file? • Store a hash (i.e. one-way function) of the password • When user enters a password, hash and compare • Use a slow hash (many iterations of a hash function) to make brute-force cracking more difficult • Include random account-specific “salt”: slow_hash( password | salt) to prevent simultaneous brute-force cracking of many passwords, precomputation attacks and equality comparison between passwords

13. Password hashing • Password-based key derivation function PBKDF2 [PKCS#5,RFC2898]* • Good practical guide; uses any standard hash function, at least 64-bit salt, any number of iterations • Unix crypt(3) [Morris and Thompson 1978]* • Historical function for storing passwords in /etc/passwd aura:lW90gEpaf4wuk:19057:100:Tuomas Aura:/home/aura:/bin/zsh • Eight 7-bit characters = 56-bit DES key • Encrypt a zero block 25 times with modified DES • 12-bit salt used to modify DES key schedule • Stored value includes the salt and encryption result • Replaced by more modern hash functions and shadow passwords (stored in /etc/shadow, which is only readable to root)

14. DF2PBK Function for slowhashing of passwords Iterations to make the computationslower Usedin WPA2-Personal for derivingkeysfrompassword Couldalsobeused for storingpasswordhashes • PBKDF2 (P, S, c, dkLen) P = passwordS = saltc = iterationcountdkLen= length of the result PRF = keyedpseudorandomfunction F (P, S, c, i) = U1 xor U2 xor ... xor Uc U1 = PRF (P, S || i) U2 = PRF (P, U1)... Uc = PRF (P, Uc-1) Repeat for i=1,2,3... until dkLen output bytes produced

15. Botnets and online guessing • 10 banks, each with 106 customer accounts • 4-digit PIN or one-time code required to log in • Client IP address blocked after 3 failed login attempts • Attacker has a botnet of 105 computers • Each bot makes one login attempt to one account in each bank every day  106login attempts in a day  ~100 successful break-ins in a day • Countermeasures: • Make user IDs hard to guess; long, different from account numbers, and not assigned sequentially • Ask a “salt” question, e.g. memorable word, in addition to user ID and PIN  increased entropy reduces attacker success rate

16. One-time passwords • Use each password only once to thwart password sniffers and key loggers • Lamport hash chain: H1 = hash (secret seed); Hi+1= hash (Hi) • Server stores initially H100 and requires user to enter H99. Next stores H99 and requires H98, and so on. • Unix S/KEY or OTP [RFC1760/1938] 1: HOLM BONG VARY TIP JUT ROSY 2: LAIR MEMO BERG DARN ROWE RIG 3: FLEA BOP HAUL CLAD DARK ITS 4: MITT HUM FADE CREW SLOG HAST • Hash-based one-time passwords HOTP [RFC4226] HOTP(K,C) = HMAC-SHA-1(K,C) mod 10D • Produces a one-time PIN code of D decimal digits • Time-based one-time passwords • E.g. RSA SecurID: one of many commercial products • Which attacks are prevented by one-time passwords and which are not?

17. Spoofing attacks • Attacker could spoof the login dialog; how do you know when it is safe to type in the password?

18. │

19. Trusted path • Attacker could spoof the login dialog; how do you know when it is safe to type in the password? • Trusted path is a mechanism that ensures direct and secure communication between the user and a specific part of the system • Crtl+Alt+Del in Windows takes to a security screen that cannot be spoofed • Web browser shows the URL in the address bar in a way that cannot be spoofed by the web server • With malware and virtualization, it is increasingly hard to know what is real

20. Other threats • No system is perfectly secure: system designers have a specific threat model in mind, but the attacker can break these rules • “The attacker does not agree with the threat model.” (Bruce Christianson) • Other attacks against PINs and passwords: • Phishing and social engineering • Heat camera can detect recently pressed keys • Acoustic emanations from the keyboard

21. Physical security tokens and two-method authentication

22. Physical security tokens • Smart card is a typical physical security token • Holds cryptographic keys to prove its identity • Tamperproof: secret keys will stay inside • Used for door keys, computer login, ATM • PIN entry is often also required  two-method authentication • Attacker needs to both steal the card and learn the PIN  clear qualitative increase in security • Other security token implementations: smart button, USB stick, mobile phone

23. Issues with security tokens • Physical tokes require distribution • Computers (or doors etc.) must have readers • It is not easy to integrate cryptographic tokens to all systems • E.g. applications that require a password cached on the client or on a proxy server • Process needed for recovering from the loss of tokens • Are smart card + PIN really two factors? • One alternative is two-channel authentication: • Confirmation via telephone: callback • Sending a second secret to a known address: text message, email, post

24. Biometrics

25. Biometric authentication • Biometric authentication means verifying some physical feature of the user • Physiological characteristic: photo, signature, face geometry, fingerprint, iris scan, DNA • Behavioral characteristic: voice, typing, gait • Biometrics are not 100% reliable: • False acceptance rate FAR • False rejection rate FRR • Equal error rate EER FAR FRR 50% EER

26. Issues with biometrics • Biometrics require enrollment and readers • Unsupervised vs. supervised readers have a big difference in security • E.g. fingerprints, face recognition • Suitability for security architectures: • Are biometric characteristics secrets? • Can they be copied? • How to revoke biometrics? • What if enrollment fails? • Some people have no fingerprints, or no fingers

27. Reading material • Dieter Gollmann: Computer Security, 2nd ed., chapter 3 • Matt Bishop: Introduction to computer security, chapter 11 • Ross Anderson: Security Engineering, 2nd ed., chapters 2, 15 • Edward Amoroso: Fundamentals of Computer Security Technology, chapters 18-19

28. Exercises • Why do you need both the username and password? Would not just one secret identifier (password) be sufficient for logging in? • What effect do strict guidelines for password format (e.g. 8 characters, at least 2 capitals, 2 digits, 1 special symbol) have on the password entropy? • What is the probability of guessing the code for a phone that allows 3 attempts to guess a 4-digit PIN code, then 10 attempts to guess an 8-digit PUK code? • In what respects is PBKDF2 better for password hashing than crypt(3)? • Why may mandatory password changes increase security? What is the optimal interval? • How to limit the number of login attempts without creating a DoS vulnerability? • Learn about graphical passwords and compare their entropy to different length passwords and PIN codes. • Learn about HTTP Digest Authentication [RFC2617] and MS-Chap-V2 [RFC2759]. Explain how to perform an offline password guessing attack after sniffing a login. • In a social network, could authentication be based on who you know (or who knows you), or where you are? • What advantages and disadvantages might a fingerprint reader have in a car lock?
