  1. Using Fault Model Enforcement (FME) to Improve Availability EASY ’02 Workshop Kiran Nagaraja, Ricardo Bianchini, Richard Martin, Thu Nguyen Department of Computer Science Rutgers University

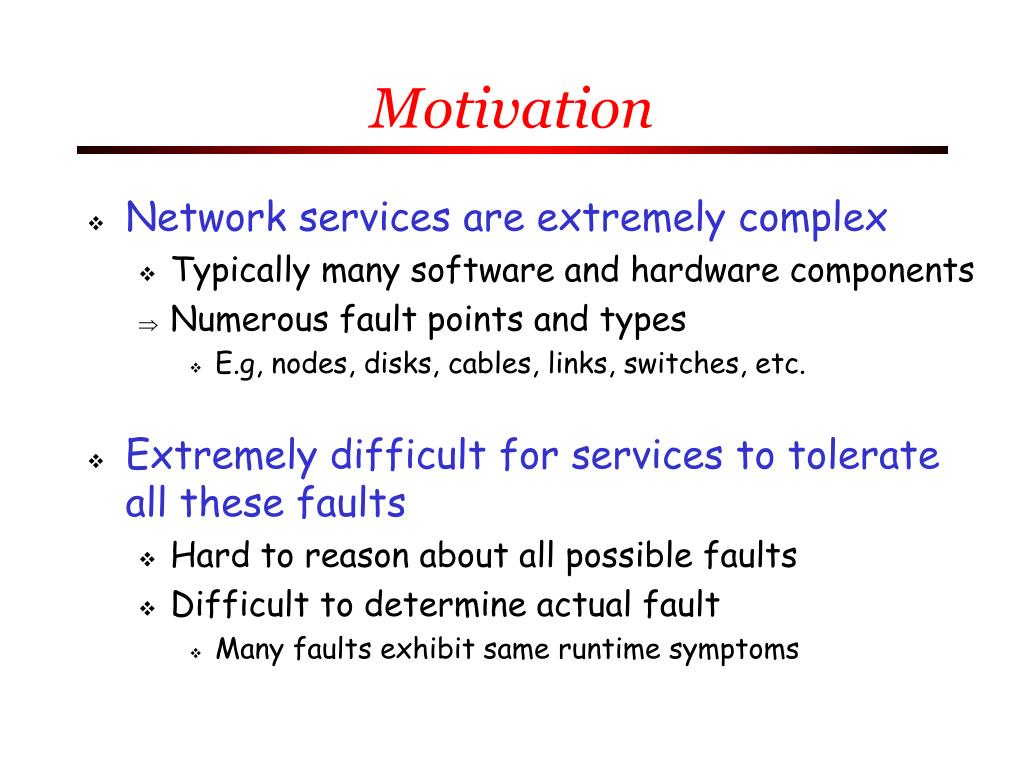

  2. Motivation • Network services are extremely complex • Typically many software and hardware components • Numerous fault points and types • E.g, nodes, disks, cables, links, switches, etc. • Extremely difficult for services to tolerate all these faults • Hard to reason about all possible faults • Difficult to determine actual fault • Many faults exhibit same runtime symptoms

  3. FME Approach • Define a reduced abstract fault model • Components, faults, symptoms, component behavior during faults • Enforce this fault model at run-time • If an “unexpected” fault occurs, map to one that was planned for in the abstract model • “If the facts don’t fit the theory, change the facts.” - Albert Einstein • Allow designer to concentrate on tolerating a well-defined, yet limited in complexity, set of faults

  4. Our Study • Estimate potential impact of FME • Have not yet implemented FME • Case study: PRESS cluster-based web server • PRESS has simple abstract fault model • In companion study, only achieve around three 9’s • Study hypothetical improvement if FME was used to enforce PRESS’s abstract fault model • FME can reduce the unavailability by up to 50%

  5. Outline • FME in more detail • Evaluation methodology • PRESS web server • Availability study • Related work • Conclusions • Future directions

  6. Fault Model Enforcement (FME) • Enforce a reduced fault model at runtime • Allow service to perform correct recovery action to regain full functionality • How to enforce a reduced fault model? • Two ideas so far • Map an unexpected fault to an expected fault • E.g., crash a node if the network link connecting it to the switch fails • Fail outer component if sub-component fails • E.g., crash a node if the disk fails • How is it different from fail-stop ? • Allows reasoning about failures at a desired abstraction

  7. Evaluation Methodology • Want to evaluate FME’s potential impact • Two phase methodology • Phase I - Single fault injection analysis • Define and inject faults on “live” system • Monitor system performance (throughput T) and availability(A) = fraction of successful requests • Phase II - Use an analytical model to determine performability • Computes average availability and average throughput

  8. Case Study: PRESS Web Server • Cluster-based, locality-conscious web server • Serve requests out of global memory pool • Exclusion from pool  lower performance • Simple fault model • Connection failure/lost heartbeats = node failure • Recovery through rejoin of “new” node • Several versions developed over time • TCP, VIA • Different fault detection mechanism • Heart-beat for TCP • Connection breaks for VIA

  9. Fault Set • Fault Load Link down Switch down SCSI timeout Node crash Node freeze Application crash Application hang • All faults are modeled as fail-stop

  10. PRESS with FME • Recovery upon fault model mismatch • Restart 0, 1 or all nodes? • FME approach: reboot the appropriate node after a fault and its recovery have occurred • Link down – reboot unreachable node • Switch down – reboot all nodes • Disk failure – reboot node with faulty disk • Node, application crash – do nothing

  11. Single-Fault Experiments • Setup: 4 PC cluster running at 90% load • 3 versions: TCP, TCP-HB, VIA • Use results to evaluate impact of FME

  12. Single Fault - Results Link Failure Application Hang

  13. Modeling – Seven Stage Model • Input: measured throughput and availability • Parameters: MTTF, MTTR, operator on site time • Output: average availability & average throughput

  14. Modeling Availability • Assumptions: • Effects of faults are independent • Fault arrivals are exponential • Overall unavailability = ΣT(unavailability of all faults)

  15. Modeling Results • Application fault rate: 1/month • Time to operator intervention: 5 minutes • Unavailability of TCP-HB reduced by ~50% • VIA: ~36% reduction

  16. Modeling Results • Application fault rate: 1/day - unstable s/w • Time to operator intervention: 5 minutes • Unavailability of TCP-HB reduces by > 50% • VIA: ~13% reduction

  17. Related Work • Enforcing fail-stop • Tandem Non-Stop – process pairs • Robust design with rigorous internal assertions • Fault detection and fail-over • HA-Linux • Reactive and proactive rejuvenation • Recursive restartability(ROC) – Berkeley & Stanford • Software rejuvenation – Duke

  18. Conclusion • FME allows for very simple fault models • FME can cut the unavailability by up to 50% • Fault detection mechanism is crucial for effectiveness • Benefits increase with fault coverage

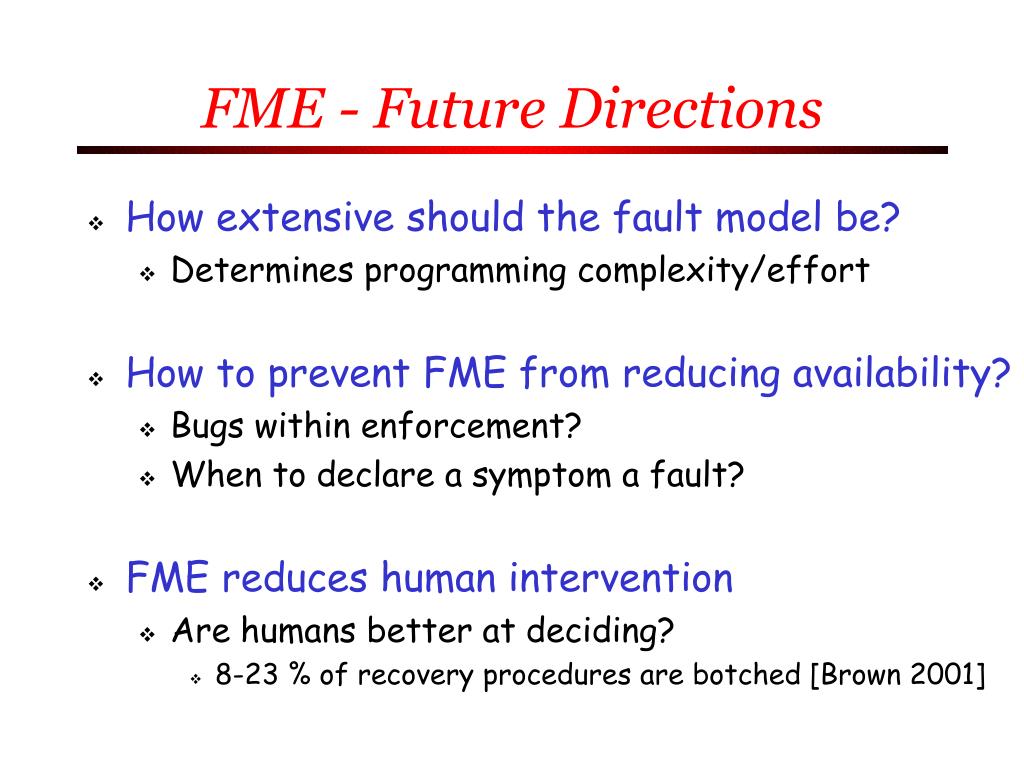

  19. FME - Future Directions • How extensive should the fault model be? • Determines programming complexity/effort • How to prevent FME from reducing availability? • Bugs within enforcement? • When to declare a symptom a fault? • FME reduces human intervention • Are humans better at deciding? • 8-23 % of recovery procedures are botched [Brown 2001]

  20. Thank you. http://www.panic-lab.rutgers.edu/Projects/vivo

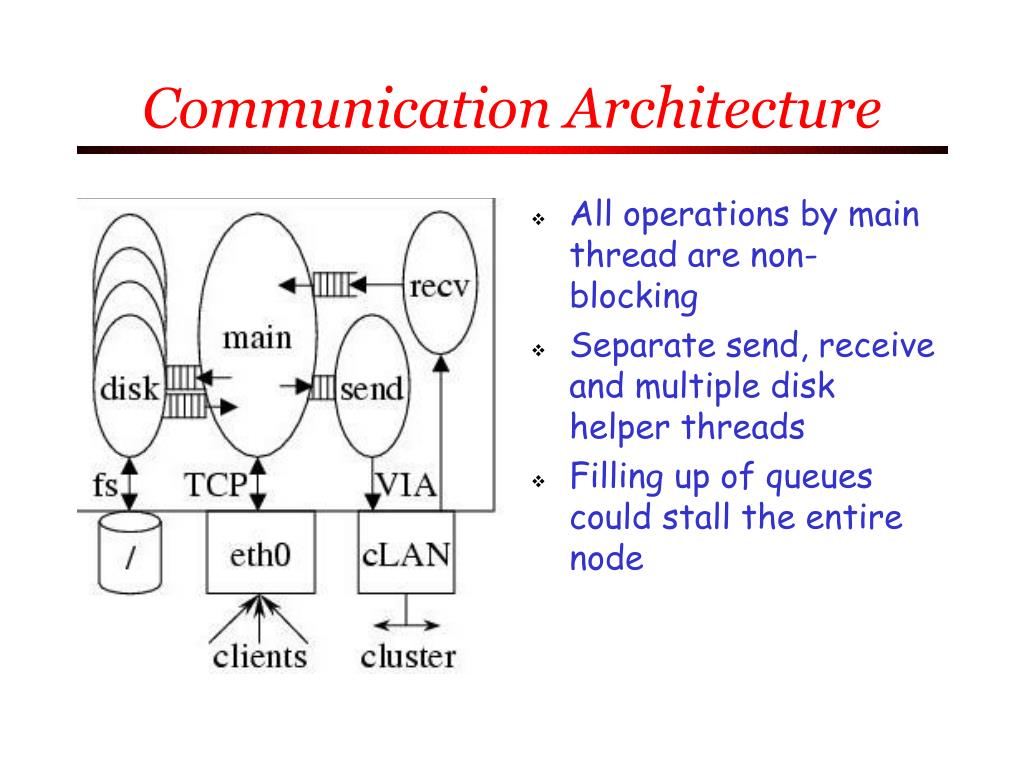

  21. Communication Architecture • All operations by main thread are non-blocking • Separate send, receive and multiple disk helper threads • Filling up of queues could stall the entire node

  22. Performability • Model computes 2 metrics: • Average throughput (AT) • Average Availability (AA) • Performability P = Tn x log(AI) log(AA) • AI : Availability of Ideal system with 99.999 • Log scale ratio allows a linear relationship with unavailability

  23. Experiments: Single-Fault Loads • 4 800Mhz PIII PCs, 206MB, 2x10000 SCSI disks, 1Gb/s cLan interconnect (TCP or VIA) • PRESS: 128MB file cache, static content • Clients: constant rate ~ 90% server capacity • Modified sclient [Banga 97] • Rutgers trace; file size = avg. request size

  24. Events Central Controller User-Level Daemon Process Ctrl Applications E.g. PRESS Mlib comLib glibc sys_calls n/w stack Kernel Node A Node B emulation SCSI n/w faults Node/OS Fast & Reliable SAN Mendosus – Fault Injection

  25. Phase II – Modeling Performability • 5 minutes duration for operator intervention(E) and restart(F) stages
