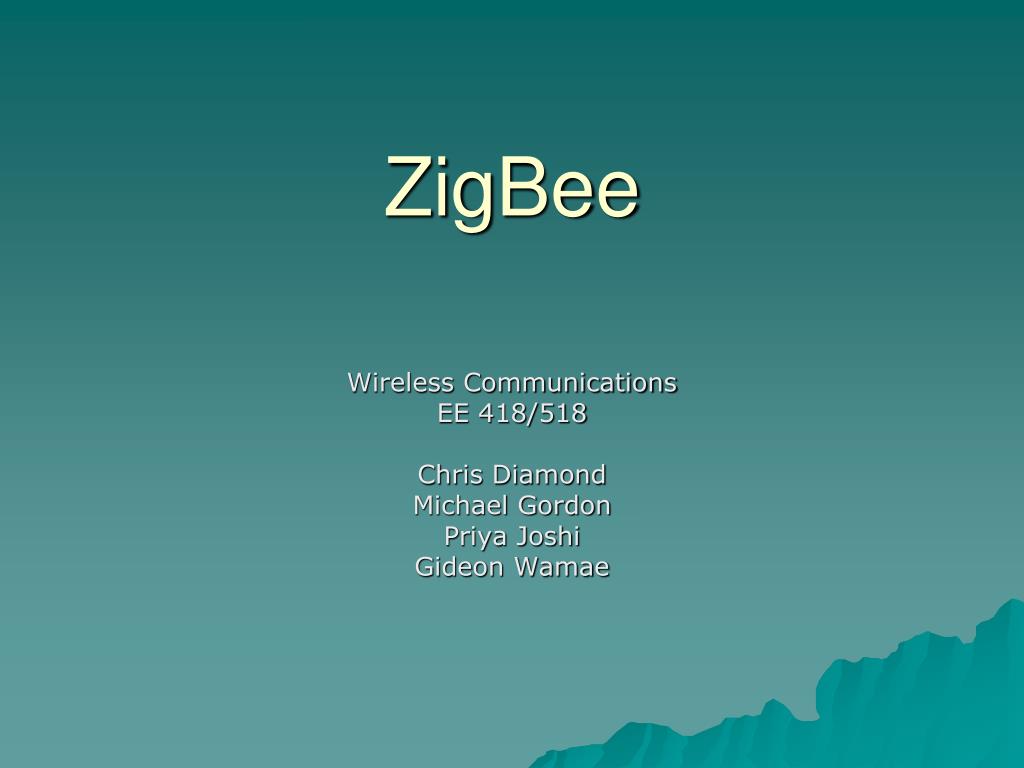

ZigBee. Wireless Communications EE 418/518 Chris Diamond Michael Gordon Priya Joshi Gideon Wamae. Presentation Outline. Gideon What ZigBee is What ZigBee does Chris How ZigBee works The hype cycle Priya Academic research Michael: Products Future. What is ZigBee?.

yeva
Télécharger la présentation

ZigBee

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. ZigBee Wireless Communications EE 418/518 Chris Diamond Michael Gordon Priya Joshi Gideon Wamae

  2. Presentation Outline • Gideon • What ZigBee is • What ZigBee does • Chris • How ZigBee works • The hype cycle • Priya • Academic research • Michael: • Products • Future

  3. What is ZigBee? • Technological Standard Created for Control and Sensor Networks • Based on the IEEE 802.15.4 Standard • Created by the ZigBee Alliance

  4. IEEE 802.15.4 & ZigBee In Context Application Customer • “the software” • Network, Security & Application layers • Brand management IEEE 802.15.4 • “the hardware” • Physical & Media Access Control layers API Security 32- / 64- / 128-bit encryption ZigBee Alliance Network Star / Mesh / Cluster-Tree MAC IEEE 802.15.4 PHY 868MHz / 915MHz / 2.4GHz Stack Silicon App Source: http://www.zigbee.org/resources/documents/IWAS_presentation_Mar04_Designing_with_802154_and_zigbee.ppt

  5. The 802 Wireless Space Source: http://www.zigbee.org/en/resources/

  6. ZigBee and Other Wireless Technologies Source: http://www.zigbee.org/en/about/faq.asp

  7. ZigBee Aims Low • Low data rate • Low power consumption • Small packet devices

  8. ZigBee Frequencies • Operates in Unlicensed Bands • ISM 2.4 GHz Global Band at 250kbps • 868 MHz European Band at 20kbps • 915 MHz North American Band at 40kbps

  9. What Does ZigBee Do? • Designed for wireless controls and sensors • Operates in Personal Area Networks (PAN’s) and device-to-device networks • Connectivity between small packet devices • Control of lights, switches, thermostats, appliances, etc.

  10. Lights and Switches Source: ZigBee Specification Document

  11. How ZigBee Works • Topology • Star • Cluster Tree • Mesh • Network coordinator, routers, end devices

  12. How ZigBee Works • States of operation • Active • Sleep • Devices • Full Function Devices (FFD’s) • Reduced Function Devices (RFD’s) • Modes of operation • Beacon • Non-beacon

  13. ZigBee Mesh Networking Slide Courtesy of Source: http://www.zigbee.org/en/resources/#SlidePresentations

  14. ZigBee Mesh Networking Slide Courtesy of Source: http://www.zigbee.org/en/resources/#SlidePresentations

  15. ZigBee Mesh Networking Slide Courtesy of Source: http://www.zigbee.org/en/resources/#SlidePresentations

  16. ZigBee Mesh Networking Slide Courtesy of Source: http://www.zigbee.org/en/resources/#SlidePresentations

  17. ZigBee Mesh Networking Slide Courtesy of Source: http://www.zigbee.org/en/resources/#SlidePresentations

  18. ZigBee and the Hype Cycle Source: http://computing.arizona.edu/networkmasterplan/tech_hpe_0703.pdf

  19. ZigBee and the Hype Cycle Source: http://www.santafe.cc.fl.us/~faeds/presentations/2004%20Educational%20Tech%20Landscape.ppt#11

  20. ZigBee and the Hype Cycle Source: http://danielneamu.rdscv.ro/cutenews/images/gartner_hype_cycle_4.jpg

  21. Research in ZigBee • Introduction • Research • Research Papers

  22. Introduction • The IEEE 802.15.4 standard was completed in May 2003. • The ZigBee specifications were ratified on 14 December 2004. • The ZigBee Alliance announced public availability of Specification 1.0 on 13 June 2005. • Much research is still going on with ZigBee.

  23. Academic Research Research in ZigBee is being conducted in different fields: • Wireless and sensor networks • Wireless communications • Neuroengineering

  24. Research Papers • Time Synchronization for ZigBee Networks • ZigBee: “Wireless Control That Simply Works” • Journal of Neuroengineering and Rehabilitation • Development of Ubiquitous Sensor Network • Wireless Technologies for Data Acquisition Systems

  25. ZigBee and the Market • The next big thing • Expected to hit the market full force in 2006 • Companies have already invested millions

  26. ZigBee Products • Development Kits • Sensors • Transceivers • Modules

  27. Current ZigBee Uses • Environmental Monitoring • Agricultural Monitoring • Home Automation Still on Horizon

  28. Product Applications • Road map products-tracking • Consumer electronics • PC • Personal and healthcare • Commercial and residential control

  29. ZigBee’s Future Source: http://www.zigbee.org/imwp/idms/popups/pop_download.asp?ContentID=7092

  30. The End

  31. References • http://www.zigbee.org/en/about/faq.asp • http://www.zigbee.org/en/resources/#SlidePresentations • http://computing.arizona.edu/networkmasterplan/tech_hpe_0703.pdf • http://www.santafe.cc.fl.us/~faeds/presentations/2004%20Educational%20Tech%20Landscape.ppt#11 • http://danielneamu.rdscv.ro/cutenews/images/gartner_hype_cycle_4.jpg • http://www.embedded.com/shared/printableArticle.jhtml?articleID=52600868   • http://www.technologyreview.com/articles/04/08/wo_brown081904.asp • http://www.wisegeek.com/what-is-zigbee.htm?referrer=adwords_campaign=zigbee_ad=013761&_content_kw=what%20is%20zigbee • http://www.emba.uvm.edu/~jfrolik/papers/chris_prop.pdf • http://bmc.ub.uni-potsdam.de/1743-0003-2-6/1743-0003-2-6.pdf • http://www.oki.com/en/otr/200/downloads/otr-200-R08.pdf • http://www.ece.uah.edu/~milenka/docs/dc_ssst05_synch.pdf • http://www.merl.com/reports/docs/TR2005-029.pdf • http://www.zigbee.org/resources/documents/IWAS_presentation_Mar04_Designing_with_802154_and_zigbee.ppt • http://en.wikipedia.org/wiki/ZigBee • http://www.zigbee.org/imwp/idms/popups/pop_download.asp?ContentID=7092 • http://www.zigbee.org/en/spec_download/download_request.asp

  32. Competing Technologies • Z-Wave mesh networks • Smarthomes Insteon • Proprietary mesh protocols

  33. The ZigBee Name • Named for erratic, zig-zagging patterns of bees between flowers • Symbolizes communication between nodes in a mesh network • Network components analogous to queen bee, drones, worker bees

  34. ZigBee Product Companies • Helicomm • MaxStream • Luxoft Labs • Crossbow Technology • Innovative Wireless Technologies

  35. ZigBee Network Configuration Source: http://www.embedded.com/shared/printableArticle.jhtml?articleID=52600868
