2.1 Segment Bisectors

2.1 Segment Bisectors. Definitions. Midpoint – the point on the segment that divides it into two congruent segments. A. M. B. Definitions. Segment bisector – a segment, line, ray, or plane that intersects a segment at its midpoint Bisect – to divide the segment into two congruent segments.

yin
Télécharger la présentation

2.1 Segment Bisectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 2.1 Segment Bisectors

  2. Definitions • Midpoint – the point on the segment that divides it into two congruent segments A M B

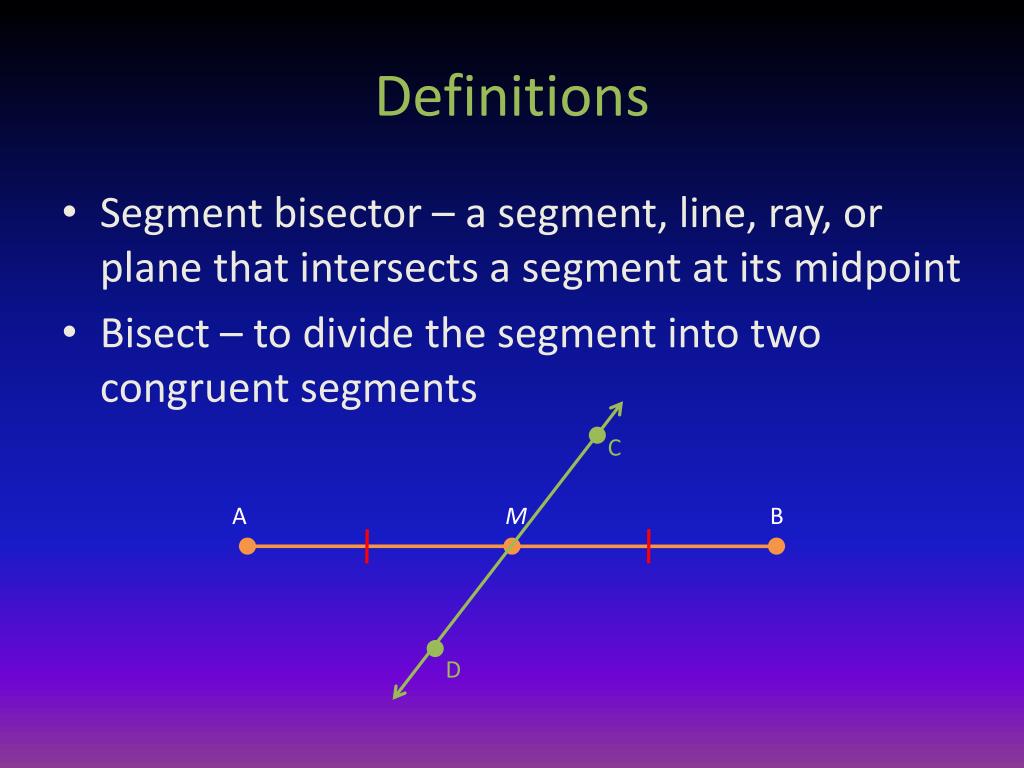

  3. Definitions • Segment bisector – a segment, line, ray, or plane that intersects a segment at its midpoint • Bisect – to divide the segment into two congruent segments C A M B D

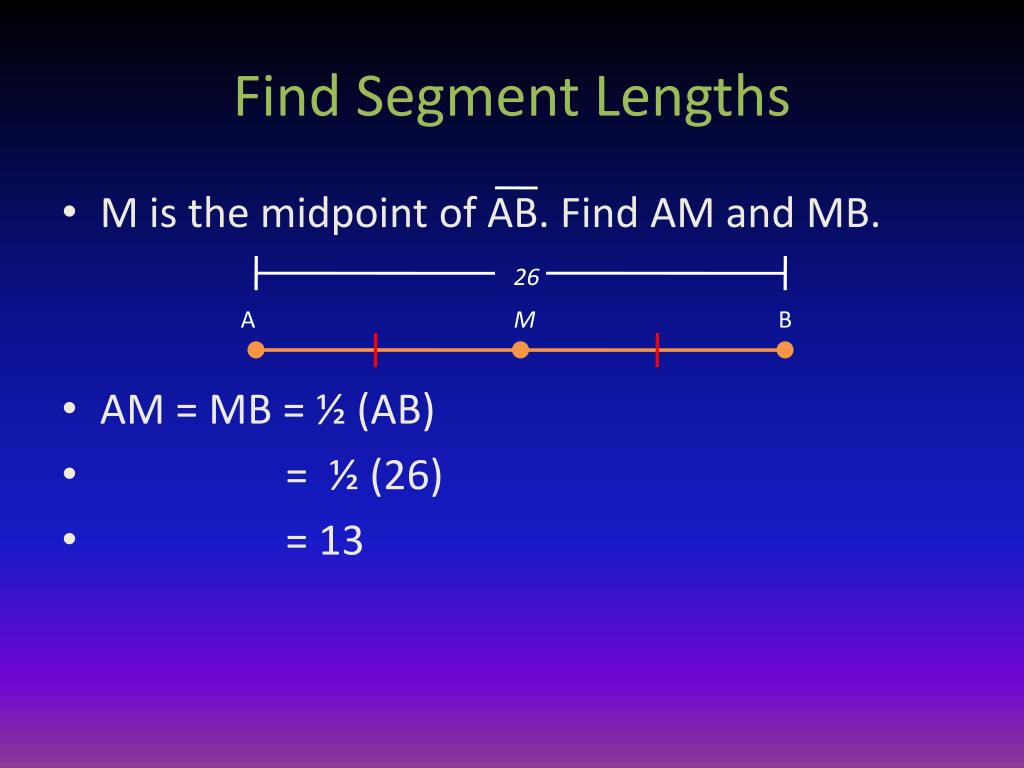

  4. Find Segment Lengths • M is the midpoint of AB. Find AM and MB. • AM = MB = ½ (AB) • = ½ (26) • = 13 26 A M B

  5. Find Segment Lengths • P is the midpoint of RS. Find PS and RS. • RP = PS so PS = 7 • RS = 2 (RP) • = 2 (7) • = 14 R P S 7

  6. Use Algebra with Segment Lengths • Line l is a segment bisector of AB. Find x. AM = MB 5x = 35 x = 7 5x 35 A M B l

  7. The Midpoint Formula • The coordinates of the midpoint of a segment are the averages of the x-coordinates and the y-coordinates of the endpoints B y2 y1 + y2 ---------- 2 M A y1 x1 x1 + x2 --------- 2 x2

  8. The Midpoint Formula • The coordinates of the midpoint of AB is: M x1 + x2 , y1 + y2 2 2 B y2 y1 + y2 ---------- 2 M A y1 x1 x1 + x2 --------- 2 x2

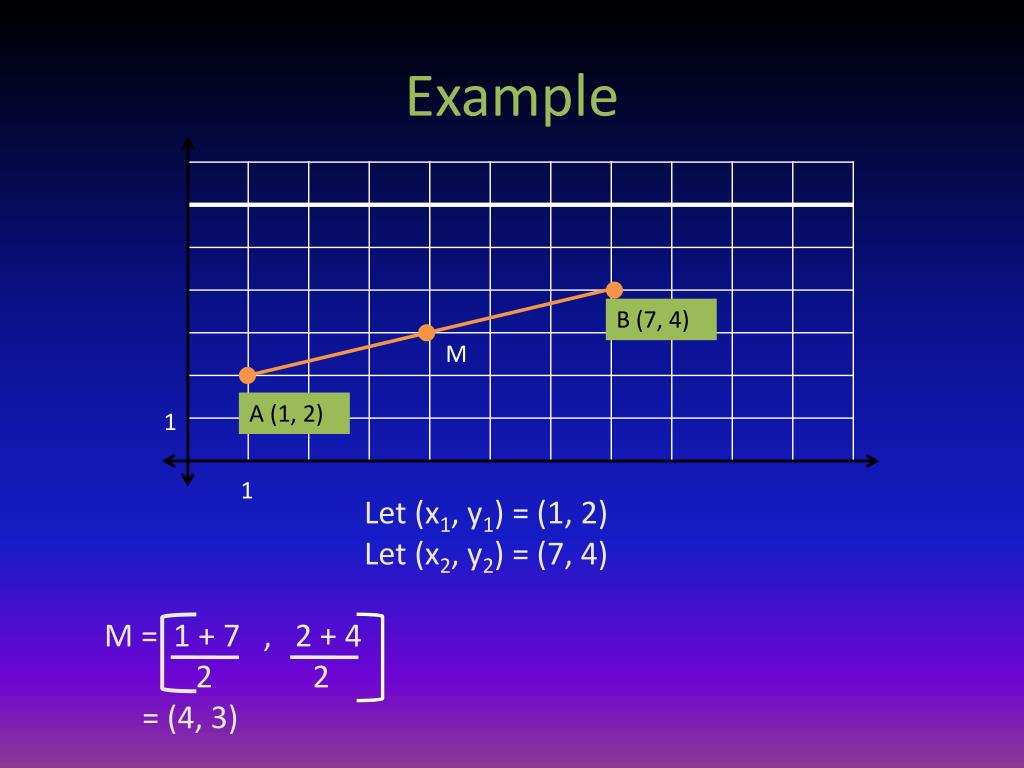

  9. Example B (7, 4) M A (1, 2) 1 1 Let (x1, y1) = (1, 2) Let (x2, y2) = (7, 4) M = 1 + 7 , 2 + 4 2 2 = (4, 3)

  10. Guided Practice • Pg. 56 # 1-10
